Barolo i/O
Barolo i/O
Regular price
$5,999.99
Regular price
Sale price
$5,999.99
Unit price
per
SKU: SKU:41831
A big and bad attitude to match the wine that shares its name, the Barolo is the first in the line of exciting things to come at Masi. A Fazua drive unit and full carbon gravel frame and fork make for a bike that is as happy on a lonely dirt road as it is mixing it up in a Saturday morning group ride. The Fazua evation drive system is the lightest and most compact mid-mounted system, having a non-motorized appearance. The ability to replace the motor and battery with a cover, coupled with the low-friction feel make the Barolo easily converted to a standard, non-assist bicycle. Whether it is going further faster, or just keeping up with stronger riders, the Barolo will bolster everything you love about riding.
Sizing Guide
Sizing Guide
| Size | Inches | CM |
|---|---|---|
| S/M | ||
| M/L | ||
| L/XL |
Couldn't load pickup availability
FEATURES
Features
- Fazua evation mid-drive motor, 250 Watt | 55 Nm | 3 assist levels
- Full MC9 carbon frame and fork with clearance for up to 40c tires
- 2in1 Conversion to non-pedal assist bicycle using integrated battery cover
- Slim, compact non-motorized appearance
- Low-friction drive-unit for resistance free pedaling with or without motor assist
- Class 3 eBike pedal-assist up to 28mph
- Up to 80 miles estimated range
Collapsible content
SPECIFICATIONS
| FRAMESET | |
|---|---|

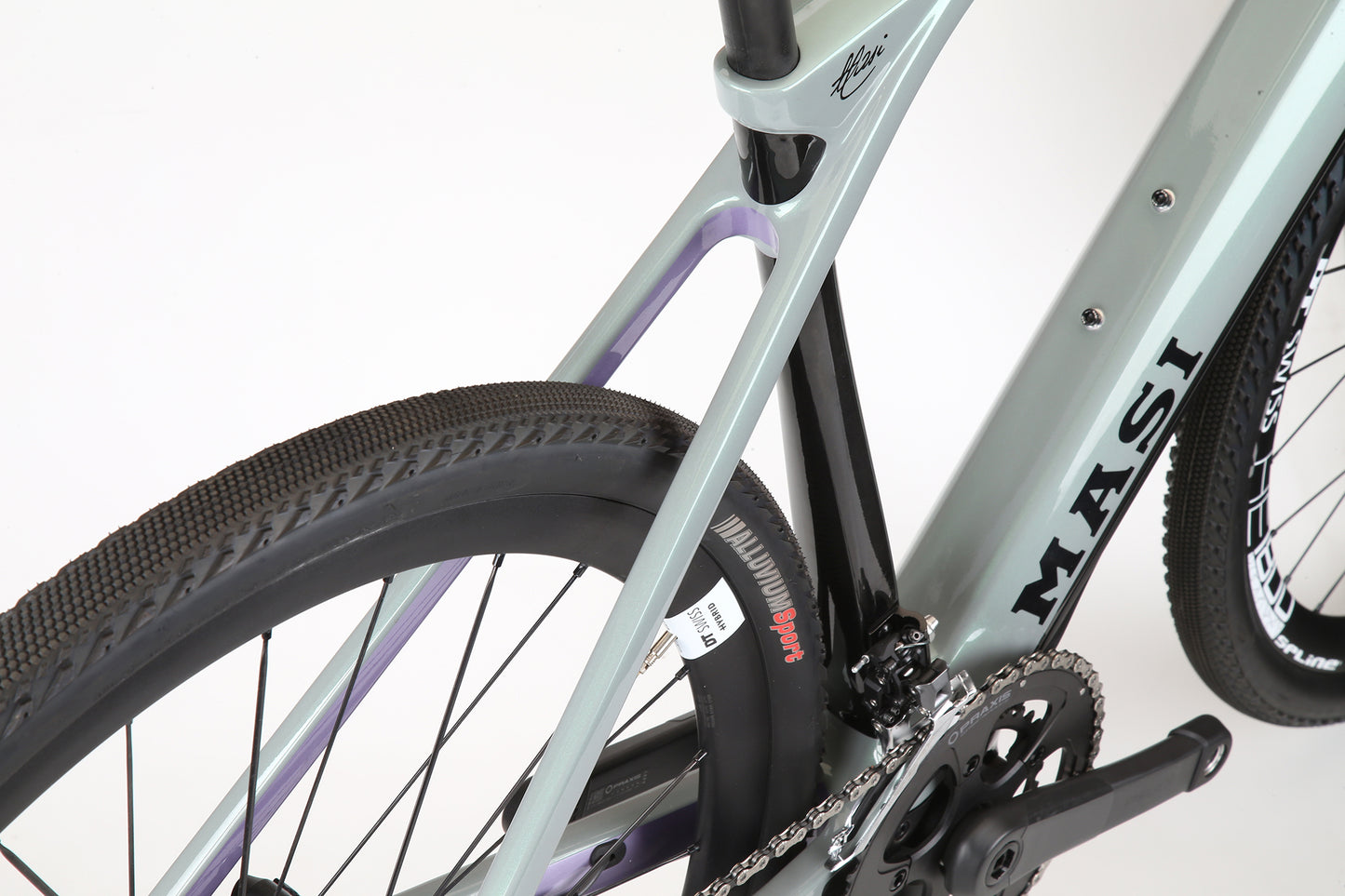

| Frame | Barolo i/O | MC-9 carbon | 1.125 - 1.5" tapered head tube | Fazua mid-mount | Di2 compatible | Internal routing | Replaceable derailleur hanger | 12 x 142mm thru-axle |
| Fork | Barolo gravel | MC9 carbon construction | Carbon 1.125 - 1.5" tapered steer tube | Flat-mount disc | 12 x 100mm thru-axle |
| Colors | Violet Veil Grey |
| Weight | 31.8 lbs, 14.4 kg |
| DRIVETRAIN | |

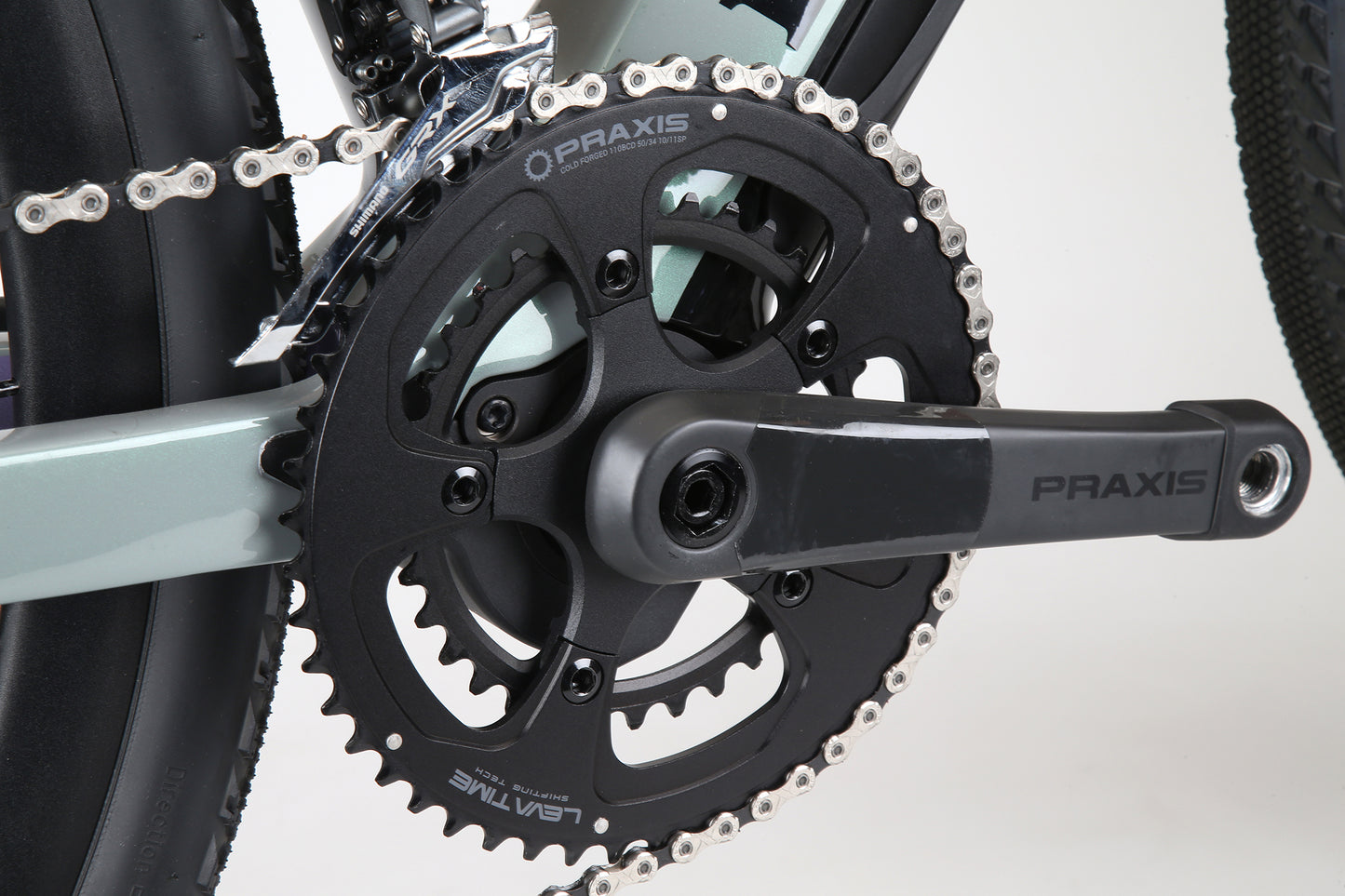

| Cranks | Praxis Carbon | ISIS standard | 50/34T chainring | 52-55cm : 172.5mm, 58cm : 175mm |
| Pedals | |
| Chain | KMC X11 |
| Bottom Bracket | |

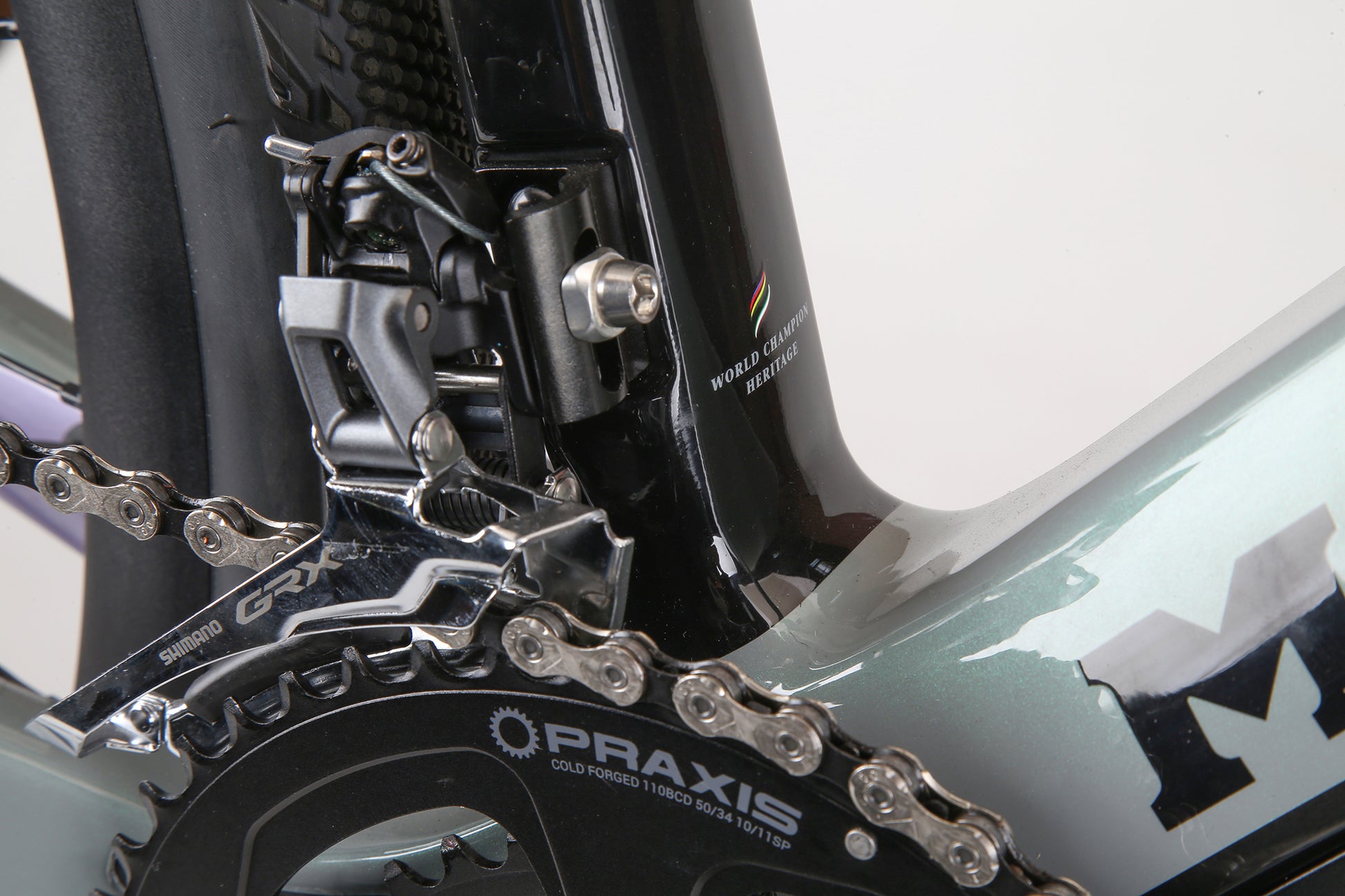

| Front Derailleur | Shimano Ultegra FD-R8000 braze-on |

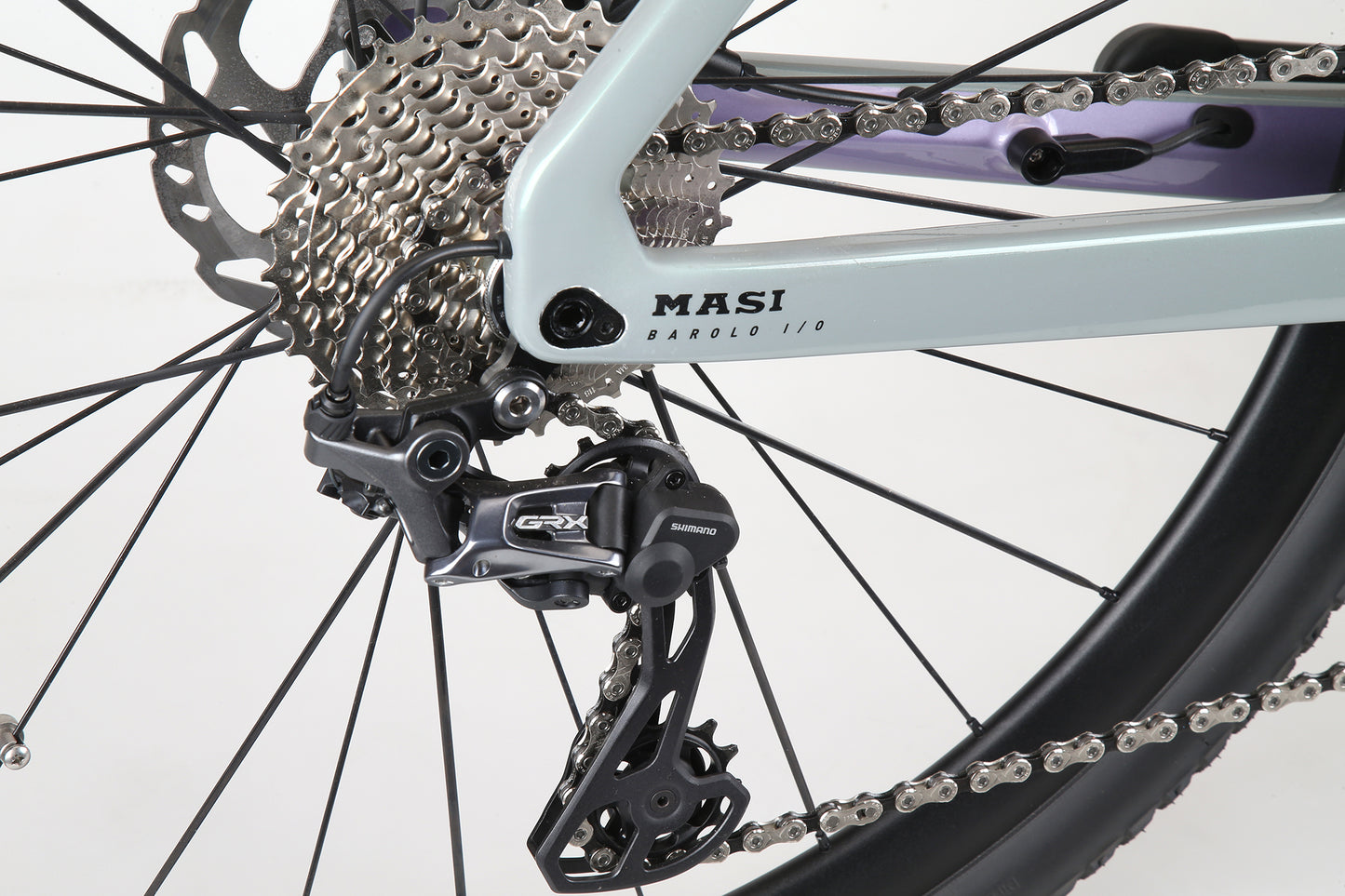

| Rear Derailleur | Shimano GRX RD-RX810 11s |
| Derailleur Shifter | Shimano GRX ST-RX600 2X11 |
| Freewheel/Cassette | Shimano CS-HG7000 | 11-spd | 11-34T |

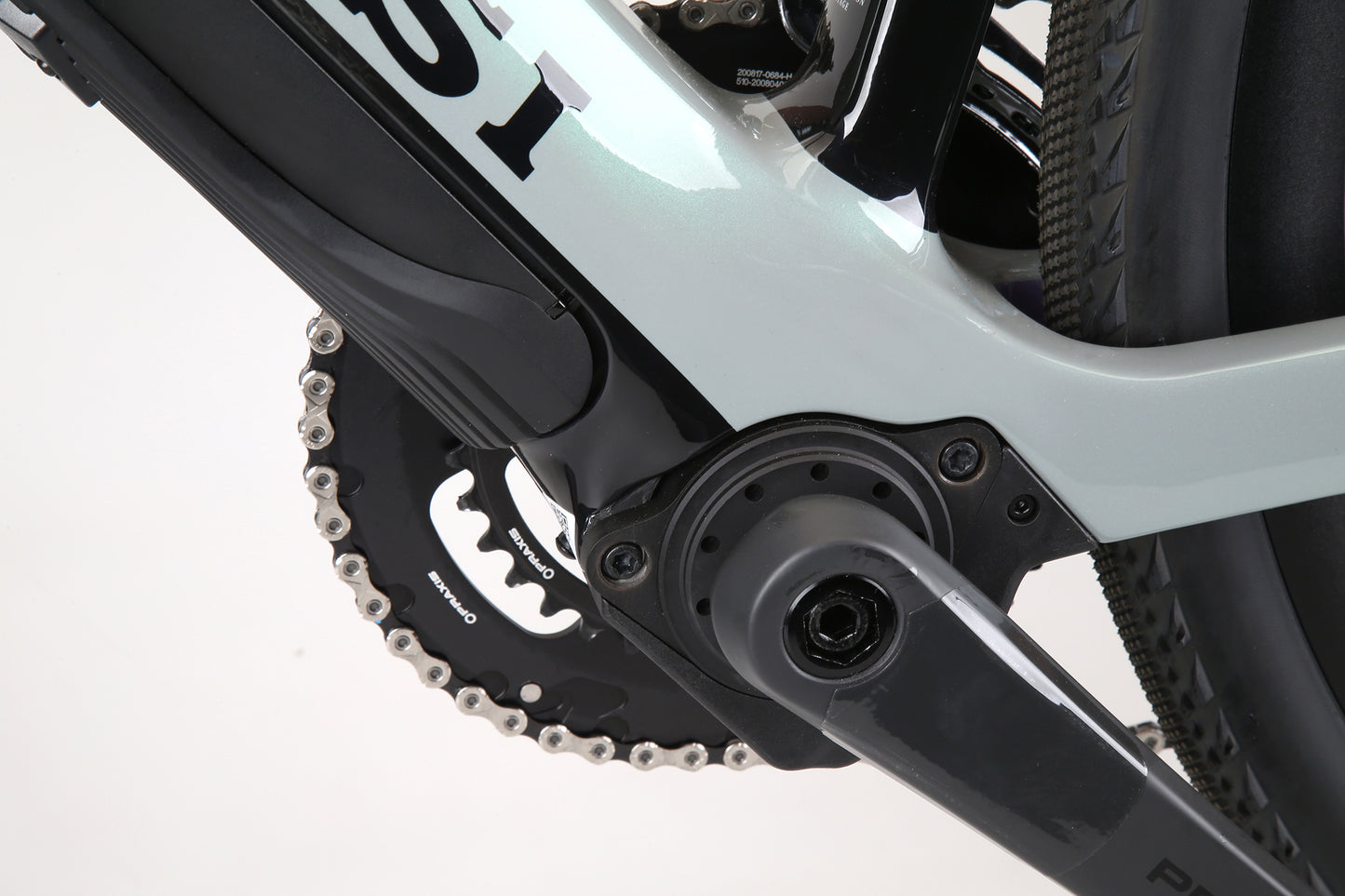

| Drive Unit | Fazua evation mid-drive motor, 250 Watt | 55 Nm | 3 assist levels |
| Battery | 252 Wh internal |
| WHEELS | |
| Tires | Kenda Alluvium Pro | 700x40c | GCT puncture protection | 120tpi | Tubeless compatible | Folding |
| Wheels/Rims | DT Swiss HE-1800 Spline 32 | 700c | Depth: 32mm, Width: 24mm | Welded rim | 32H |

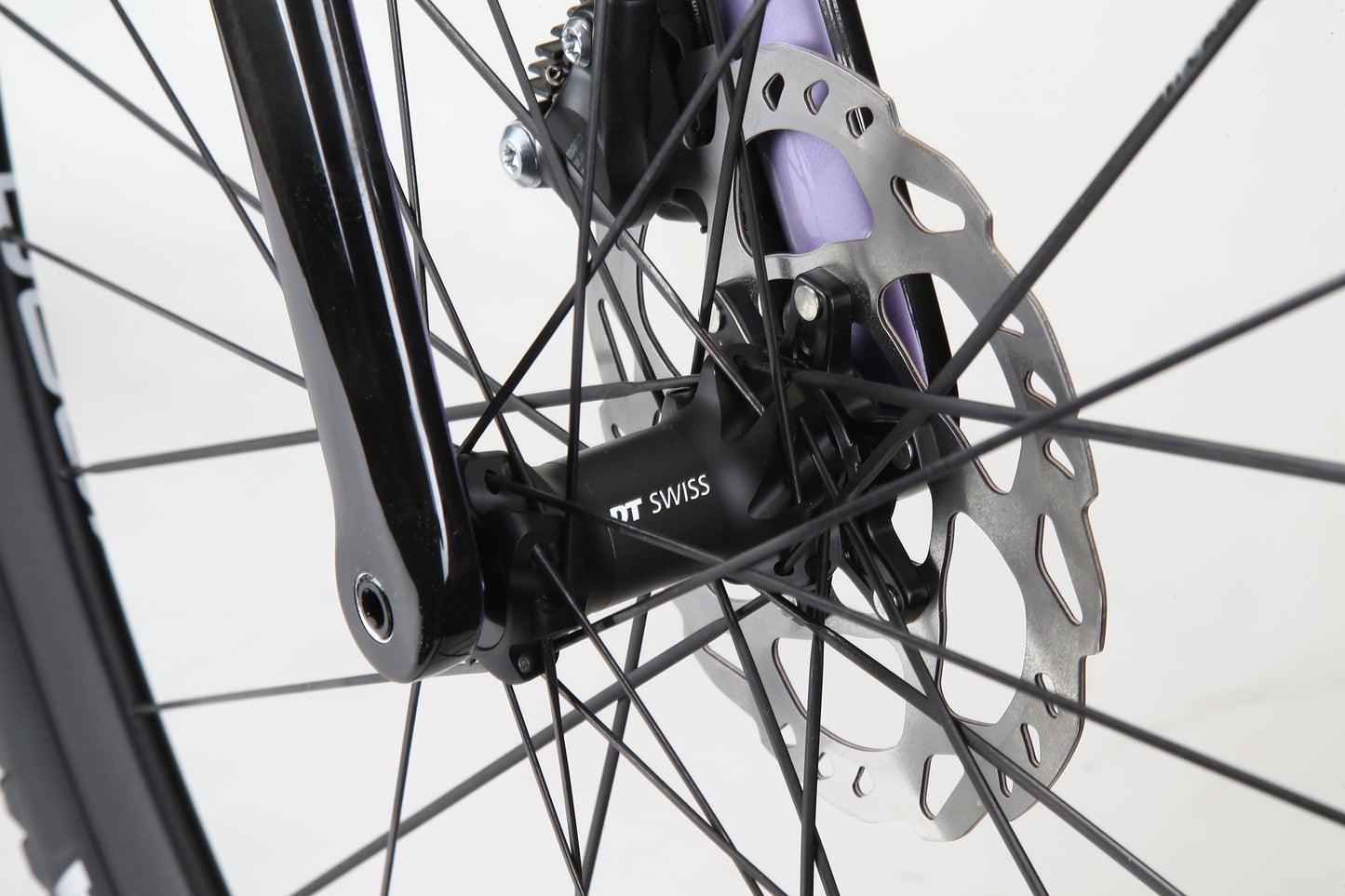

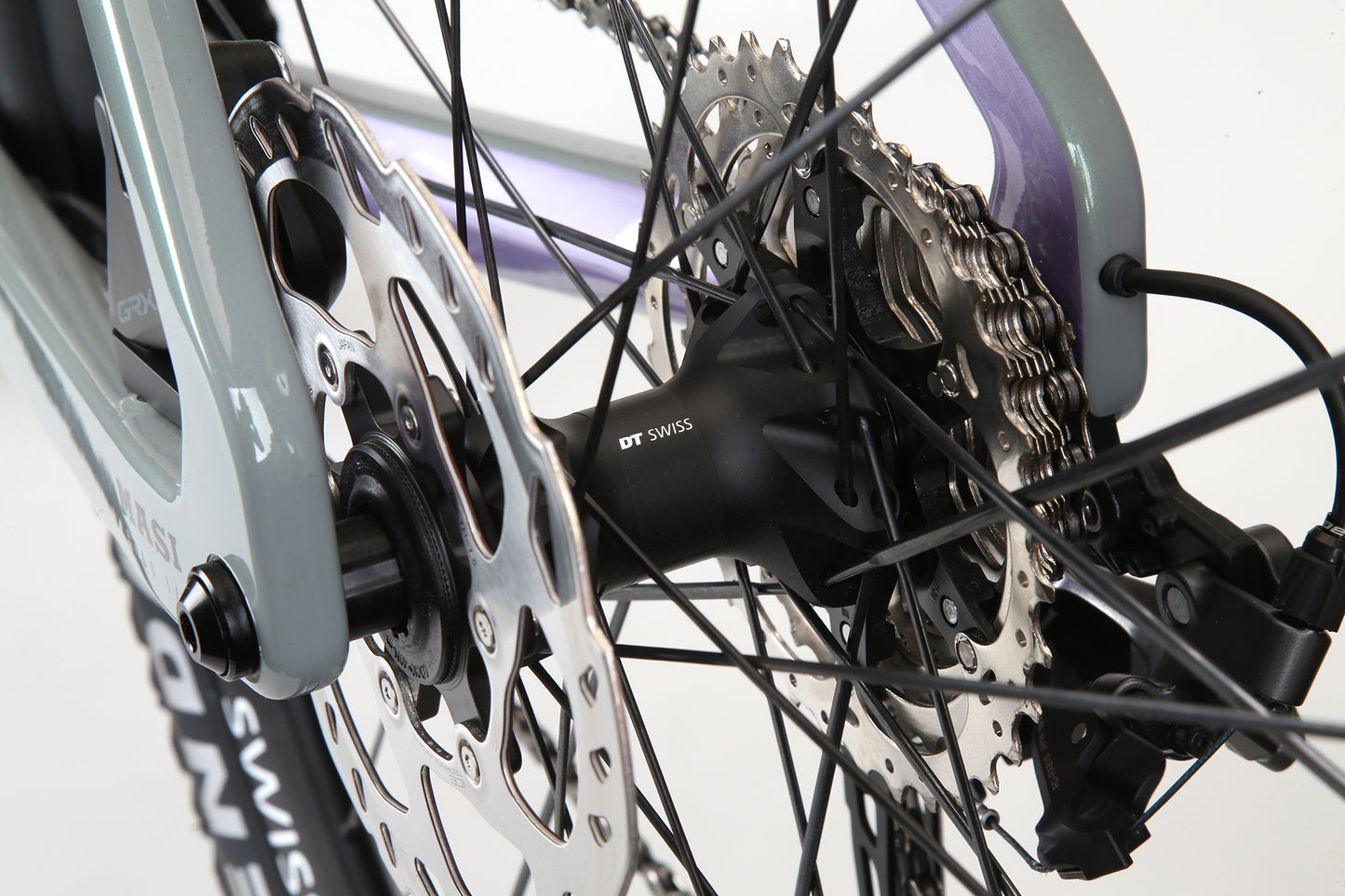

| Hubs | DT Swiss HE-1800 Spline 32 | Front: 12 x 100mm thru-axle, Rear: 12 x 142mm thru-axle | 11s Shimano freehub | Center Lock | 32H |
| BRAKING SYSTEM | |

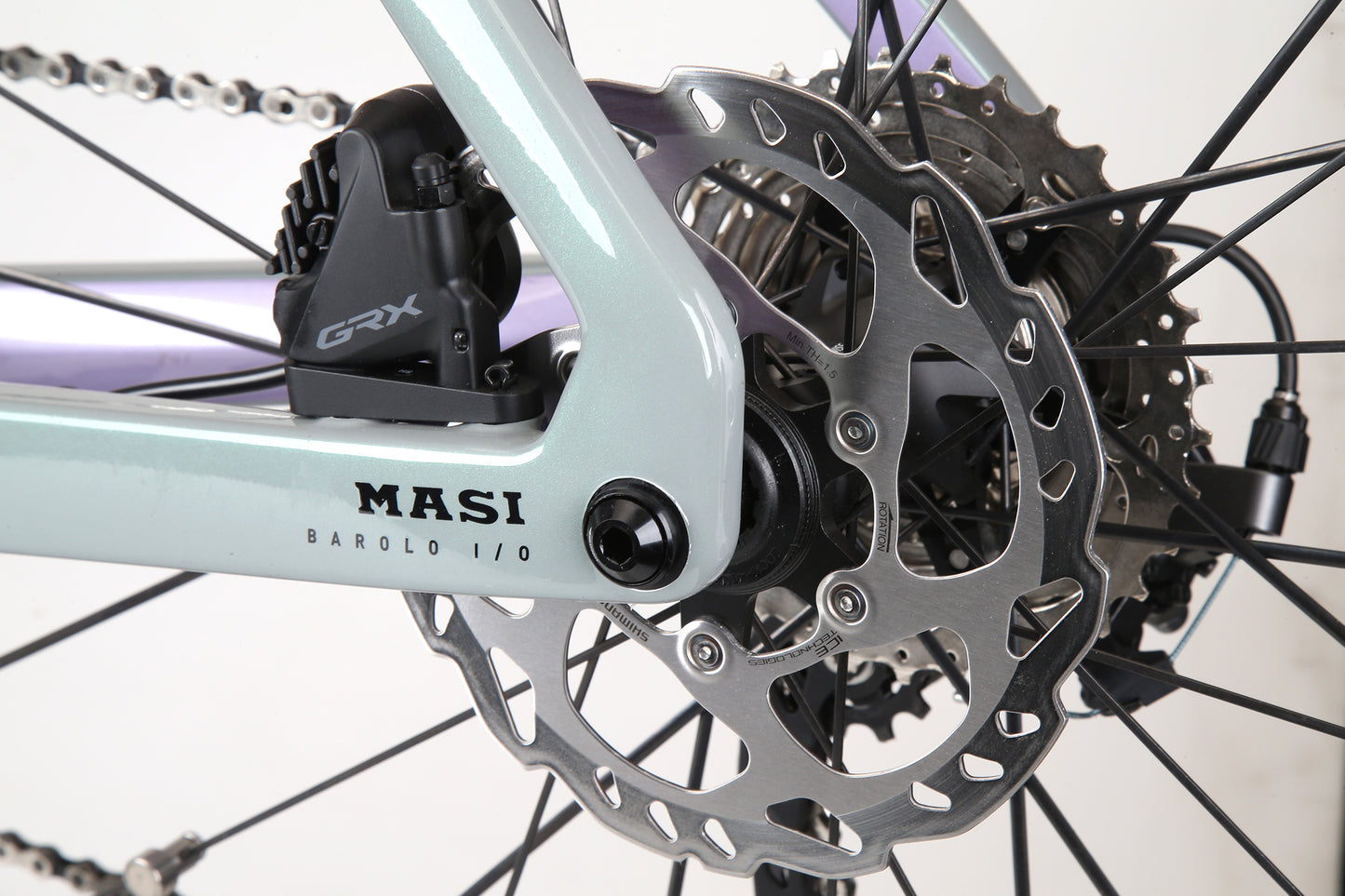

| Brakes | Shimano GRX BR-RX400 hydraulic disc | Flat mount | RT-70 Center Lock rotor, F: 160mm, R: 140mm Shimano GRX ST-RX600 hydraulic |

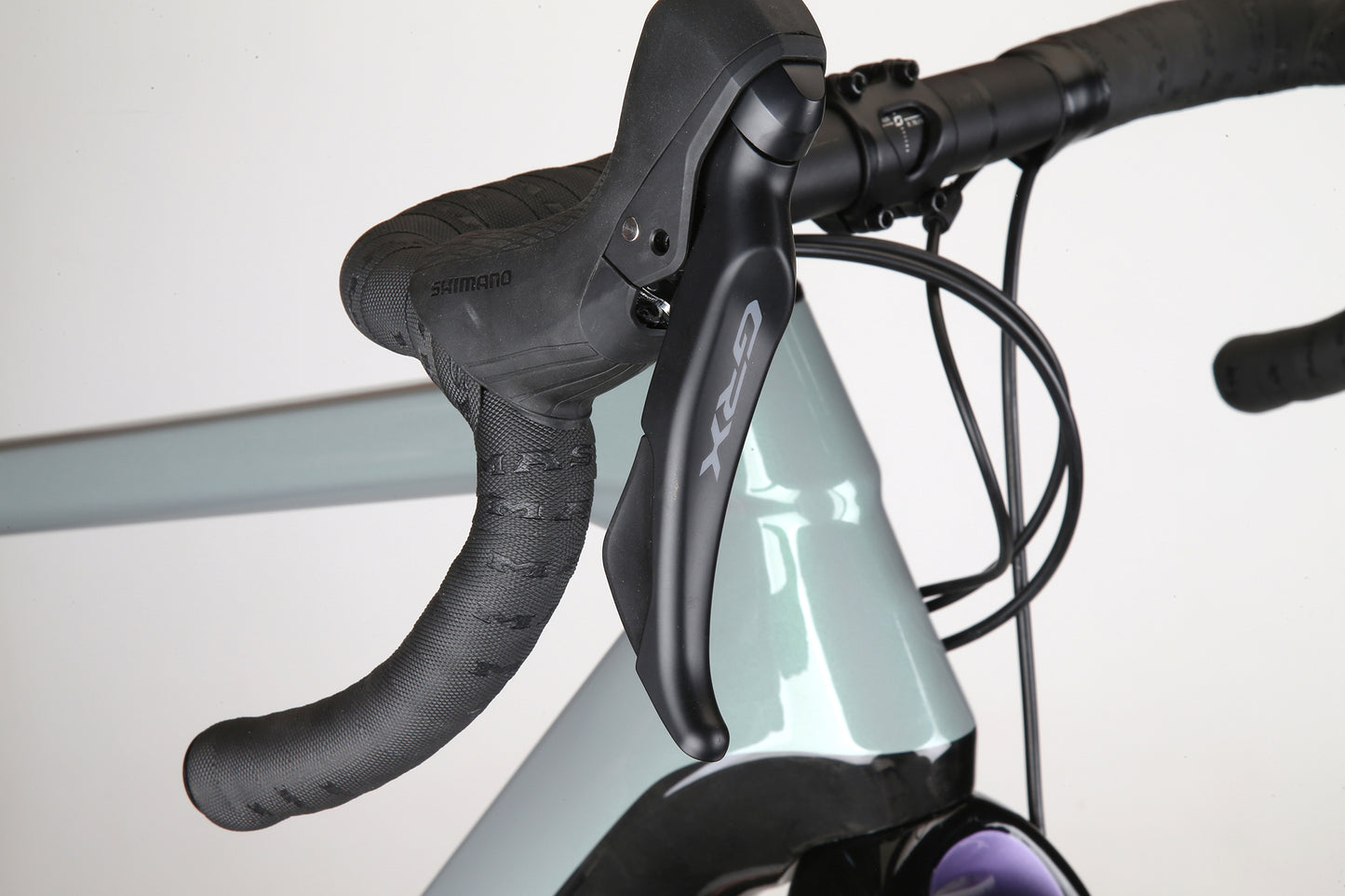

| Brake Levers | Shimano GRX ST-RX600 hydraulic |
| OTHER COMPONENTS | |
| Grips/Tape | Masi Gripper Silicone Gel |
| Handlebar | Brev M. race alloy gravel bend | ϕ 31.8mm | 122mm drop | 70mm reach | 16° flare | 52 - 54cm: 42cm, 58cm: 44cm |
| Stem | Brev M. Gravel Race | 3D forged alloy | -7° drop | 52-55cm: 100mm, 58cm: 110mm |
| Headset | Masi by Token 1.5" tapered | Sealed bearing |
| Saddle | fi'zi:k Taiga Gravel |
| Seat Post | Brev M. Carbon | ϕ 27.2mm x 300mm | 10mm offset |

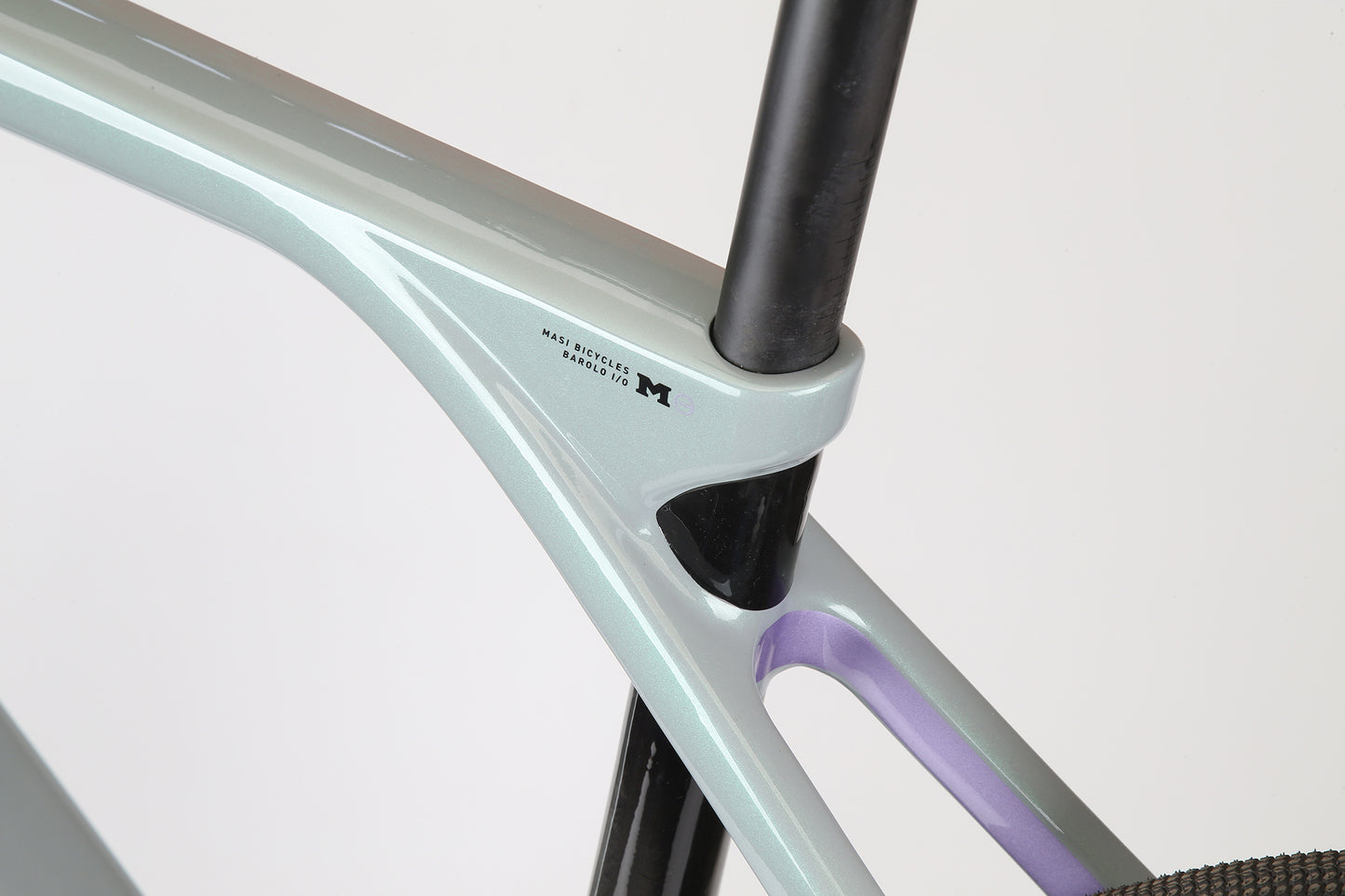

| Seat Clamp | Integrated |

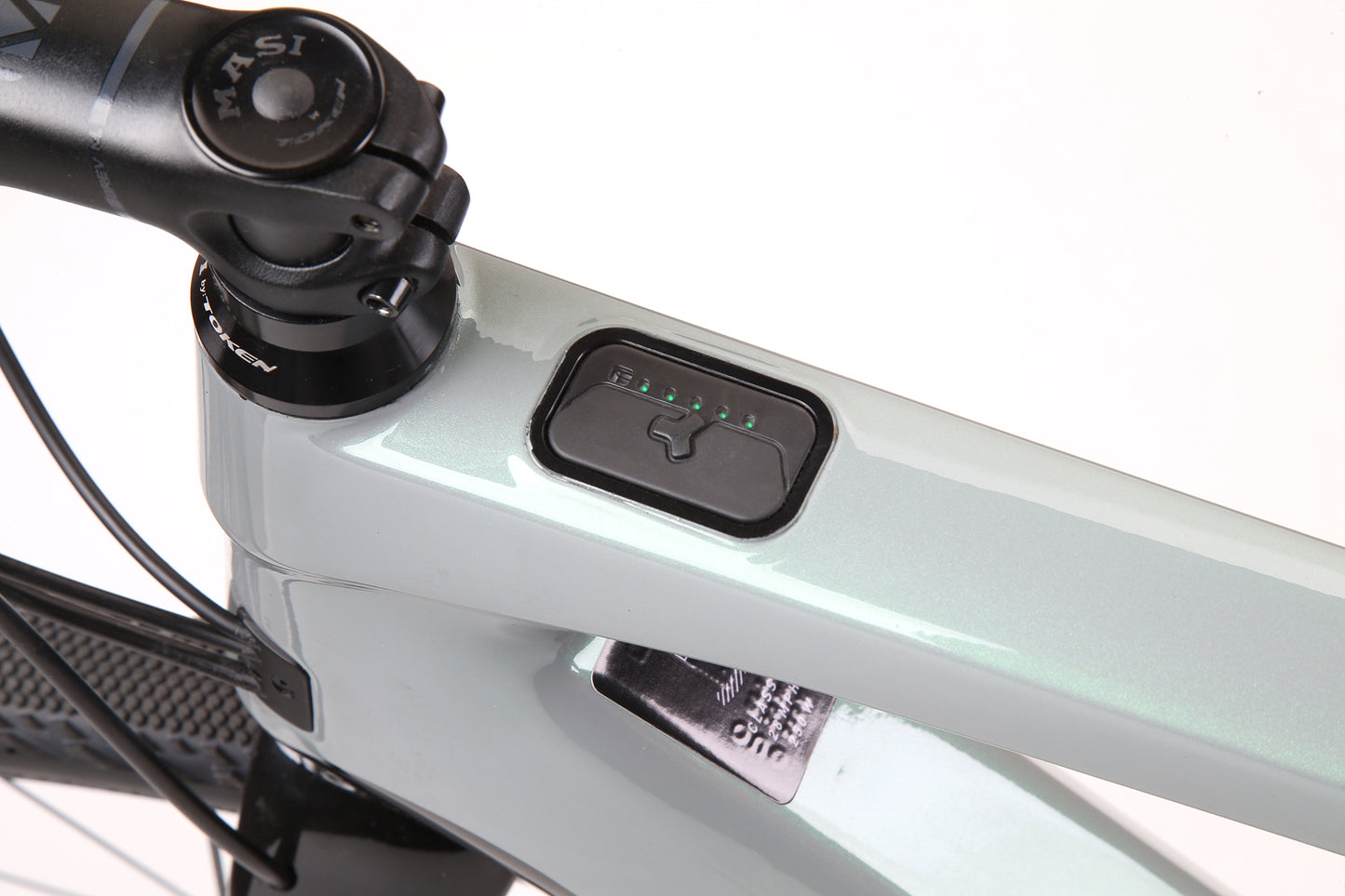

| Extras | Fazua fx 880 remote switch, battery charger, and down tube cover |
GEOMETRY
| SIZE | S/M | M/L | L/XL |
|---|---|---|---|
| A. Top Tube (Effective) | 560mm (22") | 583mm (23") | 600mm (23.6") |
| B. Seat Tube (C-T) | 514mm (20.2") | 550mm (21.7") | 580mm (22.8") |
| C. Stack Height | 592.5mm (23.3") | 621.1mm (24.5") | 640mm (25.2") |
| D. Reach | 384.5mm (15.1") | 387.2mm (15.2") | 398.2mm (15.7") |
| E. Standover | 790mm (31.1") | 840mm (33") | 860mm (33.8") |
| F. Head Tube Length | 167mm (6.6") | 197mm (7.8") | 217mm (8.5") |
| G. Head Angle | 72.5° | 72.5° | 72.5° |
| H. Seat Angle | 73.5° | 72.5° | 72.5° |
| I. Wheel Base | 1018mm (40.1") | 1030mm (40.6") | 1047mm (41.2") |
| J. Chainstay | 430mm (16.9") | 430mm (16.9") | 430mm (16.9") |
| K. BB Drop | 74mm (2.9") | 74mm (2.9") | 74mm (2.9") |
| L. Fork Offset | 45mm (1.8") | 45mm (1.8") | 45mm (1.8") |
| M. Stem Length | 100mm | 100mm | 110mm |
| N. Bar Width | 420mm | 440mm | 460mm |
| O. Crank Length | 172.5mm | 172.5mm | 175mm |
| P. Wheel Size | 700 | 700 | 700 |
*Specifications are subject to change without notice
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
