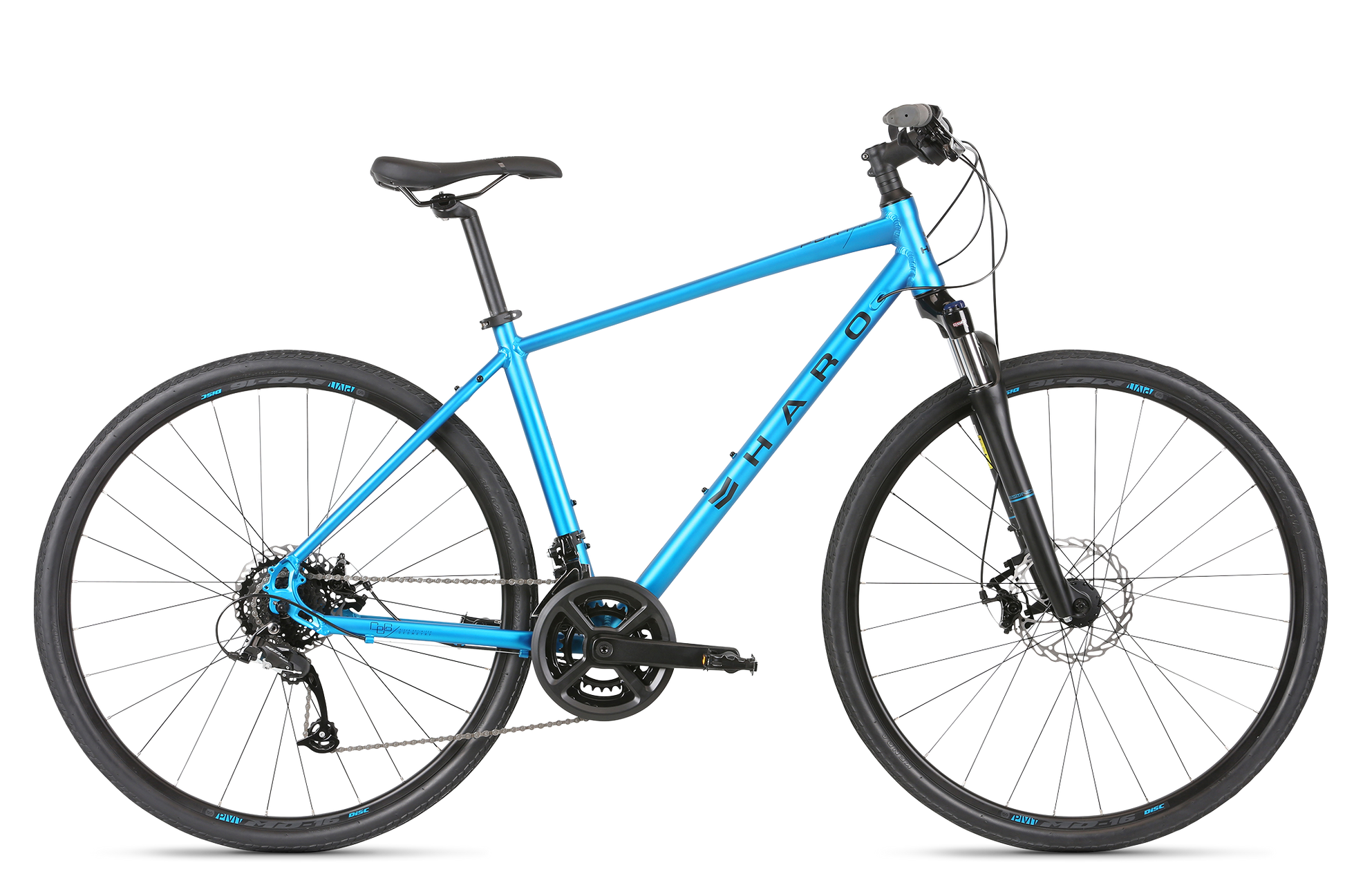

Bridgeport

Lighter than a mountain bike, more comfy that a road bike... it's a bird, it's a plane, it's... da duhhn... the Bridgeport. Coming to a nicer bike shop near you, "The Bridgeport" (Rated R, starts Friday) has the can-do attitude of a suspension-fork-equipped mountain bike, the svelte poise of a sprightly road bike, the unflappable countenance of a LA-Z-Boy, all in a price-conscious package that's the MUST HAVE of this summer! Shop now for limitless mobile comfort or forever regret purchasing indecision.

Customer Reviews

No reviews yet
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Specifications

FRAMESET

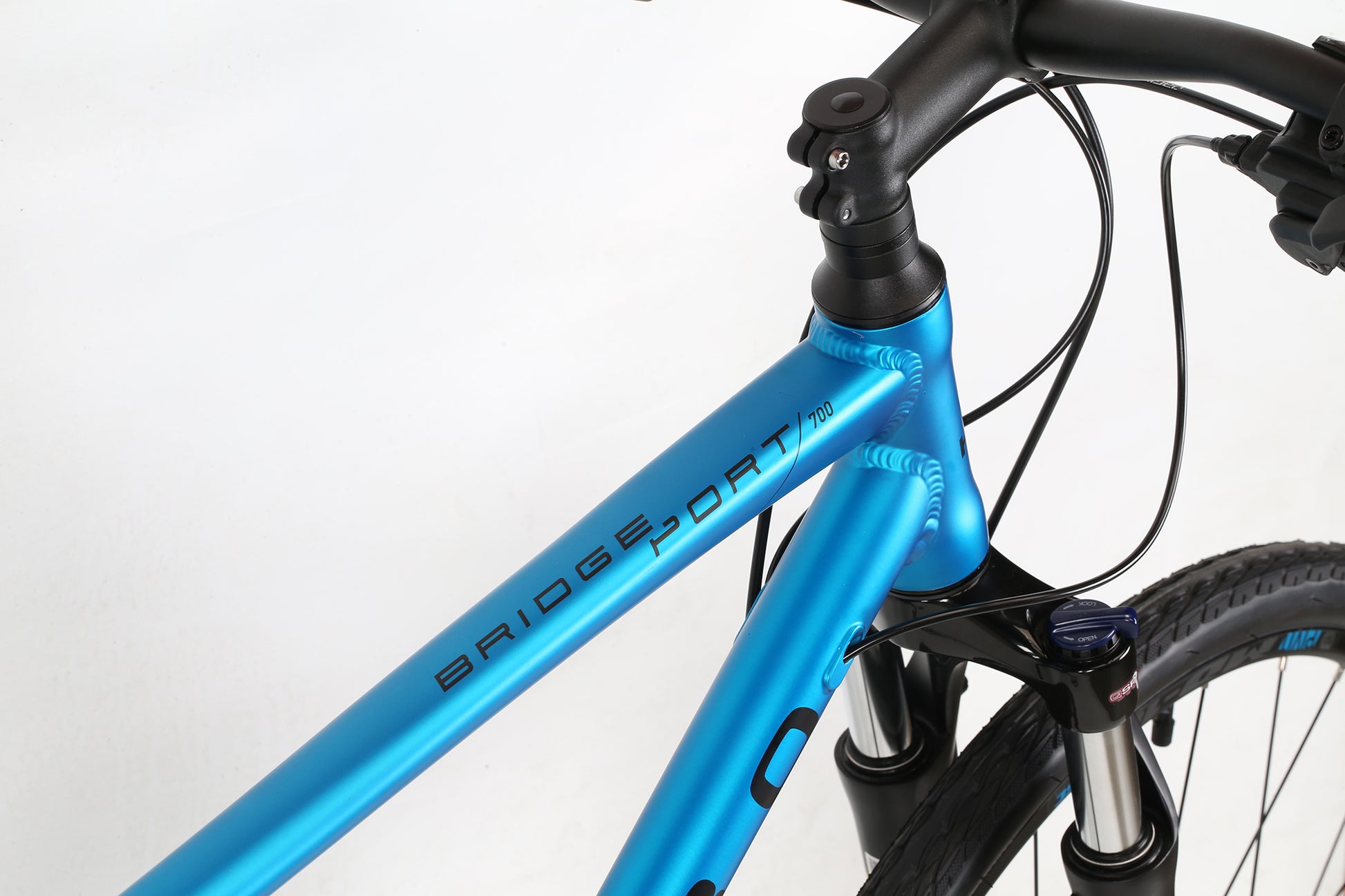

FrameHaro Solum | Heat-treated 6061 aluminum | Tig-welded construction | Rider-tuned geometry | 68mm threaded BSA bottom bracket shell | I.S. disc brake mount | 135mm quick-release dropouts with replaceable derailleur hanger

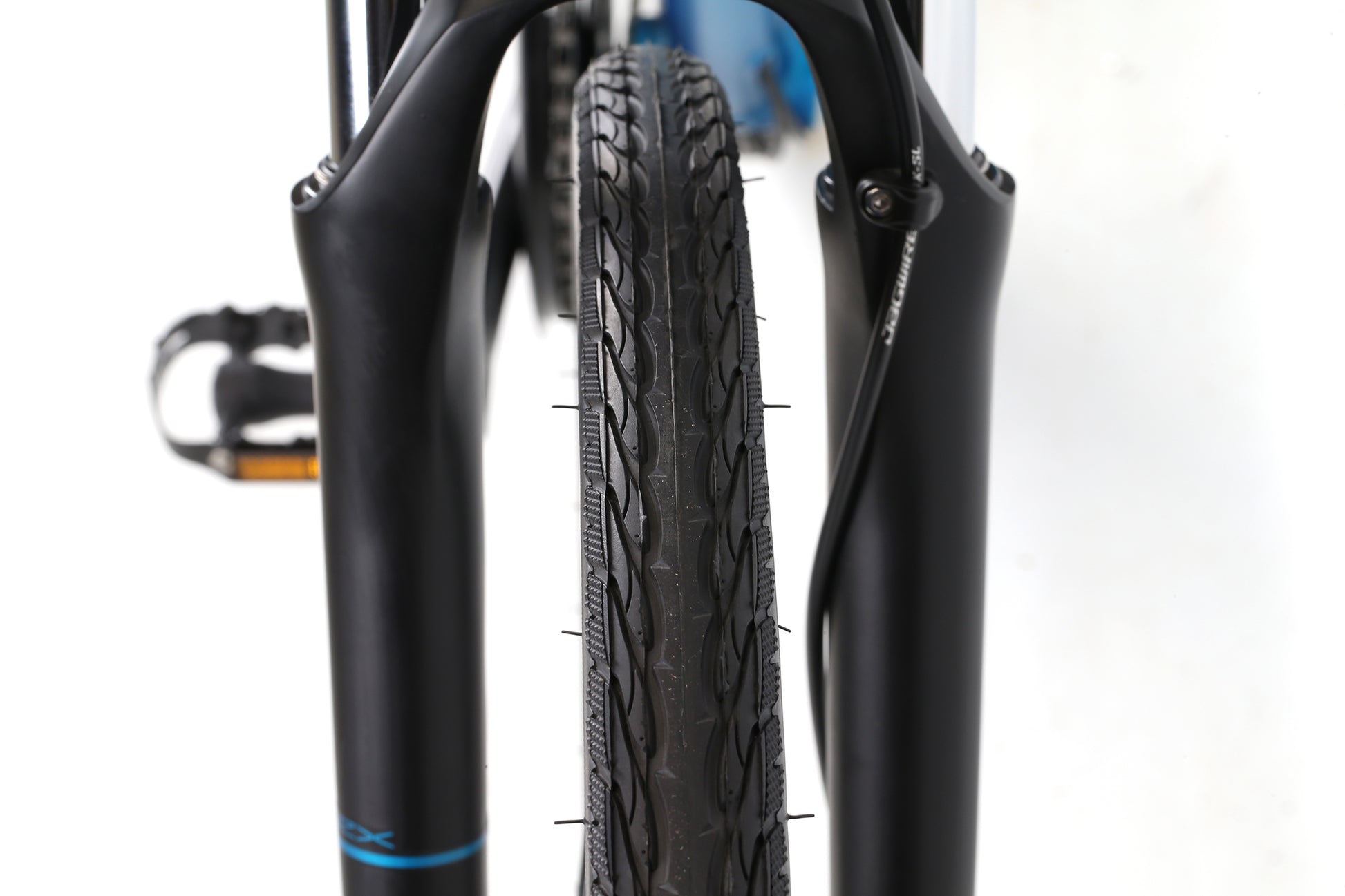

ForkSR Suntour | SF20 NEX HLO-DS | 63mm travel | Lightweight alloy crown and monocoque lowers | Weather-sealed stanchion protection | Plush coil spring with adjustable preload | Hydraulic Lockout | Post-mount disc brake | 100mm quick-release spacing
ColorsMatte Charcoal, Blue Skies
Weight33 lbs
DRIVETRAIN

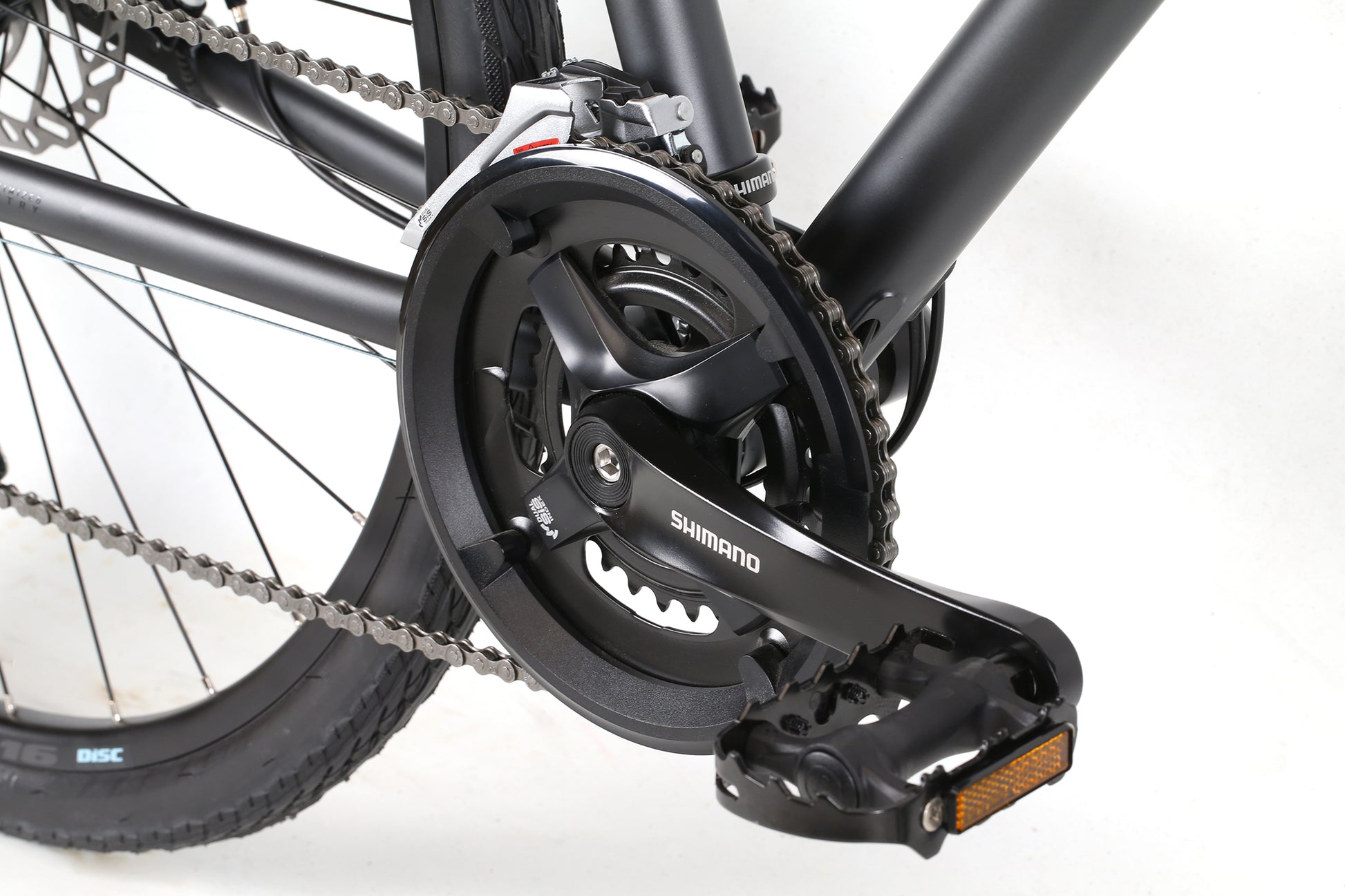

CranksShimano TY-501 | 46/30T | 8-speed | 15.5" & 17.5": 170mm; 19"-23": 175mm
PedalsVP | 990S | Nylon body with steel cages | Chromoly axles
ChainKMC Z8.1 | 8-speed
Bottom BracketShimano UN100 | Threaded BSA 68mm BB shell | 122.5mm spindle (LL123) | Sealed cartridge
Front DerailleurShimano Tourney FD-TY710 | Top swing | 34.9mm band diameter

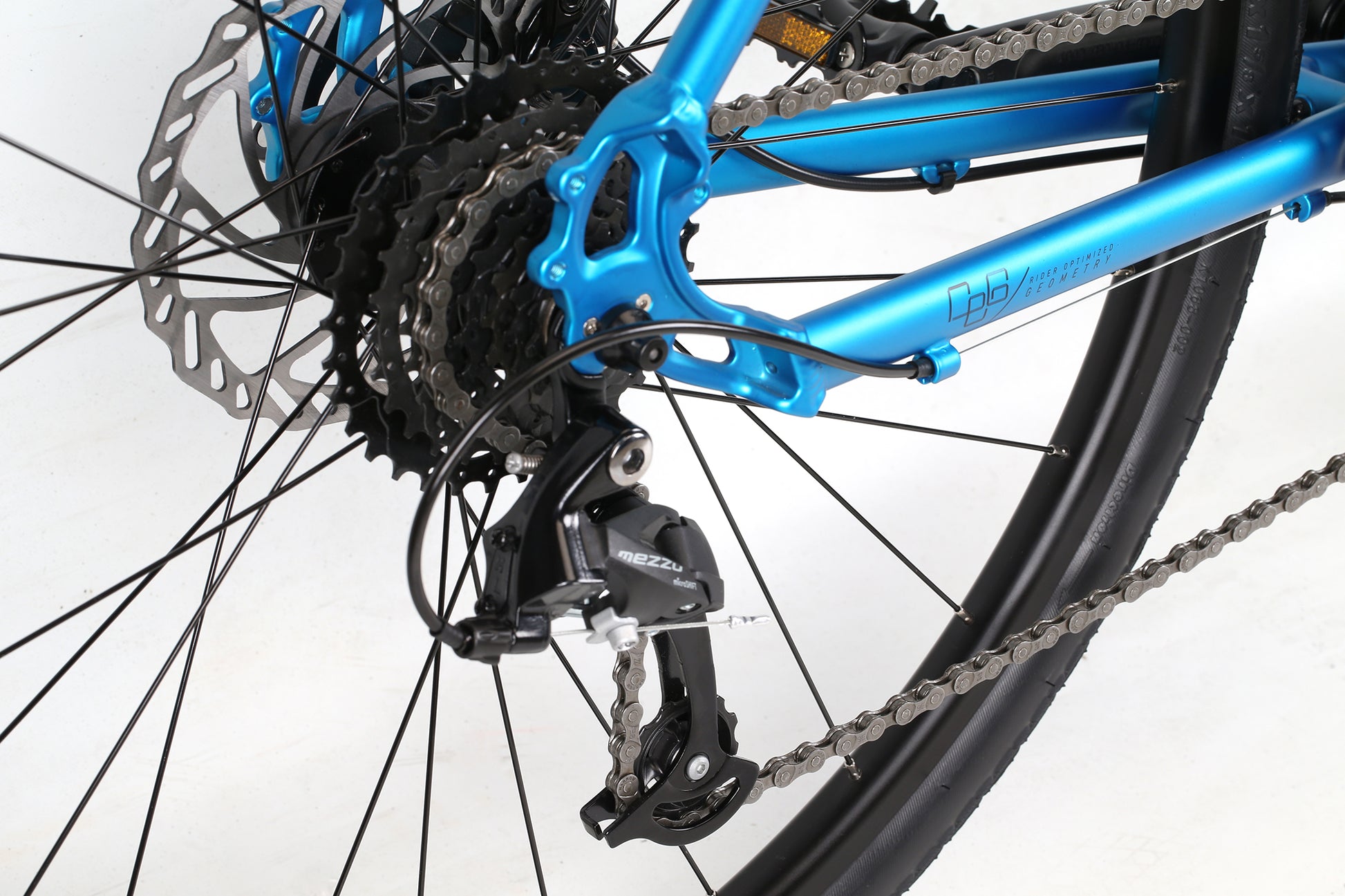

Rear DerailleurShimano Altus RD-M310-L | 8-speed | Direct attachment

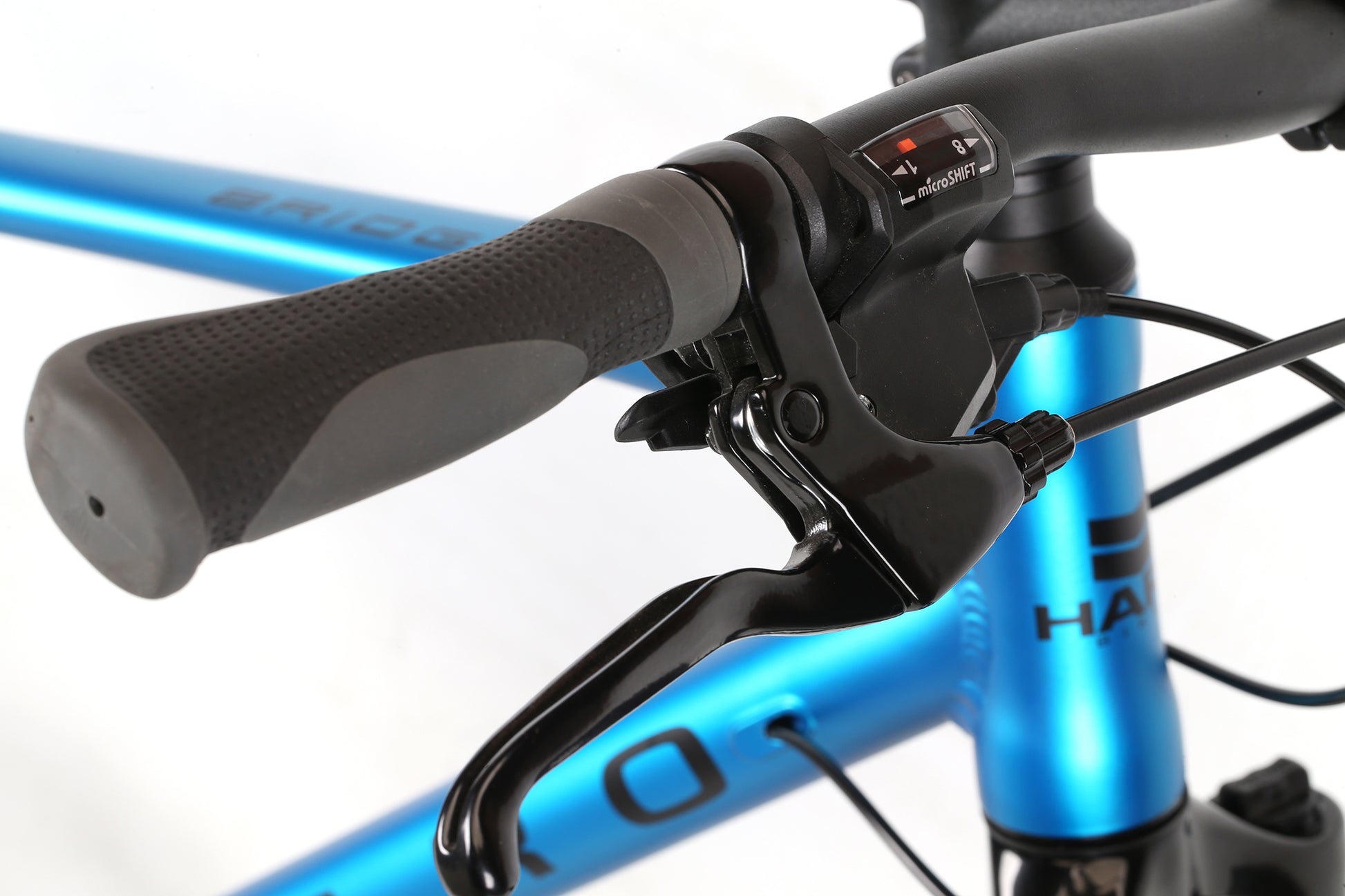

Derailleur ShifterShimano SL-M315 | 2 x 8-speed Rapidfire Plus | Optical gear display
Freewheel/CassetteMid-range | 8-speed | 11-34T
WHEELS
TiresKenda Kwick Bitumen, 700 x 38c
Wheels/RimsPivit Excelsior 700c | Width (internal): 19mm | 28h | Alloy double wall | Disc-brake specifc
BRAKING SYSTEM

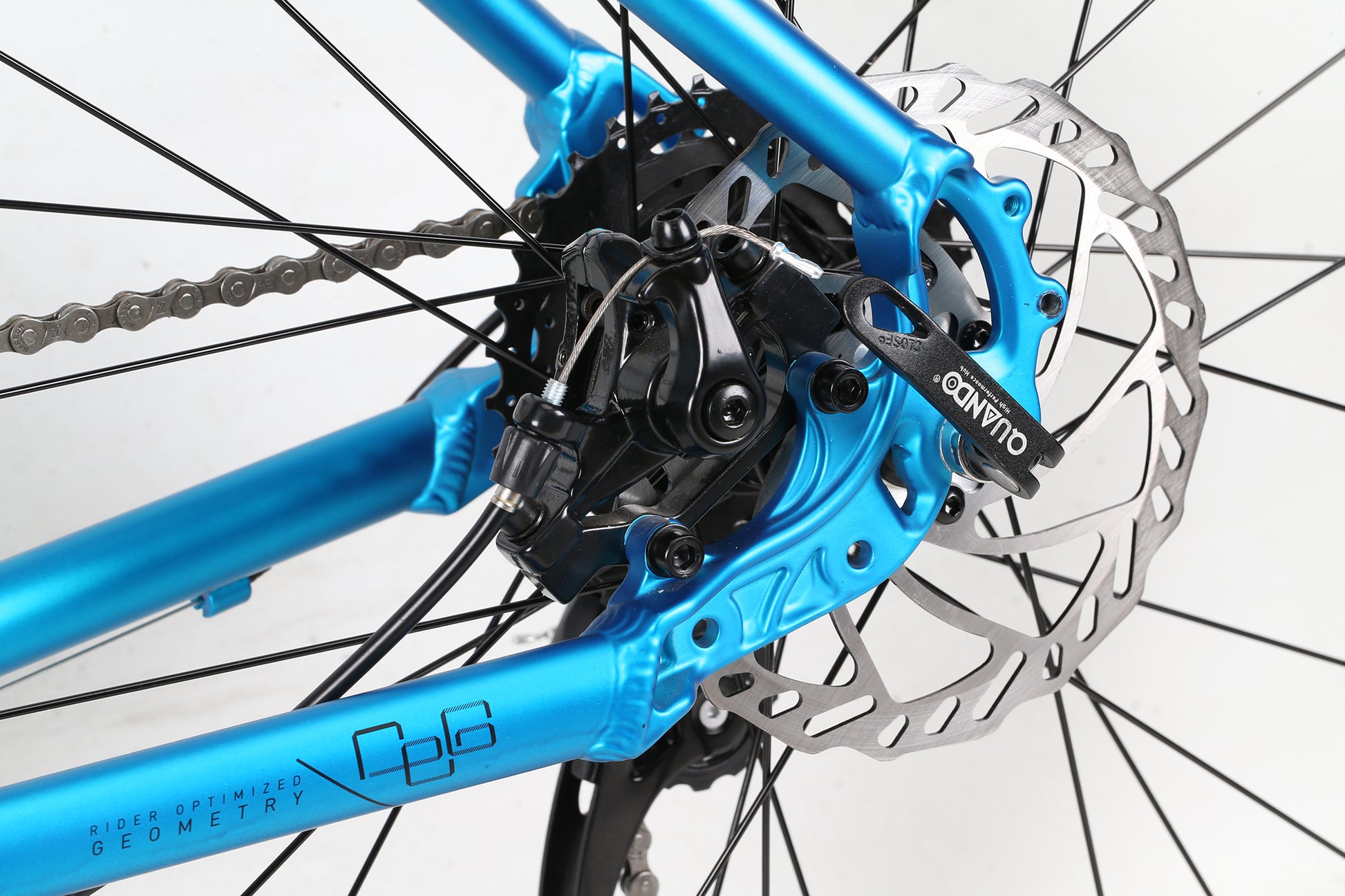

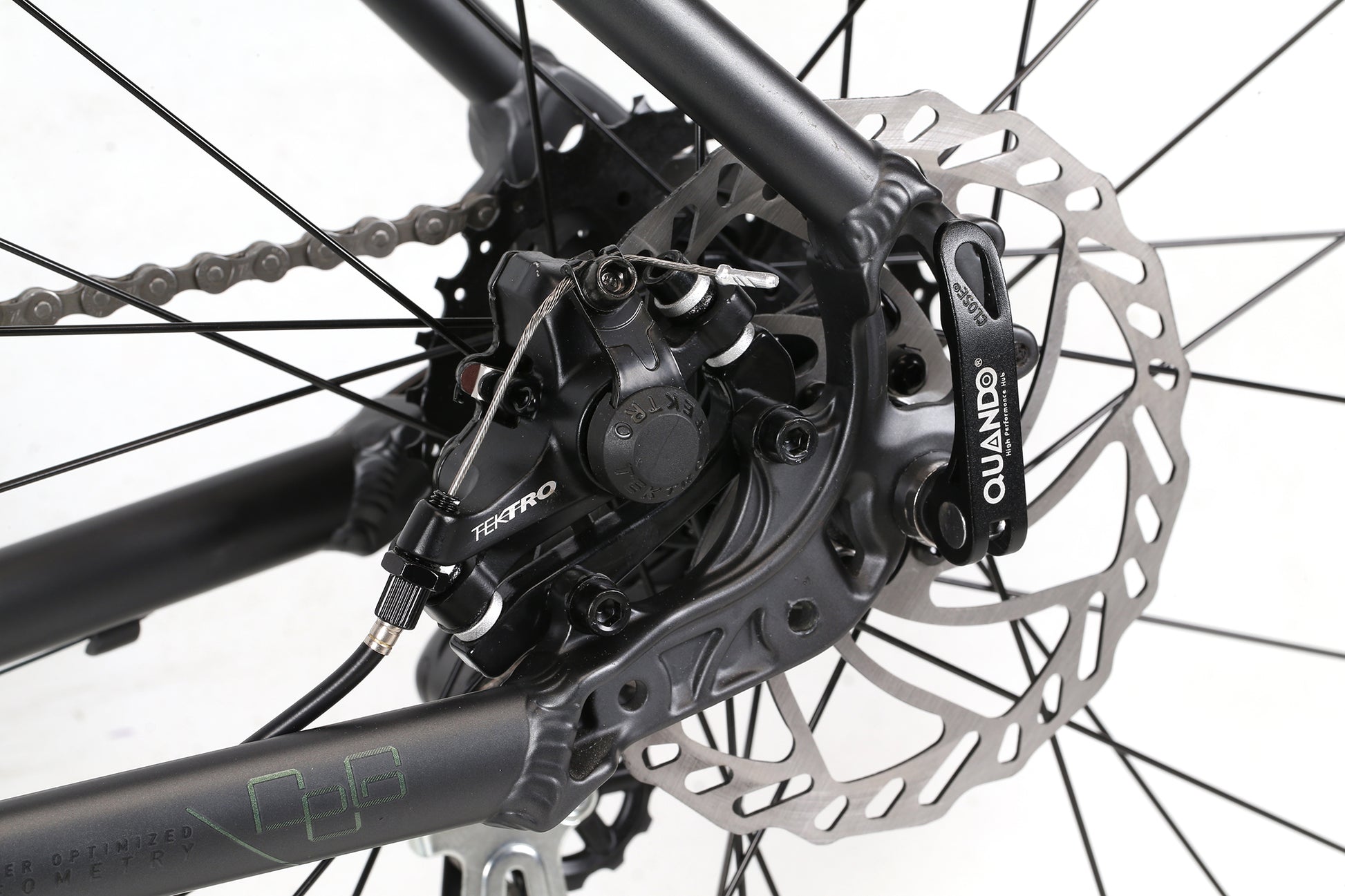

BrakesFlat mount | Adjustable mechanical disc | I.S. 6-bolt rotors | F: 180mm, R: 160mm
Brake LeversAlloy | 3-finger
OTHER COMPONENTS
Grips/TapePivit Entonces | Dual-density durometer | Active tuned
Handle BarPivit Grand Assembly Bar | Alloy | 25mm rise| 31.8mm bar bore | 9° sweep |15.5" & 17.5": 640mm; 19"-23": 660mm
StemPivit Maverick Stem | Alloy | Positive Positioning | 7° rise | 15.5": 70mm; 17.5" & 19": 90mm; 21"/23": 100mm

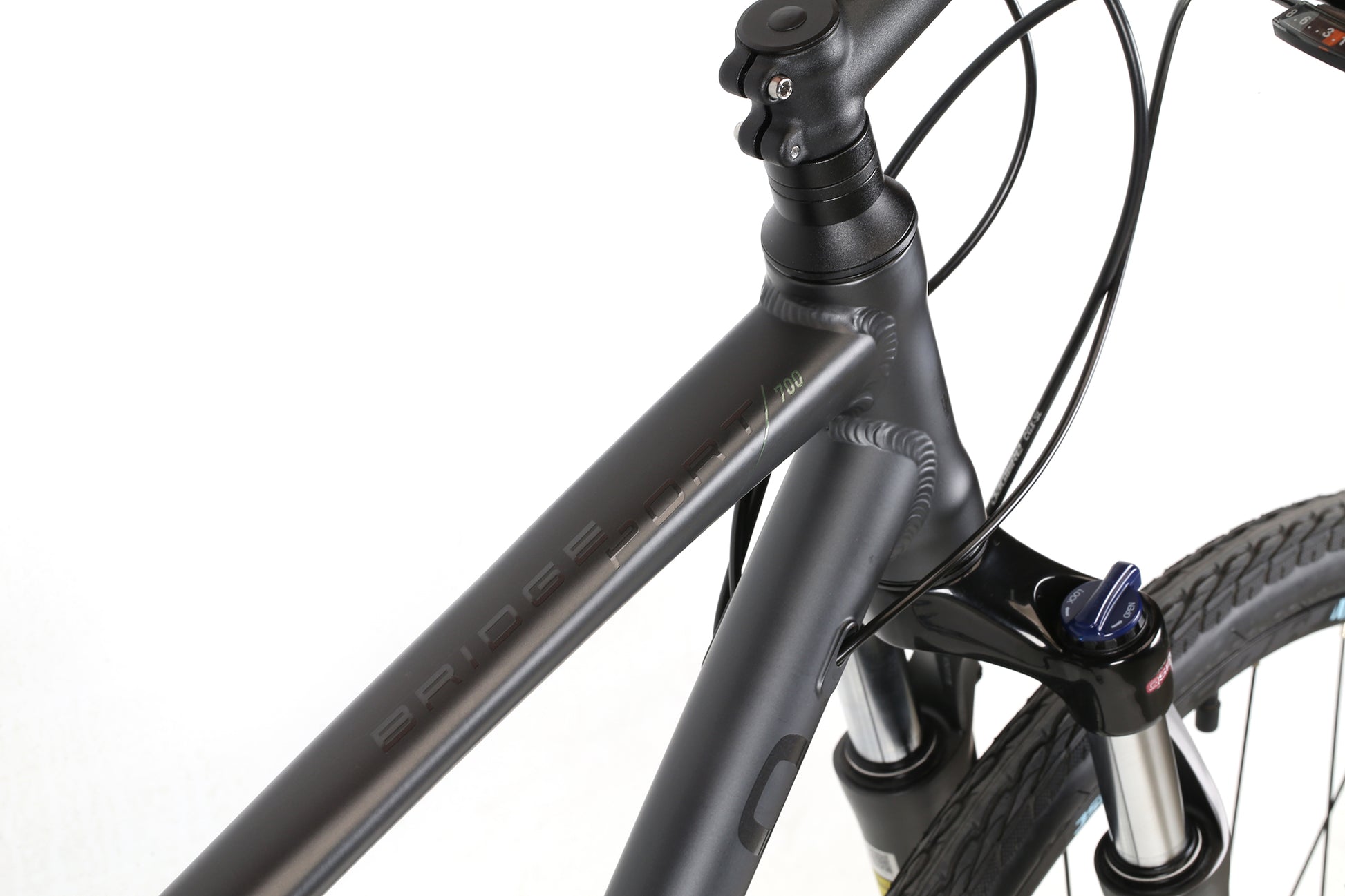

HeadsetPivit Precision Plus | 1-1/8" threadless | Internal | For 50mm OD headtube
SaddleHaro Rep Plus | Dual-sport tuned padding | Weather-resistant cover
Seat PostPivit Vertical Integration | Alloy | Micro-management positioning | 27.2mm x 350mm | 1-bolt ease

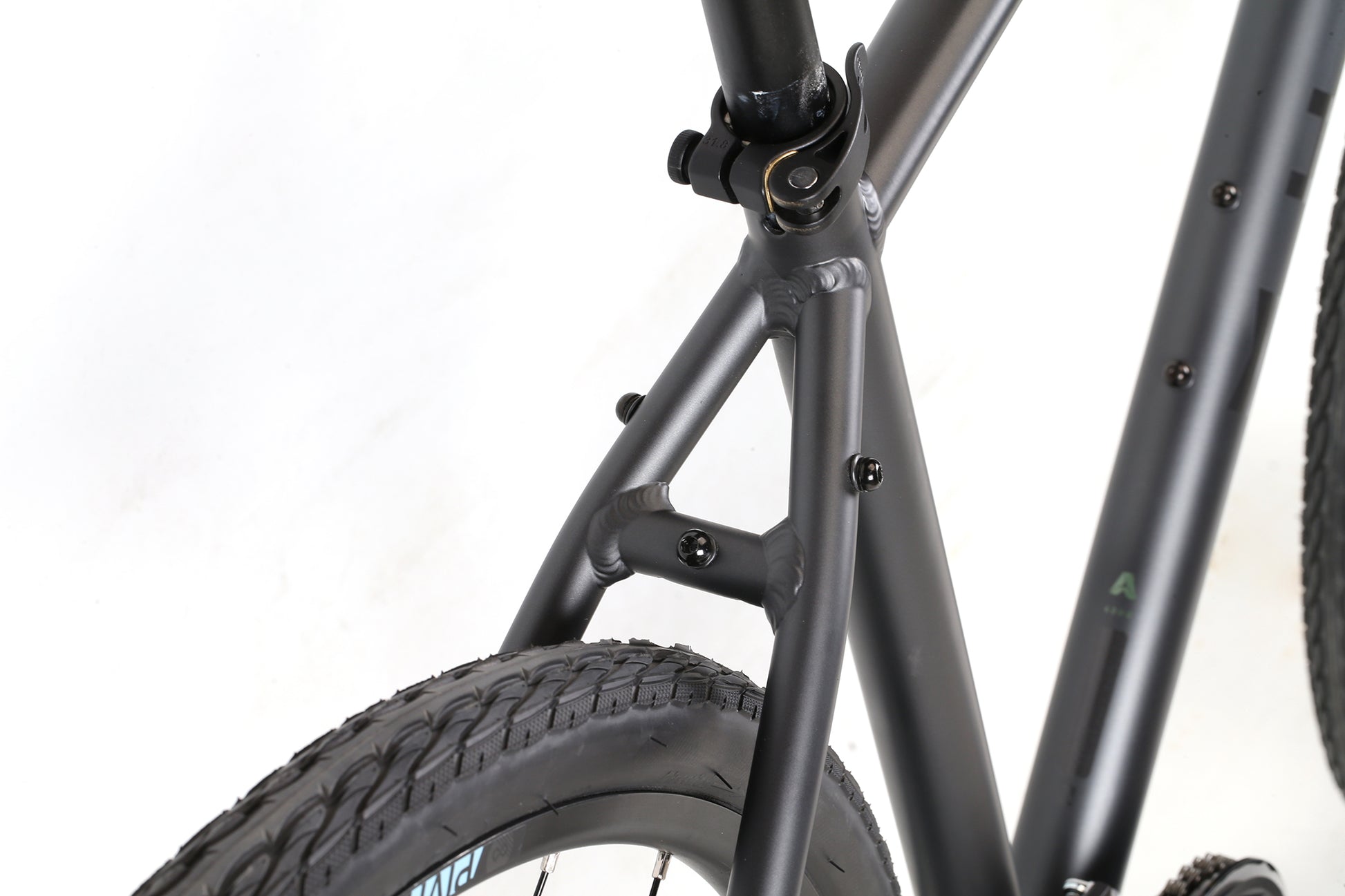

Seat ClampPivit Lockjaw | Alloy | 31.8mm | Multi-throw design | Quick release ease
ExtrasRack and fender mounts

Geometry & Sizing

Frame reference chart
SIZESMLXLXL+
A. Seat Tube (C-T)394mm (15.5")445mm (17.5")483mm (19")533mm (21")584mm (23")
B. Top Tube (Effective)575mm (15.5")585mm (17.5")600mm (19")615mm (21")625mm (23")
C. Head Tube Angle70.5°70.5°70.5°70.5°70.5°
D. Seat Tube Angle73°73°73°73°73°
E. Chainstay Length445mm (17.5")445mm (17.5")445mm (17.5")445mm (17.5")445mm (17.5")
F. BB Drop60mm (2.4")60mm (2.4")60mm (2.4")60mm (2.4")60mm (2.4")
G. Wheelbase1067mm (42")1078mm (42.4")1093mm (43")1109mm (43.7")1119mm (44.1")
H. Head Tube Length110mm (4.3")120mm (4.7")130mm (5.1")140mm (5.5")155mm (6.1")
I. Standover743mm (29.3")768mm (30.2")787mm (31")815mm (32.1")847mm (33.3")
J. Stack Height594mm (23.4")603mm (23.7")613mm (24.1")622mm (24.5")636mm (25")
K. Reach393mm (15.5")400mm (15.7")412mm (16.2")424mm (16.7")430mm (16.9")
L. Fork Height468mm (18.4")468mm (18.4")468mm (18.4")468mm (18.4")468mm (18.4")
M. Fork Offset42mm (1.7")42mm (1.7")42mm (1.7")42mm (1.7")42mm (1.7")
N. Stem Length70mm90mm90mm100mm100mm
O. Bar Width640mm640mm660mm660mm660mm
P. Crank Length170mm170mm175mm175mm175mm
