Haro MTB

11241

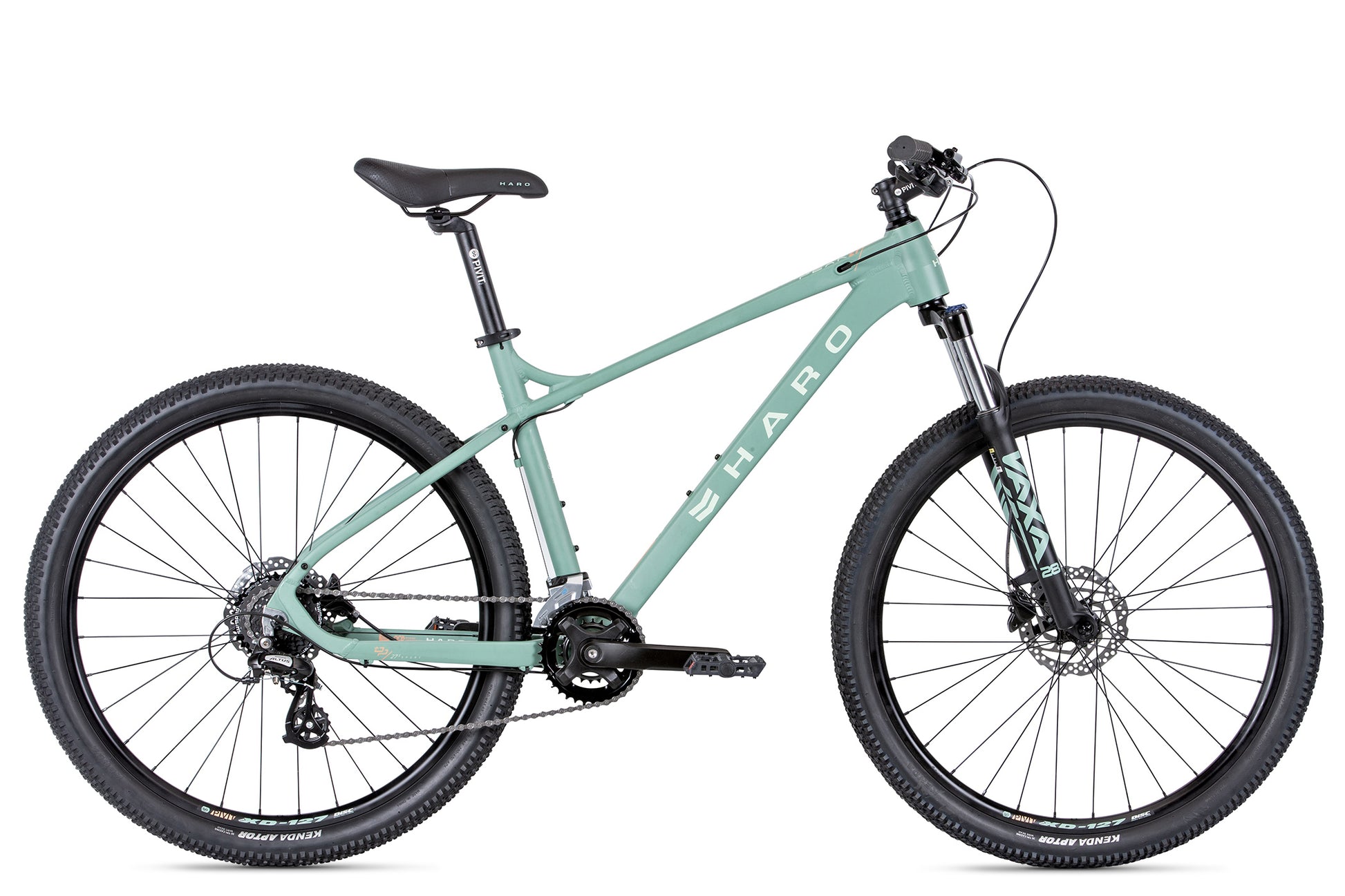

Double Peak 27.5 Sport

Double Peak, a series inspired by a local riding spot not far from Haro, features a brand new frame design made from X6 series aluminum, with a low stand-over height and internal cable routing to keep things clean and tucked away. The Sport model features an HL Vaxa 525 100mm fork with hydraulic lockout, a 2x8-speed drive-train with Shimano RapidFire 2x8-speed shifters. It rolls along on alloy double wall rims, stainless spokes and wider MTB specific Kenda 27.5" x 2.35" tires for 2021. The 27.5" Sport is nimble and likes to go fast, but it can stop on a dime thanks to its efficient Shimano MT-200 hydraulic disc brakes.

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
B
B.
Noice
Specifications
FRAMESET
FrameNew 2021 Haro Double Peak 29" X6 Aluminum series | Tapered head tube | Internal housing routing | Chainstay disc brake mount | 73mm threaded BSA
ForkHL Vaxa 28 Fork | 29" 100mm Travel | hydraulic lockout
ColorsBrush Polished, Matte Sage
DRIVETRAIN
CranksShimano FC-M315-2 | 36-22T
PedalsFPD Nylon body | Chromoly axles | Platform
ChainKMC Z8.1 8-spd
Bottom BracketShimano Sealed cartridge
Front DerailleurShimano FD-M315-TS | 2x8 | Dual Pull
Rear DerailleurShimano Altus M310
Derailleur ShifterShimano SL-315 Rapidfire 2x8-spd
Freewheel/CassetteShimano HG-200 8-spd cassette 12-32T
WHEELS
TiresH-5129 | 29 x 2.2"
Wheels/RimsMX-21 29"x27mm Aluminum double wall
HubsShimano TX-505 alloy | Center Lock Disc | cassette 32h
BRAKING SYSTEM
BrakesShimano BR-MT200 hydraulic | 160mm Center Lock Rotors
Brake LeversShimano BL-MT200
OTHER COMPONENTS
Grips/TapeHaro MTB Kraton
HandlebarPivit aluminum 25mm riser bar 31.8mm
StemPivit forged stem | 31.8mm
Headset1-1/8"-1.5" Tapered Threadless for 50/62mm OD headtube | 10mm Aluminum top cover
SaddleNew Haro Double Peak
Seat PostPivit Aluminum micro adjust | 31.6x350/400mm
Seat ClampPivit aluminum 34.9mm | quick release
ExtrasInternal housing routing
Frame reference chart
Geometry & Sizing
SIZEXSSML
A. Seat Tube (C-T)356mm (14")406mm (16")457mm (18")508mm (20")
B. Top Tube (Effective)549mm (21.6")584mm (23")612mm (24.1")625mm (24.6")
C. Head Tube Angle68°68°68°68°
D. Seat Tube Angle73°73°73°73°
E. Chainstay Length435mm (17.1")435mm (17.1")435mm (17.1")435mm (17.1")
F. BB Drop45mm (1.8")45mm (1.8")45mm (1.8")45mm (1.8")
G. Wheelbase1067mm (42")1102mm (43.4")1130mm (44.5")1144mm (45")
H. Head Tube Length100mm (3.9")100mm (3.9")110mm (4.3")120mm (4.7")
I. Standover713mm (28.1")713mm (28.1")727mm (28.6")759mm (29.9")
J. Stack Height586mm (23.1")586mm (23.1")595mm (23.4")607mm (23.9")
K. Reach370mm (14.6")405mm (15.9")430mm (16.9")440mm (17.3")
L. Fork Heightmm (")mm (")mm (")mm (")
M. Fork Offset42mm (1.7")42mm (1.7")42mm (1.7")42mm (1.7")
N. Stem Lengthmmmmmmmm
O. Bar Widthmmmmmmmm
P. Crank Lengthmmmmmmmm
Frame size chart

*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
