Haro MTB

Double Peak 29 Sport

Double Peak 29 Sport

Regular price $799.99
Regular price $799.99 Sale price $799.99
Sale Out of Stock

SKU: SKU:13246

Sizing Guide

Size Table
SizeInchesCM
S5'4" - 5'9"162.5-175
M5' 8" - 6'172.5-182.5
L5'11 - 6'2"180-187.5
XL6'1" - 6'5"185-195

Color
Size

View full details

FEATURES

SPECIFICATIONS

Specifications
FRAMESET
FrameNew 2021 Haro Double Peak 29" X6 Aluminum series | Tapered head tube | Internal housing routing | Chainstay disc brake mount | 73mm threaded BSA
ForkHL Vaxa 30S Fork | 29" 100mm Travel | hydraulic lockout
ColorsMatte Charcoal
DRIVETRAIN

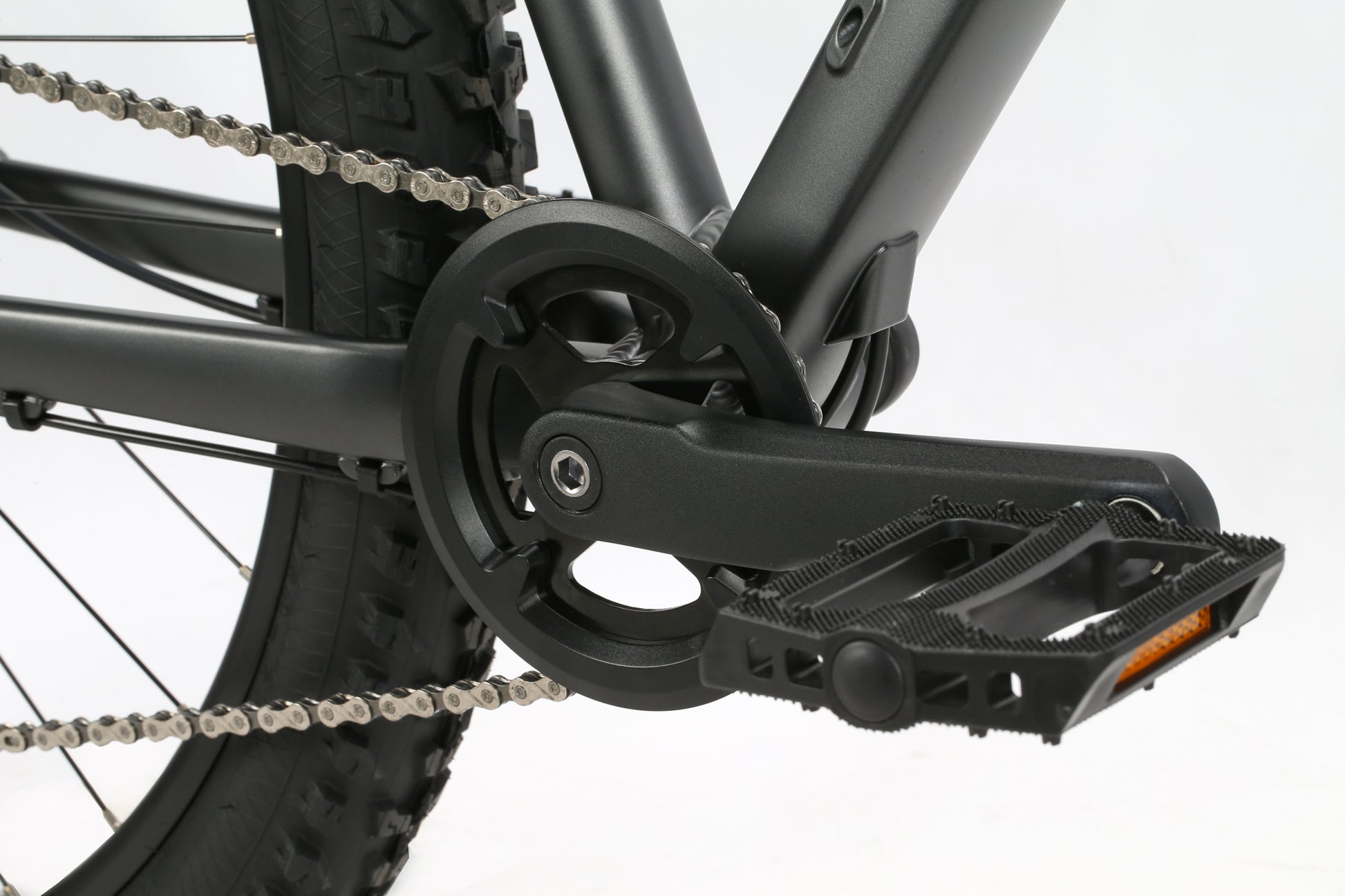

CranksSamox Aluminum | 36-22T
PedalsFPD Nylon body | Chromoly axles | Platform
ChainKMC Z8.1 8-spd
Bottom BracketSealed cartridge
Front DerailleurShimano FD-M315-TS | 2x8 | Dual Pull
Rear DerailleurShimano Altus M310
Derailleur ShifterShimano SL-315 Rapidfire 2x8-spd
Freewheel/CassetteShimano HG-200 8-spd cassette 12-32T
WHEELS
TiresH-5134 | 29x2.2"
Wheels/RimsMX-21 29"x27mm Aluminum double wall
HubsShimano TX-505 alloy | Center Lock Disc | cassette 32h
BRAKING SYSTEM

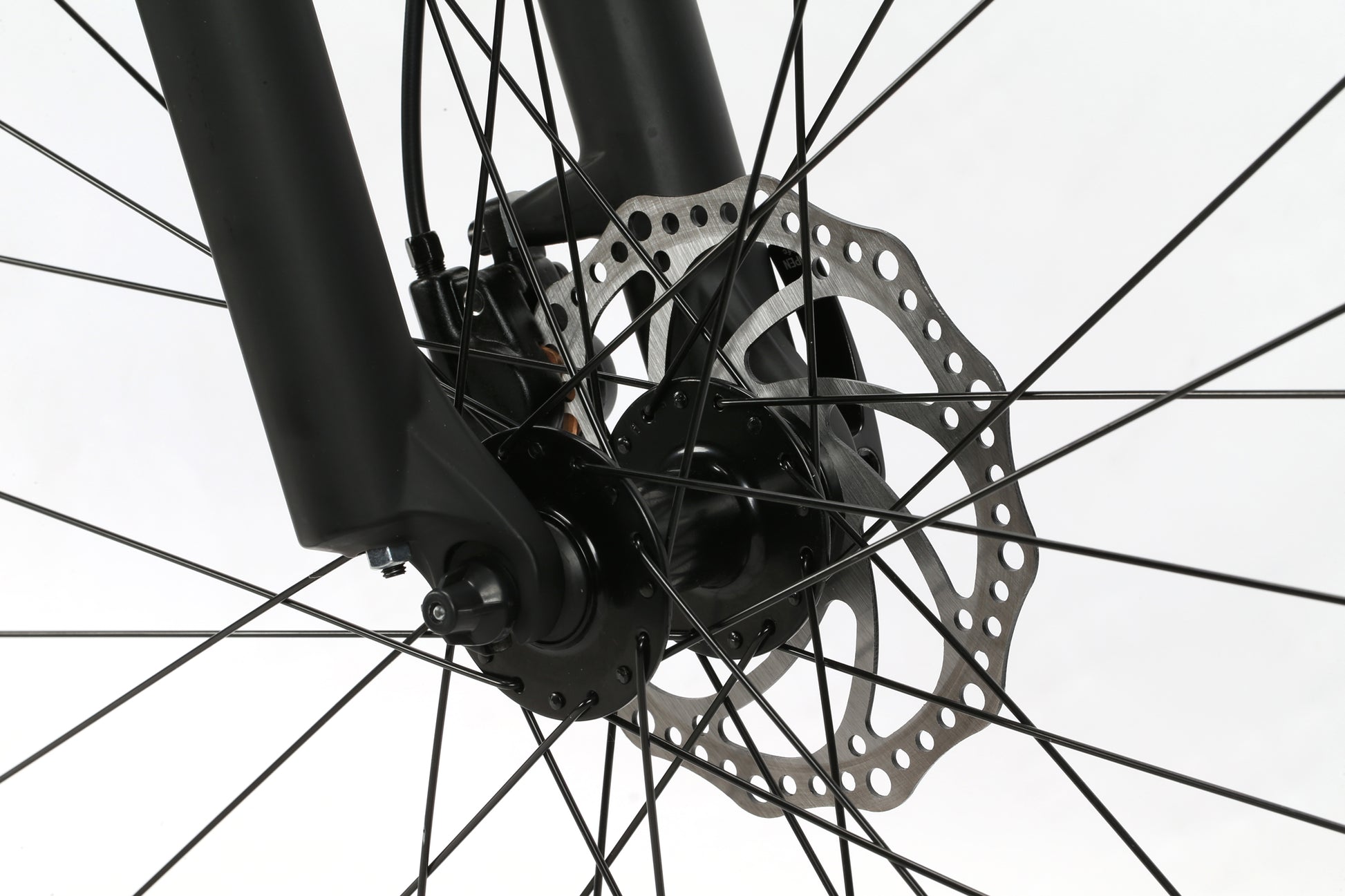

BrakesShimano BR-MT200 hydraulic | 160mm Center Lock Rotors
Brake LeversShimano BL-MT200
OTHER COMPONENTS
Grips/TapeHaro MTB Kraton

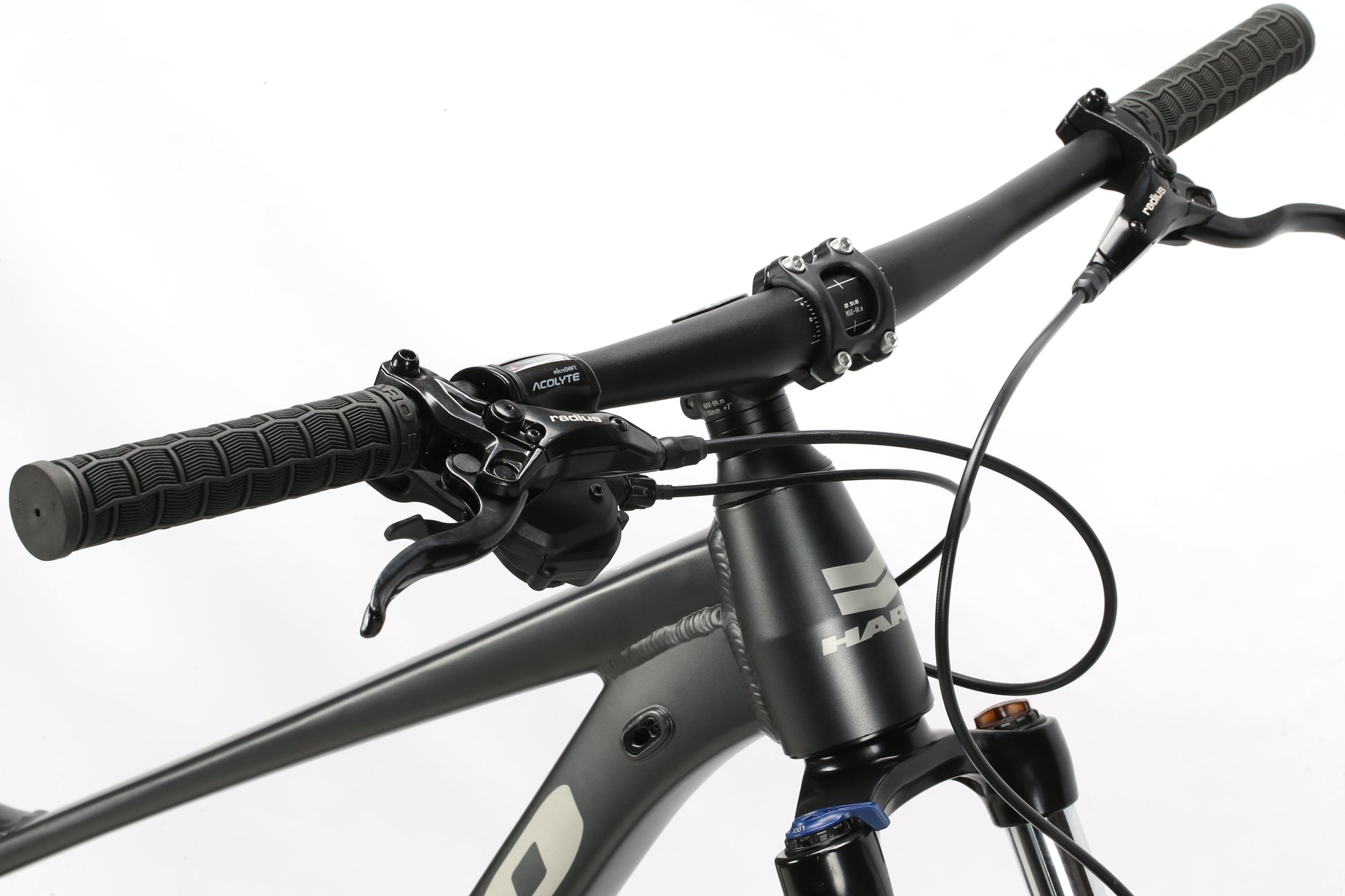

HandlebarPivit aluminum 25mm riser bar 31.8mm
StemPivit forged stem | 31.8mm
Headset1-1/8"-1.5" Tapered Threadless for 50/62mm OD headtube | 10mm Aluminum top cover

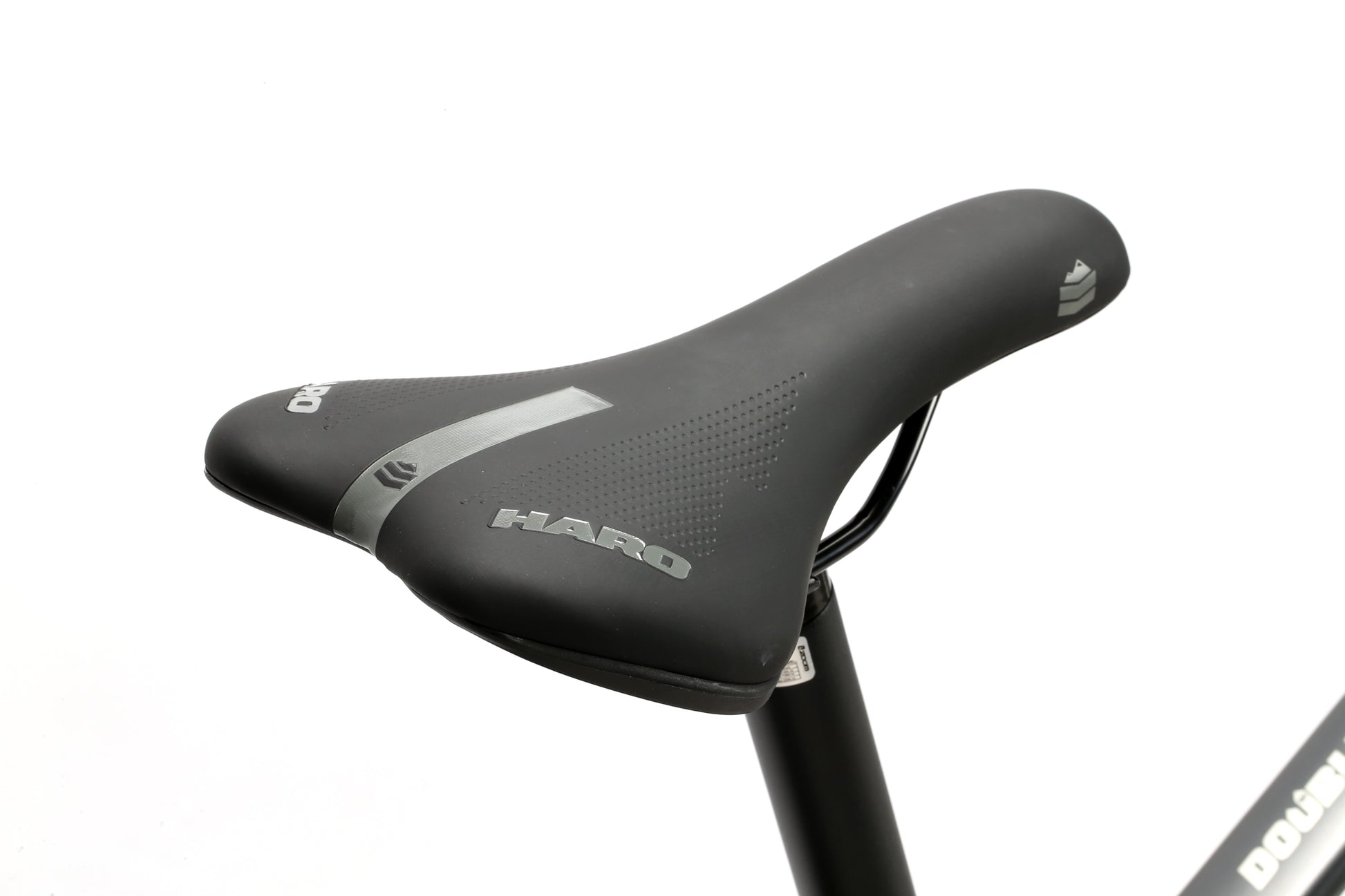

SaddleNew Haro Double Peak
Seat PostPivit Aluminum micro adjust | 31.6x350/400mm

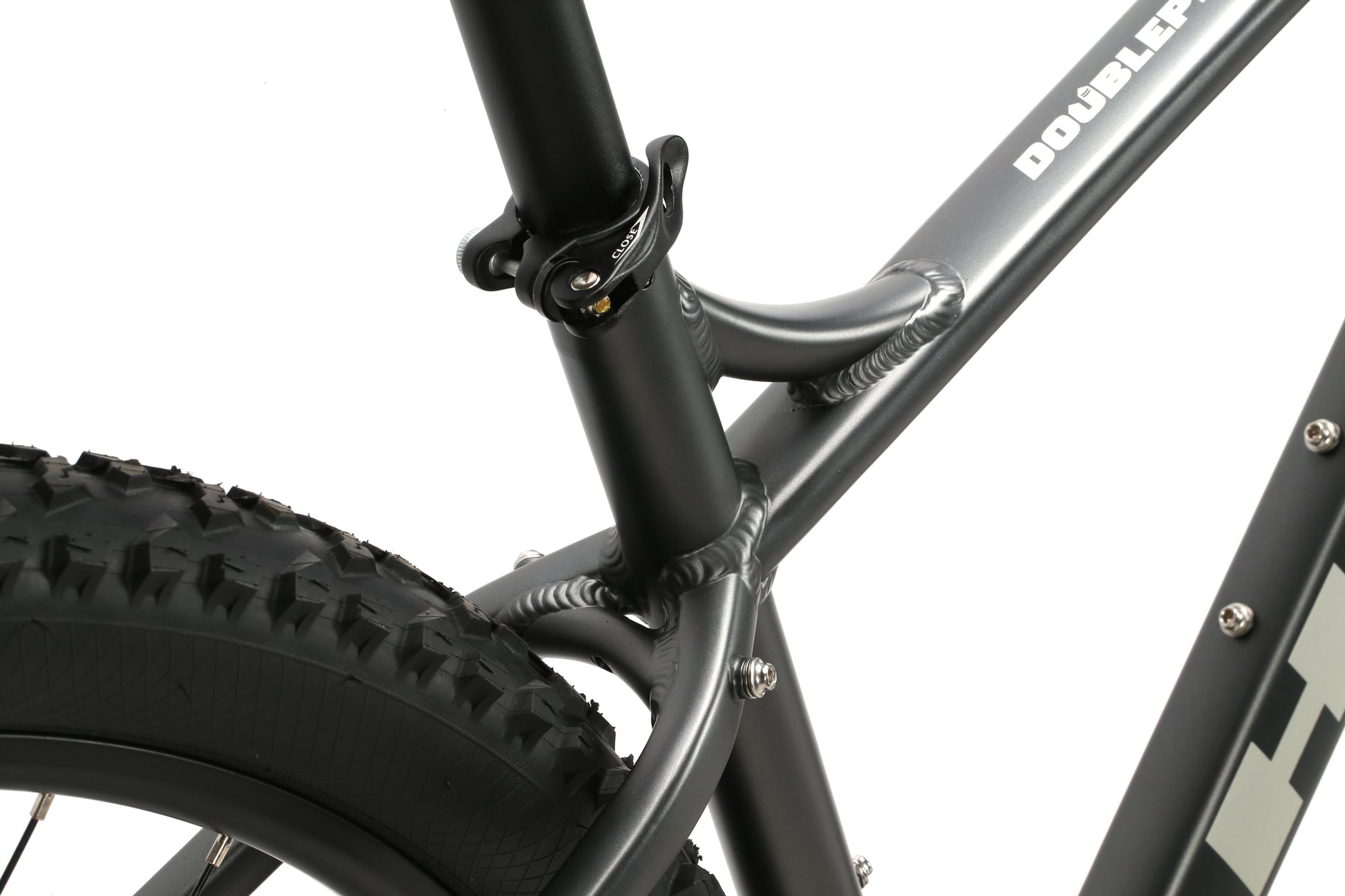

Seat ClampPivit aluminum 34.9mm | quick release
ExtrasInternal housing routing

GEOMETRY

Geometry frame chart
Geometry & Sizing
SIZESMLXL
A. Seat Tube (C-T)406mm (16")457mm (18")508mm (20")559mm (22")
B. Top Tube (Effective)601mm (23.7")625mm (24.6")639mm (25.2")652mm (25.7")
C. Head Tube Angle68°68°68°68°
D. Seat Tube Angle72.5°72.5°72.5°72.5°
E. Chainstay Length453mm (17.8")453mm (17.8")453mm (17.8")453mm (17.8")
F. BB Drop64mm (2.5")64mm (2.5")64mm (2.5")64mm (2.5")
G. Wheelbase1128mm (44.4")1152mm (45.4")1167mm (45.9")1181mm (46.5")
H. Head Tube Length100mm (3.9")100mm (3.9")110mm (4.3")120mm (4.7")
I. Standover731mm (28.8")731mm (28.8")770mm (30.3")795mm (31.3")
J. Stack Height621mm (24.4")621mm (24.4")630mm (25.8")640mm (25.2")
K. Reach405mm (15.9")430mm (16.9")440mm (17.3")450mm (17.7")
L. Fork Height517mm (20.4")517mm (20.4")517mm (20.4")517mm (20.4")
M. Fork Offset46mm (1.8")46mm (1.8")46mm (1.8")46mm (1.8")
N. Stem Length60mm60mm60mm60mm
O. Bar Width700mm700mm700mm700mm
P. Crank Length170mm175mm175mm175mm
