Haro MTB

Flightline 24

Flightline 24

Regular price $449.99
Regular price $449.99 Sale price $449.99
Sale Out of Stock

SKU: SKU:11031

Thanks to its lower stand-over height frame and 24" wheelset, the Flightline 24 is perfect for adventurous kids who love to ride but aren't quite ready for the larger sizes yet. The FL 24 features Haro's FL3G low profile X6 alloy frame with a ton of stand-over clearance. Bumps don't stand a chance thanks to its suspension fork with 40mm of travel. The FL 24 features a new 1x7-speed drive-train with a single chainring to make it easier to switch gears.

Sizing Guide

Size Table
SizeInchesCM
244' - 4'8"122 - 142

Color

View full details

FEATURES

  • Flightline X6 Series aluminum frame
  • HL 410E suspension fork w/ 40mm travel
  • 1-1/8" Threadless headset

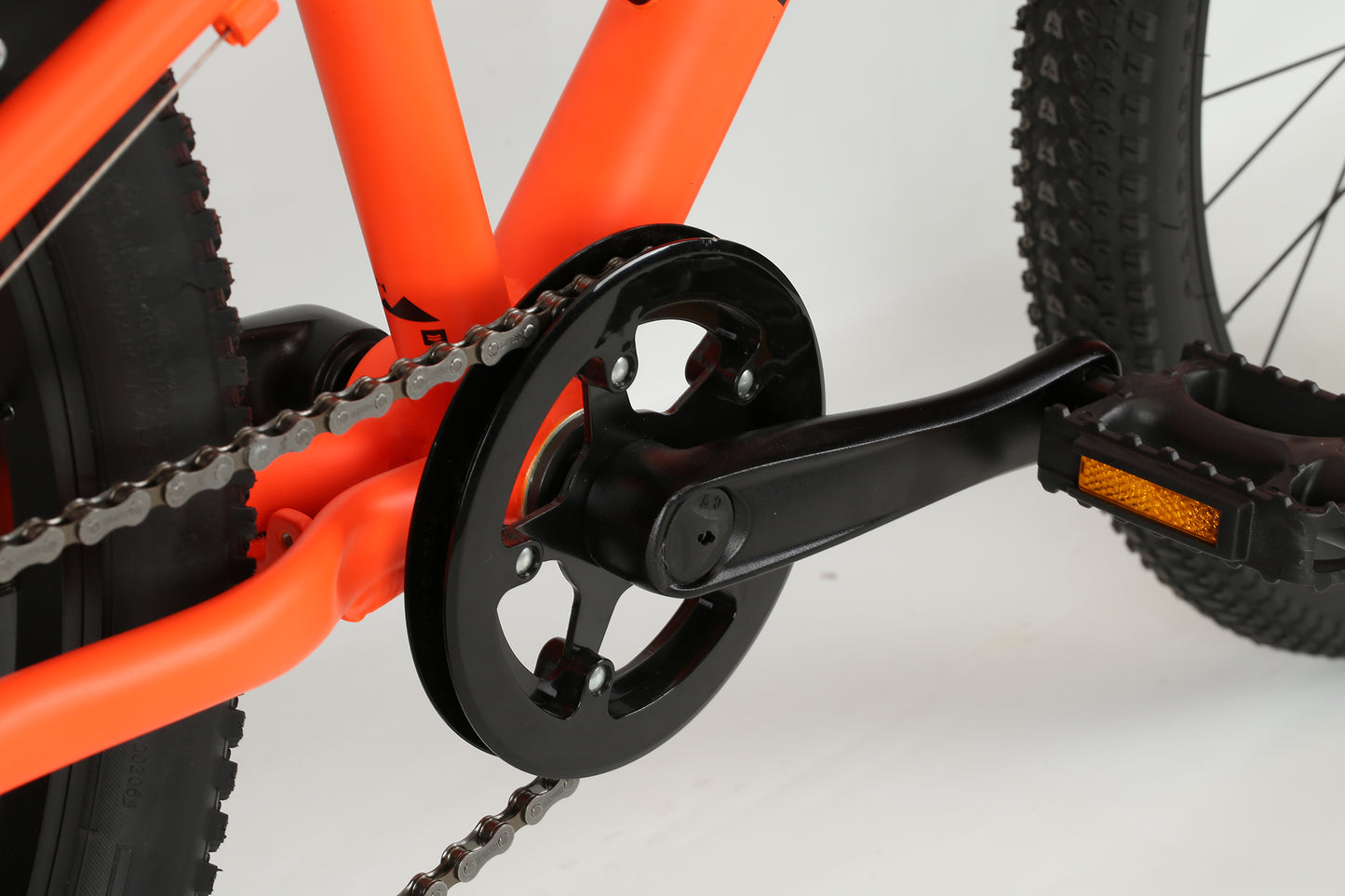

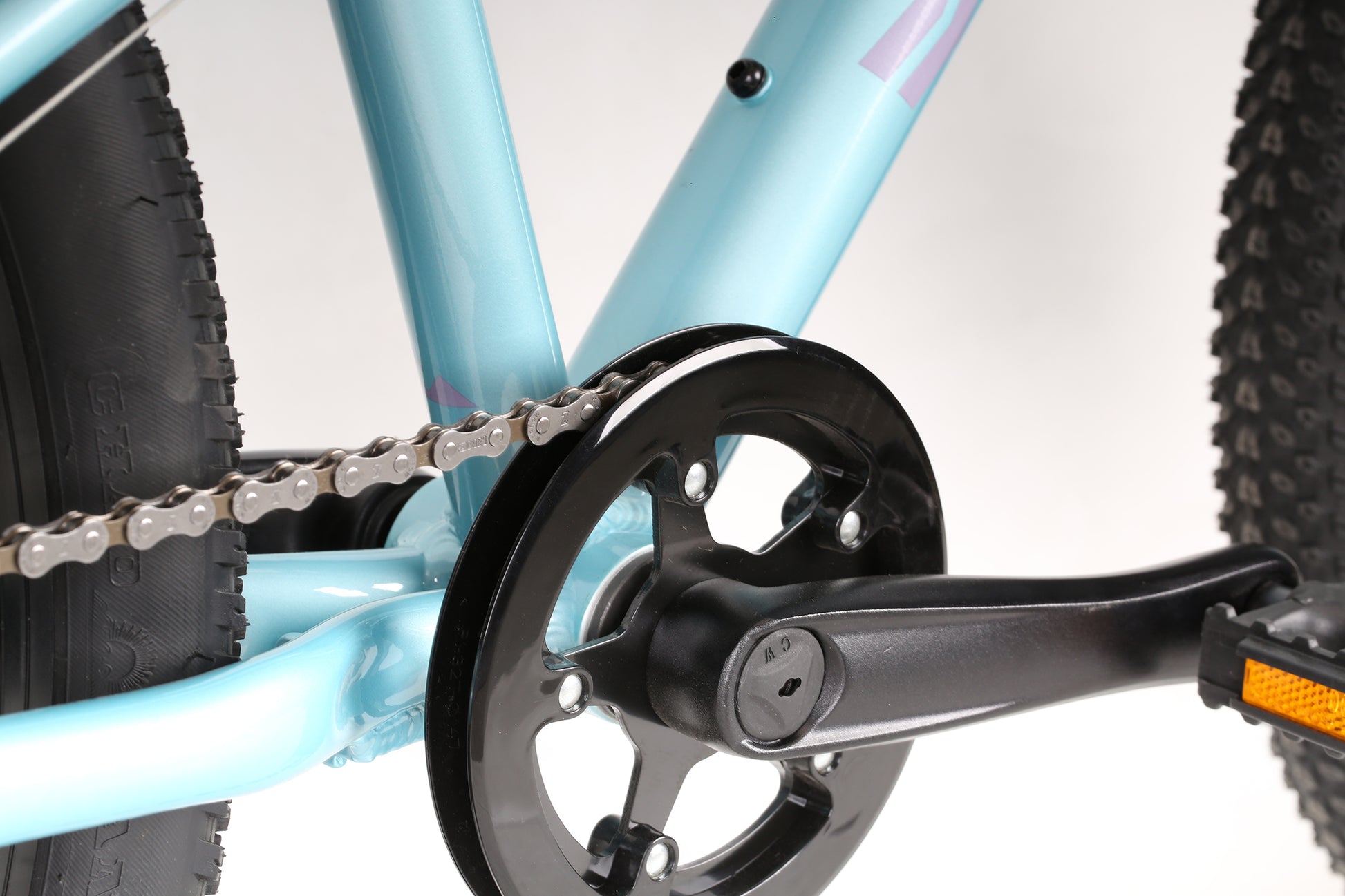

  • Aluminum 32T crankset w/ double chainguard

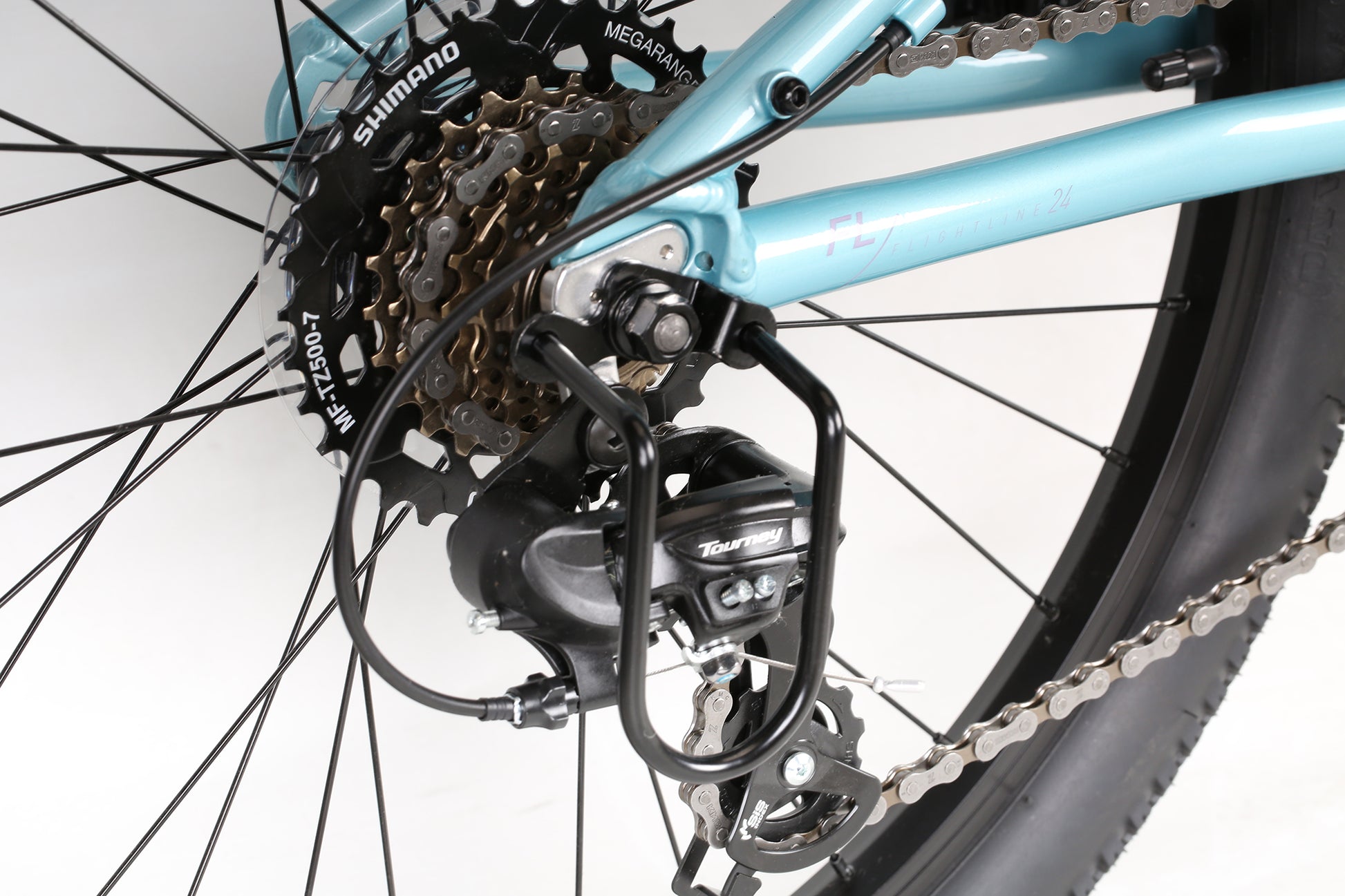

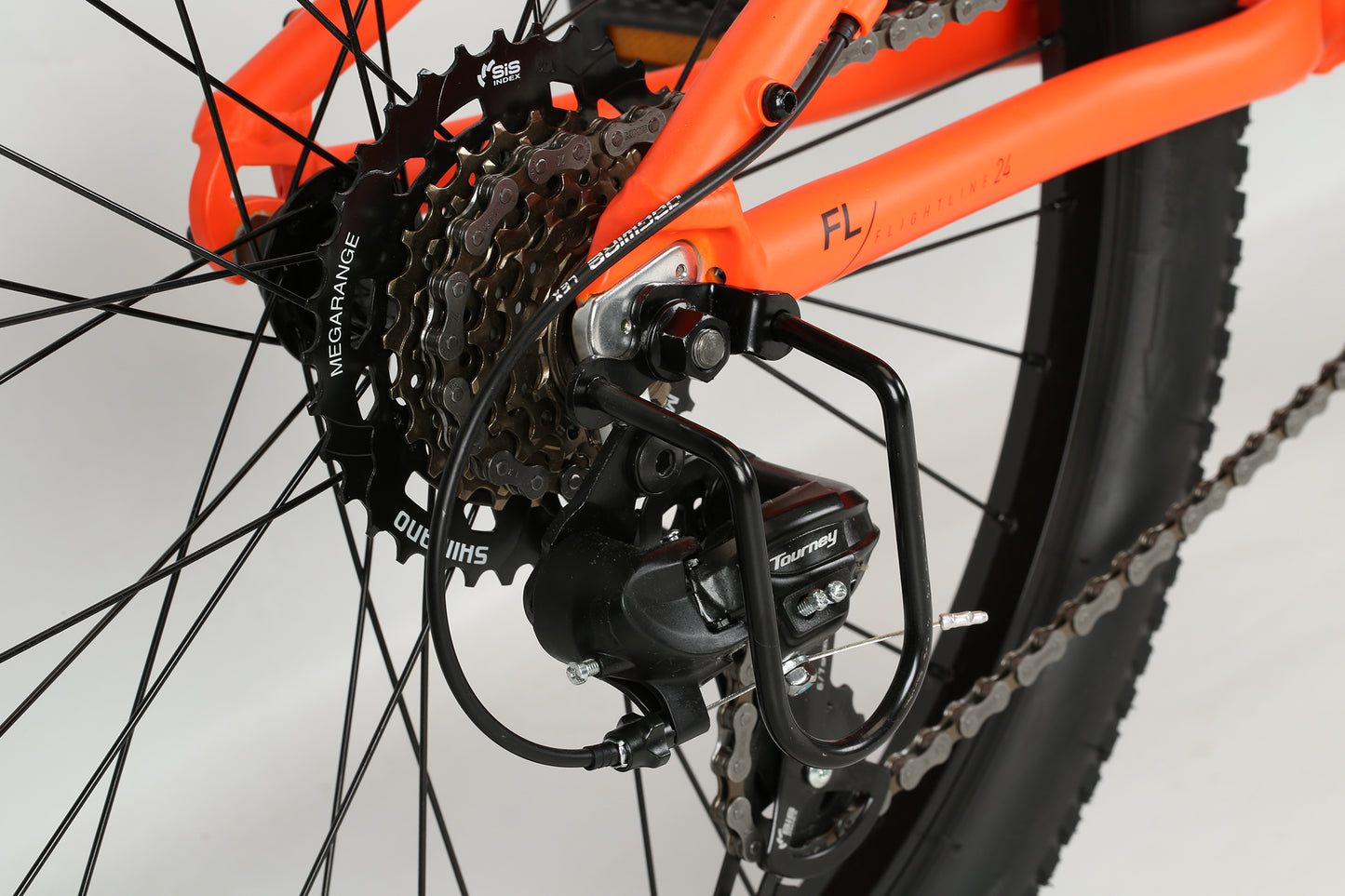

  • New Shimano Tourney TY-200 rear derailleur

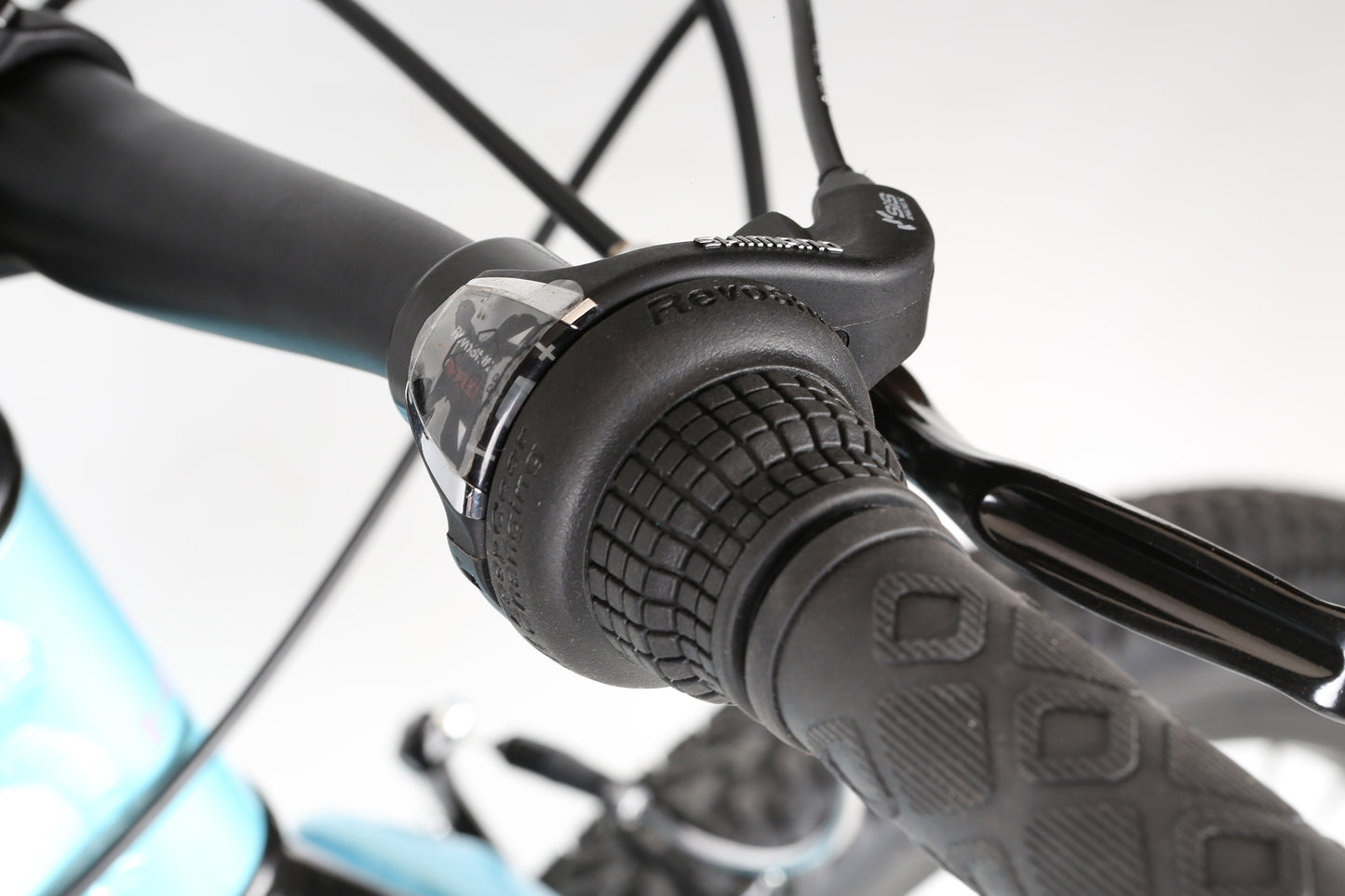

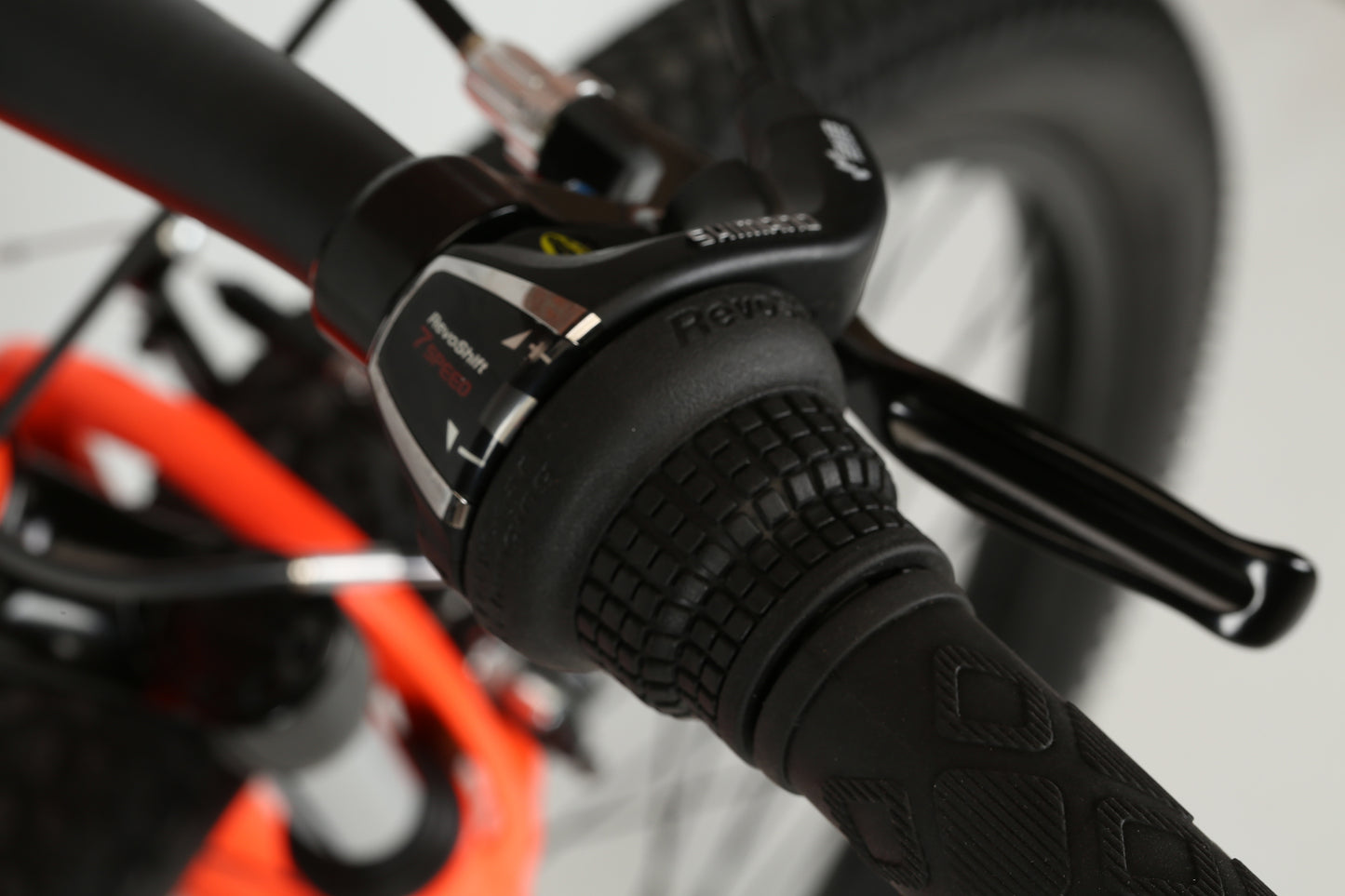

  • New Revo 7-spd shifter
  • New Tourney TZ510 7-spd 14-34T freewheel
  • Aluminum Pivit handlebar & melt forged stem
  • Aluminum single wall 24" rims w/ 32h hubs

SPECIFICATIONS

Specifications
FRAMESET
FrameNew 2020 Haro Flightline 24" | FL3G 6000 series alloy
ForkHL 410E 40mm travel
ColorsMatte Black / Metallic Blue, Matte Neon Orange, Sky Blue / Purple
DRIVETRAIN
CranksAluminum 32t | Double chain guard | 6"/152mm
PedalsMTB nylon body
ChainKMC Z7 1/2"*3/32"
Bottom BracketSealed cartridge
Front Derailleur
Rear DerailleurNew Shimano Tourney TY-200 7-spd
Derailleur ShifterShimano Revo 7-spd | right only
Freewheel/CassetteNew Shimano Tourney MF-TZ510 7-spd freewheel 14-34T
WHEELS
TiresH-5129 | 24" X2.10
Wheels/RimsAluminum single wall 20"
HubsPivit steel 32h nuts
BRAKING SYSTEM
BrakesPromax TX-121 V-Brakes
Brake LeversPromax BL-42G
OTHER COMPONENTS
Grips/TapeHaro MTB

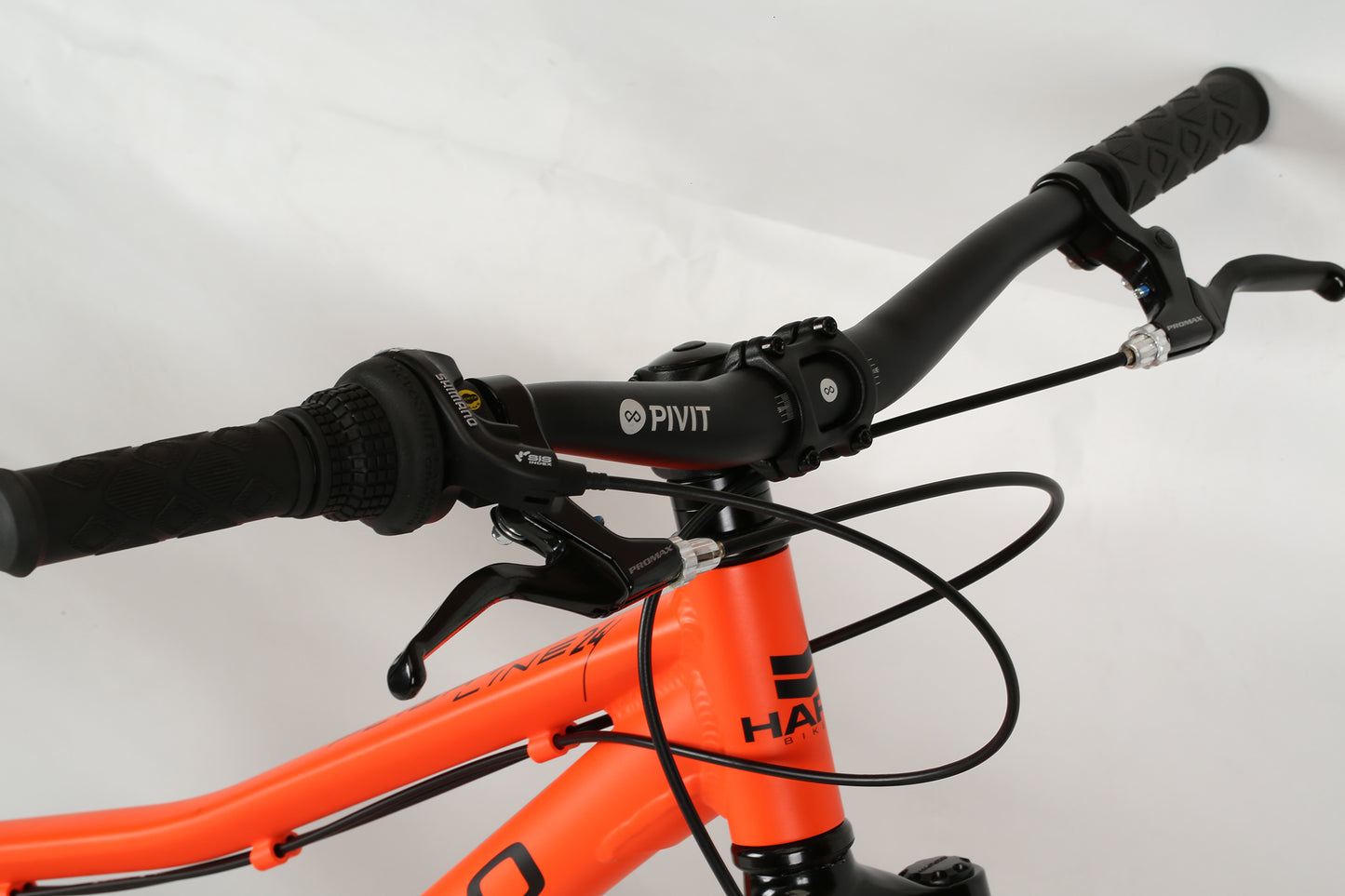

HandlebarPivit aluminum 25mm riser bar | 31.8mm O.D.
StemPivit melt forged stem w/ 4 bolts | 31.8mm bar bore | 60mm ext.
Headset1-1/8" threadless steel cups | loose ball | Nylon Top

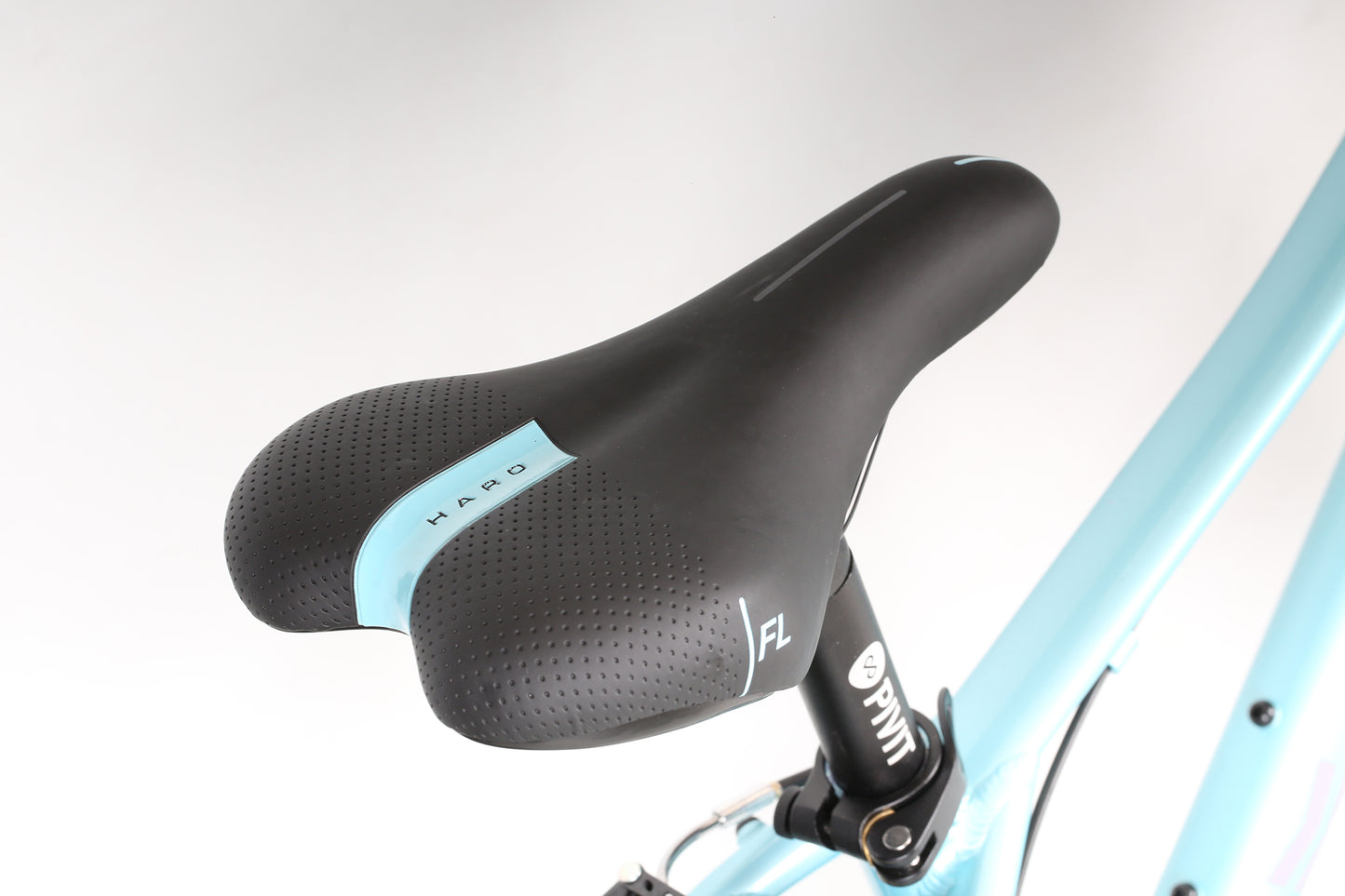

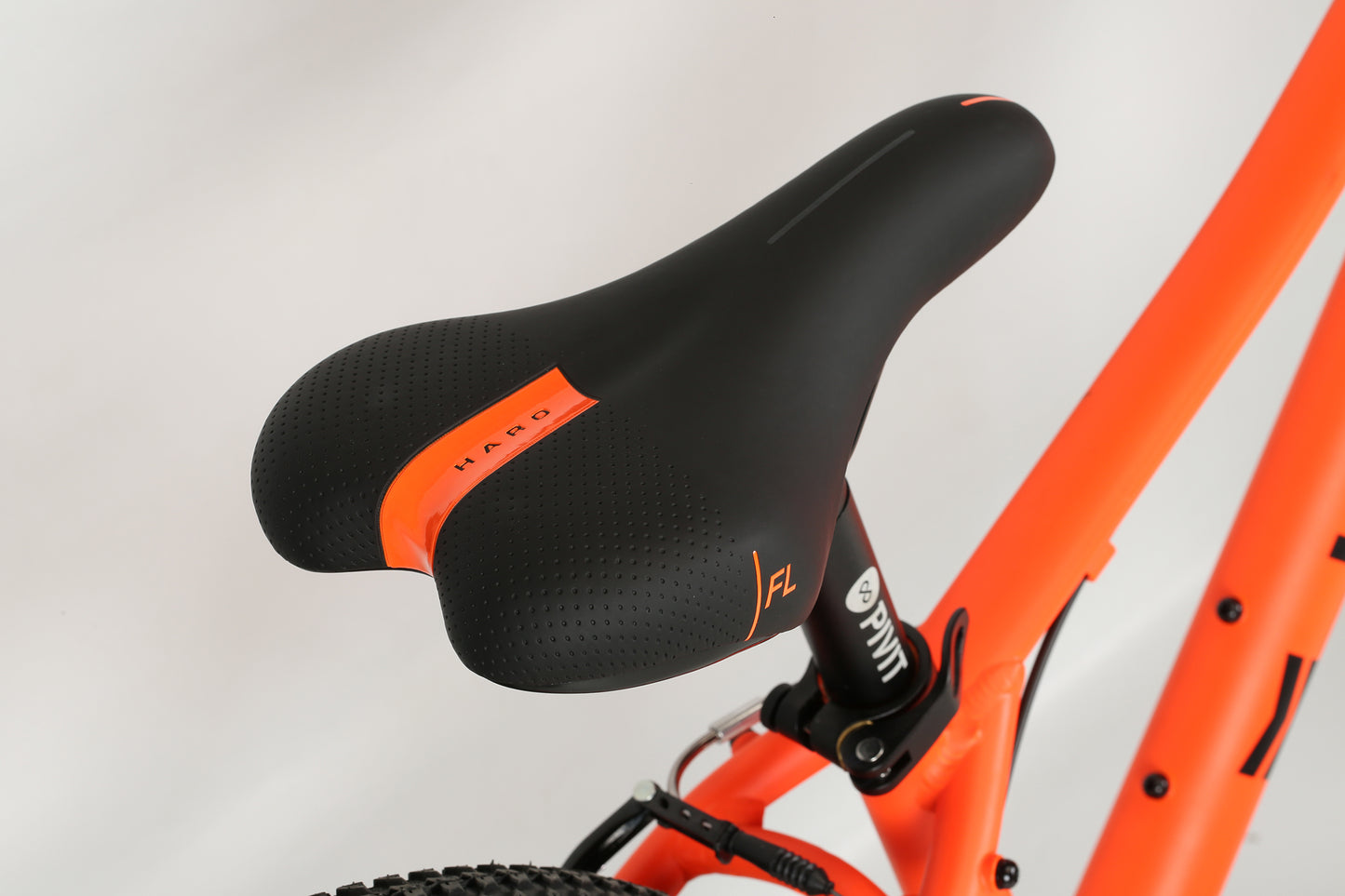

SaddleHaro Flightline Jr
Seat PostPivit alloy micro adjust 27.2mm
Seat ClampPivit alloy 31.8mm quick release

GEOMETRY

Geometry frame chart
Geometry & Sizing
SIZE24
A. Seat Tube (C-T)271mm (10.7")
B. Top Tube (Effective)515mm (20.3")
C. Head Tube Angle69°
D. Seat Tube Angle73°
E. Chainstay Length405mm (15.9")
F. BB Drop30mm (1.2")
G. Wheelbase984mm (38.7")
H. Head Tube Length100mm (3.9")
I. Standover584mm (23")
J. Stack Height504mm (19.8")
K. Reach361mm (14.2")
L. Fork Height410mm (16.1")
M. Fork Offset35mm (1.4")
N. Stem Length45mm
O. Bar Width620mm
P. Crank Length152mm
