Haro MTB

11043

Flightline 24 Plus DS

The Flightline 24 Plus DS can hang with the best of them. Fully off-road ready, the FL 24 Plus DS is built on a solid platform that includes a rust and worry-free X6 aluminum low-profile frame matched to a light and rigid alloy fork. It features Plus size 2.6" MTB tires mounted to wide alloy double-wall rims making Trail bumps so small you might not even know they were there. A Shimano 8-speed Rapidfire shifter and Altus rear derailleur offer easy and smooth shifting with a simple and intuitive 1x drive-train (with a double chain-guard), while its all-weather Tektro Hydraulic disc brakes with Junior-size levers will do the job when it is time to stop.

Customer Reviews

No reviews yet
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Features

Specifications

FRAMESET
FrameHaro Flightline 24" Plus FL4G 6000 series Aluminum | New Chainstay Design | Boost Rear | IS disc mount
Fork24" Rigid Aluminum Legs Chromoly steer Tube | IS Disc mount
Frame ShockN/A
ColorsChameleon
DRIVETRAIN

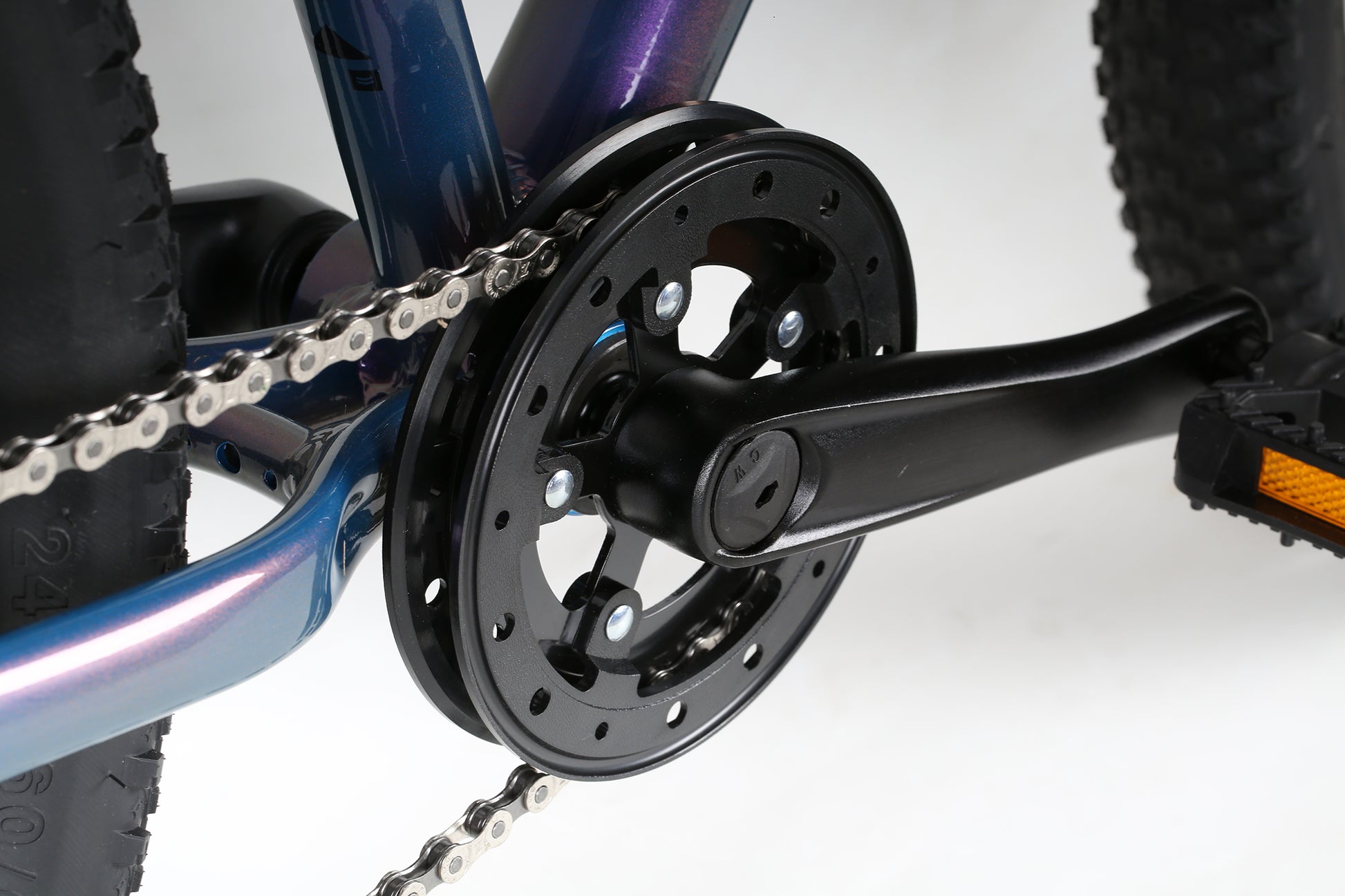

CranksAluminum 3-pc 28T | Double-chainguard | 6" / 152mm
PedalsFPD Nylon body | Chromoly axles|Platform
ChainKMC Z8.3 8-spd | 1/2"*3/32"
Bottom BracketSealed cartridge
Front DerailleurN/A

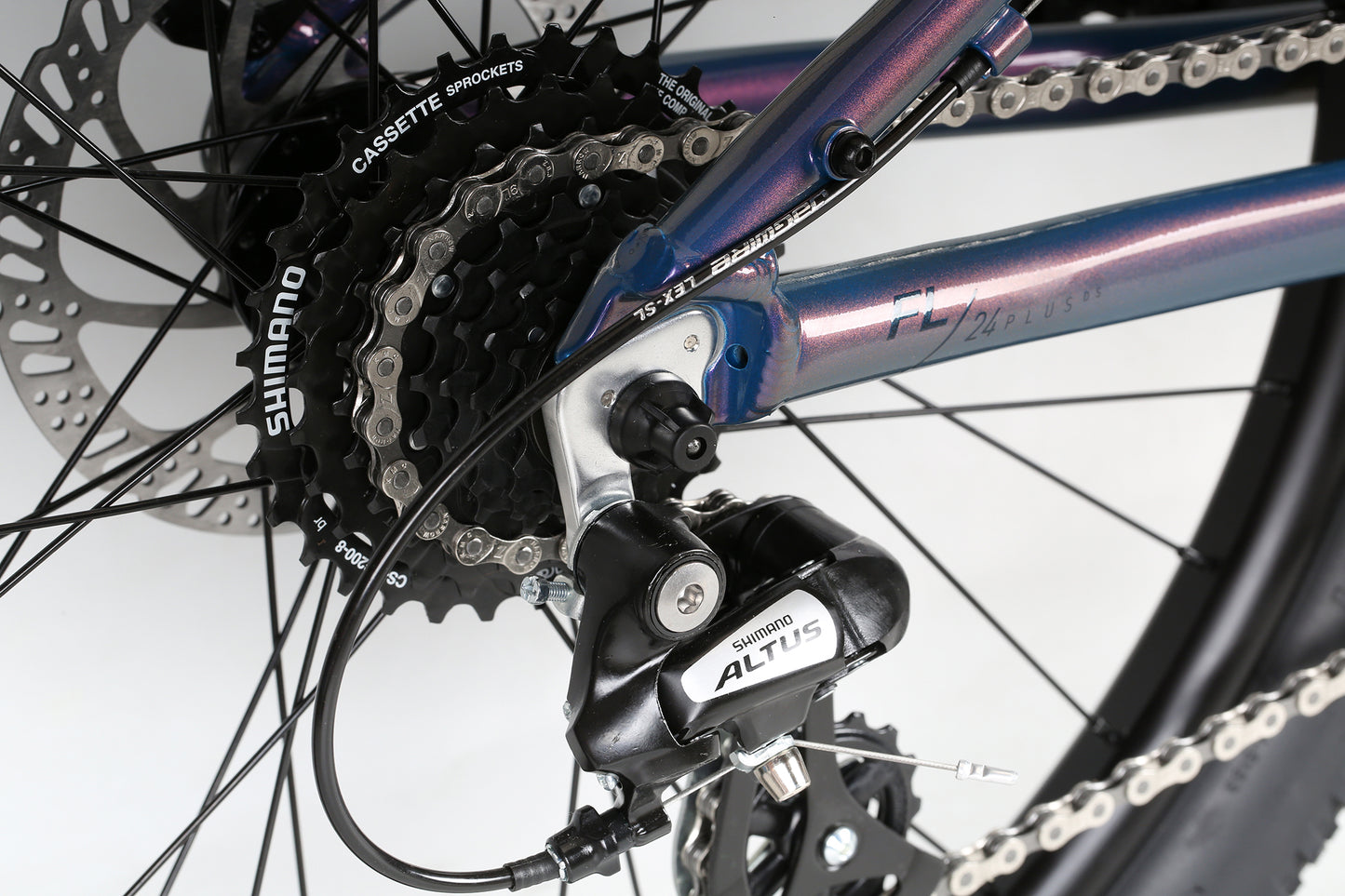

Rear DerailleurShimano Altus RD-M310-L | 8-spd

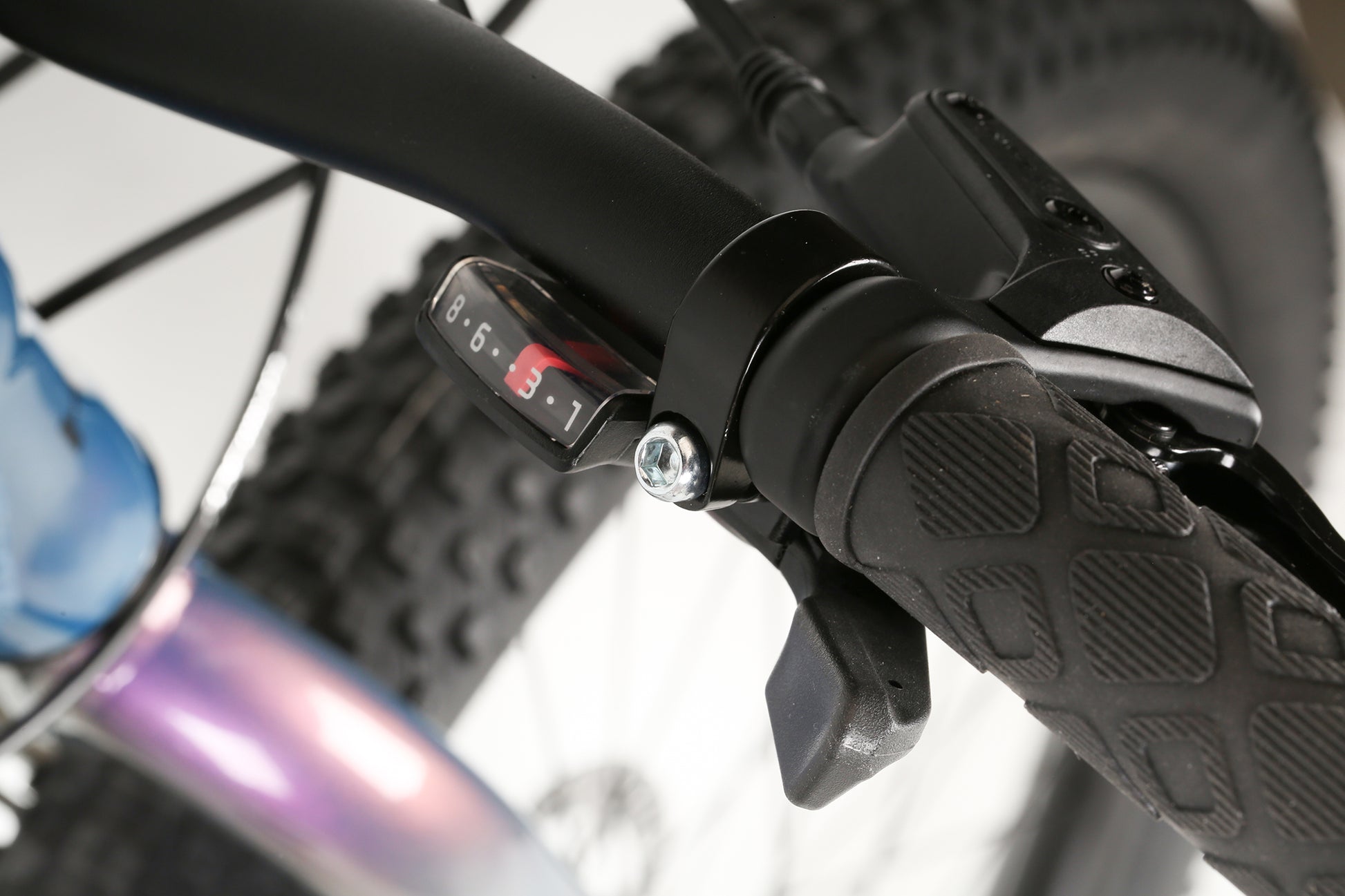

Derailleur ShifterShimano Altus SL-M310 | 8-spd Rapidfire | Right only
Freewheel/CassetteShimano HG-200 8-spd cassette 12-32T
WHEELS
TiresH-5183 | 24"x2.60"
Wheels/RimsAluminum 32mm wide DW
HubsPivit Aluminum cassette 32h | Boost LB rear hub
BRAKING SYSTEM

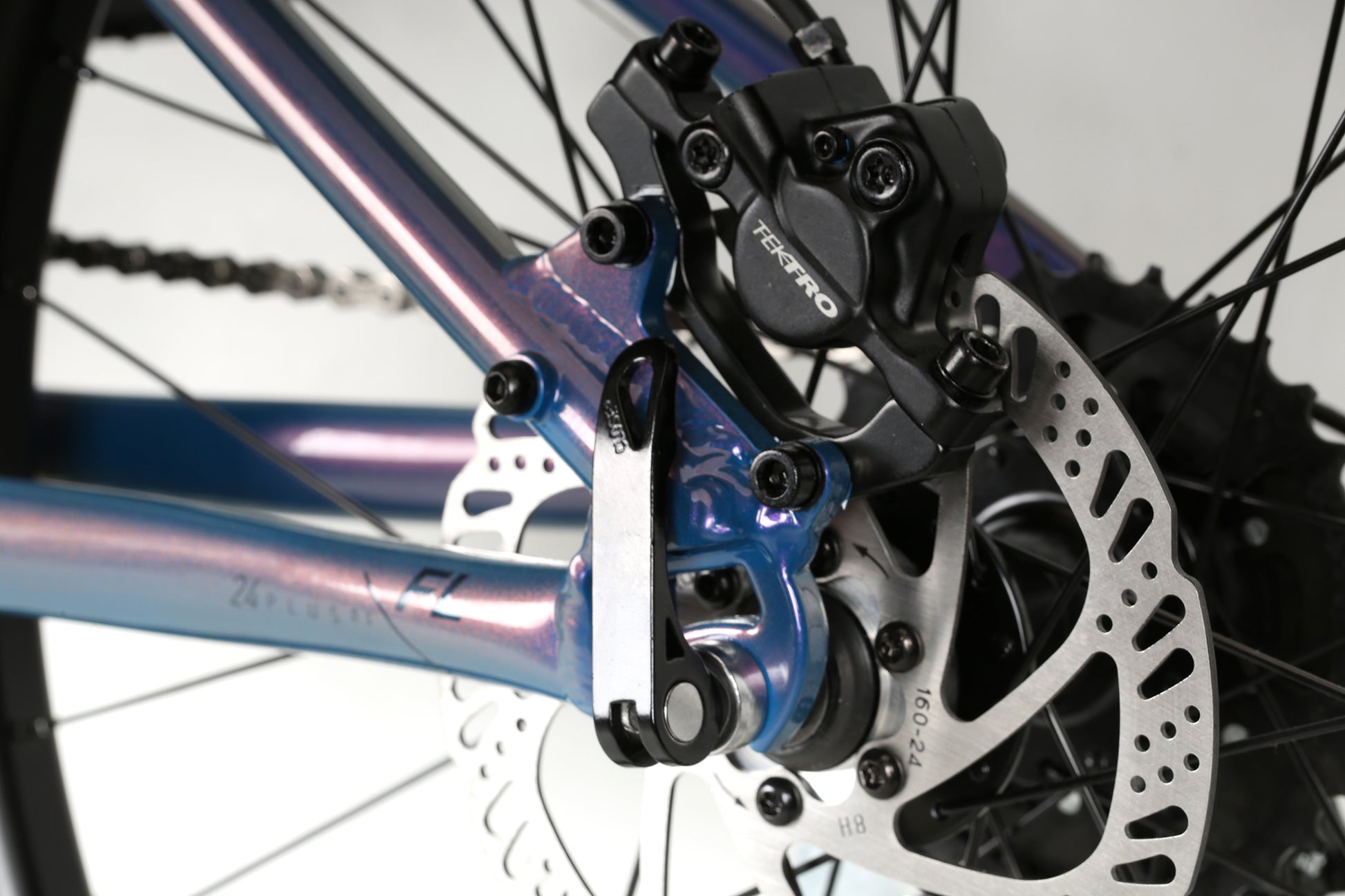

BrakesNew Tektro HD-J285 | Hydraulic Kids levers | 160mm Rotors
Brake LeversHD-M276 | Kids size levers
OTHER COMPONENTS
Grips/TapeHaro MTB
Handle BarPivit Aluminum 25mm riser bar | 31.8mm O.D.

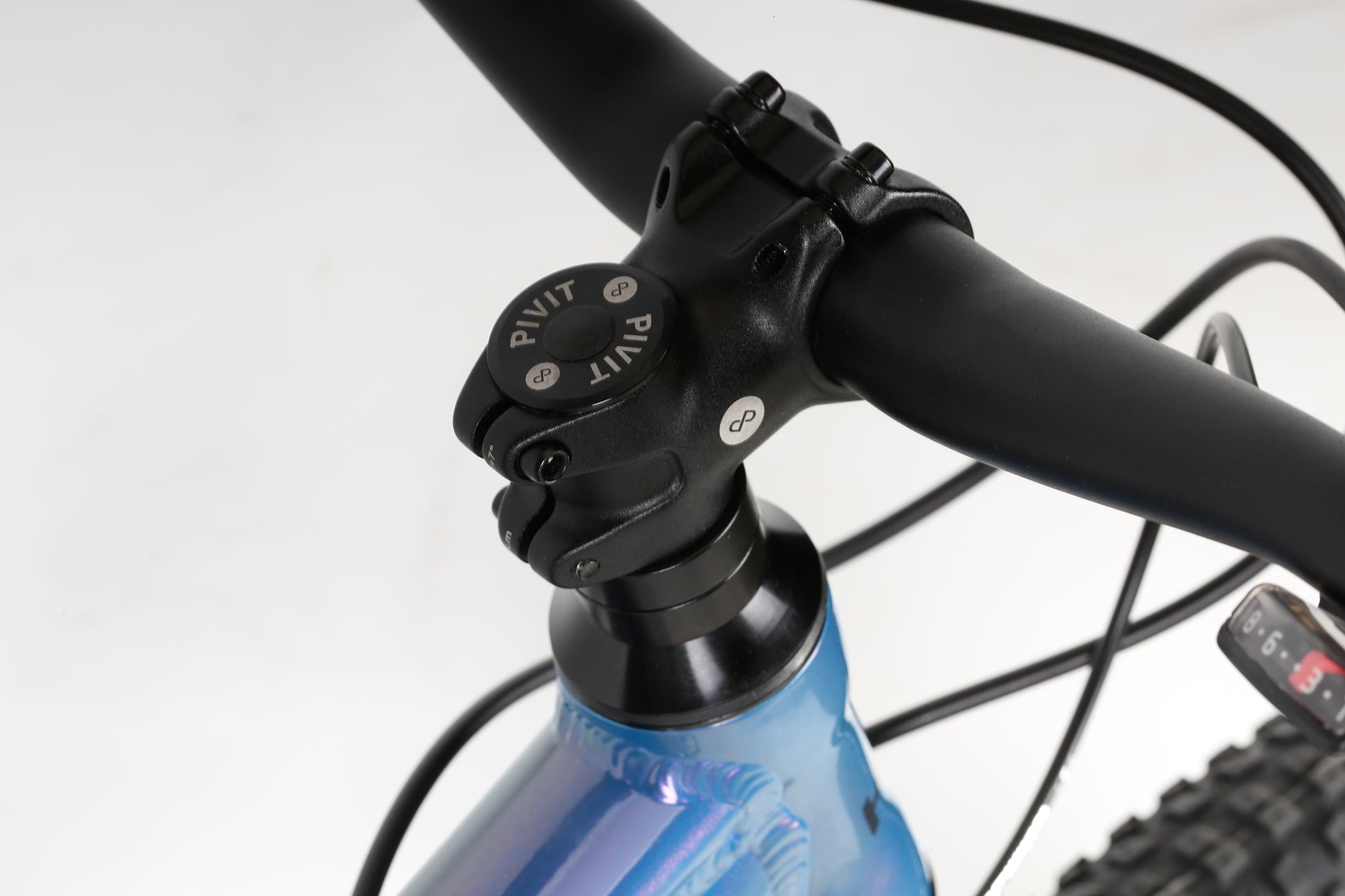

StemPivit melt forged stem 4 bolts | 60mm ext. | 31.8mm bar bore
Headset1-1/8" threadless steel cups | loose ball | 10mm top cone

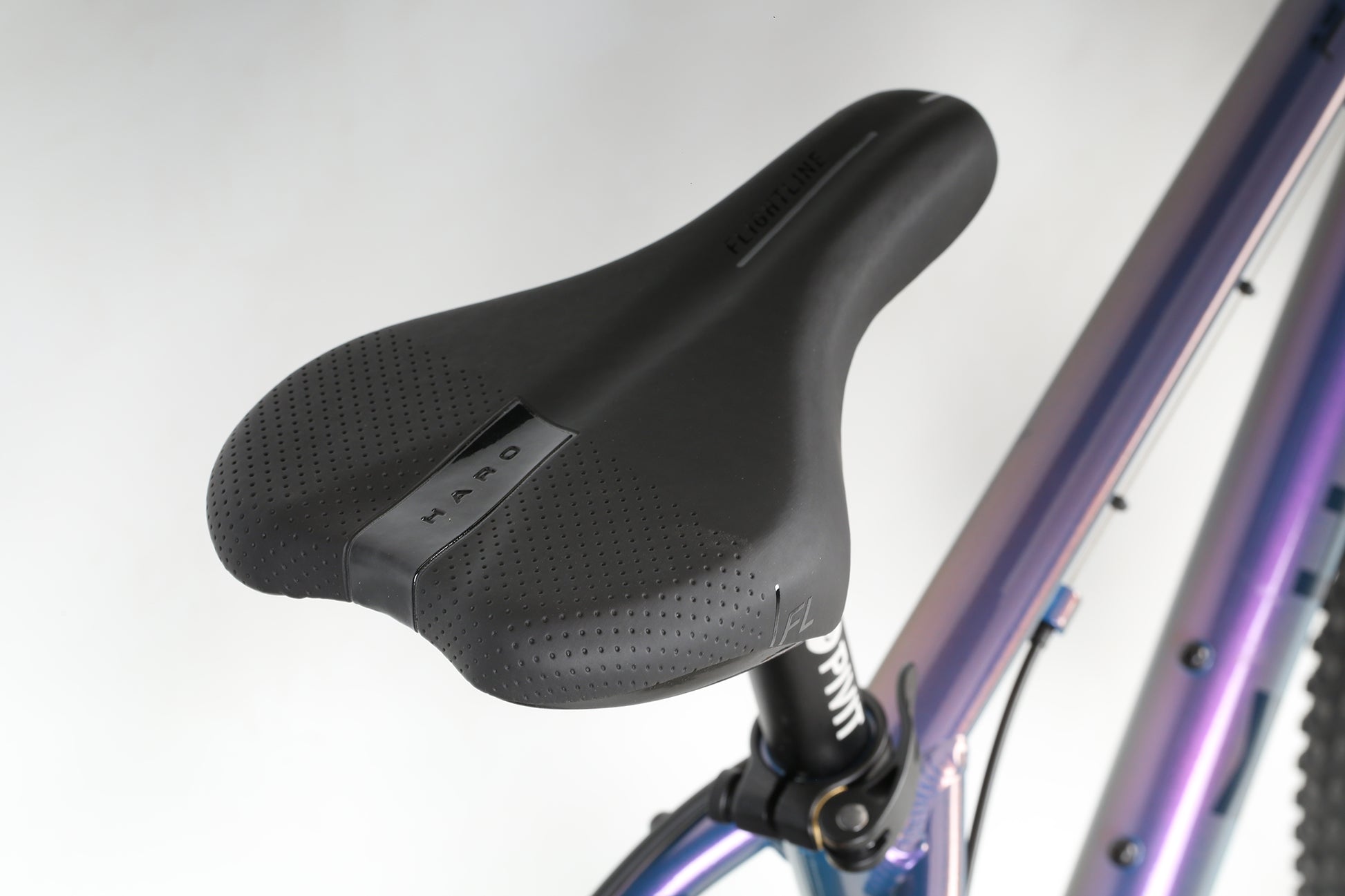

SaddleHaro Flightline Jr. Light
Seat PostPivit Aluminum micro adjust 27.2mm
Seat ClampPivit Aluminum 31.8mm quick release

Geometry & Sizing

Frame reference chart
SIZE24
A. Seat Tube (C-T)305mm (12")
B. Top Tube (Effective)512mm (20.2")
C. Head Tube Angle69°
D. Seat Tube Angle73°
E. Chainstay Length415mm (16.3")
F. BB Drop45mm (1.8")
G. Wheelbase987mm (38.9")
H. Head Tube Length90mm (3.5")
I. Standover615mm (24.2")
J. Stack Height499mm (19.6")
K. Reach360mm (14.2")
L. Fork Height407mm (16")
M. Fork Offset35mm (1.4")
N. Stem Length45mm
O. Bar Width620mm
P. Crank Length152mm
Frame size chart
