Haro Bikes

21241

Leucadia

Customer Reviews

No reviews yet
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Specifications

FRAMESET
FrameFull Hi-Ten Frame
ForkFull Hi-Ten 1 1/8" Threadless w/ Tapered Legs
ColorsBlack, Grey, Matte Lavender
Weight26 lbs
DRIVETRAIN
Cranks3-pc Cr-Mo 8 Spline 165mm / 175mm, 25T Steel Sprocket
Bottom BracketLoose Ball American BB
Sprocket25T Steel
Gearing25/9
PedalsLow-Pro Nylon w/ Cr-Mo Axle, 9/16
ChainKMC 410
WHEELS

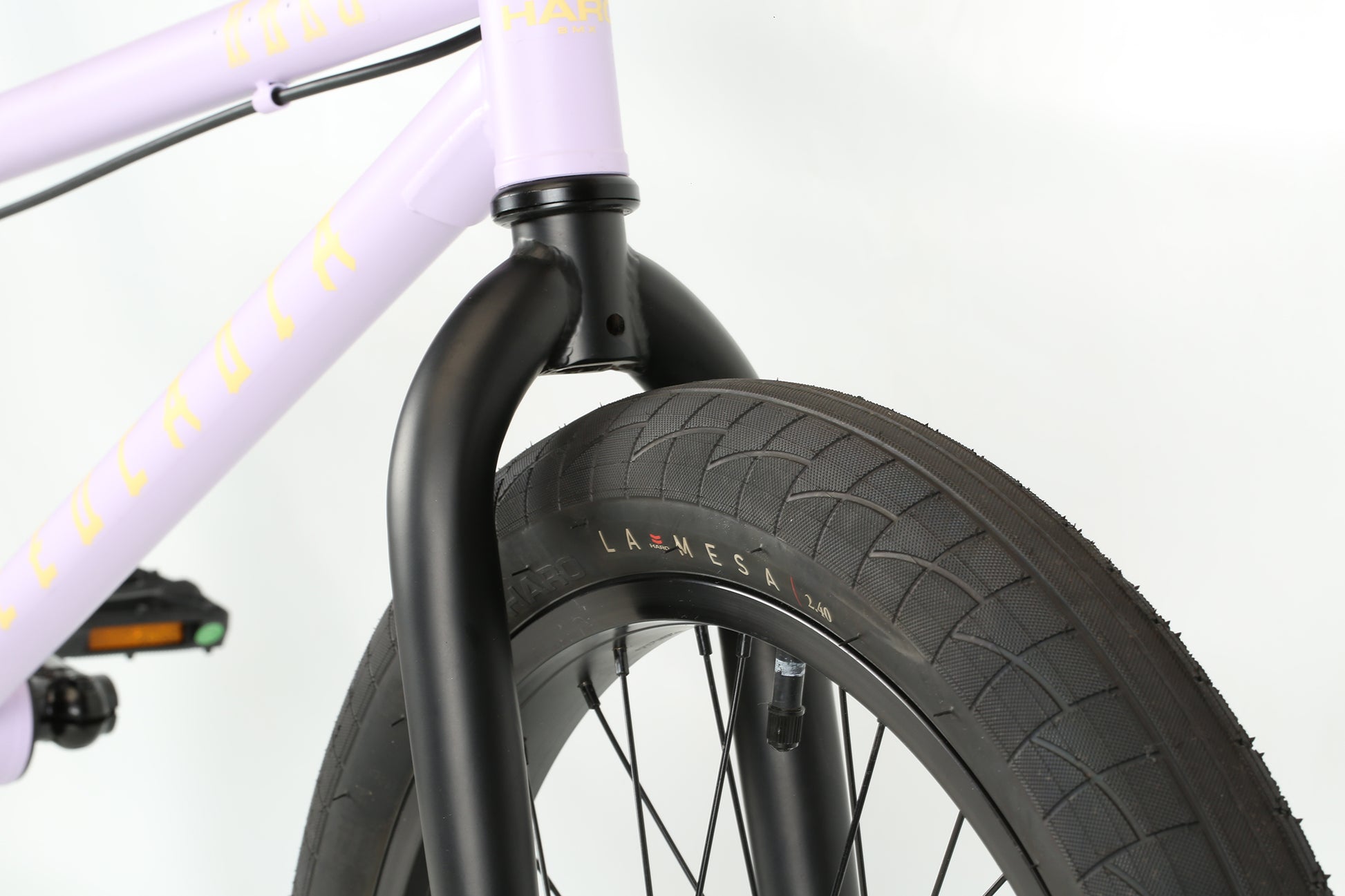

TiresHaro La Mesa 20 x 2.4"
HubsFront: Steel Shell 36h, Loose Ball Rear: Alloy Shell Cassette, 36h, Loose Ball w/ Sealed Bearing Driver Axle: 3/8" Front / 14mm Rear
Front HubSteel Shell 36h, Loose Ball
Rear HubAlloy Shell Cassette, 36h, Loose Ball w/ Sealed Bearing Driver
Axle3/8" Front / 14mm Rear
Rims20" Alloy 36h, Single Wall
BRAKING SYSTEM

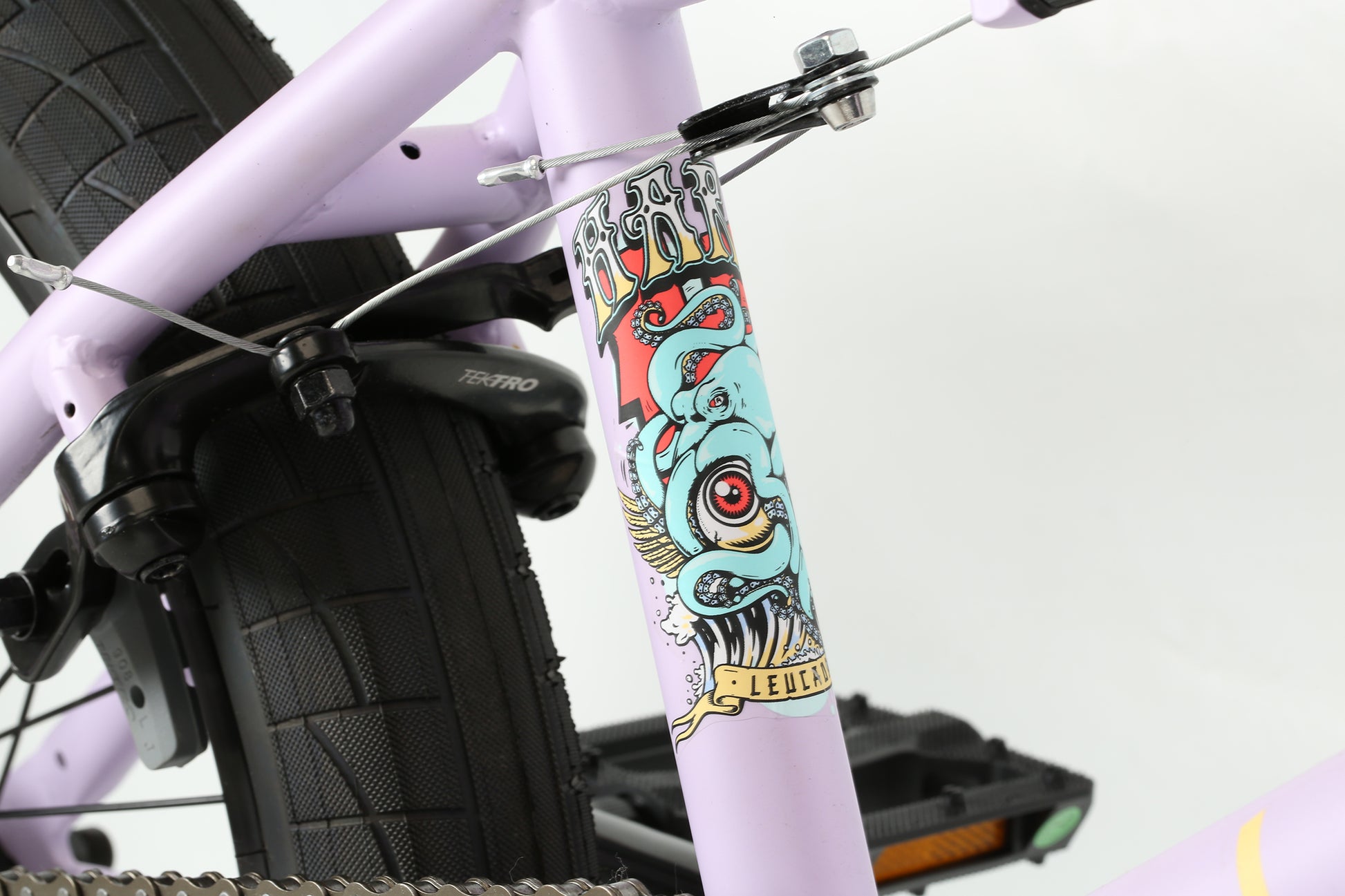

BrakeTektro Alloy 990 U-Brake

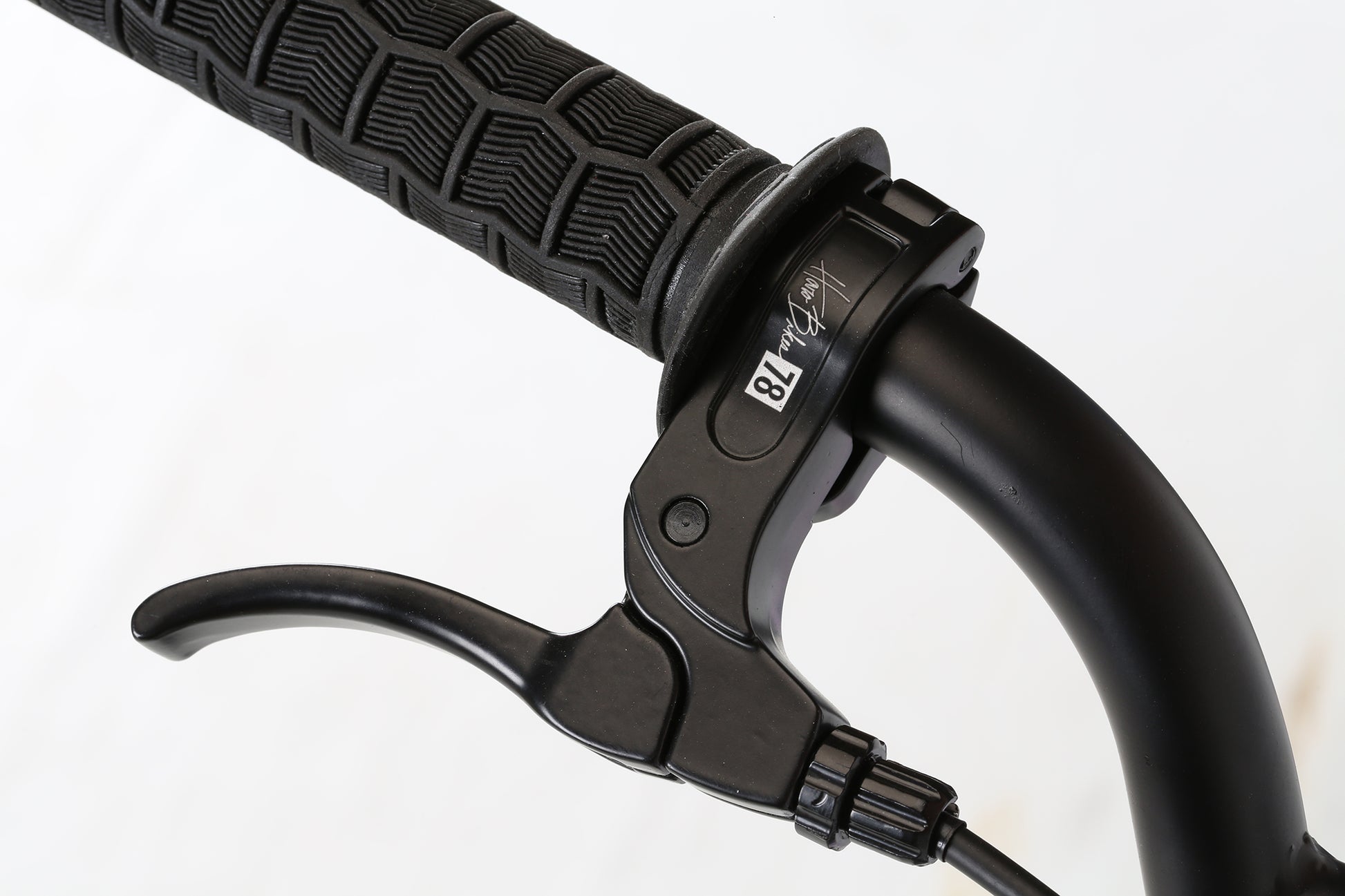

Brake LeverHaro 78 Alloy Hinged Lever
OTHER COMPONENTS
GripsHaro Team Grips

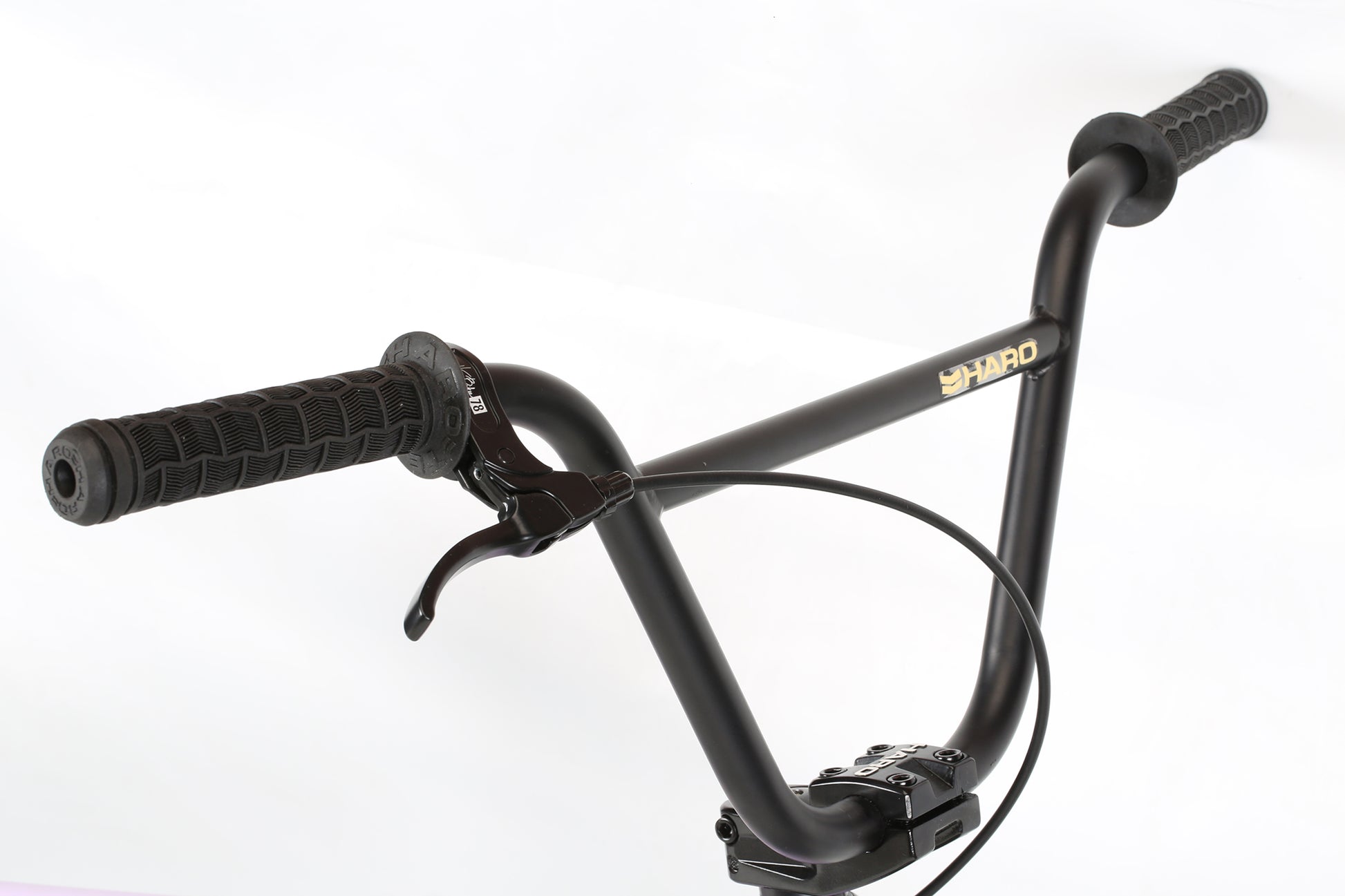

Handle BarFull Hi-Ten, 7.5" Rise / 8.25" Rise

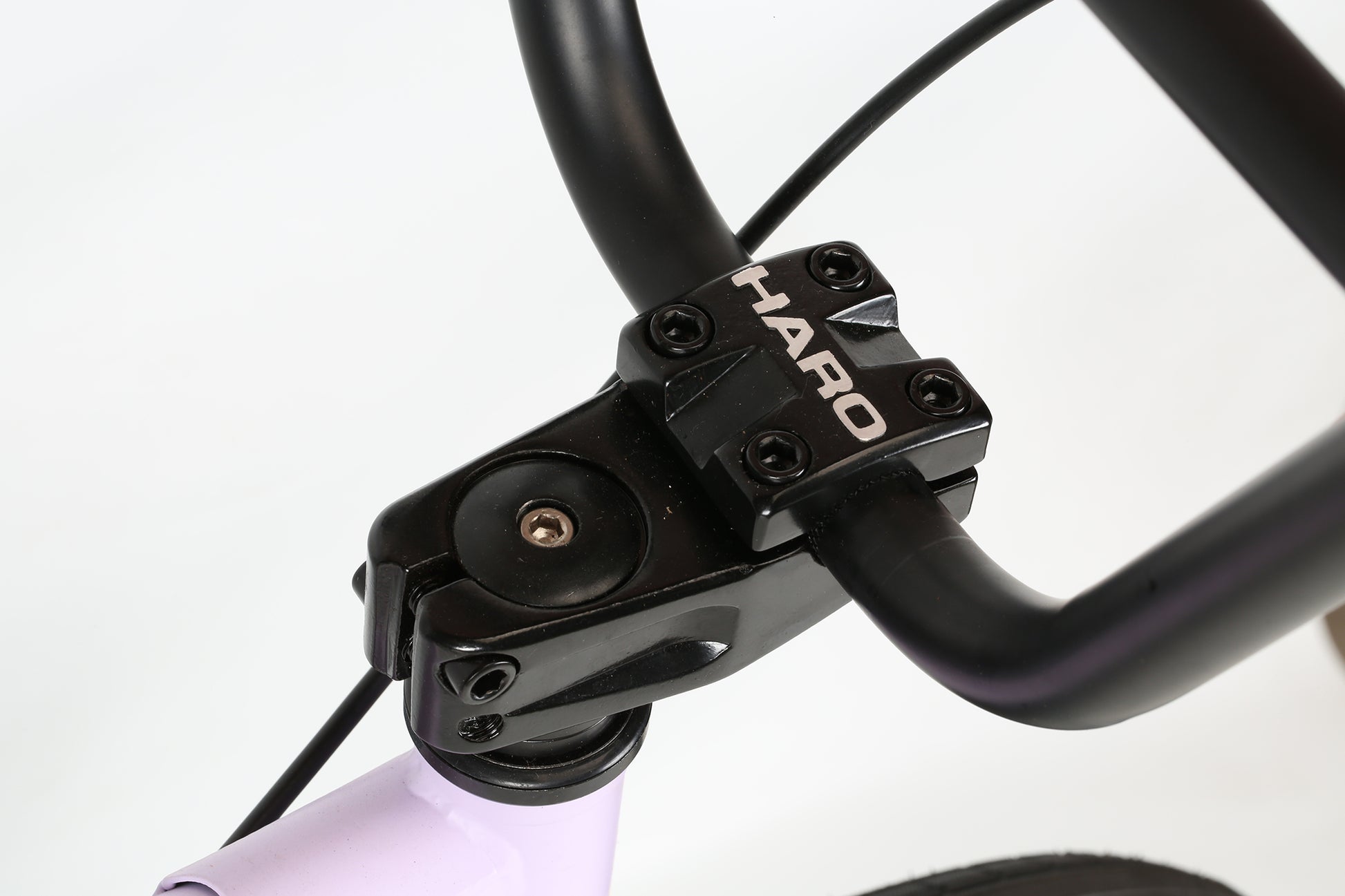

StemForged Alloy Top-Load, 50mm Ext.
HeadsetThreadless Loose Ball, 1 1/8"

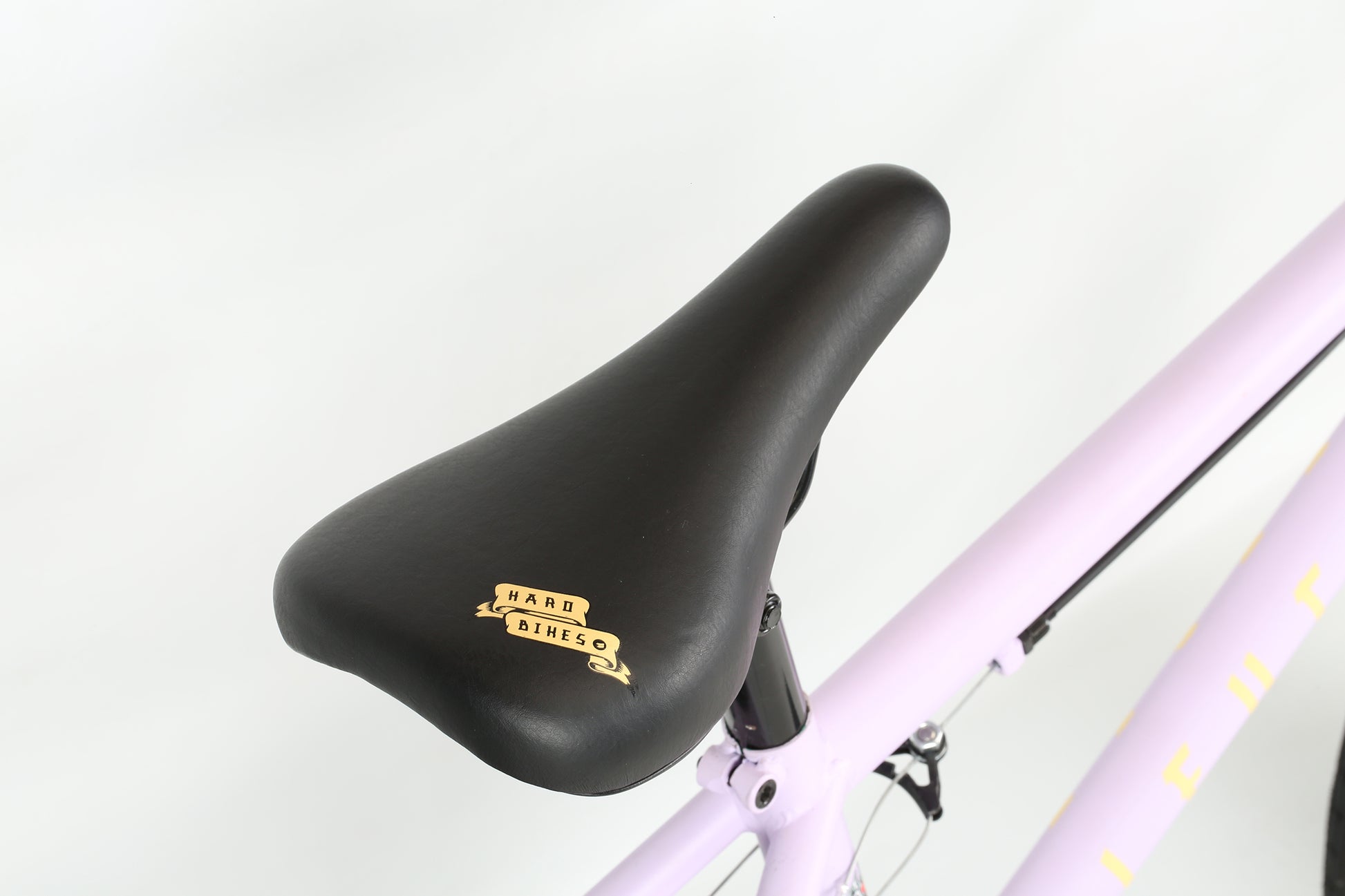

SeatHaro Padded Adjustable
Seat PostSteel, 25.4mm
Seat Post ClampIntegrated

Geometry & Sizing

Frame reference chart
SizeA. Head AngleB. Seat AngleC. Top TubeD. Seat TubeE. ChainstayF. BB HeightG. Stand Over
18.574.5°70°18.5 (470 mm)10.2 (260 mm)13.7 (349 mm)11.5 (293 mm)21.5 (546 mm)
20.574.5°70°20.5 (520 mm)10.2 (260 mm)13.7 (349 mm)11.5 (293 mm)21.5 (546 mm)
Sizing Guidelines

outline of a person representing an estimated height of 3 to 4 feet tall 16" WHEEL
ages 5 - 7
3'6" - 3'10"

outline of a person representing an estimated height of 3 to 4 feet tall 18" WHEEL
ages 6 - 8
3'10" - 4'2"

outline of a person representing an estimated height of 4 to 4 foot 10 inches tall 18.5" TOP TUBE 20" WHEEL
ages 7 - 9
4'3" - 4'8"

outline of a person representing an estimated height of 4 to 4 foot 10 inches tall 19.5" TOP TUBE 20" WHEEL
ages 10 - 12
4'5" - 4'10"

outline of a person representing an estimated height of 5 to 6 feet tall 20.5" TOP TUBE 20" WHEEL
ages 13+
5'3" - 5'9"

outline of a person representing an estimated height of 5 to 6 feet tall 20.75" TOP TUBE 20" WHEEL
ages 13+
5'4" - 5'9"

outline of a person representing an estimated height of 5 to 6 feet tall 21" TOP TUBE 20" WHEEL
ages 13+
5'9" - 6'

outline of a person representing an estimated height of 5 to 6 feet tall 24" WHEEL
ages 13+
5'9" - 6'
