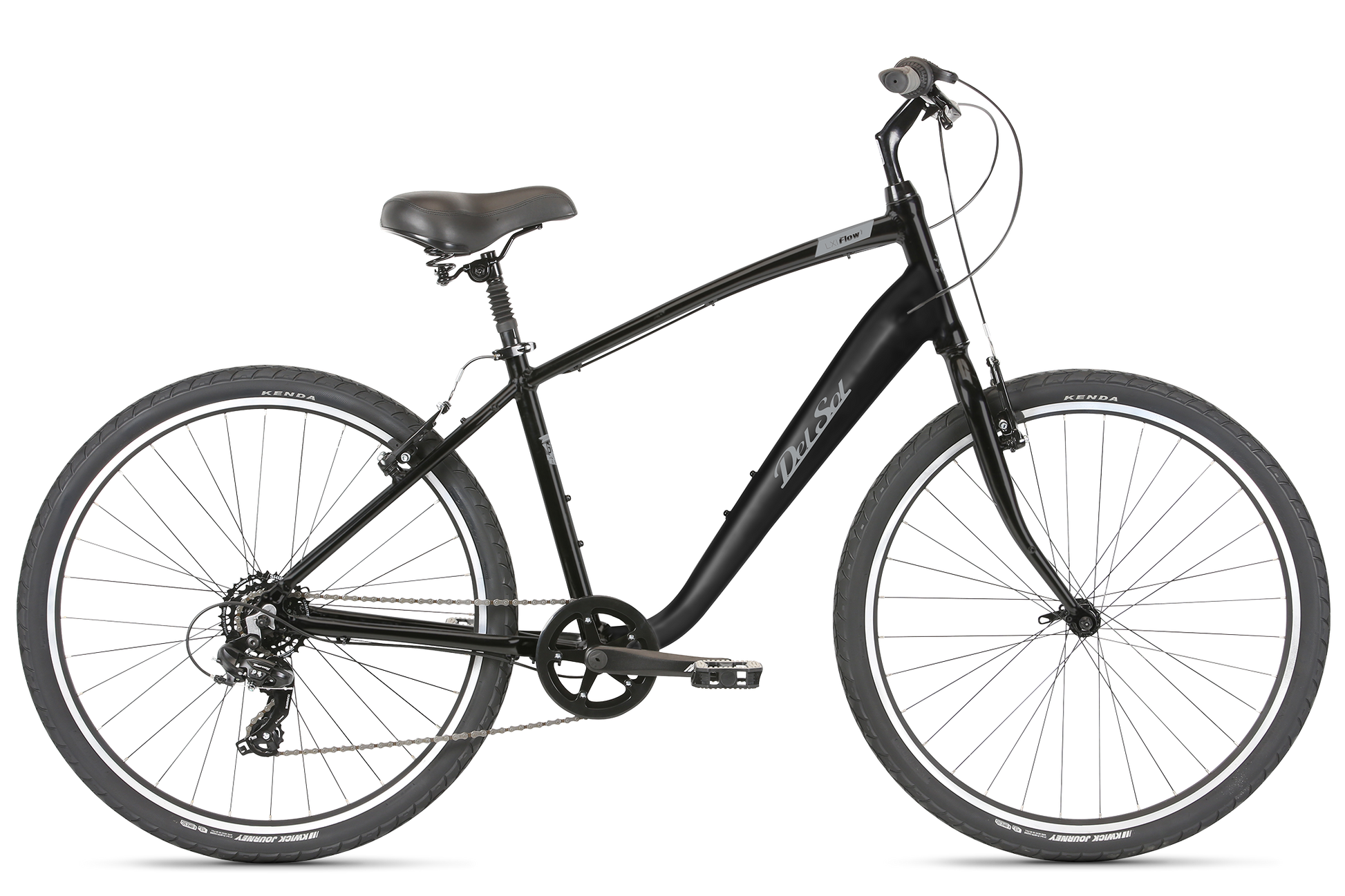

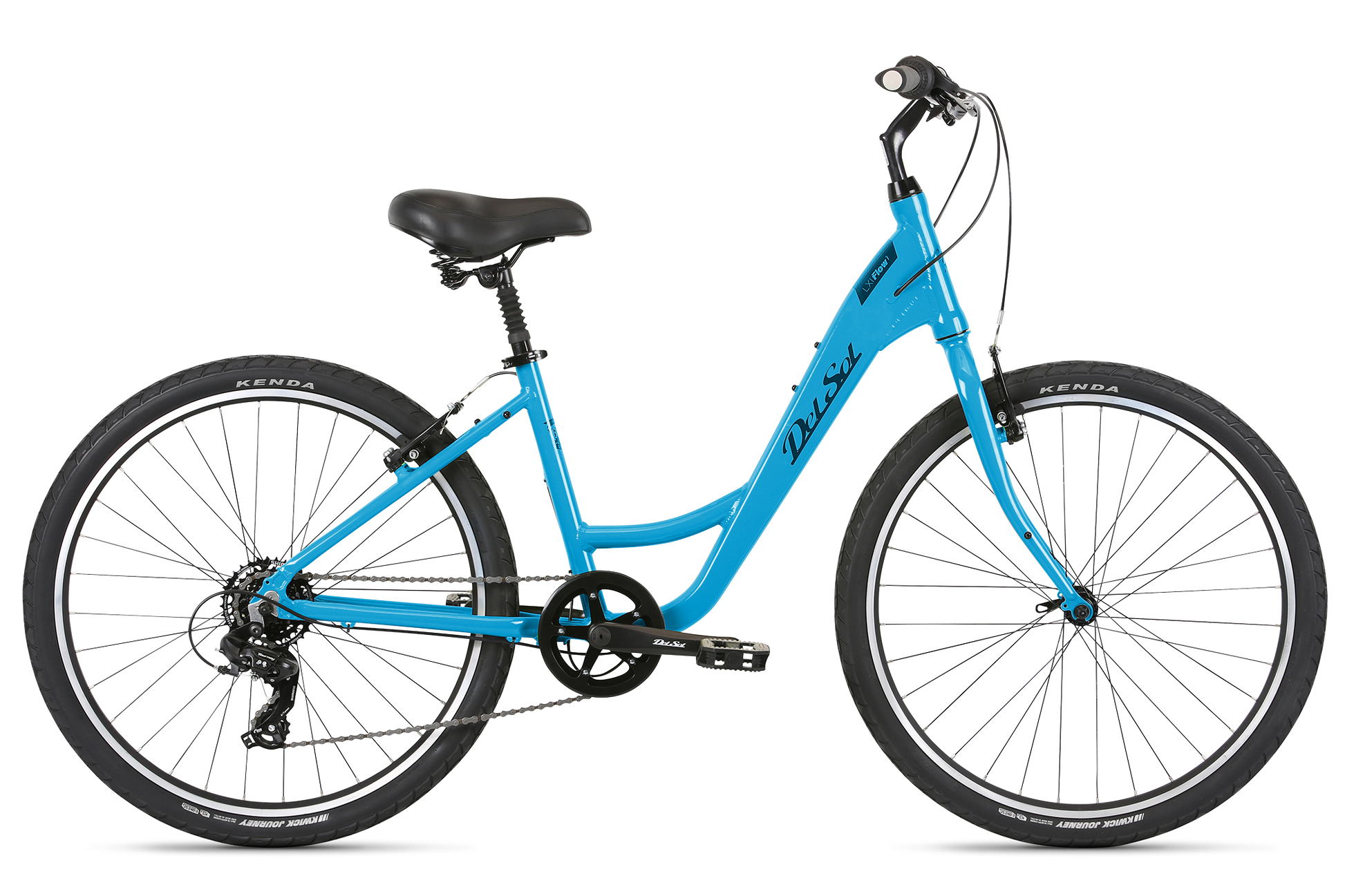

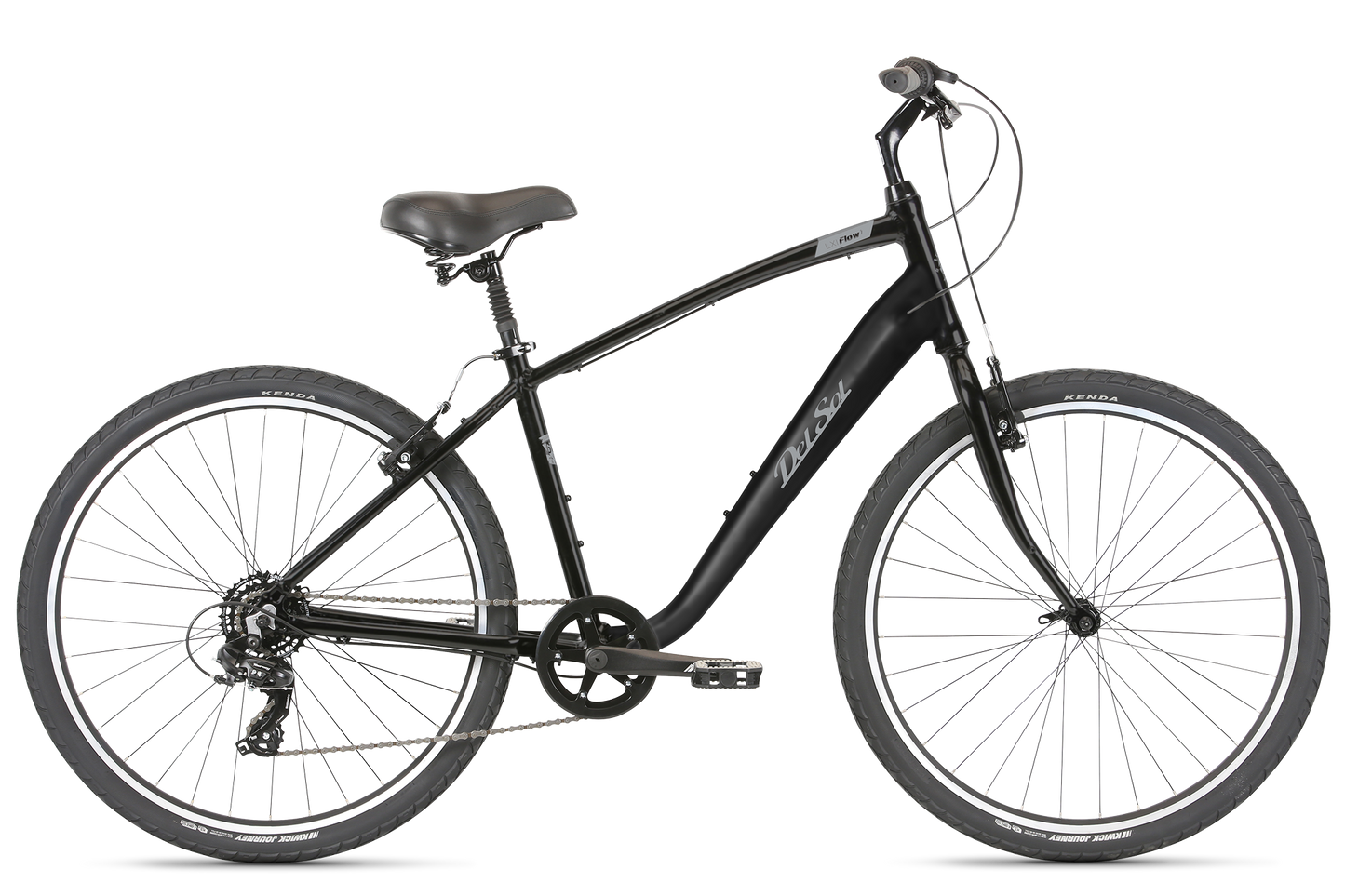

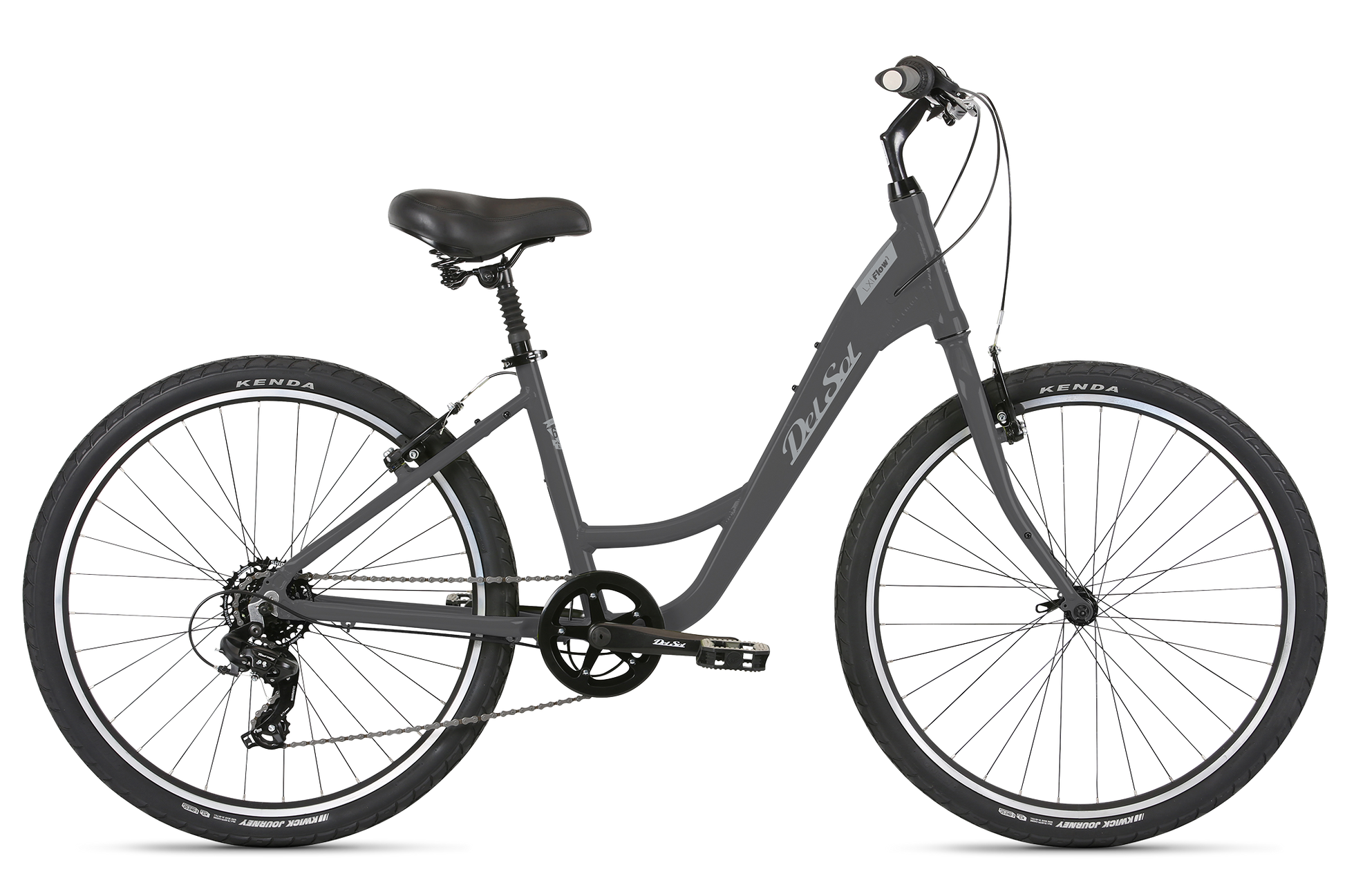

Del Sol

31162

Lxi Flow 1

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
J
J.M.
Quality

Features

Specifications
FRAMESET
FrameLXI Flow | Heat-treated 6061 aluminum | Tig-welded construction | Easygoing geometry | Size-Specific Wheel Design | 68mm threaded BSA bottom bracket shell | 135mm quick-release spacing
ForkSteel | 1-1/8" threaded | Size-Specific Wheel Design | V-brake mount | 100mm quick-release spacing
ColorsBlack, Charcoal, Process Cyan
Weight32 lbs
DRIVETRAIN
Cranks3-piece | Forged alloy | Steel 38T chainring with dual-guide design | 170mm length
PedalsCauseway flattoppers | Shock-absorbing Kraton inserts
ChainKMC Z7 | 7-speed
Bottom Bracket68mm threaded BSA shell | JIS square taper | Sealed cartridge
Front DerailleurN/A
Rear DerailleurShimano Tourney TY300D | 7-speed | Long cage
Derailleur ShifterShimano Revo twist shifter | 7-speed
Freewheel/CassetteShimano Tourney | 7-speed | Mid-range | 12-32T
WHEELS
TiresKenda Kwick Journey S: 26 x 1.75"; M: 27.5 x 1.75"; L: 29 x 1.77"
Wheels/RimsAlloy | Width (internal): 19mm Double-wall | 32h
BRAKING SYSTEM
BrakesAlloy | V-brakes
Brake LeversAlloy | Linear Pull
OTHER COMPONENTS
Grips/TapeDel Sol Ergo Comfort | Dual Density
HandlebarSteel Riser Bar | ϕ25.4 bar bore | 80mm rise | 15-degree wrist-saver sweep | 635mm width
StemQuill | Alloy | 30° rise | ϕ25.4 bar bore | 80mm length
Headset1-1/8" integrated | threaded
SaddleDel Sol Coach | Shock-absorbing springs
Seat PostSuspension | 27.2 x 300mm
Seat ClampAlloy | Quick release | ϕ 31.8mm
ExtrasRack & Fender Mounts
Geometry & Sizing
SIZES / 15 STM / 17 STS / 15M / 17L / 20
A. Top Tube (Effective)572mm (22.5")588mm (23.1")575mm (22.6")595mm (23.4")594mm (23.4")
B. Seat Tube (C-T)381mm (15")432mm (17")381mm (15")432mm (17")508mm (20")
C. Standover Height430mm (16.9")445mm (17.5")742mm (29.2")778mm (30.6")845mm (33.3")
D. Head Tube Length190mm (7.5")200mm (7.9")195mm (7.7")200mm (7.9")215mm (8.5")
E. Head Angle68°68°68°68°68°
F. Seat Angle71°71°74°74°74°
G. Wheelbase1077mm (42.4")1097mm (43.2")1080mm (42.5")1104mm (43.5")1128mm (44.4")
H. Chainstay440mm (17.3")450mm (17.7")440mm (17.3")450mm (17.7")470mm (18.5")
I. BB Drop40mm (1.6")55mm (2.2")40mm (1.6")55mm (2.2")63mm (2.5")
J. Stem Length
K. Bar Width635mm635mm635mm635mm635mm
L. Crank Length170mm170mm170mm170mm170mm
M. Wheel Size2627.52627.529/700c

*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
