Del Sol

31192

Lxi Flow 2

*Actual retail price may vary based on any added dealer freight, tax, and assembly fees

Customer Reviews

No reviews yet
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Features

  • Upright ride positioning provides excellent visibility, comfort, and easy on/off the bike transitions
  • Wide-range, 1x8 drivetrain with twist shifter and disc brakes provides simple, easy shifting and great stopping power
  • Affordable price point keeps ultimate comfort within reach--even with a suspension fork and seatpost for maximum cushioning.
  • Relaxed headtube angle provides more predictable and steady steering with nothing sneaking up on you
  • Relaxed seat tube angle brings the rider position less over the bars and more evenly positioned, with better posture
  • Size-specific wheels allow for the perfect height-to-wheelsize match for a closer fit
Specifications
FRAMESET

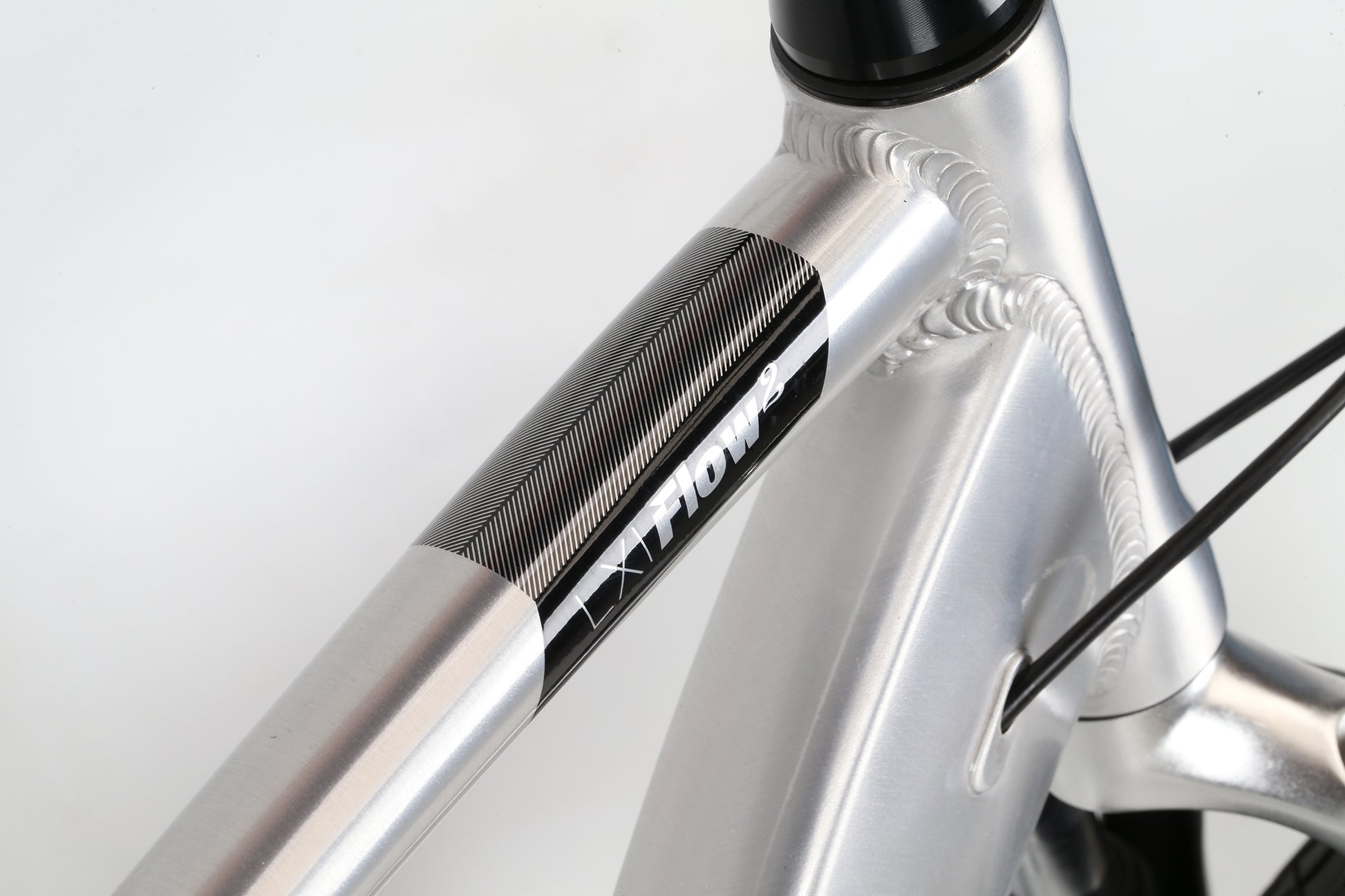

FrameLXI Flow | Heat-treated 6061 aluminum | Tig-welded construction | Easygoing geometry | Size-Specific Wheel Design | 68mm threaded BSA bottom bracket shell | I.S. disc brake mount | 135mm quick-release spacing

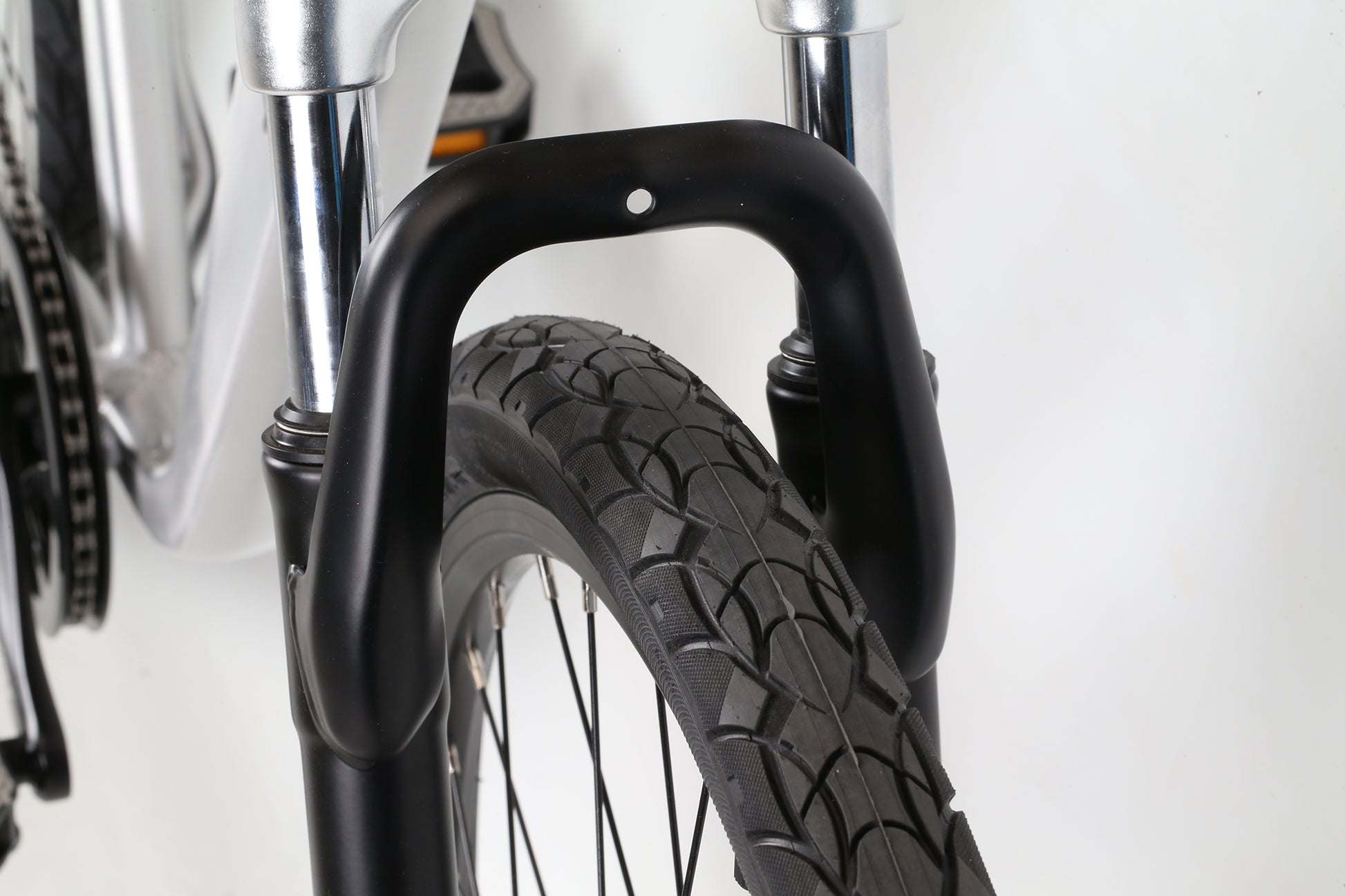

Fork60mm travel | Comfort-tuned suspension | Weather-sealed stanchion protection | Steady-Cruise Offset | Size-Specific Wheel Design | Post-mount disc brake | 100mm quick-release spacing
ColorsBrushed Alloy, Black, Copper
Weight35.4 lbs
DRIVETRAIN

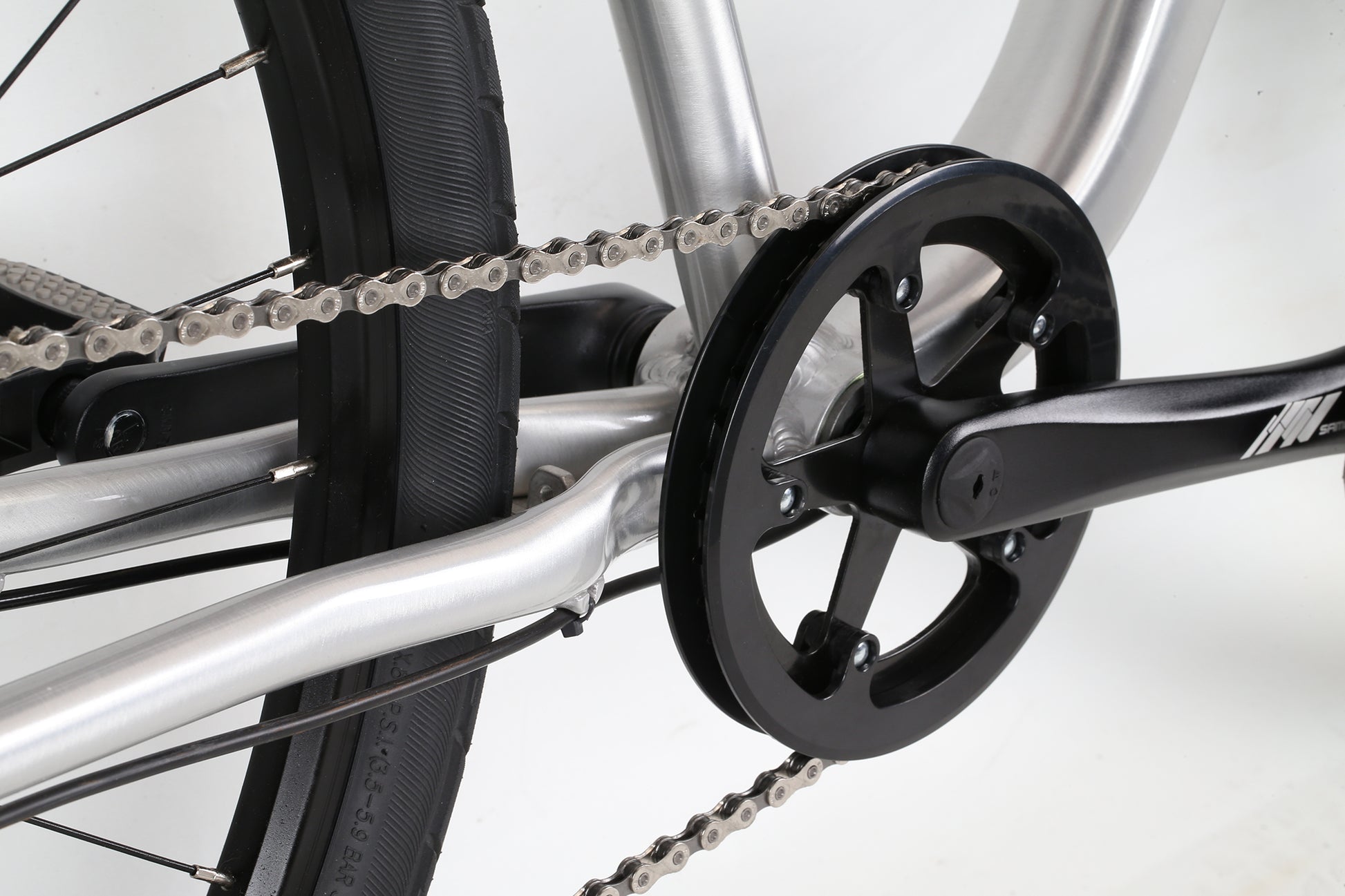

Cranks3-piece | Forged alloy | Steel 38T chainring with dual-guide design | 170mm length
PedalsCauseway flattoppers | Shock-absorbing Kraton inserts
ChainKMC X8 | 8-speed
Bottom Bracket68mm threaded BSA shell | JIS square taper | Sealed cartridge
Front DerailleurN/A
Rear DerailleurShimano Acera M360L | 8-speed | Long cage
Derailleur ShifterShimano Altus Rapidfire Plus | 8-speed | Optical gear display
Freewheel/Cassette8-speed | Wide-range | 11-40T
WHEELS
TiresKenda Kwick Journey; S: 26 x 1.75"; M: 27.5 x 1.75"; L: 29 x 1.77"
Wheels/RimsAlloy | Width (internal): 19mm Double-wall | 32h
BRAKING SYSTEM
BrakesMechanical Disc | Post mount | I.S. 6-bolt 160mm rotors
Brake LeversAlloy | Linear Pull
OTHER COMPONENTS

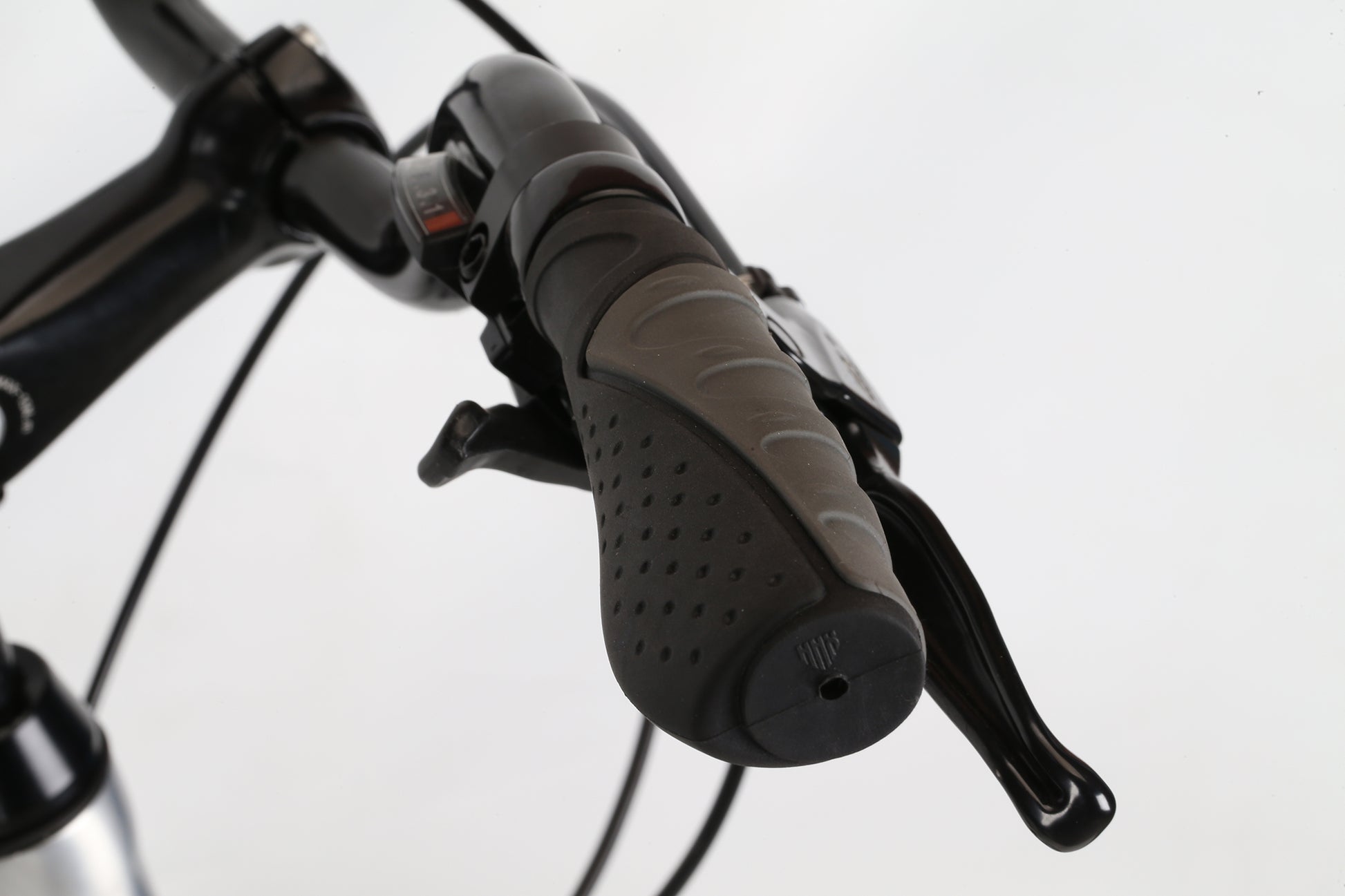

Grips/TapeDel Sol Ergo Comfort | Dual Density
HandlebarSteel Riser Bar | ϕ25.4 bar bore | 80mm rise | 15-degree wrist-saver sweep | 635mm width
StemQuill | Alloy | Adjustable rise | ϕ25.4 bar bore
Headset1-1/8" Integrated | Threaded
SaddleDel Sol Coach | Shock-absorbing springs
Seat PostAlloy | Suspension | 27.2 x 300mm
Seat ClampAlloy | Quick release | ϕ 31.8mm
ExtrasRack & Fender Mounts
Geometry & Sizing
SIZES / 15 STM / 17 STS / 15M / 17L / 20
A. Top Tube (Effective)575mm (22.6")590mm (23.2")575mm (22.6")590mm (23.2")595mm (23.4")
B. Seat Tube (C-T)381mm (15")432mm (17")381mm (15")432mm (17")508mm (20")
C. Standover Height435mm (17.1")444mm (17.5")759mm (29.9")799mm (31.5")852mm (33.5")
D. Head Tube Length155mm (6.1")155mm (6.1")160mm (6.3")160mm (6.3")175mm (6.9")
E. Head Angle68°68°68°68°68°
F. Seat Angle71°71°71°71°71°
G. Wheelbase1078mm (42.4")1097mm (43.2")1078mm (42.4")1097mm (43.2")1120mm (44.1")
H. Chainstay440mm (17.3")450mm (17.7")440mm (17.3")450mm (17.7")470mm (18.5")
I. BB Drop40mm (1.6")55mm (2.2")40mm (1.6")55mm (2.2")63mm (2.5")
J. Stem Length
K. Bar Width635mm635mm635mm635mm635mm
L. Crank Length170mm170mm170mm170mm170mm
M. Wheel Size2627.52627.529/700c



*Specifications are subject to change without notice
