1 10

Del Sol

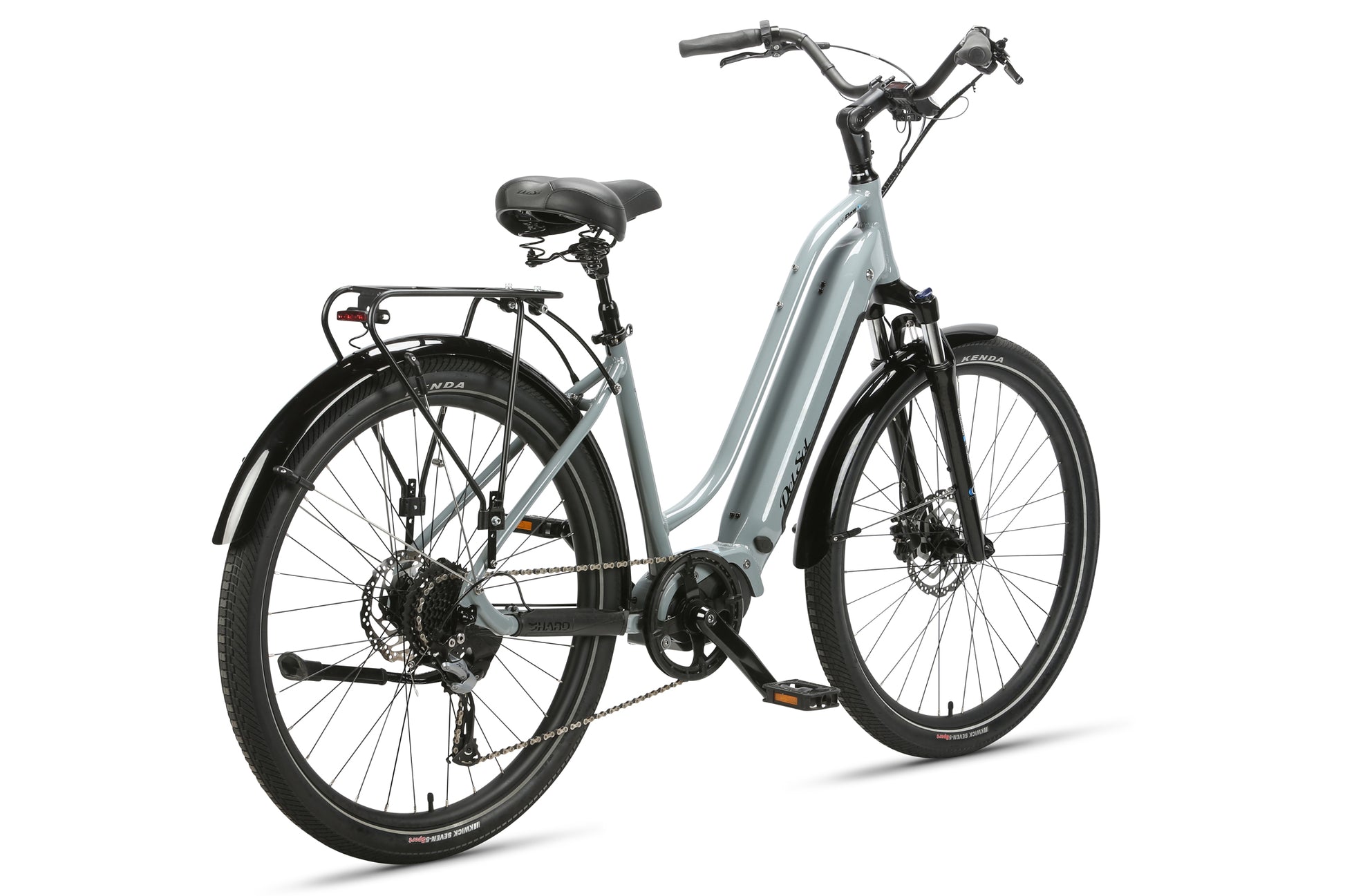

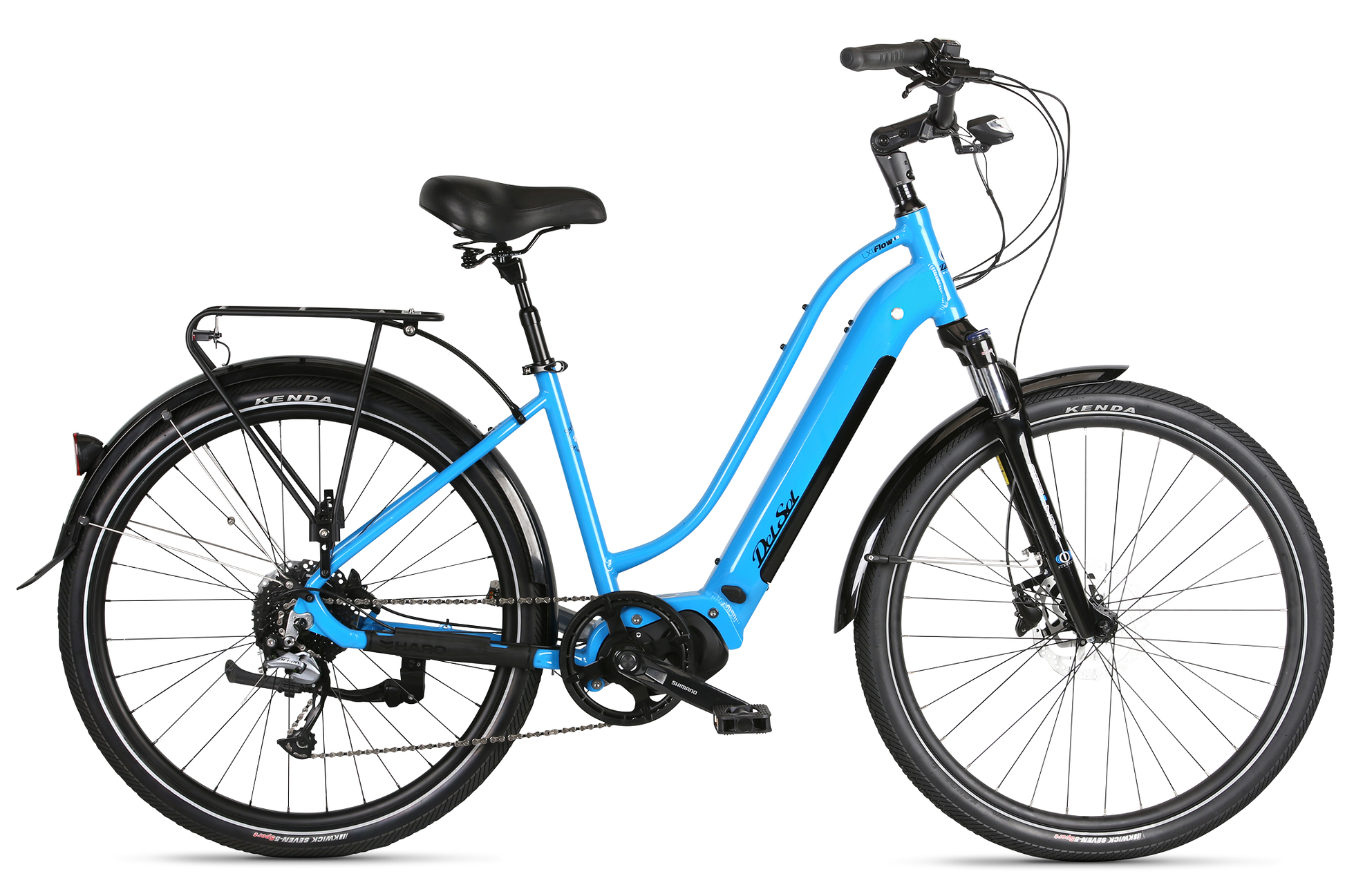

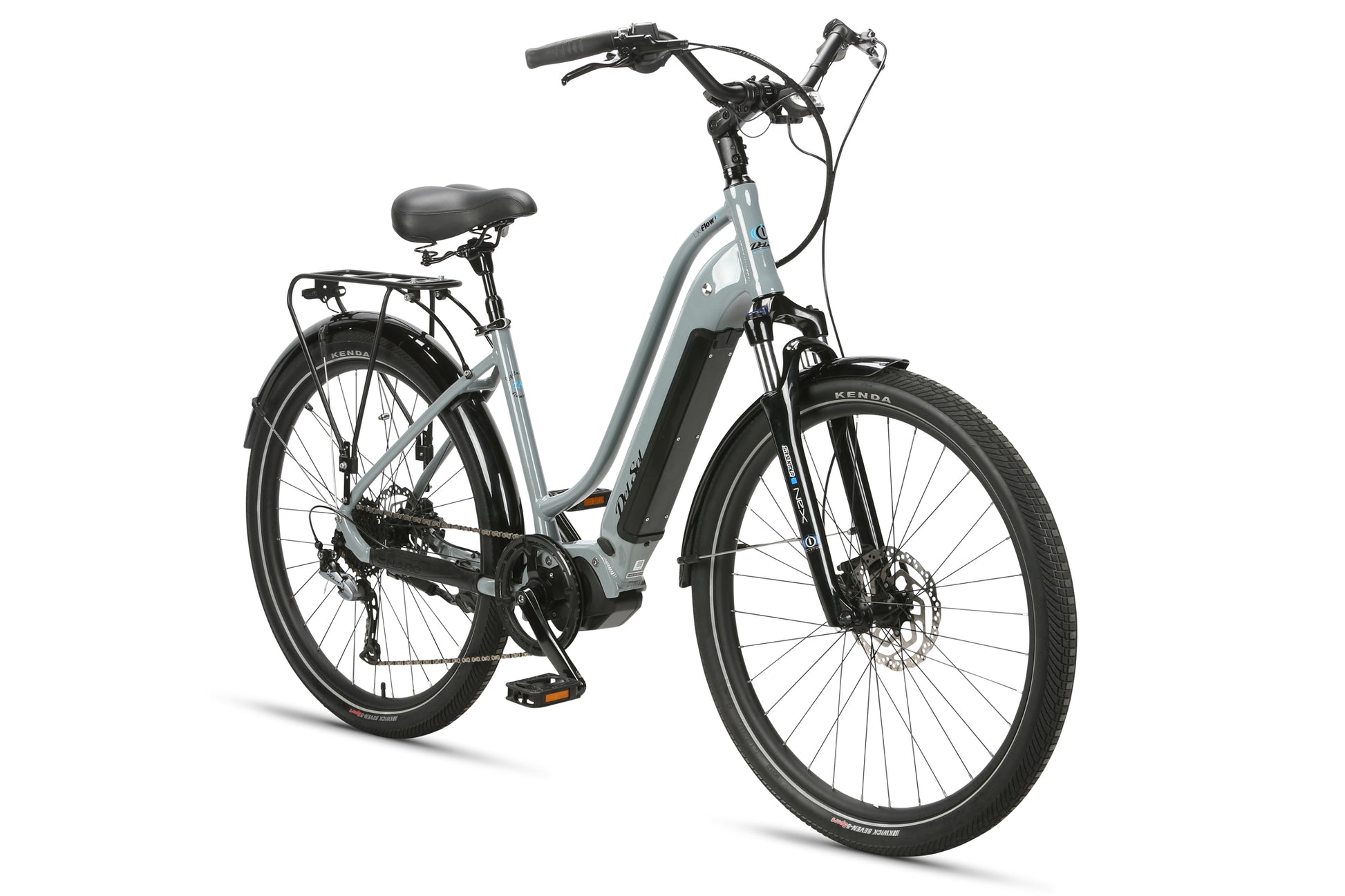

Lxi Flow i/O Step Thru

Lxi Flow i/O Step Thru

$2,999.99
$2,999.99 $2,999.99
Sale Out of Stock

SKU: 31762

You want an e-bike, and you wanna make sure you're getting a super-quality e-bike without overpaying. Well, along comes the LXI Flow i/O. Full Shimano components -- even hydraulic brakes -- accompany a proven, Shimano E5000 mid-drive, pedal-assist motor. Refined geometry with easy-access standover heights make the LXI Flow i/O the ultimate e-bike for modern mobility that doesn't sacrifice on ultimate comfort.

Sizing Guide

SizeInchesCM
14
17
20

Color
Size

View full details

FEATURES

  • Full Shimano quality componentry and E5000 pedal-assist, mid-drive motor are time proven and the leading name brand in e-bikes
  • Upright posture ensures visibility and makes for light actuation, easy steering
  • Generous standover heights and high-rise handlebars provide irrefutable comfort and ease of mounting/dismounting

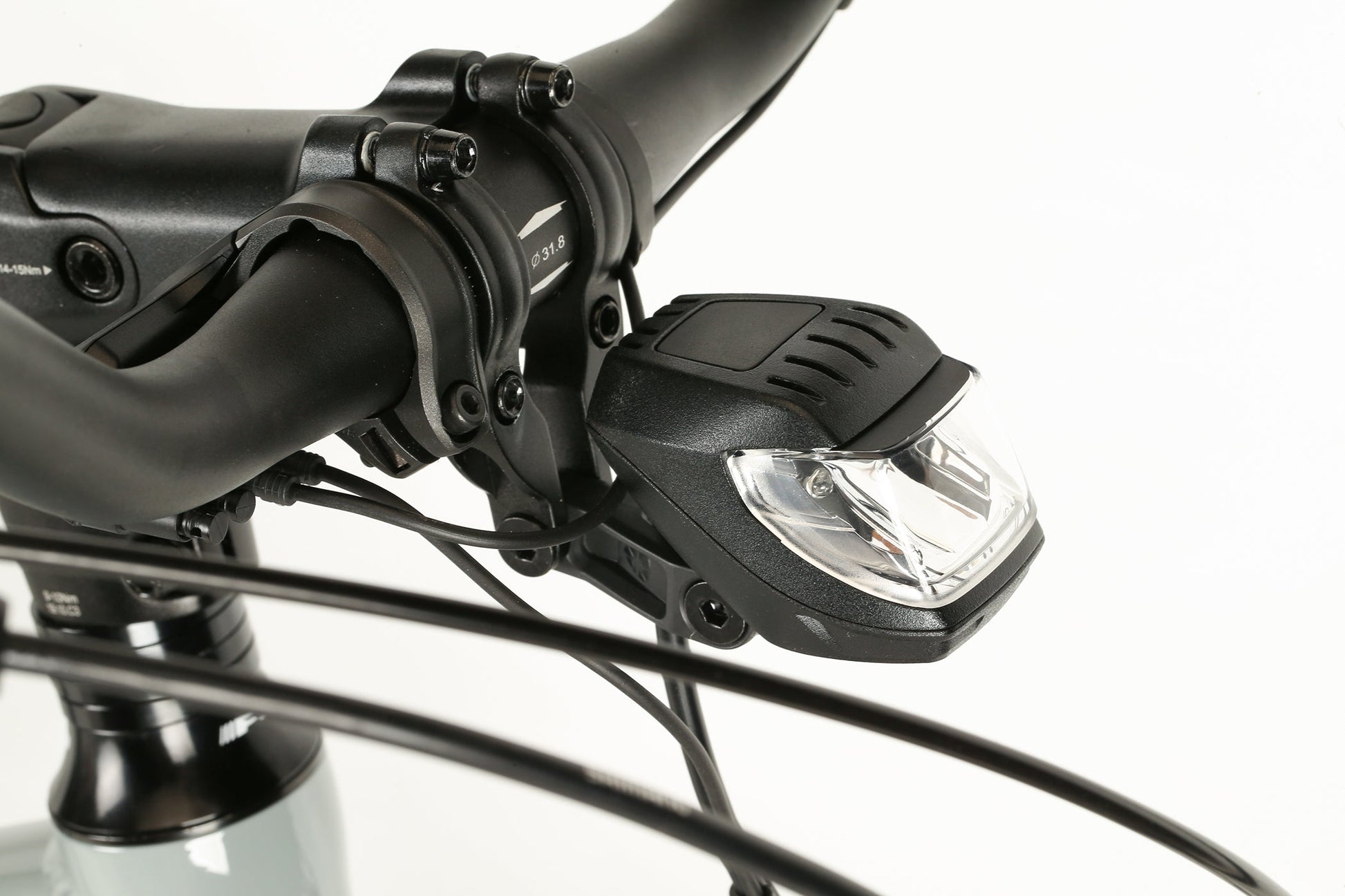

  • Bright, wide-angle lights with CREE high-definition bulbs provide easy-to-use, even easier-to-see lighting
  • Easy-steer handling ensures a light touch
  • Class 1 e-bike: pedal assist only, up to 20mph

SPECIFICATIONS

FRAMESET
FrameLXI Flow i/O | 6061 heat-treaded aluminum | Tig-welded construction | Buttressed down tube frame | Fully internal battery | Angle-correct mid-drive motor mount | Internal e-bike wiring | 73mm threaded BSA bottom bracket shell | Post mount disc tab | 135m
ForkSRSuntour | SF20 NEX-HLO-DS | 63mm travel | Lightweight alloy crown and monocoque lowers | Weather-sealed stanchion protection | Plush coil spring with adjustable preload | Hydraulic Lockout | Post-mount disc brake
ColorsBlack, Cyan, Cool Gray
Weight51 lbs
DRIVETRAIN

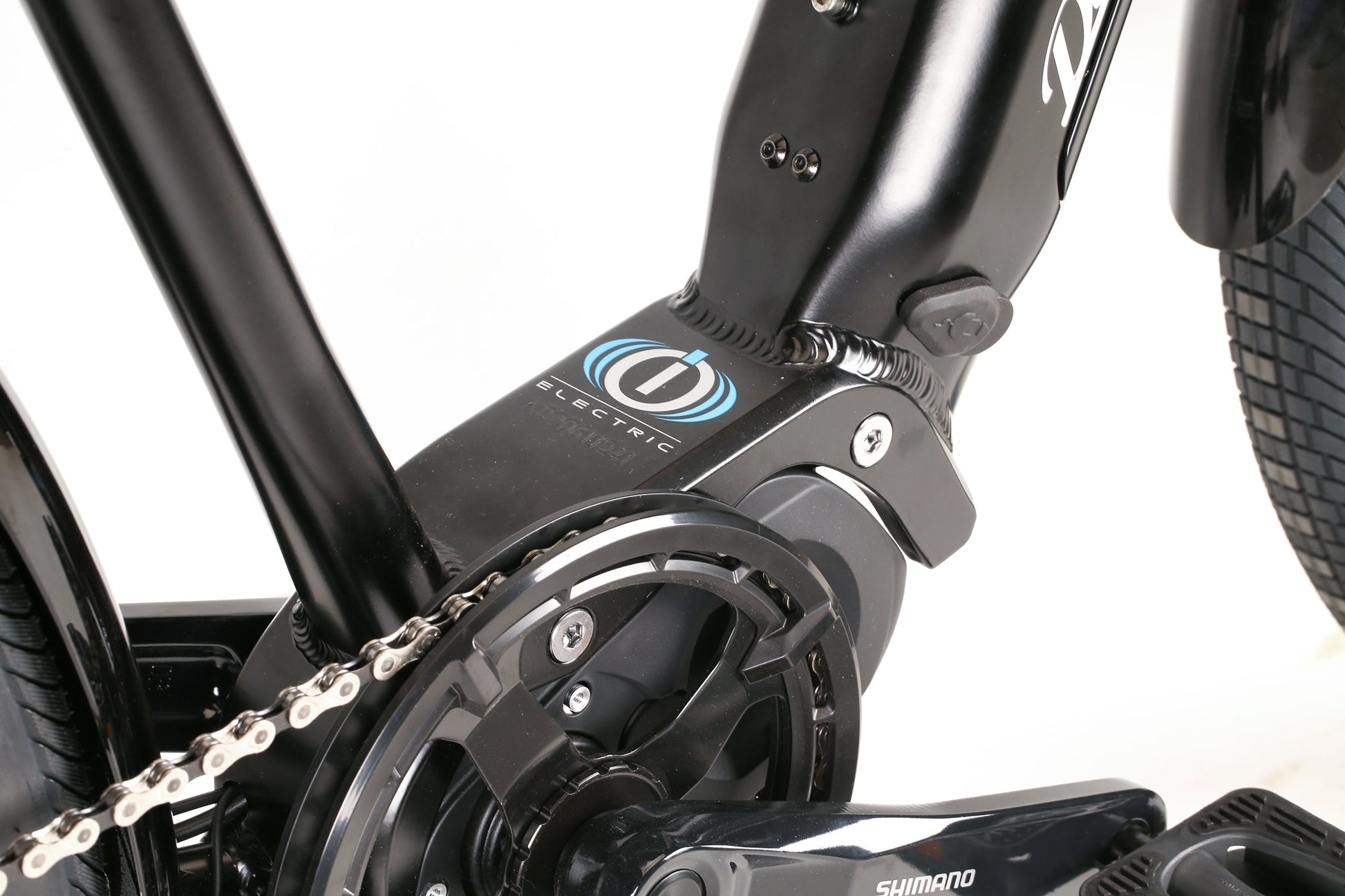

CranksShimano FC-E5010 crank arm set for E5000 mid-motor
PedalsComfort | Shock-absorbing Kraton inserts
ChainKMC E9-Sport | 9-speed
Bottom BracketN/A
Front DerailleurN/A
Rear DerailleurShimano Acera M3100 | Shadow Design | Long cage | 9-speed
Derailleur ShifterShimano Acera Rapidfire Plus | 9-speed
Freewheel/CassetteShimano HG200-9 | 11-36T | 9-speed
Battery36V | 504Wh | Fully-integrated within down tube
WHEELS
TiresKenda Kwick Seven.5 | 27.5 x 2.2"
Wheels/RimsAlloy | Width (internal): 25mm | Doulbe-wall construction | 32h
Front HubShimano TX-505 | 100mm quick release | Center Lock disc mount | 32h
Rear HubShimano TX505 | 135mm quick release | Center Lock disc mount | HG freehub | 32h
BRAKING SYSTEM
BrakesShimano MT200 Hydraulic Disc | Post mount | 180/160mm Center Lock rotors
Brake LeversShimano MT200 | Alloy | Hydraulic
OTHER COMPONENTS
Grips/TapeDel Sol Ergo Comfort with Gel | Dual Density
HandlebarLXI Flow i/O: Alloy | 85mm rise | 54° sweep | 630mm wide; LXI Flow i/O ST: Alloy | 40mm rise | 40° sweep | 615mm wide
StemAlloy | ϕ31.8 bar bore | Adjustable angle | Integrated light holder
HeadsetFSA No. 10 | 1-1/8" | Threadless
SaddleDel Sol Couch Plus saddle | Compression-tuned elastomers | Del Sol Hand-Holder e-bike-specific handle
Seat PostAlloy | Suspension | 40mm travel | 27.2 x 350mm
Seat ClampAlloy | 31.8mm

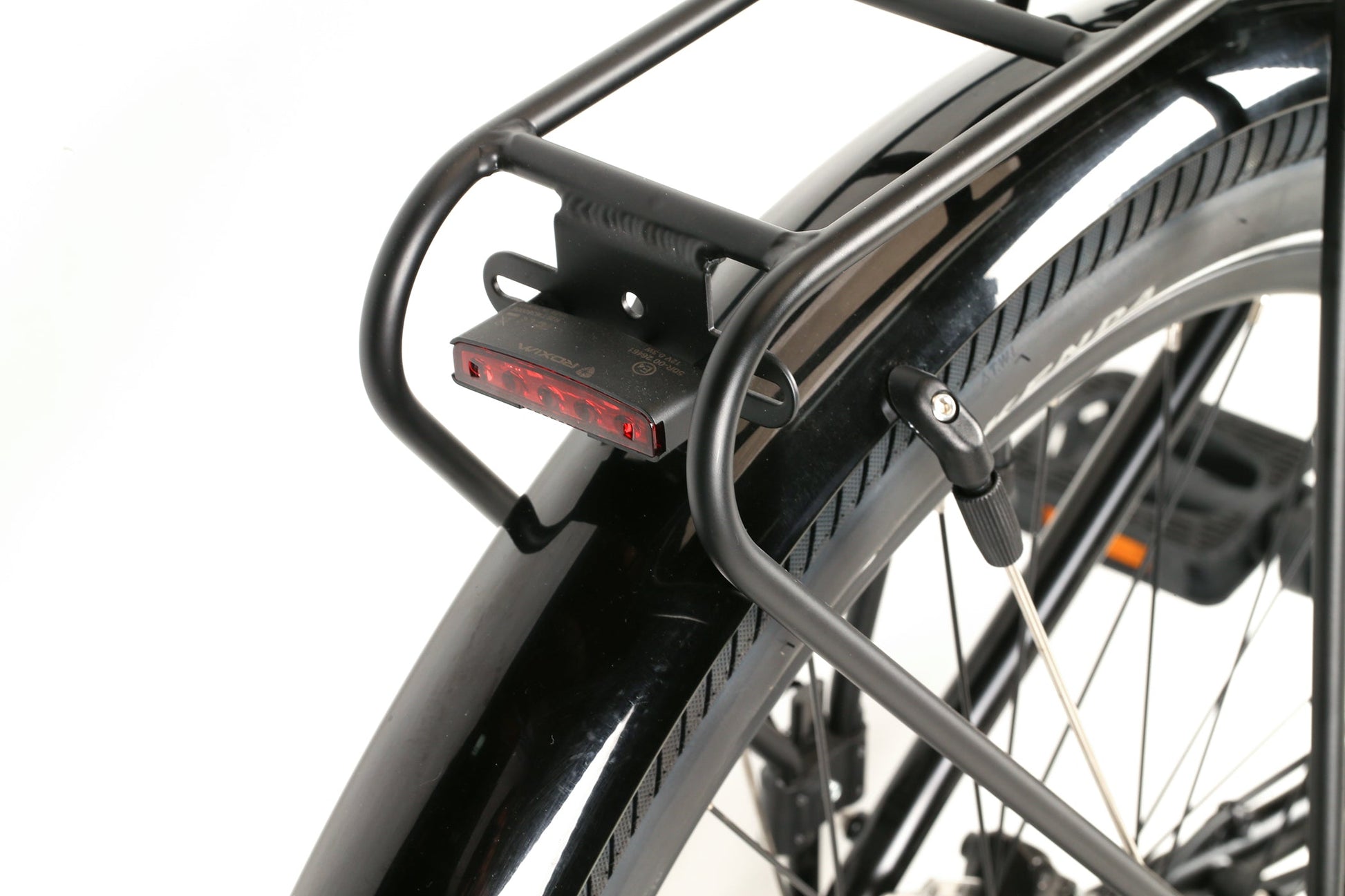

ExtrasKickstand | Integrated Rack | Full-Coverage Fenders | Charger & cables

GEOMETRY

SIZE141720
A. Top Tube (Effective)595mm (23.4")595mm (23.4")605mm (23.8")
B. Seat Tube (C-T)356mm (14")435mm (17.1")508mm (20")
C. Standover Height762mm (30")800mm (31.5")835mm (32.8")
D. Head Tube Length150mm (5.9")165mm (6.5")175mm (6.9")
E. Head Angle68°68°68°
F. Seat Angle71°71°71°
G. Wheelbase1120mm (44.1")1120mm (44.1")1131mm (44.5")
H. Chainstay465mm (18.3")465mm (18.3")465mm (18.3")
I. BB Drop45mm (1.8")45mm (1.8")45mm (1.8")
J. Stem Length90mm90mm110mm
K. Bar Width630mm630mm630mm
L. Crank Length170mm170mm175mm
M. Wheel Size27.527.527.5
