Del Sol

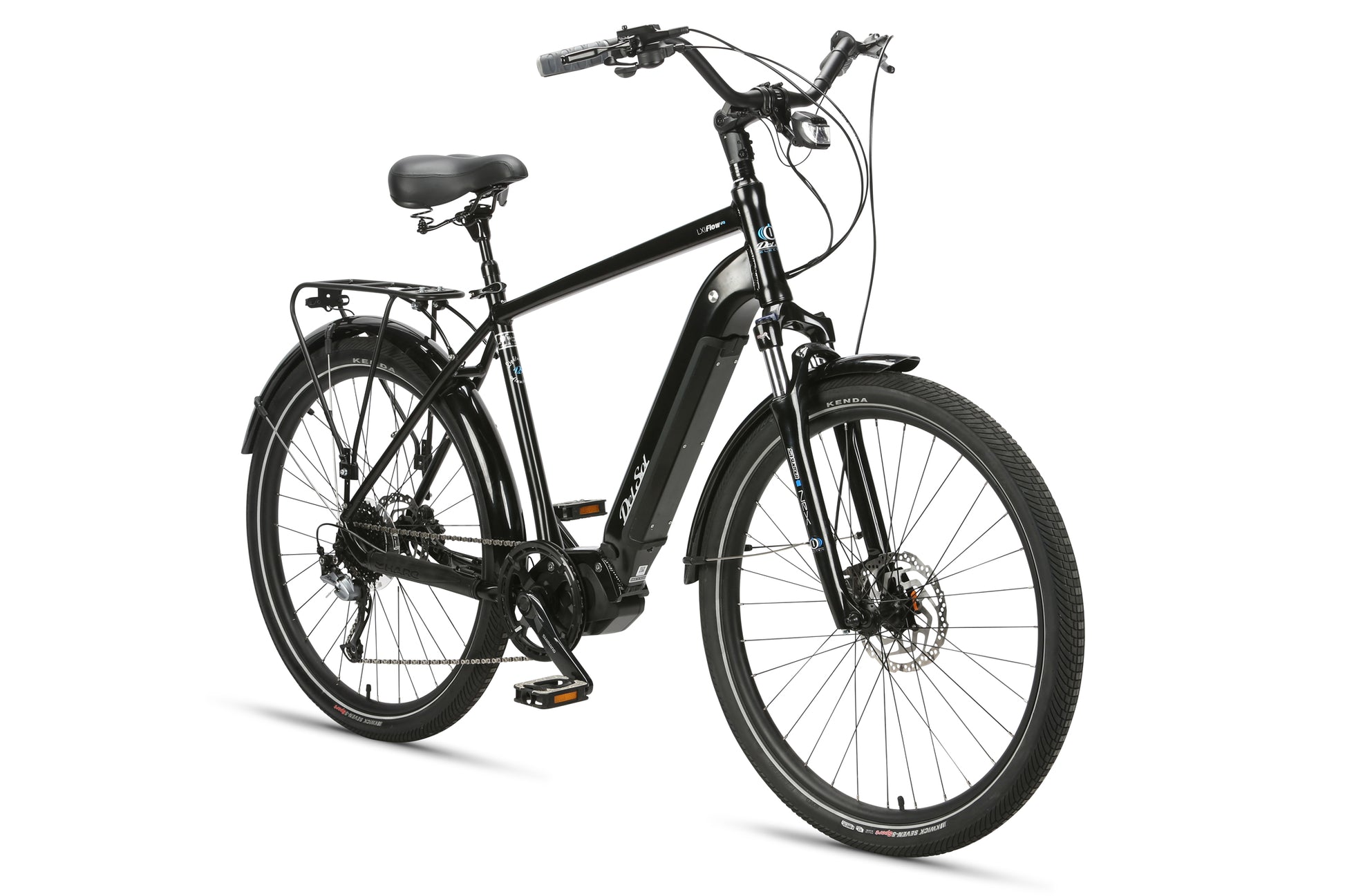

Lxi Flow i/O
Lxi Flow i/O
SKU: SKU:31752
Sizing Guide
Sizing Guide
Size | Inches | CM |
---|---|---|
14 | ||
17 | ||
20 |
Couldn't load pickup availability
Share









FEATURES
- Full Shimano quality componentry and E5000 pedal-assist, mid-drive motor are time proven and the leading name brand in e-bikes
- Upright posture ensures visibility and makes for light actuation, easy steering
- Generous standover heights and high-rise handlebars provide irrefutable comfort and ease of mounting/dismounting

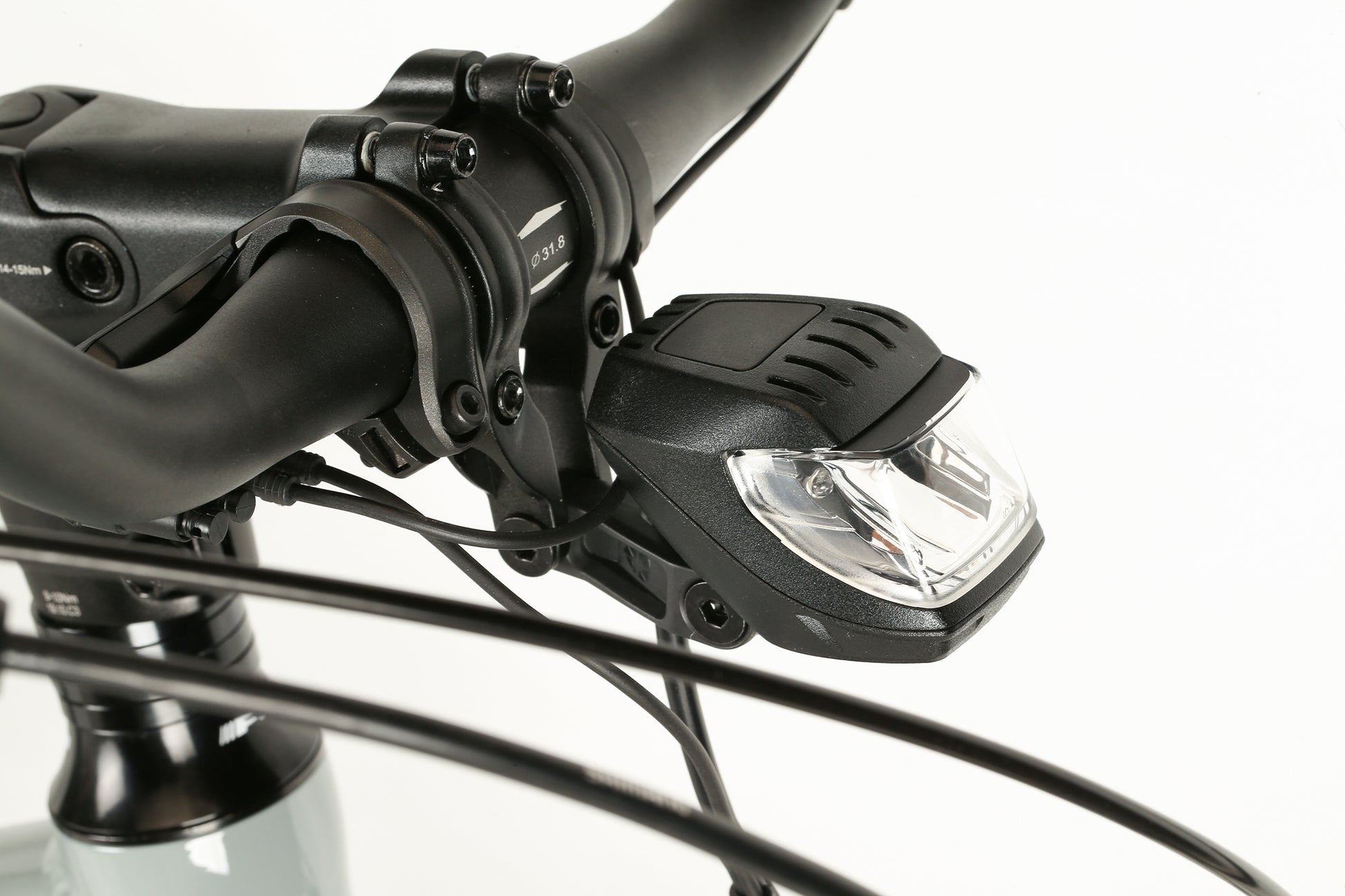

- Bright, wide-angle lights with CREE high-definition bulbs provide easy-to-use, even easier-to-see lighting
- Easy-steer handling ensures a light touch
- Class 1 e-bike: pedal assist only, up to 20mph
Collapsible content
SPECIFICATIONS
FRAMESET | |
---|---|
Frame | LXI Flow i/O | 6061 heat-treaded aluminum | Tig-welded construction | Buttressed down tube frame | Fully internal battery | Angle-correct mid-drive motor mount | Internal e-bike wiring | 73mm threaded BSA bottom bracket shell | Post mount disc tab | 135m |
Fork | SRSuntour | SF20 NEX-HLO-DS | 63mm travel | Lightweight alloy crown and monocoque lowers | Weather-sealed stanchion protection | Plush coil spring with adjustable preload | Hydraulic Lockout | Post-mount disc brake |
Colors | Black, Cyan, Cool Gray |
Weight | 51 lbs |
DRIVETRAIN | |

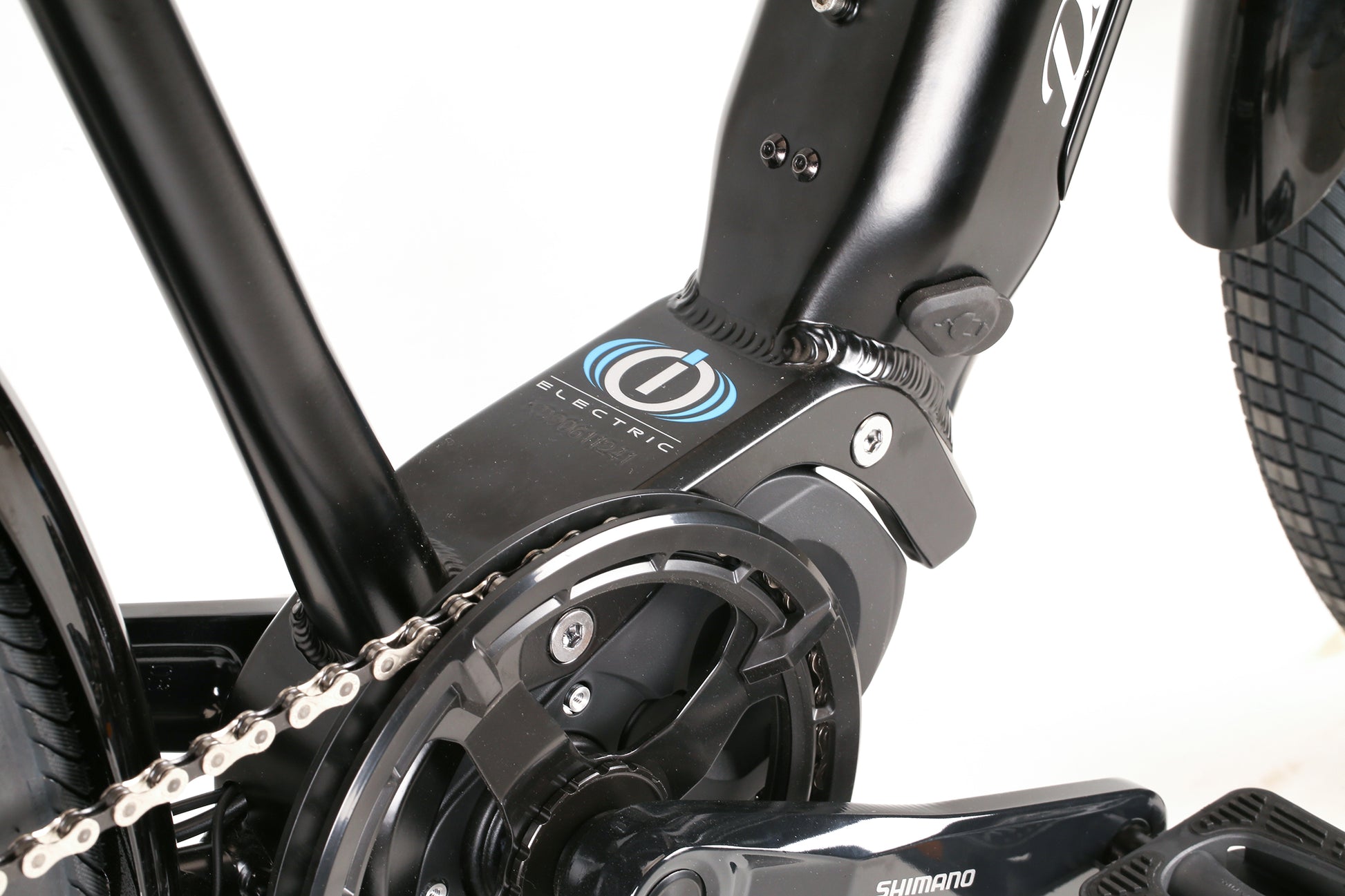

Cranks | Shimano FC-E5010 crank arm set for E5000 mid-motor |
Pedals | Comfort | Shock-absorbing Kraton inserts |
Chain | KMC E9-Sport | 9-speed |
Bottom Bracket | N/A |
Front Derailleur | N/A |
Rear Derailleur | Shimano Acera M3100 | Shadow Design | Long cage | 9-speed |

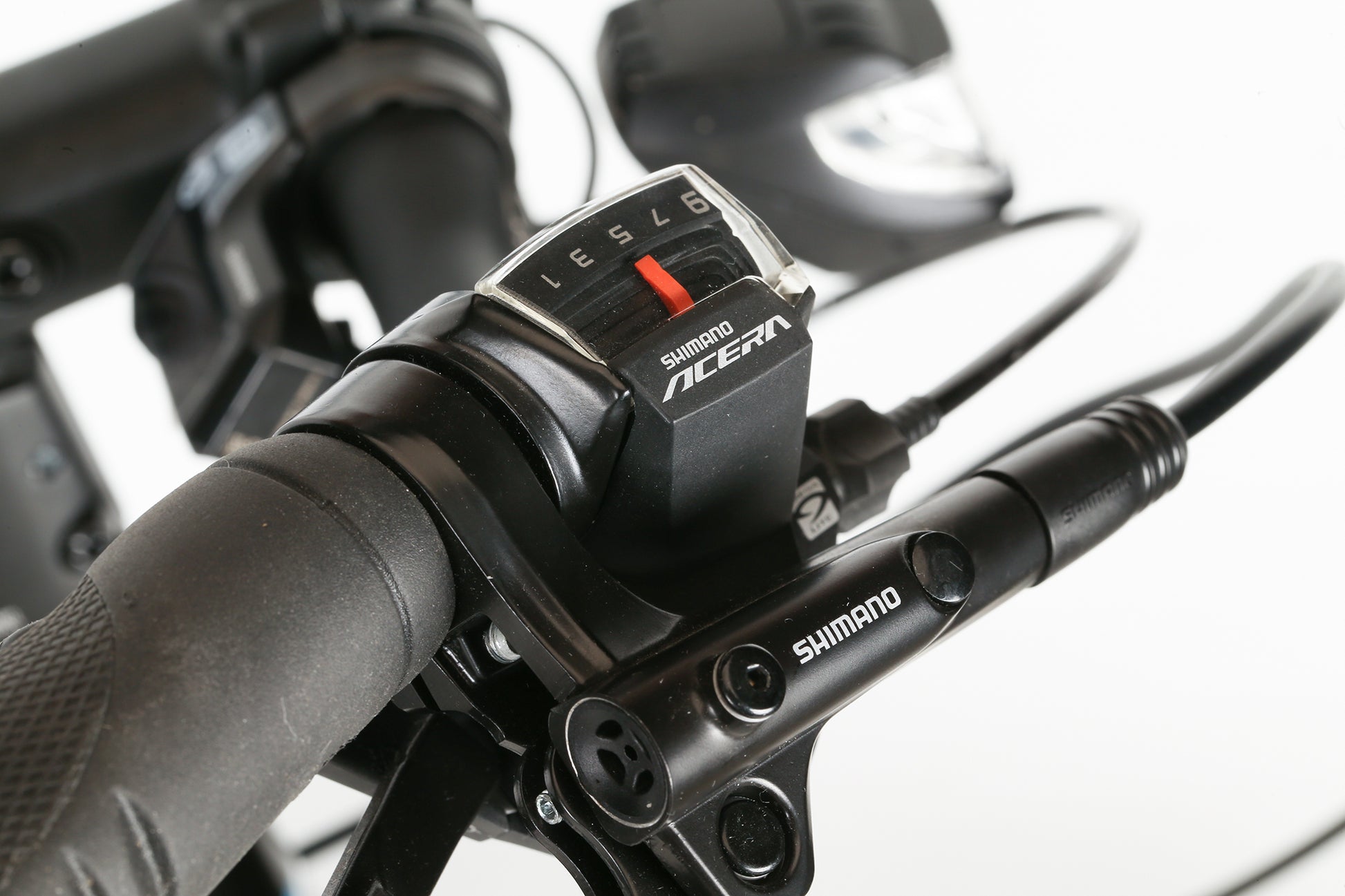

Derailleur Shifter | Shimano Acera Rapidfire Plus | 9-speed |
Freewheel/Cassette | Shimano HG200-9 | 11-36T | 9-speed |
Battery | 36V | 504Wh | Fully-integrated within down tube |
WHEELS | |
Tires | Kenda Kwick Seven.5 | 27.5 x 2.2" |
Wheels/Rims | Alloy | Width (internal): 25mm | Doulbe-wall construction | 32h |
Front Hub | Shimano TX-505 | 100mm quick release | Center Lock disc mount | 32h |
Rear Hub | Shimano TX505 | 135mm quick release | Center Lock disc mount | HG freehub | 32h |
BRAKING SYSTEM | |
Brakes | Shimano MT200 Hydraulic Disc | Post mount | 180/160mm Center Lock rotors |
Brake Levers | Shimano MT200 | Alloy | Hydraulic |
OTHER COMPONENTS | |
Grips/Tape | Del Sol Ergo Comfort with Gel | Dual Density |
Handlebar | LXI Flow i/O: Alloy | 85mm rise | 54° sweep | 630mm wide; LXI Flow i/O ST: Alloy | 40mm rise | 40° sweep | 615mm wide |

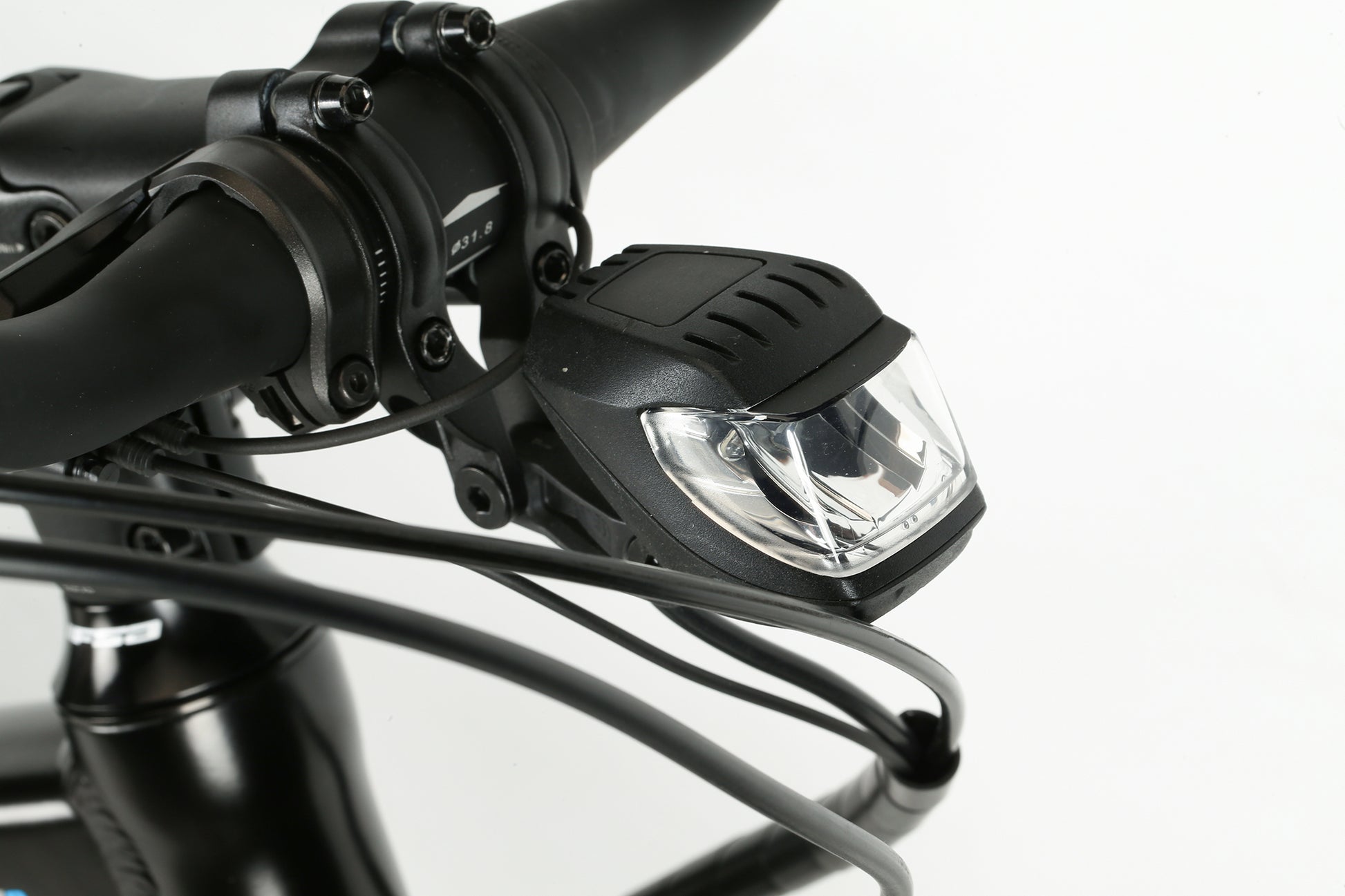

Stem | Alloy | ϕ31.8 bar bore | Adjustable angle | Integrated light holder |
Headset | FSA No. 10 | 1-1/8" | Threadless |
Saddle | Del Sol Couch Plus saddle | Compression-tuned elastomers | Del Sol Hand-Holder e-bike-specific handle |
Seat Post | Alloy | Suspension | 40mm travel | 27.2 x 350mm |
Seat Clamp | Alloy | 31.8mm |

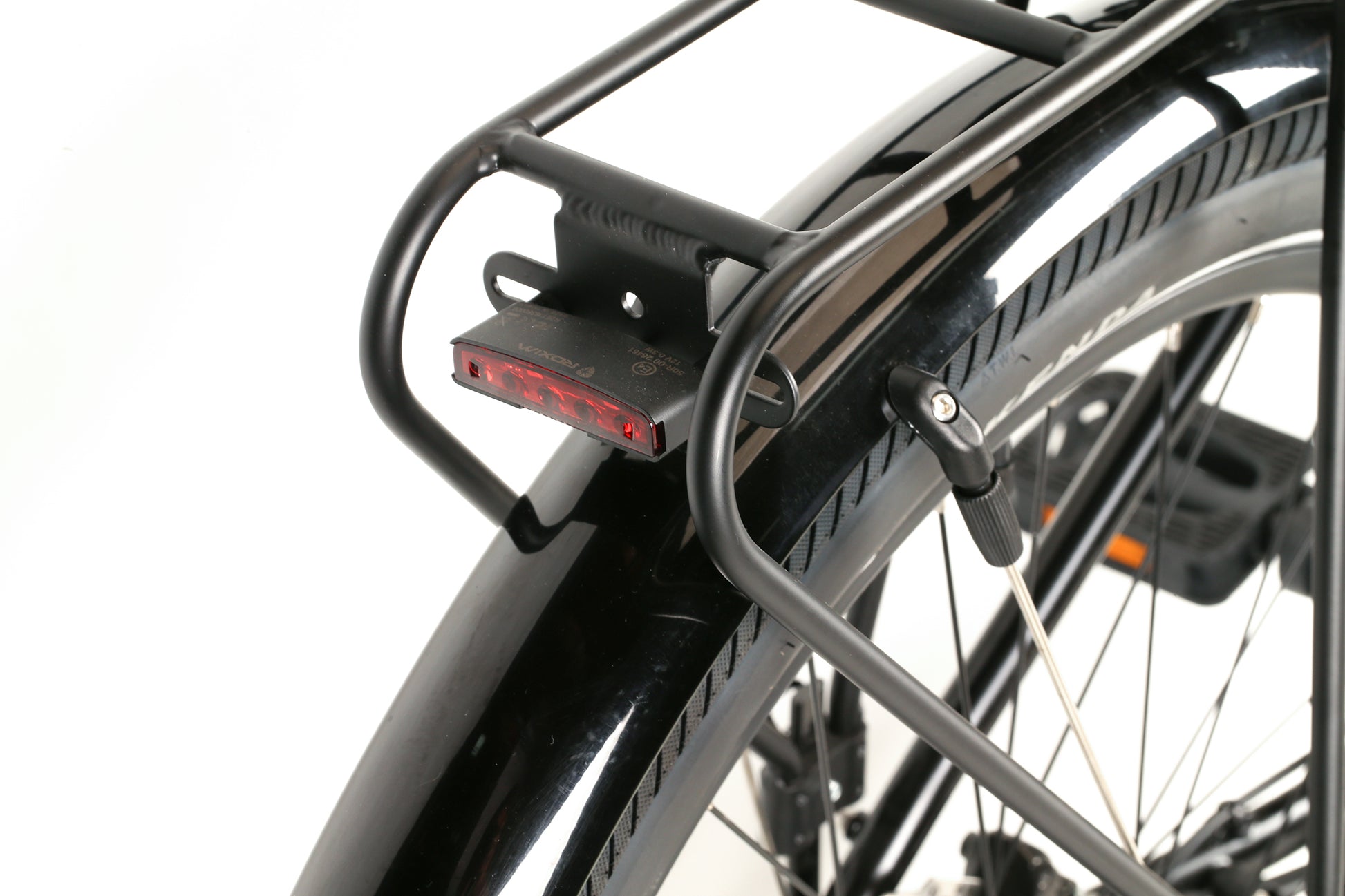

Extras | Kickstand | Integrated Rack | Full-Coverage Fenders | Charger & cables |
GEOMETRY
SIZE | 14 | 17 | 20 |
---|---|---|---|
A. Top Tube (Effective) | 595mm (23.4") | 595mm (23.4") | 605mm (23.8") |
B. Seat Tube (C-T) | 356mm (14") | 435mm (17.1") | 508mm (20") |
C. Standover Height | 762mm (30") | 800mm (31.5") | 835mm (32.8") |
D. Head Tube Length | 150mm (5.9") | 165mm (6.5") | 175mm (6.9") |
E. Head Angle | 68° | 68° | 68° |
F. Seat Angle | 71° | 71° | 71° |
G. Wheelbase | 1120mm (44.1") | 1120mm (44.1") | 1131mm (44.5") |
H. Chainstay | 465mm (18.3") | 465mm (18.3") | 465mm (18.3") |
I. BB Drop | 45mm (1.8") | 45mm (1.8") | 45mm (1.8") |
J. Stem Length | 90mm | 90mm | 110mm |
K. Bar Width | 630mm | 630mm | 630mm |
L. Crank Length | 170mm | 170mm | 175mm |
M. Wheel Size | 27.5 | 27.5 | 27.5 |
I've had this bike a little over a year now. We have 2 - a Small and a Med.
Use mainly for sight seeing city rides on improved nature trails with hills and longer distances, but also easy hilly soil trails with roots - but i chose to convert to a mtn tire for roots. husband kept kendra's for less resistance.
Loves
the articulating stem to accommodate more riders
it's offered in S/M/L - I am a shorter and some big name bike retailers are OSFA on uprights
electric assist is quiet and smooth
mid-drive
splash guards
battery life
it's a class 1 so allowed most anywhere
I chose this bike specifically because it offered a cruiser-style upright, curved handlebar but also had forks for comfort with city bumps & easy soil trails (i.e. state parks) - a lot of major brand cruiser e-bikes have rigid forks and, likewise, many ebikes from major brands w/ forks only had more aggressive posture than i wanted for this purpose
Dislikes
the small black fasteners that attach the silver rod for the mud/splash guards have broken on one of our bikes

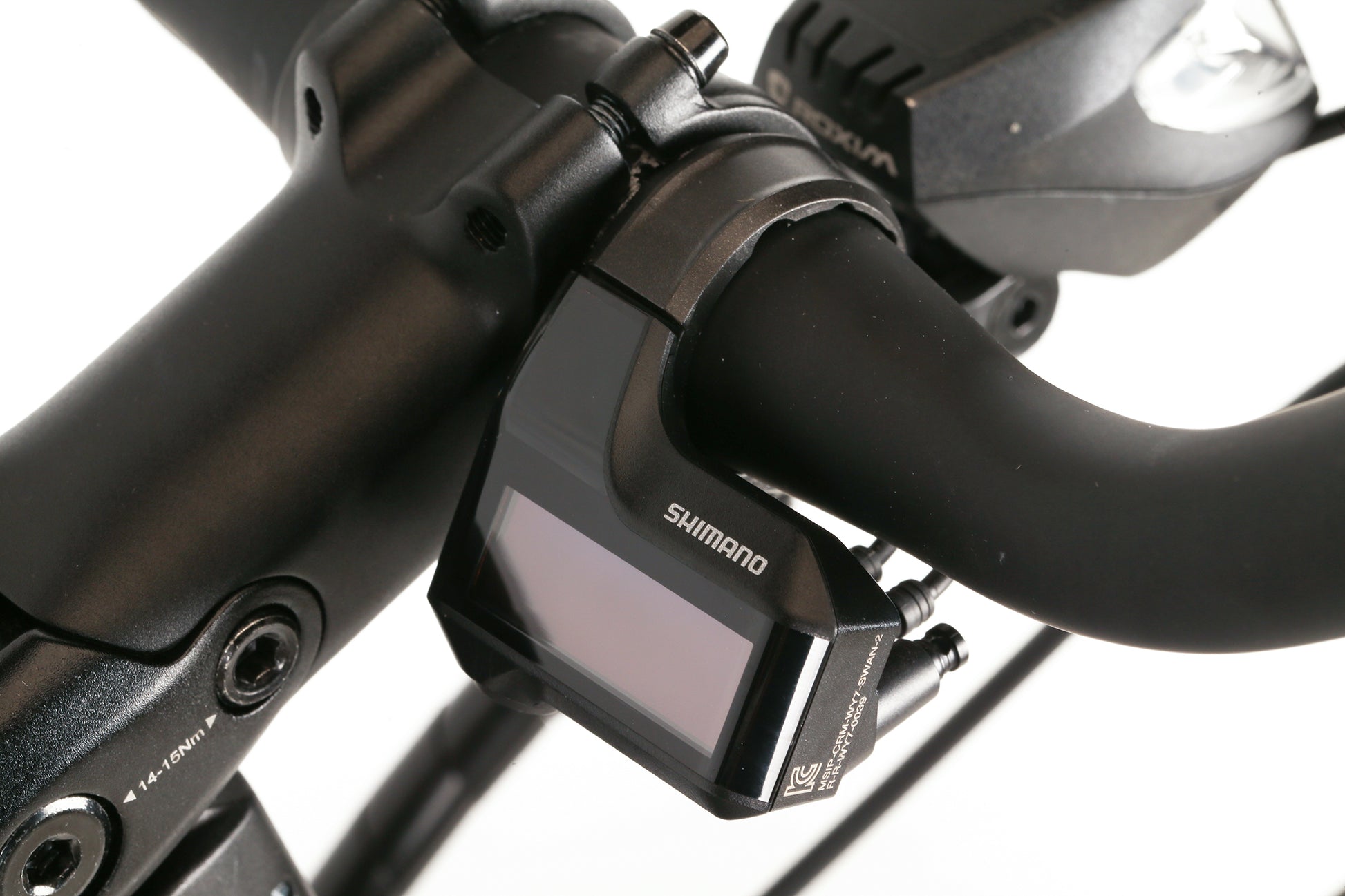

the shimano display controller never stays put - drives you bananas - i thought it was the slope of the handlebar but husband said it's made to be that way?! IDK
sometimes it's hard to get the battery in/out of one of the bikes where the other one's not like that
with step-over frame, the rear rack isn't as beneficial as a front rack would be if you prefer to swing your leg around instead of through b/c you can't really swing leg over cargo/basket attachment
I hope Haro continues to make this bike - @Haro seriously - this bike is perfect for a bike enthusiast who wants a well-made bike w/ legit trusted parts but a comfort e-cruiser to have a blast on longer or hilly rides - I wish i had a step-thru but I got mine on sale and they didn't have step thru available. I'm 5'2 and manage the step-over small okay though. I hear Haro might release the next gen 2023's late summer, so I can't wait to see if they made any upgrades (fingers crossed on more torque for steep climbs) or bug-fixes!
*Specifications are subject to change without notice
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
