Del Sol

31722

Lxi i/O Throttle Step Thru

*Actual retail price may vary based on any added dealer freight, tax, and assembly fees

OK, list of 'Dos and Don'ts' during the great Covid rap battle: Don't go to gyms, don't take public transport, don't use ride shares, don't go to concerts, don't go to sporting events, crowded public places... don't this... don't that...DO ride a bike. Get out, enjoy, zip around the neighborhood, zing your way to your socially distant work office, the grocery store during off hours... errands... More DO, less DON'T. Do the DO with the LXI T i/O -- everything needed for easy, quick transportation: built-in rack, even comes with a bungee -- even has button-activated lights, a throttle for getting up to speed, engine cut-off brakes, an easygoing 350W hub motor, fenders, kickstand.. the list goes on and it's all-inclusive. Turnkey simplicity, look no further. Everything you need, nothing you don't, at an astounding value.

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Features

  • Throttle allows for versatility and ease of starting when loaded down with groceries/supplies
  • Robust 8-speed drivetrain resists torque-based e-bike wear through a thicker chain
  • 14.5Ah/522Wh battery provides plenty capacity for greater distances, loaded travel, and throttle usage
  • E-bike specific Tektro HD-E350 hydraulic brakes have an engine cut-off built in for worry free e-bike riding
  • Built-in rear rack melds utilitarian simplicity with aesthetics
  • Class 2 e-bike: throttle only or pedal assist up to 20mph
Specifications
FRAMESET
FrameLXI i/O | 6061 heat-treated aluminum | Tig-welded construction | Fully internal battery | Internal e-bike wiring | 73mm threaded BSA bottom bracket shell | Post mount disc tab | Hub-drive specific 136mm spacing
ForkSRSuntour | SF20 NEX-HLO-DS | 63mm travel | Lightweight alloy crown and monocoque lowers | Weather-sealed stanchion protection | Plush coil spring with adjustable preload | Hydraulic Lockout | Post-mount disc brake
ColorsBlack, Light Blue, Brushed Alloy
Weight54.5 lbs
DRIVETRAIN
Cranks3-piece | Forged alloy | 42T chainring with dual-guide design
PedalsComfort | Shock-absorbing Kraton inserts
ChainKMC Z8.3 | 8-speed
Bottom Bracket73mm threaded BSA shell | JIS square taper | Sealed cartridge
Front DerailleurN/A
Rear DerailleurShimano Acera M360 | 8-speed | Long cage
Derailleur ShifterShimano Acera Rapidfire Plus | 8-speed
Freewheel/CassetteShimano HG-31 | 11-32T | 8-speed
Drive UnitBafang 350w Hub Motor
Battery36V/14.5Ah | 522Wh | Fully-integrated
WHEELS
TiresKenda Kwick Seven.5 | 27.5 x 2.2"
Wheels/RimsAlloy | Width (internal): 26.6mm | Double-wall construction | 36h
Front HubAlloy | 100mm quick release | I.S. 6-bolt disc | 36h
Rear HubBafang 350W motor | I.S. 6-bolt disc mount | 136mm spacing | 36h
BRAKING SYSTEM
BrakesTektro HD-E350 | E-bike specific | 180mm oversized front / 160mm rear I.S. 6-bolt rotors
Brake LeversTektro HD-E350 hydraulic with motor cut off
OTHER COMPONENTS
Grips/TapeDel Sol Ergo Comfort | Dual Density
HandlebarAlloy Riser Bar, 40mm Rise, 660mm Width
StemAlloy | Threadless | Tool-free adjustable 0-70 degree angle | 110mm length
HeadsetAlloy | Threadless | Tool-free adjustable 0-70'š angle | 110mm length

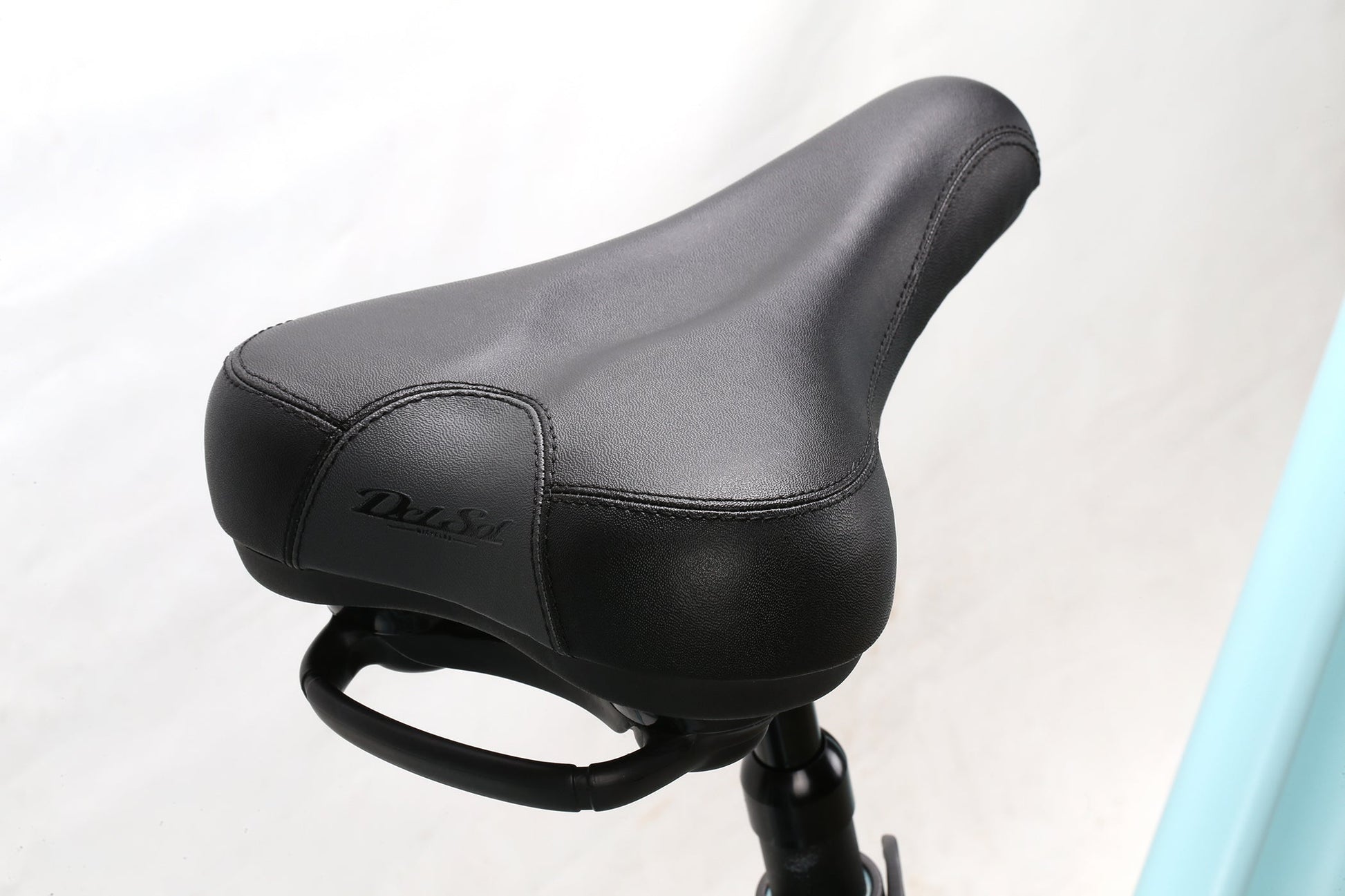

SaddleDel Sol Couch Plus saddle | Compression-tuned elastomers | Del Sol Hand-Holder e-bike-specific handle
Seat PostAlloy | Suspension | 40mm travel | 27.2 x 300mm
Seat ClampAlloy | 31.8mm
ExtrasKickstand | Alloy Rack | Full-Coverage Fenders | Front and rear lights, Charger & cables
Geometry & Sizing
SIZE141720
A. Top Tube (Effective)600mm (23.6")600mm (23.6")630mm (24.8")
B. Seat Tube (C-T)360mm (14.1")435mm (17.1")508mm (20")
C. Standover Height788mm (31")819mm (32.2")855mm (33.7")
D. Head Tube Length160mm (6.3")165mm (6.5")185mm (7.3")
E. Head Angle70°70°70°
F. Seat Angle73°73°73°
G. Wheelbase1128mm (44.4")1129mm (44.4")1160mm (45.6")
H. Chainstay
I. BB Drop45mm (1.8")45mm (1.8")45mm (1.8")
J. Stem Length90mm110mm110mm
K. Bar Width610mm610mm610mm
L. Crank Length170mm170mm170mm
M. Wheel Size27.527.527.5



*Specifications are subject to change without notice
