Del Sol

31312

Projekt

Customer Reviews

No reviews yet
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Features

Specifications

FRAMESET
FrameProjekt | Classic steel | Modern geometry | Agile chainstays | Clearance-Clarence design | Tracklocross horizontal dropouts
ForkSteel is Real construction | 1-1/8" threadless | Size-specific rake | 3/8" x 100mm | Bolt-on
ColorsMatte Black, Matte Granite
Weight27.5lbs
DRIVETRAIN

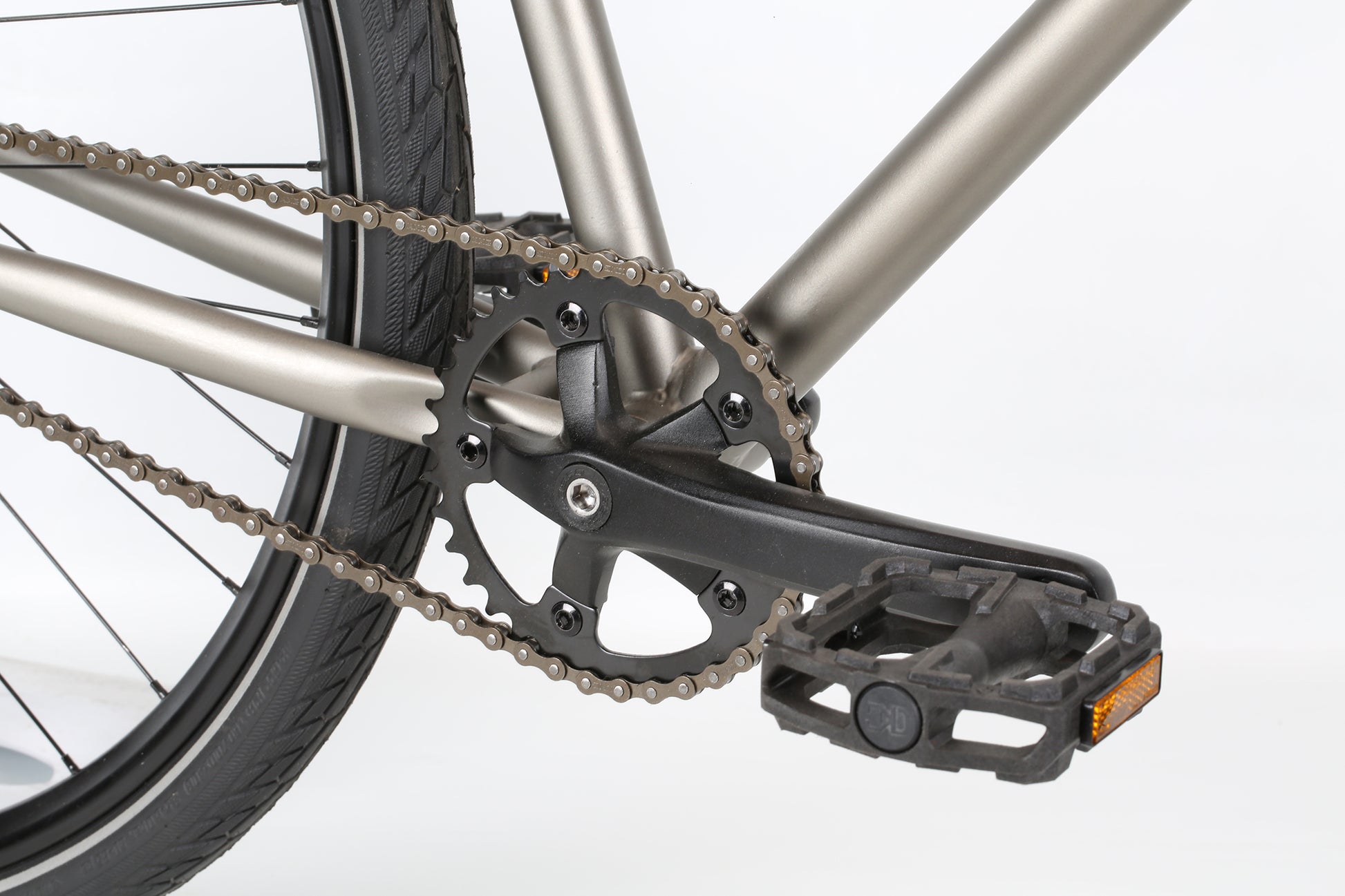

Cranks3-piece | Forged alloy | 39T chainring | 170mm length
PedalsEco-friendly | Rice husk composite body | Classic profile
ChainKMC Z410A
Bottom Bracket68mm threaded BSA shell | JIS square taper | Sealed Cartridge
Front DerailleurN/A
Rear DerailleurN/A
Derailleur ShifterN/A
Freewheel/Cassette18T freewheel
WHEELS
Tires100% Recycled | Schwalbe Road Cruiser 700 x 40 | Green Compound
Wheels/RimsAlloy | Width (internal): 23mm | Double wall | 32h
BRAKING SYSTEM
BrakesForged alloy | Long reach | Dual-pivot caliper | Front and rear brakes
Brake LeversAlloy | 2-finger
OTHER COMPONENTS
Grips/TapeEco-Friendly | Rice husk composite | Classic shape
Handle BarDel Sol Send-It bar | Alloy | ϕ31.8mm bore | 35mm rise | 9° backsweep | 5° upsweep | 730mm width
StemForged Alloy | 7° rise | 4-bolt faceplate
Headset1-1/8" | Threadless
SaddleEco-Friendly | Del Sol Urbanity saddle | Eco-Friendly cover, padding, base
Seat PostAlloy | 27.2mm x 300mm | Micro-adjust
Seat ClampAlloy | ϕ30.2mm | Single bolt
ExtrasRack & fender mounts | 2 water bottle mounts | Positive vibes

Geometry & Sizing

SIZES - 50M - 53L - 56XL - 59
A. Top Tube (Effective)548mm (21.6")565mm (22.2")578mm (22.8")598mm (23.5")
B. Seat Tube (C-T)500mm (19.7")530mm (20.8")560mm (22")590mm (23.2")
C. Standover Height774mm (30.5")796mm (31.3")824mm (32.4")852mm (33.5")
D. Head Tube Length98mm (3.9")113mm (4.4")143mm (5.6")170mm (6.7")
E. Head Angle71°71.5°72°72.5°
F. Seat Angle74°73.5°73°73°
G. Wheelbase1043mm (41")1045mm (41.1")1048mm (41.2")1064mm (41.9")
H. Chainstay442mm (17.4")442mm (17.4")442mm (17.4")442mm (17.4")
I. BB Drop70mm (2.8")70mm (2.8")70mm (2.8")70mm (2.8")
J. Stem Length60mm60mm70mm82mm
K. Bar Width730mm730mm730mm730mm
L. Crank Length170mm170mm170mm170mm
M. Wheel Size700c700c700c700c
