Del Sol

Projekt 8

Projekt 8

Regular price $299.99
Sale price $299.99
Sale Out of Stock

SKU: SKU:31362

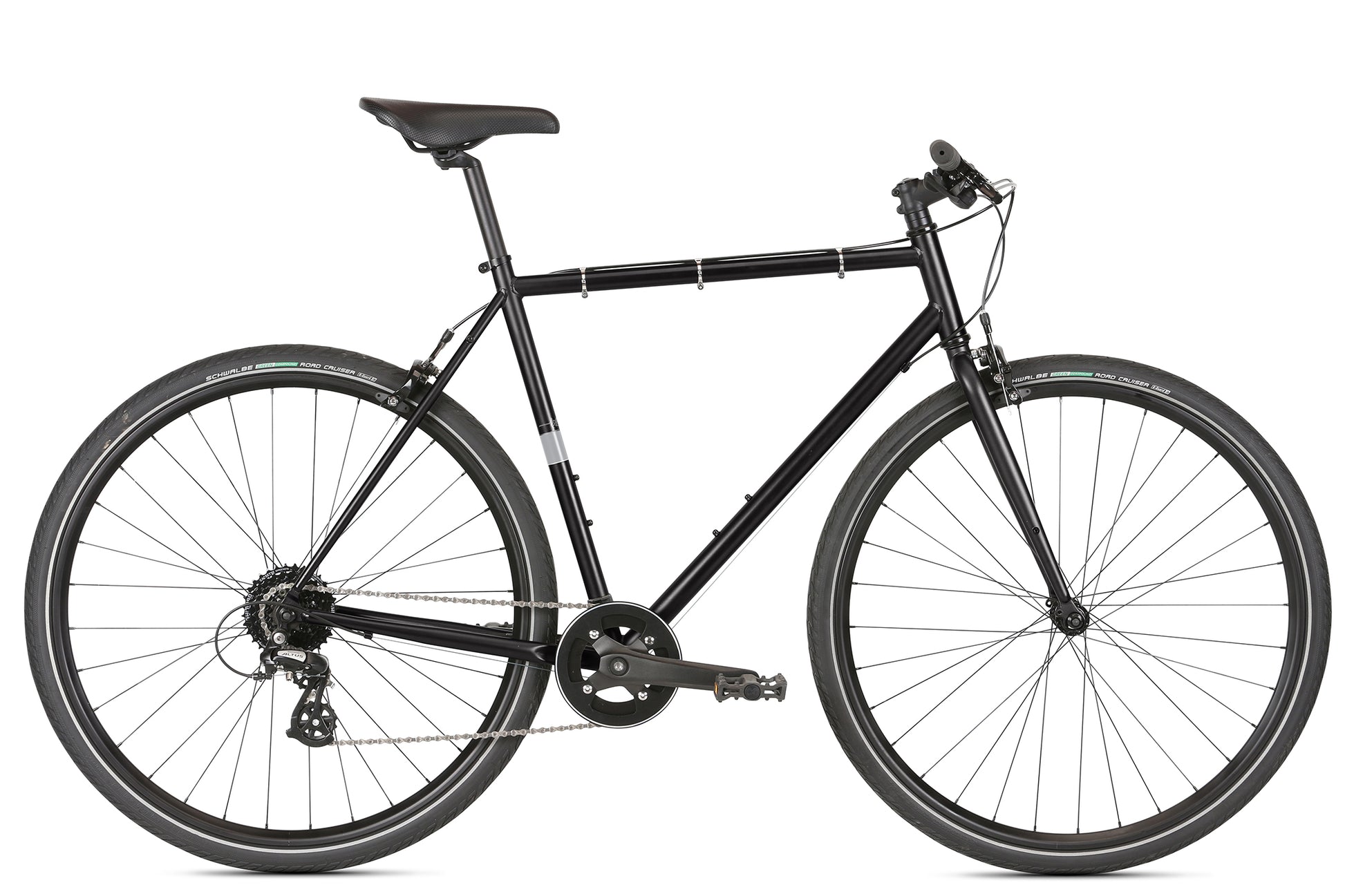

If the fixed gear of yesteryear modernized and became sensible without losing its fixie edge? That'd be the Projekt. Wide 700 x 40mm tires on wide rims, two-finger sculpted levers and long reach forged brakes, moderate, do-it-all-including-dirt gearing, and a long reach/short stem wide mid-rise handlebar. That's how you modernize the fixie while keeping it rad. Icing on the cake? The Projekt flaunts eco-friendly componentry: 100% recycled tires, 100% recycled tubes, rice-husk composite grips, rice-husk composite pedals, and a reused materials saddle. Yep, pretty hard to mess with that.

Sizing Guide

Size Table
SizeInchesCM
S - 50
M - 53
L - 56
XL - 59

Color
Size

View full details

FEATURES

  • 100% recycled Schwalbe Road Cruiser 700 x 40 Green Compound tires and inner tubes promote sustainability
  • Rice husk particulate grips and pedals use discarded Taiwanese rice waste product, providing an eco-friendly alternative
  • Saddle uses eco-friendly cover and foam materials borrowed from the Chinese sharing bicycle market
  • Narrow-wide 8-speed chainring and additional chainkeeper prevent chain from dropping
  • Wide, mid-rise handlebars provide better control and posture
  • Short stem, long top tube design provides more stable handling
  • Specific fork rakes provide consistent handling across entire size range

SPECIFICATIONS

Specifications
FRAMESET
FrameProjekt | Classic steel | Modern geometry | Agile chainstays | Clearance-Clarence design | Vertical dropouts | Derailleur hanger
ForkSteel is Real construction | 1-1/8" threadless | Size-specific rake | 3/8" x 100mm | Bolt-on
ColorsMatte Black, Matte Olive
Weight28.5 lbs
DRIVETRAIN

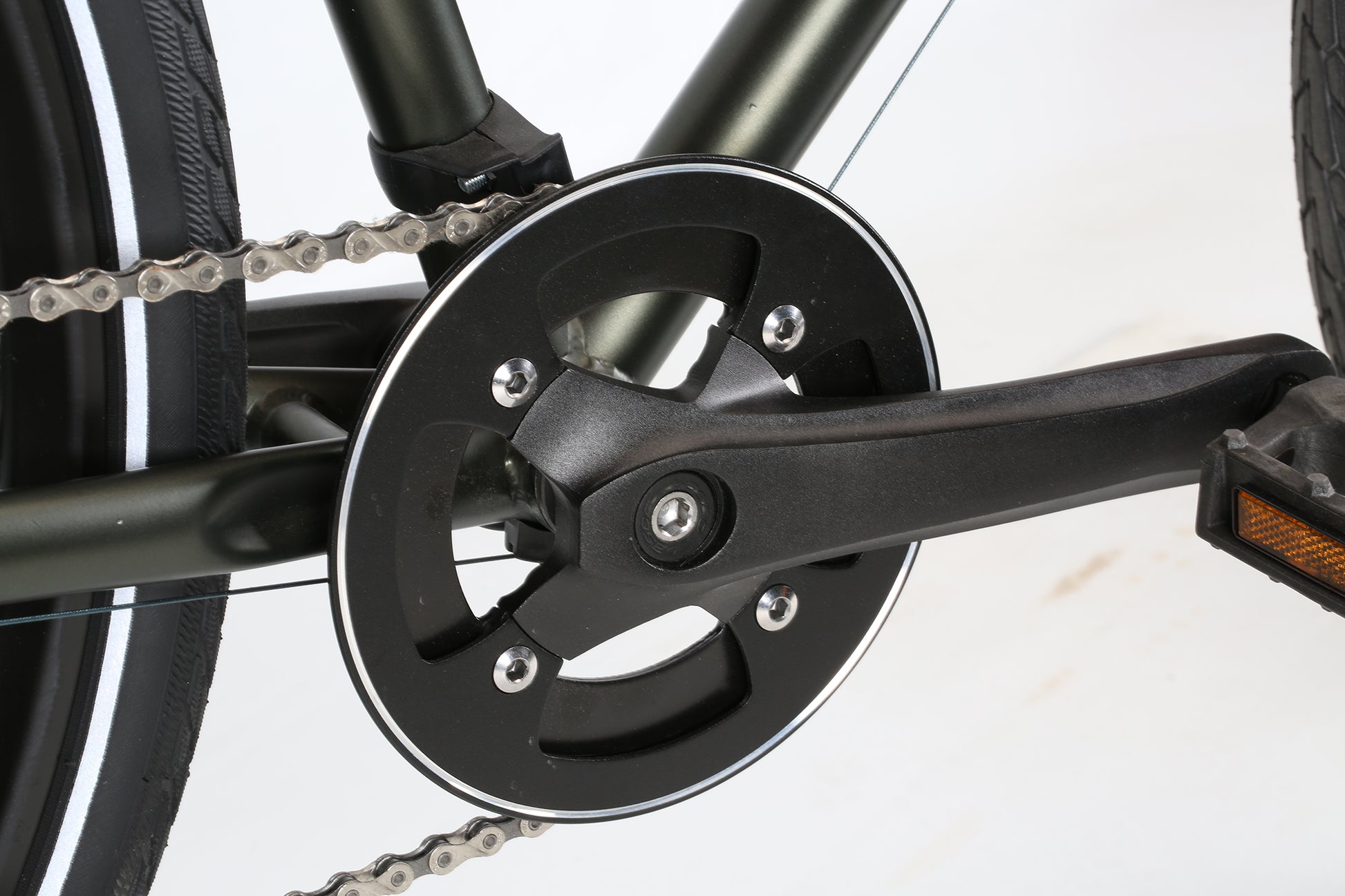

Cranks3-piece | Forged alloy | 38T narrow-wide chainring | chain keeper | bashguard | 170mm length
PedalsEco-friendly | Rice husk composite body | Classic profile
ChainKMC X8 | 8-speed | Narrow-wide chainring friendly
Bottom Bracket68mm threaded BSA shell | JIS square taper | Sealed Cartridge
Front DerailleurN/A

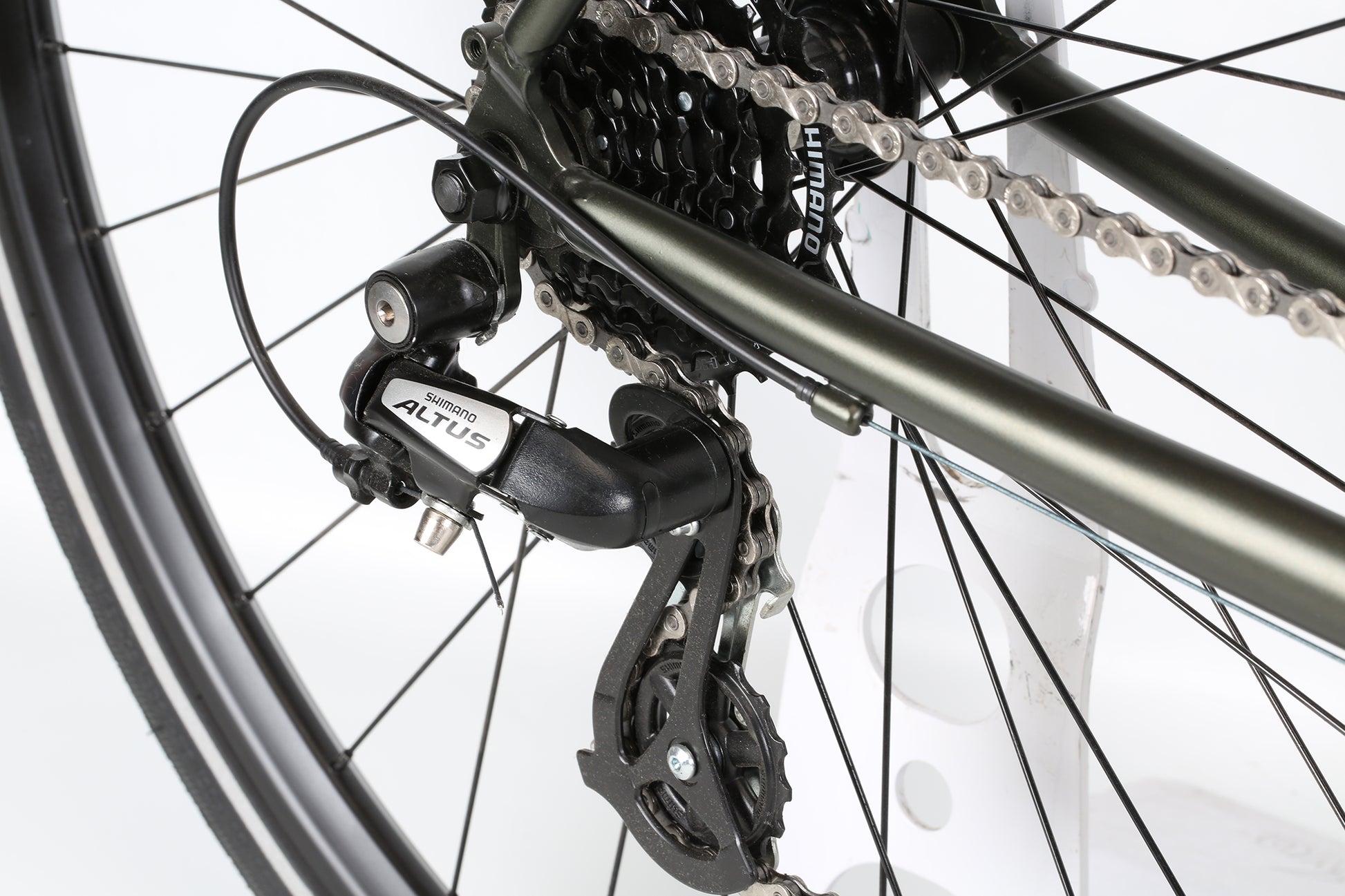

Rear DerailleurShimano Altus M310 | 8-speed
Derailleur ShifterShimano Altus M315 | 8-speed
Freewheel/Cassette12-32T | 8-speed
WHEELS

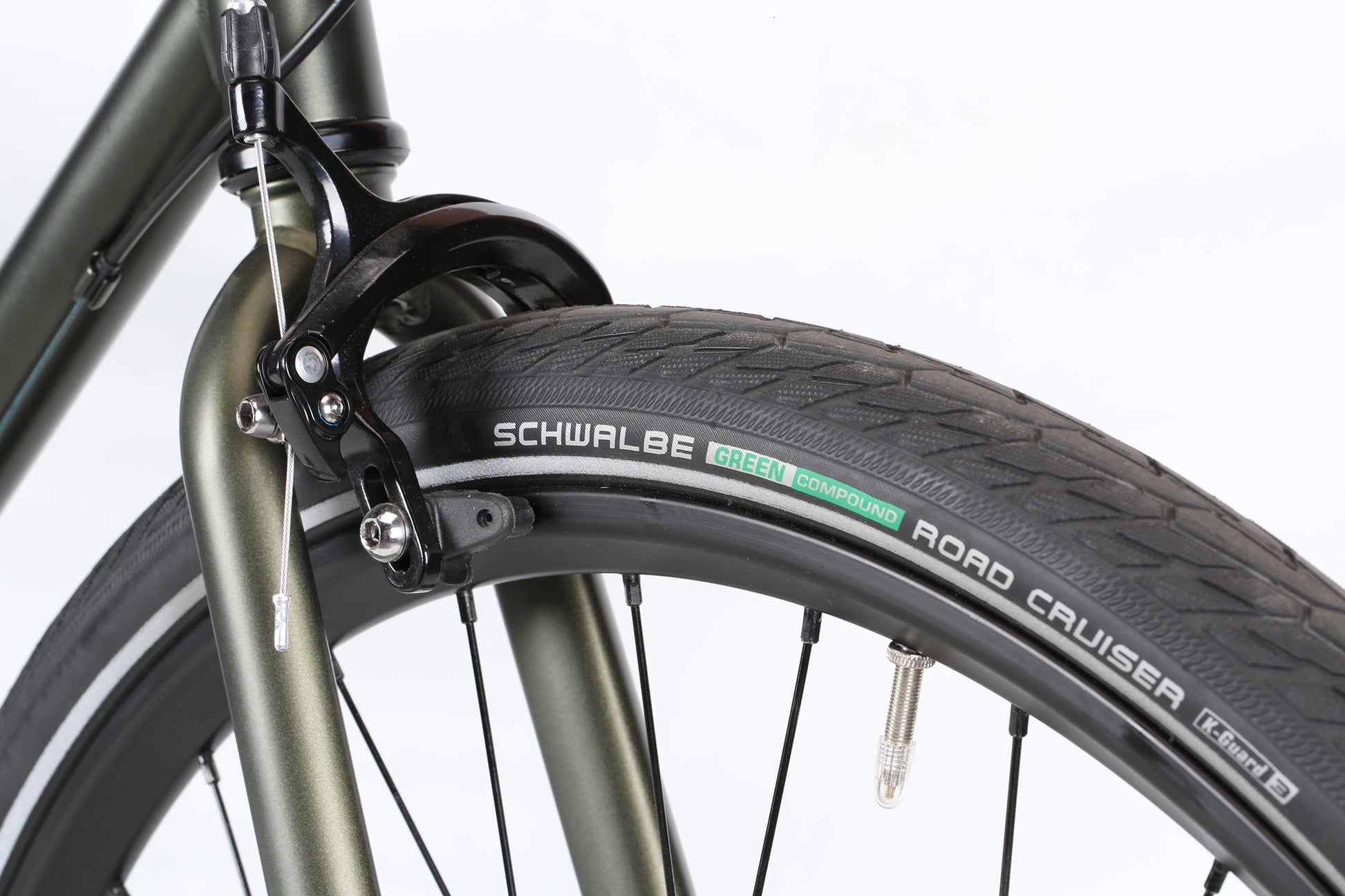

Tires100% Recycled | Schwalbe Road Cruiser 700 x 40 | Green Compound
Wheels/RimsAlloy | Width (internal): 23mm | Double wall | 32h
Front HubAlloy | 3/8" x 100mm | Rim brake | Locknuts | 32h
Rear HubAlloy | 3/8" x 135mm | HG freehub | Rim brake | Locknuts | 32h
BRAKING SYSTEM
BrakesForged alloy | Long reach | Dual-pivot caliper | Front and rear brakes
Brake LeversAlloy | 2-finger
OTHER COMPONENTS
Grips/TapeEco-Friendly | Rice husk composite | Classic shape

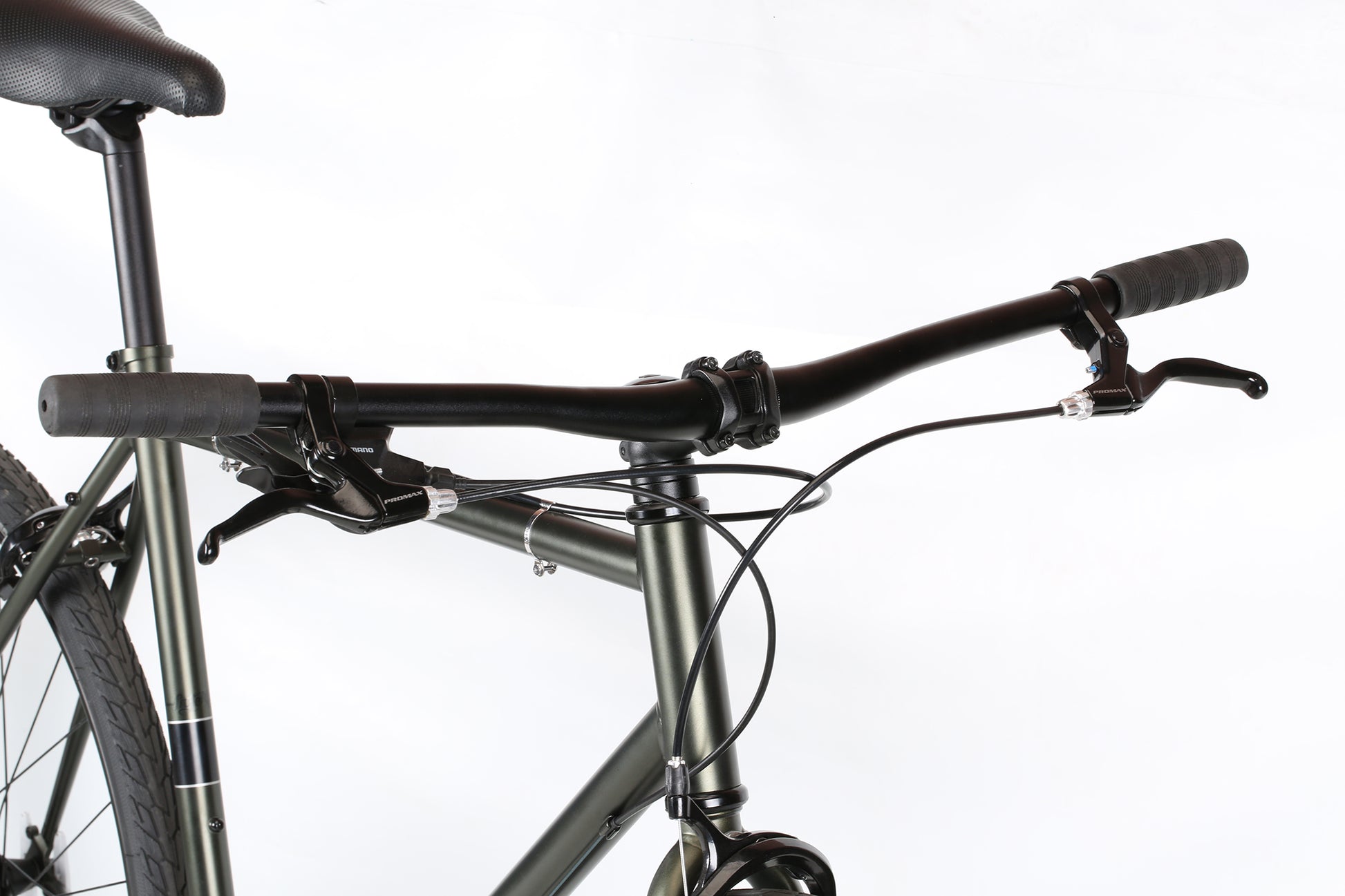

HandlebarDel Sol Send-It bar | Alloy | ϕ31.8mm bore | 35mm rise | 9° backsweep | 5° upsweep | 730mm width
StemForged Alloy | 7° rise | 4-bolt faceplate
Headset1-1/8" | Threadless
SaddleEco-Friendly | Del Sol Urbanity saddle | Eco-Friendly cover, padding, base
Seat PostAlloy | 27.2mm x 300mm | Micro-adjust
Seat ClampAlloy | ϕ30.2mm | Single bolt
ExtrasRack & fender mounts | 2 water bottle mounts | Positive vibes

GEOMETRY

Geometry & Sizing
SIZES - 50M - 53L - 56XL - 59
A. Top Tube (Effective)548mm (21.6")565mm (22.2")578mm (22.8")598mm (23.5")
B. Seat Tube (C-T)500mm (19.7")530mm (20.8")560mm (22")590mm (23.2")
C. Standover Height774mm (30.5")796mm (31.3")824mm (32.4")852mm (33.5")
D. Head Tube Length98mm (3.9")113mm (4.4")143mm (5.6")170mm (6.7")
E. Head Angle71°71.5°72°72.5°
F. Seat Angle74°73.5°73°73°
G. Wheelbase1043mm (41")1045mm (41.1")1048mm (41.2")1064mm (41.9")
H. Chainstay442mm (17.4")442mm (17.4")442mm (17.4")442mm (17.4")
I. BB Drop70mm (2.8")70mm (2.8")70mm (2.8")70mm (2.8")
J. Stem Length60mm60mm70mm82mm
K. Bar Width730mm730mm730mm730mm
L. Crank Length170mm170mm170mm170mm
M. Wheel Size700c700c700c700c
