Del Sol

Railer Plus i/O Throttle Step Thru

Railer Plus i/O Throttle Step Thru

$2,099.99
$2,399.99 $2,099.99
Sale Out of Stock

SKU: 31653

The Railer Plus i/O is your e-bike drag racing machine. 750W of ill intentions funnel directly to the rear wheel--why settle for a wimpy mid-drive? And a huge 26 x 3.0 tire plus a throttle mean you can burn rubber for days. Combine all that with a tank... errr... battery that flows juice endlessly to all that wattage? Welcome to the Railer Plus i/O, the e-bike that can't be beat.
Color

View full details

FEATURES

  • Voluptuous 26+ tires shamelessly flaunt a supple ride with a soft bounce
  • E-bike specific hydraulic brakes with 2x the pad thickness and an engine cut-off
  • Look-at-me styling including throwback, big-BMX bars and a roaring rat rod silhouette
  • Throttle reduces effort to get up to speed
  • Monstrous 750W hub motor and throttle accelerate to speed quickly

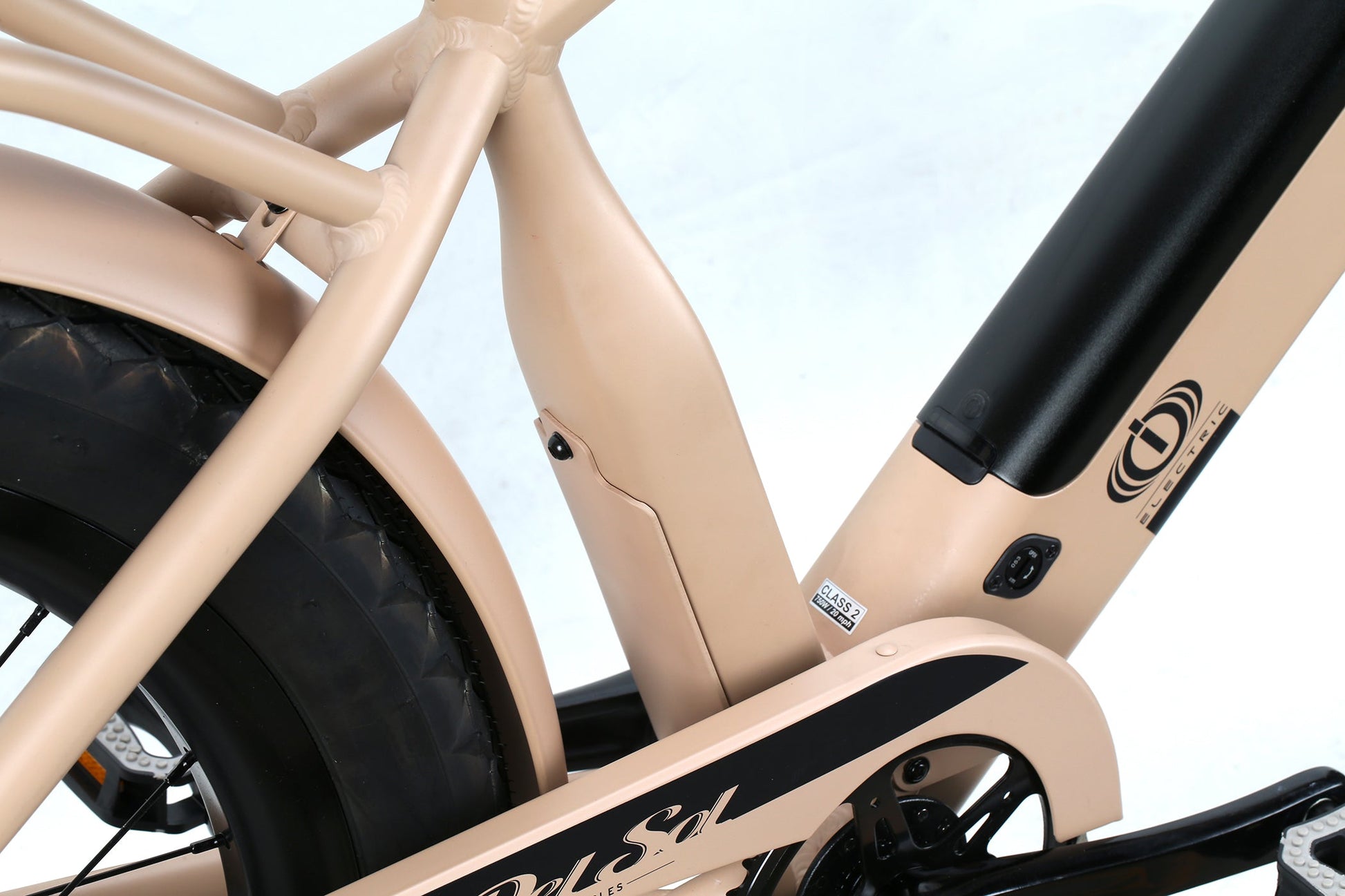

  • High-capacity 840Wh / 17.5Ah fully internal battery provides real range for the big motor
  • Double-wall, eyeletted rims and reinforced fork designed to handle big power and torque
  • Class 2 e-bike: throttle only or pedal assist up to 20mph

SPECIFICATIONS

FRAMESET
FrameRailer Plus | Rust-proof 6061 heat-treated aluminum | Tig-welded constuction | Fully Internal battery | 120mm threaded BSA bottom bracket shell | I.S. disc brake mount | 175mm hub-drive spacing | Cartridge kickstand mount
ForkRailer | 4130 Chromoly | I.S. disc brake | 203mm rotor clearance
ColorsMatte Khaki, Cherry Cola
Weight63.5 lbs
DRIVETRAIN
Cranks3-piece | Forged alloy | 42T chainring with dual-guide design
PedalsBoardwalk cruiser | Shock-absorbing Kraton inserts
ChainKMC Z8.3 | 8-speed
Bottom Bracket120mm threaded BSA shell | JIS square taper | Sealed cartridge
Front DerailleurN/A
Rear DerailleurShimano Tourney TX800 | 8-speed
Derailleur ShifterShimano Revo | 8-speed
Freewheel/CassetteShimano Tourney CS-HG200-8 cassette | 14-32T
Drive UnitSee rear hub
Battery48V/17.5Ah | 840Wh | Fully-integrated within down tube
WHEELS
TiresCruiser Plus | 26 x 3.0"
Wheels/RimsRailer Plus | Alloy | Width (internal): 50.4mm | Double-wall construction | Eyelets | 36h
Front HubAlloy | 3/8" x 100mm | I.S. 6-bolt disc mount | Sealed bearings | Bolt-on | 36h
Rear HubBafang 48V/750W hub motor | 3/8" x 175mm | I.S. 6-bolt disc mount | 36h
BRAKING SYSTEM
BrakesTektro HD-E395 | E-bike specific | 5mm extra-thick brake pads | Heat-reducing external metallic banjo fitting | 203mm oversized front / 180mm oversized rear with 2.3mm extra-thick, I.S. 6-bolt rotors
Brake LeversTektro HD-E395 hydraulic | Engine cut off
OTHER COMPONENTS
Grips/TapeDel Sol Chopper With Stitched Cover

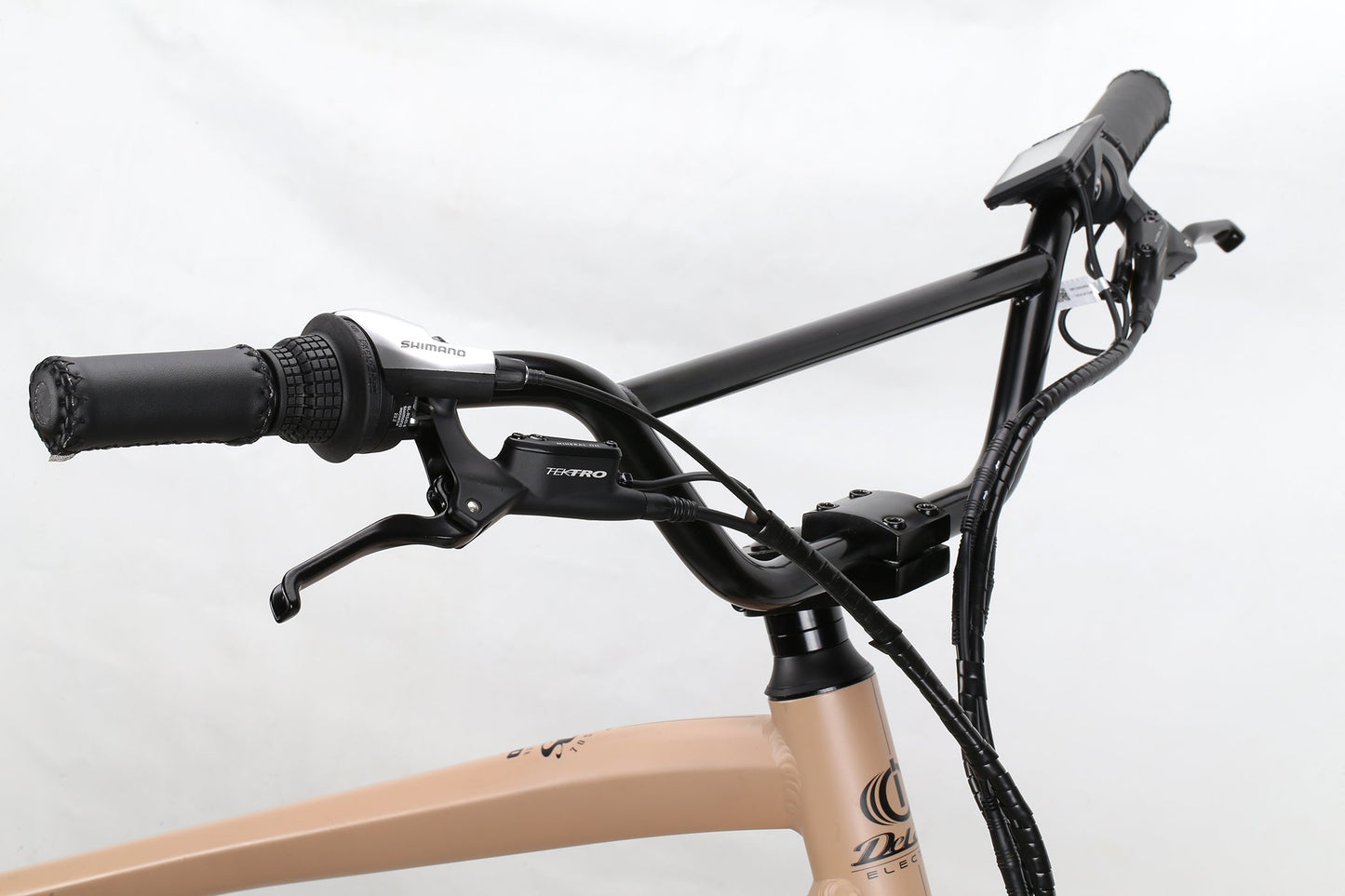

HandlebarRailer Throwback | 805mm wide
StemRailer BMX Throwback | Alloy | ϕ25.4 bar bore | 1-1/8" threadless
Headset1-1/8" integrated | Threaded
SaddleDel Sol Couch Plus saddle | Compression-tuned elastomers | Del Sol Hand-Holder e-bike-specific handle
Seat Post27.2mm x 250mm
Seat ClampAlloy | 31.8mm

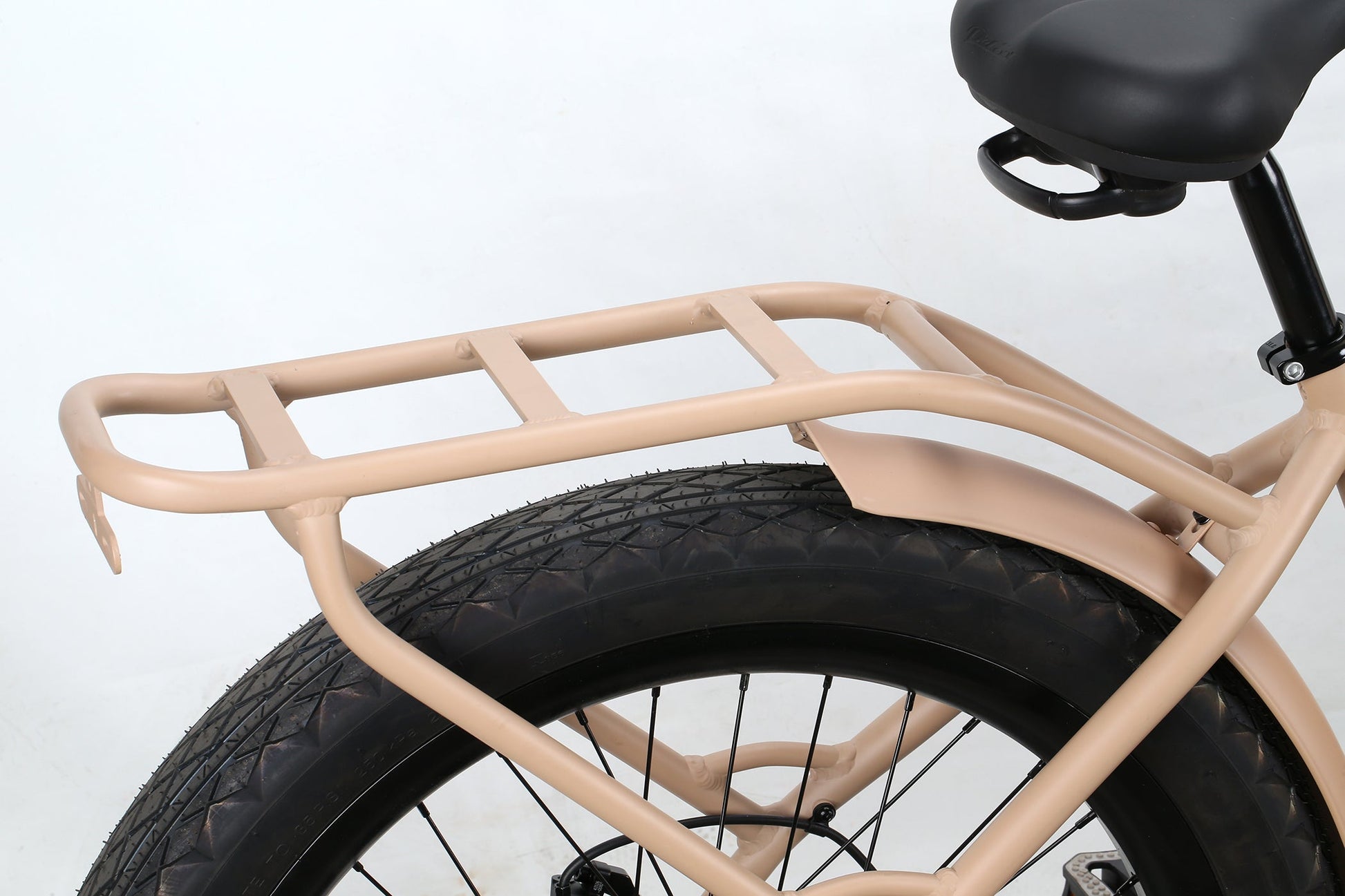

ExtrasKickstand | Integrated Rack | Rear Fender | Charger & cables

GEOMETRY

SIZEMensST
A. Top Tube (Effective)690mm (27.1")690mm (27.1")
B. Seat Tube (C-T)430mm (16.9")430mm (16.9")
C. Standover Height788mm (31")538mm (21.2")
D. Head Tube Length218.9mm (8.6")218.9mm (8.6")
E. Head Angle70°70°
F. Seat Angle72.1°72.1°
G. Wheelbase1224mm (48.2")1224mm (48.2")
H. Chainstay486mm (19.1")486mm (19.1")
I. BB Drop40mm (1.6")40mm (1.6")
J. Stem Length50mm50mm
K. Bar Width805mm805mm
L. Crank Length170mm170mm
M. Wheel Size26+26+
