Del Sol

31612

Shoreliner i/O Throttle

Customer Reviews

No reviews yet
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Features

Specifications

FRAMESET
FrameShoreliner i/O | 6061 heat-treaded aluminum | Tig-welded construction | Fully internal battery | Internal e-bike wiring | 73mm threaded BSA bottom bracket shell | I.S. disc tab | Hub-drive specific 136mm spacing
ForkShoreliner | Classic raked steel | 1-1/8" threaded | I.S. 6-bolt disc | 3/8" x 100mm spacing | Bolt-on
ColorsBrushed Alloy, Americano
Weight57lbs
DRIVETRAIN
Cranks3-piece | Forged alloy | 42T chainring with colorway-matched chainguard
PedalsBoardwalk cruiser | Shock-absorbing Kraton inserts
ChainKMC Z7 | 7-speed
Bottom Bracket73mm threaded BSA shell | JIS square taper | 131.5mm spindle length
Front DerailleurN/A
Rear DerailleurShimano Altus M310 | 7-speed
Derailleur ShifterShimano Revo | 7-speed
Freewheel/CassetteShimano | 14-28T | 7-speed

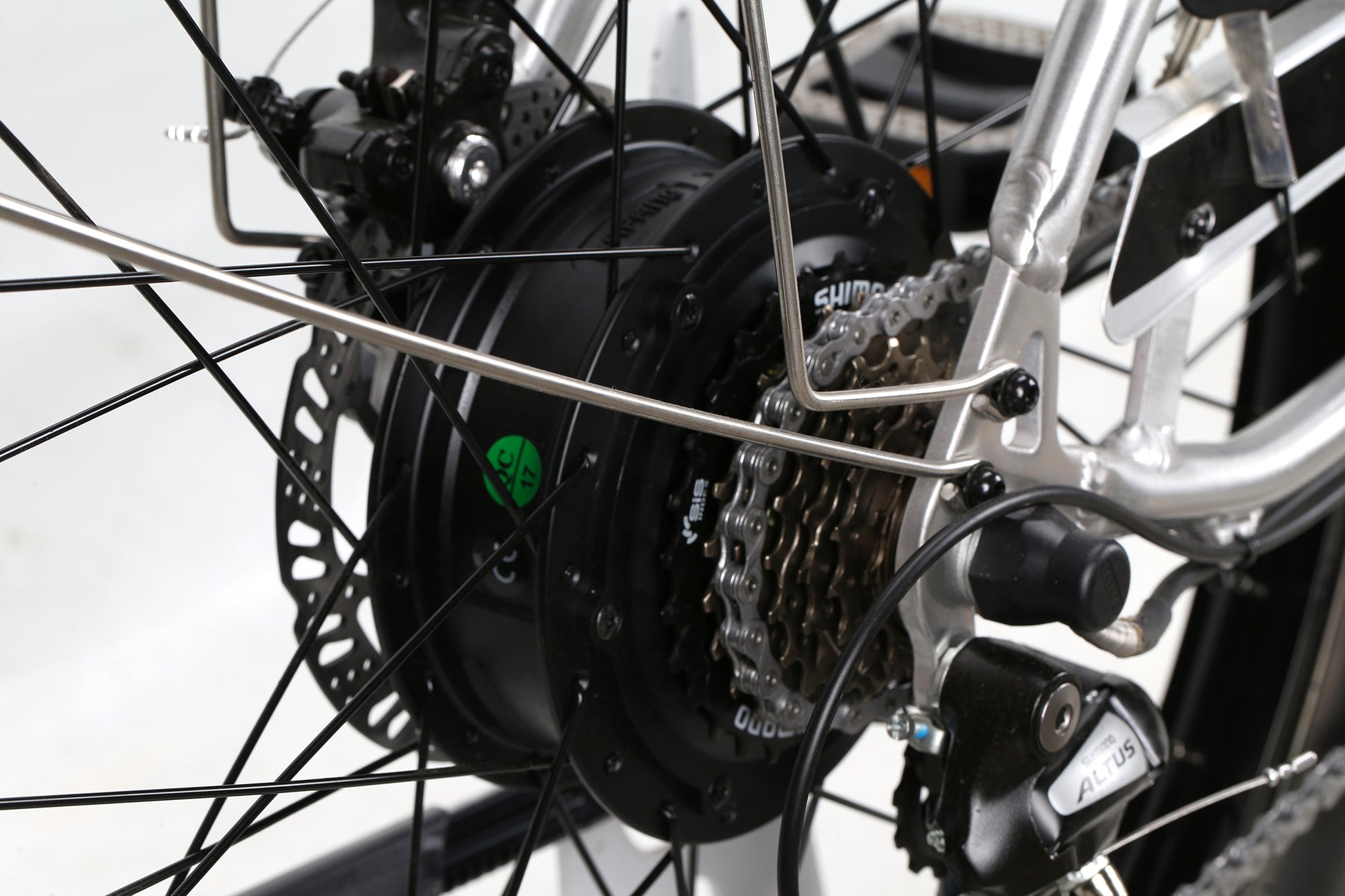

Drive UnitSee rear hub spec
Battery36V/14.5Ah | 522Wh | Fully-integrated within down tube
WHEELS
TiresCruiser 26 x 2.5"
Wheels/RimsAlloy | Width (internal): 29.4mm | 36h
BRAKING SYSTEM
BrakesTektro MD M280 Mechanical Disc
Brake LeversAlloy | Linear Pull
OTHER COMPONENTS
Grips/TapeDel Sol foam | Stitched cover
Handle BarLaid-back Cruiser | 700mm Wide
StemQuill | Alloy | ϕ25.4 bar bore | 90mm length
Headset1-1/8" integrated | Threadless

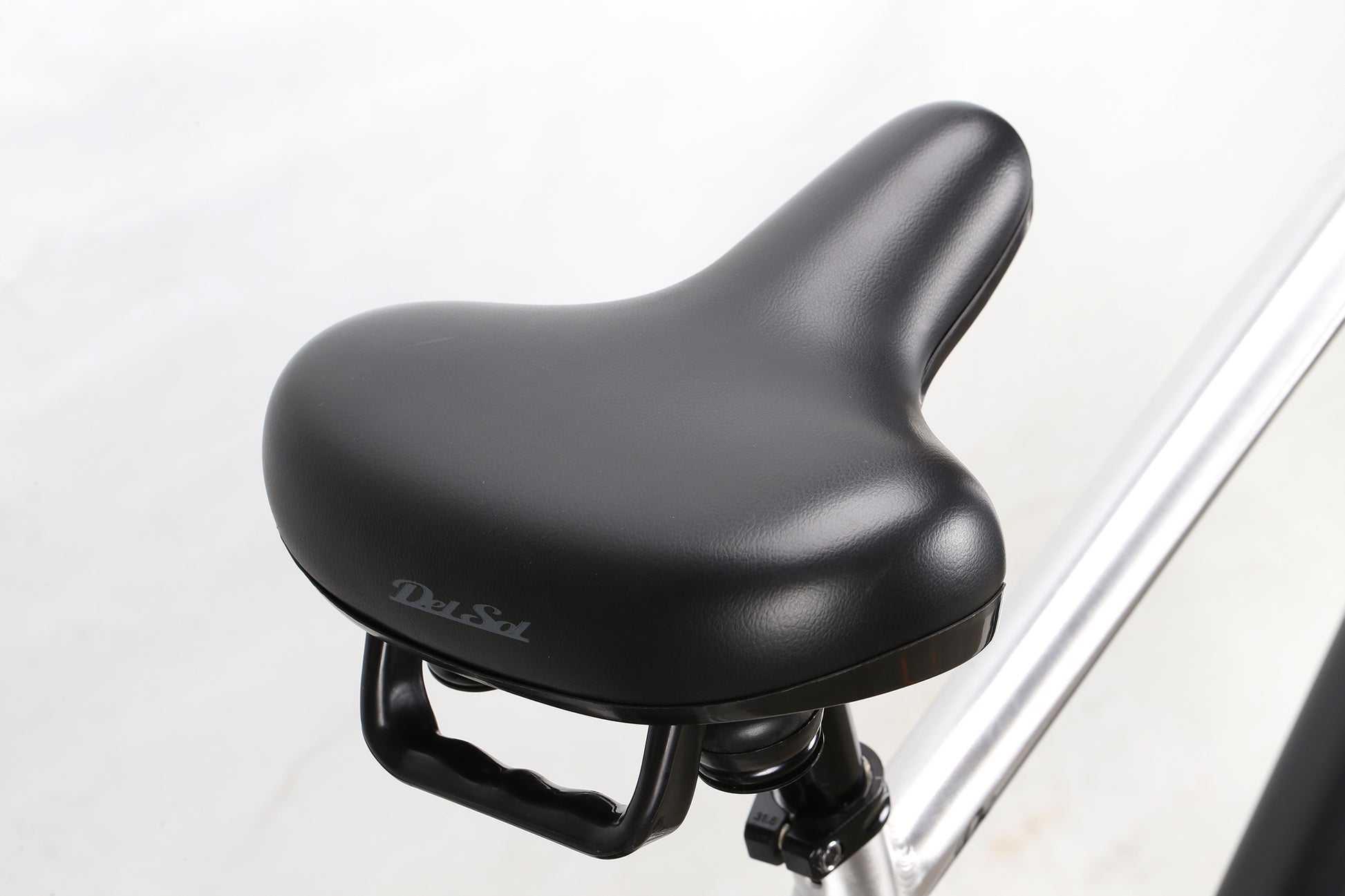

SaddleDel Sol Couch saddle | Dual elastomers | Del Sol Hand-Holder e-bike specific handle
Seat PostAlloy | 27.2 x 350mm
Seat ClampAlloy | 31.8mm

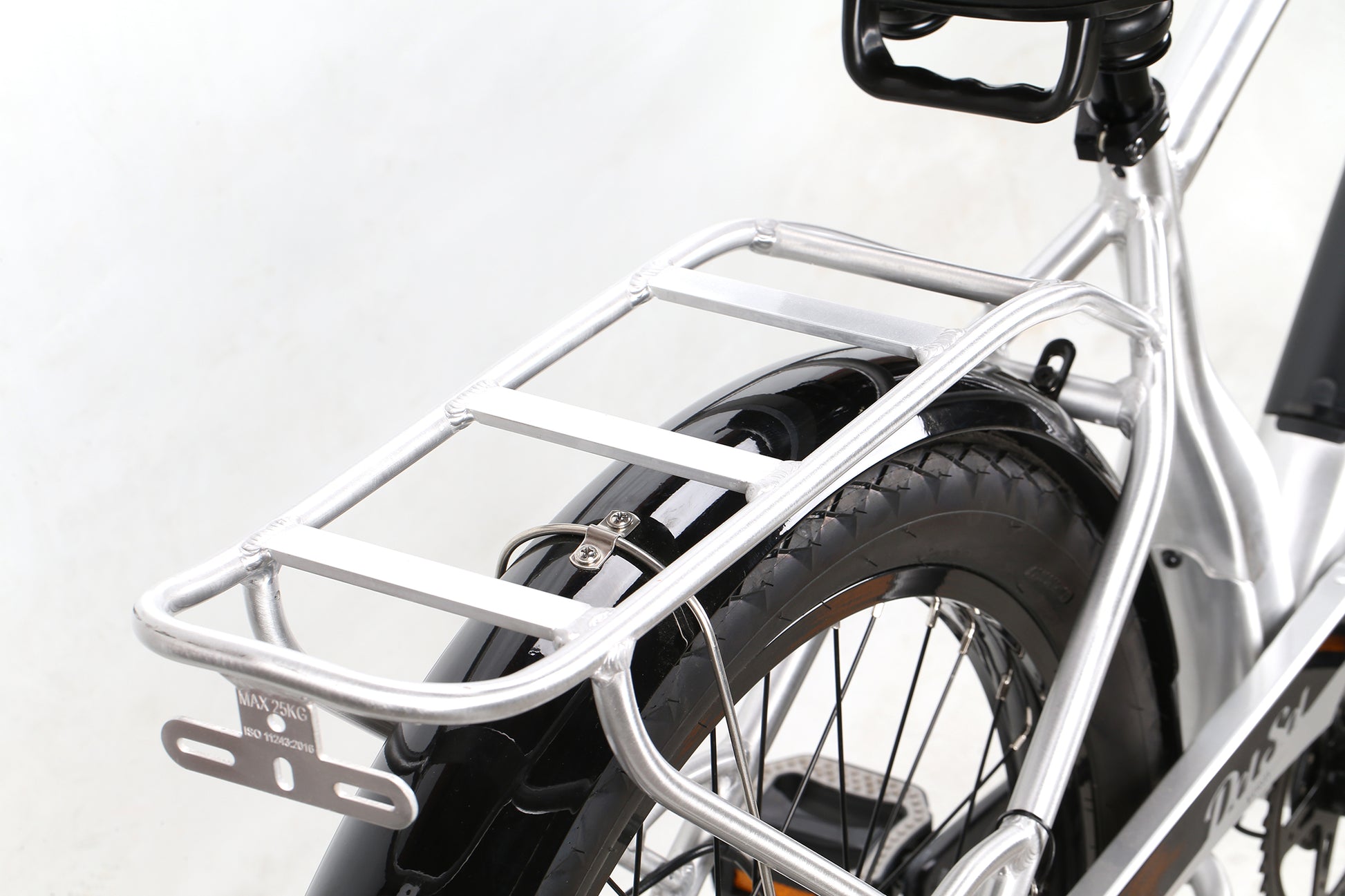

ExtrasKickstand | Integrated Rack | Full-Coverage Fenders | Charger & cables

Geometry & Sizing

SIZEMensST
A. Top Tube (Effective)667mm (26.2")654mm (25.7")
B. Seat Tube (C-T)430mm (16.9")394mm (15.5")
C. Standover Height779mm (30.6")590mm (23.2")
D. Head Tube Length219mm (8.6")209mm (8.2")
E. Head Angle70°70°
F. Seat Angle72.1°72.1°
G. Wheelbase1201mm (47.3")1188mm (46.8")
H. Chainstay779mm (19.1")590mm (19.1")
I. BB Drop50mm (1.9")50mm (1.9")
J. Stem Length90mm90mm
K. Bar Width700mm700mm
L. Crank Length170mm170mm
M. Wheel Size2626
