Del Sol

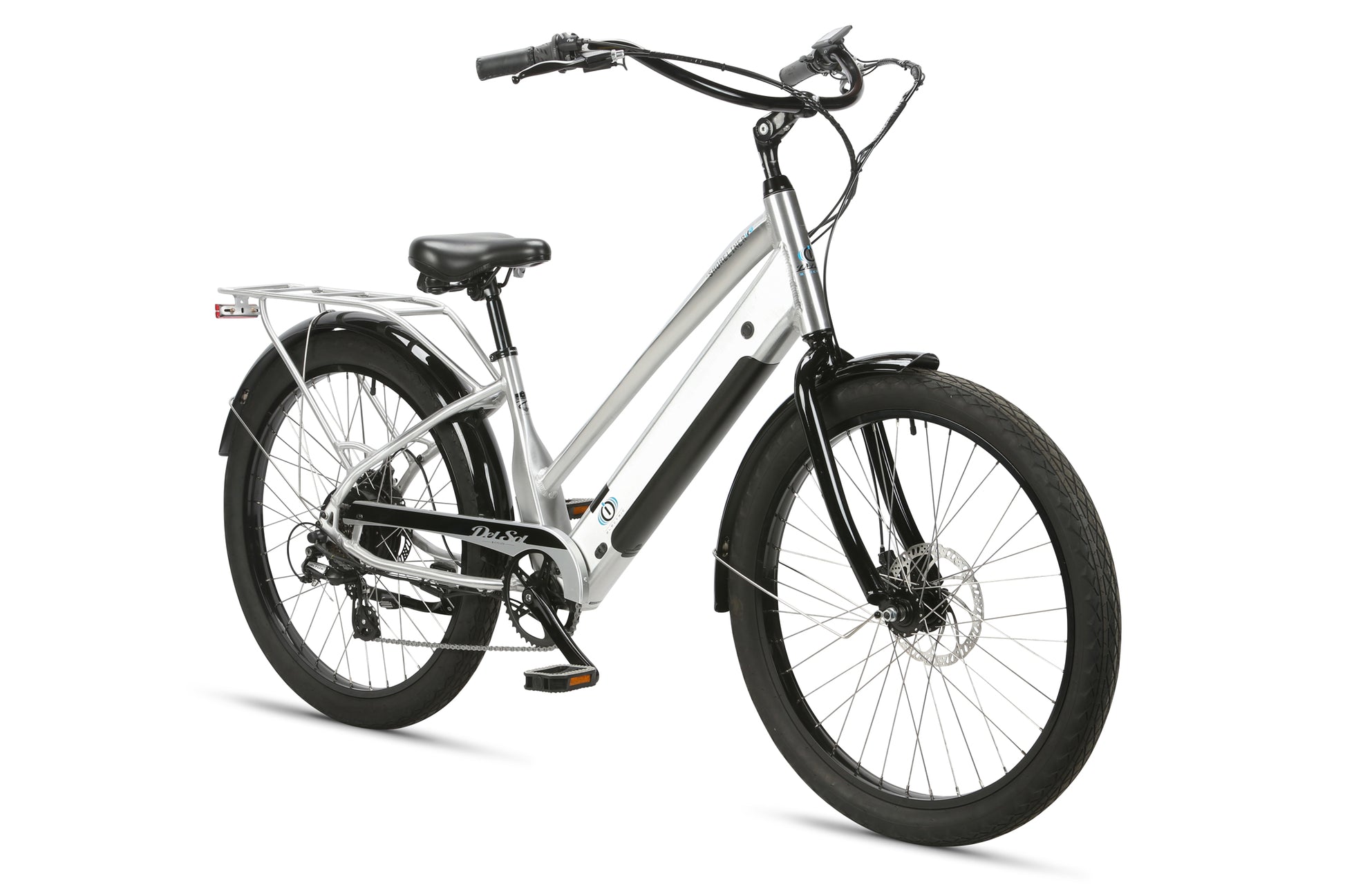

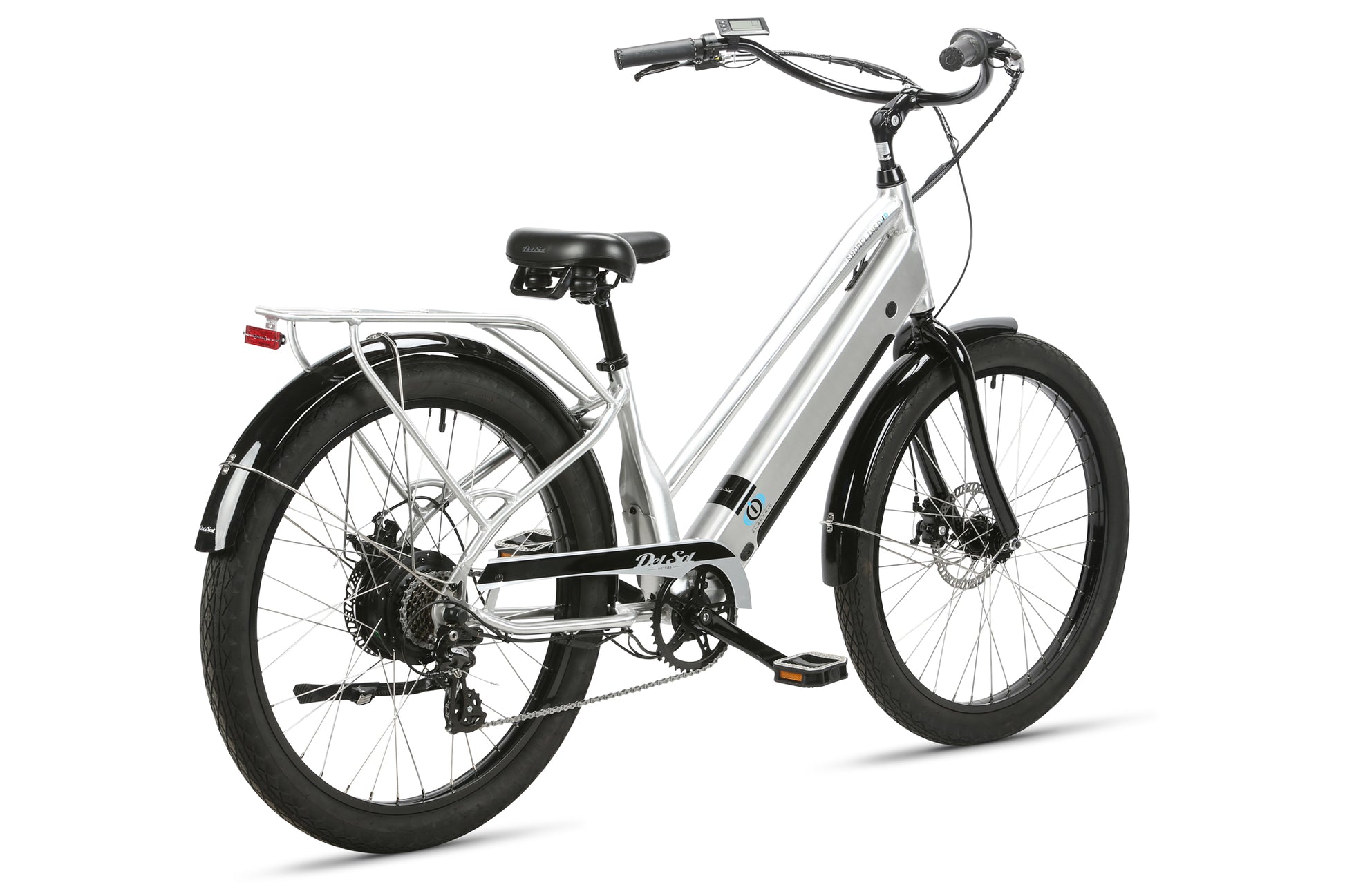

Shoreliner i/O Throttle Step Thru

Shoreliner i/O Throttle Step Thru

$1,699.99
$1,699.99 $1,699.99
Sale Out of Stock

SKU: 31614

Cruisers -- the simple, approachable bike that are grab 'n go, nothing needed other than the ability to pedal. E-bikes -- the way of the future. Cruiser e-bike? Yep, the ultimate. And that's exactly what the Shoreliner i/O is: the approachable, simple, grab-'n-go e-bike with high-tech features available in a no-tech-necessary manner of simplicity. It's ready to make your life easier. Just grab, and go, really that simple.
Color

View full details

FEATURES

  • Cruiser looks with e(asy)-bike simplicity make for an approachable, accessible bike for around town
  • Throttle assist makes getting going from a stop sign a cinch

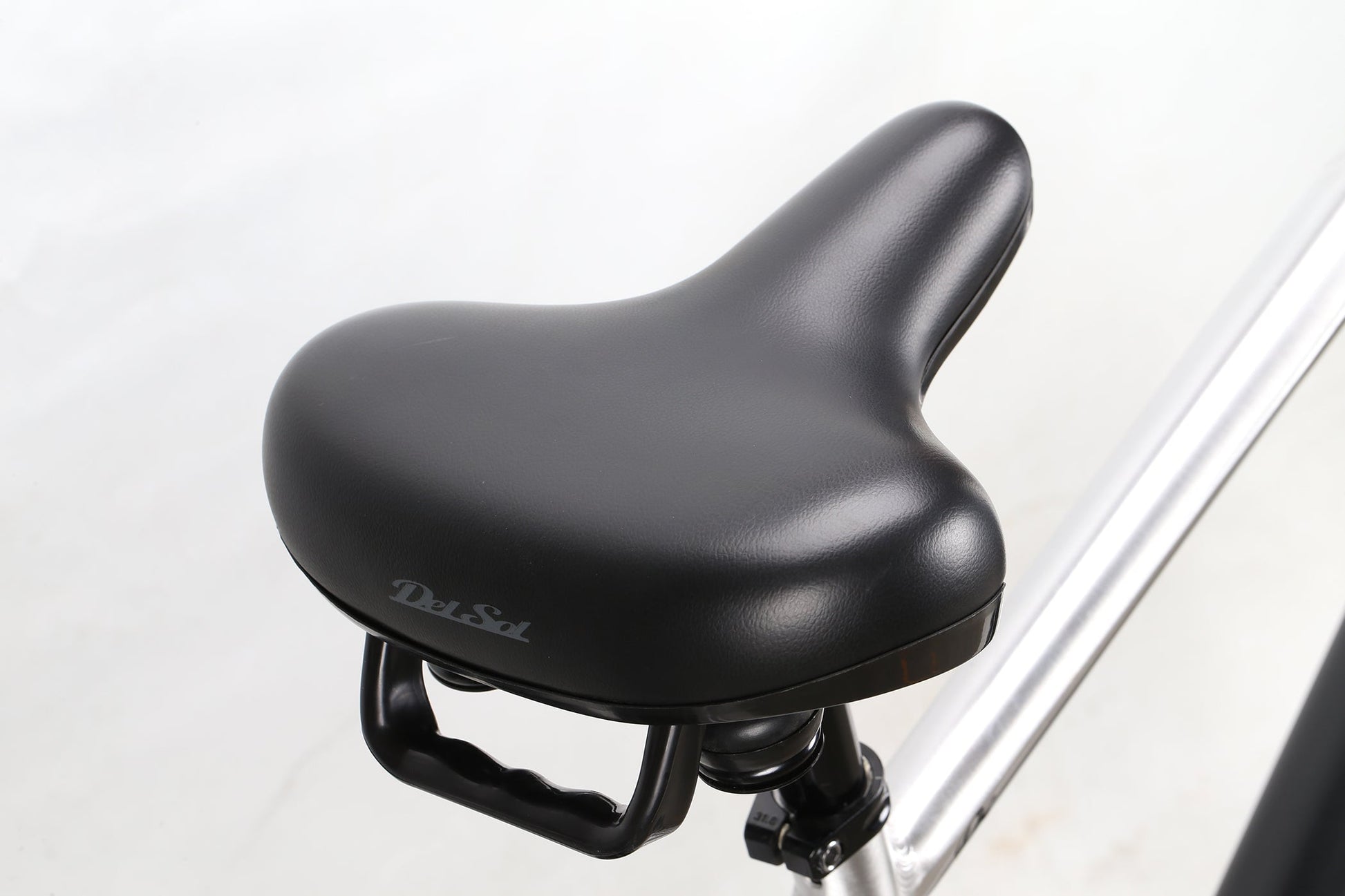

  • Hand-Holder e-bike specific handle on saddle makes moving the Shoreliner i/O much easier
  • Fully internal downtube battery provides generous 522Wh/14.5Ah capacity
  • Classic raked fork complements cruiser styling
  • Class 2 e-bike: throttle only or pedal assist up to 20mph
  • Bafang 350W motor

SPECIFICATIONS

FRAMESET
FrameShoreliner i/O | 6061 heat-treaded aluminum | Tig-welded construction | Fully internal battery | Internal e-bike wiring | 73mm threaded BSA bottom bracket shell | I.S. disc tab | Hub-drive specific 136mm spacing
ForkShoreliner | Classic raked steel | 1-1/8" threaded | I.S. 6-bolt disc | 3/8" x 100mm spacing | Bolt-on
ColorsBrushed Alloy, Americano
Weight57 lbs
DRIVETRAIN
Cranks3-piece | Forged alloy | 42T chainring with colorway-matched chainguard
PedalsBoardwalk cruiser | Shock-absorbing Kraton inserts
ChainKMC Z7 | 7-speed
Bottom Bracket73mm threaded BSA shell | JIS square taper | 131.5mm spindle length
Front DerailleurN/A
Rear DerailleurShimano Altus M310 | 7-speed
Derailleur ShifterShimano Revo | 7-speed
Freewheel/CassetteShimano | 14-28T | 7-speed
Drive UnitSee rear hub spec
Battery36V/14.5Ah | 522Wh | Fully-integrated within down tube
WHEELS
TiresCruiser 26 x 2.5"
Wheels/RimsAlloy | Width (internal): 29.4mm | 36h
Front Hub3/8" x 100mm | I.S. 6-bolt disc mount | 36h
Rear HubBafang 350W motor | I.S. 6-bolt disc mount | 136mm spacing | 36h
BRAKING SYSTEM
BrakesTektro MD M280 Mechanical Disc
Brake LeversAlloy | Linear Pull
OTHER COMPONENTS
Grips/TapeDel Sol foam | Stitched cover
HandlebarLaid-back Cruiser | 700mm Wide
StemQuill | Alloy | ϕ25.4 bar bore | 90mm length
Headset1-1/8" integrated | Threadless
SaddleDel Sol Couch saddle | Dual elastomers | Del Sol Hand-Holder e-bike specific handle
Seat PostAlloy | 27.2 x 350mm
Seat ClampAlloy | 31.8mm
ExtrasKickstand | Integrated Rack | Full-Coverage Fenders | Charger & cables

GEOMETRY

SIZEMensST
A. Top Tube (Effective)667mm (26.2")654mm (25.7")
B. Seat Tube (C-T)430mm (16.9")394mm (15.5")
C. Standover Height779mm (30.6")590mm (23.2")
D. Head Tube Length219mm (8.6")209mm (8.2")
E. Head Angle70°70°
F. Seat Angle72.1°72.1°
G. Wheelbase1201mm (47.3")1188mm (46.8")
H. Chainstay779mm (19.1")590mm (19.1")
I. BB Drop50mm (1.9")50mm (1.9")
J. Stem Length90mm90mm
K. Bar Width700mm700mm
L. Crank Length170mm170mm
M. Wheel Size2626
