Haro MTB

Westlake

Westlake

$789.99
$789.99 $789.99
Sale Out of Stock

SKU: 11771

As the world gets unnecessarily more complex: meetings to meet about... ahem... meetings--with this confusing backdrop, one bike--this bike--The Westlake--creates irrefutable simplicity. Lovely, glorious, wondrous simplicity through a wholehearted approach to being a bicycle. Not a gravel bike, not a road bike, not an enduro bike, not a KOM bike, PR bike, aero bike, training bike, or even aero training bike (it does exist, mind you). In a world of needless confusion, The Westlake provides straightforward bicycleness, one direct Shimano 1x9 shift at a time, as it should.

Sizing Guide

SizeInchesCM
S5'1" - 5'6"155 - 167.5
M5'5" - 5'10"165 - 177.5
L5'9" - 6'2"175 - 187.5
XL6'1" - 6'4"185 - 192.5
XL+6'3" - 6'6"190 - 200

Color
Size

View full details

COMPATIBLE RACKS & BASKETS

  • Rack Configuration 1

    Pictured: Haro Fitness bike with City AM rear carrier & Hybrid UNI Front Carrier. Compatible with Westlake

    Shop Racks

  • Rack & Accessory Configuration 2

    Pictured: Haro Fitness bike with City AM rear carrier & Hybrid UNI Front Carrier with Bakery Crate & ZAP EASY Top Bag. Compatible with Westlake

    Shop crates & Bags

  • Rack & Accessory Configuration 3

    Pictured: Haro Fitness bike with City AM rear carrier & Hybrid UNI Front Carrier with Dailey Large & Dailey Small Baskets. Compatible with Westlake

    Shop Baskets

FEATURES

  • Simple and efficient 1 x 9 wide-range drivetrain keeps shifting crisp while retaining easy gearing for hills and hard gearing for fast flats
  • Dual alloy chainguards prevent the chain from falling off, even over rough terrain
  • Quality Tektro hydraulic brakes provide consistent, strong stopping power even in wet conditions
  • Lockout suspension fork allows for efficient pavement riding
  • Mid-width tires allows for efficient on-road or smooth off-road versatility
  • Alloy wheels, frame, and components stay rust free

SPECIFICATIONS

FRAMESET

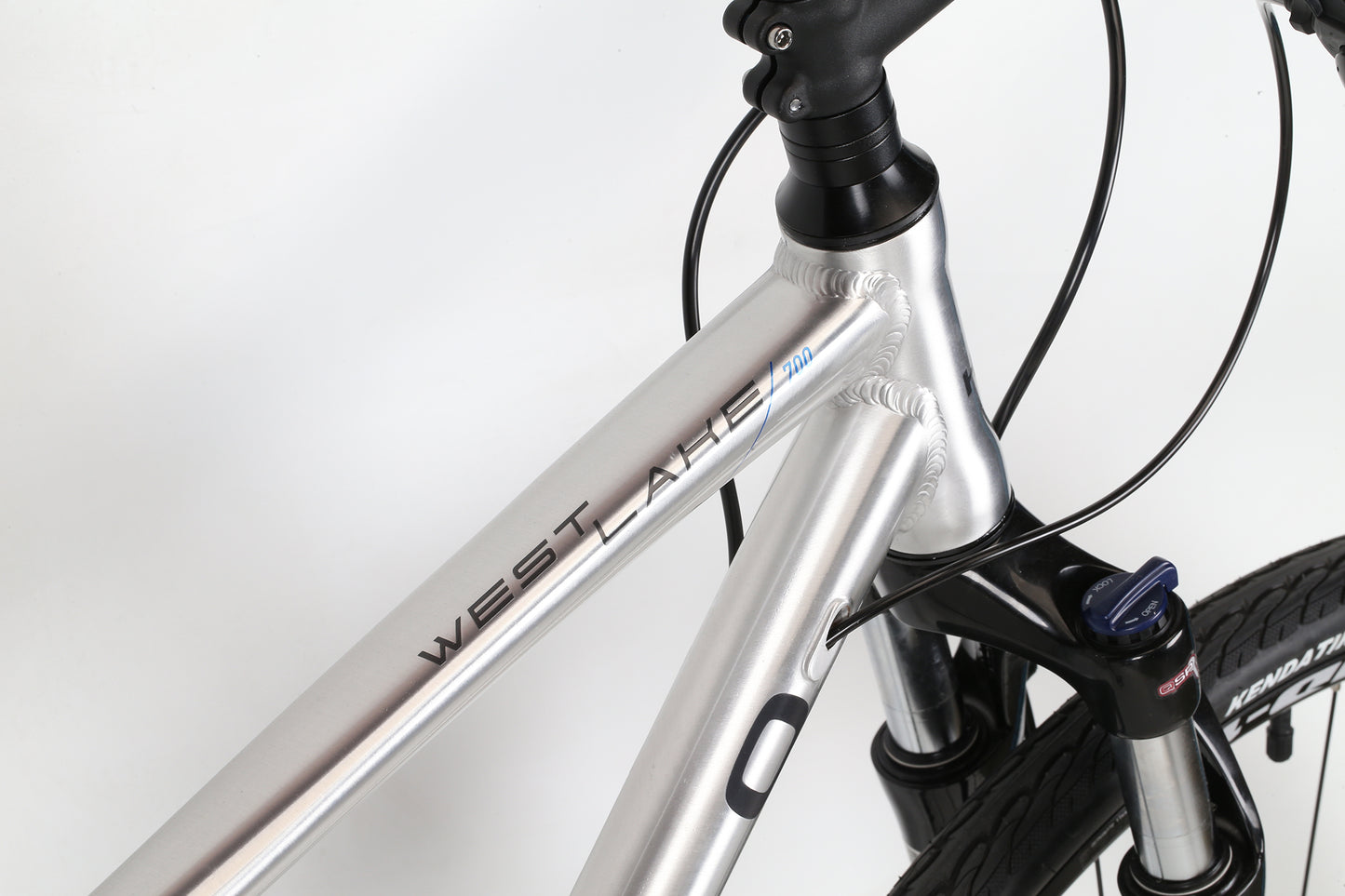

FrameHaro Solum | Heat-treated 6061 aluminum | Tig-welded construction | Rider-tuned geometry | 68mm threaded BSA bottom bracket shell | Post mount disc brake mount | 135mm quick-release dropouts with replaceable derailleur hanger

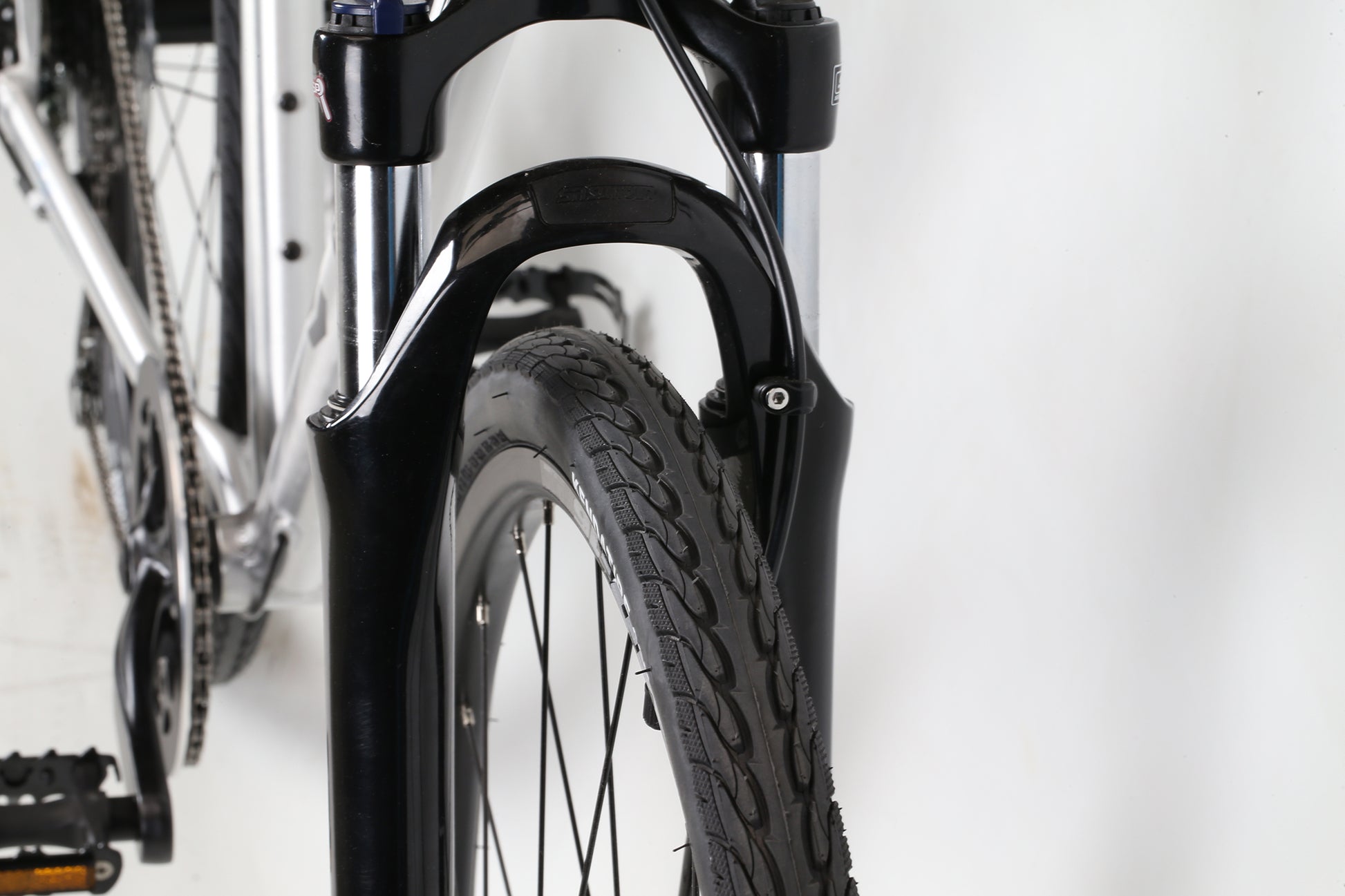

ForkSR Suntour | SF20 NEX HLO-DS | 63mm travel | Lightweight alloy crown and monocoque lowers | Weather-sealed stanchion protection | Plush coil spring with adjustable preload | Hydraulic Lockout | Post-mount disc brake | 100mm quick-release spacing
ColorsBrushed Polish
Weight30.5 lbs
DRIVETRAIN
Cranks3-piece cold forged alloy | 42T single chainring | 104mm BCD | Dual alloy chainguards | 15.5" & 17.5": 170mm; 19"-23": 175mm
PedalsVP | 990S | Nylon body with steel cages | Chromoly axles
ChainKMC X9 | 9-speed | NP/NP with missing link
Bottom BracketThreaded BSA 68mm BB shell | Square taper 118mm spindle | Sealed cartridge
Front DerailleurN/A

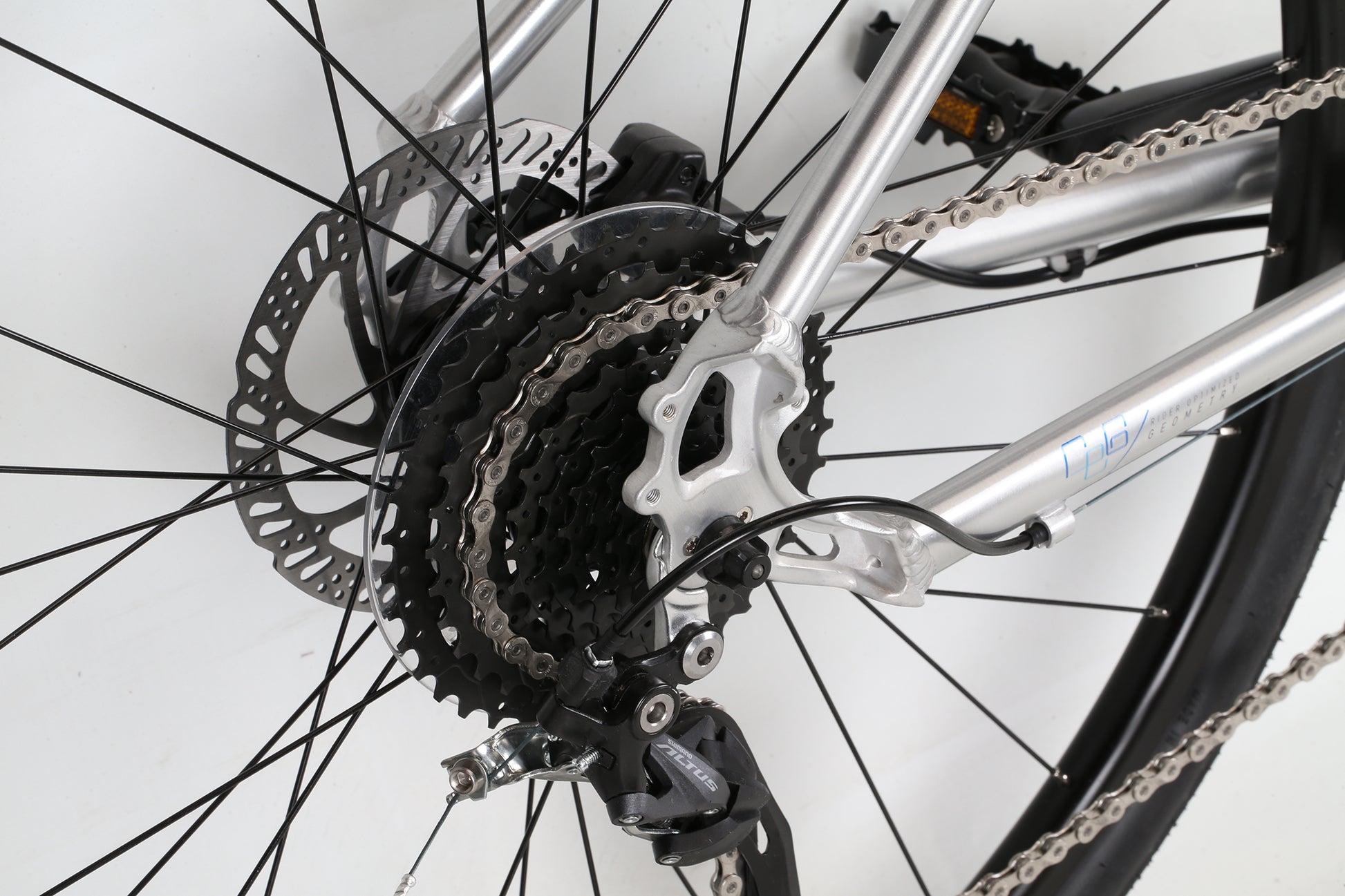

Rear DerailleurShimano Altus M2000 | 9-speed | Shadow design | direct attachment
Derailleur ShifterShimano SL-M2010 | 1 x 9-speed | Rapidfire Plus | Optical gear display
Freewheel/CassetteWide-range | 9-speed | 11-40T
WHEELS
TiresKenda Kwick Bitumen, 700 x 38c
Wheels/RimsPivit Excelsior 700c | Width (internal): 19mm | 28h | Alloy double wall | disc-brake specifc
Front HubPivit Promenade| Double Sealed | Alloy shell | 100mm quick-release | I.S. 6-bolt disc | 28h
Rear HubPivit Promenade| Double Sealed | Alloy shell | 135mm quick-release | I.S. 6-bolt disc | 28h | 9-speed
BRAKING SYSTEM
BrakesTektro HD-T275 | Hydraulic disc | I.S. 6-bolt rotors | F: 180mm, R: 160mm
Brake LeversTektro alloy hydraulic | 3-finger
OTHER COMPONENTS
Grips/TapePivit Entonces | Dual-density durometer | Active tuned

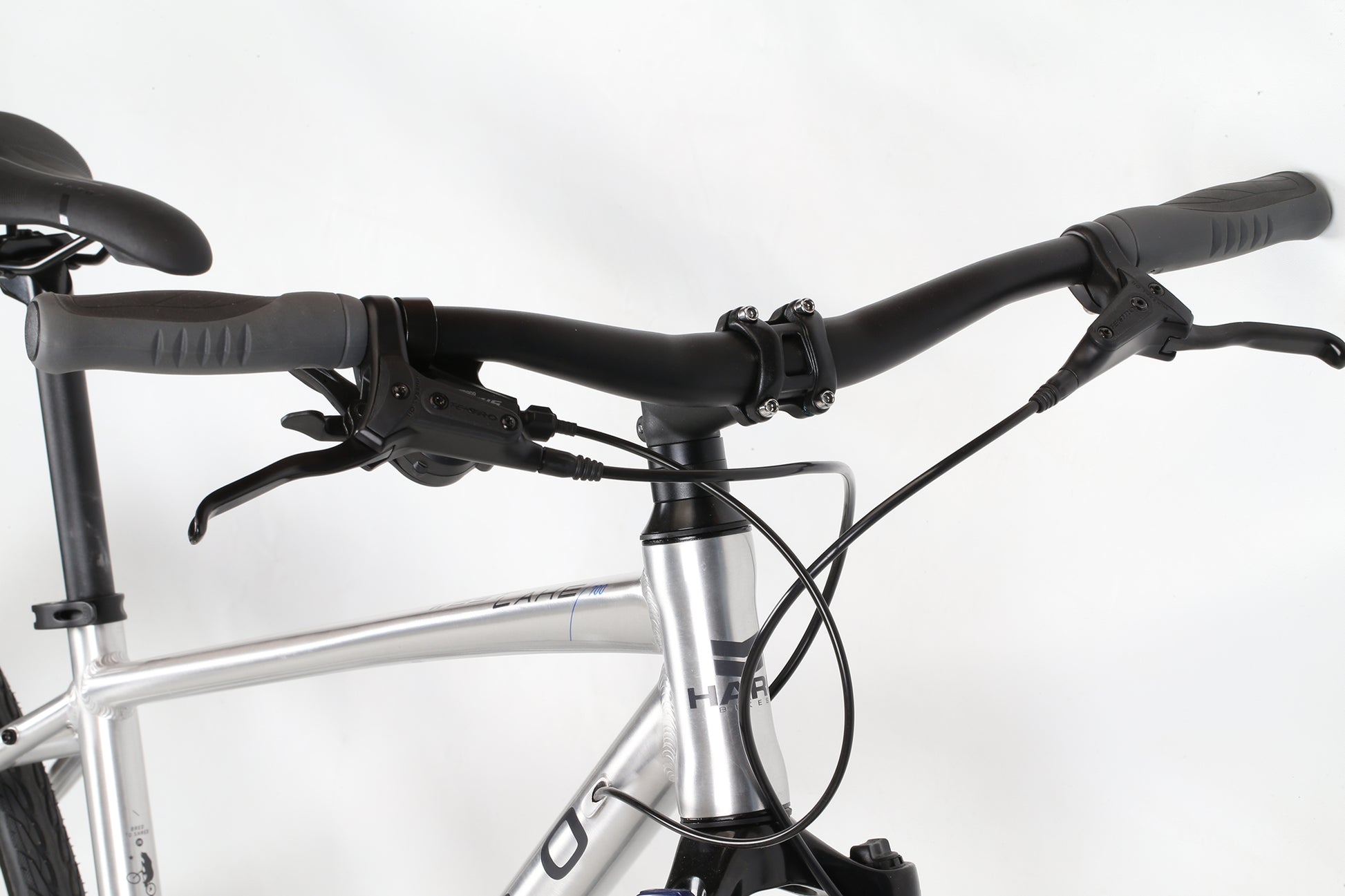

HandlebarPivit Grand Assembly Bar | Alloy | 25mm rise| 31.8mm bar bore | 9° sweep | 15.5" & 17.5": 620mm; 19"-23": 640mm
StemPivit Maverick Stem | Alloy | Positive Positioning | 7° rise | 15.5": 70mm; 17.5" & 19": 90mm; 21 & 23": 100mm
HeadsetPivit Precision Plus | 1-1/8" threadless | Internal | For 50mm OD headtube

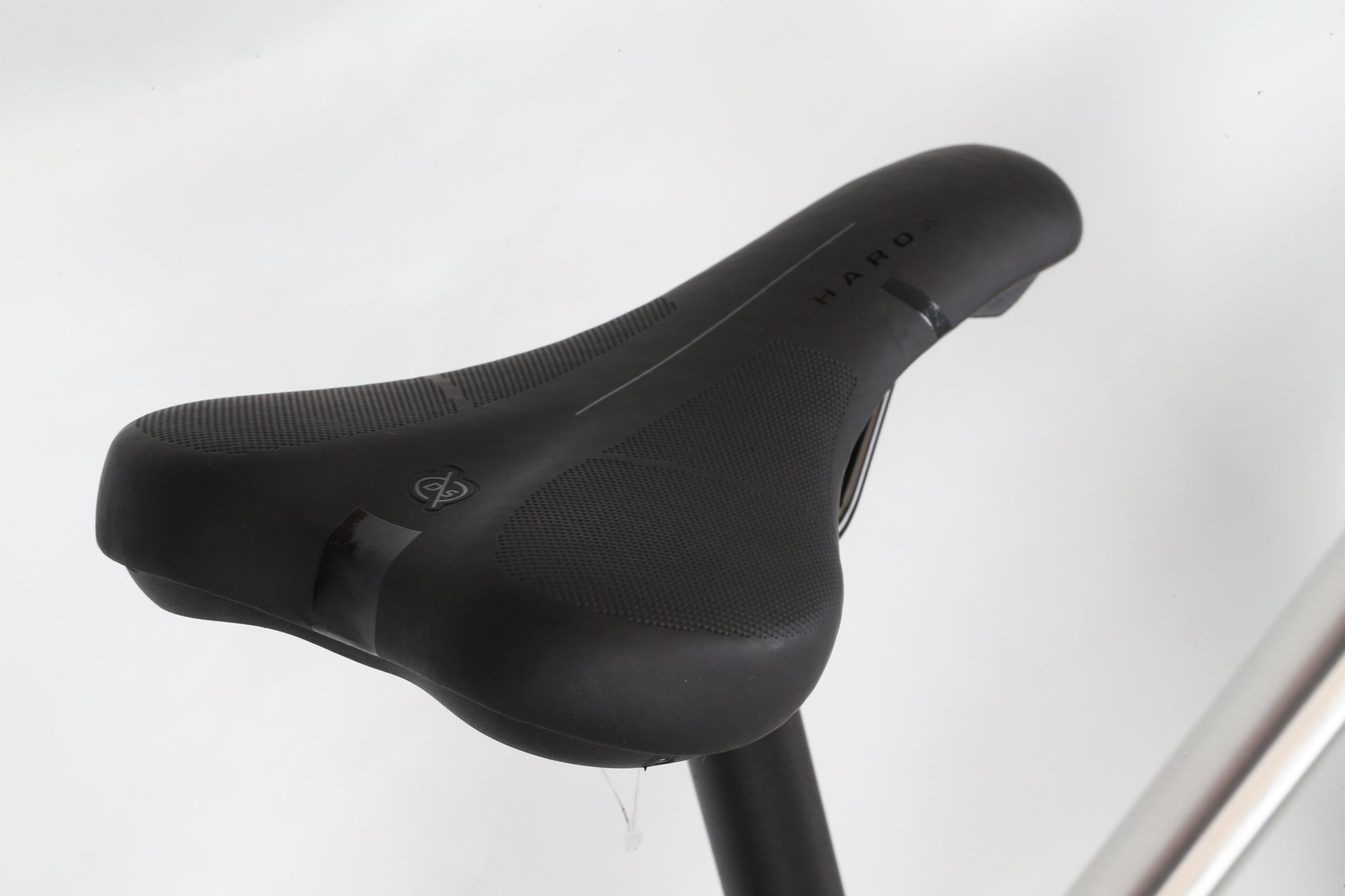

SaddleHaro Influencer | Dual-sport tuned padding | Weather-resistant cover
Seat PostPivit Fixed Address | Alloy | Micro-adjust positioning | 27.2mm x 350mm | Zero-offset efficiency | 2-bolt simplicity
Seat ClampPivit Lockjaw | Alloy | 31.8mm | Multi-throw design | Quick release ease
ExtrasRack and fender mounts

GEOMETRY

Geometry frame chart
SIZESMLXLXL+
A. Seat Tube (C-T)394mm (15.5")445mm (17.5")483mm (19")533mm (21")584mm (23")
B. Top Tube (Effective)575mm (15.5")585mm (17.5")600mm (19")615mm (21")625mm (23")
C. Head Tube Angle70.5°70.5°70.5°70.5°70.5°
D. Seat Tube Angle73°73°73°73°73°
E. Chainstay Length445mm (17.5")445mm (17.5")445mm (17.5")445mm (17.5")445mm (17.5")
F. BB Drop60mm (2.4")60mm (2.4")60mm (2.4")60mm (2.4")60mm (2.4")
G. Wheelbase1083mm (42.6")1093mm (43")1109mm (43.7")1124mm (44.3")1135mm (44.7")
H. Head Tube Length110mm (4.3")120mm (4.7")130mm (5.1")140mm (5.5")155mm (6.1")
I. Standover743mm (29.3")768mm (30.2")787mm (31")815mm (32.1")847mm (33.3")
J. Stack Height594mm (23.4")603mm (23.7")613mm (24.1")622mm (24.5")636mm (25")
K. Reach393mm (15.5")400mm (15.7")412mm (16.2")424mm (16.7")430mm (16.9")
L. Fork Height468mm (18.4")468mm (18.4")468mm (18.4")468mm (18.4")468mm (18.4")
M. Fork Offset42mm (1.65")42mm (1.65")42mm (1.65")42mm (1.65")42mm (1.65")
N. Stem Length70mm90mm90mm100mm100mm
O. Bar Width620mm620mm640mm640mm640mm
P. Crank Length170mm170mm175mm175mm175mm
  • Bicycle Fit Tips

    SIZING GUIDE

    Need help choosing a size? Read our guide on choosing the right size bike.

    Learn More
  • bicycle rider and bike icon

    CLICK, SHIP AND RIDE

    Purchase your bike online and pickup at your nearest dealer

    Learn More
  • Girl riding mountain bike on trail

    PRODUCT REGISTRATION

    Protect your investment by registering your bike.

    Register now

Customer Reviews

No reviews yet
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

*Specifications are subject to change without notice
