Haro Bikes
La Bastille
La Bastille
SKU: SKU:22457
Couldn't load pickup availability
Share















FEATURES
Full Chromoly frame with 1-1/8" steerer tube and mid BB shell; 19.5" top Tube
Full chromoly fork with tapered legs & internally threaded 1-piece steerer tube. 15mm offset
Haro full Chromoly 9" rise 2-piece Bars
Haro Baseline stem
Haro Baseline grips
Haro Baseline Cro-Mo 48 spline 19mm cranks; 165mm Length
Sealed front hub and sealed rear Freescoaster hub, laced to 36H double wall rims
25/9 gear ratio
Haro Baseline half link chain
Haro La Mesa tires 20x2.4" front/rear
Flatland specific geometry featuring 19.5" top tube, 75.5° head tube, 71° seat tube, 12.75" chain stays

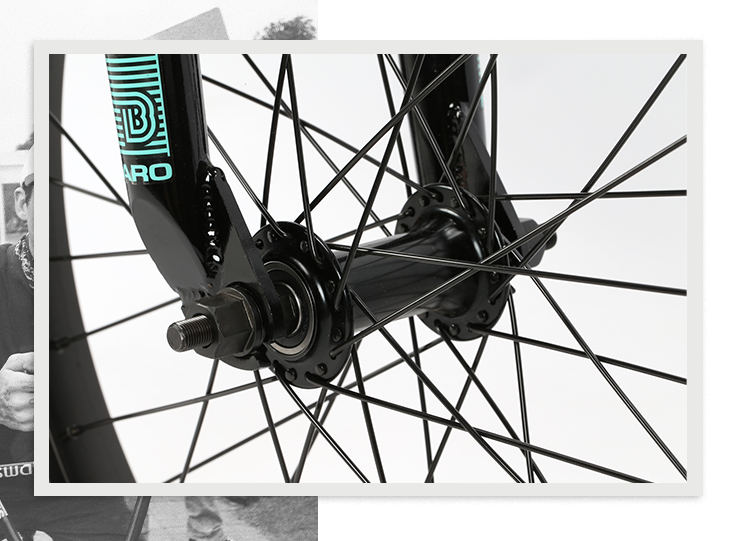

FULL CHROMOLY FORK
Tapered legs with internally threaded 1-piece steerer tube. 15mm offset

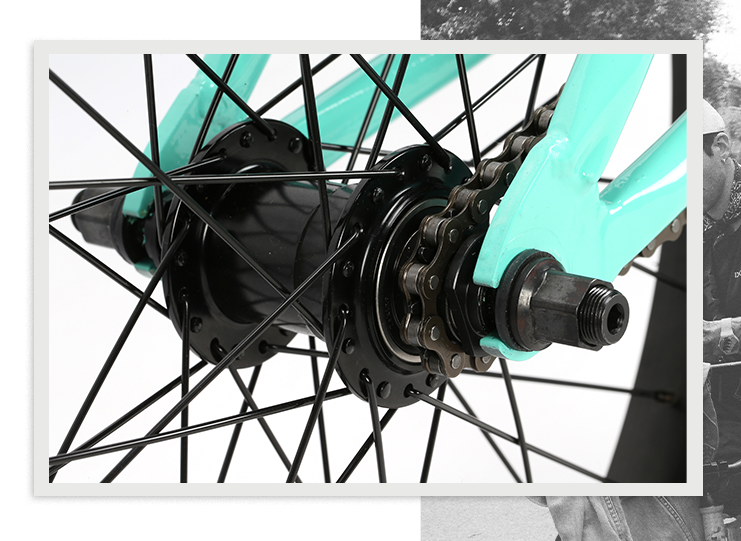

FREECOASTER HUB
Alloy shell freecoaster, 36h, sealed bearing
Collapsible content
BIKE SPECS
FRAMESET | |
---|---|
Frame | Full chromoly frame w/ 1-1/8" integrated headtube, mid BB shell, removable brakes mounts & 14mm dropouts. 12.75"CS, 75.5°HT |
Fork | Full chromoly 1 1/8" threadless internally threaded steerer tube & tapered legs. 15mm offset |
Colors | Sea Foam |
DRIVETRAIN | |
Cranks | Haro Baseline 3-pc chromoly 8 Spline 165mm |
Bottom Bracket | Sealed bearing mid |
Sprocket | 25t Steel Chainring |
Gearing | 25/9 |
Pedals | Poly platform. Chromoly 9/16" Axle |
Chain | Baseline chain |
WHEELS | |
Tires | Haro La Mesa 20 x 2.4" |
Front Hub | 36h alloy sealed, female axle |
Rear Hub | Alloy 9t sealed freecoaster rear. 14mm male axle |
Axle | 36h alloy sealed, female axle |
Rims | 20" alloy double-wall rims. 36 holes. |
BRAKING SYSTEM | |
Brake | Alloy 990 U-Brake |
Brake Lever | Haro Baseline two-finger |
OTHER COMPONENTS | |
Grips | Haro Baseline 163mm flangeless |
Handlebar | Haro chromoly, 9" rise 2-piece |
Stem | Haro Baseline 48mm reach |
Headset | Integrated 1-1/8" threadless sealed bearings |
Seat | Baseline 5° seat/post combo |
Seat Post | Aluminium 25.4mm |
Seat Post Clamp | Integrated |
GEOMETRY
-
-
Geometry & Sizing Size A. Head Angle B. Seat Angle C. Top Tube D. Seat Tube E. Chainstay F. BB Height G. Stand Over 19.5 75.5° 71° 19.5" (495.5mm) 9" (230mm) 12.75" (322mm) 11.5" (293mm)
*Specifications are subject to change without notice
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
