Haro MTB

Aeras ST MicroShift

Aeras ST MicroShift

Regular price $599.99
Regular price $599.99 Sale price $599.99
Sale Out of stock

SKU: SKU:13652

Sizing Guide

Size Table
SizeInchesCM
XS ST5' - 5'4"152.5 - 162.5
S ST5'3" - 5'7"160 - 170

Color
Size

View full details
  • Rack Configuration 1

    Pictured: Haro Fitness bike with City AM rear carrier & Hybrid AM Front Carrier. Compatible with Aeras ST MicroShift

    Shop Racks
  • Rack & Accessory Configuration 2

    Pictured: Haro Fitness bike with City AM rear carrier & Hybrid AM Front Carrier with Bakery Crate & ZAP EASY Top Bag. Compatible with Aeras ST MicroShift

    Shop crates & Bags
  • Rack & Accessory Configuration 3

    Pictured: Haro Fitness bike with City AM rear carrier & Hybrid AM Front Carrier with Dailey Large & Dailey Small Baskets. Compatible with Aeras ST MicroShift

    Shop Baskets

FEATURES

    SPECIFICATIONS

    Specifications
    FRAMESET
    Frame6061-T6 aluminum | Rider-tuned geometry | 68mm threaded BSA bottom bracket shell | Post mount
    ForkSuntour SF20 NEX HLO-DS | 63mm travel | Hydraulic Lockout | Post-mount
    Frame ShockN/A
    ColorsMatte Metallic Blue, Mate Sage
    DRIVETRAIN
    CranksProwheel TB-CY01 | 46/30T | 8-speed | 170 / 175mm
    PedalsVP | 990S | Nylon body with steel cages | Chromoly axles
    ChainKMC Z8.1 | 8-speed
    Bottom BracketFeimin FP-902W | Threaded BSA 68mm BB shell | 123mm spindle | Sealed cartridge
    Front DerailleurMicroshift FD-T202 | Top swing | 34.9mm band diameter
    Rear DerailleurMicroshift RD-M36L
    Derailleur ShifterMicroshift TS39-2 & FD-T202 | 2 x 8-speed
    Freewheel/CassetteMid-range | CS-M5008 8-Speed 11-34T | ED Black
    WHEELS
    TiresKenda Kwick Bitumen | 700 x 38c
    Wheels/RimsHaro 700c | 19mm inner width | 28h | Alloy double wall | Disc-brake specifc
    HubsKT-68 alloy 28H | Cassette rear hub | Front & rear quick release
    BRAKING SYSTEM
    BrakesTektro MD-M280 | Mechanical disc | IS 6-bolt rotors | F: 180mm, R: 160mm
    Brake LeversAlloy 3-finger
    OTHER COMPONENTS
    Grips/TapeHaro | Dual-density durometer | Active tuned
    HandlebarHaro Alloy | 25mm rise | 31.8mm | 9° sweep | 620mm / 640mm
    StemHaro Alloy | 7° rise | 70mm / 90mm / 100mm
    HeadsetHaro 1-1/8" threadless Internal | For 50mm OD headtube

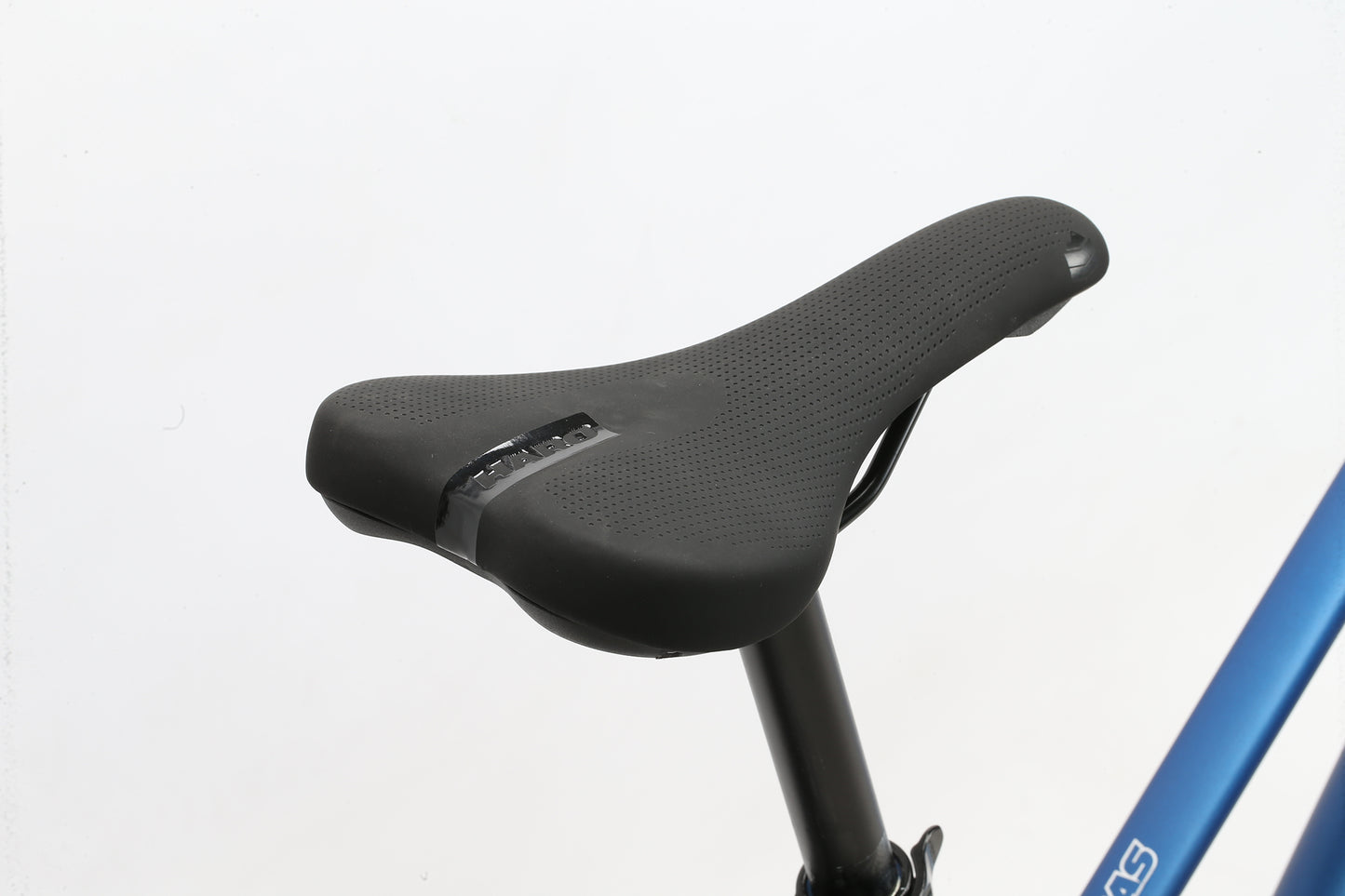

    SaddleHaro | Dual-sport tuned padding | Weather-resistant cover
    Seat PostHaro Alloy | Micro-adjust | 27.2mm x 350mm | Zero-offset | 2-bolt design
    Seat ClampHaro Aluminum 31.8mm Quick release
    ExtrasRack and fender mounts

    GEOMETRY

    Geometry frame chart
    Geometry & Sizing
    SIZEXS STS ST
    A. Seat Tube (C-T)356mm (14")406mm (16")
    B. Top Tube (Effective)530mm (20.9")541mm (21.3")
    C. Head Tube Angle69.5°70°
    D. Seat Tube Angle74°74°
    E. Chainstay Length445mm (17.5")445mm (17.5")
    F. BB Drop60mm (2.4")60mm (2.4")
    G. Wheelbase1043mm (41")1050mm (41.3")
    H. Head Tube Length120mm (4.7")140mm (5.5")
    I. Standover611mm (24")620mm (24.4")
    J. Stack Height533mm (21")554mm (21.8")
    K. Reach377mm (14.8")382mm (15")
    L. Fork Height
    M. Fork Offset45mm (1.8")45mm (1.8")
    N. Stem Length75mm (2.9")95mm (3.5")
    O. Bar Width620mm (24.4")620mm (24.4")
    P. Crank Length170mm170mm
