Beasley 24

Beasley 24

Regular price $499.99
Regular price $499.99 Sale price $499.99
Sale Sold out

SKU: SKU:11181

The Beasley kids model is made of 6000 series alloy in a low frame stand-over height and is available in either 24" or 26" wheel sizes (see Beasley 26). The Beasley 24 features a no-nonsense rigid 6000 series aluminum fork, and a 7-speed 1X drive train with a Shimano Revo Shifter for versatility and simplicity. The Pivit alloy cassette hubs set is laced to sturdy alloy double wall rims and equipped with Kenda Kruiser 24x2.125" wide tires. A mechanical disc brake set with 160mm rotors has the power to bring the ride to a screeching halt when needed. Stunning good looks, endless versatility, and no shortage of fun. Beasley.
Color

View full details

FEATURES

  • Haro Beasley 24" 6000 series alloy frame
  • Rigid 24" 6000 Series alloy fork
  • Aluminum, 34T Double-chainguard crankset

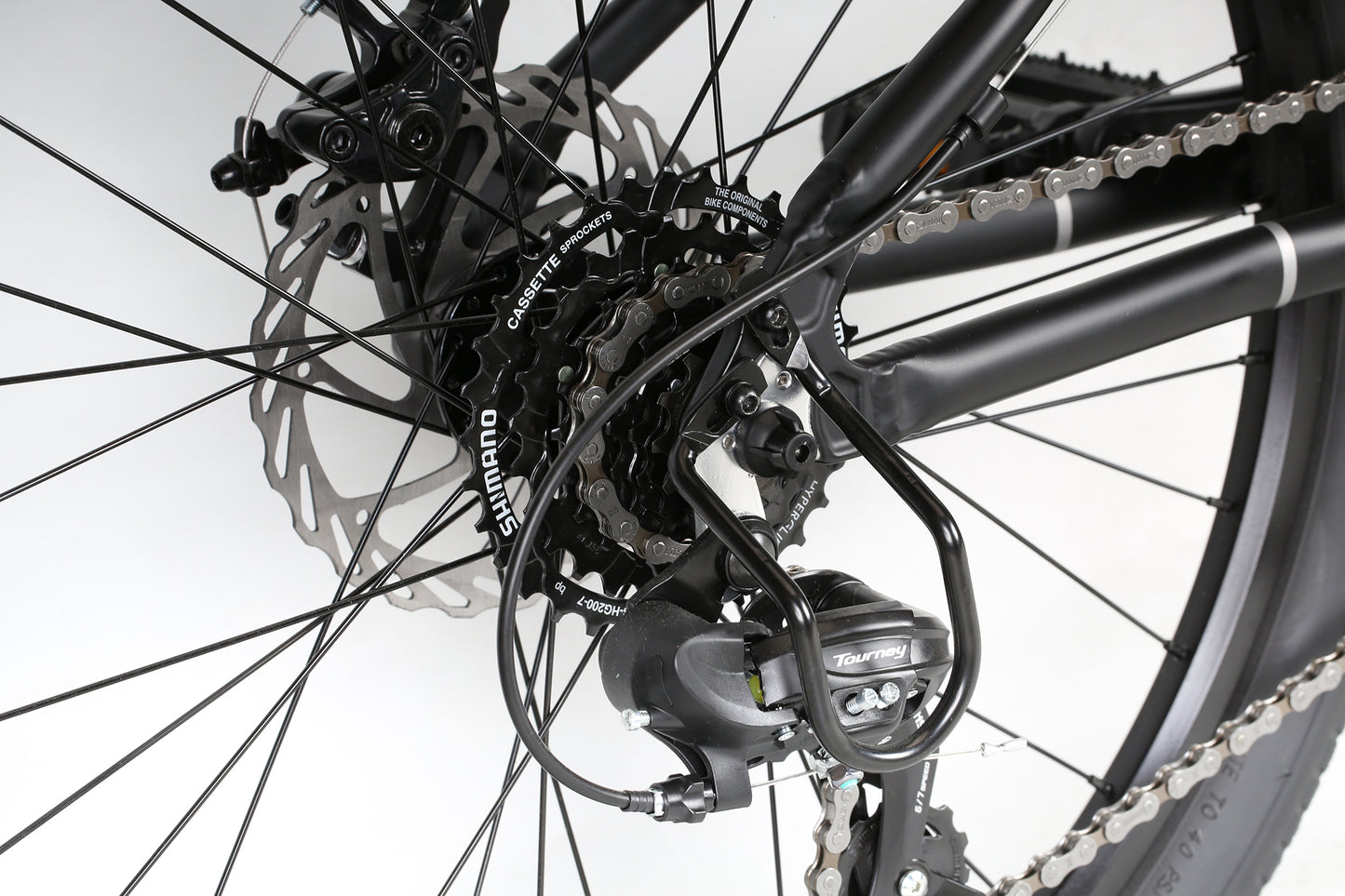

  • Shimano Tourney TY-300 rear derailleur
  • Shimano Tourney 7-spd Revo shifter
  • Shimano HG-200 7-spd 12-32t cassette
  • 24" aluminum DW rims w/ Pivit aluminum hubs
  • Kenda Kruiser 24x2.125" tires
  • Jak-7 disc aluminum brakeset w/ 160mm rotors

PRODUCT INFORMATION

SPECIFICATIONS

Specifications
FRAMESET
FrameHaro Beasley 24" | X6 Aluminum series | New Chainstay design | IS disc mount
ForkRigid 24" 6061-T6 Aluminum Chromoly 1-1/8" steer tube | safety tabs | disc mount
ColorsMatte Black / Silver, Hot Pink / Charcoal
DRIVETRAIN
CranksSamox Aluminum | 34T chainring Double-chainguard | 6" / 152mm
PedalsNylon body | Chromoly axles | Platform
ChainKMC Z50 / 1/2"x3/32
Bottom BracketSealed cartridge
Front DerailleurN/A
Rear DerailleurShimano Tourney TY-300
Derailleur ShifterShimano Tourney 7-spd Revo
Freewheel/CassetteShimano CS-HG-200 7-spd cassette 12-32T
WHEELS
TiresKenda Kruiser 24x2.125"
Wheels/RimsXD-180 aluminum double wall
HubsPivit alloy cassette 32h
BRAKING SYSTEM
BrakesAluminum Mechanical disc brakes w/ 160mm Rotors
Brake LeversPromax alloy XL-378, 2-Finger
OTHER COMPONENTS
Grips/TapeHaro MTB
HandlebarPivit alloy 25mm riser bar | 31.8mm O.D. | 600mm wide
StemPivit melt forged stem w/ 4 bolts | 31.8mm bar bore
Headset1-1/8" threadless steel cups | loose ball | Nylon Top
SaddleHaro Flightline
Seat PostPivit aluminum micro-adjust 27.2x250mm
Seat ClampPivit aluminum 31.8mm quick release

GEOMETRY

Geometry & Sizing
SIZE24
Seat Tube (C-T)305mm (12")
Top Tube (Effective)521mm (20.5")
Head Tube Angle69.5°
Seat Tube Angle73°
Chainstay Length405mm (15.9")
BB Drop40mm (1.6")
Wheelbase981mm (38.6")
Head Tube Length100mm (3.9")
Standover610mm (24")
Stack Height506mm (19.9")
Reach367mm (14.4")
Axle to Crown356mm (14")
Fork Offset35mm (1.4")
Stem Length60mm
Bar Width
Crank Length
Wheel Size24

SIZING GUIDE

Size Table
SizeInchesCM
244' - 4'8"122 - 142
