Beasley 27.5

$599.99

~~$799.99~~ $599.99

Sale Sold out

SKU: SKU:13228

Rolling steady. The Beasley 27.5" is a clean, comfortable machine, ready to take on the day. Built on a lightweight aluminum frame and fork, with a 1 X 8 drive-train for simple, efficient shifting. Kenda Kwick 27.5 X 2.0 tires take on the road, with mechanical disc brakes front and rear to slow your roll when you reach your destination.

Color Matte Jade

Size S M L XL

View full details

FEATURES

Haro Beasley 27.5" X6 series aluminum, tapered head tube, quick-release seat clamp
Internal threadless tapered headset
Rigid 27.5" 6000 Series tapered aluminum fork w/disc brake mount
40T chainring w/double alloy chainguard
RD-M5185M, 1 x 8 Microshift rear derailleur
SL-M7180-R, Xpress Microshift shifters for 1 x 8, right side activation
CS-H083 12-42, 8-speed Microshift, 12-42T
Aluminum double wall rims
Pivit aluminum cassette 32h hubs
Kenda Kwick Seven.5 27.5x2.0" tires

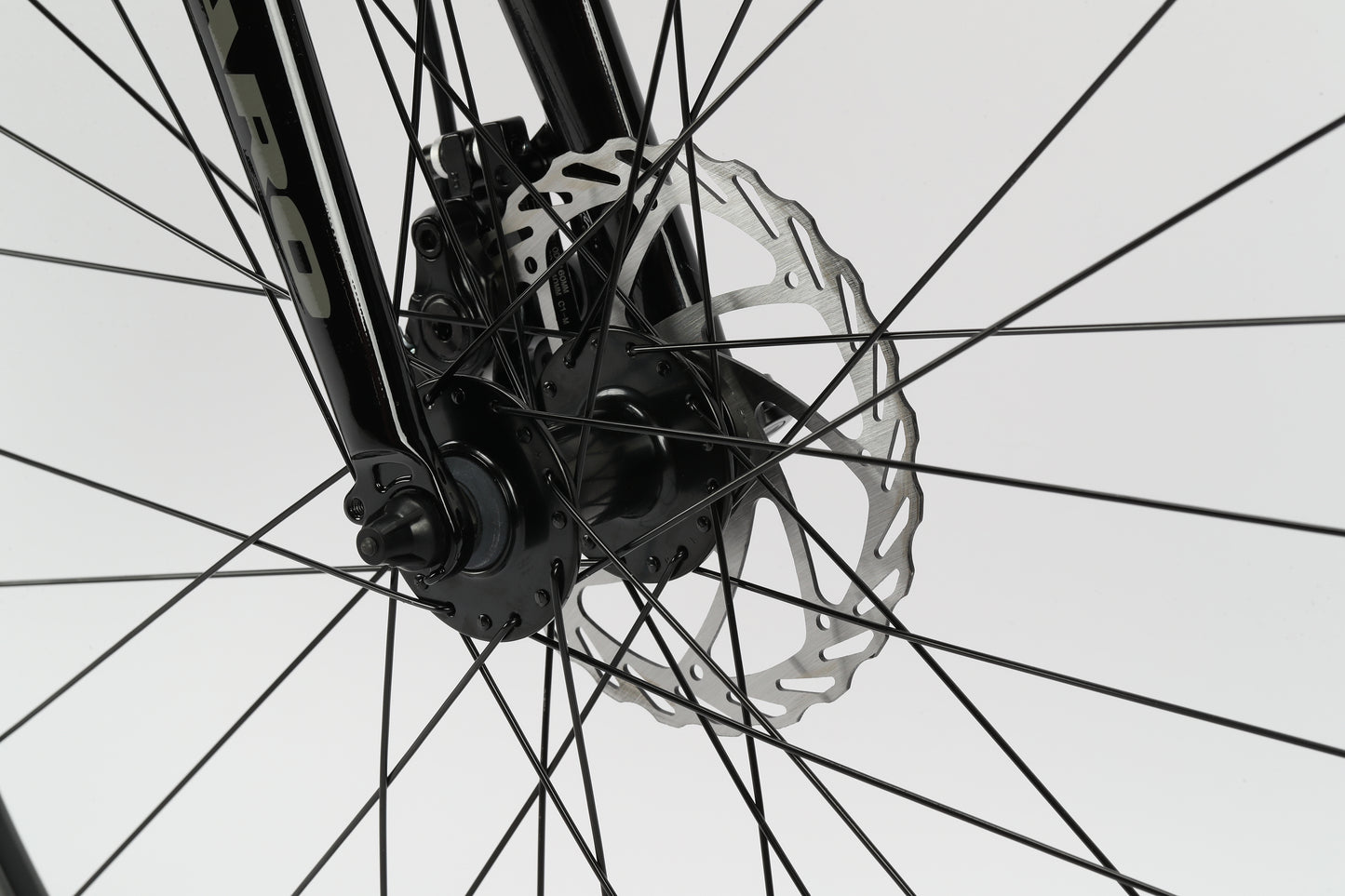

Jak-7 Mechanical disc brakeset w/ 160mm Rotors, front & rear

PRODUCT INFORMATION

SPECIFICATIONS

Specifications
FRAMESET
Frame	Haro Beasley 27.5" \| X6 Aluminum series \| New Chainstay design \| Post disc mount
Fork	Rigid 27.5" 6000 Series tapered aluminum fork w/disc brake mount
Colors	Matte Charcoal, Matte Jade
DRIVETRAIN
Cranks	40T steel chainring Double aluminum chainguards \| 15" = 170mm , 17"/19"/21" = 175MM
Pedals	Aluminum Platform \| Chromoly axles \| SBB Ball-Bearings
Chain	KMC X8 HG \| 8-spd \| 1/2"*3/32"
Bottom Bracket	Sealed cartridge
Front Derailleur	N/A
Rear Derailleur	Microshift RD-M5185M, 1 x 8 rear derailleur
Derailleur Shifter	SL-M7180-R, Xpress Microshift shifters for 1 x 8, right side activation
Freewheel/Cassette	Microshift CS-H083 \| 8-spd \| 12-42T
WHEELS
Tires	Kenda Kwick Seven.5 \| 27.5x2.0"
Wheels/Rims	MX-21 27mm aluminum double wall rims
Hubs	Aluminum cassette 32h
BRAKING SYSTEM
Brakes	Jak-7 Mechanical disc brakes \| 160mm Rotors (front & rear)
Brake Levers	VL-321D Aluminum \| 2-Finger
OTHER COMPONENTS
Grips/Tape	Haro MTB
Handlebar	Aluminum 25mm riser bar 31.8mm
Stem	Aluminum \| 3D Forged \| 31.8mm
Headset	1-1/8"-1.5" Tapered threadless Internal \| Aluminum Top cone
Saddle	Haro Flightline
Seat Post	Micro adjust 30.9x350mm
Seat Clamp	Alloy 34.9mm \| quick release

GEOMETRY

Geometry & Sizing
SIZE	S / 15	M / 17	L / 19	XL / 21
Seat Tube (C-T)	381mm (15")	432mm (17")	483mm (19")	533mm (21")
Top Tube (Effective)	570mm (22.4")	600mm (23.6")	610mm (24")	625mm (24.6")
Head Tube Angle	71.5°	72°	72.5°	72.5°
Seat Tube Angle	73°	73°	73°	73°
Chainstay Length	445mm (17.5")	445mm (17.5")	445mm (17.5")	445mm (17.5")
BB Drop	65mm (2.6")	65mm (2.6")	65mm (2.6")	65mm (2.6")
Wheelbase	1051mm (41.4")	1077mm (42.4")	1087mm (42.9")	1103mm (43.4")
Head Tube Length	120mm (4.7")	145mm (5.7")	170mm (6.7")	195mm (7.7")
Standover	703mm (27.7")	736mm (29")	775mm (30.5")	813mm (32")
Stack Height	566mm (22.3")	592mm (23.3")	616mm (24.3")	640mm (25.2")
Reach	396mm (15.6")	418mm (16.5")	421mm (16.6")	428mm (16.9")
Axle to Crown	424mm (16.7")	424mm (16.7")	424mm (16.7")	424mm (16.7")
Fork Offset	45mm (1.8")	45mm (1.8")	45mm (1.8")	45mm (1.8")
Stem Length	70 or 80mm	70 or 80mm	80mm	80mm
Bar Width	680mm	680mm	700mm	700mm
Crank Length	170mm	175mm	175mm	175mm
Wheel Size

SIZING GUIDE
