Beasley 27.5 DLX

Beasley 27.5 DLX

Regular price $699.99
Regular price $899.99 Sale price $699.99
Sale Sold out

SKU: SKU:13231

Urban adventure awaits. The Haro Beasley 27.5" DLX is everything you need for low-maintenance, smooth operation and easy days on the road. Start off with our aluminum frame and fork set for a light and nimble ride. Add a quality Microshift 1 x 10 drivetrain for simple, easy shifting and attention to detail like double-wall alloy rims, alloy bars, a quick-release seat clamp and hydraulic disc brakes with 160mm rotors front and rear. Four size options to fit everyone. Your go-to bike for going everywhere!
Color
Size

View full details

FEATURES

  • Haro Beasley 27.5" X6 series aluminum, tapered head tube, quick-release seat clamp
  • Internal FSA Threadless tapered headset
  • Rigid 27.5" 6000 Series tapered aluminum fork w/disc brake mount
  • Samox 2-pc Aluminum crankset w/ 40T chainring
  • Microshift 10-speed rear derailleur
  • Microshift 10-speed shifter
  • Microshift 11-48T 10-speed cassette
  • Aluminum double wall rims, 32 hole
  • Quick release alloy hubs, cassette rear. 32h
  • Kenda Kwick Seven.5 27.5x2.0" tires
  • Radius hydraulic brake set w/ 160mm rotors, front & rear

PRODUCT INFORMATION

SPECIFICATIONS

Specifications
FRAMESET
FrameHaro Beasley 27.5" | X6 Aluminum series | Chaintstay Post disc mount
ForkRigid 27.5" 6061-T6 Aluminum Aluminum Tapered steer tube | IS Disc Mount | for integrated headset
Colors
DRIVETRAIN
CranksSamox Aluminum 2-pc | 40T chainring Narrow-Wide Teeth | Aluminum chainguard | 170 / 175mm
PedalsFPD Aluminum Platform | Chromoly axles | SBB Ball-Bearings
ChainKMC X10-1 NP/BLK | MTB 10-speed | Missing Link
Bottom BracketSealed cartridge
Front DerailleurN/A
Rear DerailleurMicroshift RD-M6205GM | 10-speed
Derailleur ShifterNew Shimano Deore SL-M4100-R 10-spd
Freewheel/CassetteMicroshift CS-H104 | 10-speed | 11-48T
WHEELS
TiresKenda Kwick Seven.5 27.5x2.0" | Reflective stripes
Wheels/RimsMX-21 27mm Aluminum double wall rims
HubsShimano RM35 | cassette | 32h | Center-Lock discs
BRAKING SYSTEM
BrakesRadius hydraulic brake set w/ 160mm rotors, front & rear
Brake LeversRadius, alloy
OTHER COMPONENTS
Grips/TapeHaro MTB
HandlebarPivit Aluminum 25mm rise | 31.8mm x 700 / 720mm

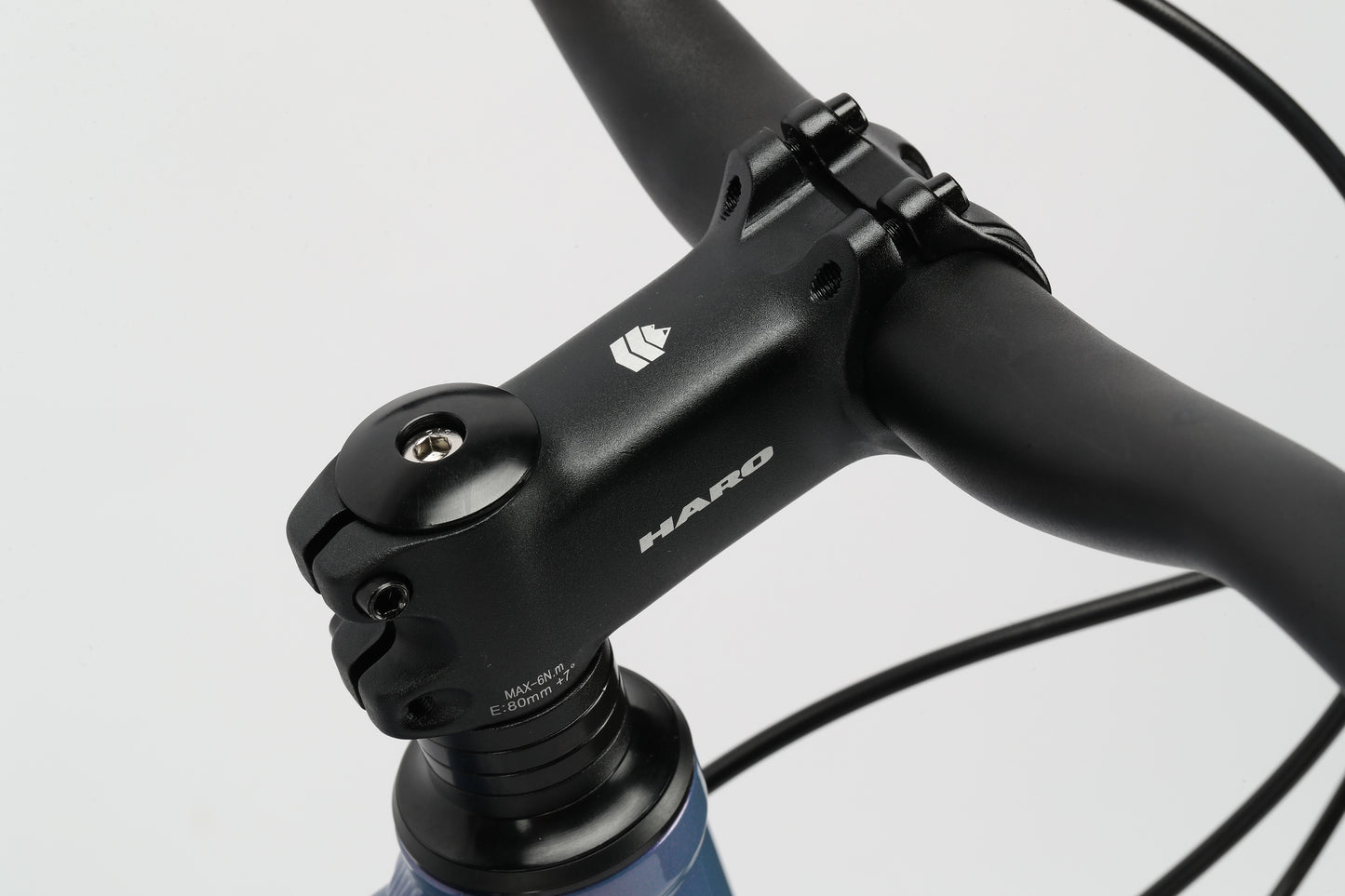

StemPivit Lightweight | 3D Forged | 31.8mm
HeadsetAlloy sealed bearing | 1-1/8"-1.5" Tapered threadless Internal | Aluminum Top cone
SaddleHaro Flightline
Seat PostPivit Aluminum | 2 Bolts | micro adjust 30.9x350/400mm
Seat ClampPivit alloy 34.9mm | quick release
ExtrasChain-Drop Protector

GEOMETRY

Geometry & Sizing
SIZES / 15M / 17L / 19XL / 21
Seat Tube (C-T)381mm (15")432mm (17")483mm (19")533mm (21")
Top Tube (Effective)570mm (22.4")600mm (23.6")610mm (24")625mm (24.6")
Head Tube Angle71.5°72°72.5°72.5°
Seat Tube Angle73°73°73°73°
Chainstay Length428mm (16.9")428mm (16.9")428mm (16.9")428mm (16.9")
BB Drop65mm (2.6")65mm (2.6")65mm (2.6")65mm (2.6")
Wheelbase1034mm (40.7")1060mm (41.7")1065mm (41.9")1080mm (42.5")
Head Tube Length120mm (4.7")145mm (5.7")170mm (6.7")195mm (7.7")
Standover703mm (27.7")736mm (29")775mm (30.5")813mm (32")
Stack Height566mm (22.3")592mm (23.3")618mm (24.3")642mm (25.3")
Reach396mm (15.6")418mm (16.5")421mm (16.6")428mm (16.9")
Axle to Crown424mm (16.7")424mm (16.7")424mm (16.7")424mm (16.7")
Fork Offset45mm (1.8")45mm (1.8")45mm (1.8")45mm (1.8")
Stem Length70 or 80mm70 or 80mm80mm80mm
Bar Width680mm680mm700mm700mm
Crank Length170mm175mm175mm175mm
Wheel Size

SIZING GUIDE

MANUALS, GUIDES & DOWNLOADS

Downloadable PDFs can be found in Manuals & Guides
