Bridgeport MicroShift

Bridgeport MicroShift

$689.99
$689.99 $689.99
Sale Sold out

SKU: 13725

Color
Size

View full details

FEATURES

    PRODUCT INFORMATION

    SPECIFICATIONS

    FRAMESET
    Frame6061-T6 aluminum | Rider-tuned geometry | 68mm BSA BB shell | Flat mount

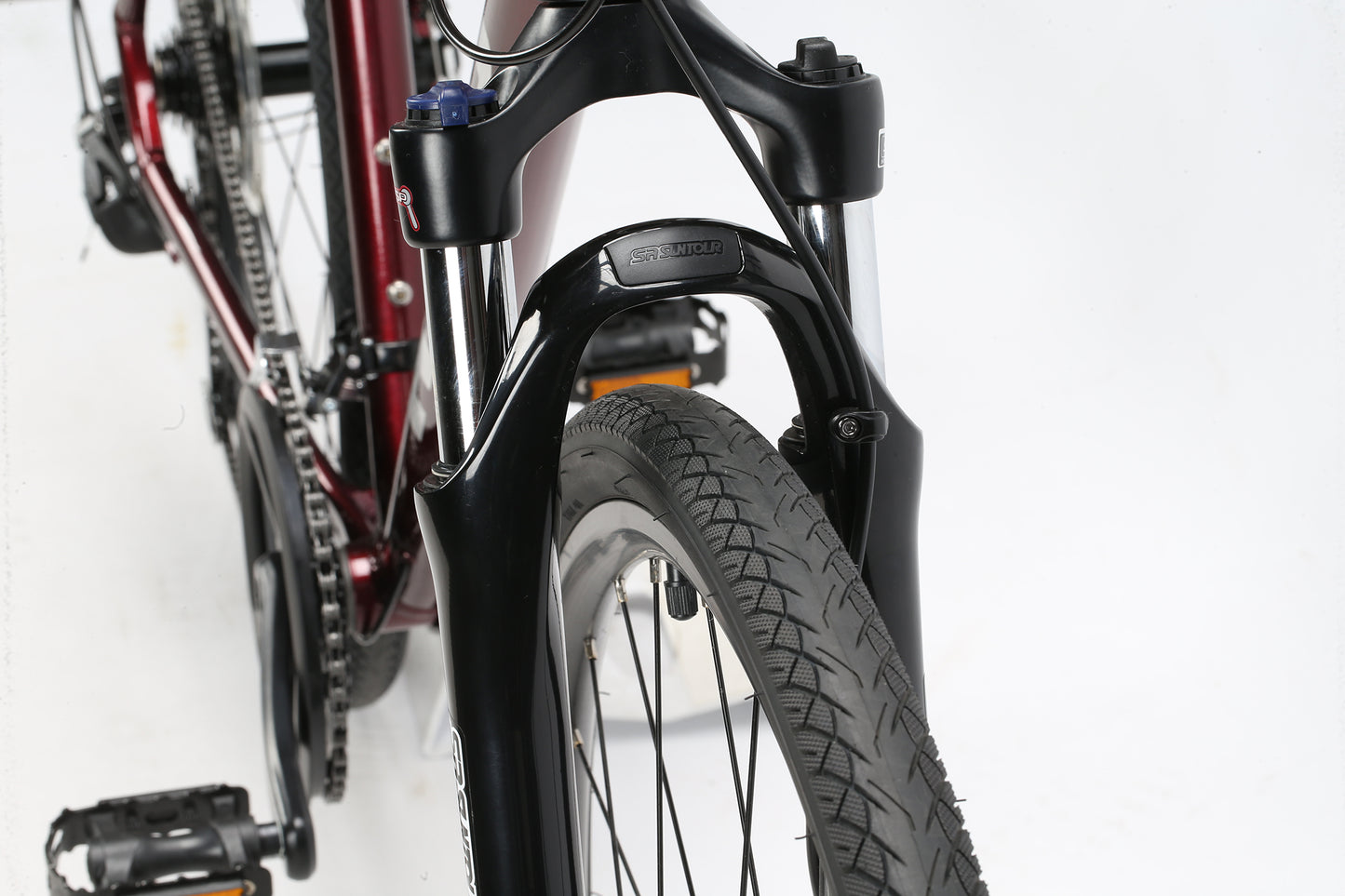

    ForkSuntour SF20 NEX HLO-DS | 63mm travel |Hydraulic Lockout | Post-mount
    Frame ShockN/A
    ColorsMatte Black, Cherry Cola
    DRIVETRAIN
    CranksProwheel TB-CY01 | 46/30T | 8-speed | 170 / 175mm
    PedalsVP | 990S | Nylon body with steel cages | Chromoly axles
    ChainKMC Z8.1 | 8-speed
    Bottom BracketFeimin FP-902W | Threaded BSA 68mm BB shell | 123mm spindle | Sealed cartridge
    Front DerailleurMicroshift FD-T202 | Top swing | 34.9mm band diameter
    Rear DerailleurMicroshift RD-M36L
    Derailleur ShifterMicroshift TS39-2 & FD-T202 | 2 x 8-speed
    Freewheel/CassetteMid-range | CS-M5008 8-Speed 11-34T | ED Black
    WHEELS
    TiresKenda Kwick Bitumen | 700 x 38c
    Wheels/RimsHaro 700c | 19mm inner width | 28h | Alloy double wall | Disc-brake specifc
    HubsKT-68 alloy 28H | Cassette rear hub | Front & rear quick release
    BRAKING SYSTEM
    BrakesTektro MD-M280 | Mechanical disc | IS 6-bolt rotors | F: 180mm, R: 160mm
    Brake LeversAlloy 3-finger
    OTHER COMPONENTS
    Grips/TapeHaro | Dual-density durometer | Active tuned
    HandlebarHaro Alloy | 25mm rise | 31.8mm x 640 / 660mm | 9° backsweep
    StemHaro Alloy | 7° rise | 70mm / 90mm / 100mm
    HeadsetHaro 1-1/8" threadless Internal | For 50mm OD headtube
    SaddleHaro | Dual-sport tuned padding | Weather-resistant cover
    Seat PostHaro Alloy | Micro-Adjust | 27.2mm x 350mm | single Bolt
    Seat ClampHaro Aluminum 31.8mm Quick release
    ExtrasRack and fender mounts

    GEOMETRY

    SIZESMLXLXL+
    Seat Tube (C-T)394mm (15.5")445mm (17.5")483mm (19")533mm (21")584mm (23")
    Top Tube (Effective)575mm (15.5")585mm (17.5")600mm (19")615mm (21")625mm (23")
    Head Tube Angle70.5°70.5°70.5°70.5°70.5°
    Seat Tube Angle73°73°73°73°73°
    Chainstay Length445mm (17.5")445mm (17.5")445mm (17.5")445mm (17.5")445mm (17.5")
    BB Drop60mm (2.4")60mm (2.4")60mm (2.4")60mm (2.4")60mm (2.4")
    Wheelbase1067mm (42")1078mm (42.4")1093mm (43")1109mm (43.7")1119mm (44.1")
    Head Tube Length110mm (4.3")120mm (4.7")130mm (5.1")140mm (5.5")155mm (6.1")
    Standover743mm (29.3")768mm (30.2")787mm (31")815mm (32.1")847mm (33.3")
    Stack Height594mm (23.4")603mm (23.7")613mm (24.1")622mm (24.5")636mm (25")
    Reach393mm (15.5")400mm (15.7")412mm (16.2")424mm (16.7")430mm (16.9")
    Axle to Crown468mm (18.4")468mm (18.4")468mm (18.4")468mm (18.4")468mm (18.4")
    Fork Offset42mm (1.7")42mm (1.7")42mm (1.7")42mm (1.7")42mm (1.7")
    Stem Length70mm90mm90mm100mm100mm
    Bar Width640mm640mm660mm660mm660mm
    Crank Length170mm170mm175mm175mm175mm
    Wheel Size

    SIZING GUIDE

    SizeInchesCM
    S5'1" - 5'6"155 - 167.5
    M5'5" - 5'10"165 - 177.5
    L5'9" - 6'2"175 - 187.5
    XL6'1" - 6'4"185 - 192.5
    XL+6'3" - 6'6"190 - 200
