Specifications| FRAMESET | |
|---|

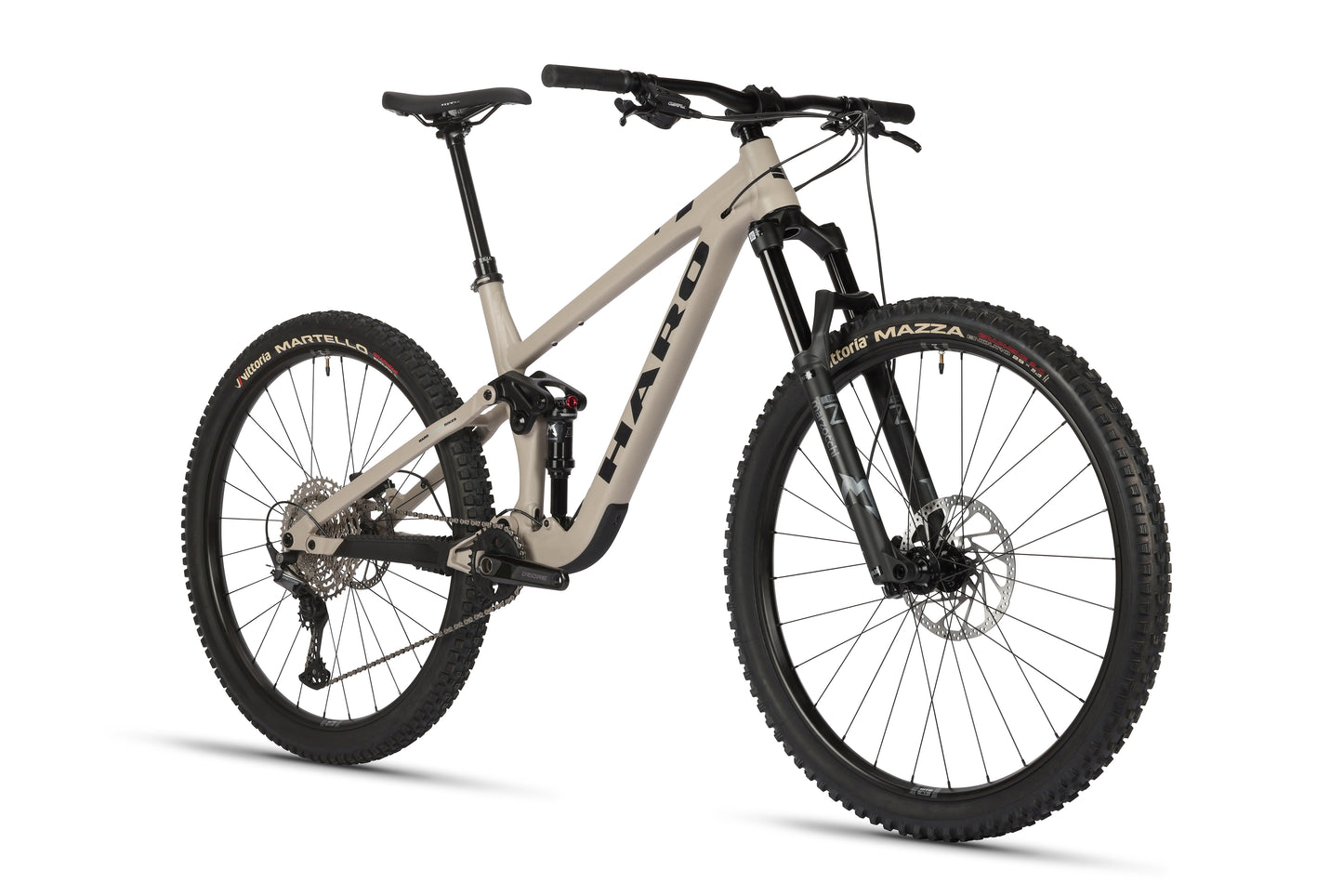

| Frame | Haro Daley alloy full-suspension frame, 1-1/8" - 1-1/5" tapered head tube, 148mm Boost OLD, UDH derailleur hanger |
|---|

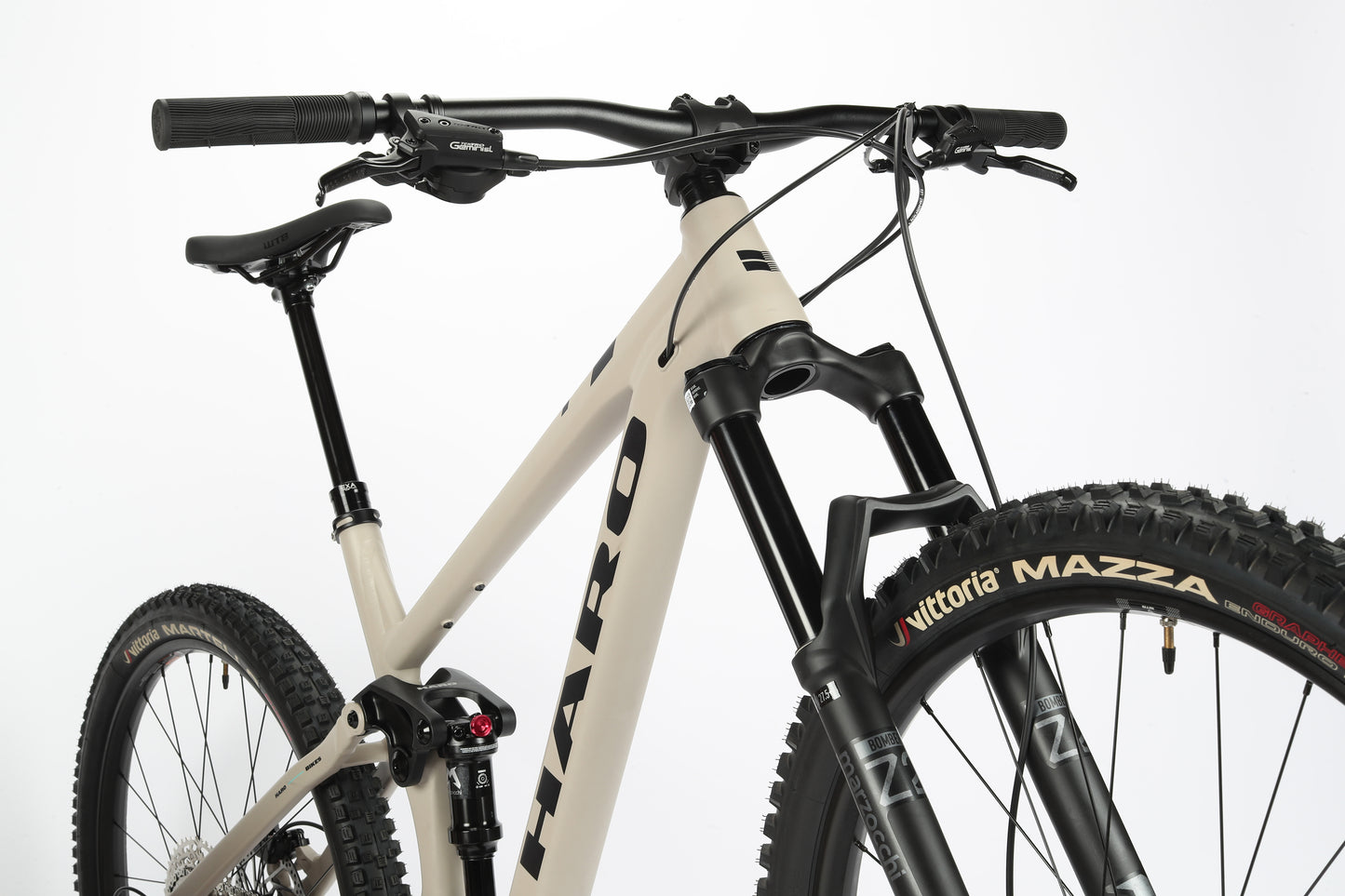

| Fork | Marzocchi Bomber Z2, Rail - Sweep Adjust, Kabolt 110 x 15mm thru-axle, 44mm offset, 150mm travel |
|---|

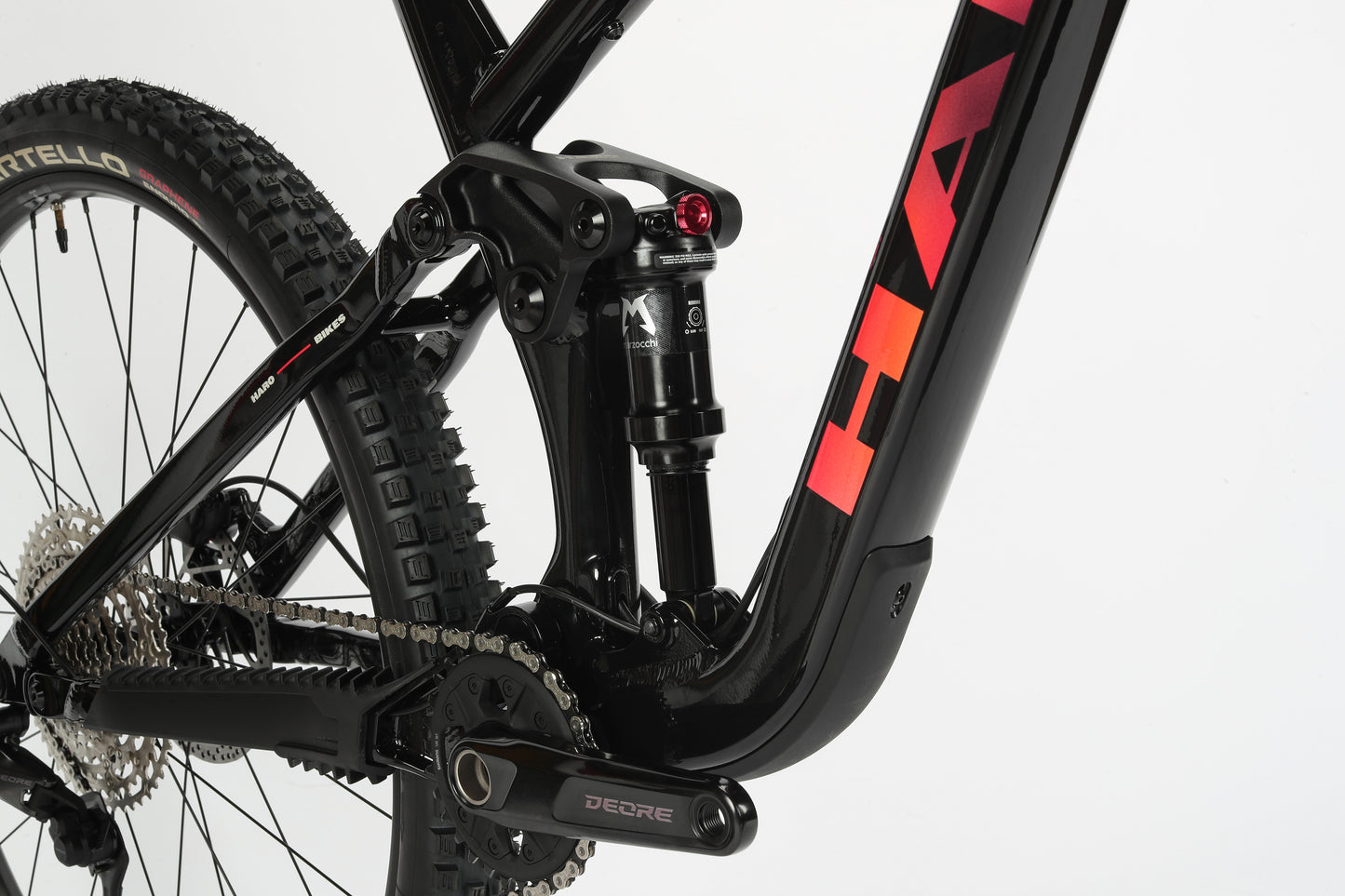

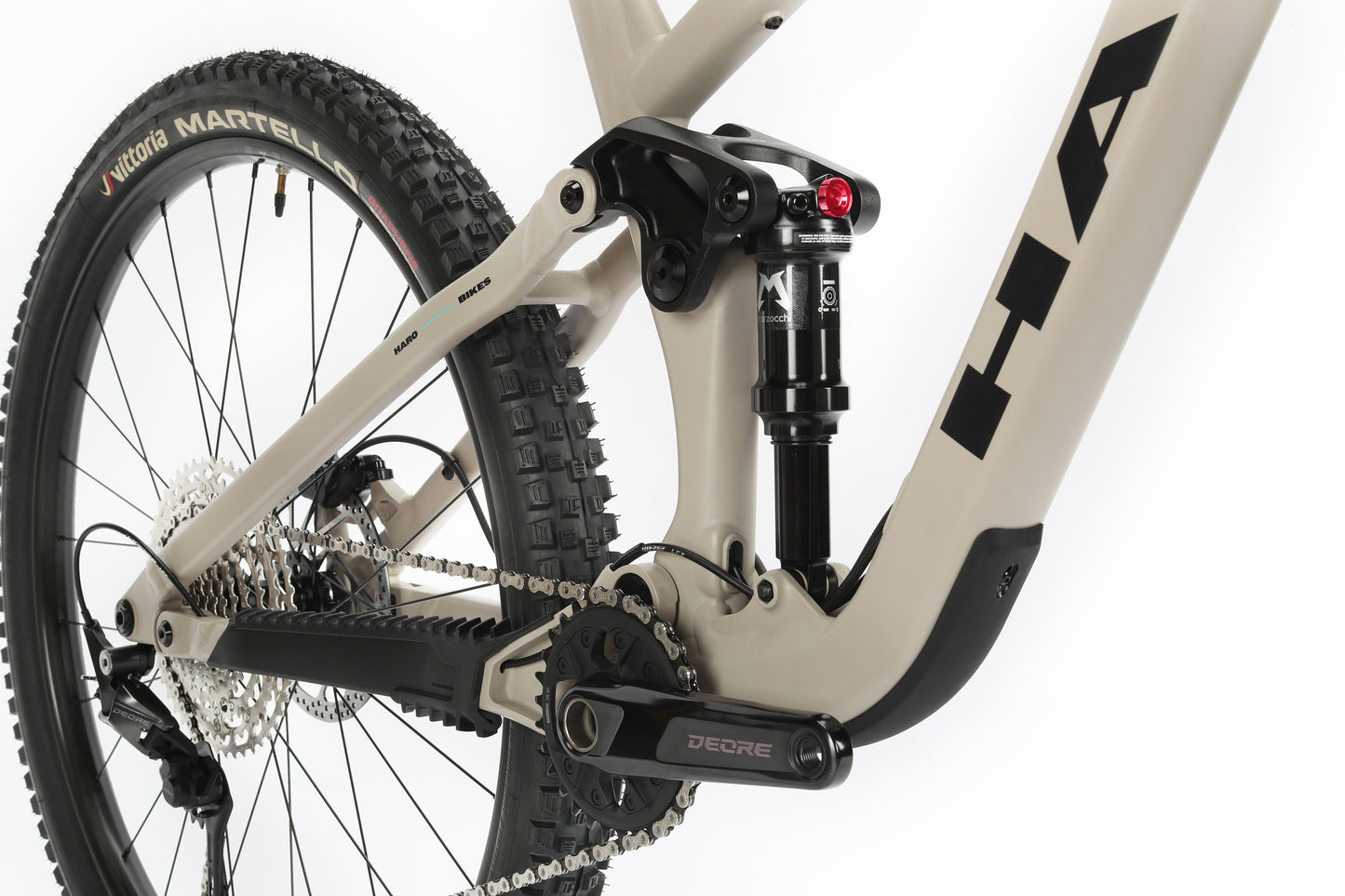

| Frame Shock | Marzocchi Inline R, 140mm travel |
|---|
| Colors | Trans Black / Amber, Matte Stone Grey |
|---|
| Weight | 38.2 lbs 17.29 kg, (L) |
|---|
| DRIVETRAIN | |
|---|
| Cranks | Shimano Deore FC-M6120-1, 165mm 30T, CL:55 |
|---|
| Pedals | N/A |
|---|
| Chain | KMC X12 |
|---|
| Bottom Bracket | Shimano BB-MT501 BSA 68/73mm |
|---|
| Front Derailleur | N/A |
|---|
| Rear Derailleur | Shimano Deore 12-speed, RD-M6100 Shadow Plus |
|---|
| Derailleur Shifter | Shimano Deore Rapid Fire, SL-M6100-R |
|---|
| Freewheel/Cassette | Shimano 12-speed CS-M6100-12, Hyper Glide Plus, 10-51T |
|---|
| WHEELS | |
|---|
| Tires | Front: Vittoria Mazza 2.4", enduro G2.0 120TPI / Rear: Vittoria Martello 2.4" enduro G2.0 120TPI |
|---|
| Wheels/Rims | WTB ST 30, TCS 2.0 pinned double-wall alloy, 28H |
|---|
| Hubs | Alloy CNC 4 sealed bearings, 110x15 front axle, 148x12 rear axle |
|---|
| BRAKING SYSTEM | |
|---|
| Brakes | Tektro Gemini SL 4-piston hydraulic disc, with 2.3mm rotors, 203mm front rotor, 180mm rear rotor |
|---|
| Brake Levers | Tektro Gemini |
|---|
| OTHER COMPONENTS | |
|---|
| Grips/Tape | WTB Wavelength 130mm lock-on |
|---|

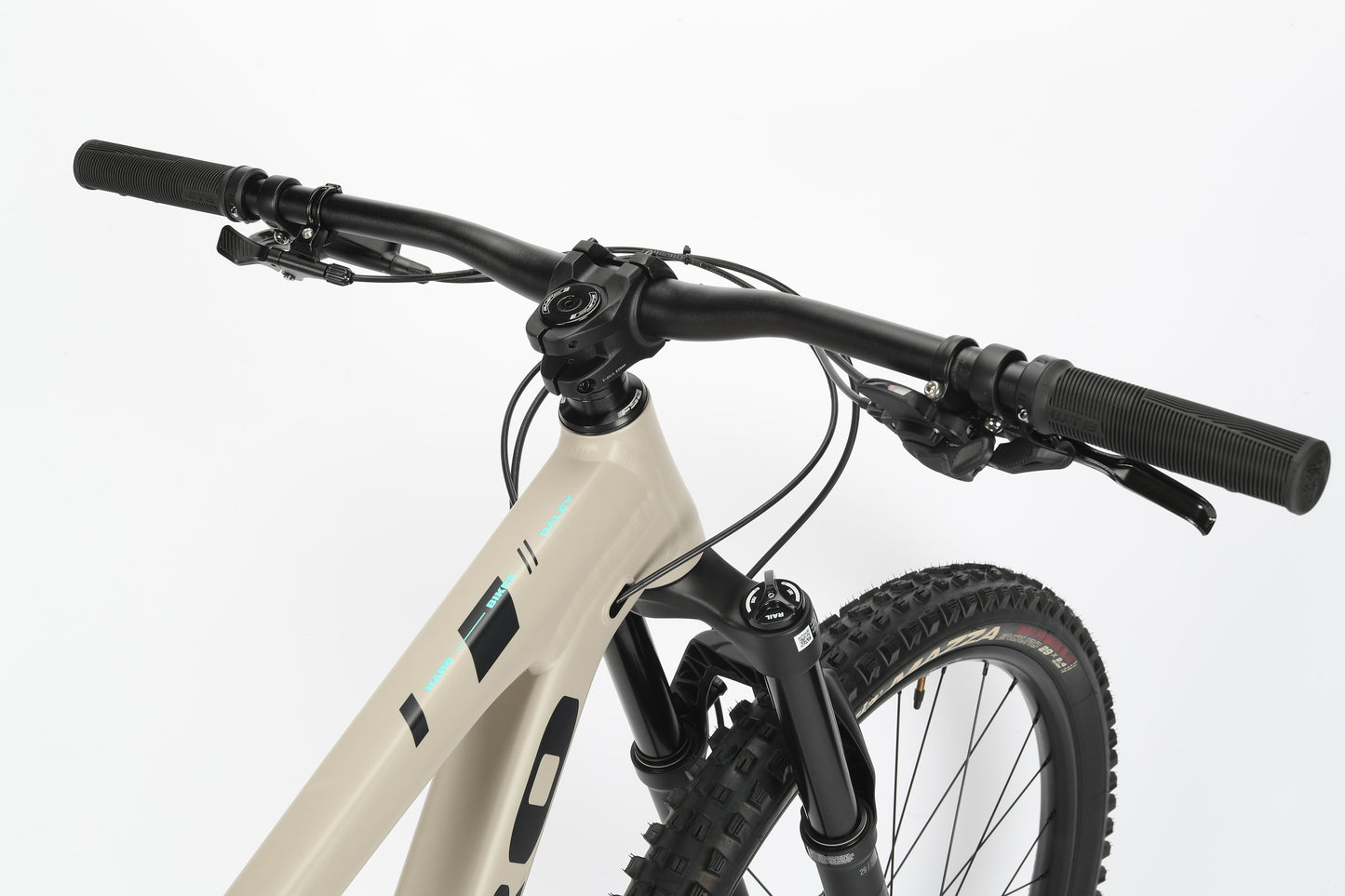

| Handlebar | Alloy 6061-T6 Riser bar, 800mm wide, 20mm rise, 6° back sweep, 4° upsweep |
|---|
| Stem | Satori Ursa, 31.8 ID, 35mm reach, 0° rise |
|---|
| Headset | FSA Orbit 1.5E ZS/ NO.57E tapered headset, 44/56mm head tube |
|---|
| Saddle | WTB Volt Medium, w/steel rails |
|---|
| Seat Post | Kind Shock I900 34.9 OD. Sizes: Small 150mm, Medium 170mm, Large 200mm, X-Large 200mm |
|---|
| Seat Clamp | 3D Forged 6061 aluminum 38.9mm ID |
|---|
| Extras | Includes tubeless valves and sealant |
|---|
