Daley Alloy 3

Daley Alloy 3

Regular price $1,999.99
Regular price $1,999.99 Sale price $1,999.99
Sale Sold out

SKU: SKU:15246

Named after one of our go-to trail networks, the Daley is our all-new, all-mountain 29er, ready for the climb & grind. Starting with our exclusive aluminum frame design, the Daley is built on a trusted suspension platform with 150/140mm travel, custom tuned for each spec level. This is our go-to all mountain machine: Playful on the trails, with maximum traction through the turns and on the climbs. Ready to launch the jumps, turn and burn. No gimmicks, nothing wacky, just everything you need for days in the dirt.
Color: Stone Grey
Size

View full details

FEATURES

  • Haro Daley alloy full-suspension frame, 1-1/8" - 1-1/5" tapered head tube, 148mm Boost OLD, UDH derailleur hanger

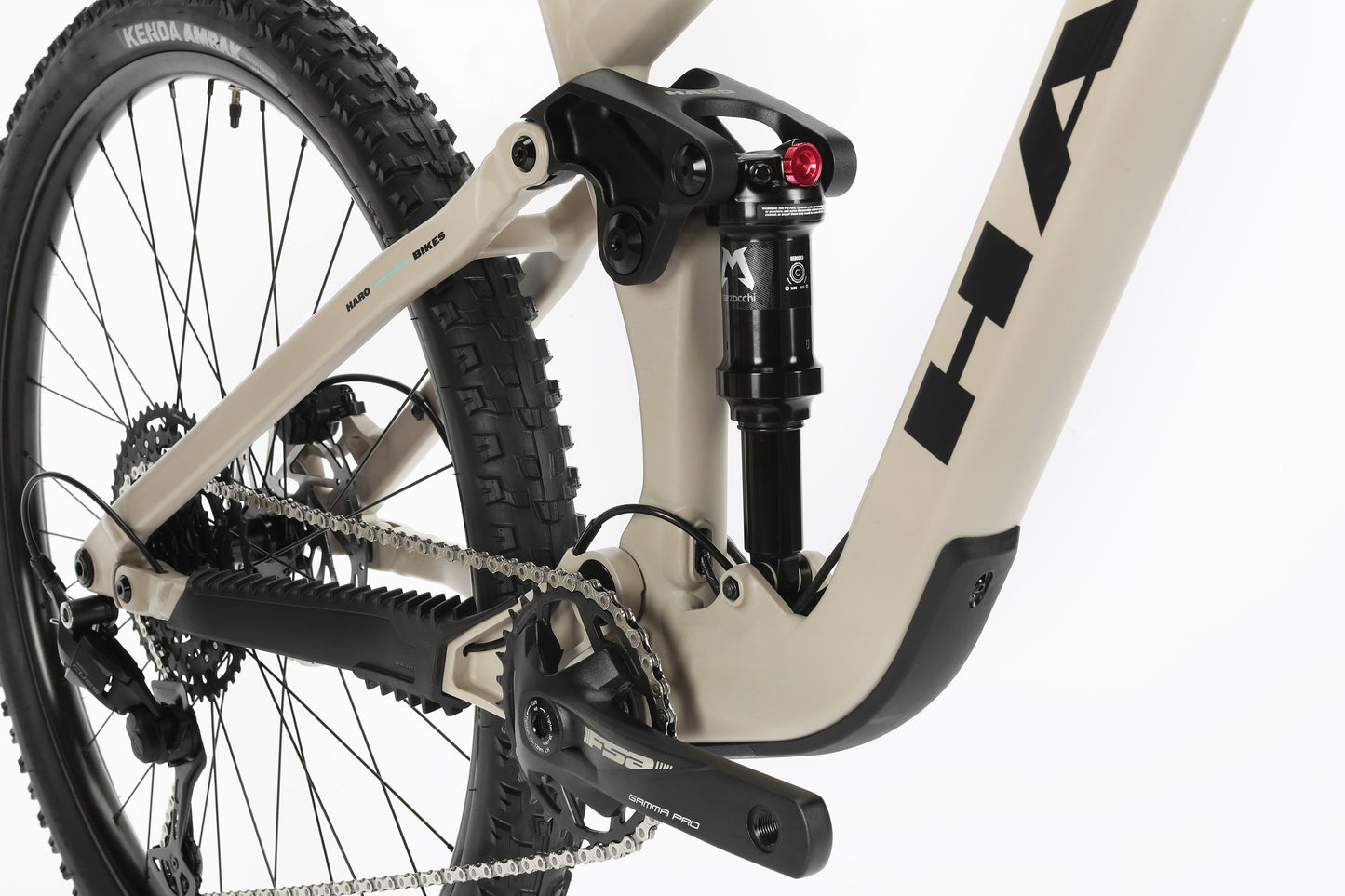

  • Marzocchi Inline R, 140mm travel shock
  • Marzocchi Bomber Z2 fork. 150mm travel with rail/sweep adjust, Kabolt 110 x 15mm thru axle, 44mm offset
  • FSA Gamma Pro cranks, 165mm, 32T chainwheel
  • Shimano Cues 10-speed rear derailleur
  • Tektro Gemini SL 4-piston hydraulic disc brakes, with 180mm rotors
  • Kind Shock I900 dropper post, size-specific

PRODUCT INFORMATION

SPECIFICATIONS

Specifications
FRAMESET
FrameHaro Daley alloy full-suspension frame, 1-1/8" - 1-1/5" tapered head tube, 148mm Boost OLD, UDH derailleur hanger
ForkMarzocchi Bomber Z2, Rail - Sweep Adjust, Kabolt 110 x 12mm thru-axle, 44mm offset, 150mm travel
Frame ShockMarzocchi Inline R, 140mm travel
ColorsTrans Black / Amber, Matte Stone Grey
Weight37.7 lbs 16.98 kg, (L)
DRIVETRAIN
CranksFSA Gamma Pro 165mm, 32T chainring
PedalsN/A
ChainKMC E Glide
Bottom BracketFSA Mega EXO 73mm
Front DerailleurN/A
Rear DerailleurShimano Cues Shadow Plus 10-speed
Derailleur ShifterShimano Cues Rapid Fire 10-speed
Freewheel/CassetteShimano Cues 11-48T
WHEELS
TiresCST L-CAT DK27 2.35" front & rear
Wheels/RimsDouble-wall alloy 32h, I25
HubsAlloy hub shells, 2 sealed bearings, 110x15 Front, 148x12 Rear
BRAKING SYSTEM
BrakesTektro Gemini 2-piston hydraulic disc with 180mm rotors
Brake LeversTektro Gemini
OTHER COMPONENTS
Grips/TapeWTB Trail II,140x30mm
HandlebarAlloy 6061-T6 Riser bar, 800mm wide, 20mm rise, 6° back sweep, 4° upsweep
Stem6061-T6 Forged Alloy 31.8 ID, 45mm reach
HeadsetFSA Orbit 1.5E ZS/ NO.57E tapered headset, 44/56mm head tube
SaddleWTB Volt Medium, w/steel rails
Seat PostKind Shock I900 34.9 OD. Sizes: Small 150mm, Medium 170mm, Large 200mm, X-Large 200mm
Seat Clamp3D Forged 6061 aluminum 38.9mm ID
ExtrasIncludes tubeless valves and sealant

GEOMETRY

Geometry & Sizing
SIZESMLXL
Seat Tube (C-T)361mm410mm448mm473mm
Top Tube (Effective)553mm590mm617mm644mm
Head Tube Angle64.5°64.5°64.5°64.5°
Seat Tube Angle78°78°78°78°
Chainstay Length428mm445mm445mm445mm
BB Drop23mm33mm33mm33mm
Wheelbase1172mm1237mm1266mm1296mm
Head Tube Length90mm100mm110mm120mm
Standover691mm685mm705mm705mm
Stack Height579mm610mm619mm628mm
Reach430mm460mm485mm510mm
Axle to Crown544mm561mm561mm561mm
Fork Offset44mm44mm44mm44mm
Stem Length
Bar Width
Crank Length
Wheel Size27.5292929

SIZING GUIDE

Size Table
SizeInchesCM
S5" - 5' 6"153 - 166
M5' 4" - 5' 11"162 - 180
L5' 9"- 6' 2"175 - 187
XL6' - 6' 5"180 - 196
