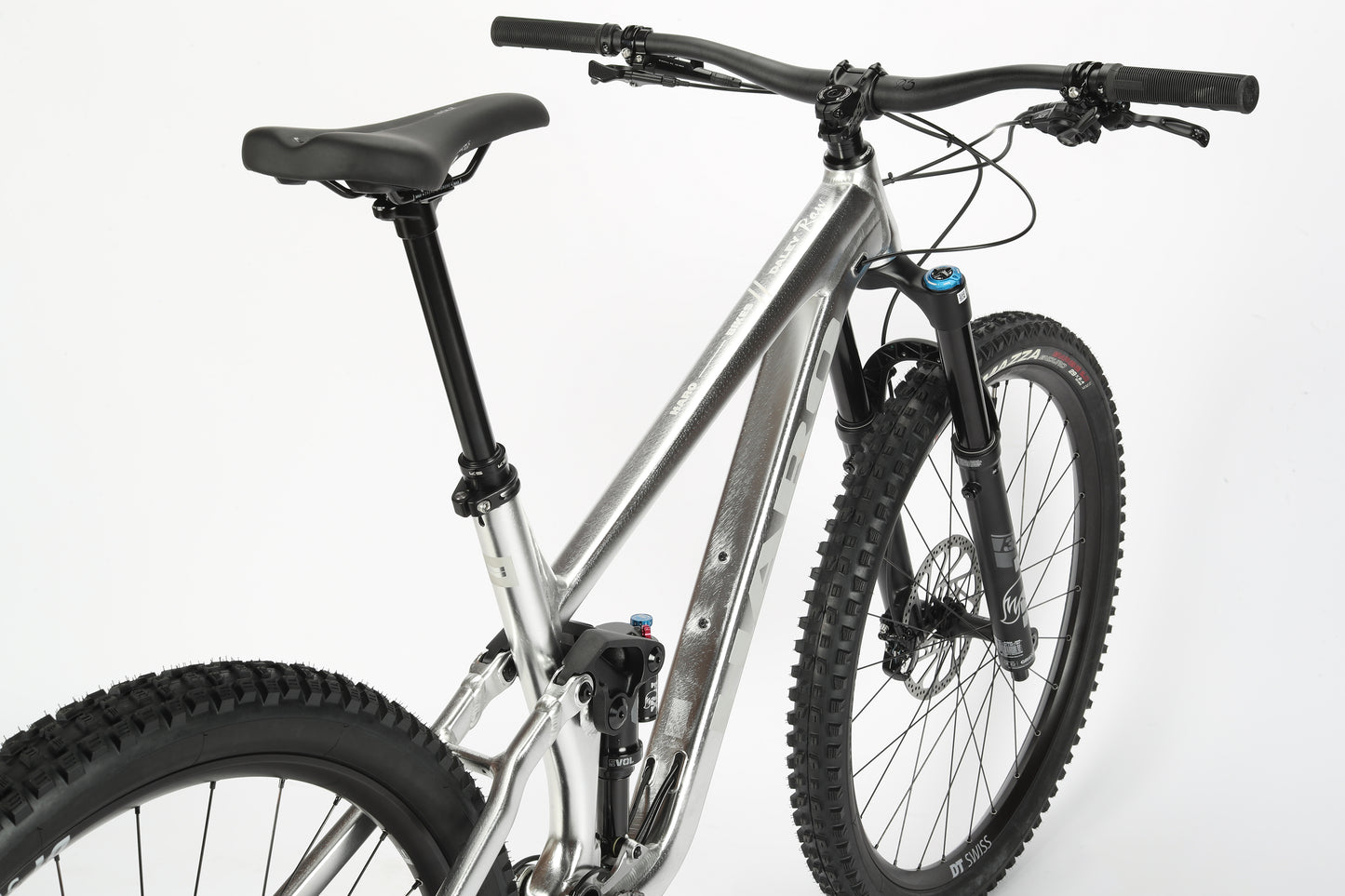

  • Close-up of the limited edition Haro MTB Daley Alloy LTD 2 mountain bikes front section, showcasing the handlebars and Fox suspension fork. The silver frame gleams with black handles and tires against a plain white background.
  • Close-up of the Haro MTB Daley Alloy LTD 2s front section highlights handlebars, brake levers, and a Fox suspension fork. The bike flaunts a silver frame with a minimalist design against a plain white background.
  • Close-up of a mountain bikes rear suspension and components features a Haro MTB Daley Alloy LTD 2 frame with Fox suspension, a black shock absorber, and a chainring. The partially visible tire showcases its tread pattern against a white background.
  • Close-up of the limited edition Daley Alloy LTD 2s rear suspension and drivetrain, showcasing its silver metallic Haro MTB frame, central Fox coil shock absorber, black crank arm, and chain on a gear sprocket.
  • A sleek, silver Daley Alloy LTD 2 mountain bike from Haro MTB is pictured against a white background, showcasing thick knobby tires, a Fox front suspension fork, flat handlebars, a limited edition frame design, and a comfortable saddle.
1 8

Daley Alloy LTD 2

Daley Alloy LTD 2

$4,199.99
$4,199.99 $4,199.99
Sale Coming Soon

15428

Raw and rowdy! Introducing the Haro Daley Alloy Raw LTD 1 and LTD 2. The limited edition raw finish for our Daley Alloy MTB comes by request. We answered with an anodized raw finish over a burnished alloy surface with etched logo detail for a clean, crisp look that hits hard. Available in two premium builds with Fox suspension. Ready to rock and roll.
Color
Size

View full details

Close-up of the limited edition Daley Alloy LTD 2s rear suspension and drivetrain, showcasing its silver metallic Haro MTB frame, central Fox coil shock absorber, black crank arm, and chain on a gear sprocket.

FEATURES

  • Haro Daley alloy full-suspension frame with raw anodized finish, 1-1/8" - 1-1/5" Tapered Head Tube, 148mm Boost OLD, UDH Derailleur Hanger
  • Fox Float X2 Performance Elite shock, 140mm travel
  • Fox Float 36 Performance Elite fork with Grip X, 150mm travel
  • Shimano XT drivetrain
  • DT Swiss M 1900 Spline wheel set
  • Vittoria Mazza 2.4", enduro G2.0 front & Vittoria Martello 2.4" enduro G2.0 rear tires
  • TRP Trail EVO 4-piston hydraulic disc with 203mm rotors, front & rear
  • Race Face Chester bars & stem
  • Kind Shock Rage-I dropper post, size specific

PRODUCT INFORMATION

SPECIFICATIONS

FRAMESET
FrameHaro Daley alloy full-suspension frame with raw anodized finish, 1-1/8" - 1-1/5" tapered head tube, 148mm Boost OLD, UDH derailleur hanger
ForkFox Float 36 Performance Elite with Grip X, 150mm travel
Frame ShockFox Float X Performance Elite, 140mm travel
ColorsRaw
Weight38.2 lbs 17.29 kg, (L)
DRIVETRAIN
CranksShimano XT, FC-M8120-1, 165mm, 32T chainring, 55:CL
PedalsN/A
ChainShimano CN-M8100 HG 12-speed
Bottom BracketShimano BB-MT501 BSA 68/73mm
Front DerailleurN/A
Rear DerailleurShimano XT 12-speed, Shadow Plus, RD-M8100
Derailleur ShifterShimano XT 12-speed, SL-M8100R
Freewheel/CassetteShimano XT 12-speed CS-M8100, Hyper Glide Plus, 10-51T
WHEELS
TiresFront: Vittoria Mazza 2.4", enduro G2.0 120TPI / Rear: Vittoria Martello 2.4" enduro G2.0 120TPI
Wheels/RimsDT Swiss M 1900 wheel set
BRAKING SYSTEM
BrakesTRP Trail EVO 4-piston hydraulic disc with 203mm rotors, front & rear
Brake LeversTRP Trail EVO
OTHER COMPONENTS
Grips/TapeWTB Wavelength 130mm lock-on
HandlebarRace Face Chester 35mm OD, 35mm rise, 780mm wide
StemRace Face Chester 35mm ID, 40mm reach
HeadsetFSA ORBIT 1.5E ZS/ NO.57E tapered, 44/56mm head tube
SaddleWTB Volt Medium PU leather, flex-tuned, chromoly rails, with ABR corners
Seat PostKind Shock Rage-I, 34.9OD, sizes: Small 150mm, Medium 170mm, Large 190mm, X-Large 190MM
Seat Clamp3D Forged 6061 aluminum 38.9mm ID
ExtrasIncludes tubeless valves and sealant

GEOMETRY

SIZESMLXL
Seat Tube (C-T)361mm410mm448mm473mm
Top Tube (Effective)553mm590mm617mm644mm
Head Tube Angle64.5°64.5°64.5°64.5°
Seat Tube Angle78°78°78°78°
Chainstay Length428mm445mm445mm445mm
BB Drop23mm33mm33mm33mm
Wheelbase1172mm1237mm1266mm1296mm
Head Tube Length90mm100mm110mm120mm
Standover691mm685mm705mm705mm
Stack Height579mm610mm619mm628mm
Reach430mm460mm485mm510mm
Axle to Crown544mm561mm561mm561mm
Fork Offset44mm44mm44mm44mm
Stem Length
Bar Width
Crank Length
Wheel Size27.5292929

SIZING GUIDE

SizeInchesCM
S5" - 5' 6"153 - 166
M5' 4" - 5' 11"162 - 180
L5' 9"- 6' 2"175 - 187
XL6' - 6' 5"180 - 196

MANUALS, GUIDES & DOWNLOADS

Downloadable PDFs can be found in Manuals & Guides
