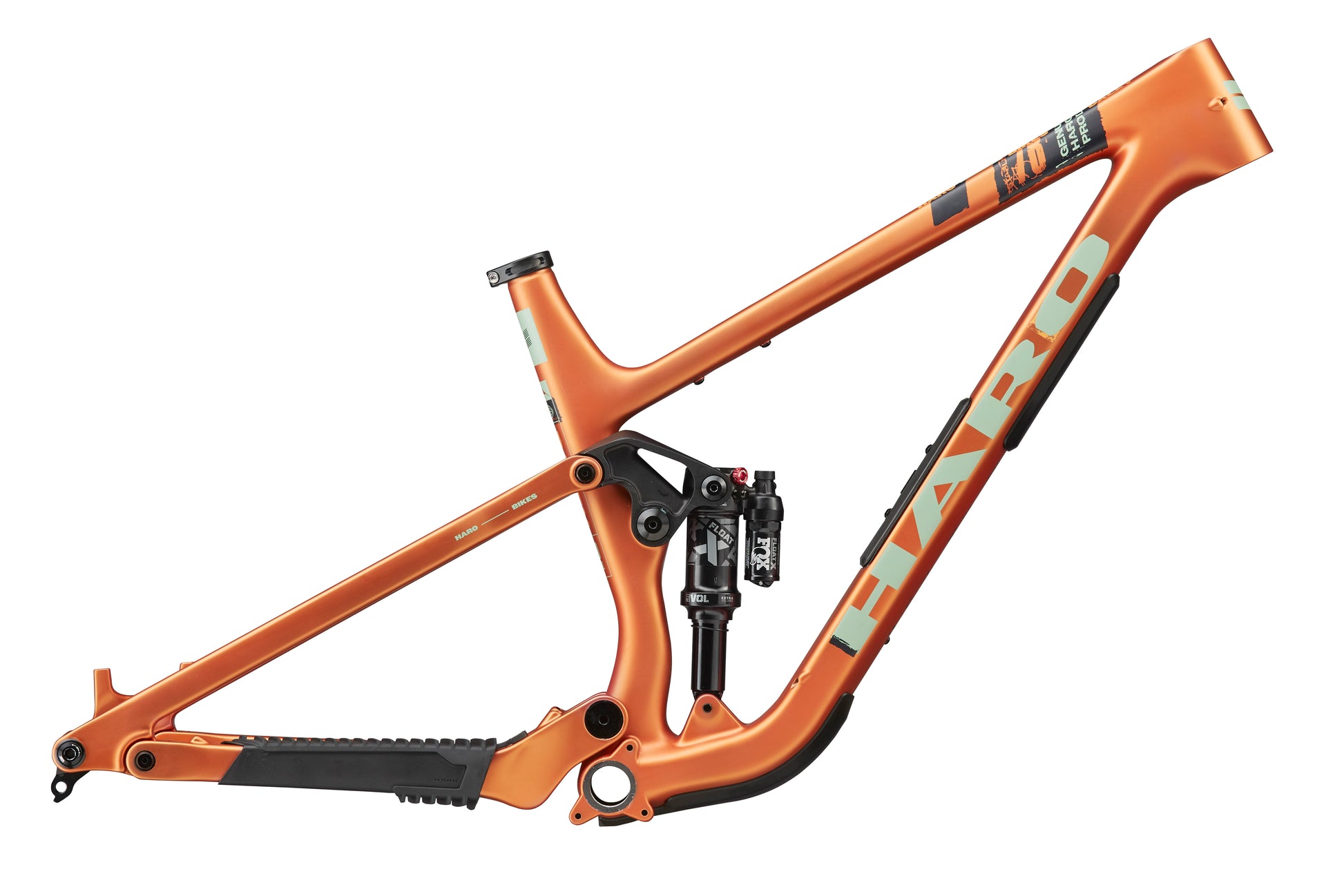

• The Daley Carbon Frameset, an orange all-mountain bike frame with suspension, shown on a white background.

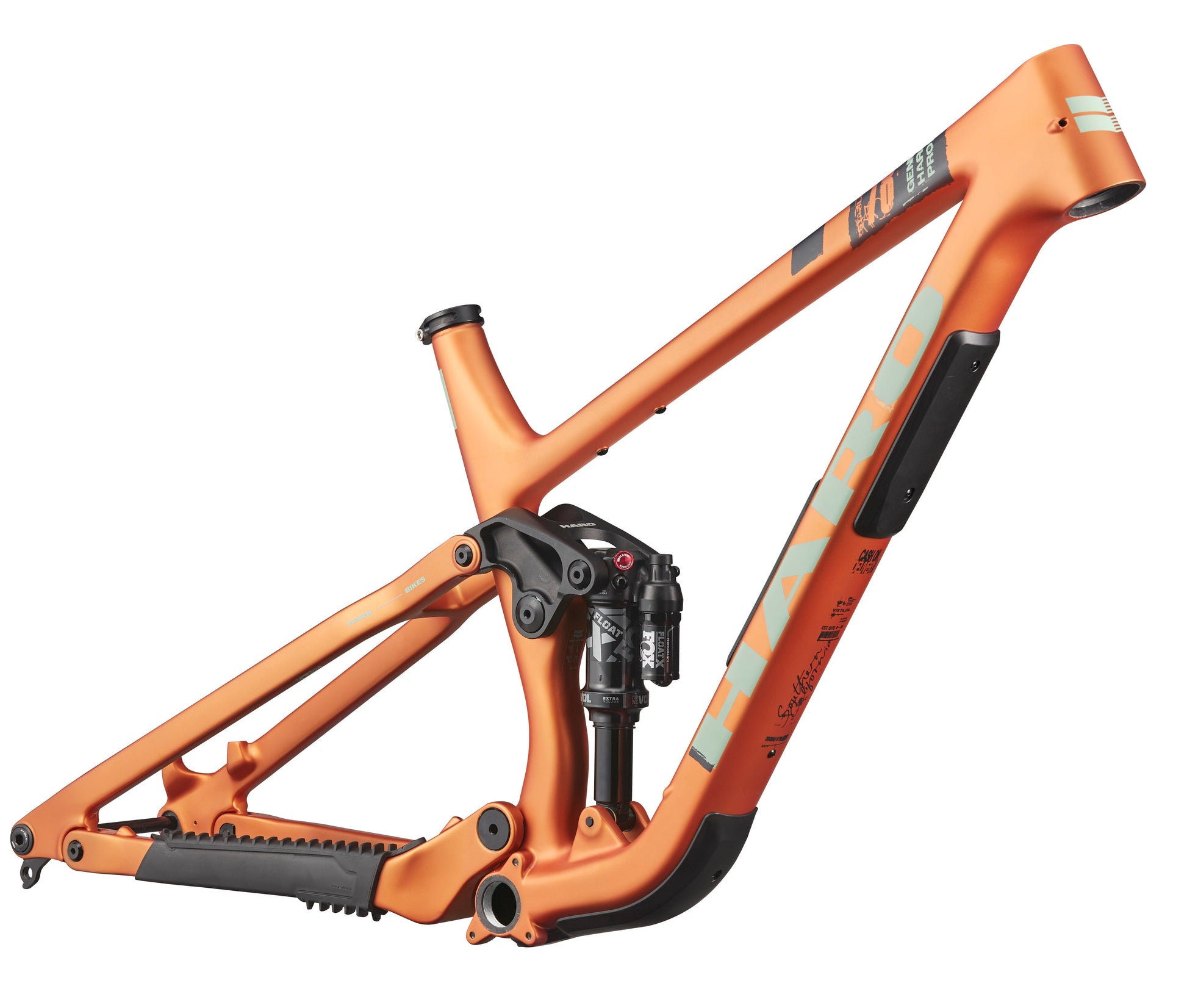

  • Daley Carbon Frameset: orange all-mountain full-suspension frame with visible shock, shown on a white background.
1 2

Daley Carbon Frameset

Daley Carbon Frameset

$2,799.99
$2,799.99
Sale Coming Soon

95040

The Daley Carbon frameset combines the versatility of a modern all-mountain bike with the performance of contemporary carbon technology. With 140 millimeters of rear suspension travel and geometry optimized for 150-millimeter forks, the frame offers a balanced mix of uphill efficiency, agility on the trail, and safety on the descent. The frameset is delivered with the FOX FLOAT X Performance Series rear shock, ensuring a sensitive response and consistent performance across a wide range of trail conditions.

The street art-inspired graphics give the Daley Carbon a distinctive, modern design language and deliberately set it apart from classic, understated trail bikes. Function and design come together seamlessly here.

The high-quality carbon frame impresses with its high stiffness, low weight, and well-thought-out details—the perfect foundation for individual trail and all-mountain builds.

Size

View full details

DESIGN MEETS PERFORMANCE

The Daley Carbon combines modern carbon technology with striking street art graphics—ideal for custom builds with character.

Daley Carbon Frameset: orange all-mountain full-suspension frame with visible shock, shown on a white background.

DISTINCTIVE LOOK

Every graphic accent on the Carbon Daley follows a clear functional idea. The integrated impact protection on the bottom bracket reliably protects the carbon frame in extreme situations – exactly where stones, steps, and hard impacts occur. A robust bumper on the down tube provides additional protection during pick-up rides, in the bike park, or when transporting the bike on a lift. Functional protective solutions are thus deliberately integrated into the street art-inspired design—visible, honest, and uncompromising.

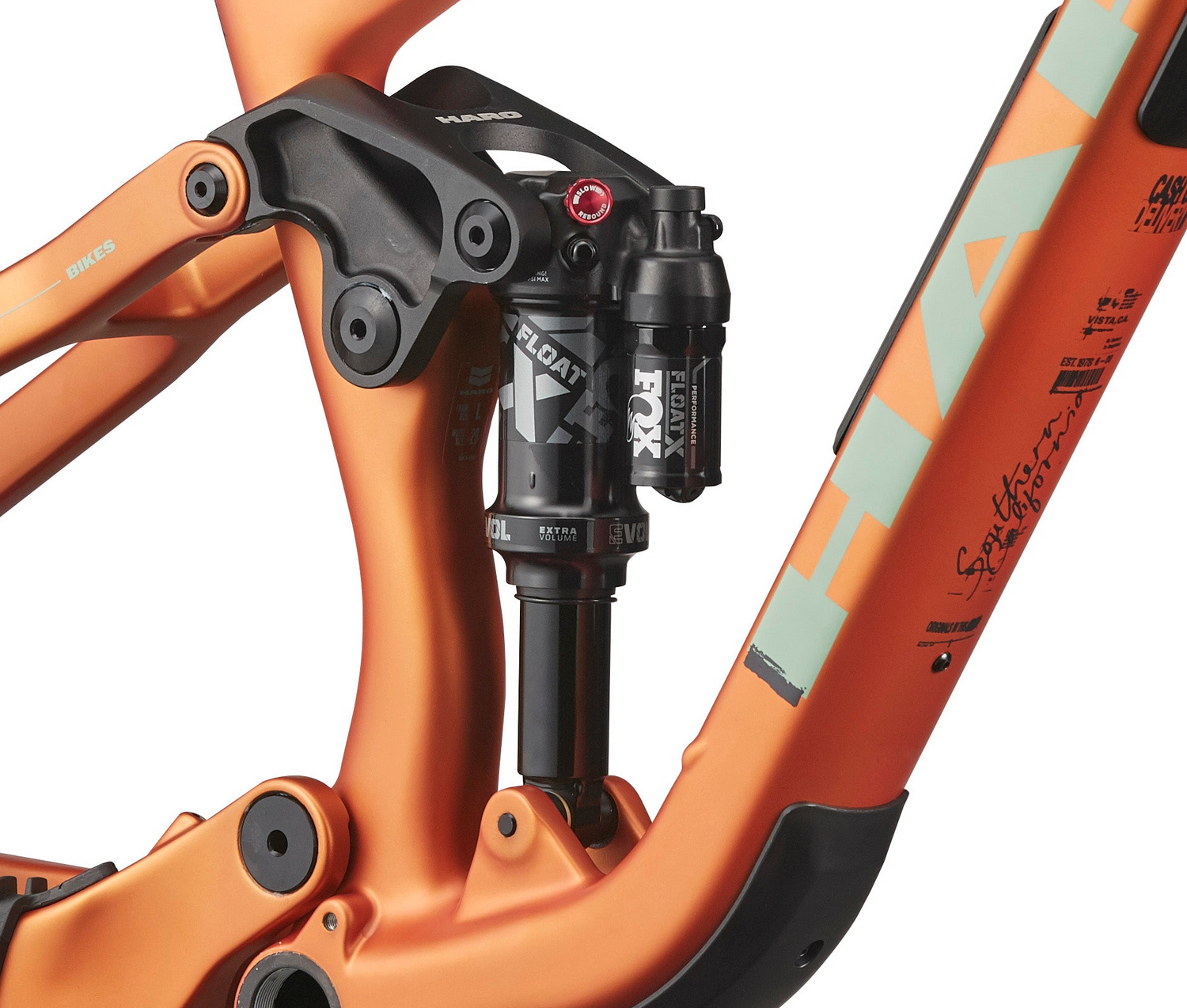

SENSITIVE RESPONSE, CONTROLLED SPRING TRAVEL

The 140 mm rear suspension of the Daley Carbon impresses with its sensitive response and clearly defined progression. It offers plenty of traction on technical climbs and remains controlled even on fast, hard hits. Efficient in propulsion, stable on descents – the rear suspension delivers exactly the balance that defines a modern all-mountain bike.

PRACTICAL STORAGE SPACE INTEGRATED

The integrated storage compartment in the down tube makes the Daley Carbon even more versatile. Spare inner tube, CO₂ cartridge, multi-tool, or energy bars are safely stowed away and always within reach – no backpack or additional bags required. The cover is integrated into the frame design, fits snugly, and blends seamlessly into the lines of the carbon frame. Maximum function, minimum effort – exactly where you need it.

PRODUCT INFORMATION

SPECIFICATIONS

FRAMESET
Frame Daley Carbon Full Suspension frame with downtube protector, 1-1/8" - 1-1/5" Tapered Head Tube, 148mm Boost OLD, UDH Derailleur Hanger
Rear/front suspension travel 140 mm / 150 mm
Rear Shock FOX FLOAT X Performance Series, Trunnion Mount, 185x52.5mm, 2-position adjust
Bottom Bracket 68/73 BSA
brake mount 203 mm Postmount
seat tube diameter 34,9 mm / 38,9 mm clamp
Maximum tire width & Size 2.6” (66 mm) / 29"
Recommended fork size 150 mm Travel / Rake 44 mm
Suspension mount dimensions Trunnion Mount, 185×52.5 mm

GEOMETRY

SIZESMLXL
Seat Tube (C-T)361mm410mm448mm473mm
Top Tube (Effective)561mm593mm620mm646mm
Head Tube Angle63.8°63.8°63.8°63.8°
Seat Tube Angle78°78°78°78°
Chainstay Length435mm435mm435mm435mm
BB Drop30mm30mm30mm30mm
Wheelbase1210mm1244mm1273mm1303mm
Head Tube Length90mm100mm110mm120mm
Standover697mm701mm714mm714mm
Stack Height615mm624mm633mm642mm
Reach430mm460mm485mm510mm
Axle to Crown584mm584mm584mm584mm
Fork Offset44mm44mm44mm44mm
Stem Length
Bar Width
Crank Length
Wheel Size29F / 27.5R29F / 27.5R29F / 27.5R29F / 27.5R

SIZING GUIDE

SizeInchesCM
S 5" - 5' 6" 155 - 170 cm
M 5'4" - 5' 11" 168 - 180 cm
L 5' 9"- 6' 2" 178 - 190 cm
XL 6' - 6' 5" 188 - 200 cm
