Dana

Dana

Regular price $629.00
Regular price $0.00 Sale price $629.00
Sale Coming Soon

SKU: 25260

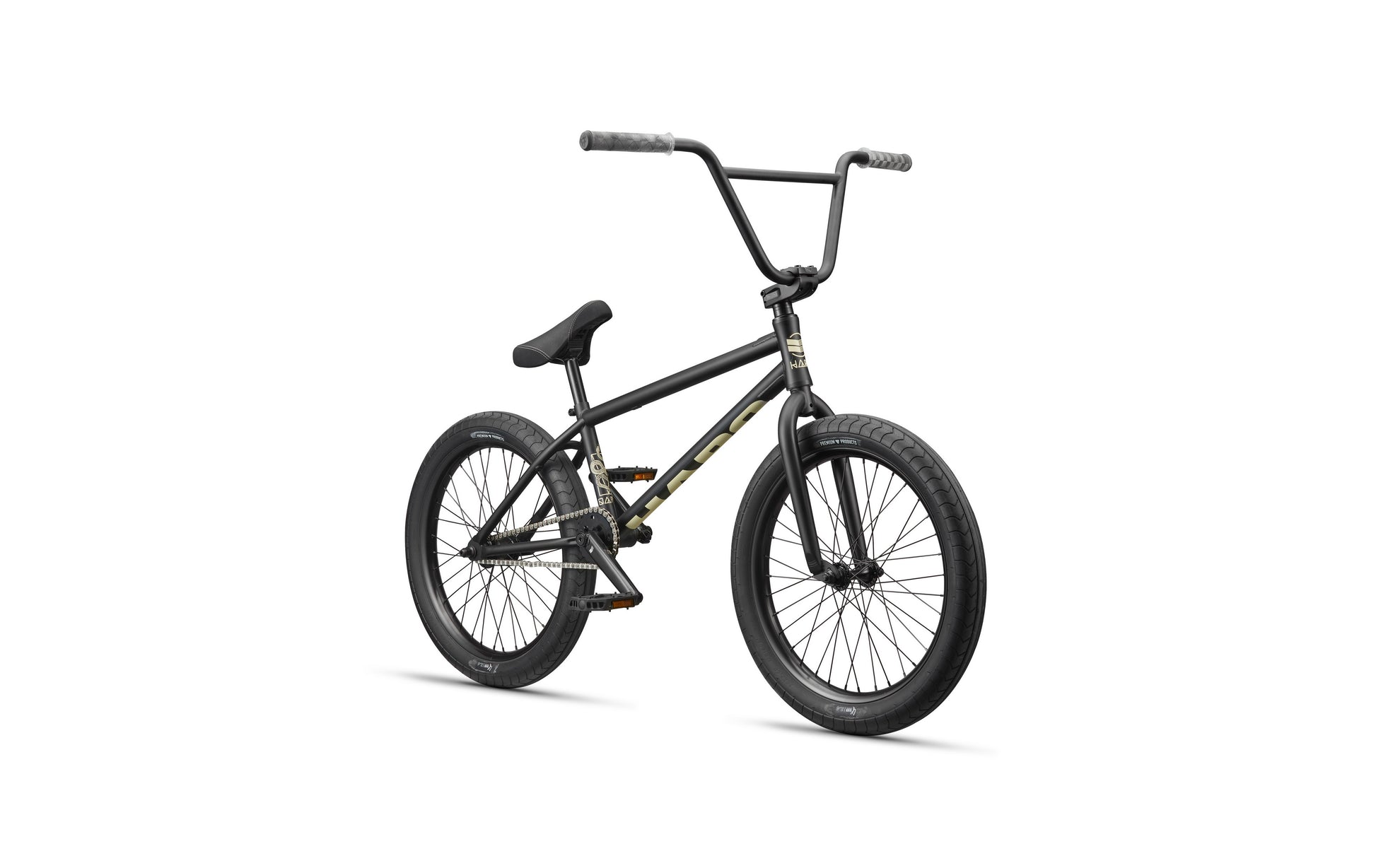

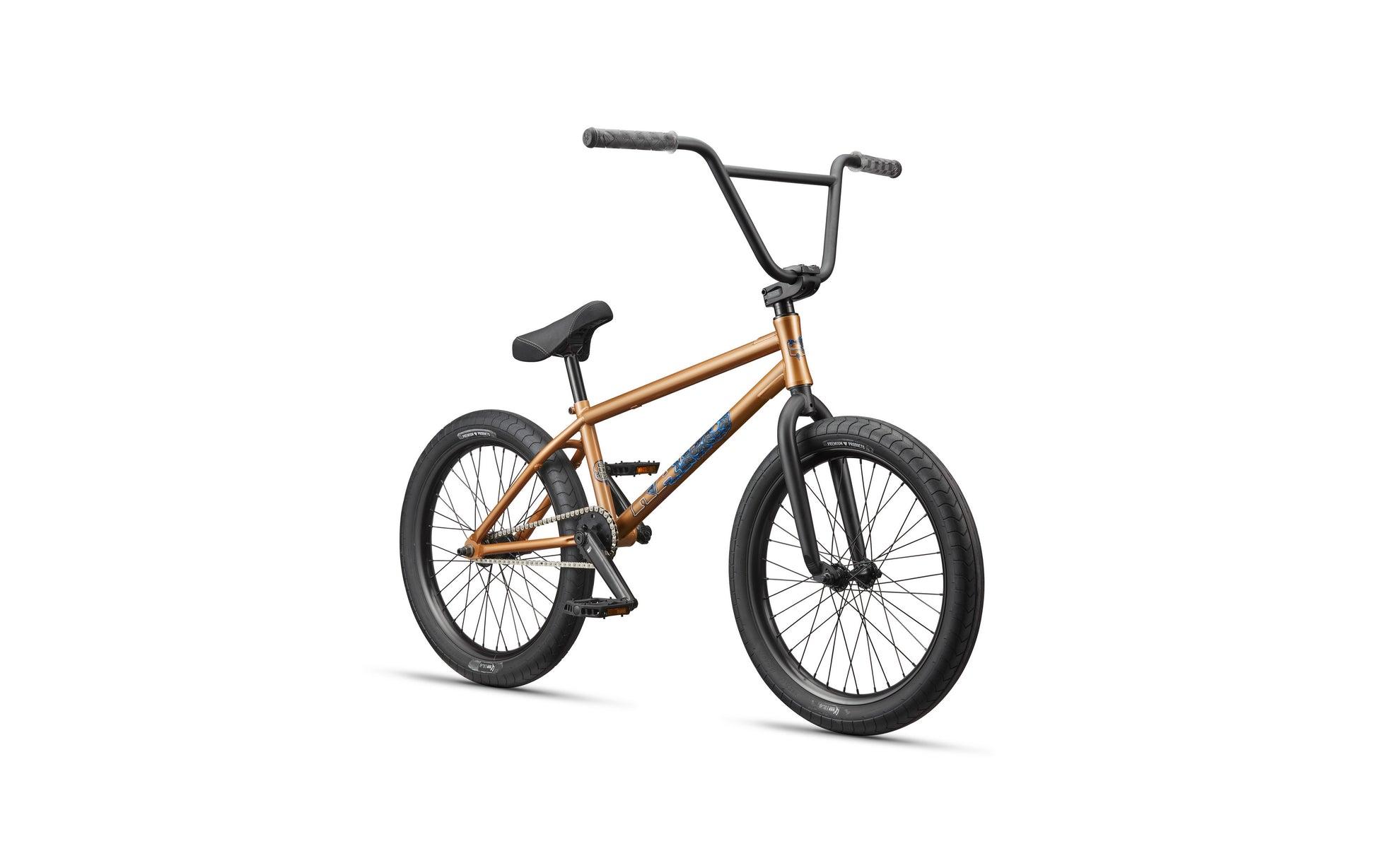

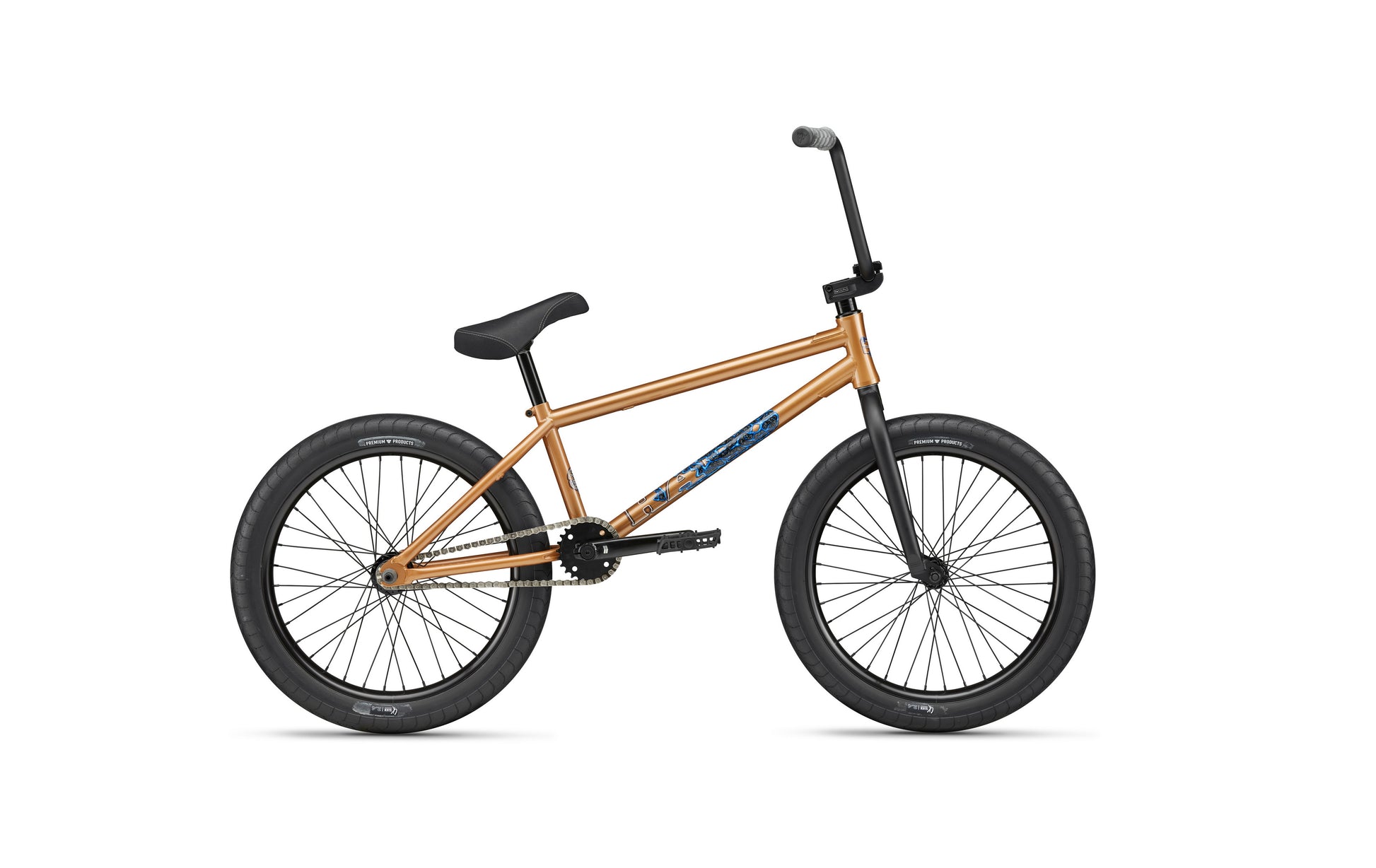

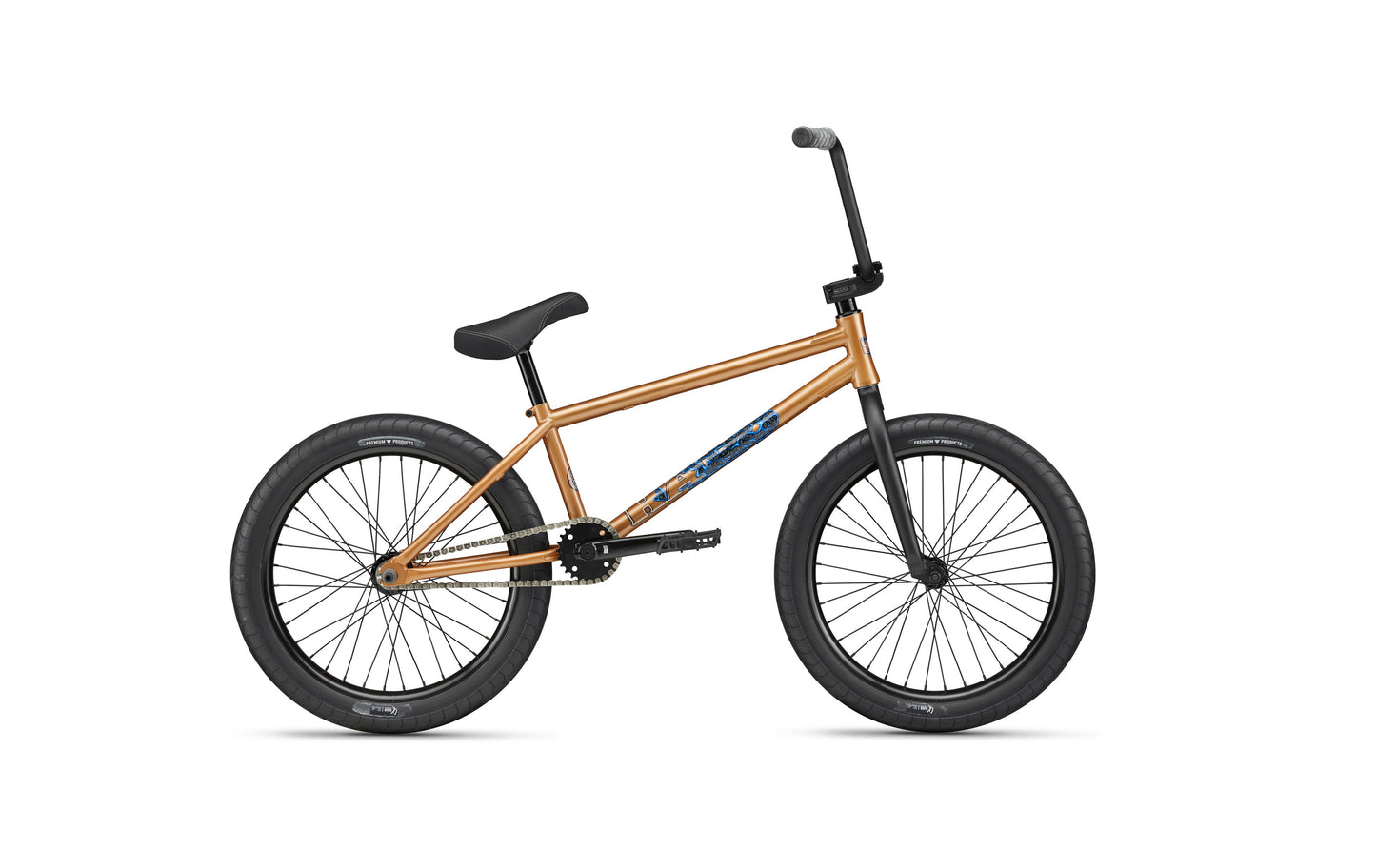

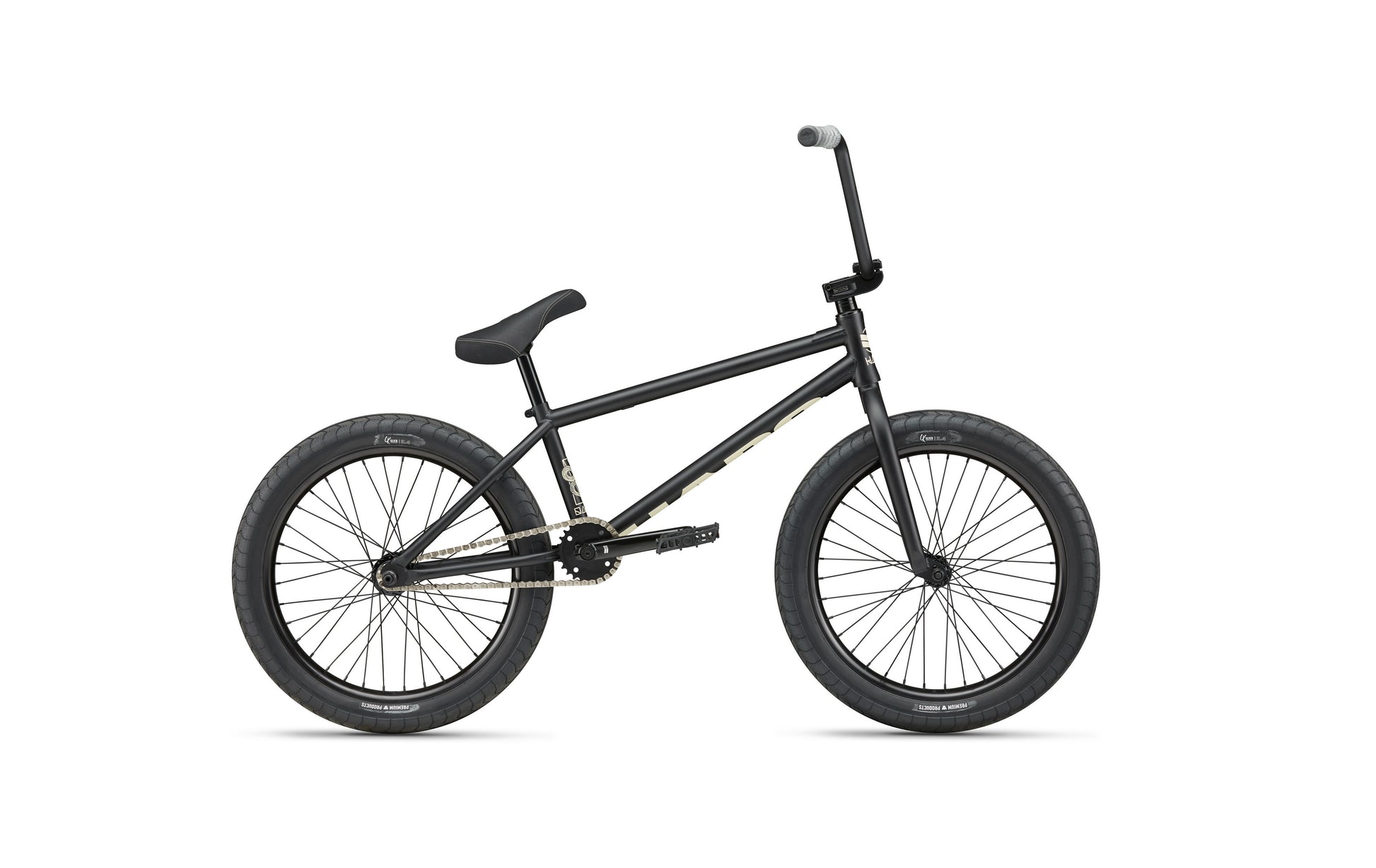

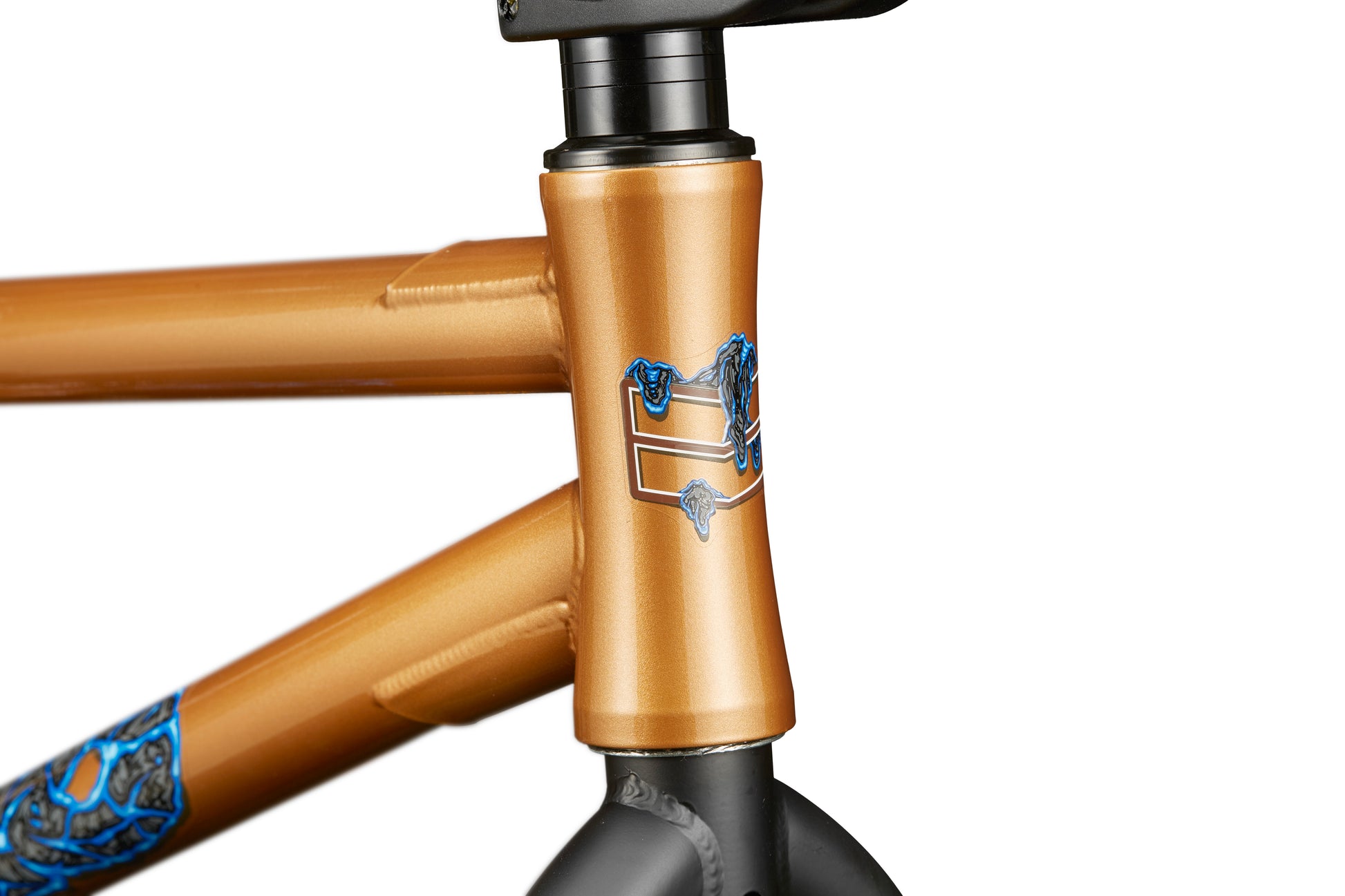

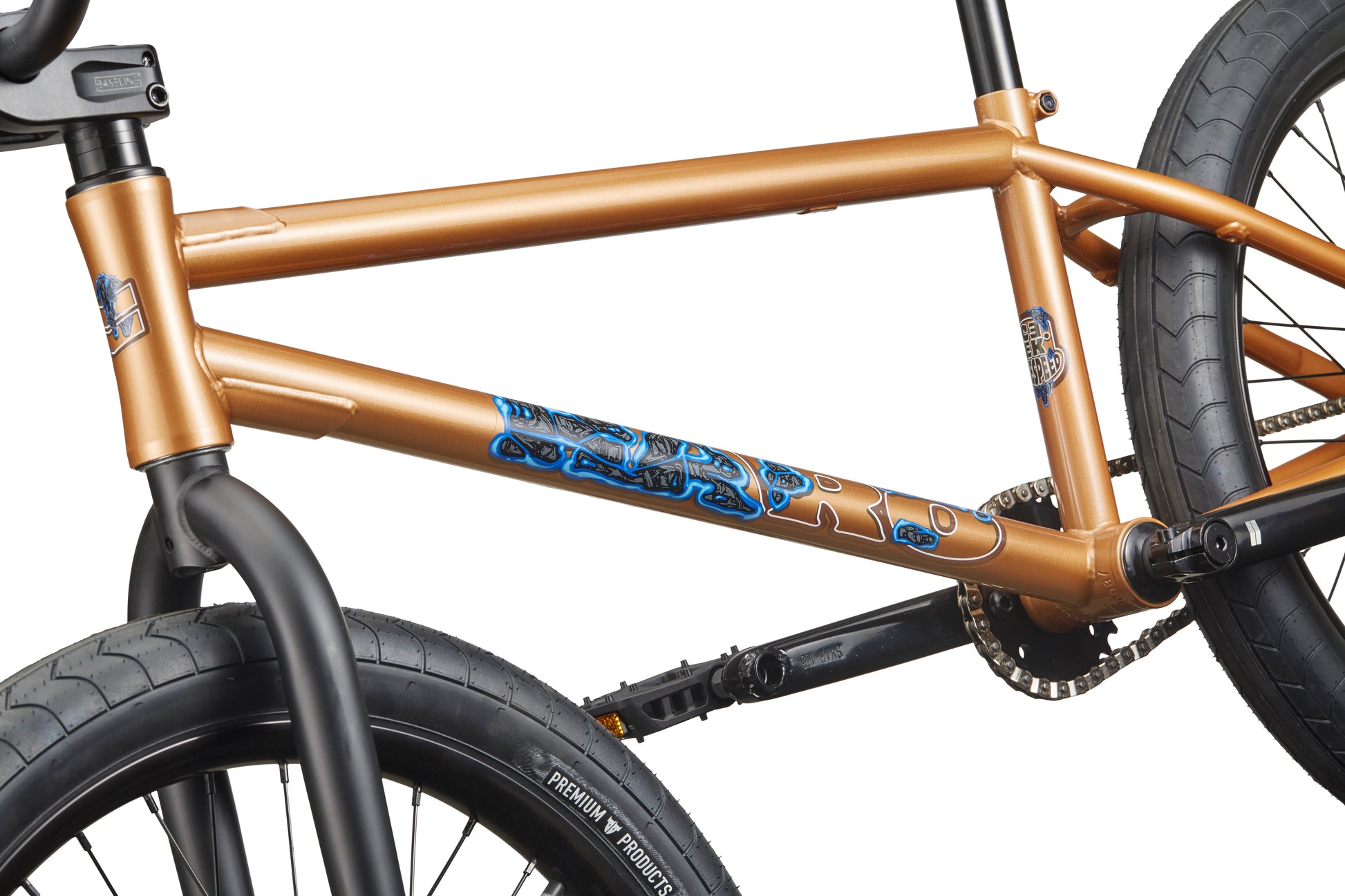

The Dana delivers pro-level street performance with Haro’s signature touch. Built on the same frame as the Hoover and finished in custom rider-designed colorways, this bike is made to rip at a more accessible price point. True Haro geometry, pure street style.

Color
Size

View full details

FEATURES

  • Full chromoly construction. 20.5" top tube. Removable brake mounts. Integrated head tube. Mid bottom bracket.
  • Full chromoly with threaded steerer tube and tapered legs. 34mm offset.
  • Haro 9" rise chromoly. 12 degree back sweep. 2 degree up sweep.
  • Premium Products flangeless 160.5mm.
  • Double wall 20" alloy rims. Pinned seams. 32mm wide. 36 hole.
  • Haro LaMesa 20 X 2.4" front & rear
  • Premium Pivotal.
  • Alloy pivotal 200mm.

PRODUCT INFORMATION

SPECIFICATIONS

Specifications
FRAMESET

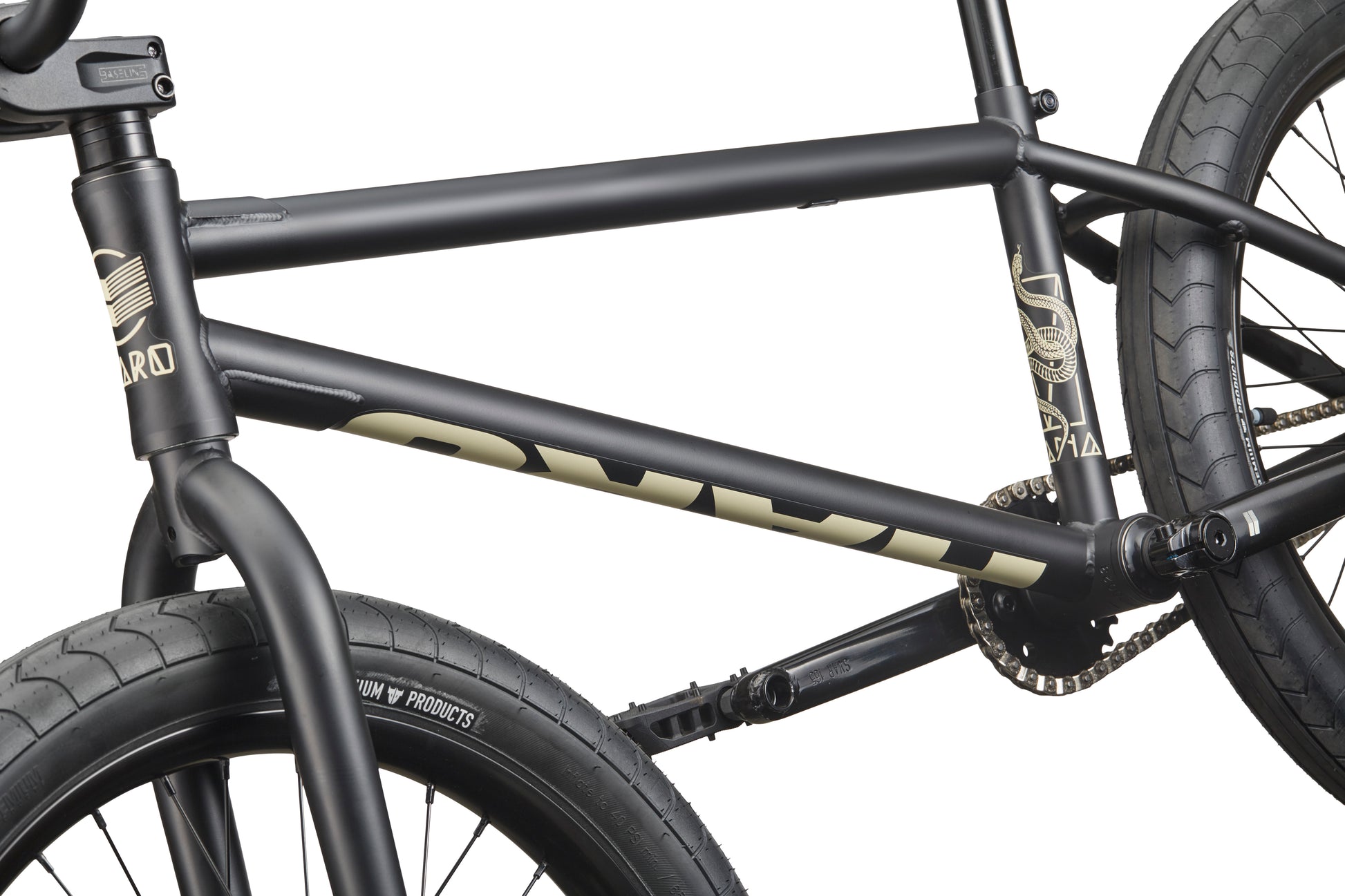

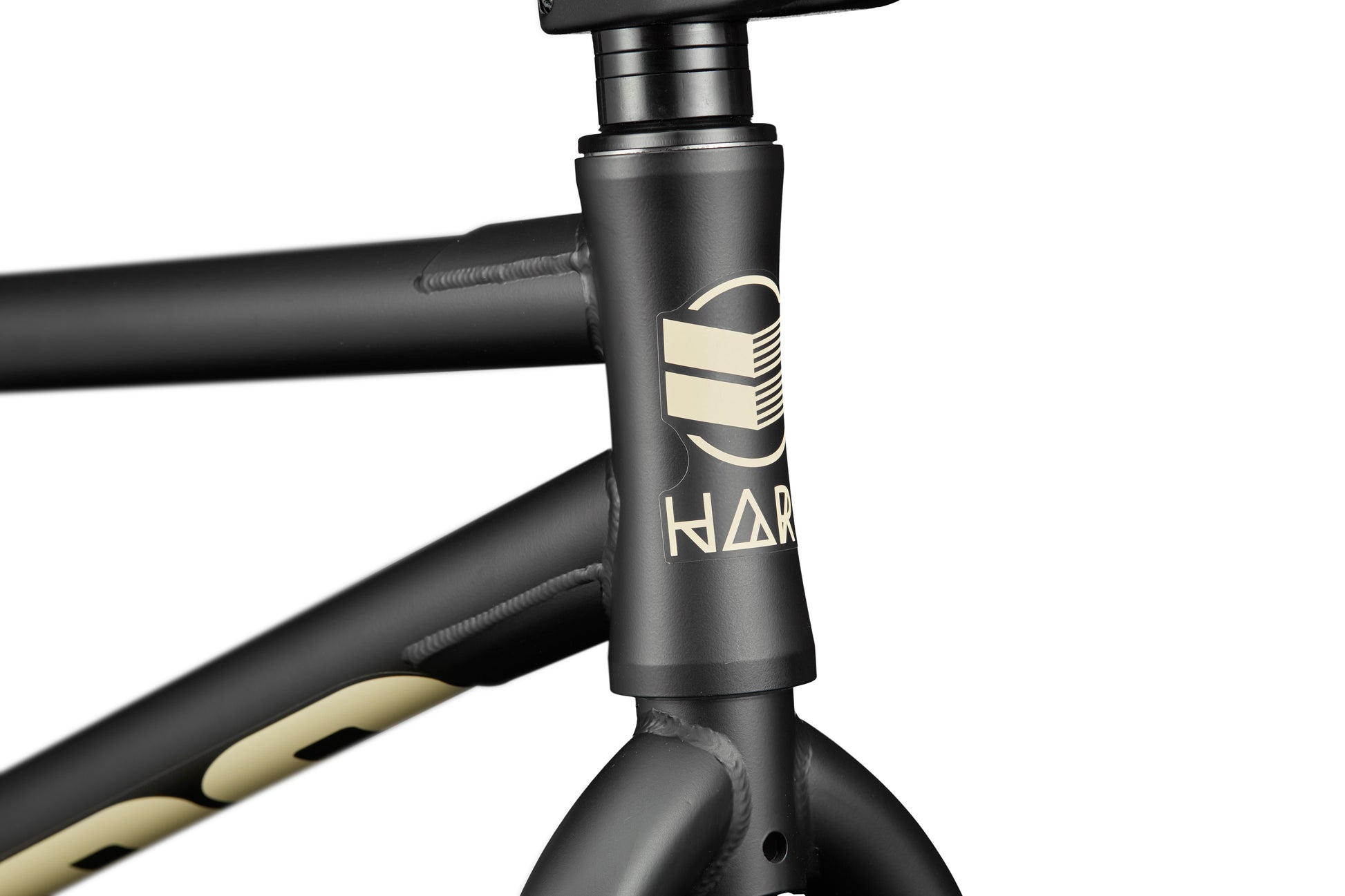

Frame Full chromoly construction. 20.75" top tube. Removable brake mounts. Integrated head tube. Mid bottom bracket.
Fork Full chromoly with threaded steerer tube and tapered legs. 34mm offset.
Headset Integrated 1-1/8" headset.

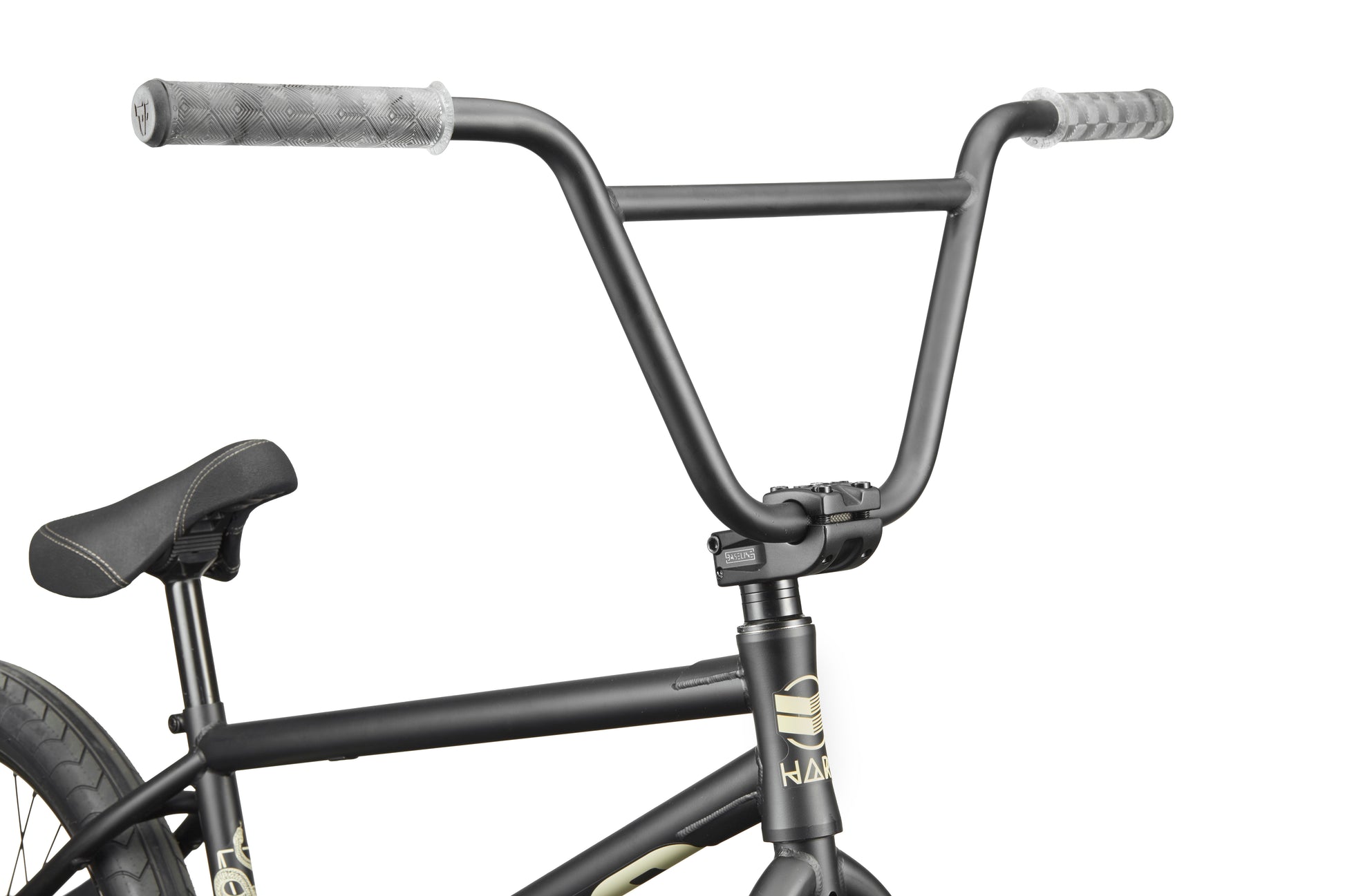

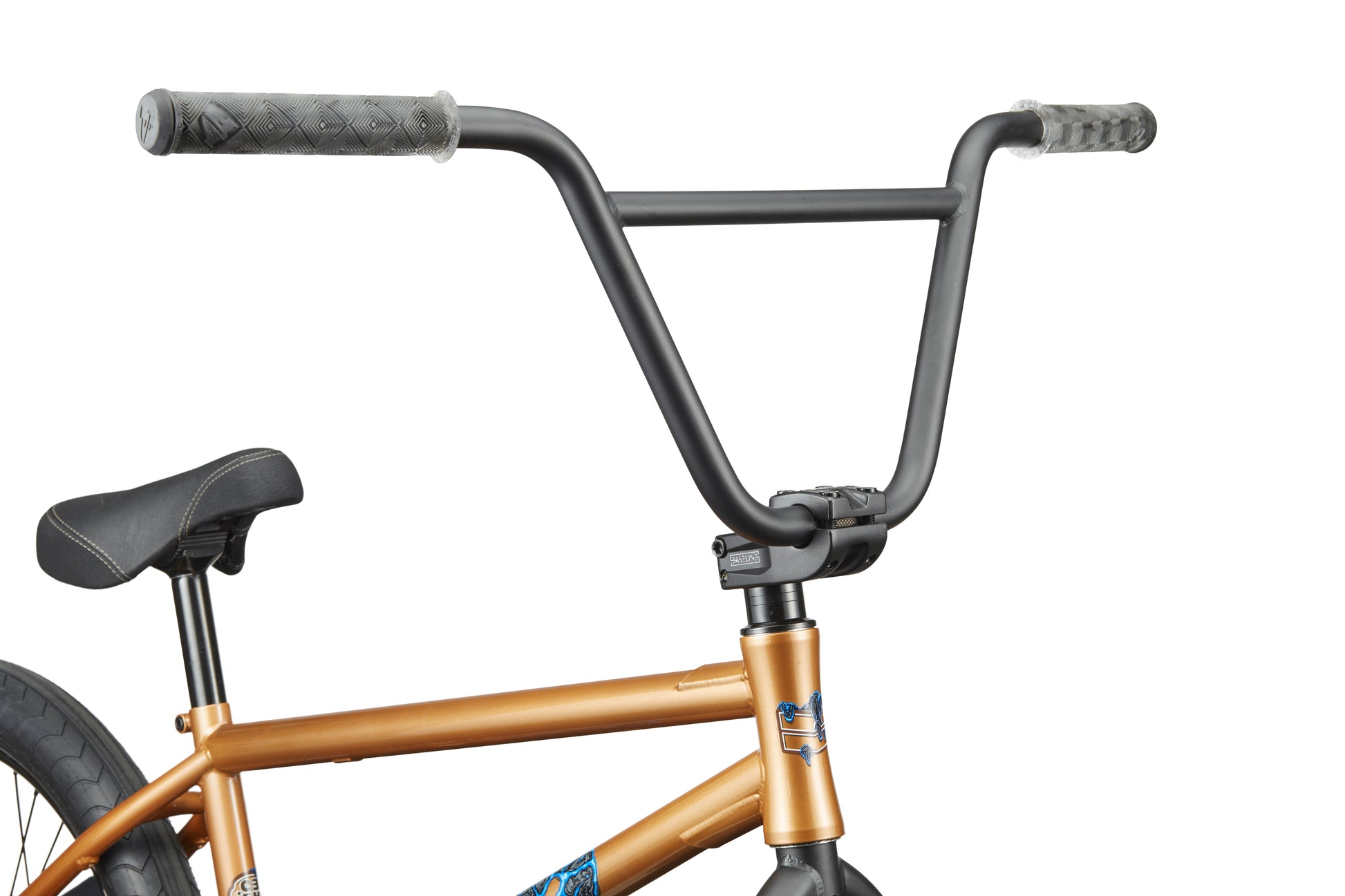

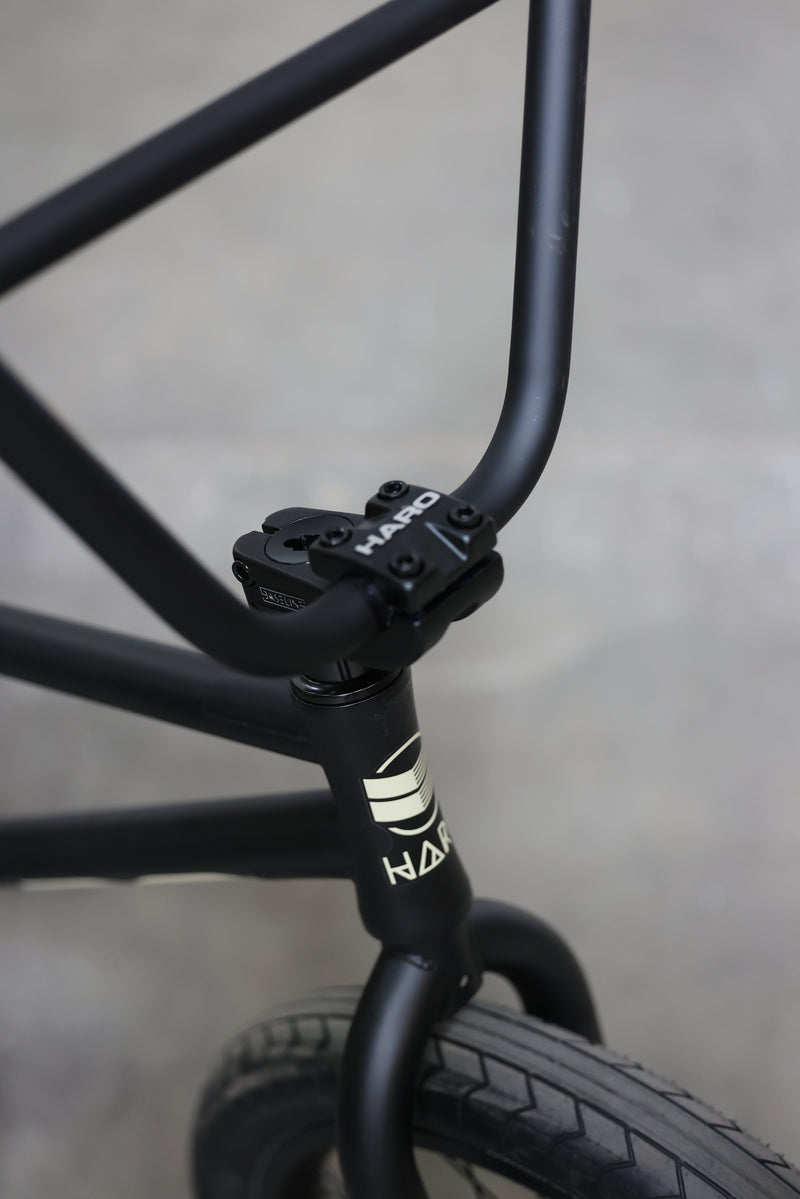

Handlebar Haro 9.25" rise chromoly. 12 degree back sweep. 2 degree up sweep.

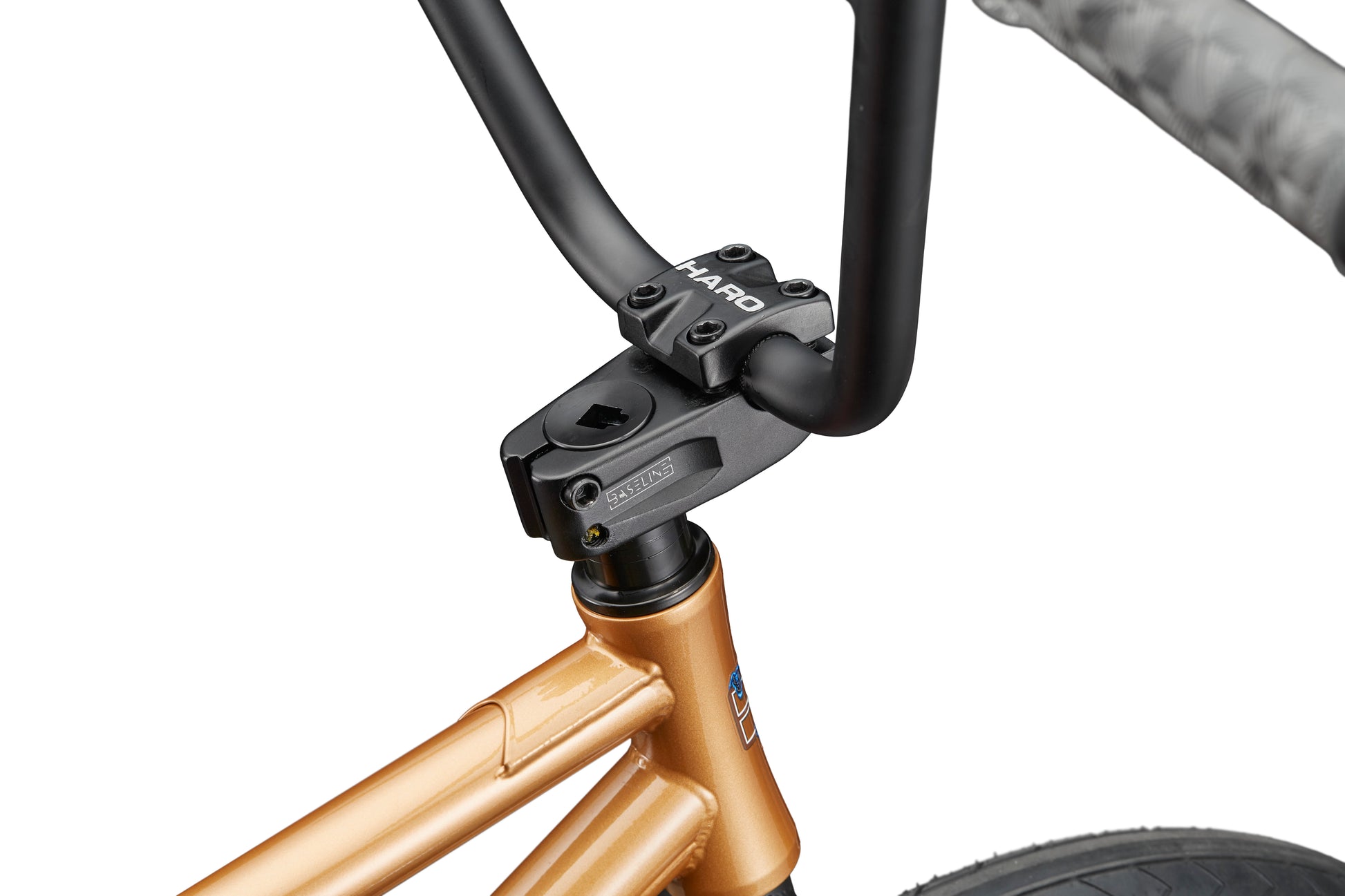

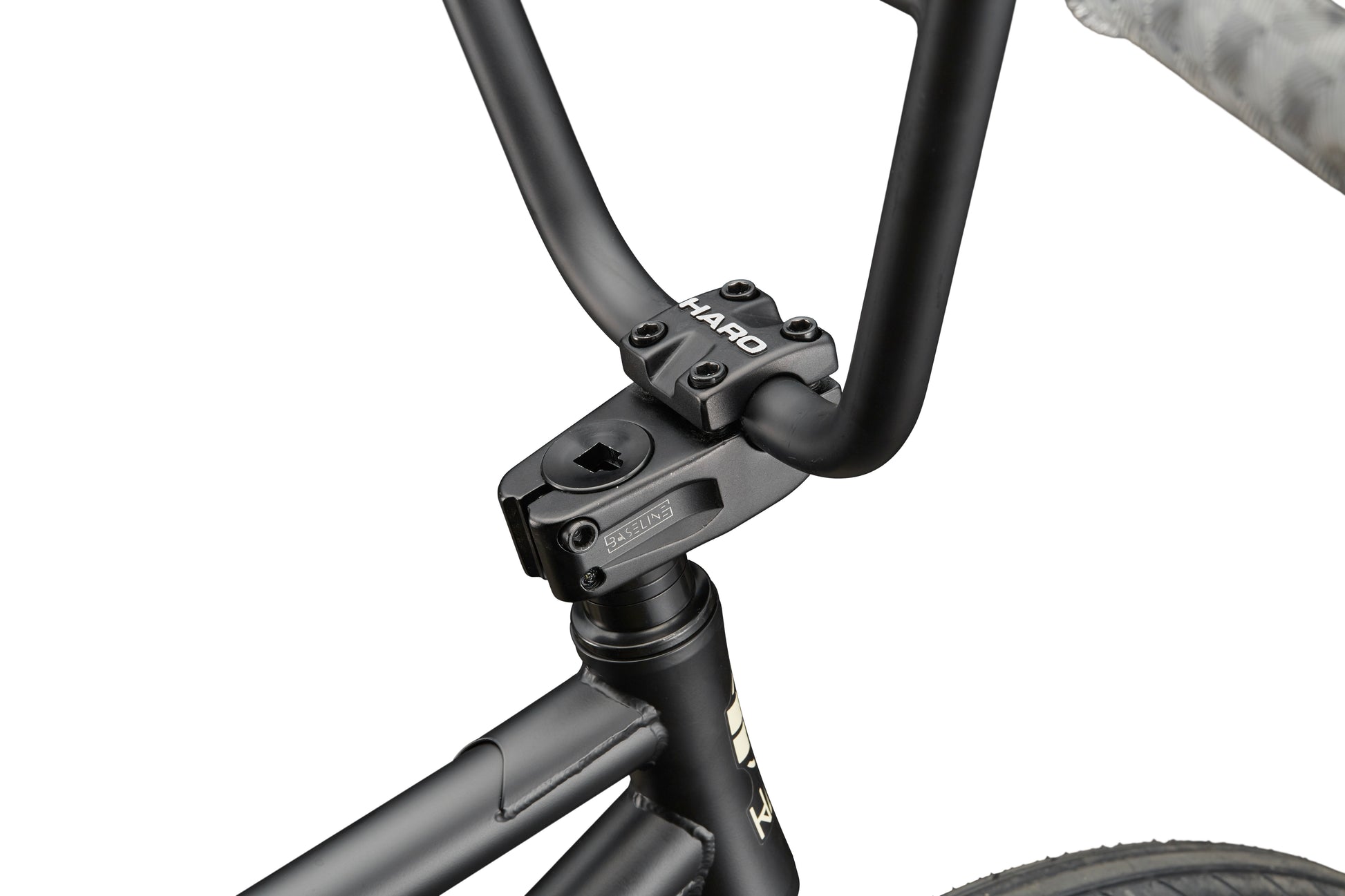

Stem Haro Baseline forged aluminum top load. 48mm reach.

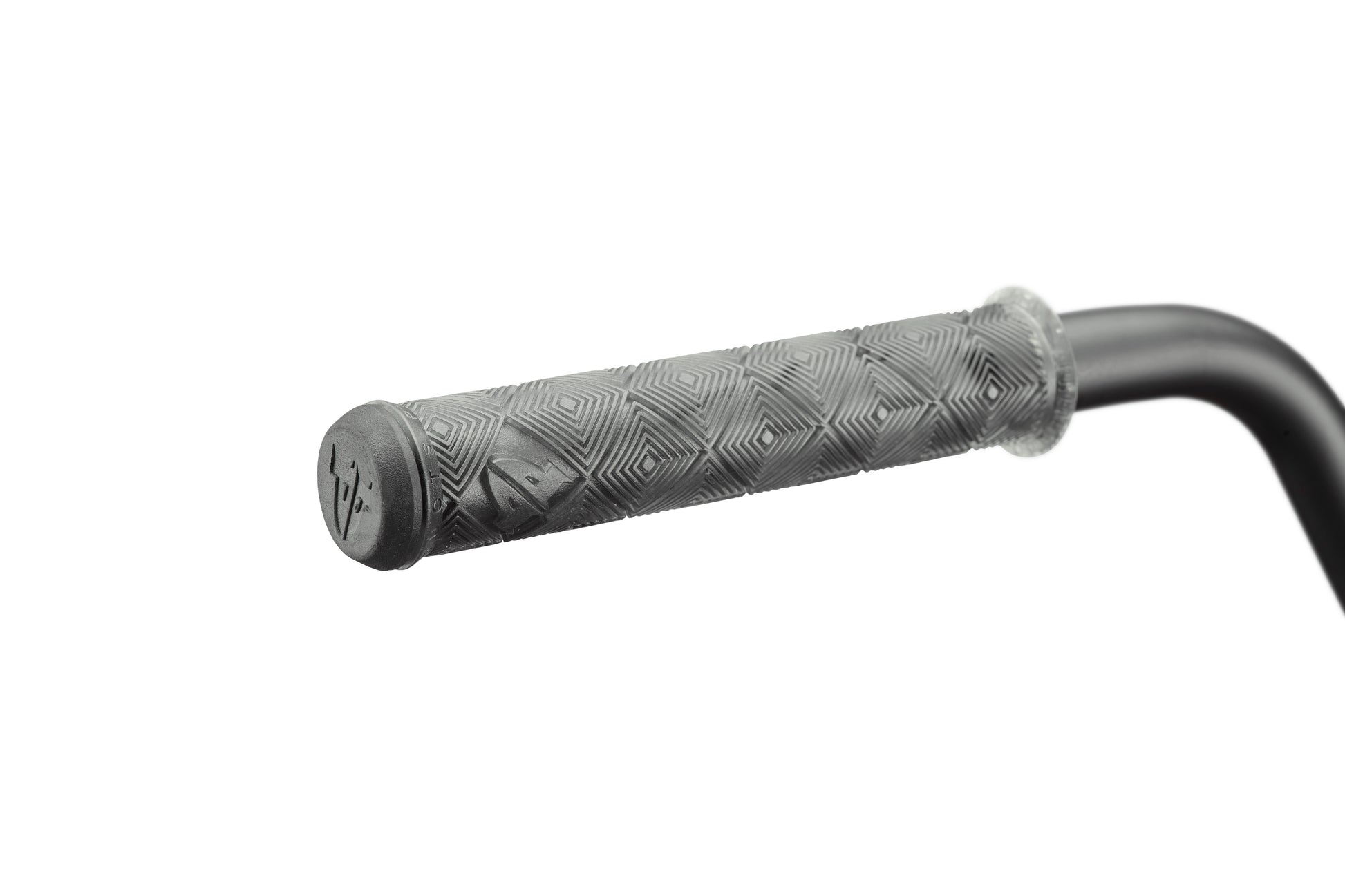

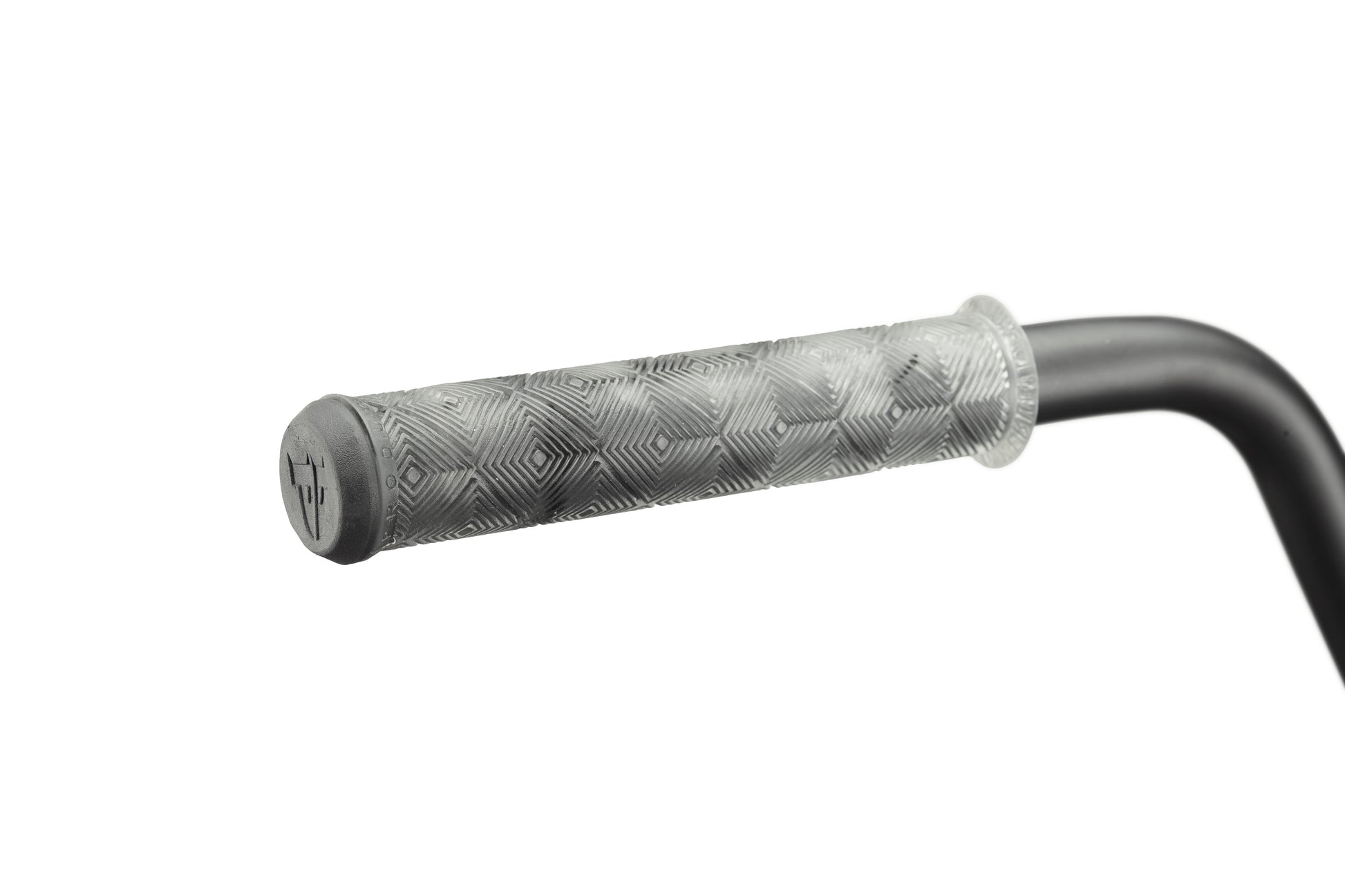

Grip Haro Baseline flangeless. 163mm.

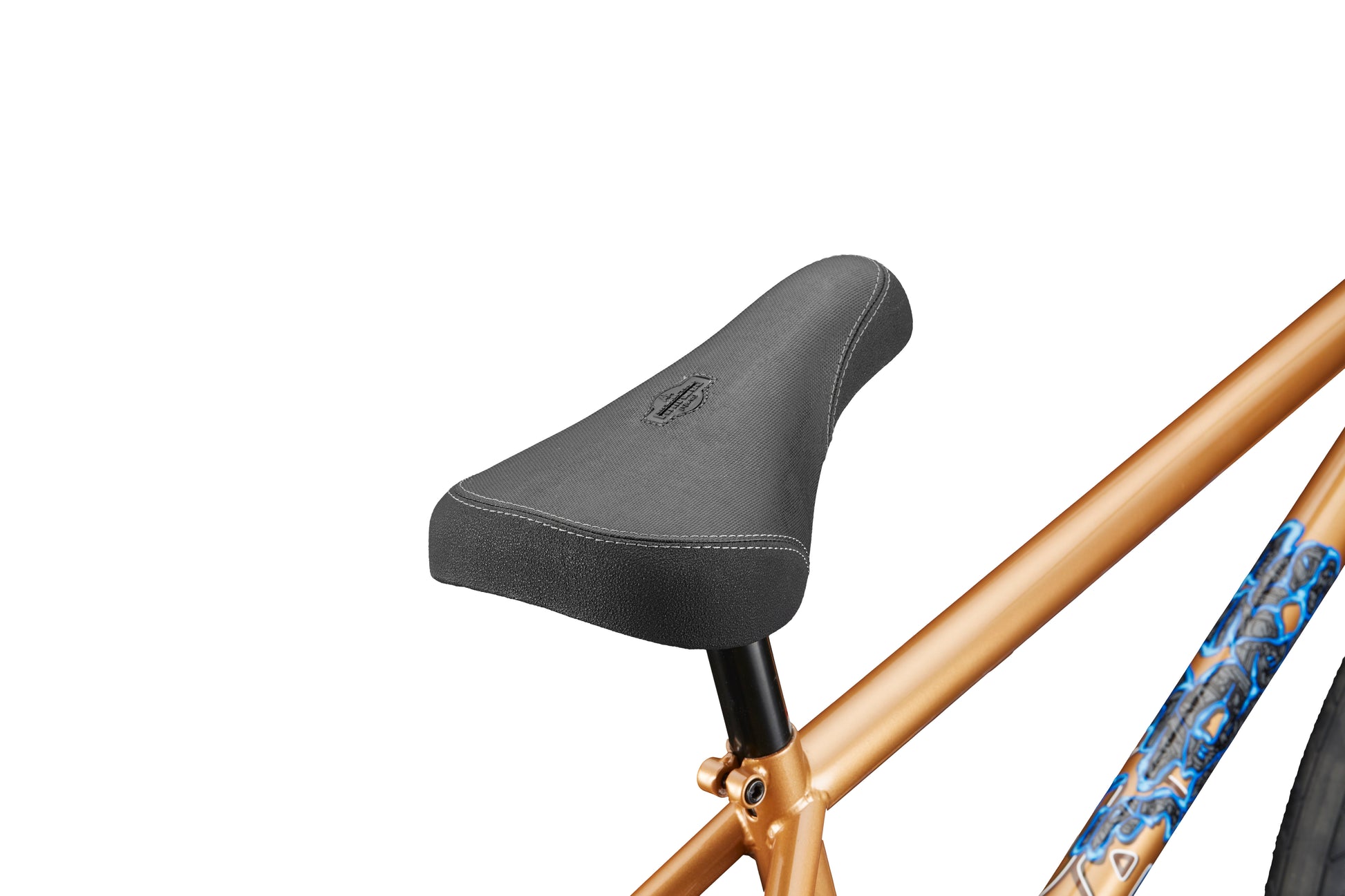

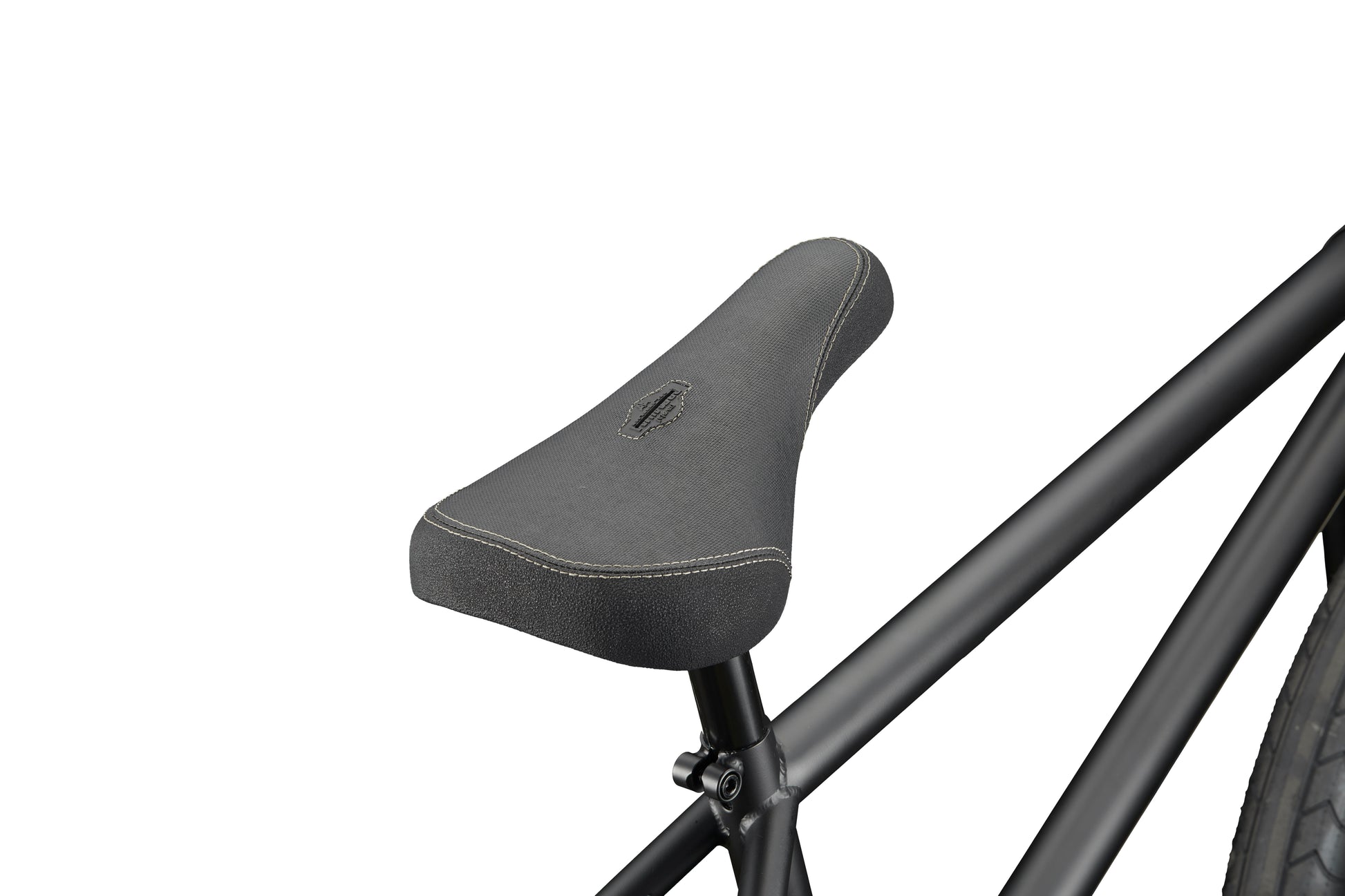

Saddle Haro Baseline Pivotal.
Seat Post Haro Baseline Pivotal alloy. 200mm.

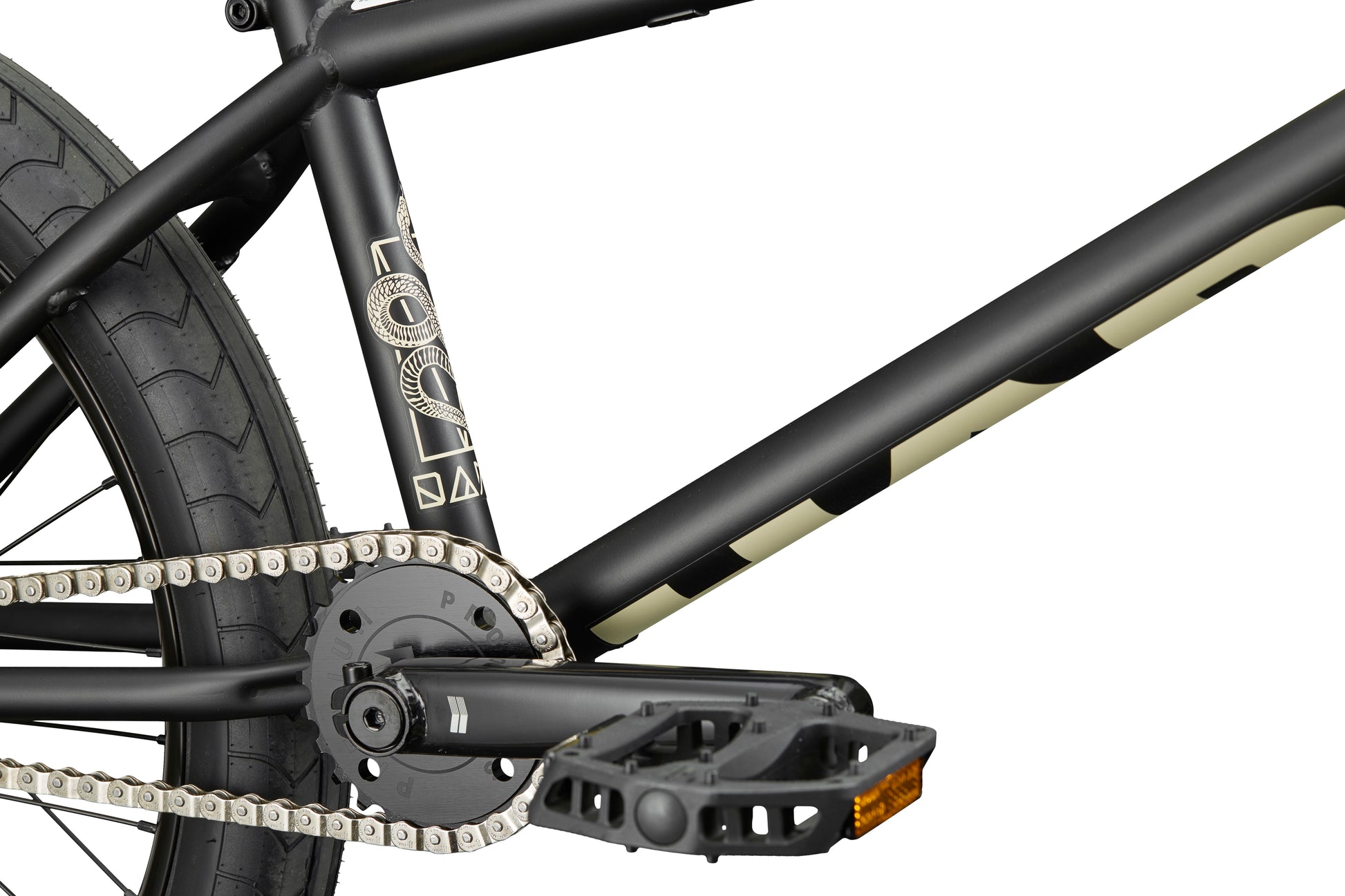

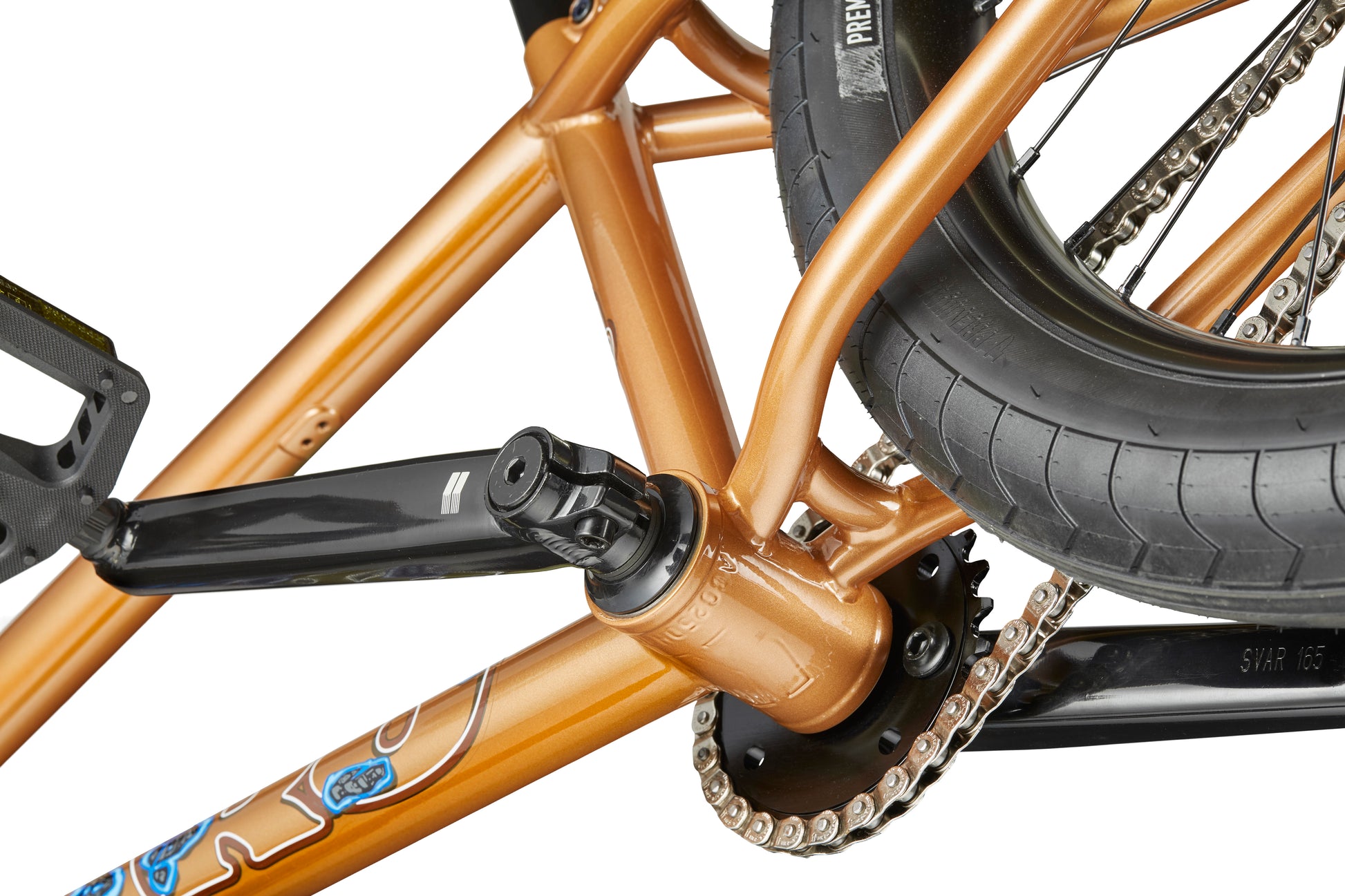

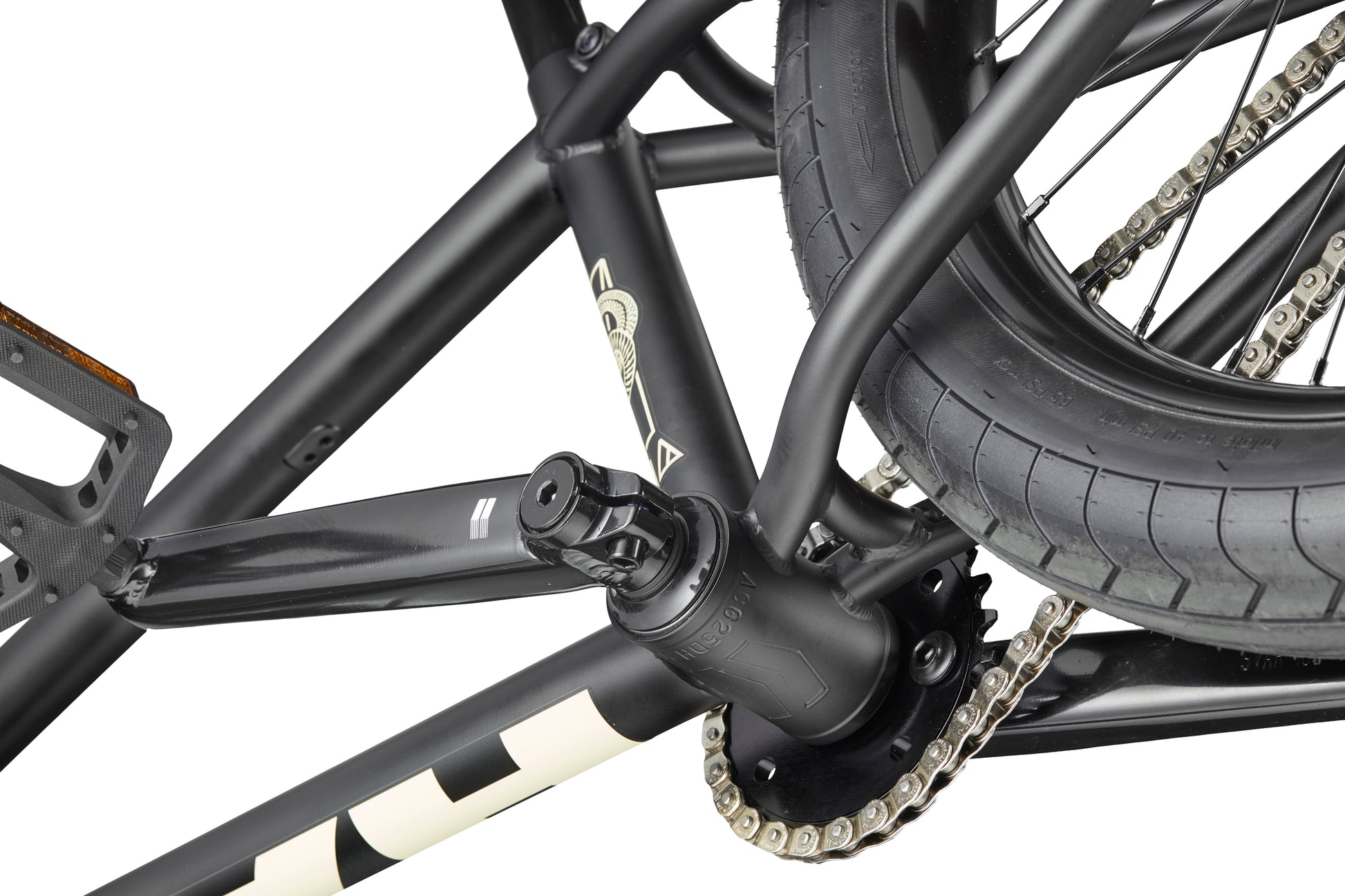

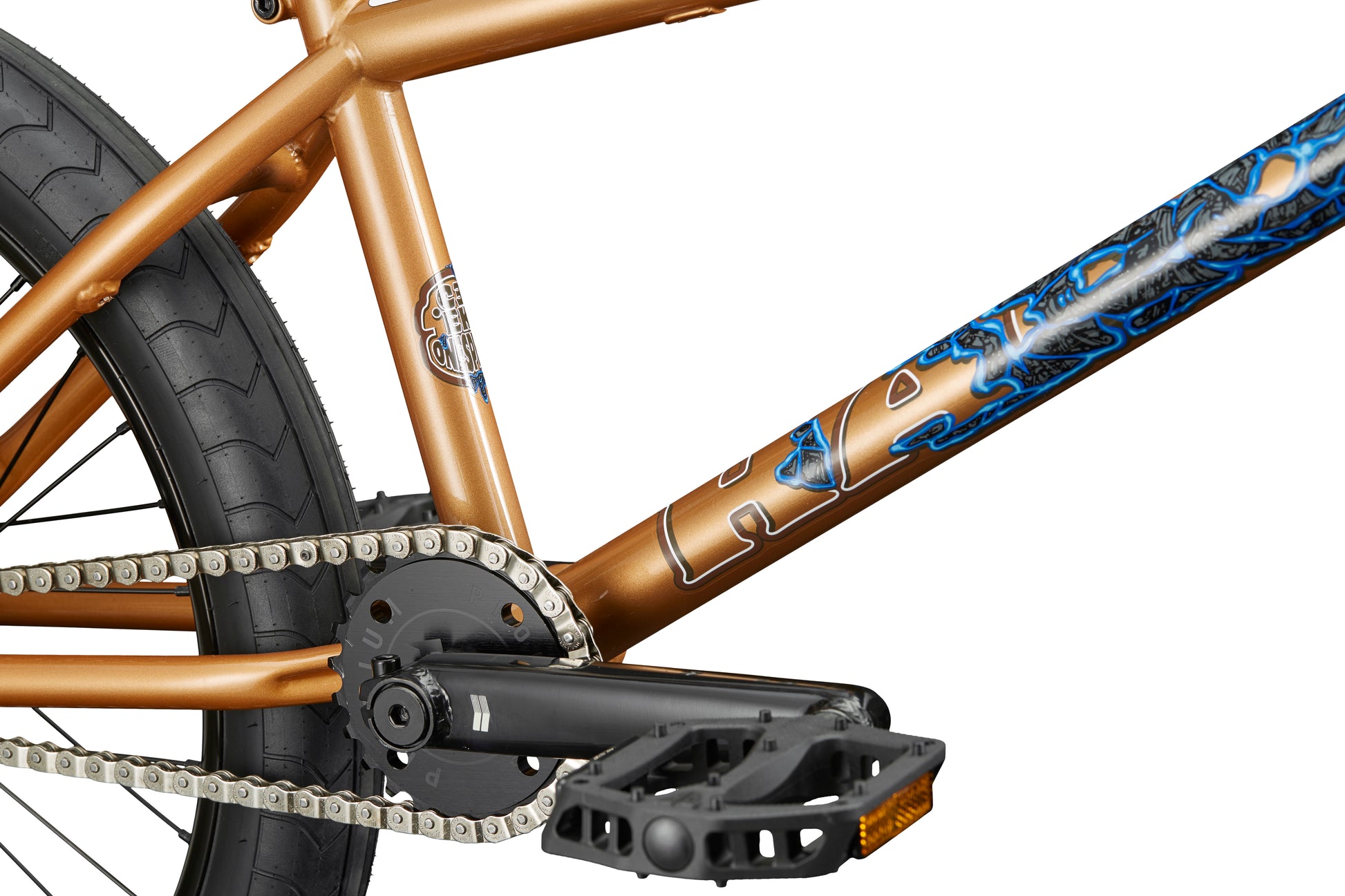

Cranks Haro 3-piece chromoly cranks. 170mm length. Forged 19mm spindle.
Bottom Bracket Sealed mid bottom bracket.
Sprocket Haro CNC alloy sprocket. 25T.
Chain KMC Z1 1/8" width

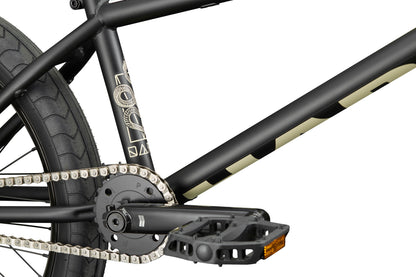

Pedals Haro Baseline poly platform. Chromoly axles.
Rims Double wall 20" alloy rims. Pinned seams. 32mm wide. 36 hole.
Front Hub Alloy front hub with sealed bearings. Female 3/8" axle.

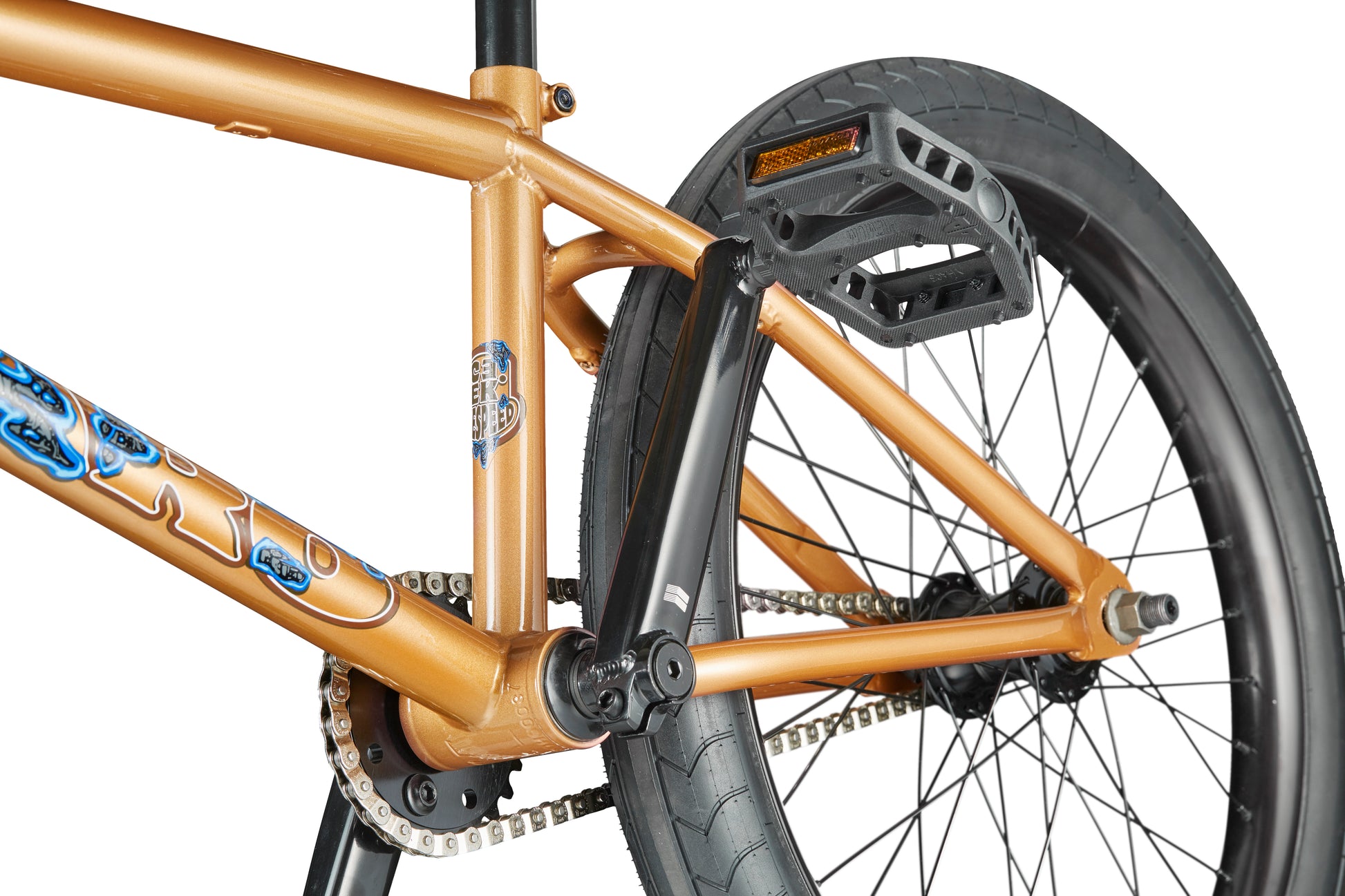

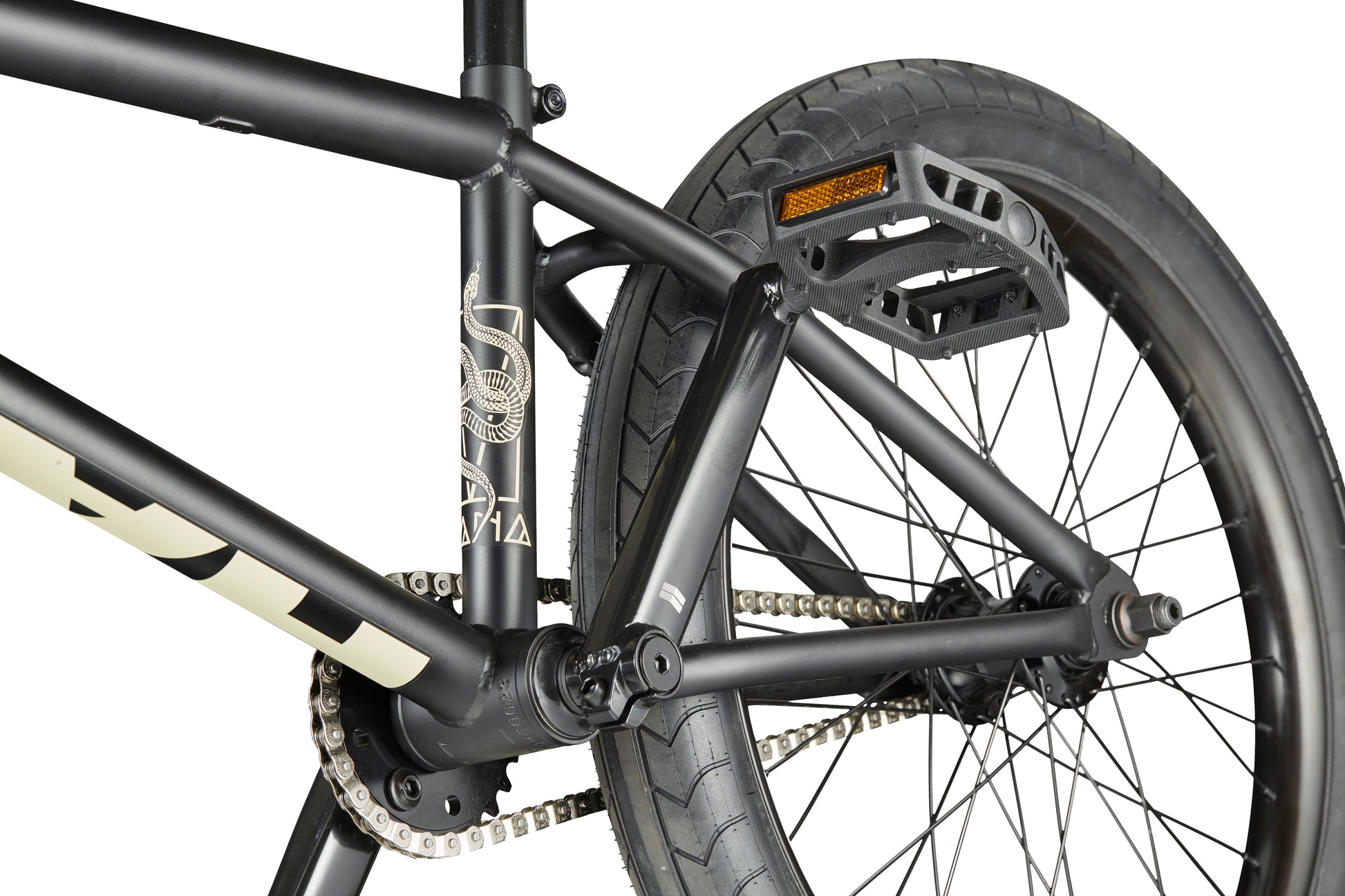

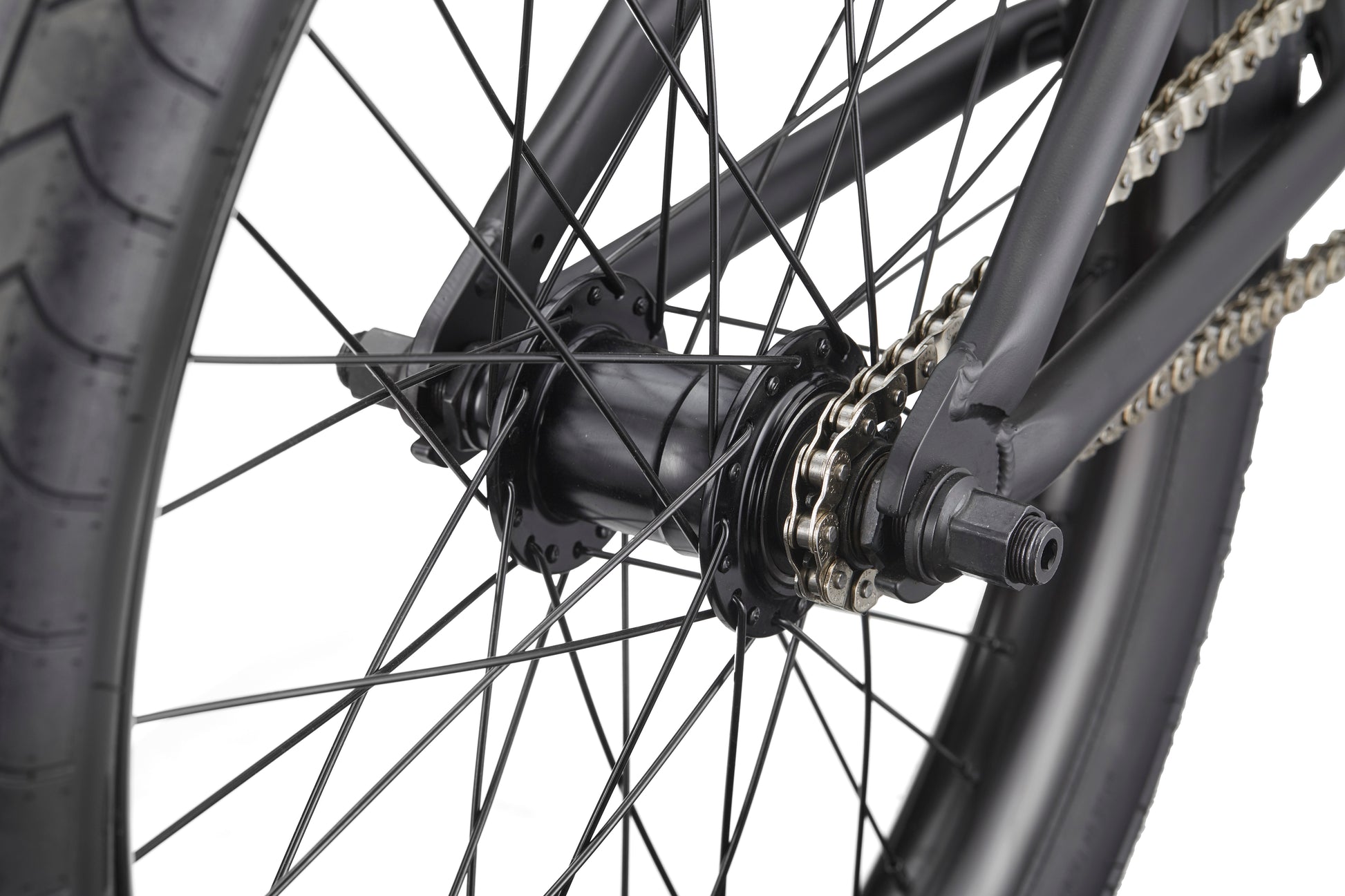

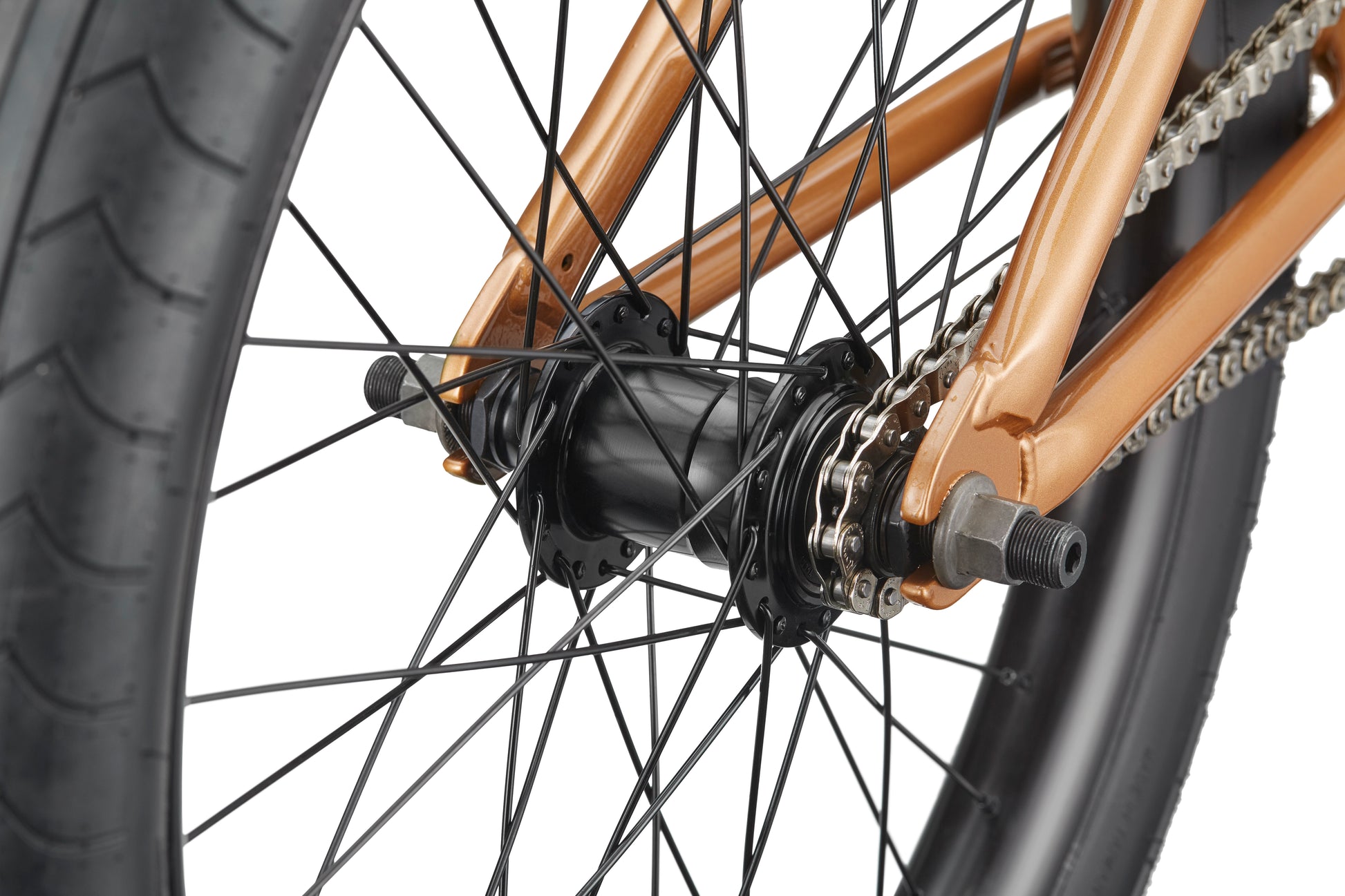

Rear Hub Sealed cassette rear hub. Alloy shell. 9T driver. 14mm axle.
Tires Haro LaMesa 20 X 2.4" front & rear
Extras Nylon sleeves with alloy core (includes 2 pegs).

GEOMETRY

Geometry & Sizing
SizeHead AngleSeat AngleTop TubeSeat TubeChainstayBB HeightStand Over
20.5" 75.5° 71.4° 20.5" (520.7mm) 250 mm 20.5" 39 mm 540 mm
