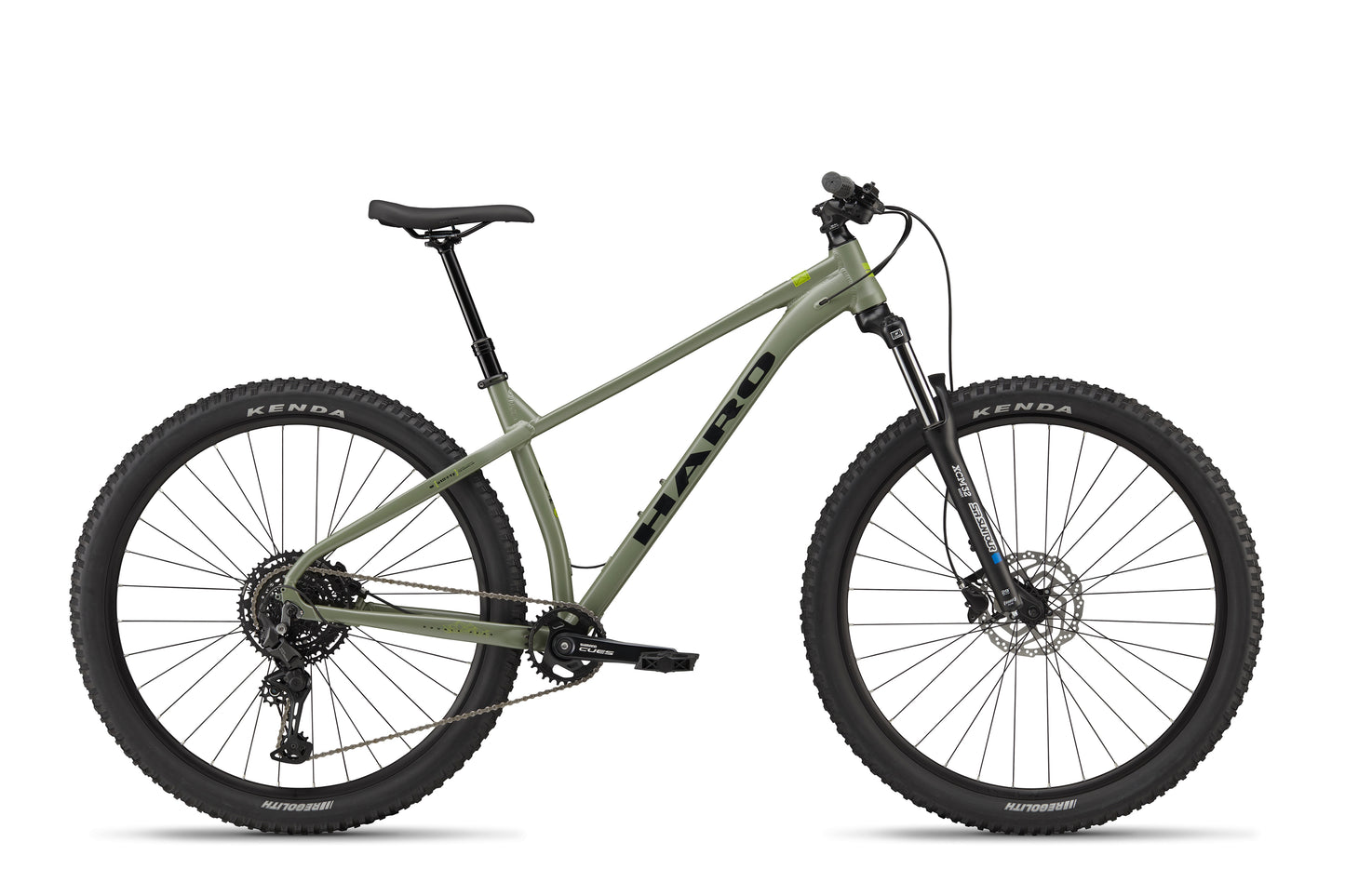

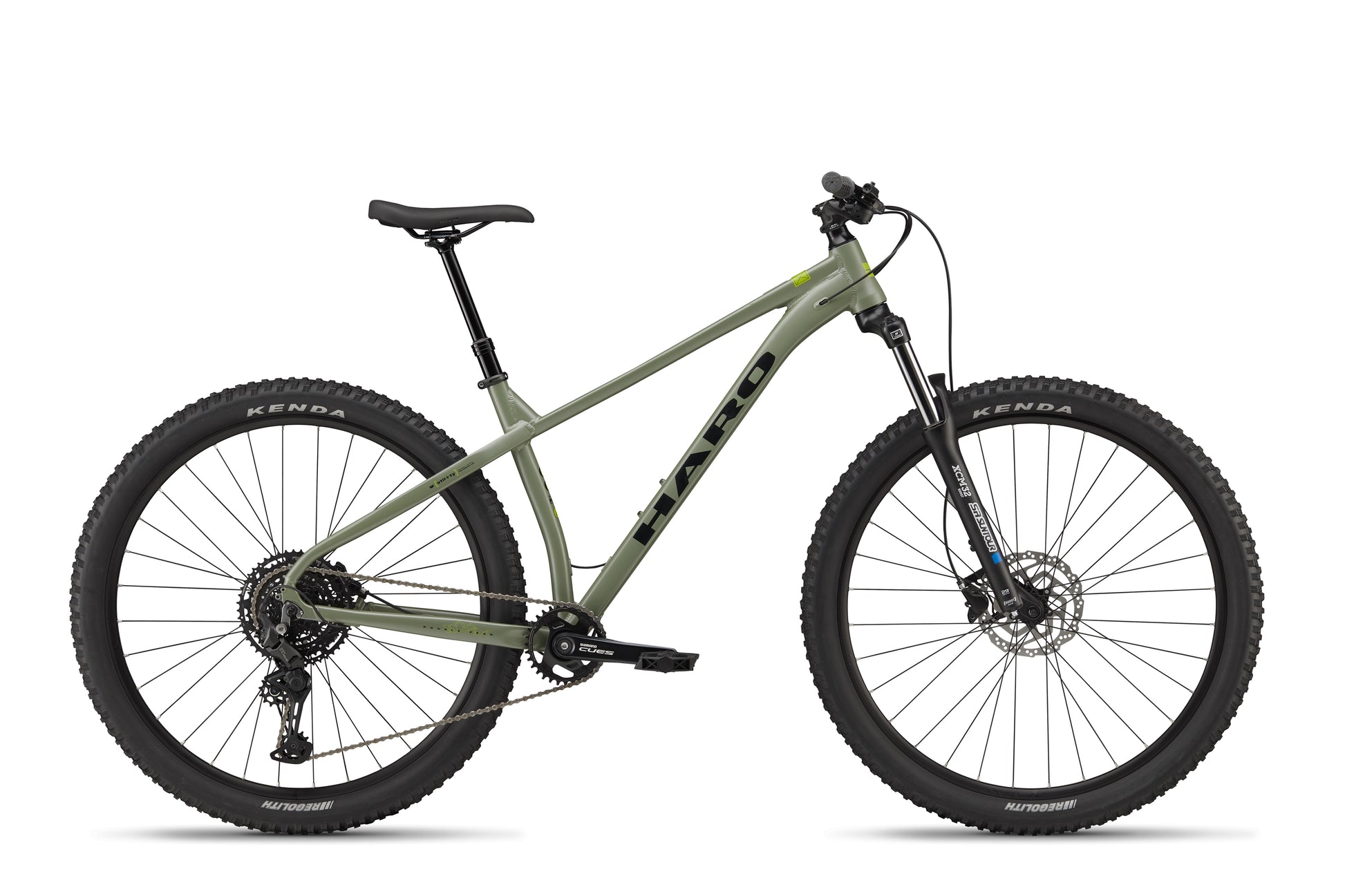

• The Double Peak mountain bike, shown side view on white, has thick tires, hydraulic disc brakes, and a black saddle.

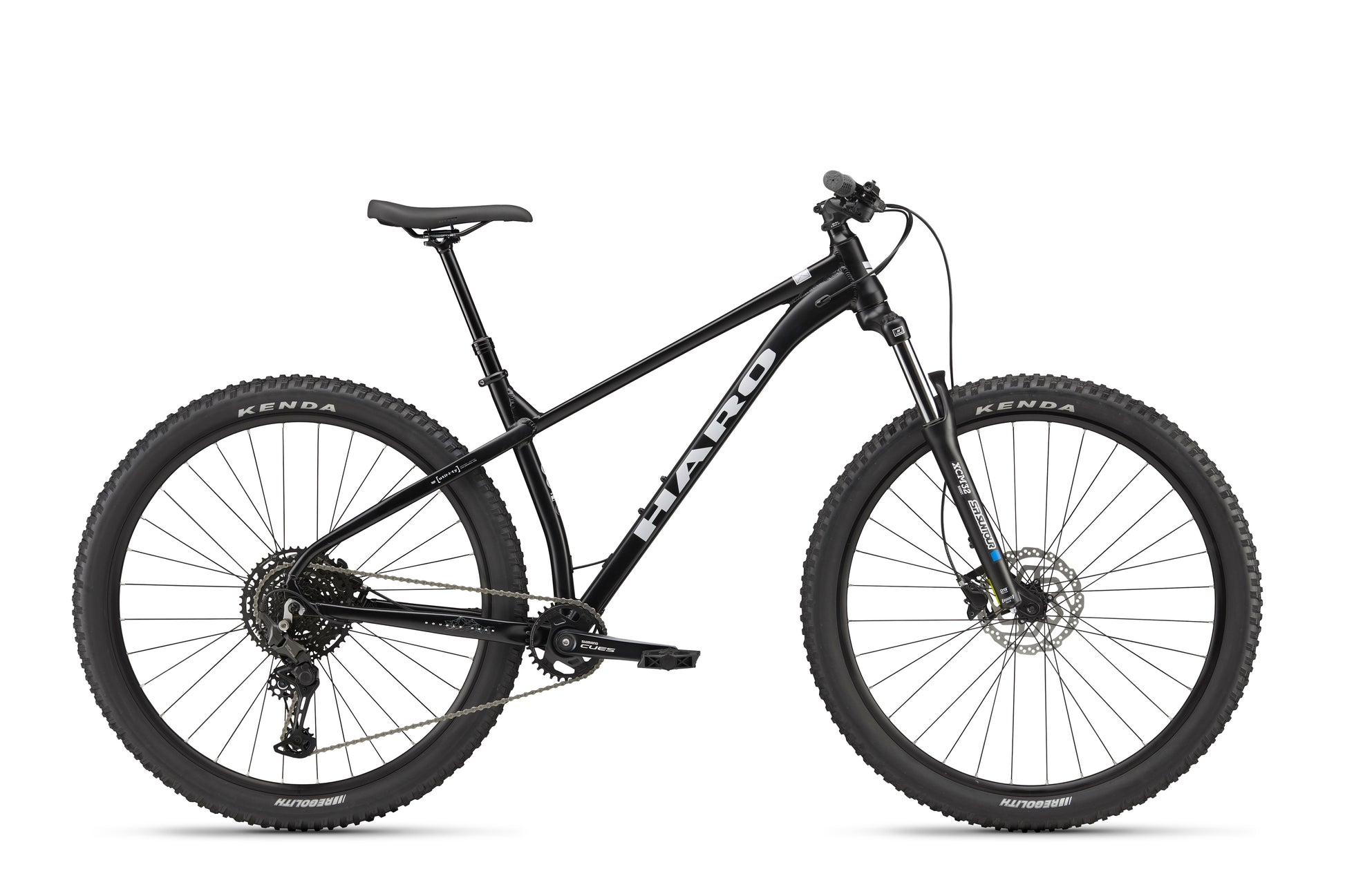

  • Double Peak black mountain bike with front suspension, hydraulic disc brakes, knobby tires; side view on white background.

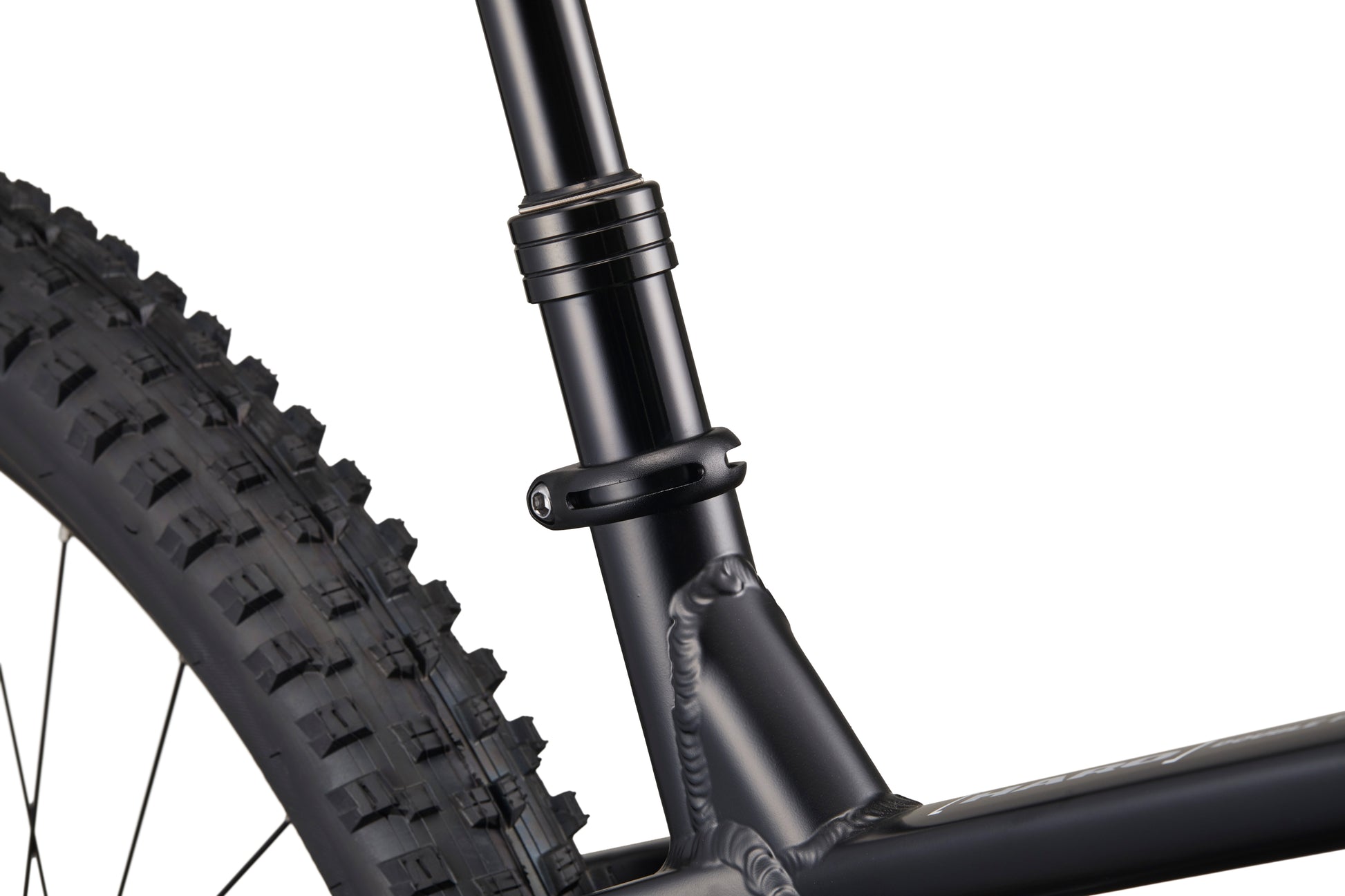

  • Close-up of Double Peak bike’s seat post clamp, rear tire, and frame with visible welds.

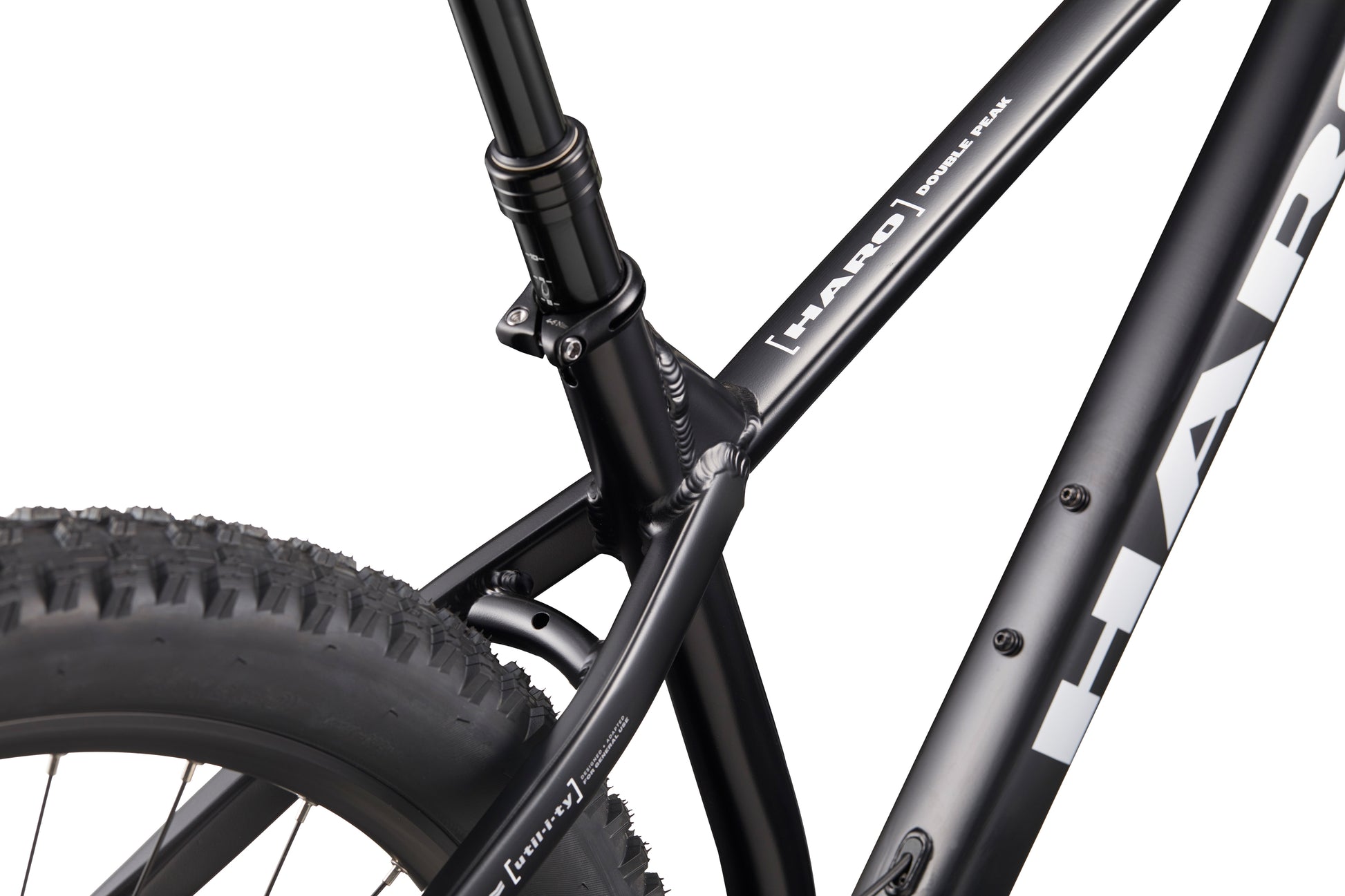

  • Close-up of Double Peak mountain bike’s black frame, seat tube, rear tire, logos, and hydraulic disk brakes.

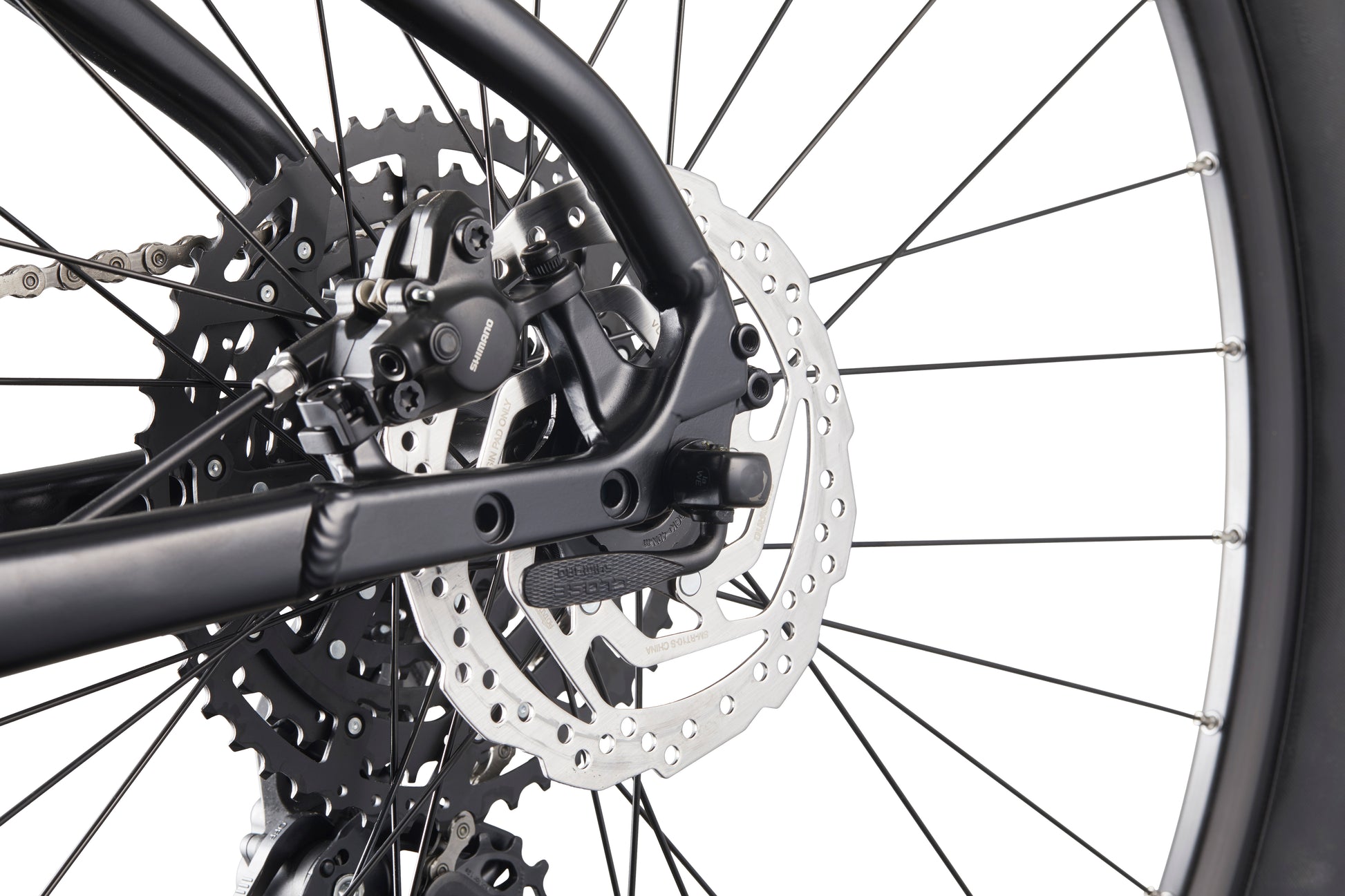

  • Close-up of Double Peak’s rear wheel, showcasing hydraulic disc brakes, sprockets, and spokes against a white background.

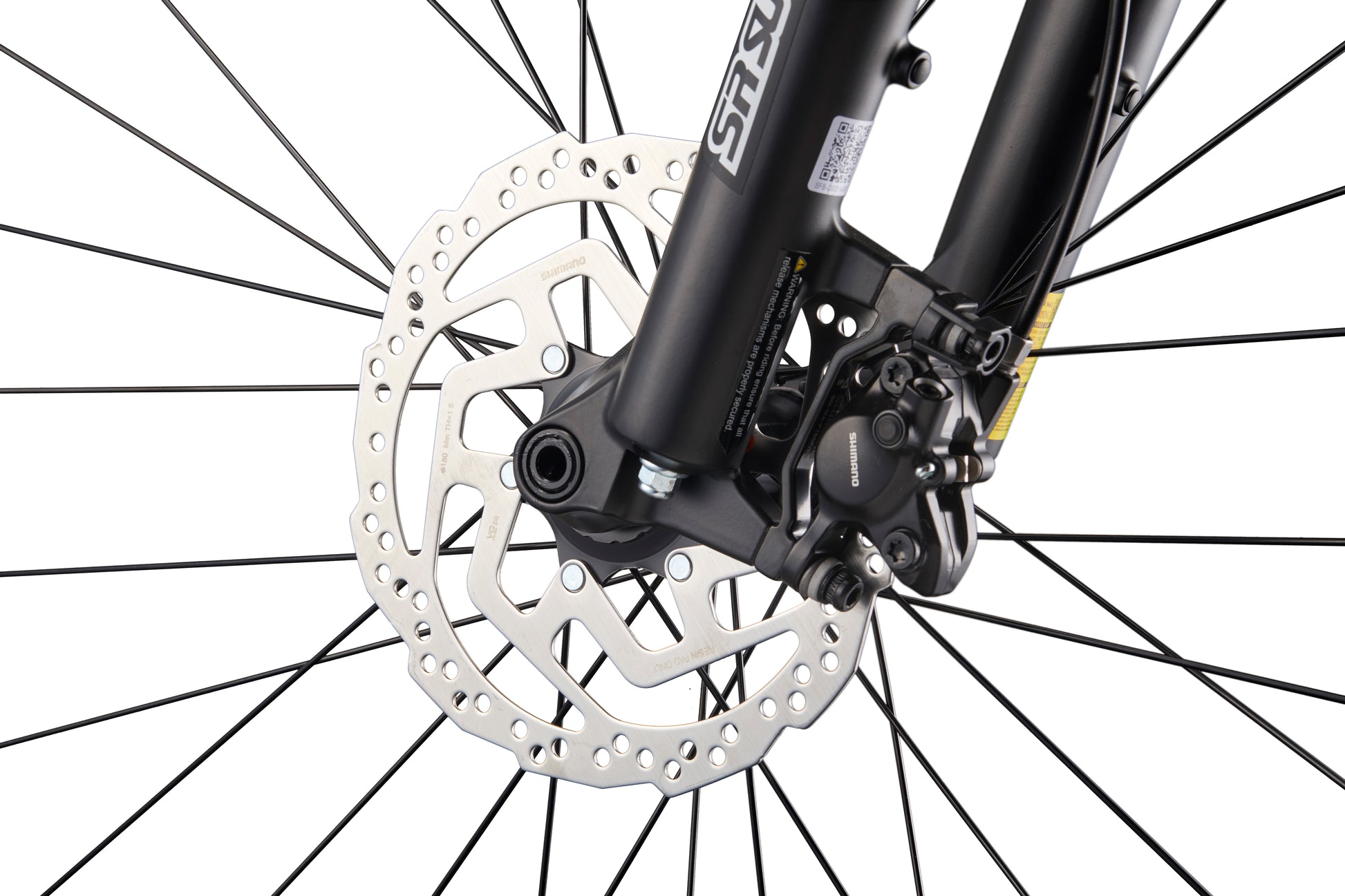

  • Close-up of Double Peak’s front hydraulic disc brake, rotor, black spokes, and fork, highlighting its mechanical details.

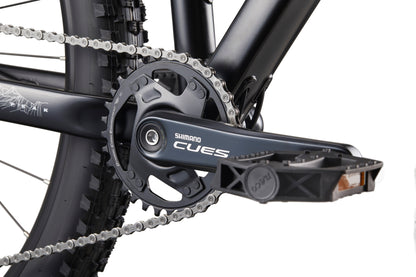

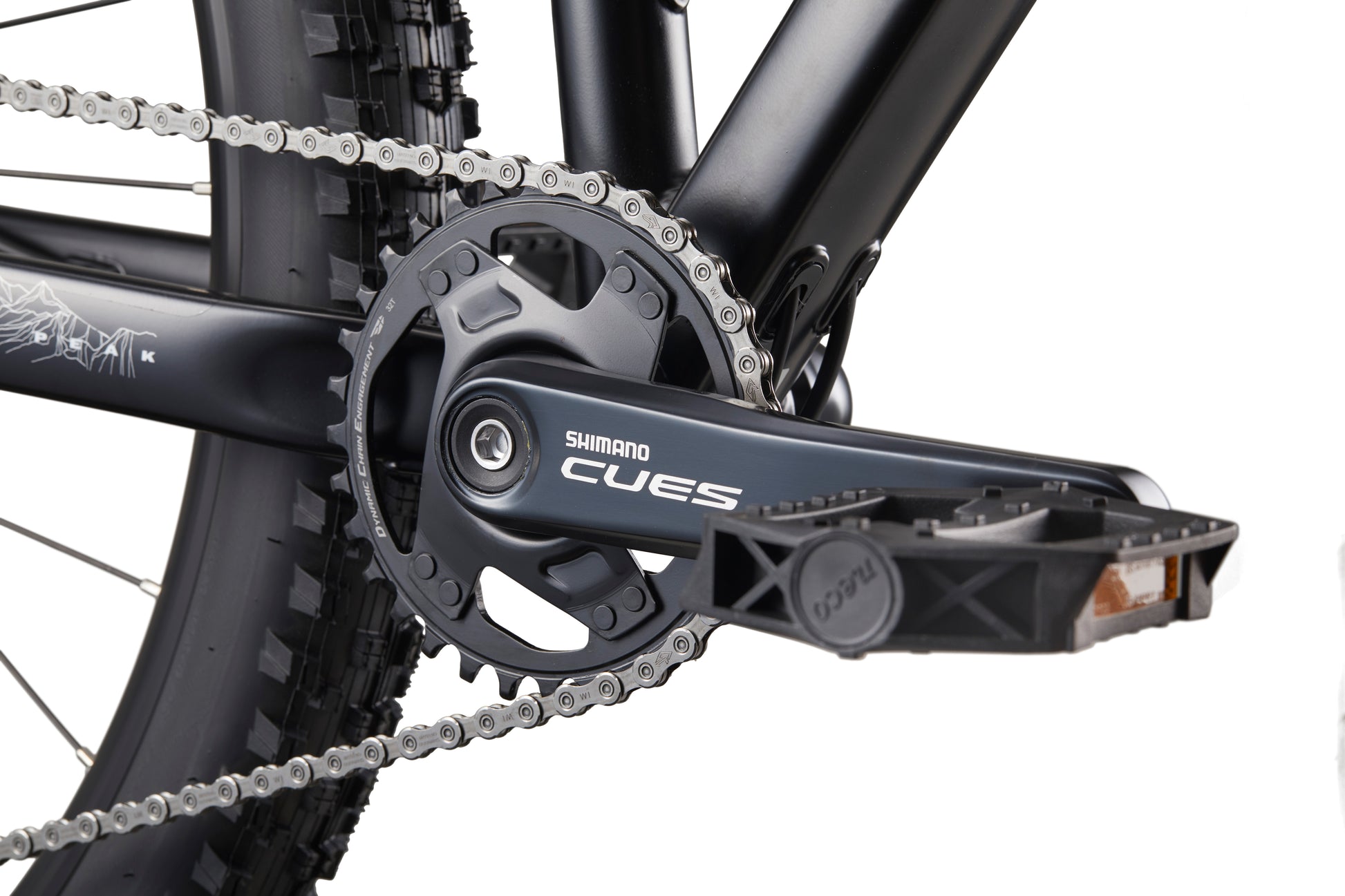

  • Close-up of the Double Peak’s Shimano CUES crankset and chainring; 148 boost spacing adds to the bike’s modern design.

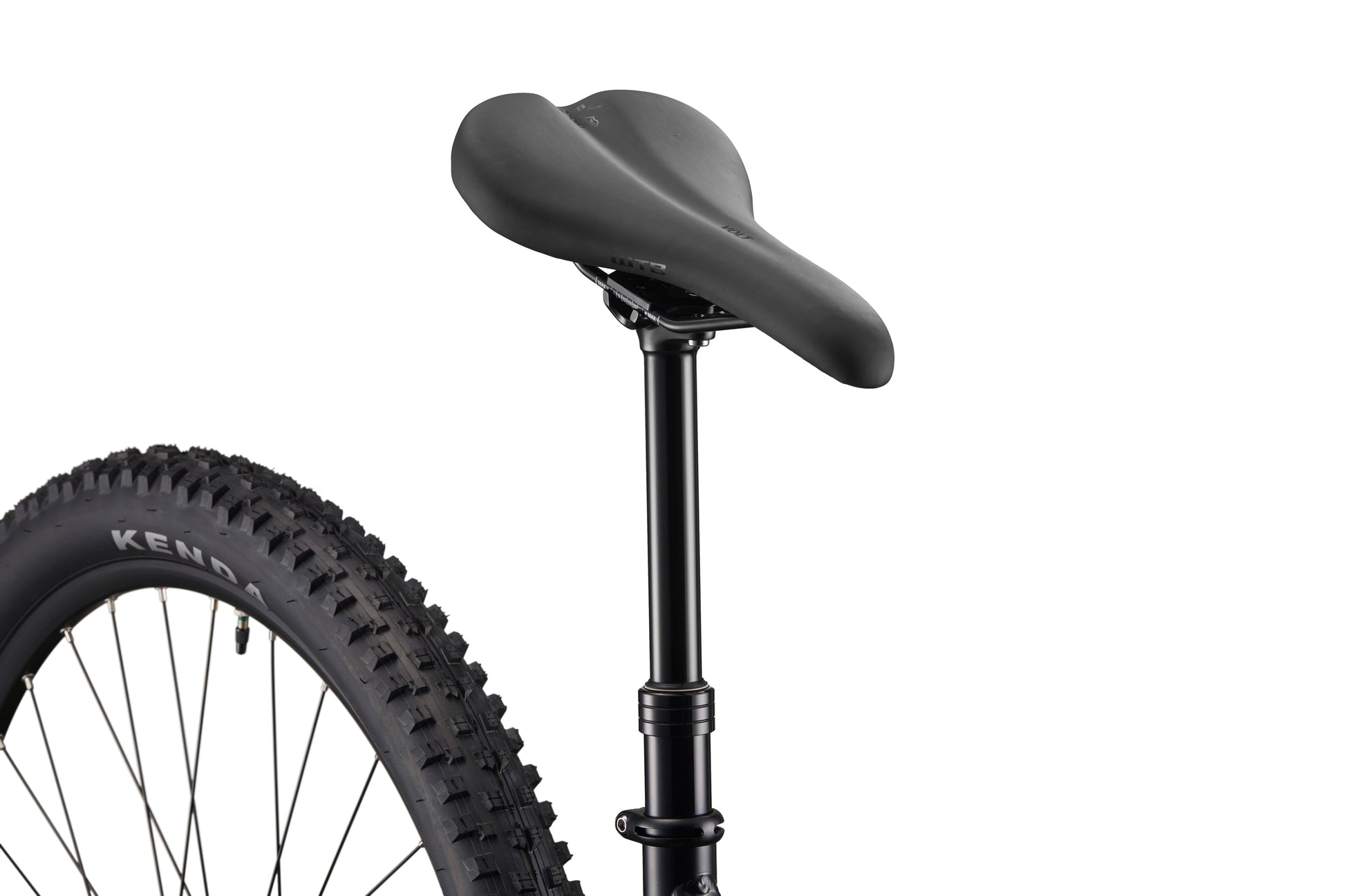

  • Close-up of Double Peak’s black bike seat, dropper post, seatpost, and rear tire against a white background.

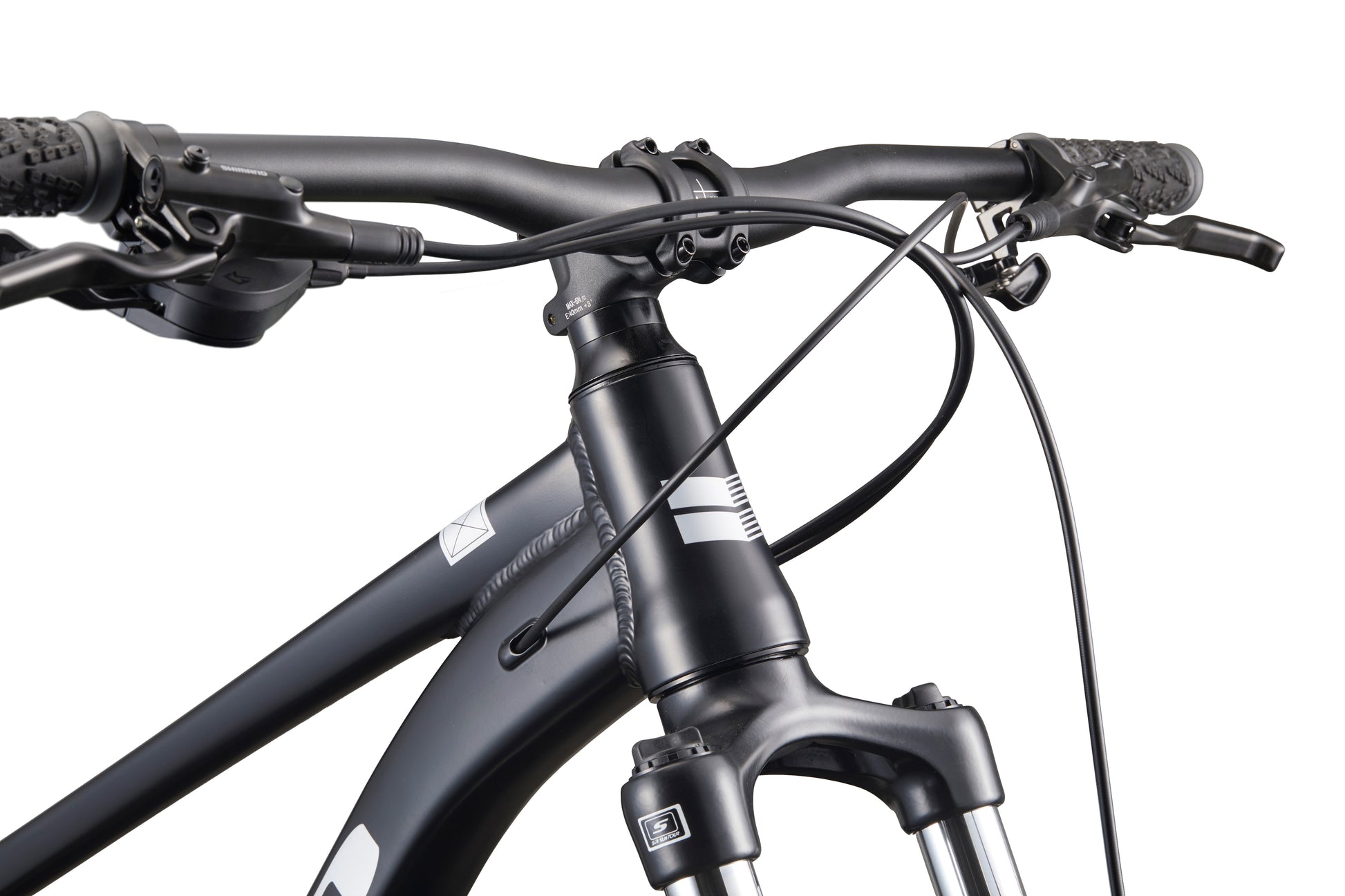

  • Close-up of Double Peak’s black handlebars, front suspension fork, and hydraulic disc brakes against a white background.

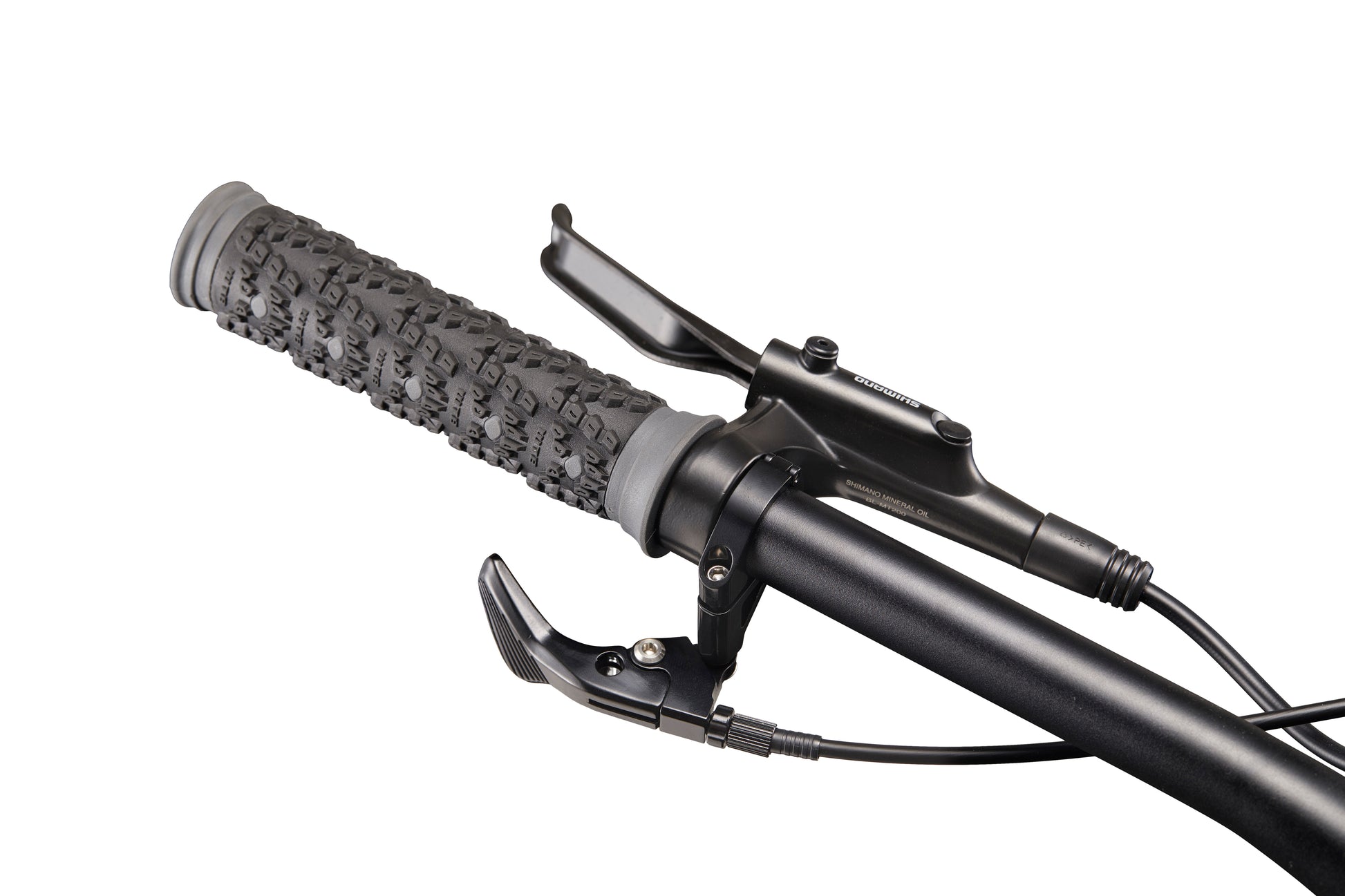

  • Close-up of Double Peak bike handlebar with textured grip, hydraulic disc brakes, lever, and shifter on white background.

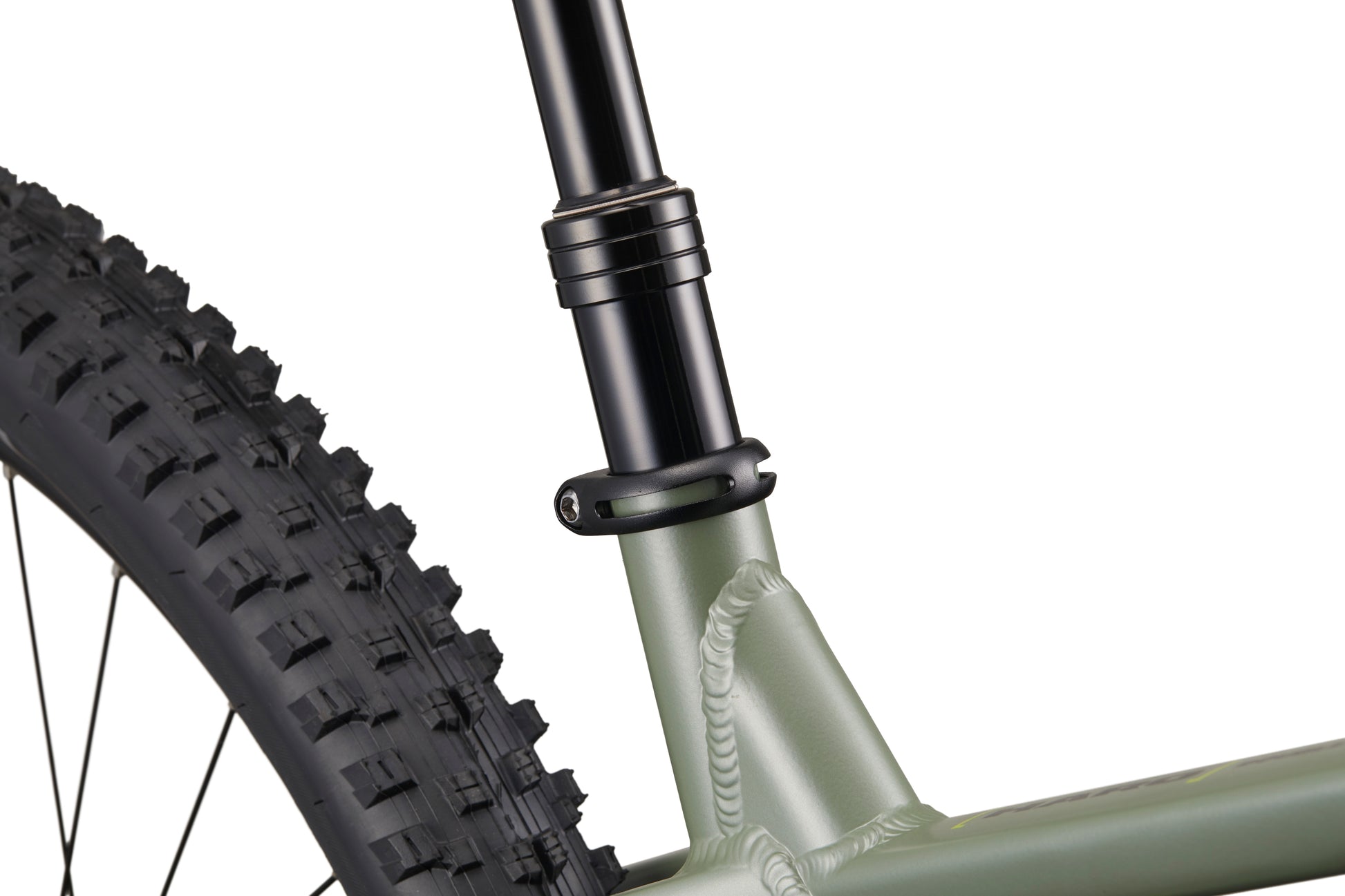

  • Close-up of Double Peak’s rear tire, seatpost, frame with visible welds, 148 boost spacing, and seatpost clamp.

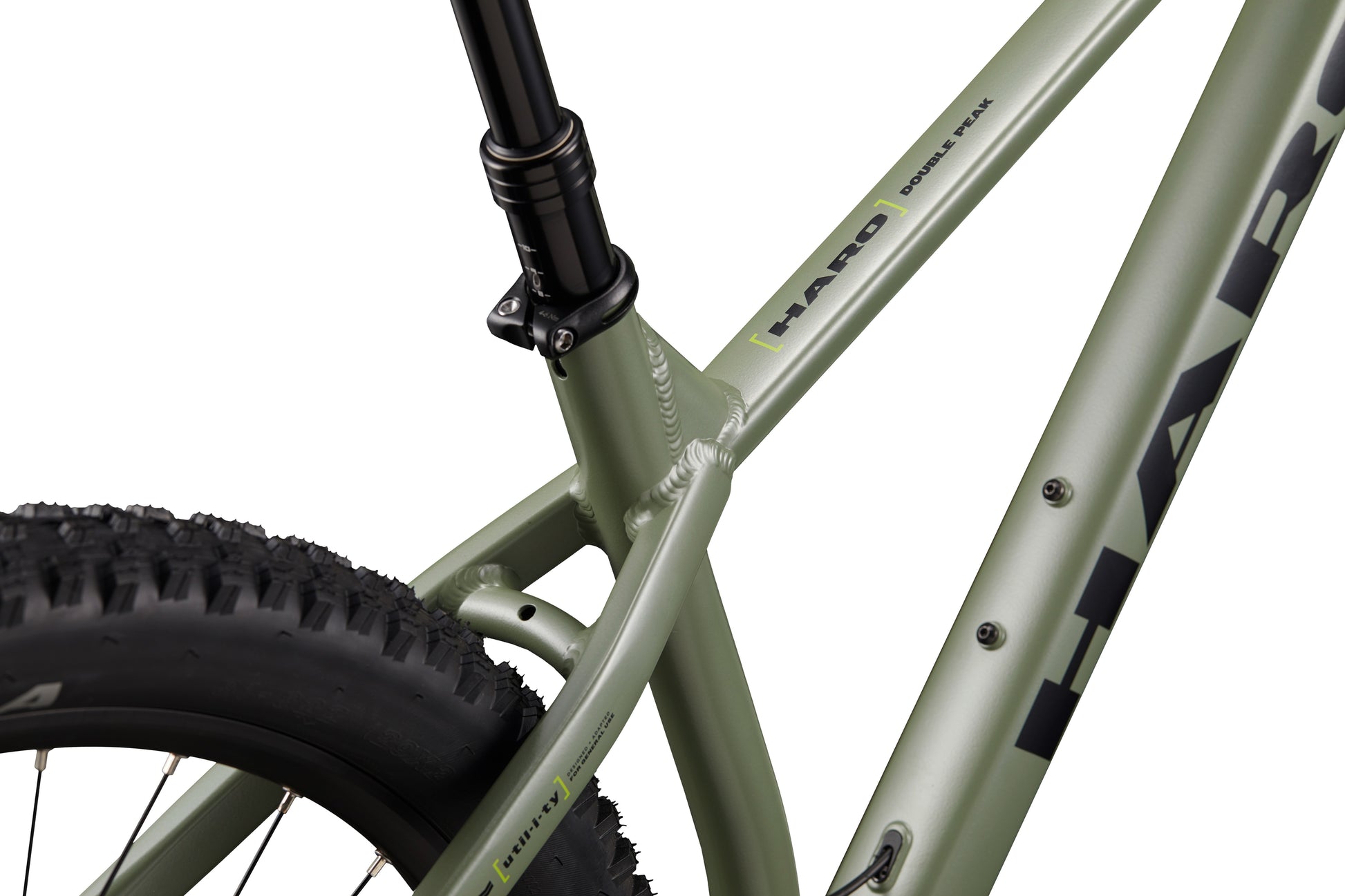

  • Close-up of a green Double Peak bike frame, rear tire, seat tube, and hydraulic disc brakes are visible.

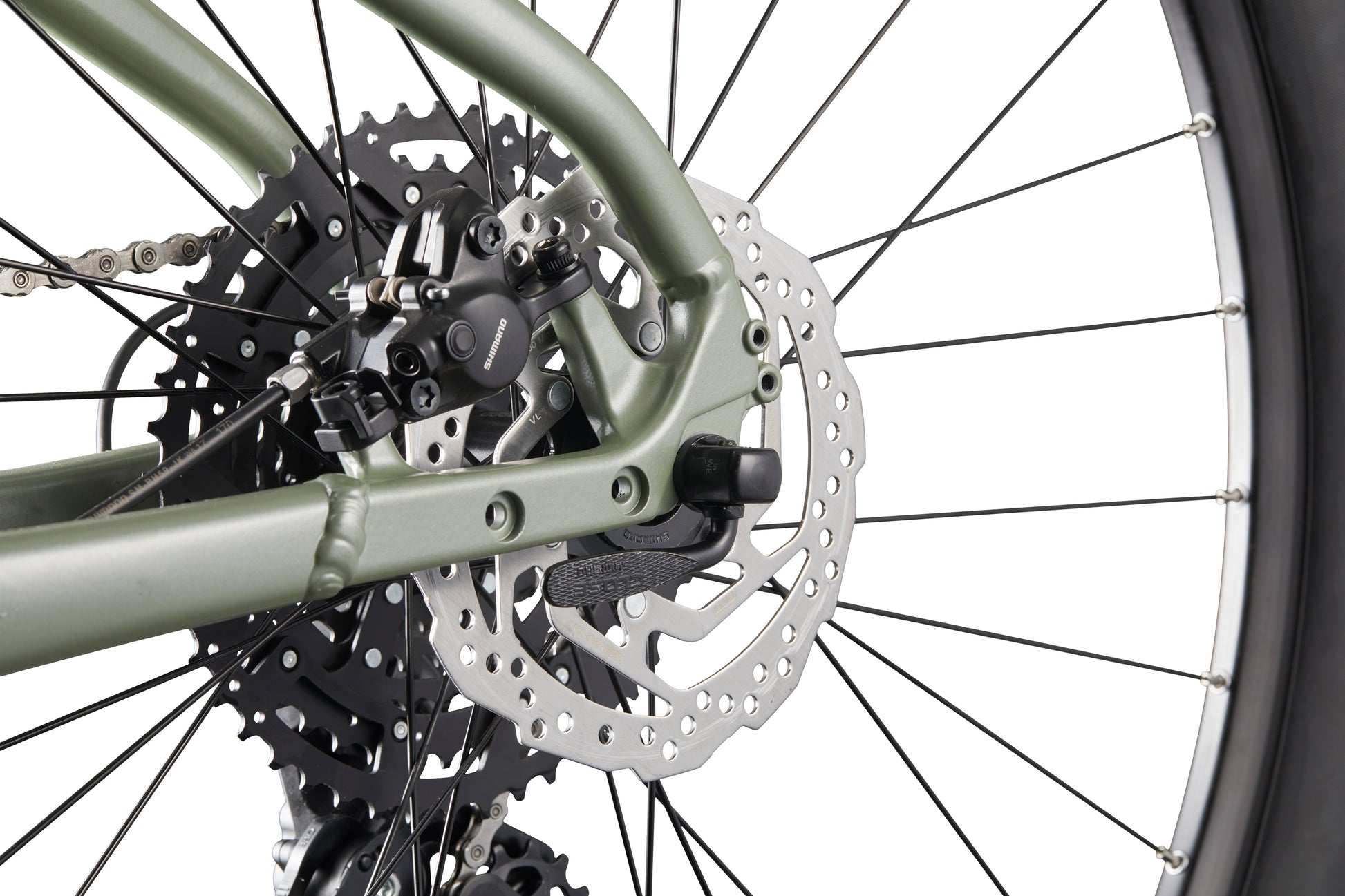

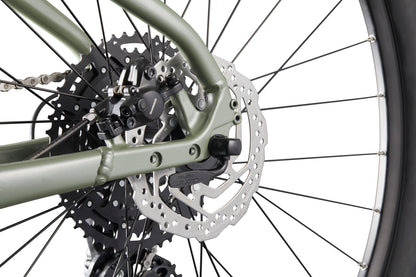

  • Close-up of Double Peak’s rear hydraulic disc brakes, chain, gear cassette, black spokes, and green metal frame.

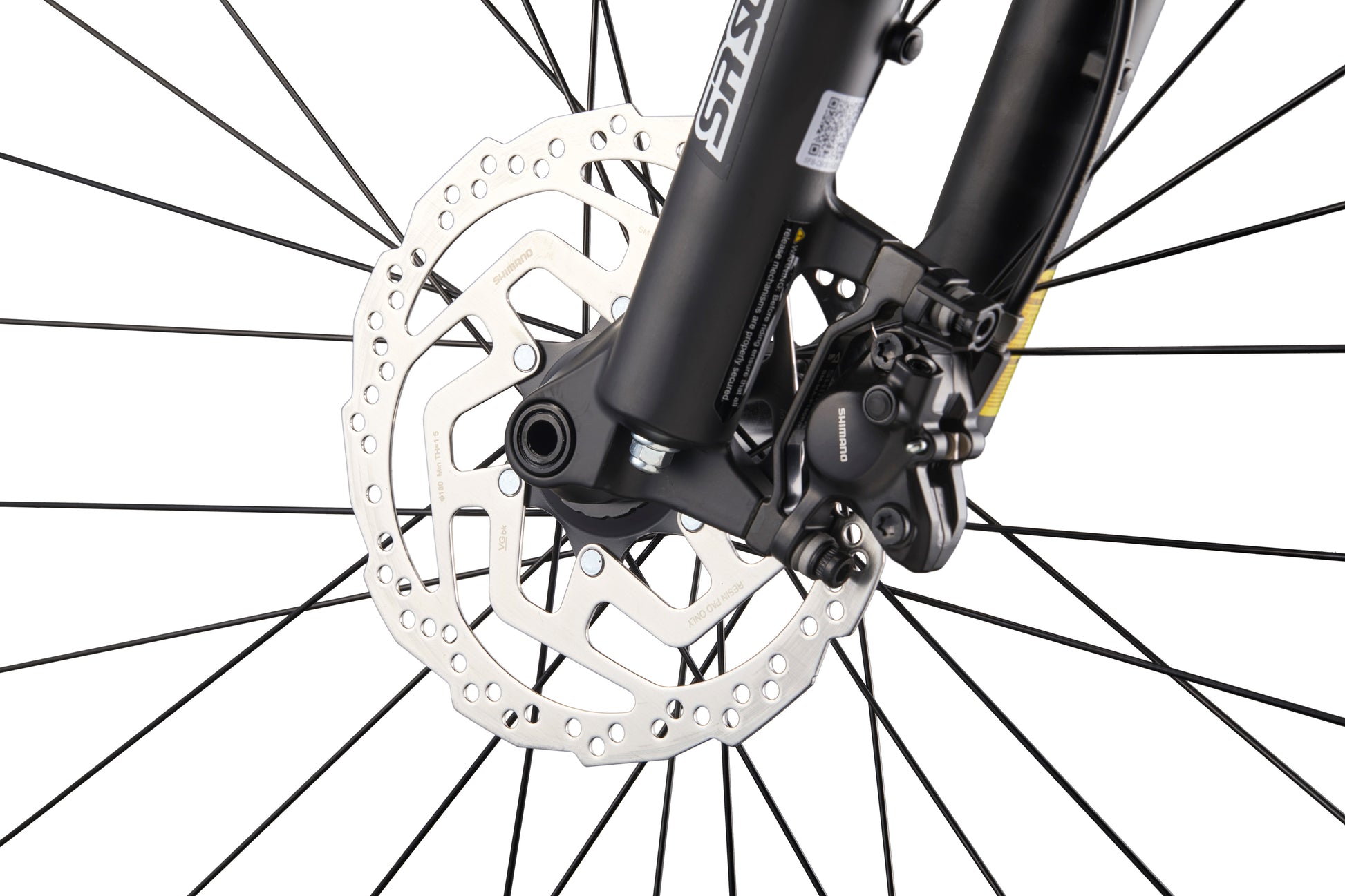

  • Close-up of Double Peak bike’s front wheel with spokes, hydraulic disc brakes, rotor, and caliper on white background.

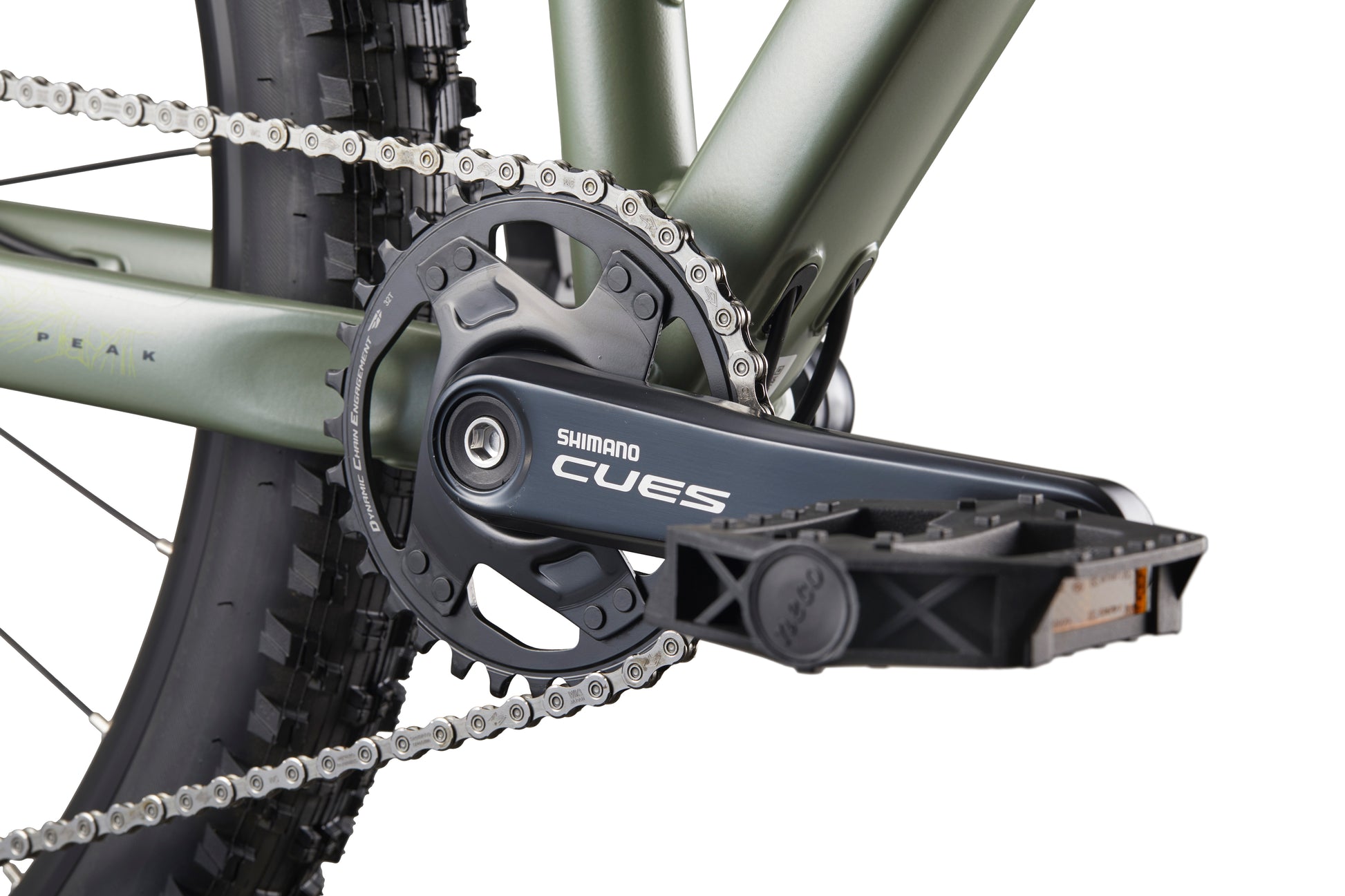

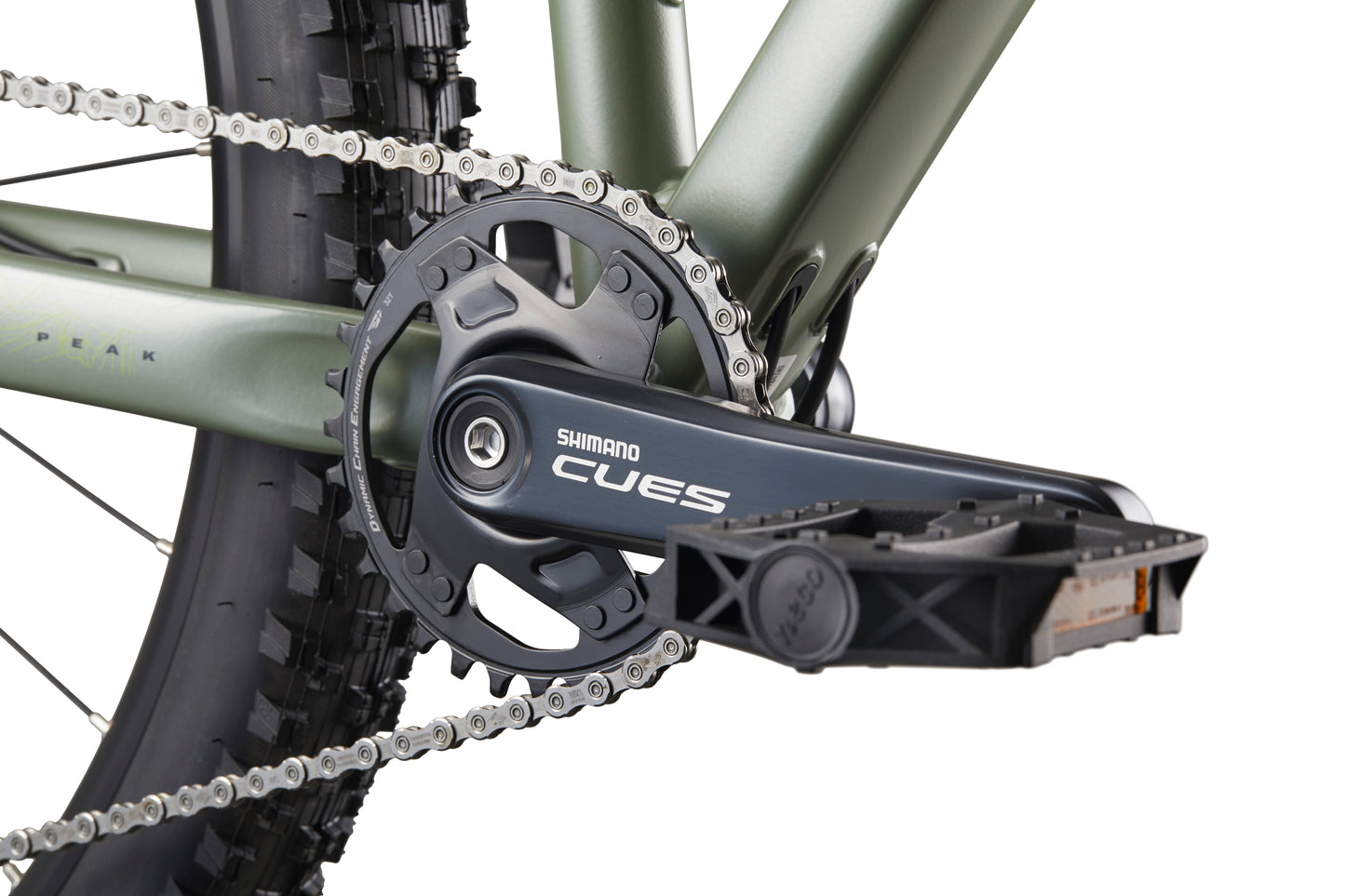

  • Close-up of Double Peak bike crankset, chain, pedal with Shimano CUES logo on a metallic frame and 148 boost spacing for stability.

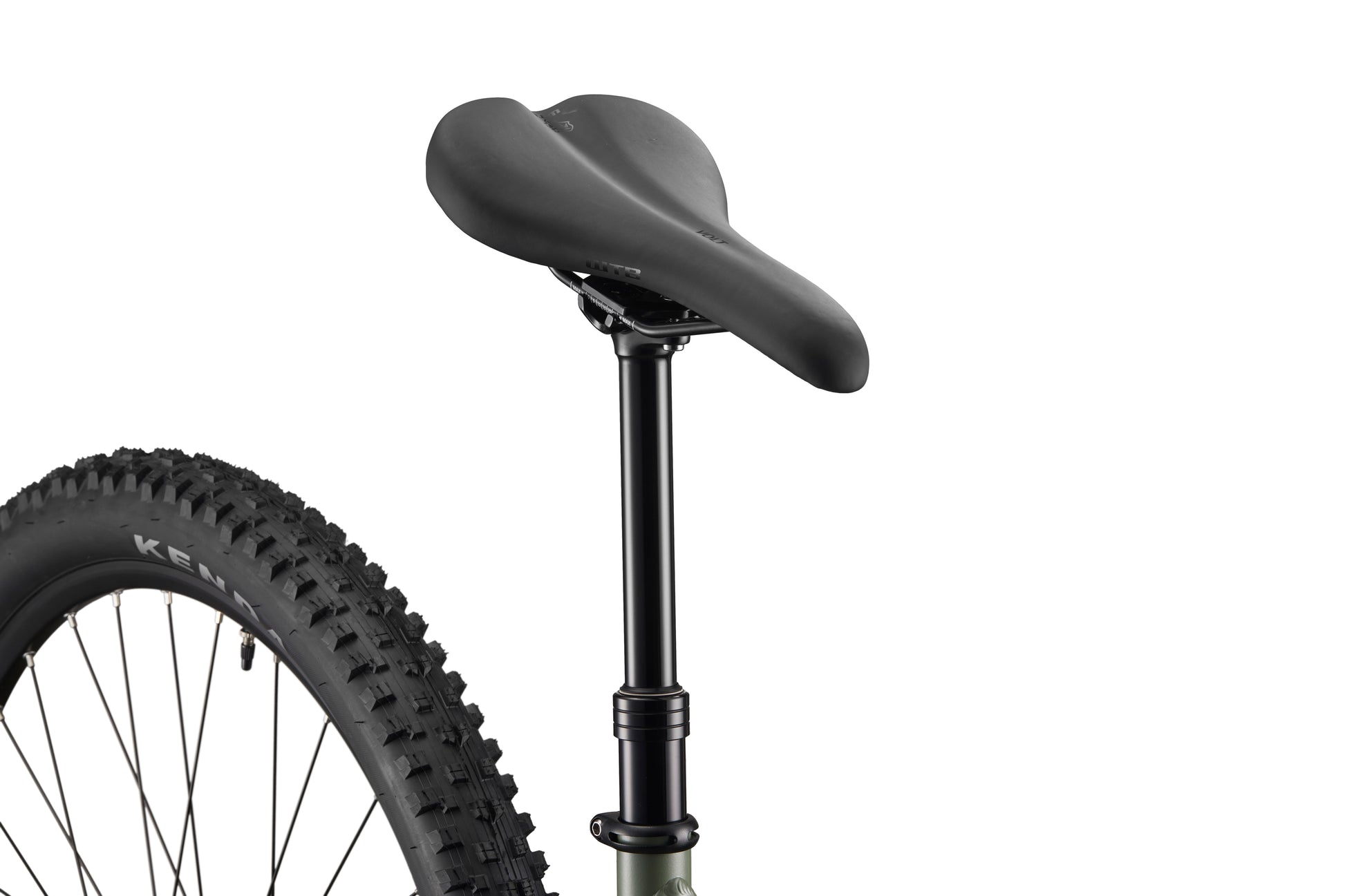

  • Close-up of Double Peak’s black seat and dropper post, with rear wheel and tire partially visible against a white background.

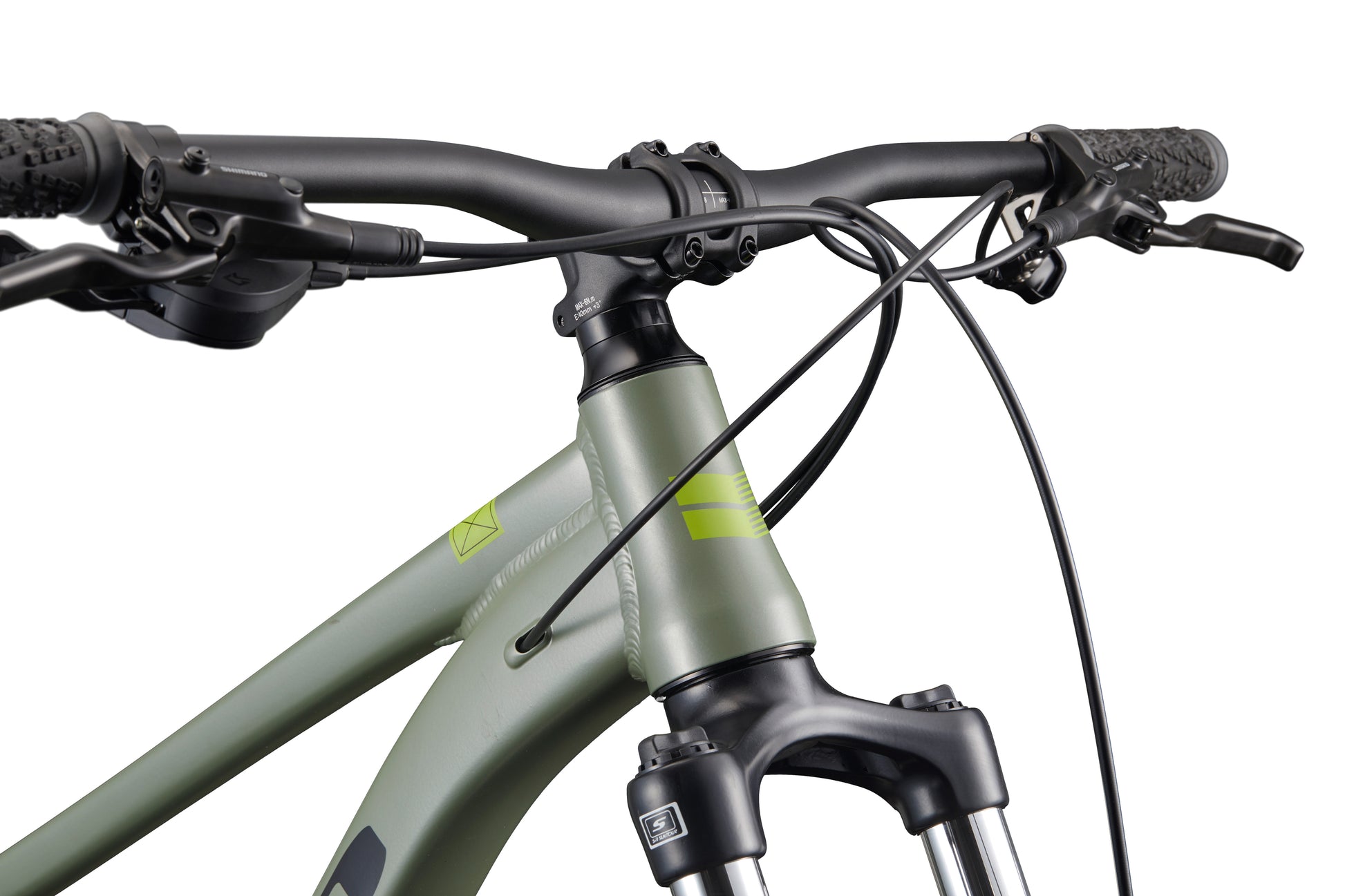

  • Close-up of Double Peak mountain bike handlebars, fork, and frame with 148 boost spacing for improved stability.

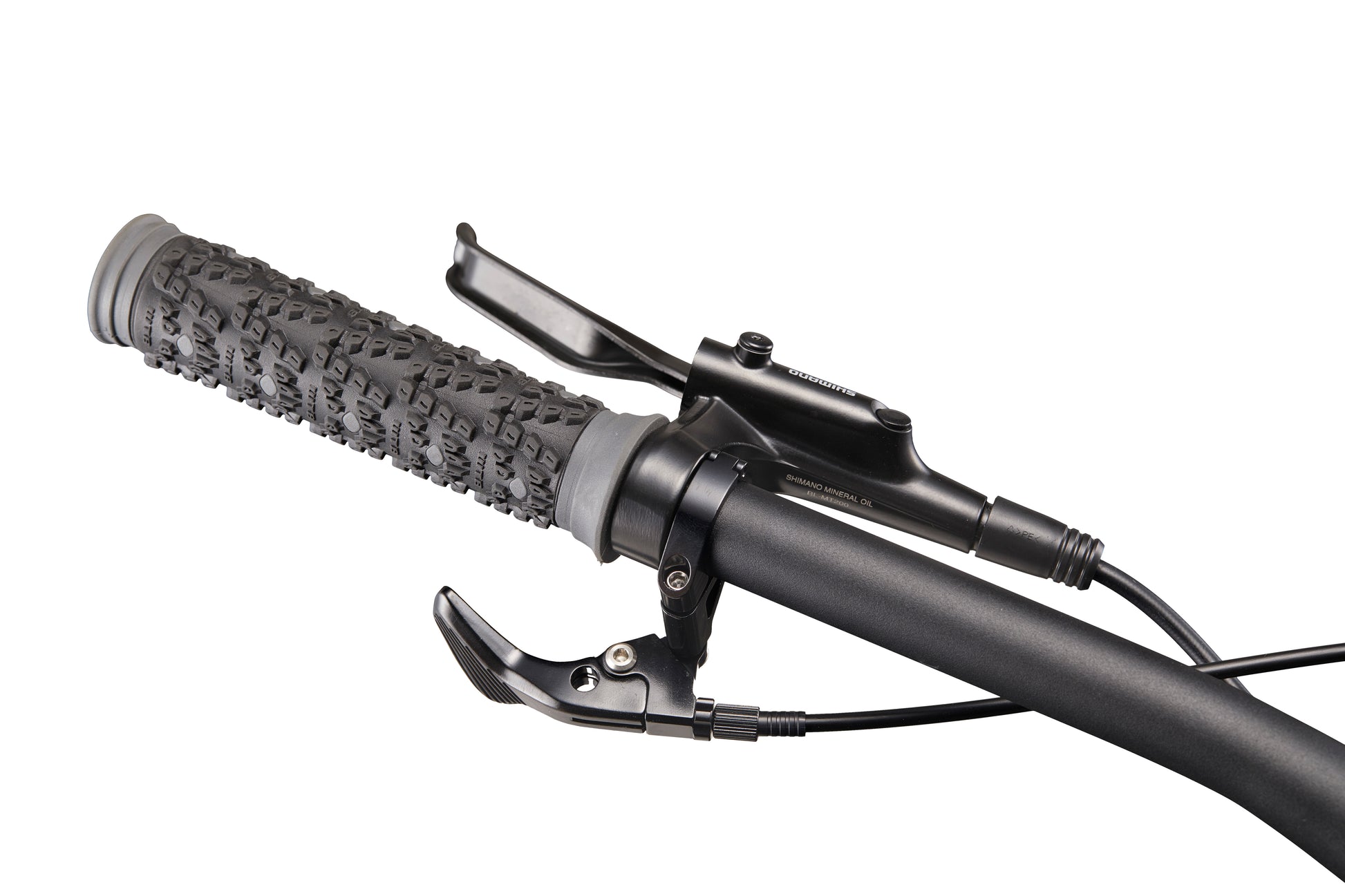

  • Close-up of Double Peak’s black handlebar with textured grip, hydraulic disc brakes, and gear shifter on a white background.
1 18

Double Peak

Double Peak

$1,199.99
$1,199.99
Sale Sold out

16348

The new Double Peak is the perfect companion for all your local trails. Coming standard with a dropper post, big gear range, and hydraulic disk brakes mean you'll be planted going up and coming down. UDH, 148 boost spacing, and a modern tapered headtube mean the Double Peak is the perfect platform for endless upgrades.

Color: LT Olive
size

View full details

PRODUCT INFORMATION

SPECIFICATIONS

FRAMESET
FrameHydroformed, heat-treated 6061-T6 aluminum hardtail frame. Tapered head tube with double-butted top and down tubes. Internal cable routing
ForkSR SUNTOUR XCM32, 29", 15x110 boost, COIL with preload, 100mm travel
DRIVETRAIN
DrivetrainShimano CUES 1X10s
CranksShimano Cues 2-piece, FC-U4000-1, 170mm, 32T chainring
PedalsFPD PC
ChainShimano Linkglide CN-LG500
Bottom BracketShimano BB-UN101 Square
Rear DerailleurShimano CUES RD-U6000, GS 10/11-speed
Derailleur ShifterShimano Cues SL-U6000-10R 10-speed W/O optical window
CassetteShimano Cues CS-LG300-10, 10-speed, 11-13-15-17-20-23-28-34-41-48T
WHEELS
TiresKenda K1214 Regolith, 29 x 2.4" front and rear, wire bead
Wheels/RimsAlloy double-wall, pinned seams, 32h w/eyelets
Front HubShimano HB-TC500-15-B Center Lock 32h, 15mm thru-axle
Rear HubShimano FH-QC300-HM, Center lock, 32h, 135mm-QR
BRAKING SYSTEM
BrakesShimano MT200 Hydraulic 2-piston disc brake with 180mm rotor front and 160mm rotor rear
OTHER COMPONENTS
Grips/TapeWTB WeirWolf
HandlebarHaro Alloy 6061 Pivot MTB riser bar, 780 wide, 20mm rise, no logo
StemHaro Alloy 6061 Pivot MTB stem, Forged 40mm reach
HeadsetFSA NO.57B_NO.57E sealed, tapered 1-1/8" - 1.5" (44/56mm)
SaddleWTB VOLT WIDE STEEL, MTB saddle
Seat PostLimotec A1 dropper post 100/125/150 travel
Seat ClampForged Alloy 6061

GEOMETRY

SIZESMALLMEDIUMLARGEX-LARGE
Seat Tube380mm420mm450mm500mm
Top Tube Effective599.3mm620.6mm643.3mm680.9mm
Head Tube Angle68°68°68°68°
Seat Tube Angle74°74°74°74°
Chain Stay/ RC Length445mm445mm445mm445mm
Wheelbase1165.3mm1187mm1188.8mm1227.6mm
Head Tube Length95mm100mm110mm120mm
Stack Height652.2mm629.8mm639.1mm648.3mm
Reach420mm440mm460mm495mm
Axle to Crown530mm530mm530mm530mm
Fork Offset44mm44mm44mm44mm
