• A gray Double Peak 1 mountain bike with Rock Shox Judy fork, black wheels, disc brakes, and red Haro logo on the frame.
  • Close-up of Double Peak 1 showing a Shimano Cues drivetrain, knobby tire, white frame, and black EXA Form clamp on the seat post.

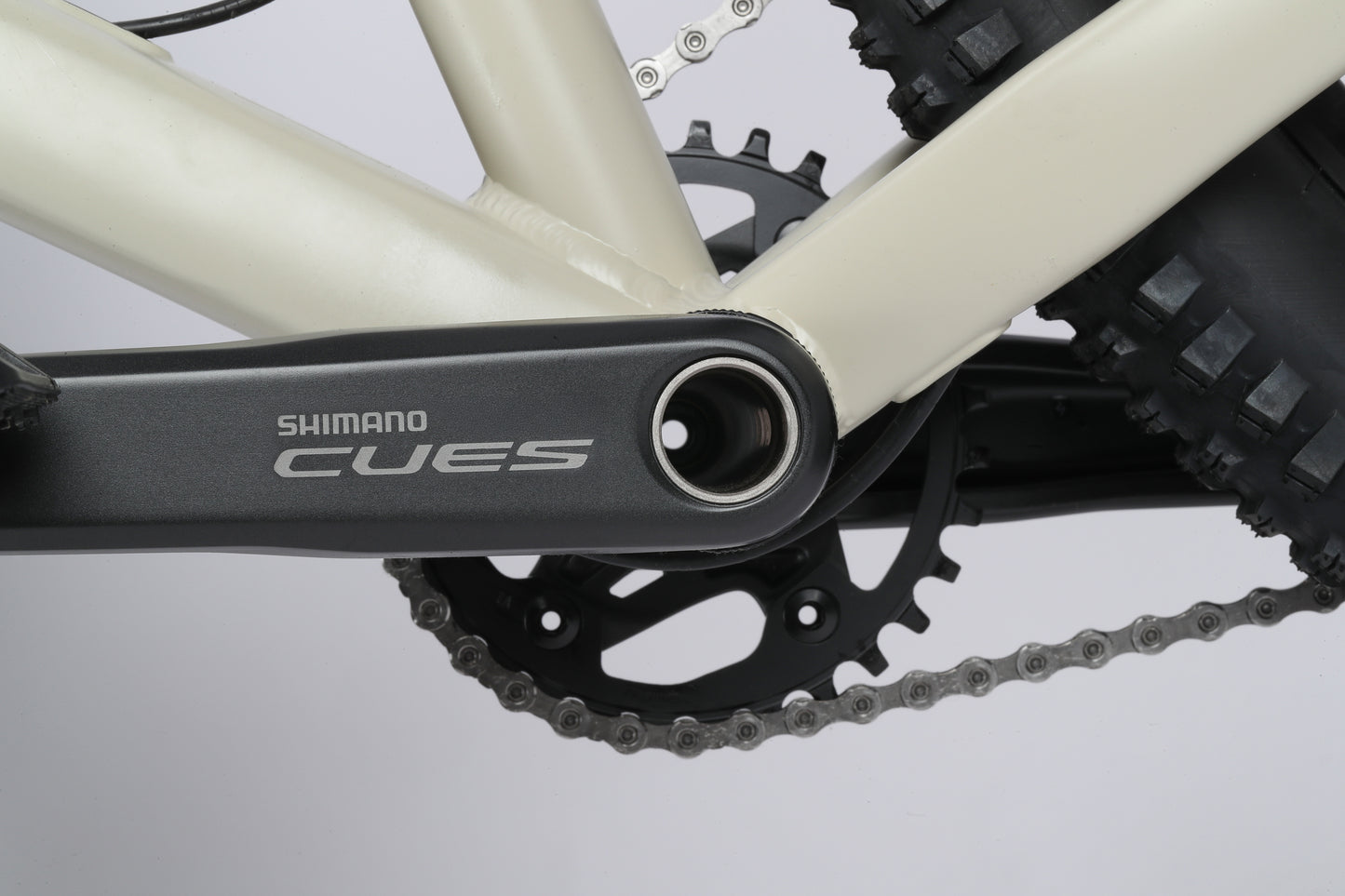

  • Close-up of a Shimano CUES crankset and chainring on a Double Peak 1 beige frame, with a black tire in the background.

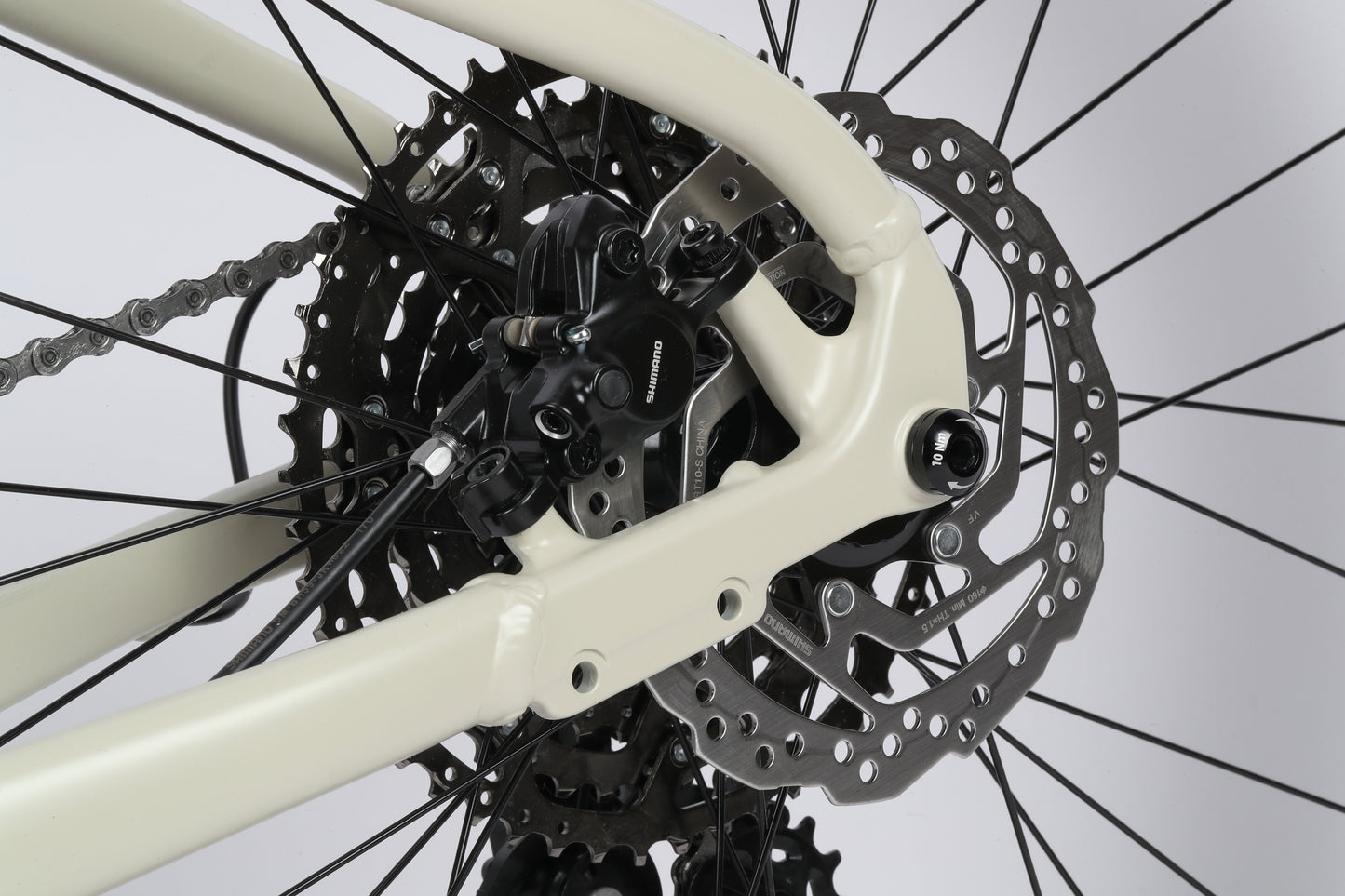

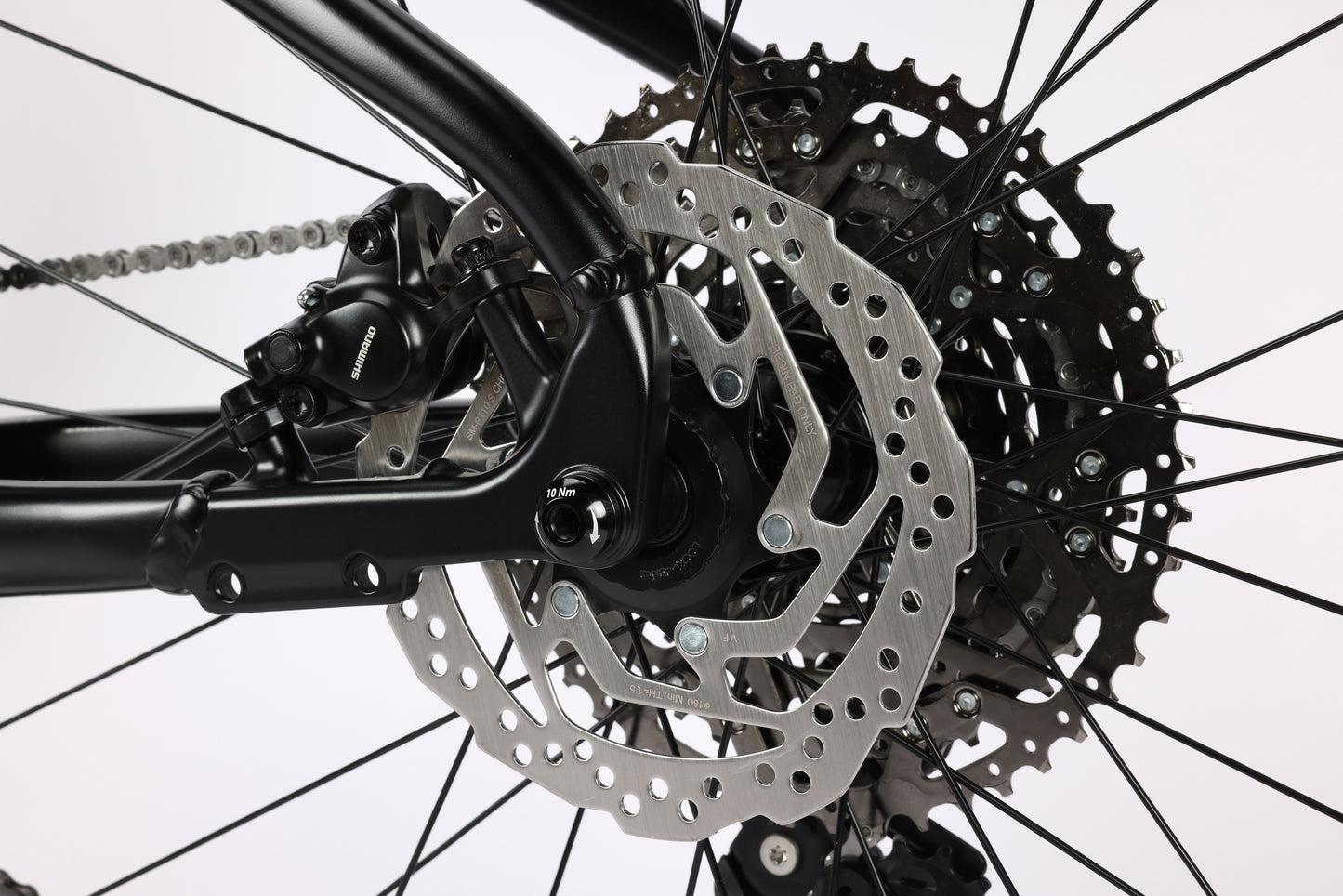

  • Close-up of a Double Peak 1s Shimano hydraulic disc brakes and gear cassette, highlighting detailed components and mechanisms.

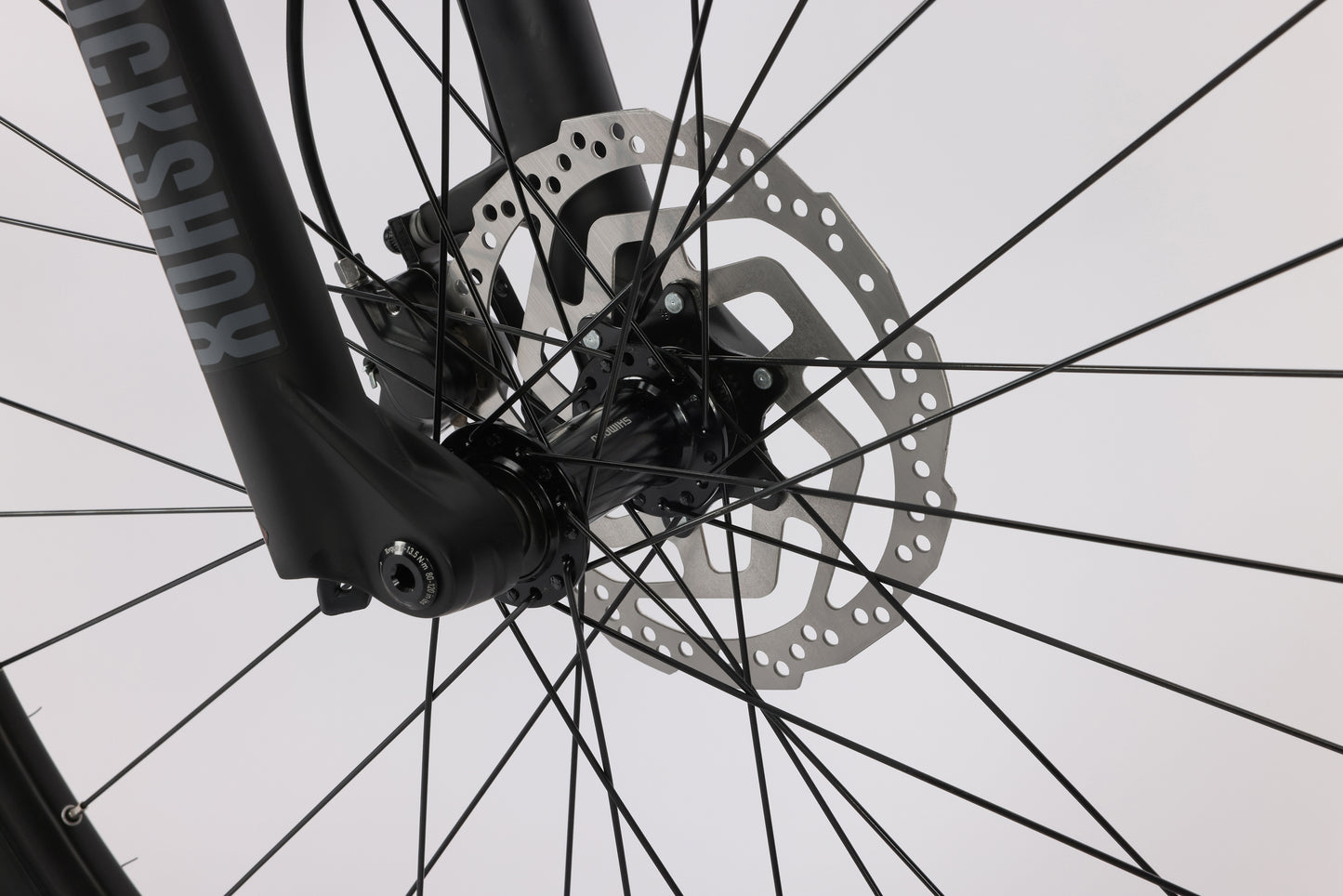

  • Close-up of Double Peak 1 bikes Shimano hydraulic disc brakes and metal rotor with RockShox branding against a plain background.
  • Close-up of a sleek black bicycle seat on a gray Double Peak 1 frame with partial red-orange text visible.

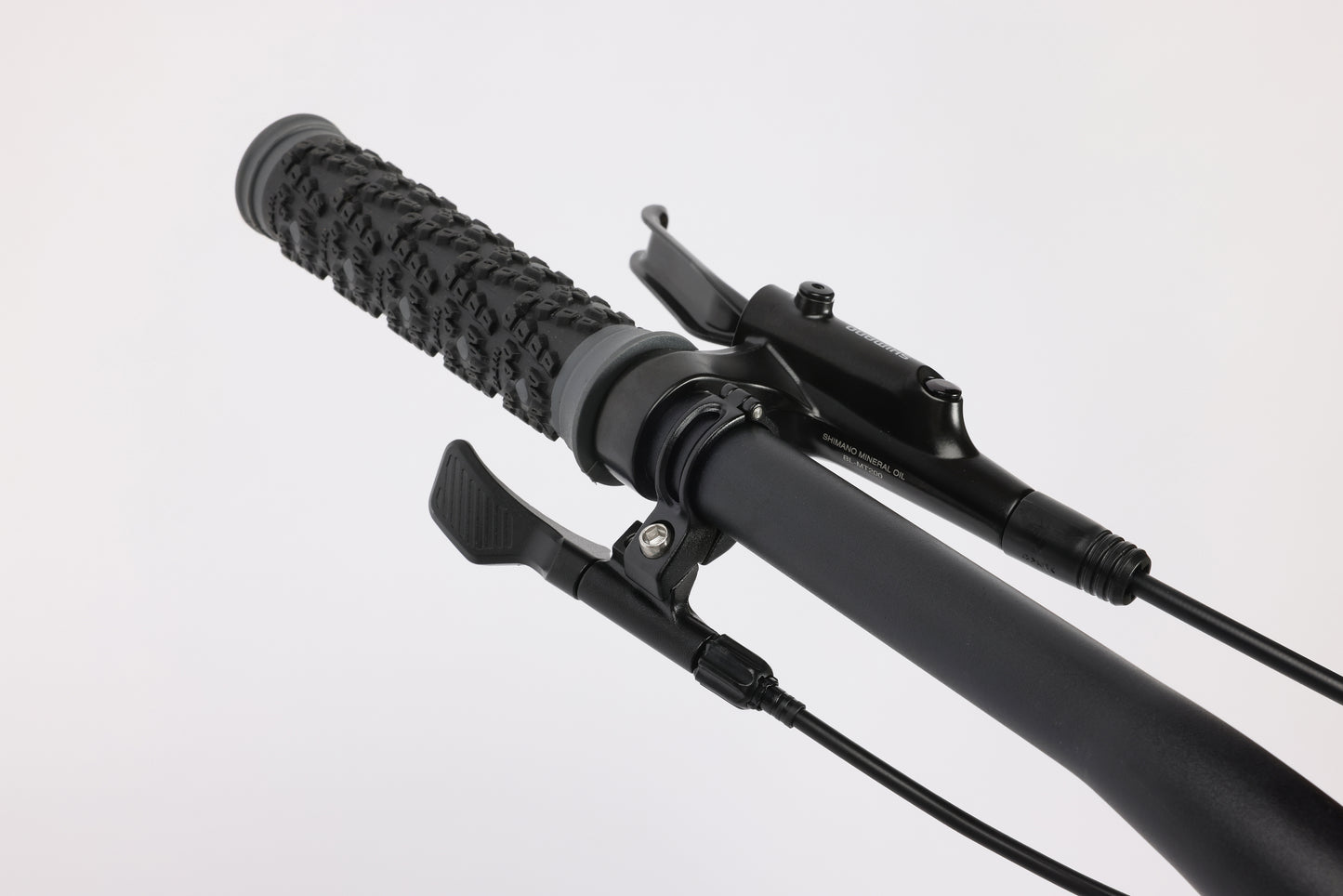

  • Close-up of Double Peak 1s beige handlebars with Rock Shox Judy fork, PIVOT branding, and black grips on a white background.
  • Close-up of Shimano Cues drivetrain with crankset/pedal, showing part of Double Peak 1 tire and chain.

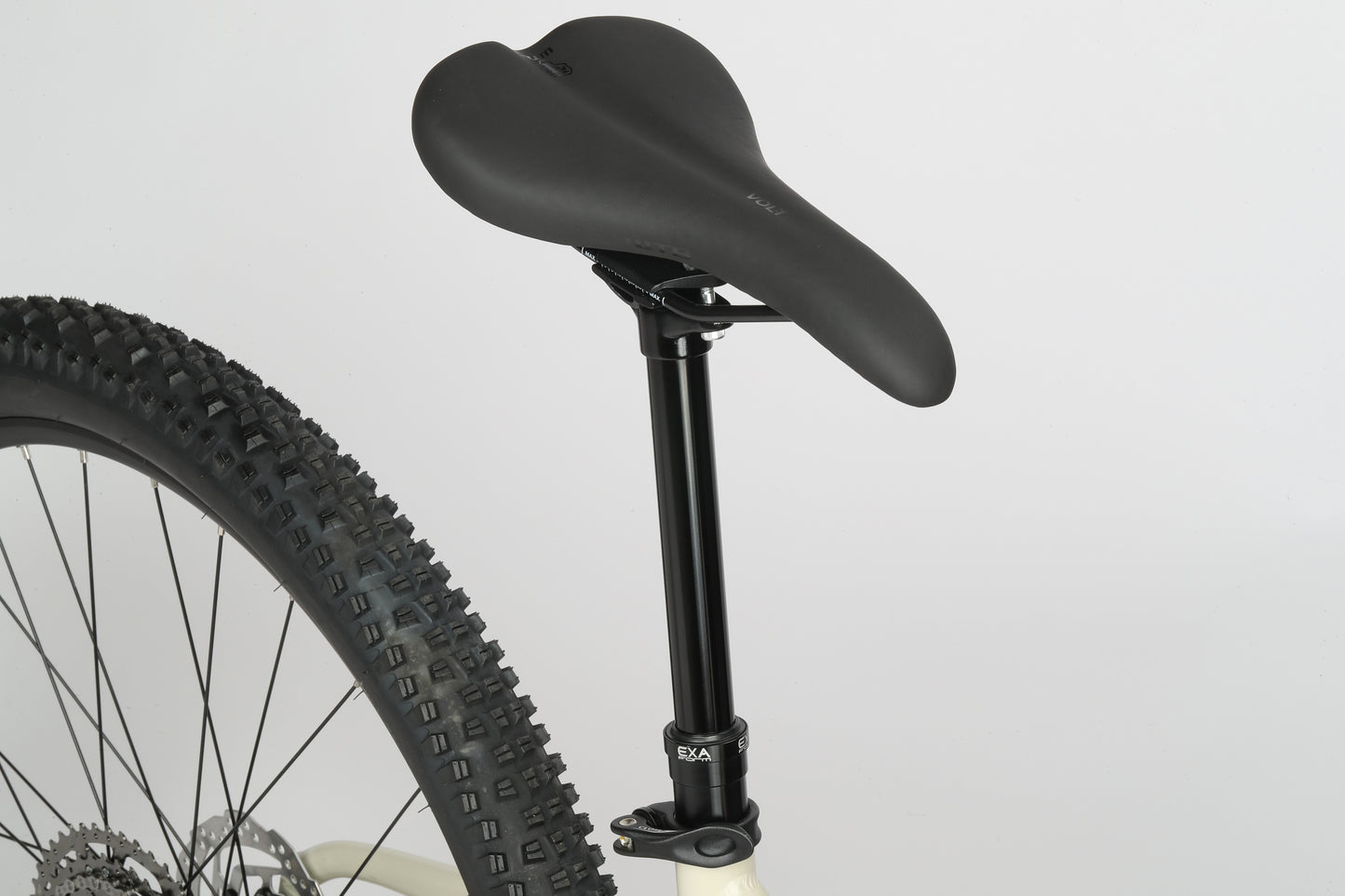

  • Close-up of the black seat on a Double Peak 1 bike with a large knobby tire, set against a white background.
1 9

Double Peak 1

Double Peak 1

$1,499.99
$1,499.99 $1,499.99
Sale Sold out

15744

Life is a series of peaks and valleys--the Double Peak collection is ready for all of it! The Double Peak 1 is our all-mountain machine featuring a hydroformed aluminum frame with a tapered head tube, matched with a 120mm travel Rock Shox Judy fork. A Shimano Cues 1 X 11 drivetrain is simple, smooth and efficient. Double wall rims are laced tight with Shimano Center lock hubs with a 12mm Boost rear axle and 15mm front. WTB Trail Boss tires get you down the trail, while Shimano hydraulic disc brakes slow it down at the bottom of the hill. Fun, easy, and won't break the bank. The Double Peak is ready.
Color
Size

View full details

FEATURES

  • Hydroformed, heat-treated 6061-T6 aluminum hardtail frame. Tapered head tube with double-butted top and down tubes with148mm Boost rear axle spacing.
  • Rock Shox Judy Silver TK fork with 120mm travel
  • Shimano Cues 11-speed drivetrain with 11-50T gearing
  • Double-wall 32H alloy rims with Shimano TC500 center-lock hubs, 12mm rear, 15mm front
  • WTB Trail Boss 29 x 2.4" tires, front and rear
  • Shimano MT200 Hydraulic 2-piston disc brake with 180/160mm rotors
  • KS I900 dropper seat post

PRODUCT INFORMATION

SPECIFICATIONS

FRAMESET
FrameHydroformed, heat-treated 6061-T6 aluminum hardtail frame. Tapered head tube with double-butted top and down tubes. 148mm Boost rear axle spacing. Internal cable routing. UDH derailleur hanger.
ForkRock Shox Judy Silver TK with crown adjust, 29", 15x110mm axle, Solo Air, 120mm travel
ColorsMatte Black / Teal, Gloss Tan / Lava
DRIVETRAIN

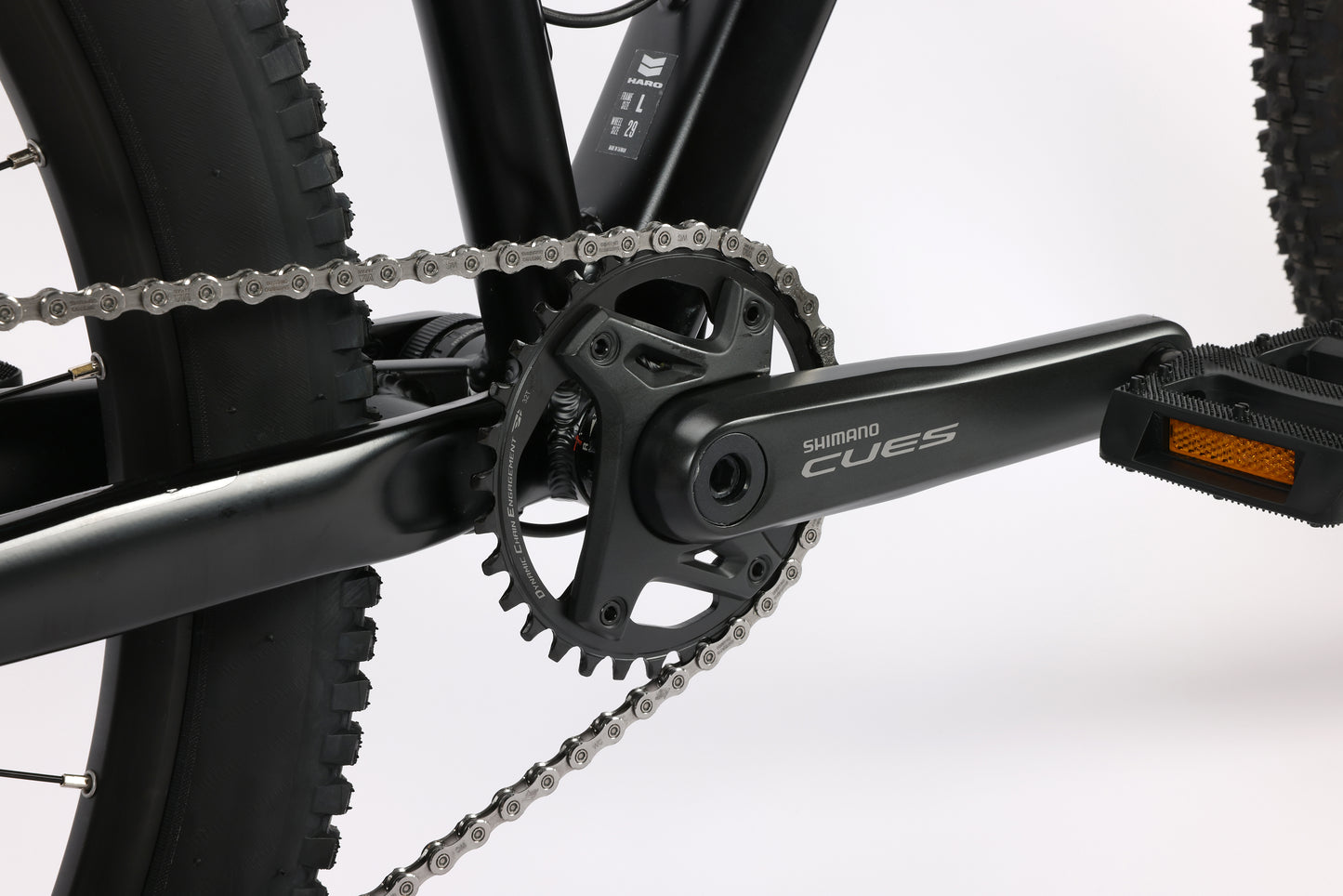

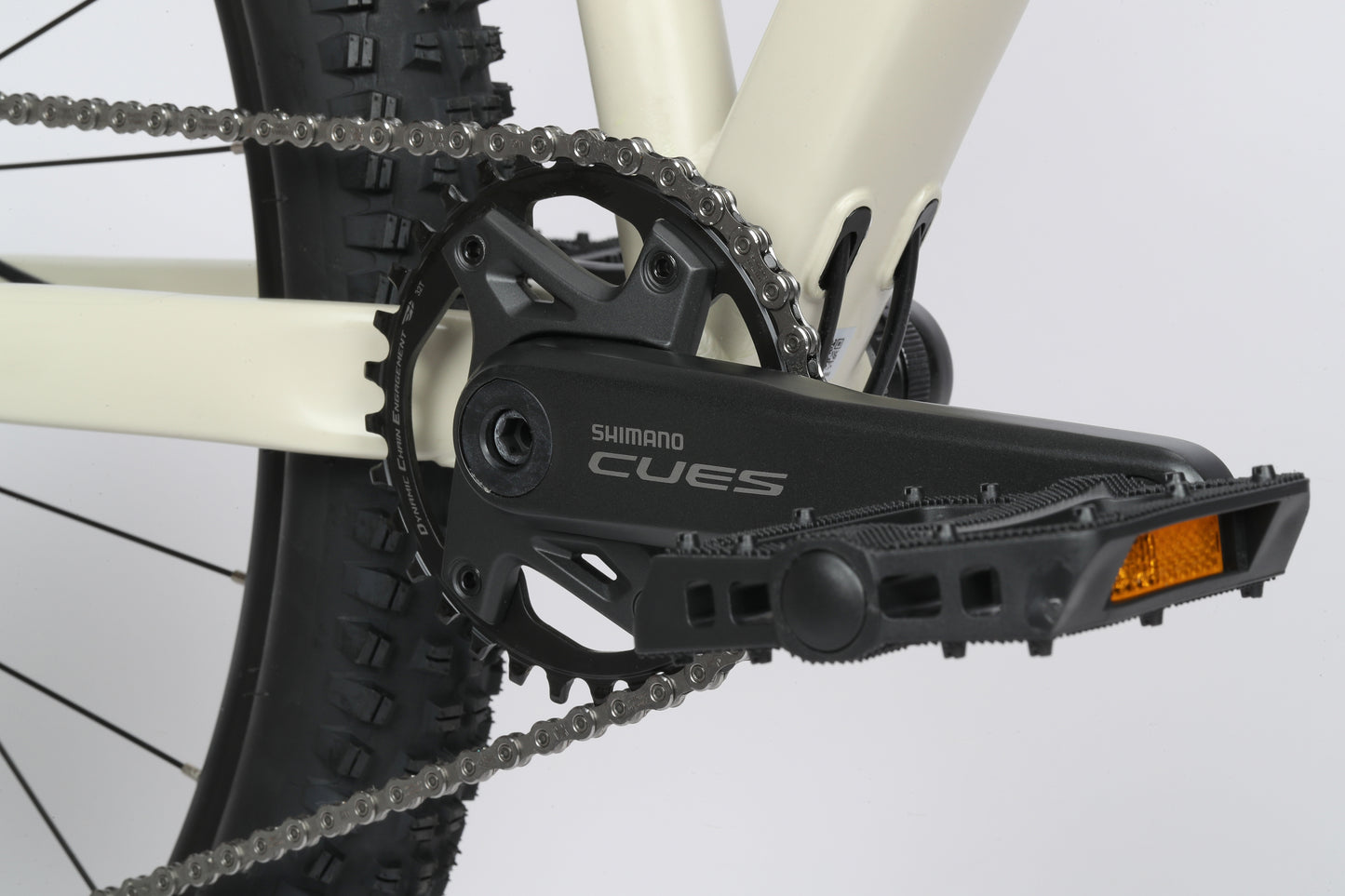

CranksShimano Cues 2-piece, FC-U6000-1, 170mm, 32T chainring
PedalsFPD PC
ChainShimano Linkglide CN-LG500
Bottom BracketShimano Cues BB-MT501 BSA 73mm
Front Derailleur
Rear DerailleurShimano XT Linkglide 11-speed
Derailleur ShifterShimano Cues 11-speed with optical window
Freewheel/CassetteShimano Cues CS-LG400-11, 11-50T
WHEELS
TiresWTB Trail Boss 29 x 2.4" front and rear
Wheels/RimsAlloy double-wall, pinned seams, 32h w/eyelets
Front HubShimano HB-TC500 Center Lock 32h, 15mm thru-axle
Rear HubShimano FH-TC500, Center lock, 32h, 12mm thru-axle
BRAKING SYSTEM
BrakesShimano MT200 Hydraulic 2-piston disc brake with 180mm rotor front and 160mm rotor rear
OTHER COMPONENTS
Grips/TapeWTB WeirWolf

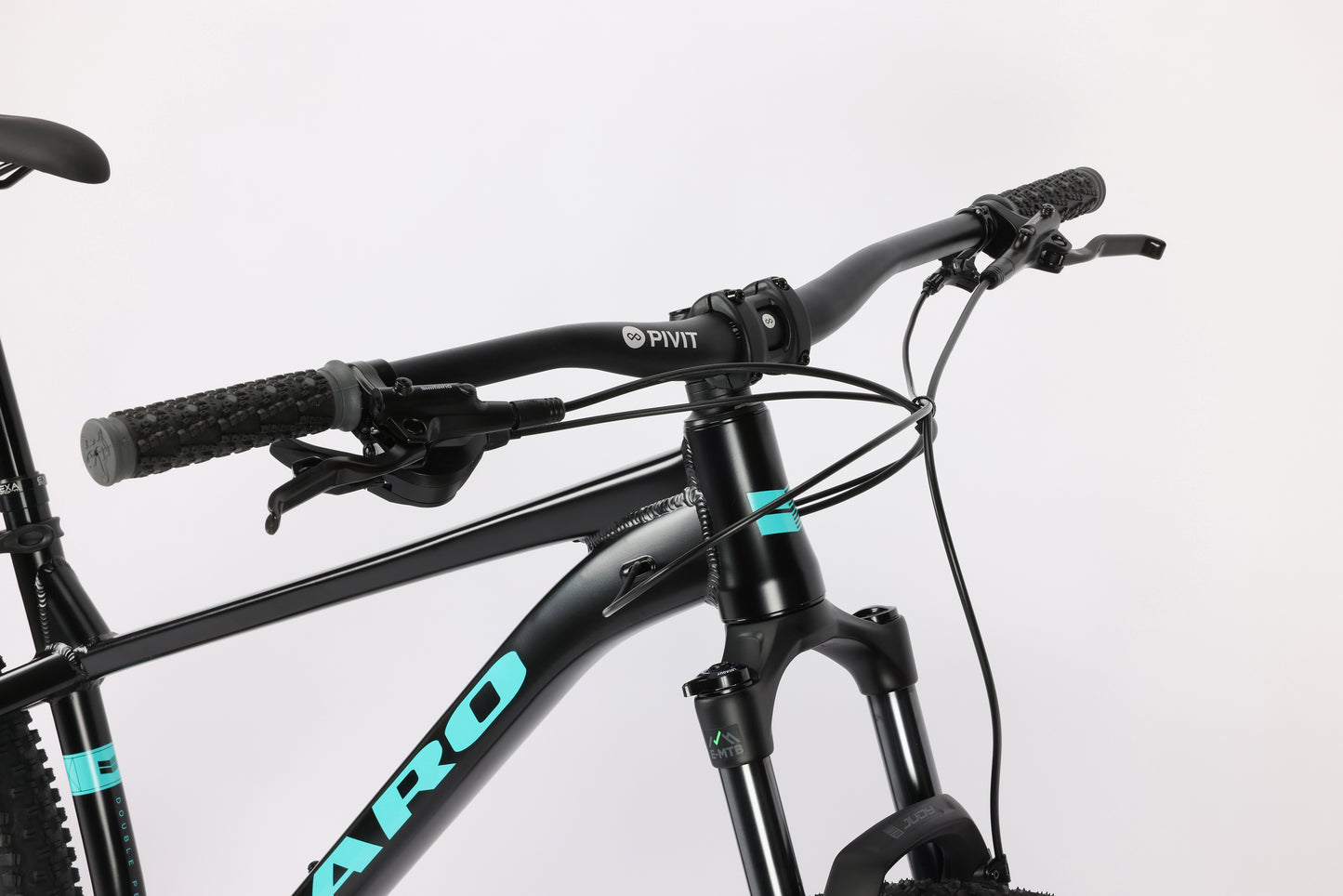

HandlebarHaro Alloy 6061 Pivot MTB riser bar, 780 wide, 20mm rise
StemAlloy 6061 Forged 40mm reach
HeadsetFSA Orbit sealed, tapered 1-1/8" - 1-1/5" FSA (44/56mm)
SaddleWTB Volt Medium
Seat PostKS I900 dropper post
Seat ClampForged Alloy 6061
ExtrasTubeless tire sealant included.

GEOMETRY

SIZING GUIDE

MANUALS, GUIDES & DOWNLOADS

Downloadable PDFs can be found in Manuals & Guides
