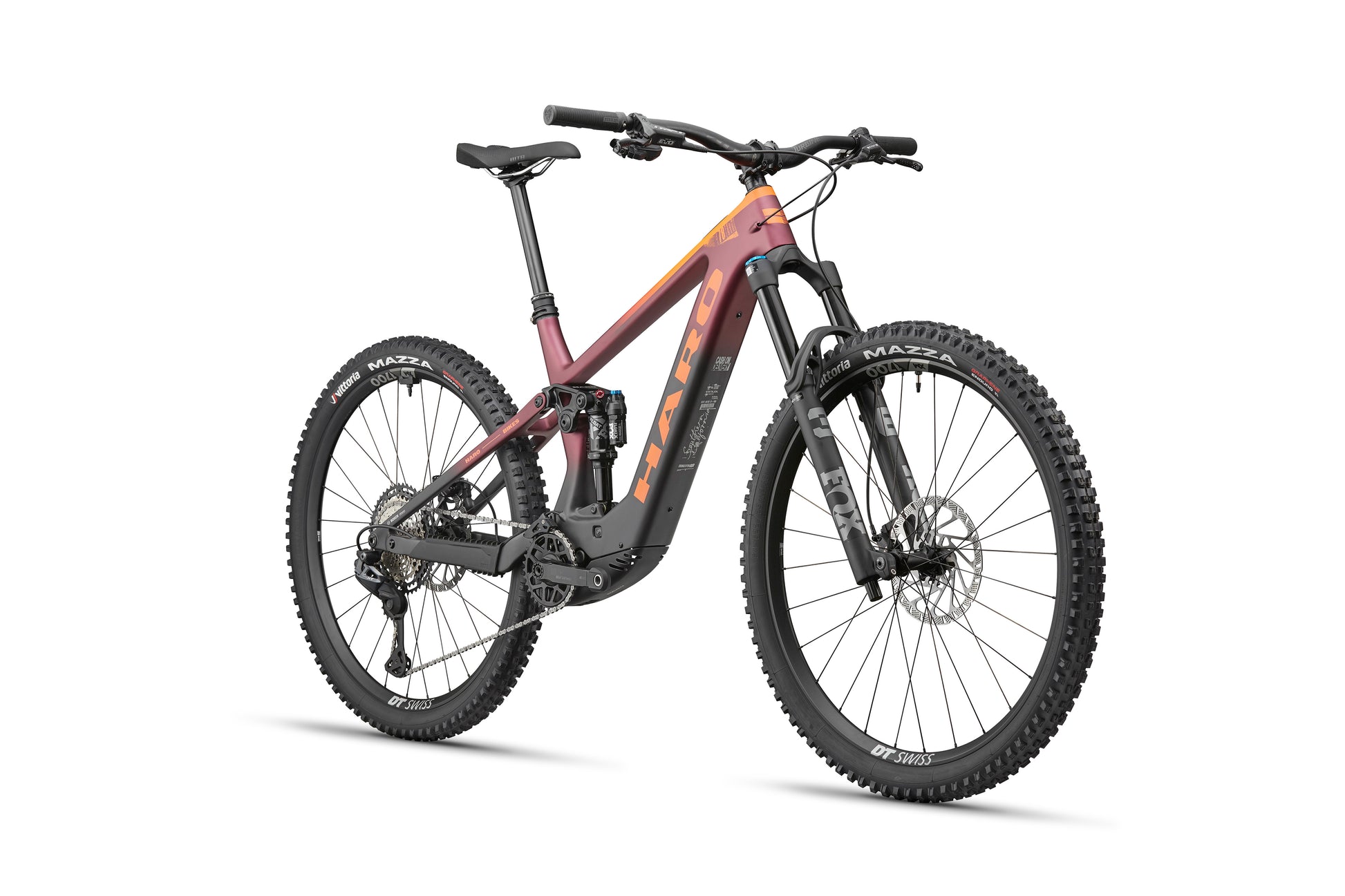

• The eDaley Carbon 1 is a lightweight e-bike with thick tires, maroon/black frame, disc brakes, and Shimano XT Di2 shown front-side.

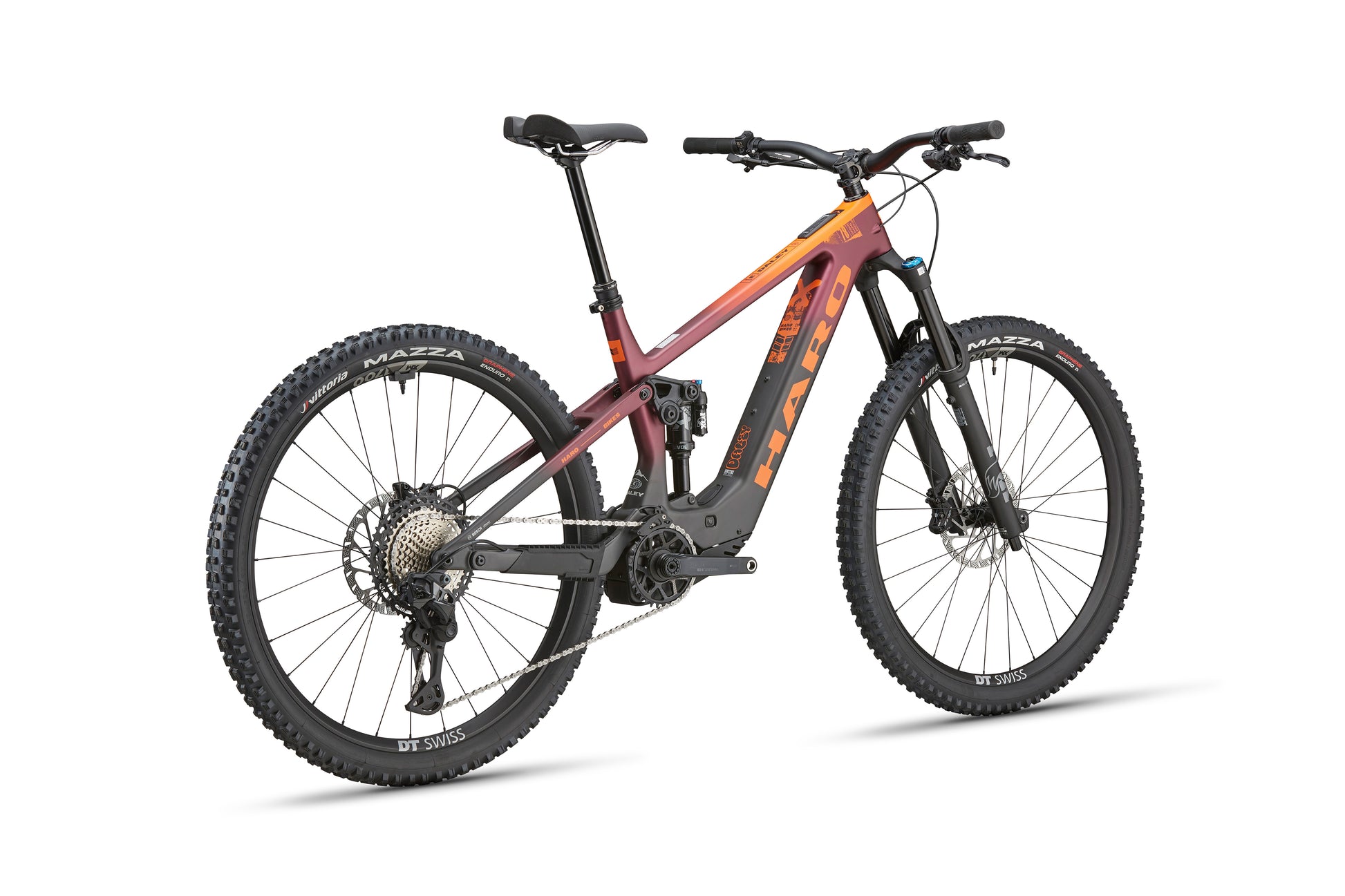

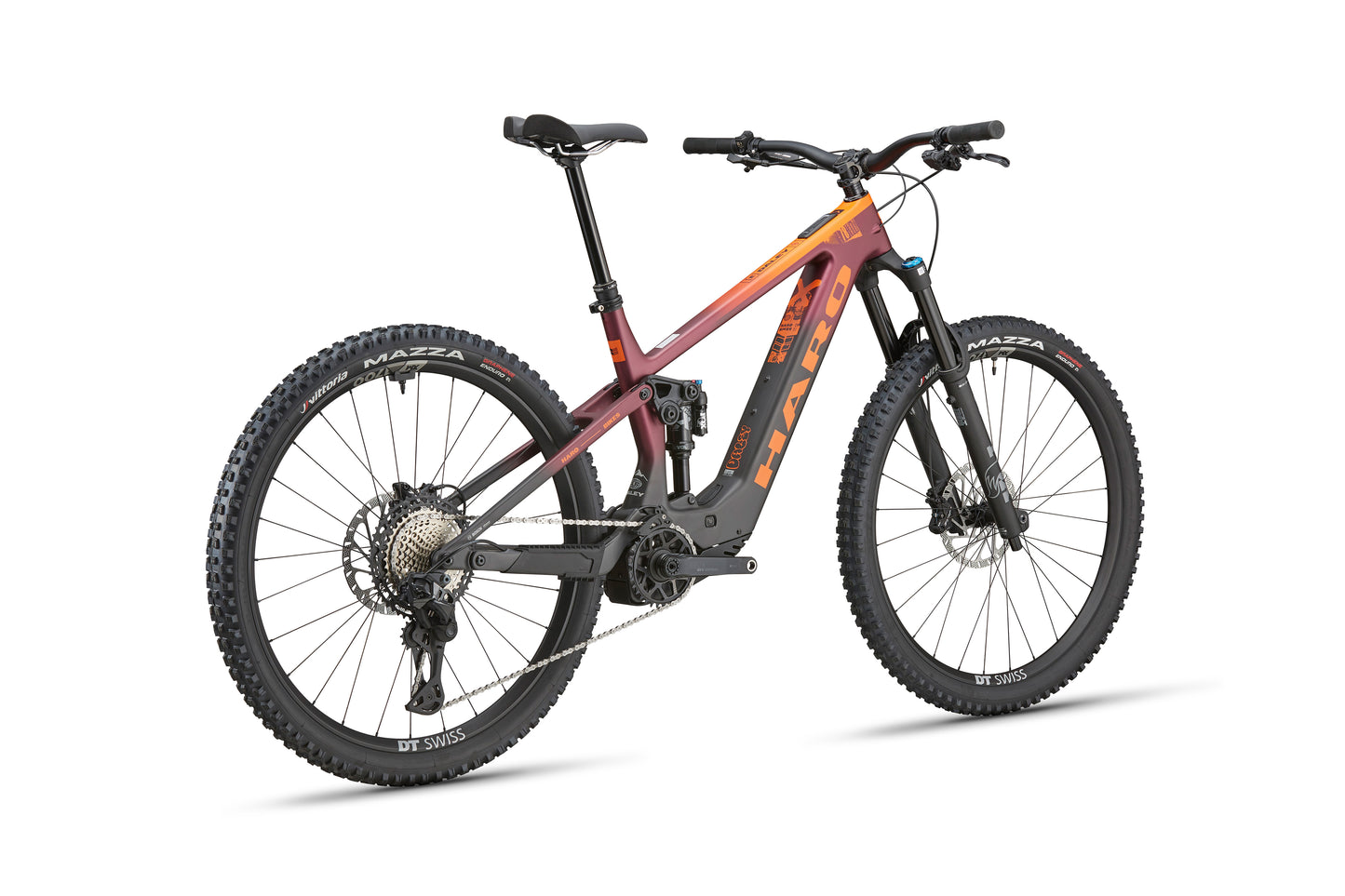

  • The eDaley Carbon 1 is a maroon-orange lightweight ebike with thick tires, disc brakes, and a sturdy frame, seen from the rear side.

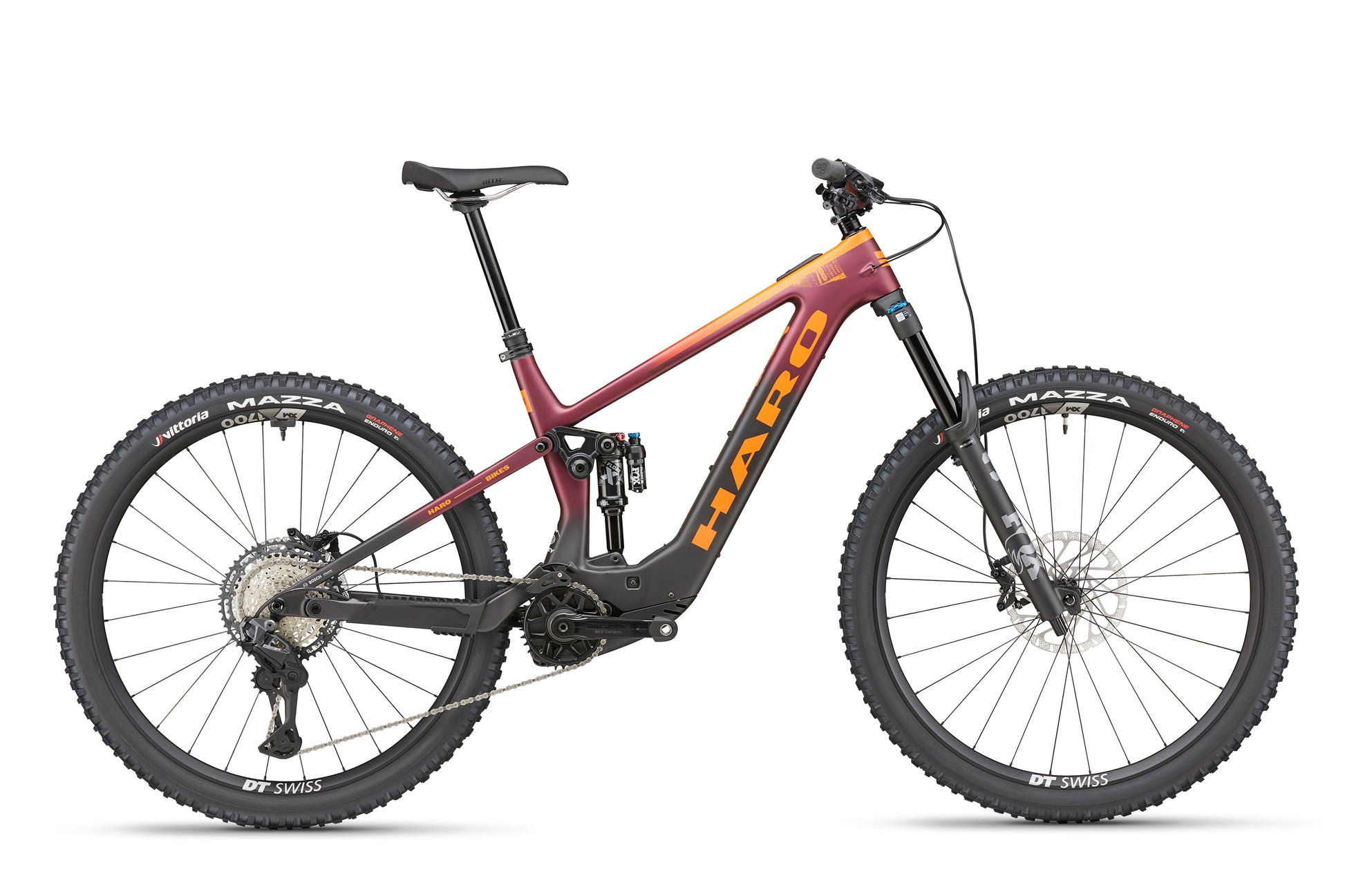

  • A red and orange eDaley Carbon 1 mountain bike with thick tires and Shimano XT Di2 electronic shifting.
1 3

eDaley Carbon 1

eDaley Carbon 1

$8,499.99
$0.00 $8,499.99
Sale Coming Soon

15511

The eDaley Carbon 1 delivers our signature fun, playful geometry in a powerful new way. With 140/150mm of travel, a capable Fox 36 fork and a reliable Bosch Performance Line SX drive unit, this is a lightweight bike made to handle anything you can throw at it, all day, and at maximum speed.

The wireless Shimano XT Di2 drivetrain ensures fast, precise gear changes – even under load. Robust, precise, and ready for demanding terrain.

 Playful and Powerful. This isn’t another ebike, it’s a Haro.

Color
Size

View full details

Precision meets performance!

XT DI2. FOX. PURE TRAIL PERFORMANCE

A red and orange eDaley Carbon 1 mountain bike with thick tires and Shimano XT Di2 electronic shifting.

CARBON FRAME. BOSCH SX TORQUE.

The eDaley’s carbon frame and proven
geometry combine for a progressive, playful trail bike – stable, flickable, fun
and ready for high speeds. The Bosch Performance Line SX, meanwhile,
provides lightweight support with natural pedal feedback.

The 400 Wh Integrated battery ensures
sufficient range for adventure, exploration or all-day fun.

Ride More. Smile More. Play More.

CONTROLLED. CONFIDENT. CAPABLE.

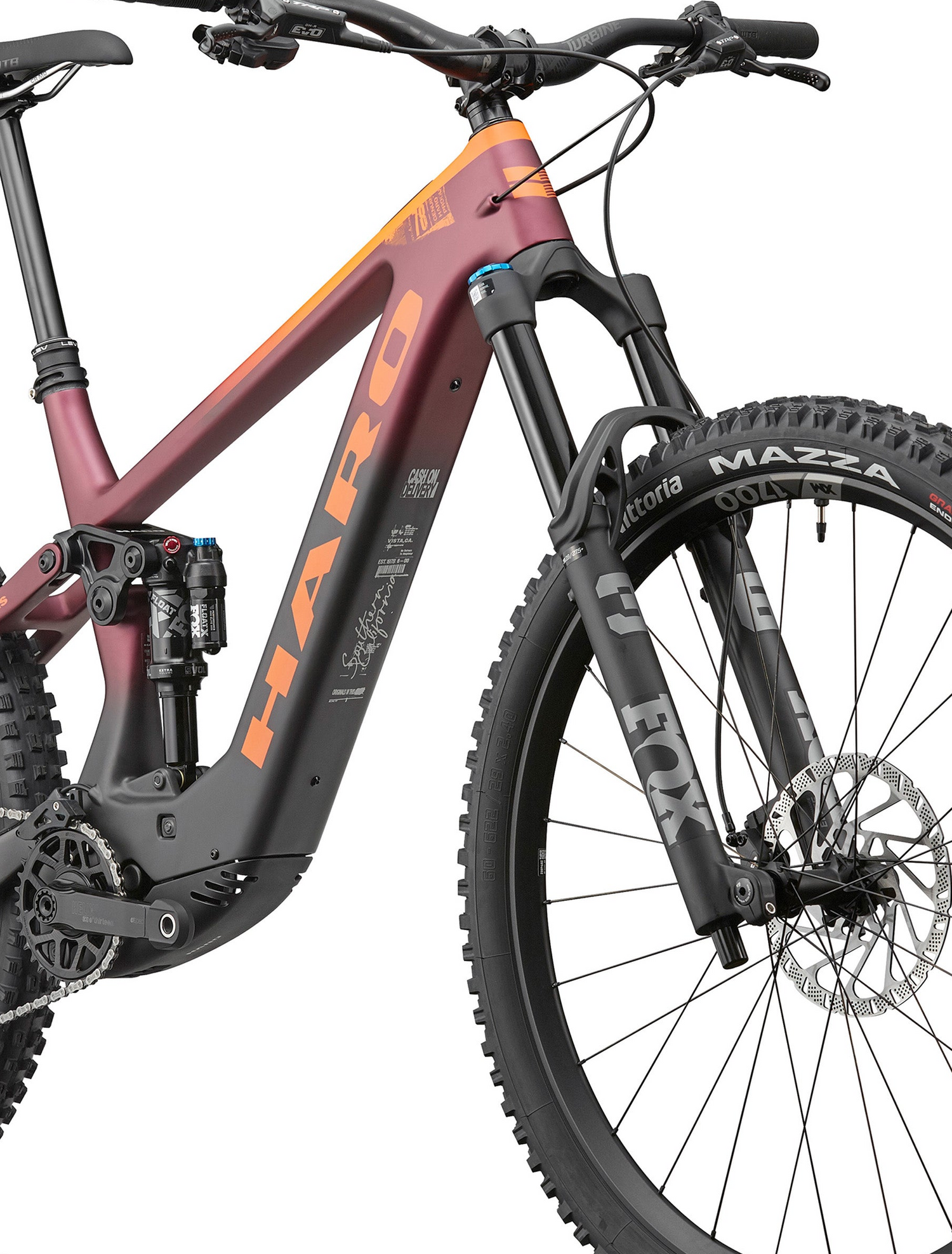

The FOX 36 FLOAT (150mm) gives the
eDaley Carbon 1 the tools to fine tune your suspension into the setup that’s
right for you. In the rear, the FOX FLOAT X shock includes 3-position
damping to allow quick adjustments during your ride for climbs versus descents.

Fox delivers stiff suspension with
sensitive bump compliance for confidence at high speeds.

When pushing the limits, come prepared.

RACE-PROVEN PRECISION.

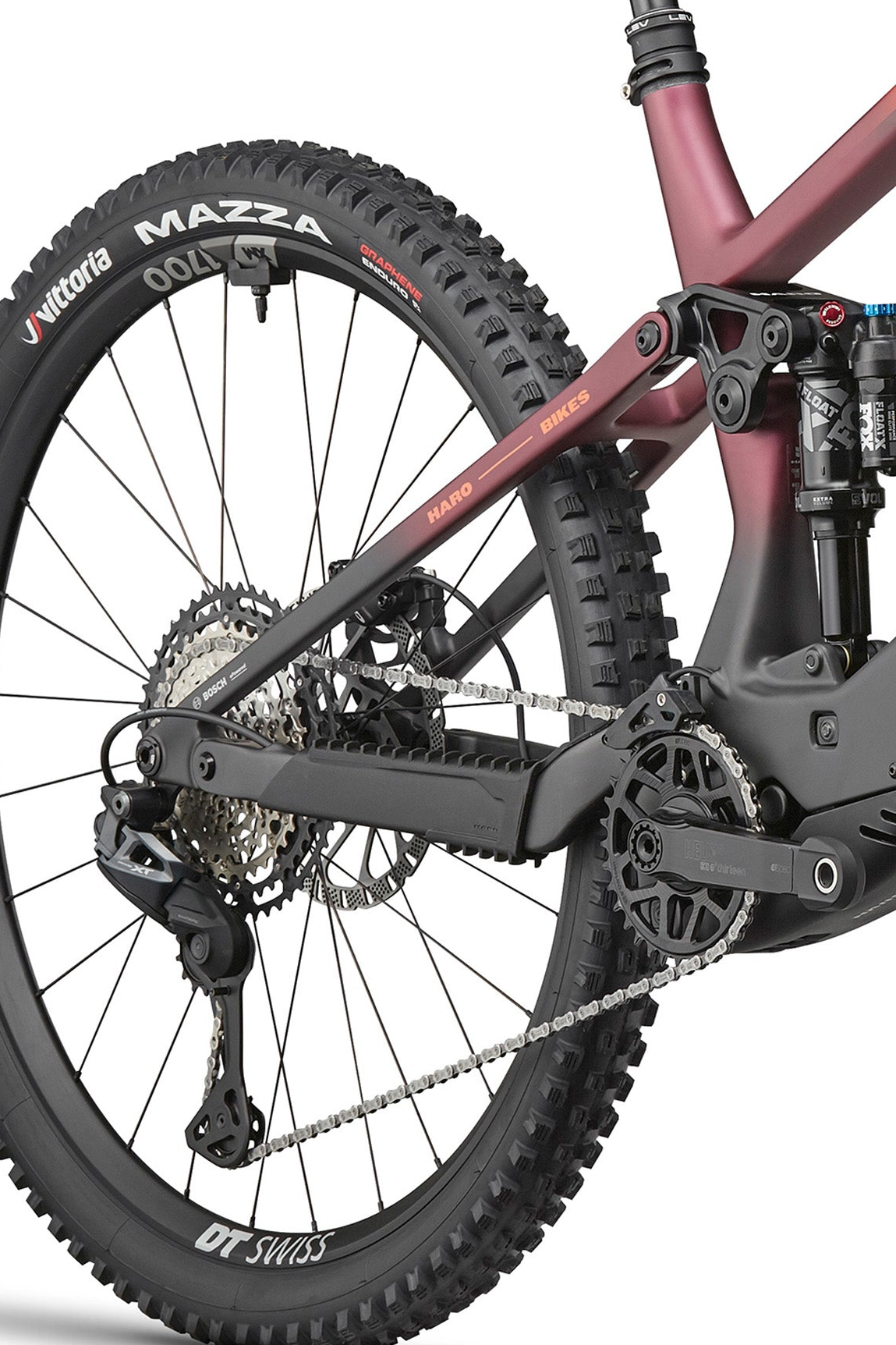

The Shimano Deore XT Di2 Wireless
12-speed derailleur provides precision shifting without a single cable.
It’s lightning-fast and reliable under load.

The TRP HD-M846 DH-R EVO 4-piston brakes
balance modulation and strength for high speed braking you can trust.

Haro at its absolute best.

PRODUCT INFORMATION

SPECIFICATIONS

FRAMESET
Frame eDaley Carbon Full Suspension 140mm / 150mm travel, 1-1/8" - 1-1/5" Tapered Head Tube, 148mm Boost OLD, UDH Derailleur Hanger
Fork Fox 36 FLOAT, 27.5" (size S) 29" (size M, L, XL), 150 mm travel, P-S, Grip, 3-position adjust, Matte Black, Neutral logo, 110 mm Boost, 44 mm offset
FRAME SHOCK FOX FLOAT X rear shock, Trunnion mount, EVOL LV, 185×52.5 mm, 2-position adjust, standard damping
Weight 17,6 Kg
E COMPONENTS
Motor Bosch Performance SX (25km/h / 20mph)
Battery Bosch 400 WH integrated battery
Display N/A
Remote -
Lights -
DRIVETRAIN
Cranks e*thirteen e*spec Helix Race crankset, alloy, 160 mm (size S) 165 mm (others) length, 21.5 mm offset
Pedals N/A
Chain Shimano CN-M8100 chain, 12-speed, 122 links
Bottom Bracket -
Front Derailleur -
Rear Derailleur Wireless Shimano Deore XT RD-M8260 Di2 rear derailleur, SGS, 12-speed
SHIFTER Shimano XT DI2 SW-M8250 Wireless
Freewheel/Cassette Shimano XT CS-M8200-12 ,10-51T ,12S MICRO SPLINE
WHEELS
Tires Rear: Vittoria Martello Enduro tire, 27.5"(S) 29" (M,L,XL) × 2.4, full black, Front: Mazza Enduro tire, 27.5"(S) 29" (M,L,XL × 2.4, full black, G2.0 compound, 120 TPI
FRONT WHEEL DT Swiss XM 1700 SPLINE® wheel, 27.5"(S) 29" (M,L,XL) , 21 mm internal width, 6-bolt disc, IS mount
REAR WHEEL DT Swiss XM 1700 SPLINE® wheel, 27.5"(S) 29" (M,L,XL) , 30 mm internal width, 12×148 mm Boost thru-axle, Micro Spline
WHEELSET XM 1700 SPLINE®
BRAKING SYSTEM
Brakes TRP HD-M846 DH-R EVO hydraulic brake, 4-piston caliper with hybrid pistons, 2.3 mm rotor thickness
OTHER COMPONENTS
GRIPS/ TAPE Wavelength handlebar grips (W175-0150), 30/32 mm tapered, single-bolt lock-on, 13 mm rise
Handlebar Race Face Turbine handlebar, 35 mm clamp, 800 mm width, 40 mm rise, Stealth finish
Stem Race Face Turbine-R stem, 35 mm clamp, 32 mm length
Headset FSA anodized black stem
Saddle WTB HLX saddle (W165-4394), microfiber cover, Flex-Tuned shell, standard WTB rails, ABR corners
Seat Post Kind Shock LEV Integra dropper seatpost (C239), 34.9 mm diameter, 200 mm (170 mm in size M) travel, 533 mm total length
Seat Clamp Forged Aluminium Seat Clamp CL-H2C Ø38.9
Extras Includes Tubeless Valves and Sealant

GEOMETRY

SIZE Small Medium Large X-Large
Seat Tube (C-T) 361mm 410mm 448mm 473mm
Top Tube (Effective) 533mm 590mm 617mm 644mm
Head Tube Angle 64.5° 64.5° 64.5° 64.5°
Seat Tube Angle 78° 78° 78° 78°
Chainstay Length 428mm 445mm 445mm 445mm
BB Height 23mm 33mm 33mm 33mm
Standover 691mm 685mm 705mm 705mm
Stack Height 579mm 610mm 619mm 628mm
Reach 430mm 460mm 485mm 510mm
Axle to Crown 544mm 561mm 561mm 561mm
Fork Offset 44mm 44mm 44mm 44mm
Wheel Size 27.5F / 27.5R 29F / 29R 29F / 29R 29F / 29R

SIZING GUIDE

Size Inches CM
S 5'3" - 5'8" 160 - 173 cm
M 5'7" - 6'0" 170 - 183 cm
L 5'11" - 6'4" 180 - 193 cm
XL 6'3" - 6'8" 190 - 203 cm
