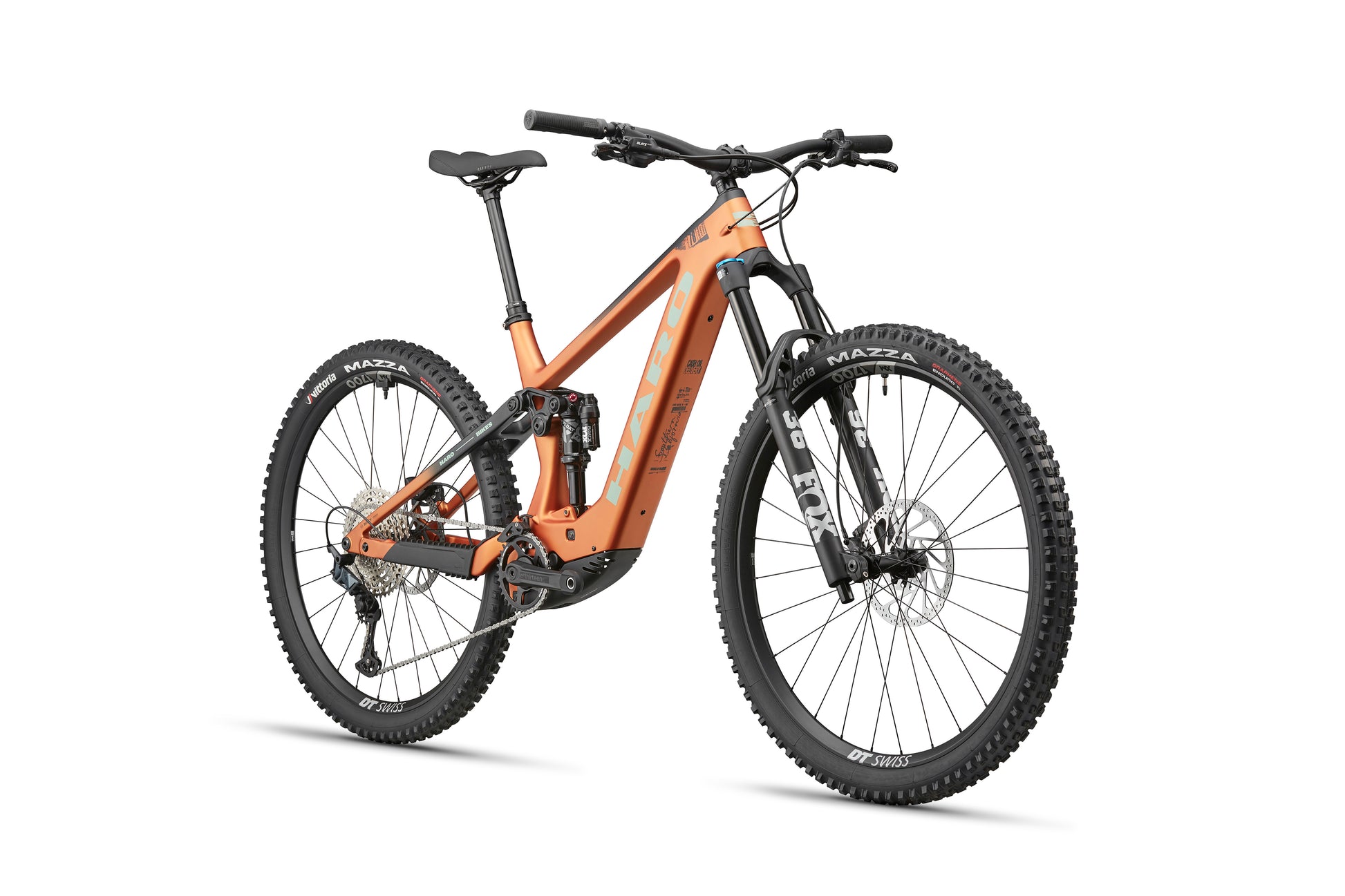

• The eDaley Carbon 2 is an orange lightweight full-suspension ebike with thick tires, Shimano SLX, disc brakes, and a FOX fork.

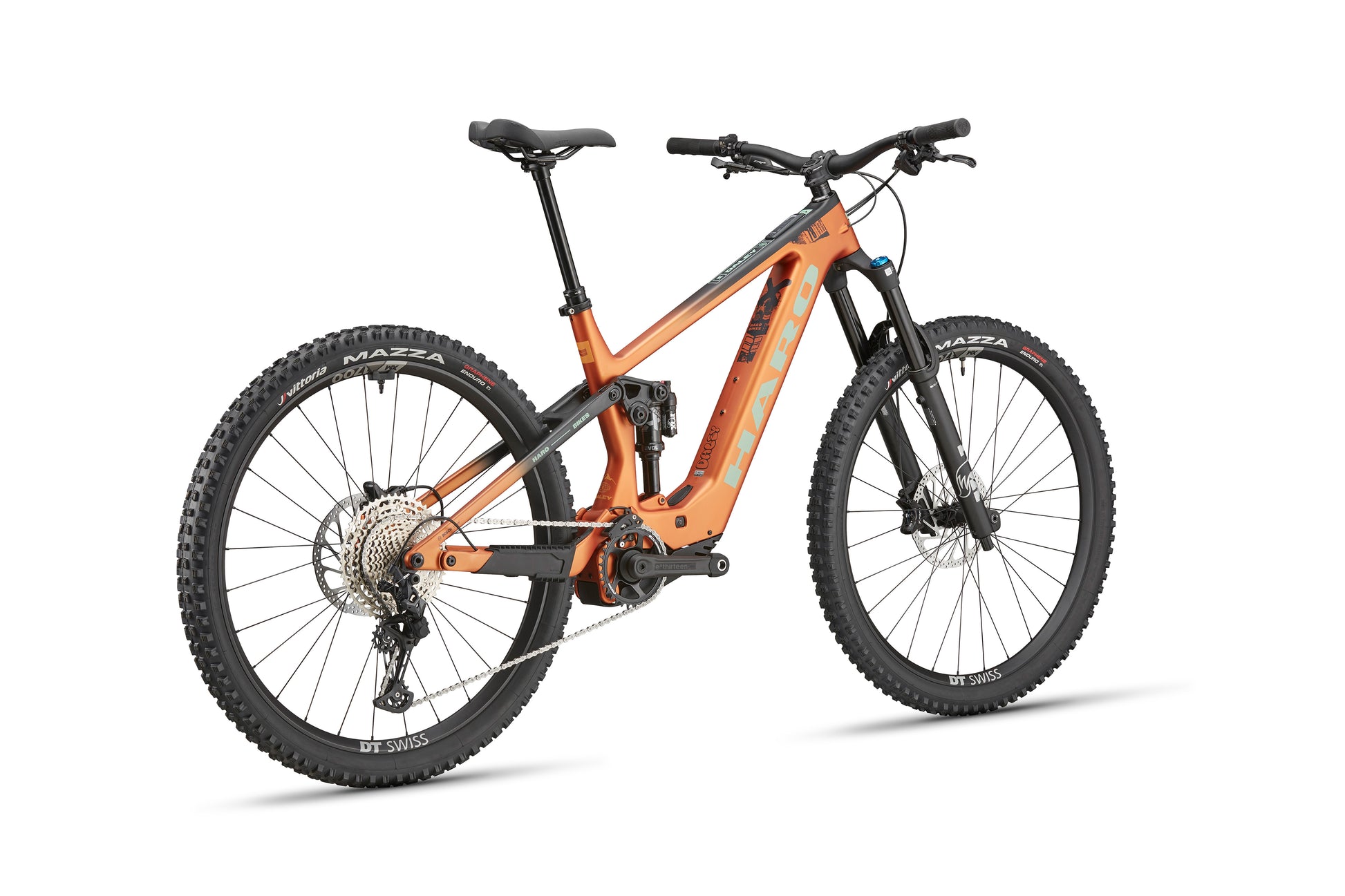

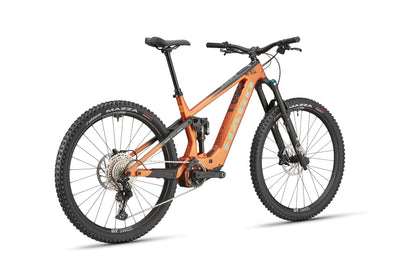

  • The eDaley Carbon 2 is an orange full-suspension lightweight ebike with Shimano SLX and black tires, shown rear left on white.
  • The eDaley Carbon 2, an orange full-suspension mountain bike with thick tires and Shimano SLX brakes, shown side profile.

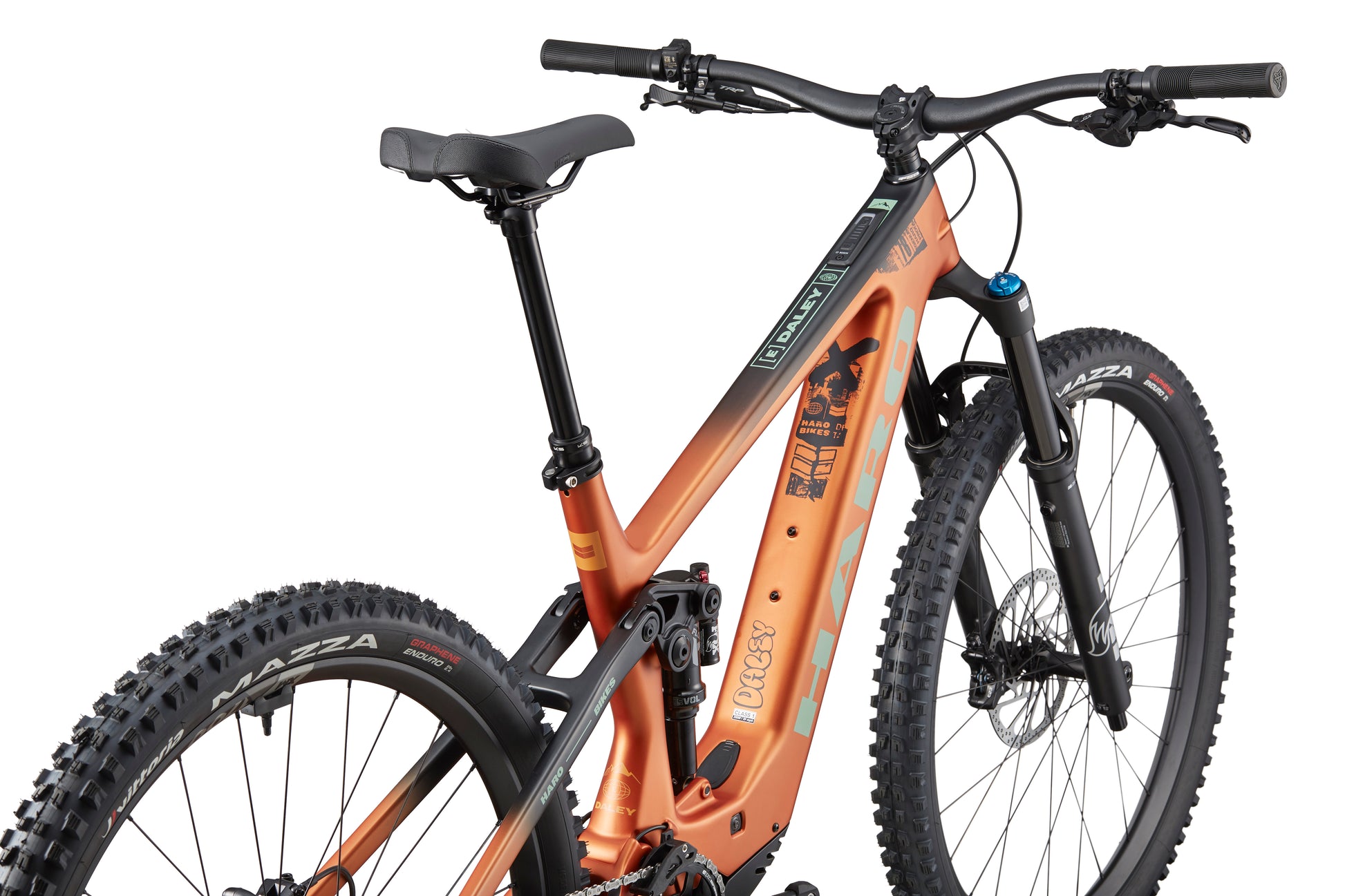

  • The eDaley Carbon 2, an orange full-suspension mountain bike with thick tires and a Bosch Performance Line SX motor, viewed rear three-quarter.
1 4

eDaley Carbon 2

eDaley Carbon 2

$7,499.99
$0.00 $7,499.99
Sale Coming Soon

15519

The eDaley Carbon 2 delivers our signature fun, playful geometry in a powerful new way. With 140/150mm of travel, capable Shimano SLX components and a reliable Bosch Performance Line SX drive unit, this is a lightweight bike you can count on to handle anything you throw at it, all day, and at maximum speed.

 Playful and Powerful. This isn’t another ebike, it’s a Haro.

Color
Size

View full details

Simplicity in action

FOCUSED ON THE ESSENTIALS!

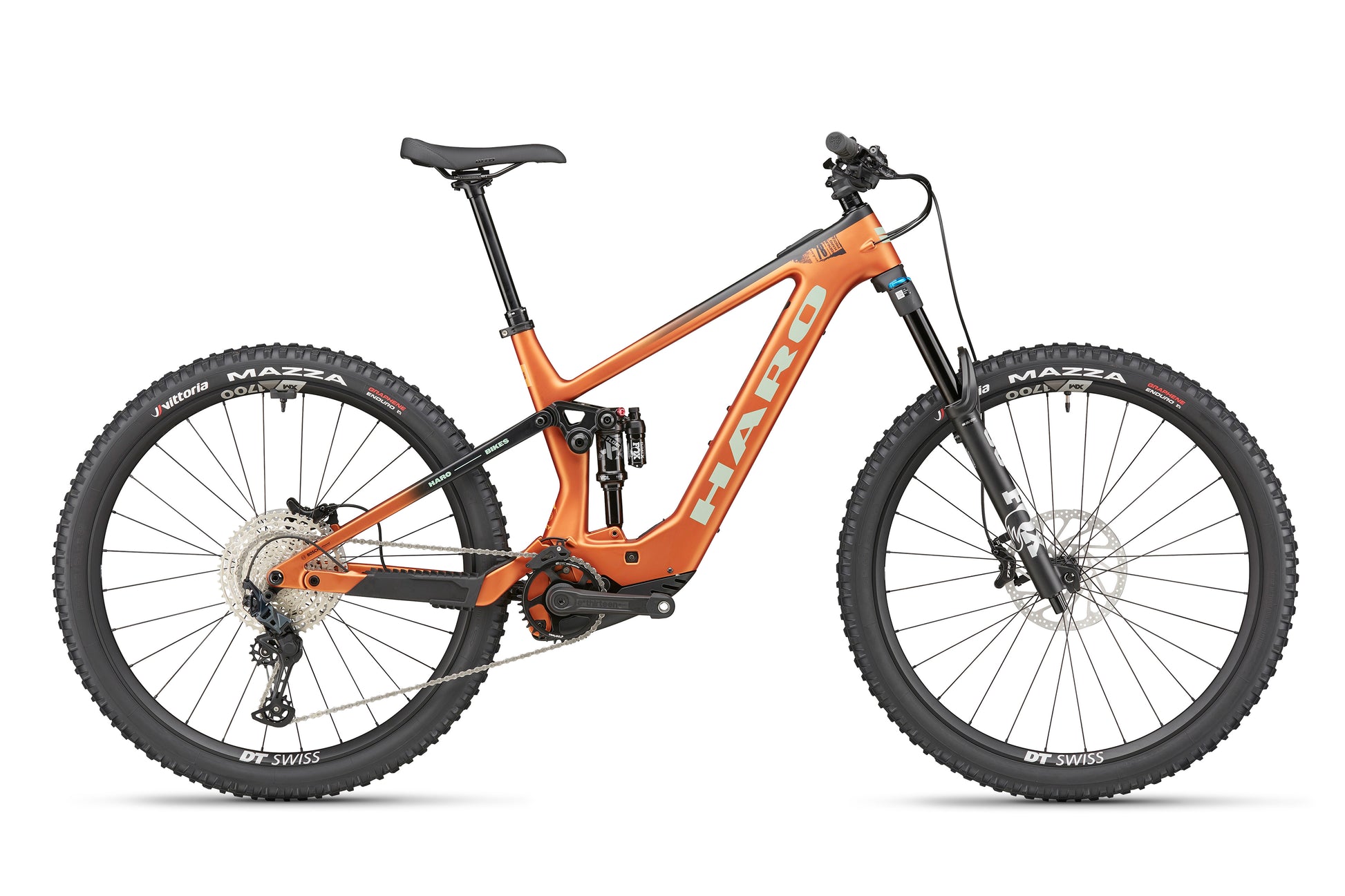

The eDaley Carbon 2, an orange full-suspension mountain bike with thick tires and Shimano SLX brakes, shown side profile.

CARBON FRAME. BOSCH SX TORQUE.

The eDaley’s carbon frame and proven
geometry combine for a progressive, playful trail bike – stable, flickable, fun
and ready for high speeds. The Bosch Performance Line SX, meanwhile,
provides lightweight support with natural pedal feedback.

The 400 Wh Integrated battery ensures
sufficient range for adventure, exploration or all-day fun.

Ride More. Smile More. Play More.

CONTROLLED. CONFIDENT. CAPABLE.

The FOX 36 FLOAT (150mm) gives the
eDaley Carbon 1 the tools to fine tune your suspension into the setup that’s
right for you. In the rear, the FOX FLOAT X shock includes 3-position
GRIP damping to allow quick adjustments during your ride for climbs versus
descents.

Fox delivers stiff suspension with
sensitive bump compliance for confidence at high speeds.

When pushing the limits, come prepared.

PROVEN PRECISION.

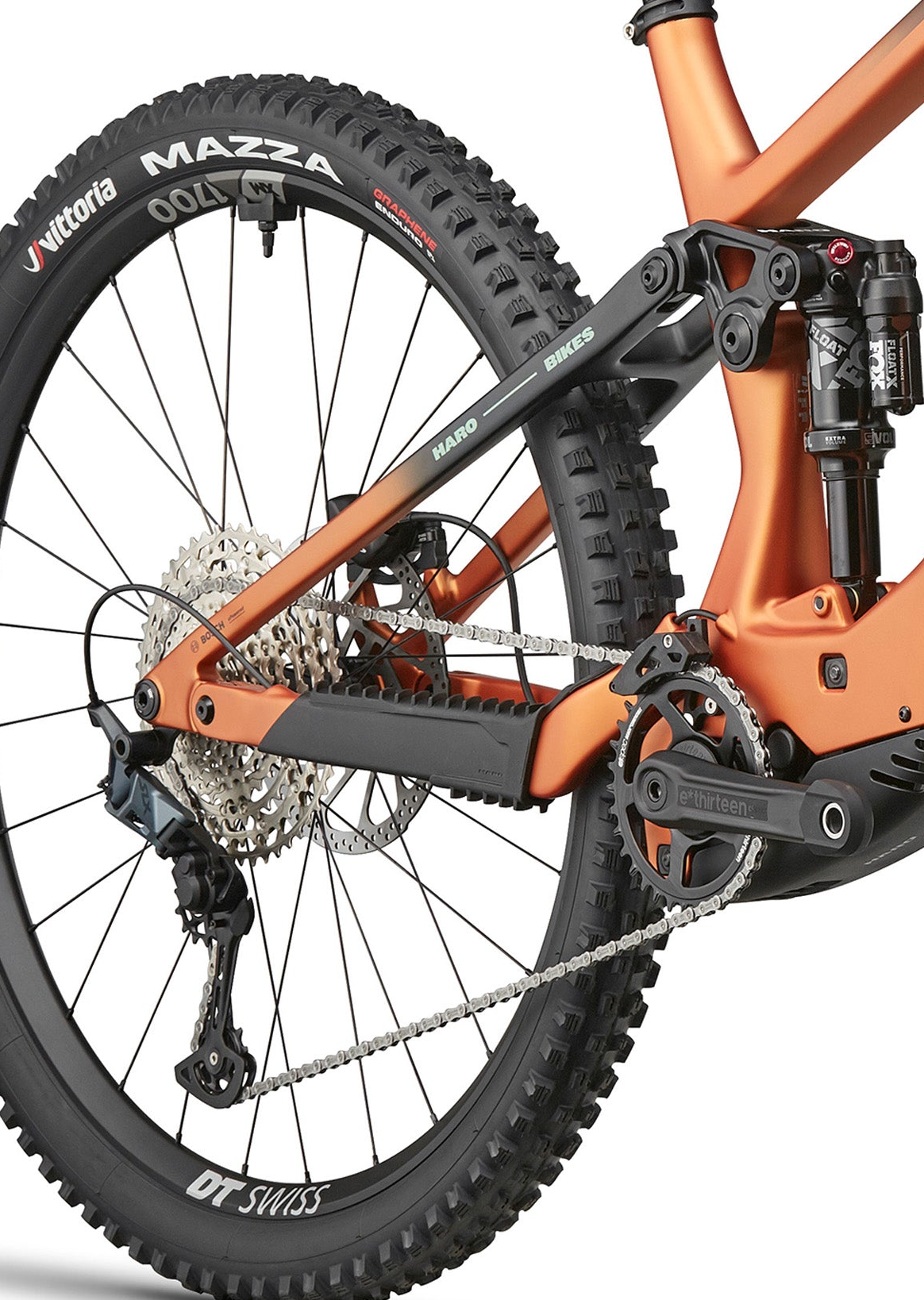

The Shimano SLX 12-speed drivetrain (10-51T)
provides a workhorse derailleur and an enormous gear range to take you
everywhere you want to go.

The TRP Slate EVO 4-piston brakes balance
modulation and strength for high speed braking you can trust.

Haro at its absolute best.

PRODUCT INFORMATION

SPECIFICATIONS

FRAMESET
Frame eDaley Carbon Full Suspension 140mm / 150mm travel, 1-1/8" - 1-1/5" Tapered Head Tube, 148mm Boost OLD, UDH Derailleur Hanger
Fork FOX 36 Float, 150 mm travel, FLOAT air spring, GRIP damper with 3-position adjustment, P-S, Kabolt X 110 Boost thru axle, 1.5" tapered steerer, 58 mm head tube length, 44 mm rake
FRAME SHOCK FOX FLOAT X rear shock, Trunnion mount, EVOL LV, 185×52.5 mm, 2-position adjust, standard damping,
Weight 17,7 Kg
E COMPONENTS
Motor Bosch Performance SX (25km/h / 20mph)
Battery Bosch 400 WH integrated battery
Display N/A
Remote -
Lights -
DRIVETRAIN
Cranks e*thirteen e*spec CS5-HLX-S01 Helix Core crankset, 160mm (size S) 165 mm (others) length, 21 mm offset
Pedals N/A
Chain Shimano CN-M6100 chain, 12-speed, 122 links
Bottom Bracket -
Front Derailleur -
Rear Derailleur Shimano SLX RD-M7100 rear derailleur, SGS, 12-speed, max 51T
SHIFTER Shimano SLX SL-M7100-R right shifter, 12-speed, without optical display
Freewheel/Cassette Shimano SLX CS-M6100-12 ,10-51T ,12S MICRO SPLINE
WHEELS
Tires Rear: Vittoria Martello Enduro tire, 27.5"(S) 29" (M,L,XL) × 2.4, full black, Front: Mazza Enduro tire, 27.5"(S) 29" (M,L,XL × 2.4, full black, G2.0 compound, 120 TPI
FRONT WHEEL DT Swiss XM 1700 SPLINE® wheel, 27.5"(S) 29" (M,L,XL) , 21 mm internal width, 6-bolt disc, IS mount
REAR WHEEL DT Swiss XM 1700 SPLINE® wheel, 27.5"(S) 29" (M,L,XL) , 30 mm internal width, 12×148 mm Boost thru-axle, Micro Spline
WHEELSET XM 1700 SPLINE®
BRAKING SYSTEM
Brakes TRP HD-M807 Slate EVO hydraulic brake, 4-piston caliper with stainless pistons, 2.3 mm rotor thickness
OTHER COMPONENTS
GRIPS/ TAPE Wavelength handlebar grips (W175-0150), 30/32 mm tapered, single-bolt lock-on, 13 mm rise
Handlebar Race Face Chester, 780 mm width, 35 mm clamp diameter, 35 mm rise, durable alloy construction, stealth finish
Stem Race Face Aeffect R stem, 35 mm clamp, 32 mm length, black
Headset FSA anodized black stem
Saddle WTB HLX saddle (W165-4394), microfiber cover, Flex-Tuned shell, standard WTB rails, ABR corners
Seat Post KS Rage-i, 34.9mm, travel by size: S=150mm / M=170mm / L=190mm / XL=210mm
Seat Clamp Forged Aluminium Seat Clamp CL-H2C Ø38.9
Extras Includes Tubeless Valves and Sealant

GEOMETRY

SIZE Small Medium Large X-Large
Seat Tube (C-T) 361mm 410mm 448mm 473mm
Top Tube (Effective) 533mm 590mm 617mm 644mm
Head Tube Angle 64.5° 64.5° 64.5° 64.5°
Seat Tube Angle 78° 78° 78° 78°
Chainstay Length 428mm 445mm 445mm 445mm
BB Height 23mm 33mm 33mm 33mm
Standover 691mm 685mm 705mm 705mm
Stack Height 579mm 610mm 619mm 628mm
Reach 430mm 460mm 485mm 510mm
Axle to Crown 544mm 561mm 561mm 561mm
Fork Offset 44mm 44mm 44mm 44mm
Wheel Size 27.5F / 27.5R 29F / 29R 29F / 29R 29F / 29R

SIZING GUIDE

Size Inches CM
S 5'3" - 5'8" 160 - 173 cm
M 5'7" - 6'0" 170 - 183 cm
L 5'11" - 6'4" 180 - 193 cm
XL 6'3" - 6'8" 190 - 203 cm
