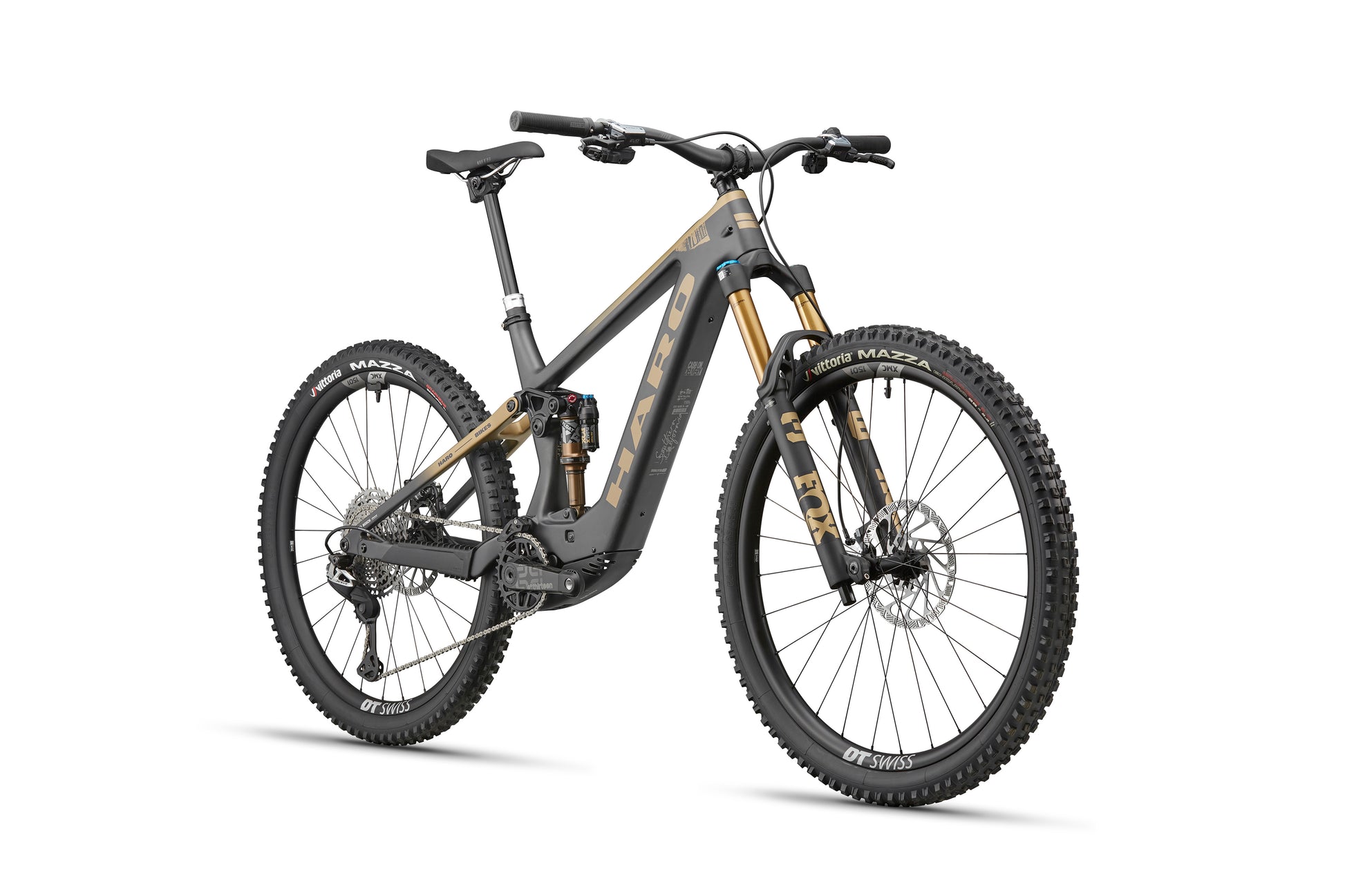

• The eDaley Carbon Top Shelf is a modern matte black and gold full-suspension e-bike with thick tires and disc brakes, front view.
  • The eDaley Carbon Top Shelf is a black and gold mountain bike with thick tires, carbon frame, and full suspension for a lightweight ride.

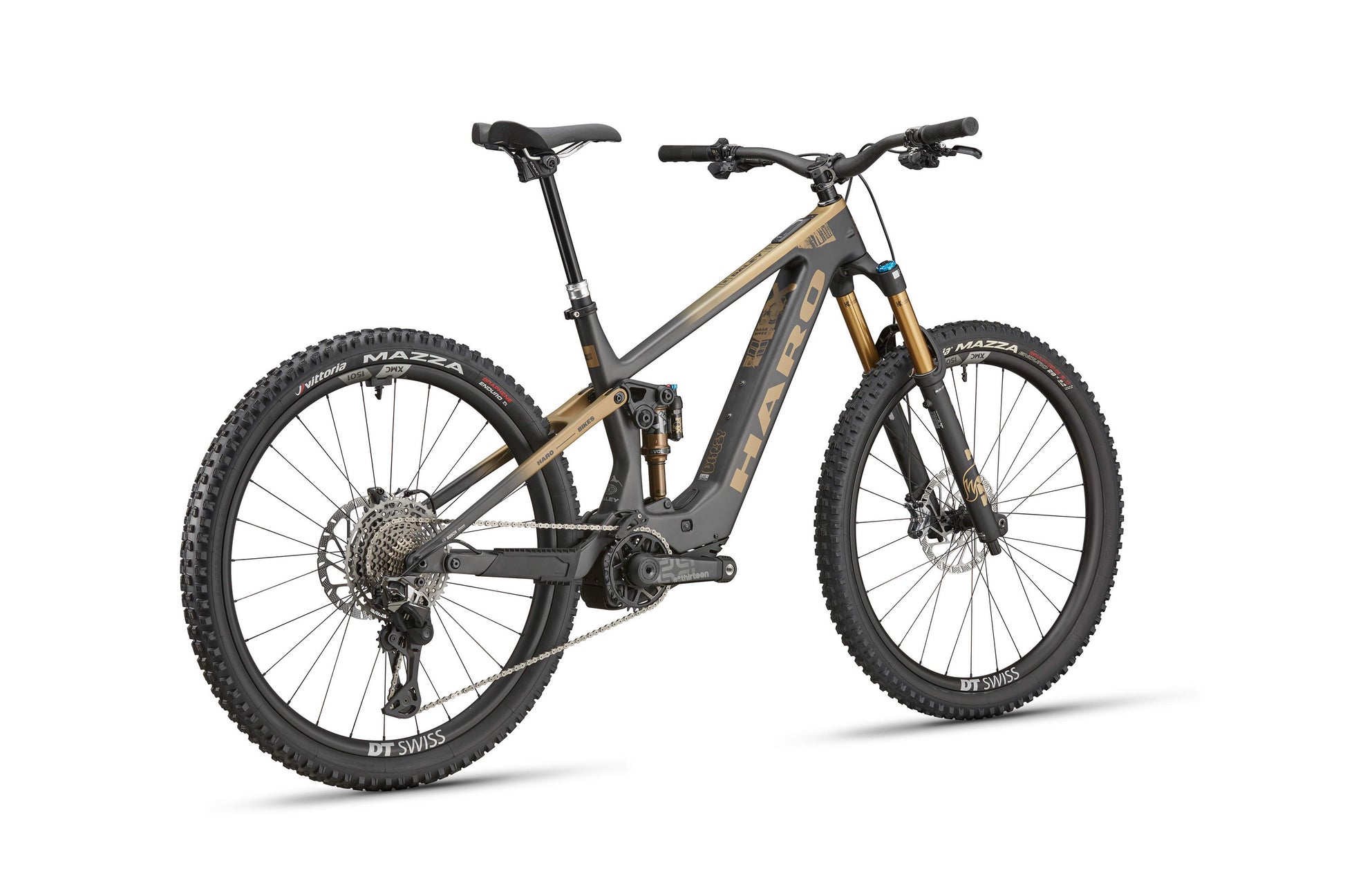

  • The eDaley Carbon Top Shelf is a full-suspension mountain bike with disc brakes and knobby tires, shown from the rear.
1 3

eDaley Carbon Top Shelf

eDaley Carbon Top Shelf

$10,499.99
$0.00 $10,499.99
Sale Coming Soon

15535

The eDaley Carbon – Top Shelf delivers our signature fun, playful geometry in a powerful new way. It boasts a system weight of just 17.6 kg, guaranteeing a natural biking feel thanks to an uncompromising carbon frame and top-of-the-line components.

Paired with an ultra-compact Bosch Performance Line SX system, the end result is a bike that’s light enough to maneuver with precision no matter where you take it.

With the best suspension, wireless shifting and powerful brakes, it’s made for those looking for less weight matched with uncompromising quality. The eDaley TS isn’t just another ebike, it’s a Haro Top Shelf.

Color
Size

View full details

LIGHTER. FASTER. STRONGER.

BOSCH CX x FOX FACTORY

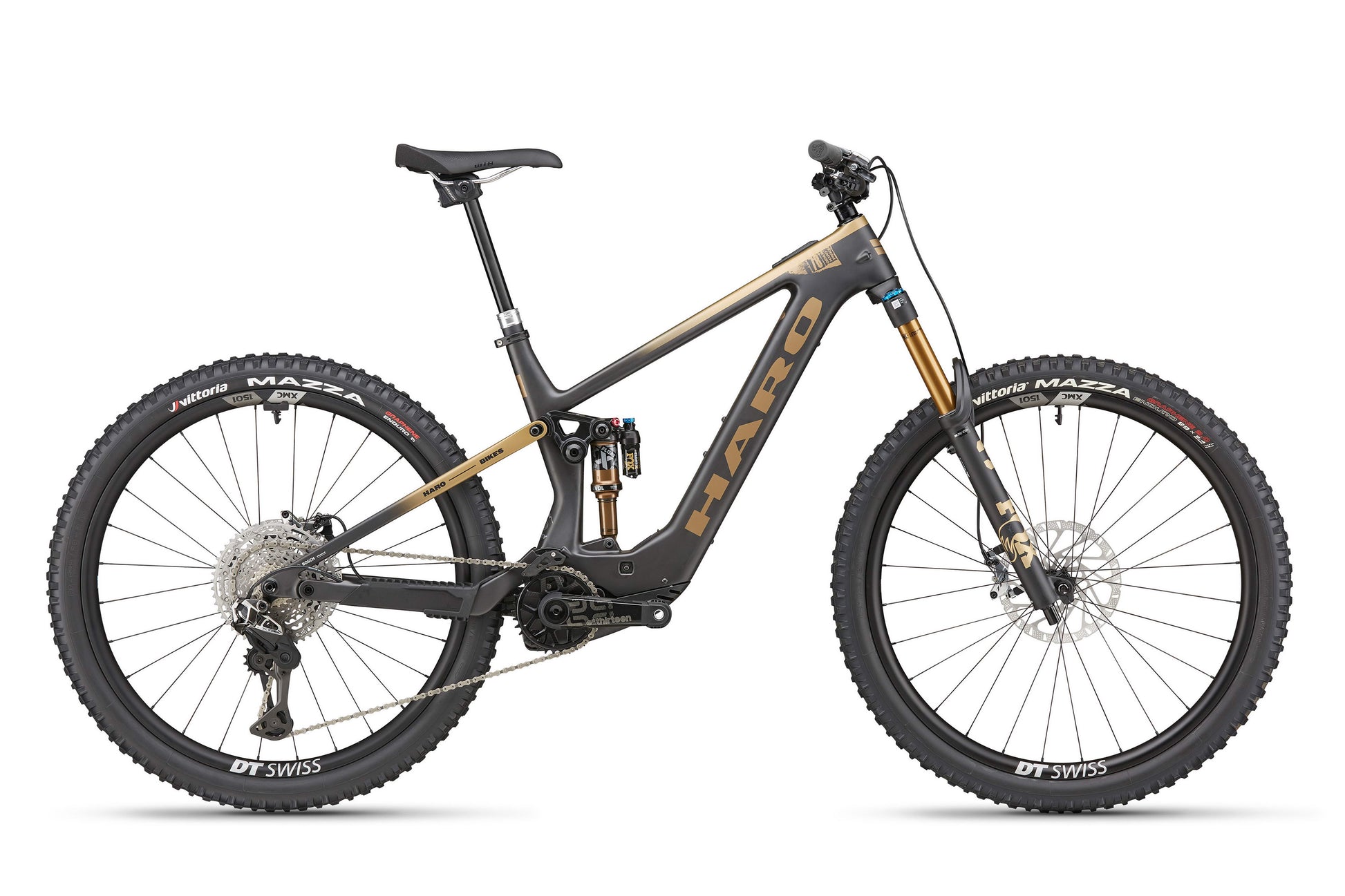

The eDaley Carbon Top Shelf is a black and gold mountain bike with thick tires, carbon frame, and full suspension for a lightweight ride.

ULTRA LIGHT. ULTRA CAPABLE.

Every detail of the eDaley Carbon was
designed with meticulous attention to detail. Saving weight without
sacrificing performance is at the heart of this bike. It’s Bosch
Performance Line SX drive unit generates a natural pedal feel that you can trust
without the weighted, unnatural feel of a first-generation ebike.

The 400 Wh integrated battery ensures
sufficient power for adventure, exploration and fun.

Ride More. Smile More. Play More.

FACTORY SUSPENSION, PODIUM-WORTHY CONTROL.

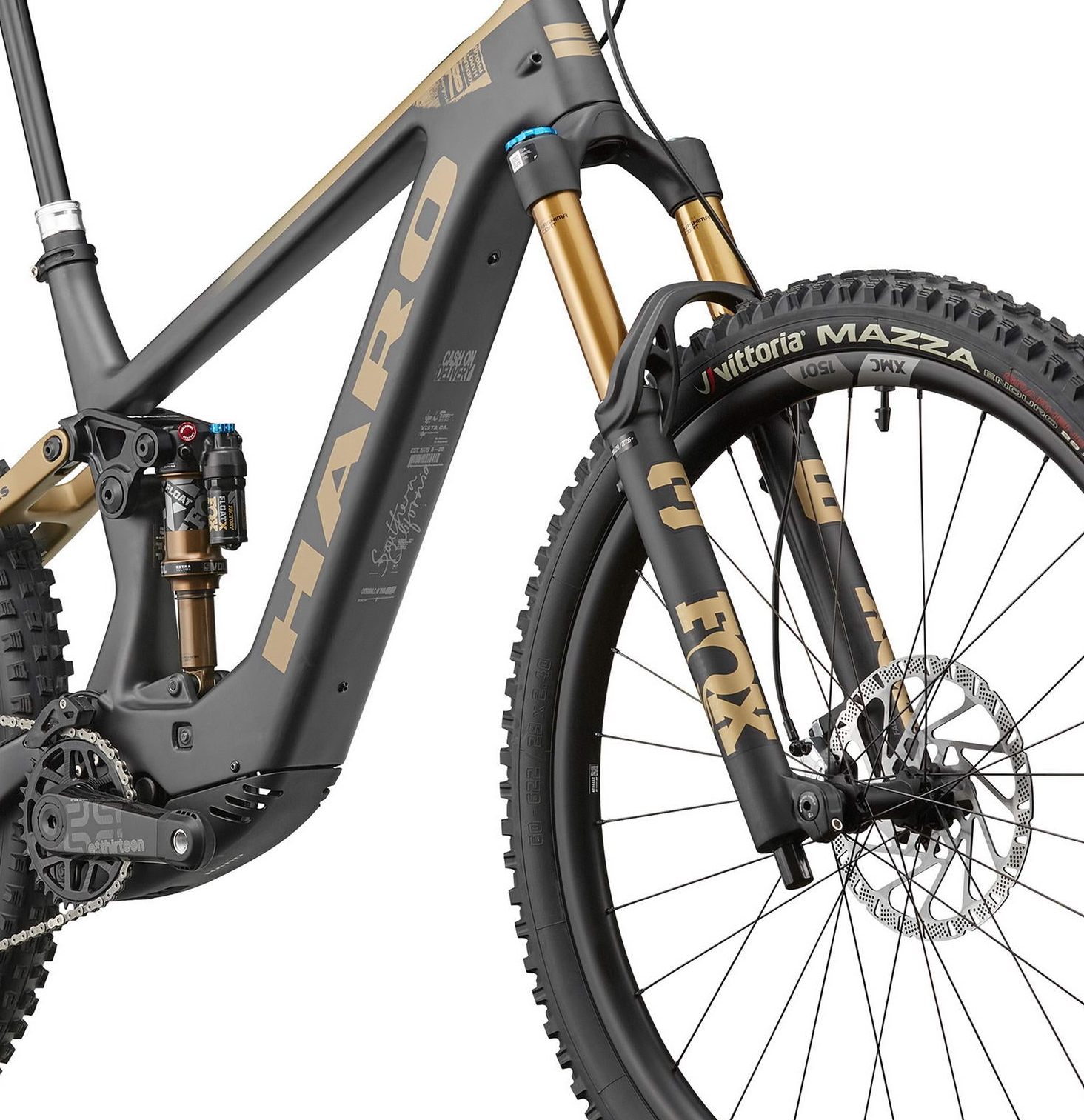

The front FOX 36 FLOAT Factory fork
(150mm) with GRIP X2 damping and full high/low speed fine tuning lets you
customize and create the setup that’s right for you while delivering the best
in performance. In the rear, the FOX FLOAT X Factory shock reliably
handles impacts with incredible small-bump sensitivity.

Fox’s Kashima coating greatly reduces
friction to generate the best compliance on the market.

When pushing the limits, be
uncompromising.

RACE-PROVEN PRECISION.

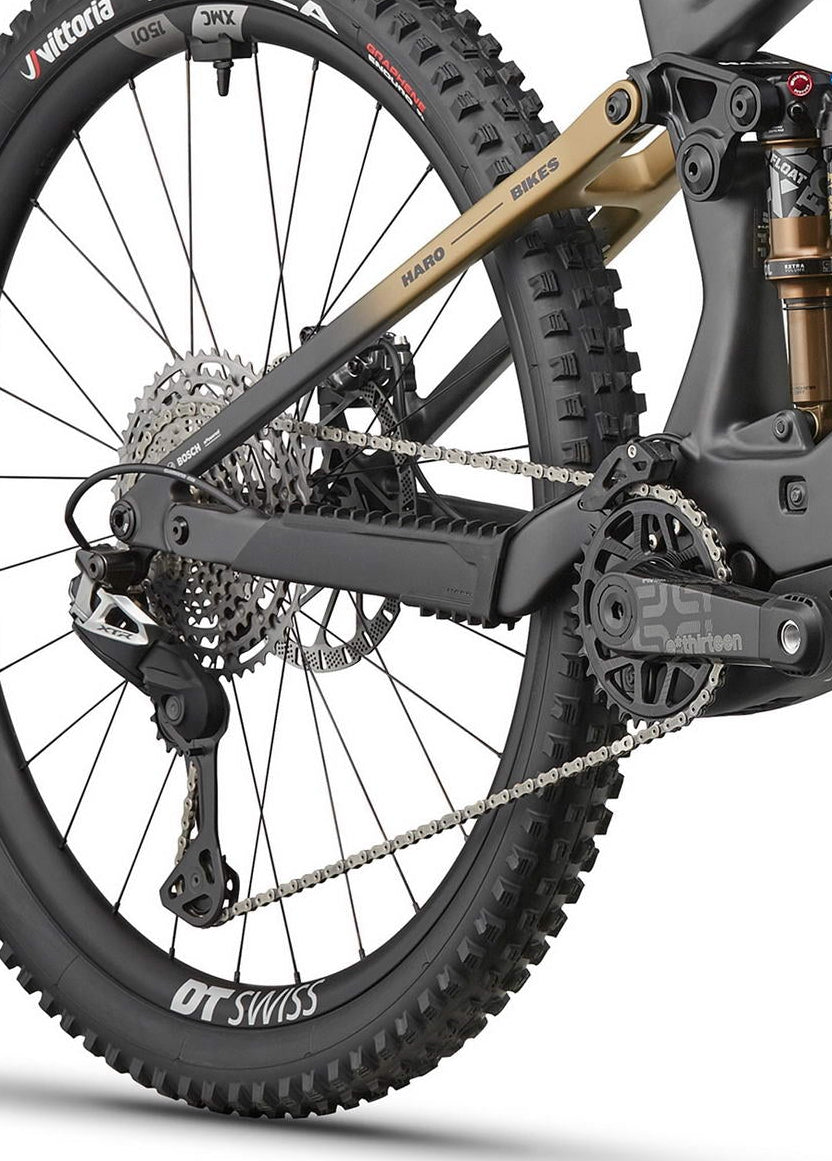

The Shimano XTR Di2 Wireless 12-speed
derailleur provides precision shifting without a single cable. It’s
lightning-fast and reliable under load.

The DT Swiss XMC 1501 SPLINE® ONE carbon
wheelset is strong enough for the toughest e-bike loads, stiff and durable
while keeping rolling weight low.

The TRP HD-M9040 EVO Pro 4-piston brakes
balance modulation and strength for high speed braking you can trust.

Haro at its absolute best.

PRODUCT INFORMATION

SPECIFICATIONS

FRAMESET
Frame eDaley Carbon Full Suspension 140mm / 150mm travel, 1-1/8" - 1-1/5" Tapered Head Tube, 148mm Boost OLD, UDH Derailleur Hanger
Fork FOX 36 FLOAT Factory, 29", 150 mm travel, F-S, GRIP X, HSC / LSC / LSR adjust, Kashima Coating, Kabolt X 110, 110 mm Boost, 1.5 Tapered Steerer, 44 mm rake
Colors -
Weight TBA Kg
E COMPONENTS
Motor Bosch Performance SX (25km/h / 20mph)
Battery Bosch 400 WH integrated battery
Display N/A
Remote -
Lights -
DRIVETRAIN
Cranks e*thirteen e*spec Race CS4-ESP-R02 crankset, carbon, 160 mm(size S) 165mm (others) length, 21.2 mm offset
Pedals N/A
Chain Shimano CN-M9100 chain, 12-speed, 122 links
Bottom Bracket -
Front Derailleur -
Rear Derailleur Wireless Shimano XTR RD-M9260 Di2 rear derailleur, 12-speed, max 51T
SHIFTER Shimano XTR SW-M9250-R shifter, wireless
Freewheel/Cassette Shimano XTR CS-M9200-12,10-51T ,12S MICRO SPLINE
WHEELS
Tires Rear: Vittoria Martello Enduro tire, 27.5"(S) 29" (M,L,XL) × 2.4, full black, Front: Mazza Enduro tire, 27.5"(S) 29" (M,L,XL × 2.4, full black, G2.0 compound, 120 TPI
FRONT WHEEL DT Swiss XMC 1501 SPLINE® ONE Carbon wheel, 27.5"(S) 29"(M, L, XL), 30 mm internal width, 25 mm rim height, 15×110 mm Boost thru-axle
REAR WHEEL DT Swiss XMC 1501 SPLINE® ONE carbon wheel, 27.5"(S) 29"(M, L, XL), 30 mm internal width, 12×148 mm Boost thru-axle, Micro Spline
WHEELSET DT Swiss XMC 1501 SPLINE® ONE Carbon
BRAKING SYSTEM
Brakes TRP HD-M9040 EVO Pro hydraulic brake, 4-piston caliper with hybrid pistons, 2.3 mm rotor thickness
OTHER COMPONENTS
GRIPS/ TAPE Wavelength handlebar grips (W175-0150), 30/32 mm tapered, single-bolt lock-on, 13 mm rise
Handlebar Race Face Era handlebar, 35 mm clamp, 800 mm width, 40 mm rise
Stem Race Face Turbine-R stem, 35 mm clamp, 32 mm length
Headset FSA anodized black stem
Saddle WTB HLX saddle (W165-4394), microfiber cover, Flex-Tuned shell, standard WTB rails, ABR corners
Seat Post Kind Shock LEV Circuit wireless dropper seatpost, 34.9 mm, 497 mm total length / 200 mm (170 mm in size M) travel, silver collar
Seat Clamp Forged Aluminium Seat Clamp CL-H2C Ø38.9
Extras Includes Tubeless Valves and Sealant

GEOMETRY

SIZE Small Medium Large X-Large
Seat Tube (C-T) 361mm 410mm 448mm 473mm
Top Tube (Effective) 533mm 590mm 617mm 644mm
Head Tube Angle 64.5° 64.5° 64.5° 64.5°
Seat Tube Angle 78° 78° 78° 78°
Chainstay Length 428mm 445mm 445mm 445mm
BB Height 23mm 33mm 33mm 33mm
Standover 691mm 685mm 705mm 705mm
Stack Height 579mm 610mm 619mm 628mm
Reach 430mm 460mm 485mm 510mm
Axle to Crown 544mm 561mm 561mm 561mm
Fork Offset 44mm 44mm 44mm 44mm
Wheel Size 27.5F / 27.5R 29F / 29R 29F / 29R 29F / 29R

SIZING GUIDE

Size Inches CM
S 5'3" - 5'8" 160 - 173 cm
M 5'7" - 6'0" 170 - 183 cm
L 5'11" - 6'4" 180 - 193 cm
XL 6'3" - 6'8" 190 - 203 cm
