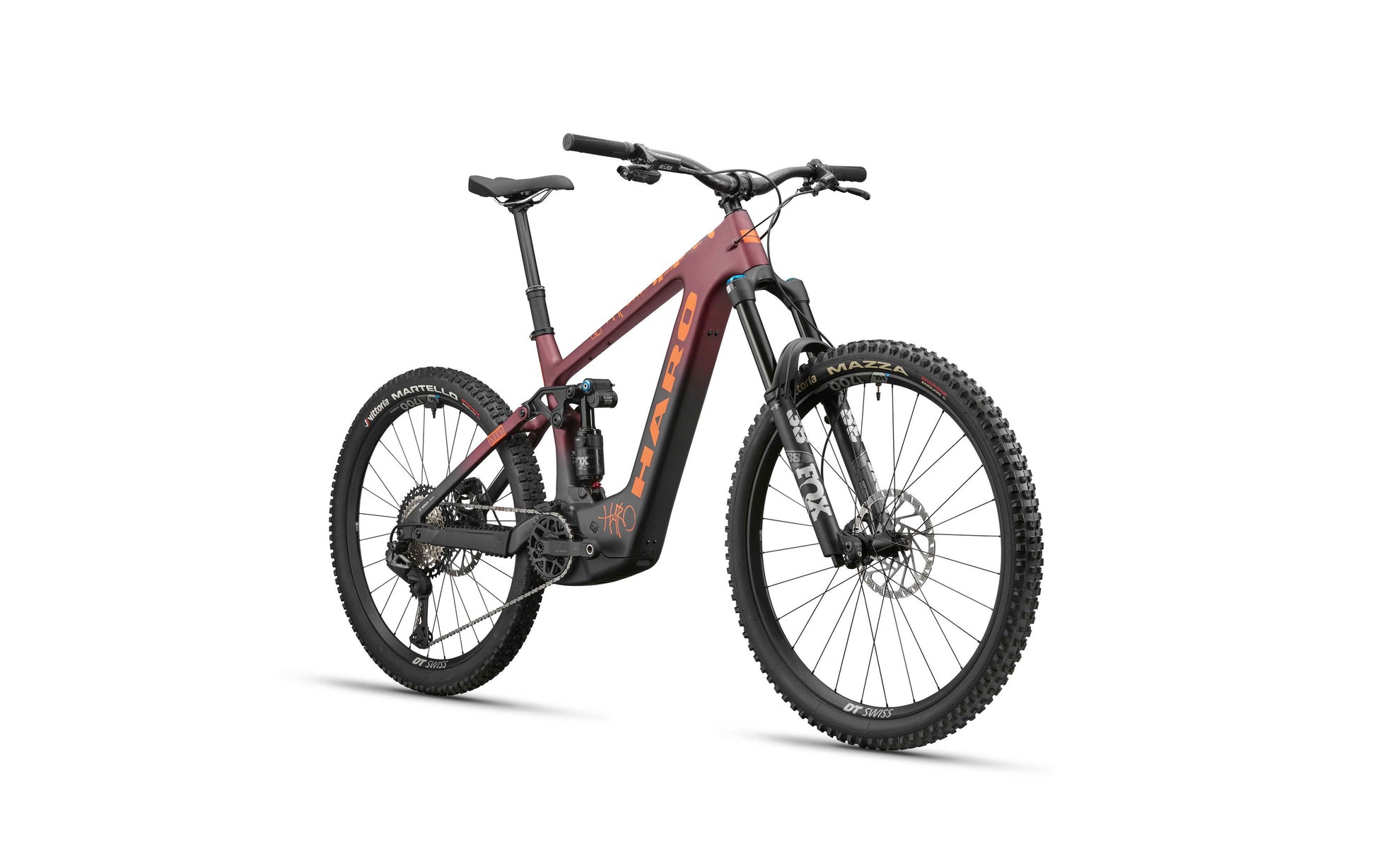

• Front view of the maroon eGreer Carbon 1 electric mountain bike with thick tires, FOX Factory suspension, and matte black fork.

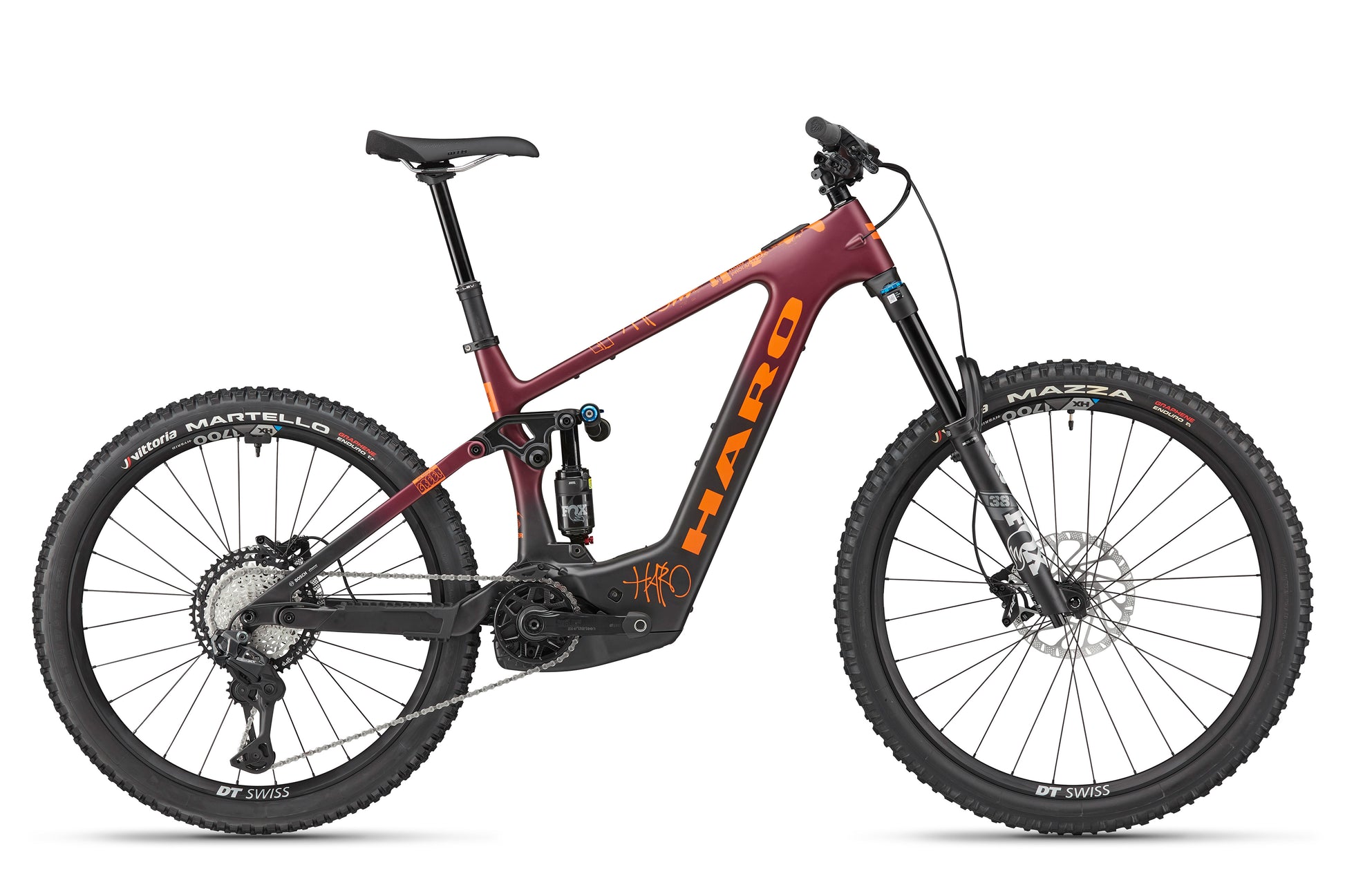

  • The eGreer Carbon 1 is a maroon and orange full-suspension mountain bike with FOX Factory suspension, thick tires, and disc brakes.

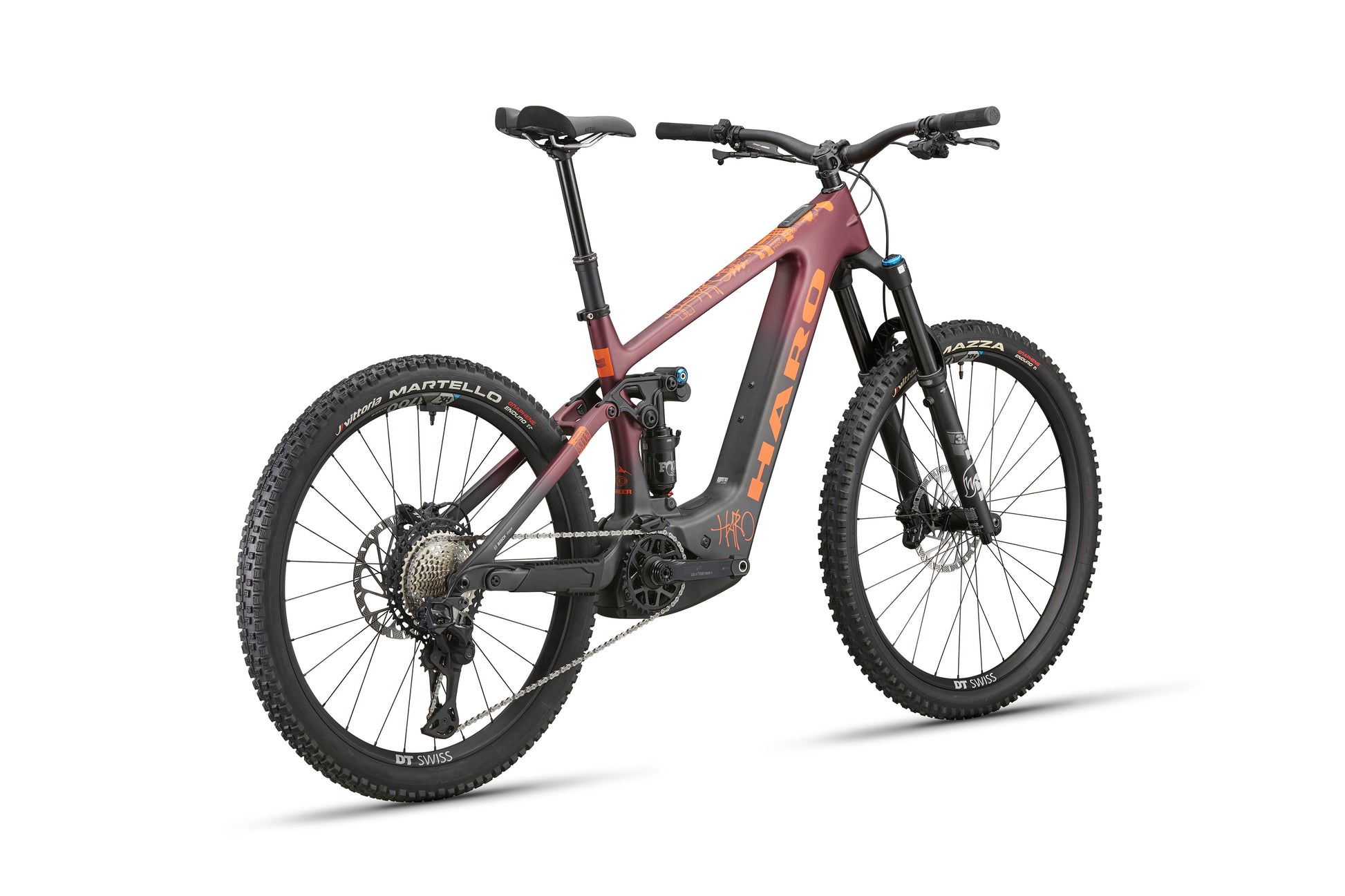

  • The eGreer Carbon 1 full-suspension mountain bike features FOX Factory suspension and wide tires, shown on a white background.

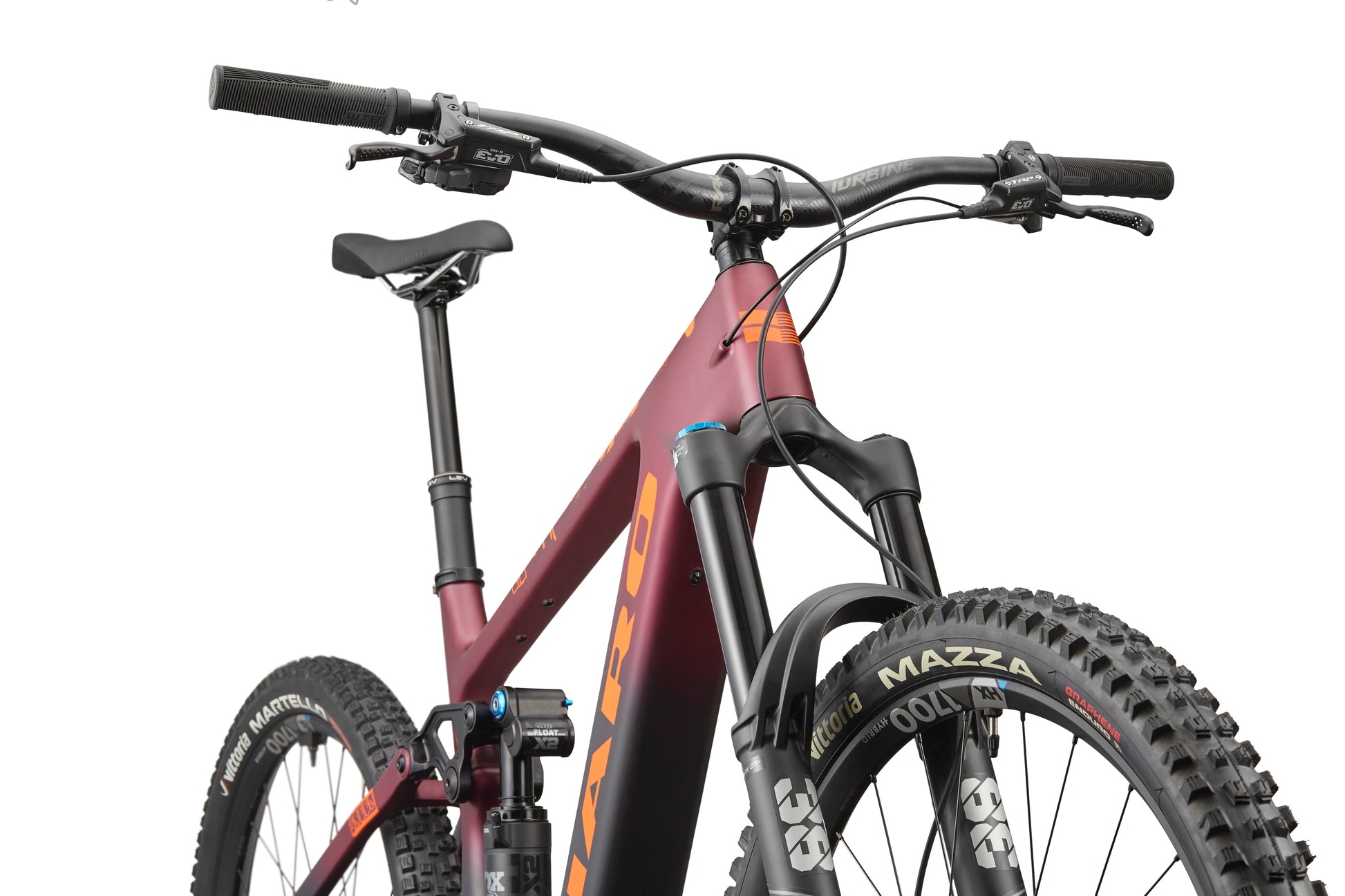

  • A close-up of the eGreer Carbon 1 mountain bike highlights its red frame, FOX Factory suspension, handlebars, and rugged treaded tires.

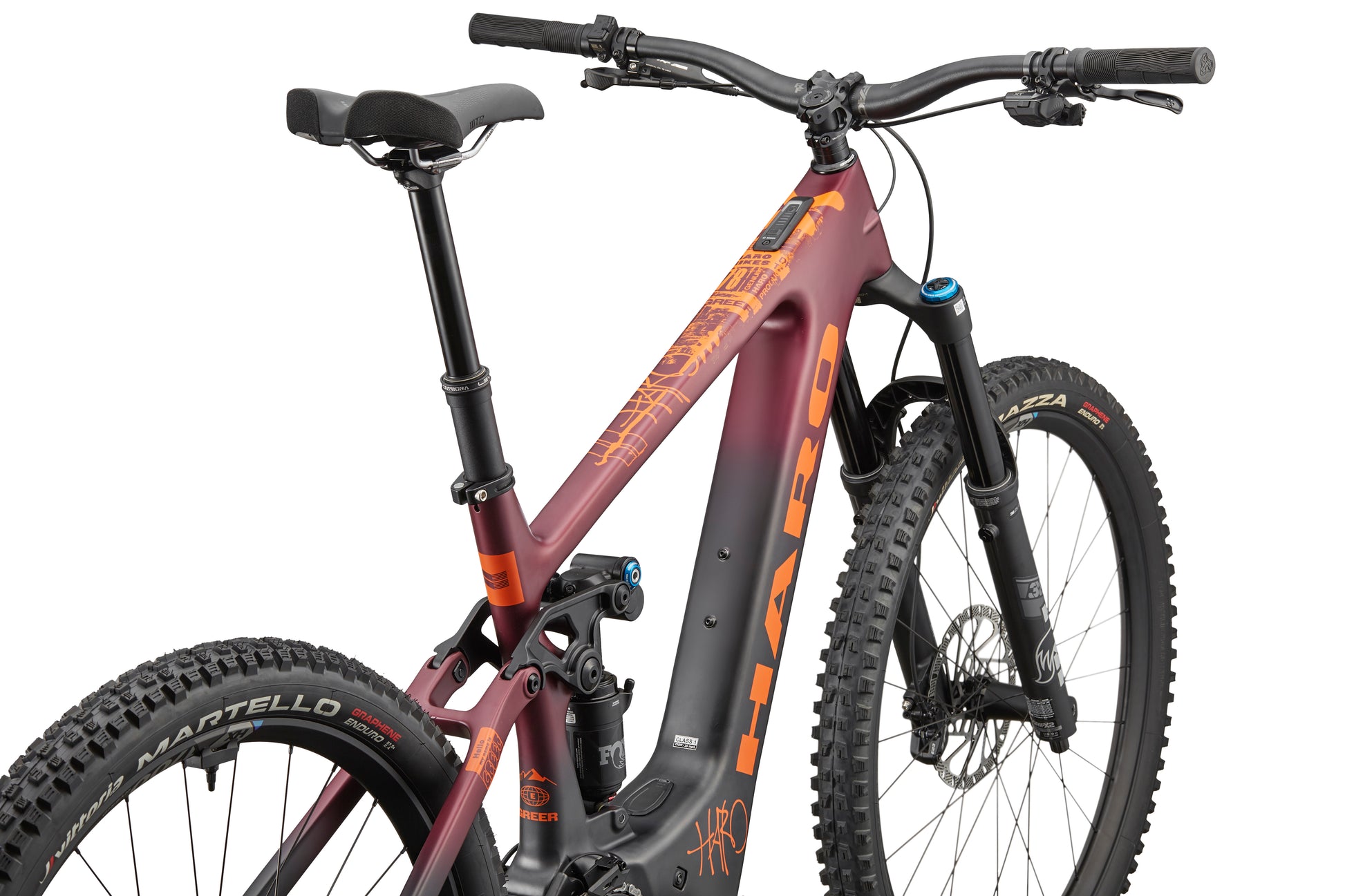

  • A maroon and orange eGreer Carbon 1 mountain bike with thick tires and FOX Factory suspension, viewed from the rear left.

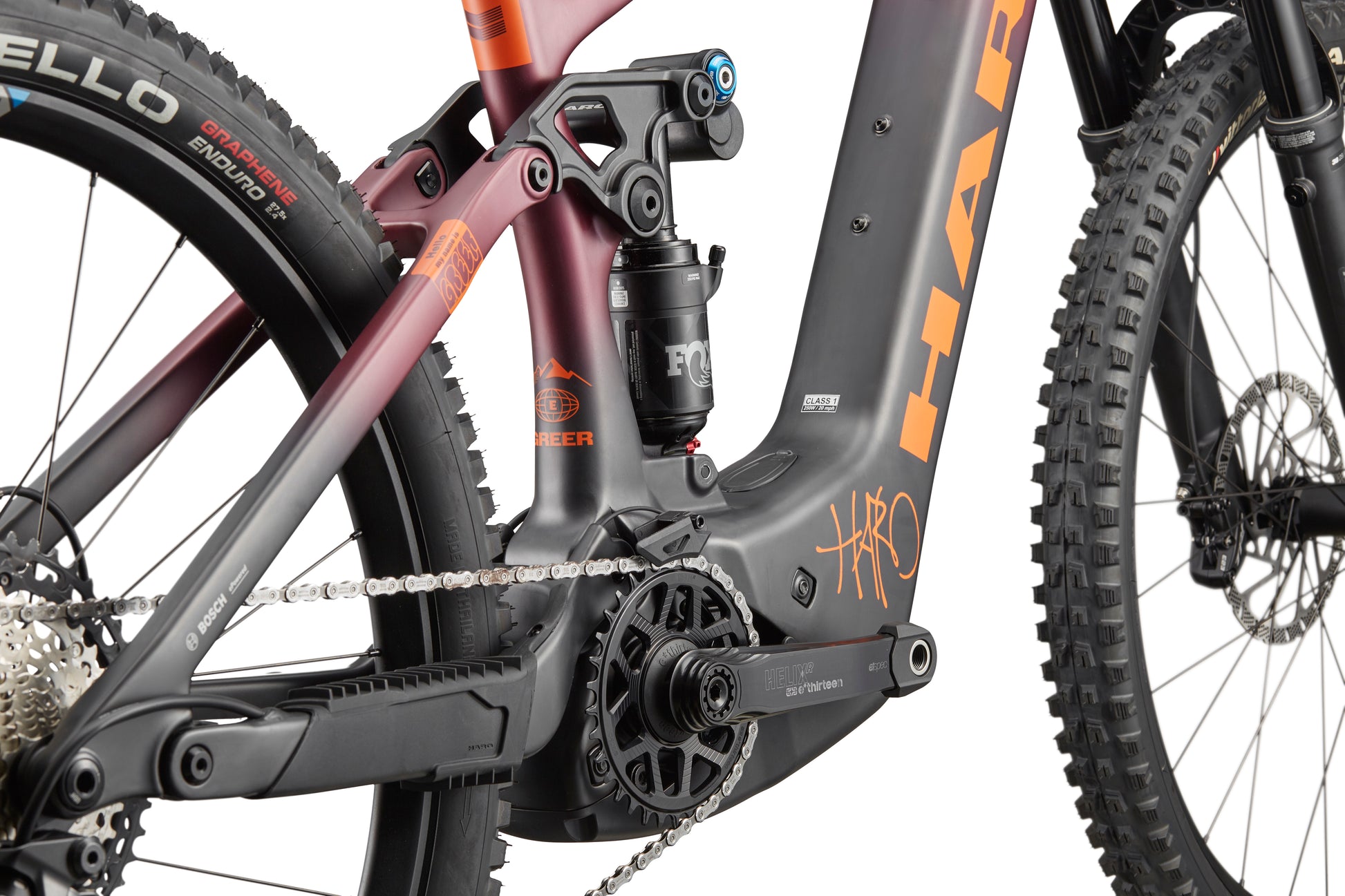

  • Close-up of eGreer Carbon 1's rear with FOX Factory suspension, Bosch CX motor, and detailed frame components.

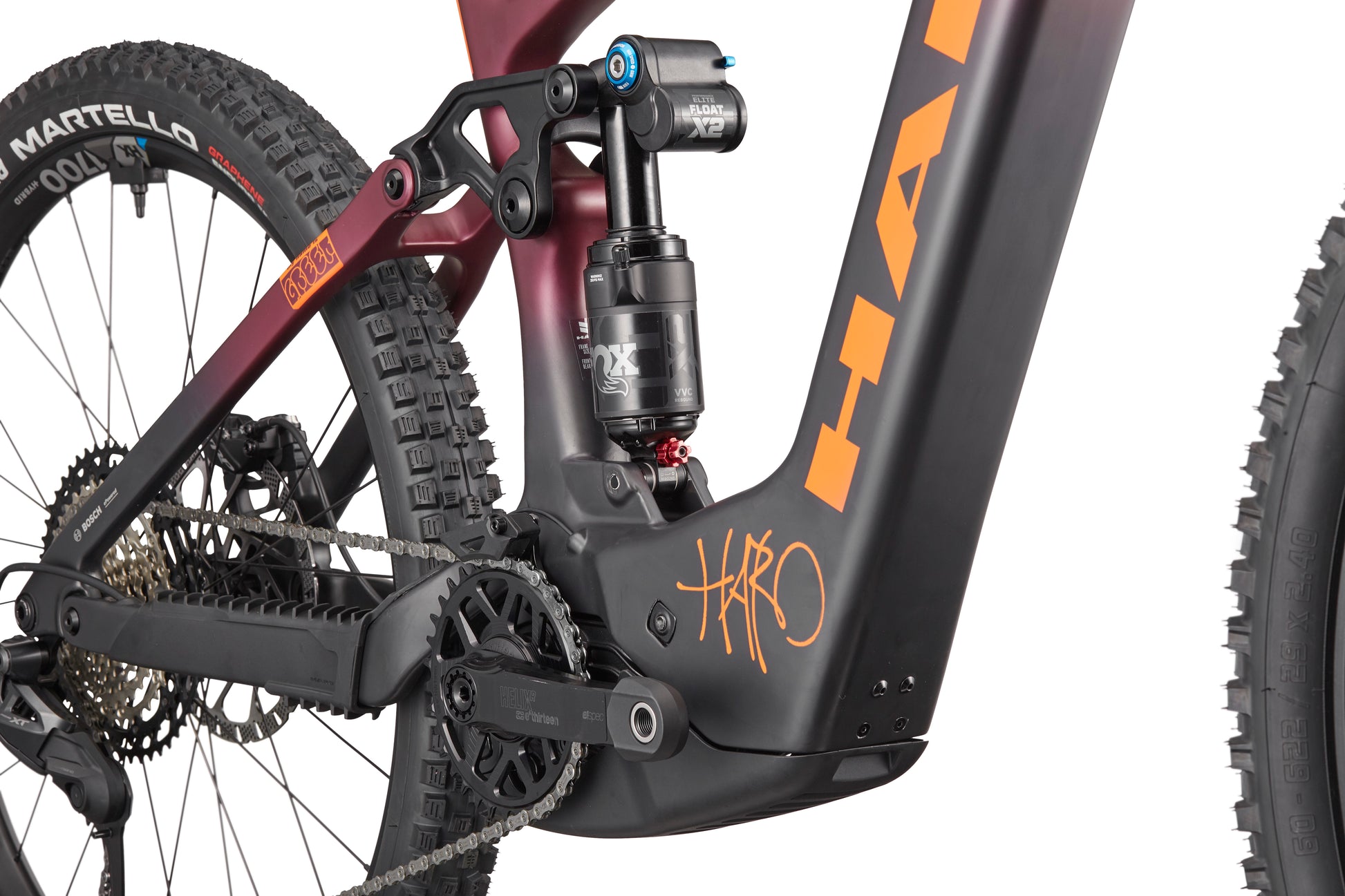

  • Close-up of eGreer Carbon 1’s rear FOX Factory suspension, drivetrain, HARO logo, and thick treaded tires.
1 7

eGreer Carbon 1

eGreer Carbon 1

$8,999.99
$0.00 $8,999.99
Sale Coming Soon

15542

The eGreer Carbon 1 delivers our signature fun, playful geometry in a powerful new way. With 170mm of travel, a reliable Bosch Performance Line CX drive unit, and the very best FOX Factory suspension, this bike is made to handle anything you can throw at it, all day, and at maximum speed.

The wireless Shimano Deore XT Di2 drivetrain ensures fast, precise gear changes – even under load. Robust, precise, and ready for demanding terrain.

 Playful and Powerful. This isn’t another ebike, it’s a Haro.

Color
Size

View full details

FEATURES

  • eGreer Carbon Full Suspension Frame – 1-1/8"–1-1/5" tapered head tube, 148 mm Boost OLD, UDH derailleur hanger
  • BOSCH PERFORMANCE LINE CX – assistance up to 25 km/h (20 mph)
  • Bosch PowerTube 600 Battery – 600 Wh capacity
  • FOX 38 FLOAT Factory with GRIP X2, 170 mm – FLOAT air spring, GRIP X2 damper with HSC/LSC and HSR/LSR adjustment, Kashima coating, Kabolt X 110 Boost thru-axle, 1.5" tapered steerer, 58 mm head tube length, 44 mm rake, matte black finish
  • Shimano Deore XT Di2 Rear Derailleur (RD-M8260) – SGS, 12-speed
  • TRP HD-M846 DH-R EVO Hydraulic Brakes – 4-piston caliper with hybrid pistons, compatible with 2.3 mm rotors
  • DT Swiss HX 1700 SPLINE® Hybrid MTB Wheelset – built for e-MTB durability and performance
  • Race Face Turbine Handlebar – 35 mm clamp, 800 mm width, 40 mm rise, Stealth finish
  • WTB HLX Saddle (W165-4394) – microfiber cover, Flex-Tuned shell, standard WTB rails, ABR corners
  • Kind Shock LEV Integra Dropper Post (C239) – 34.9 mm diameter, 200 mm travel (170 mm in size M), 533 mm total length

PRODUCT INFORMATION

SPECIFICATIONS

FRAMESET
Frame eGreer Carbon Full Suspension, 1-1/8" - 1-1/5" Tapered Head Tube, 148mm Boost OLD, UDH Derailleur Hanger
Fork FOX 38 A FLOAT mit GRIP X2, 170 mm travel, FLOAT air spring, GRIP X2 damper with HSC/LSC and HSR/LSR adjustment, Kabolt X 110 Boost thru axle, 1.5" tapered steerer, 58 mm head tube length, 44 mm rake, matte black finish
FRAME SHOCK FOX FLOAT X2 rear shock, air shock, Factory Series, 2-position adjust, Trunnion mount, 205 × 65 mm, 4 cc volume spacer, CS60 compression tune, RL40 rebound tune, LMM, Rezi B60, bleed 0.7, VVCM, neutral finish with neutral logo, OE
Weight 22,1 Kg
E COMPONENTS
Motor BOSCH PERFORMANCE LINE CX (25km/h / 20 mph)
Battery Bosch PowerTube 600 battery (600 Wh)
Display N/A
Remote -
Lights -
DRIVETRAIN
Cranks e*thirteen e*spec Helix Race Alloy crank, 26.7 mm offset, 165 mm length
Pedals N/A
Chain Shimano CN-M8100 chain, 122 links
Bottom Bracket -
Front Derailleur -
Rear Derailleur Shimano Deore XT Di2 rear derailleur (RD-M8260), SGS, 12-speed
SHIFTER Shimano Deore XT shift lever (SW-M8250-R), wireless
Freewheel/Cassette Shimano Deore XT cassette (CS-M8200-12), 12-speed, 10-51T, Micro Spline
WHEELS
Tires Vittoria Mazza 29×2.4 Enduro tire, full black, G2.0, 100 TPI
FRONT WHEEL DT Swiss HX 1700 SP Hybrid MTB carbon wheel, 29" (622 mm), 30 mm internal width, 15×110 mm Boost, IS disc mount
REAR WHEEL DT Swiss HX 1700 SP Hybrid MTB carbon wheel, 27.5" (584 mm), 30 mm internal width, 12×148 mm Boost, IS disc mount, Shimano Micro Spline (SS12)
WHEELSET DT Swiss HX 1700 SP Hybrid MTB Carbon
BRAKING SYSTEM
Brakes TRP HD-M846 DH-R EVO hydraulic brake, 4-piston caliper with hybrid pistons, 2.3 mm rotor thickness
OTHER COMPONENTS
GRIPS/ TAPE Wavelength handlebar grips (W175-0150), 30/32 mm tapered, single-bolt lock-on, 13 mm rise
Handlebar Race Face Turbine handlebar, 35 mm clamp, 800 mm width, 40 mm rise, Stealth finish
Stem Race Face Turbine-R stem, 35 mm clamp, 32 mm length
Headset FSA anodized black stem
Saddle WTB HLX saddle (W165-4394), microfiber cover, Flex-Tuned shell, standard WTB rails, ABR corners
Seat Post Kind Shock LEV Integra dropper seatpost (C239), 34.9 mm diameter, 200 mm (170 mm in size M) travel, 533 mm total length
Seat Clamp Forged Aluminium Seat Clamp CL-H2C Ø38.9
Extras Includes Tubeless Valves and Sealant

GEOMETRY

SIZE Medium Large X-Large
Seat Tube (C-T) 410mm 448mm 473mm
Top Tube (Effective) 593mm 620mm 646mm
Head Tube Angle 63.8° 63.8° 63.8°
Seat Tube Angle 78° 78° 78°
Chainstay Length 435mm 435mm 435mm
BB Height 30mm 30mm 30mm
Standover 701mm 714mm 714mm
Stack Height 624mm 633mm 642mm
Reach 460mm 485mm 510mm
Axle to Crown 584mm 584mm 584mm
Fork Offset 44mm 44mm 44mm
Wheel Size 29F / 27.5R 29F / 27.5R 29F / 27.5R

SIZING GUIDE

Size Inches CM
M 5'7" - 6'0" 170 - 183 cm
L 5'11" - 6'4" 180 - 193 cm
XL 6'3" - 6'8" 190 - 203 cm

MANUALS, GUIDES & DOWNLOADS

Downloadable PDFs can be found in Manuals & Guides

  • bicycle rider and bike icon

    CLICK, SHIP AND RIDE

    Purchase your bike online and pickup at your nearest dealer

    Learn More
  • Girl riding mountain bike on trail

    PRODUCT REGISTRATION

    Protect your investment by registering your bike.

    Register now
  • Minimalist black icon of a table with three legs and a flat rectangular top, viewed in a slightly tilted perspective, on a transparent background.

    DEALER LOCATOR

    Find your local Haro dealer

    Search Now

*Specifications are subject to change without notice
