Flightline 1 29

Flightline 1 29

Regular price $799.99
Regular price $799.99 Sale price $799.99
Sale Sold out

SKU: SKU:15210

Updated and up-sized, the Flightline 1 hardtail 29er features a revamped alloy frame with internal cable routing and a tapered head tube matched with a SunTour XCE28 100mm suspension fork. High-performance spec like a Shimano 8-speed Essa drivetrain and hydraulic disc brakes with 160mm rotors, matched with durable double-wall alloy rims put this bike at the front of the lineup for an affordable, ride-able MTB. Compatible with an aftermarket dropper post with internal cable routing, it can be fine-tuned to your personal preferences. Enjoy the ride!
Color
Size

View full details

FEATURES

  • New Haro Flightline 6061-T6 Aluminum, with internal cable routing and tapered head tube. Frame can be upgraded with aftermarket dropper post (with internal routing) and tapered front fork.
  • SR Suntour XCE28 100mm Suspension Fork
  • Prowheel 3pc, square tapered Alloy crank arm with stamped 32T chainring
  • Shimano Essa 1 x 8 speed, 11-40T cassette
  • Double Wall I25 alloy rims with quick-release axles
  • Aoyang Hydraulic Disc Brakes with 160mm Rotors

PRODUCT INFORMATION

SPECIFICATIONS

Specifications
FRAMESET

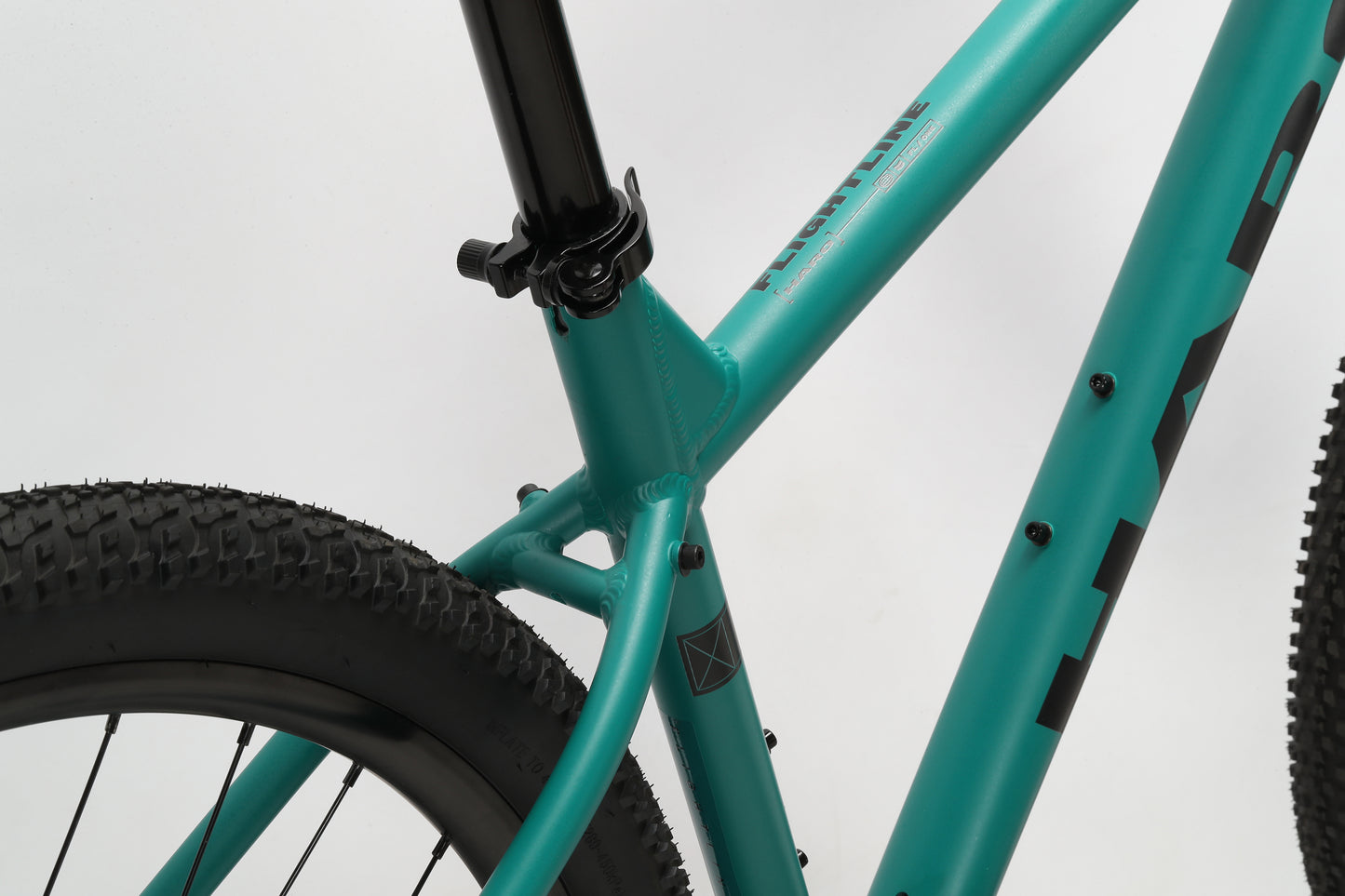

FrameNew Haro Flightline 6061-T6 Aluminum, with internal cable routing and tapered steerer tube.
ForkSR Suntour XCE28 100mm Suspension Fork
ColorsGloss Black, Matte Green
DRIVETRAIN

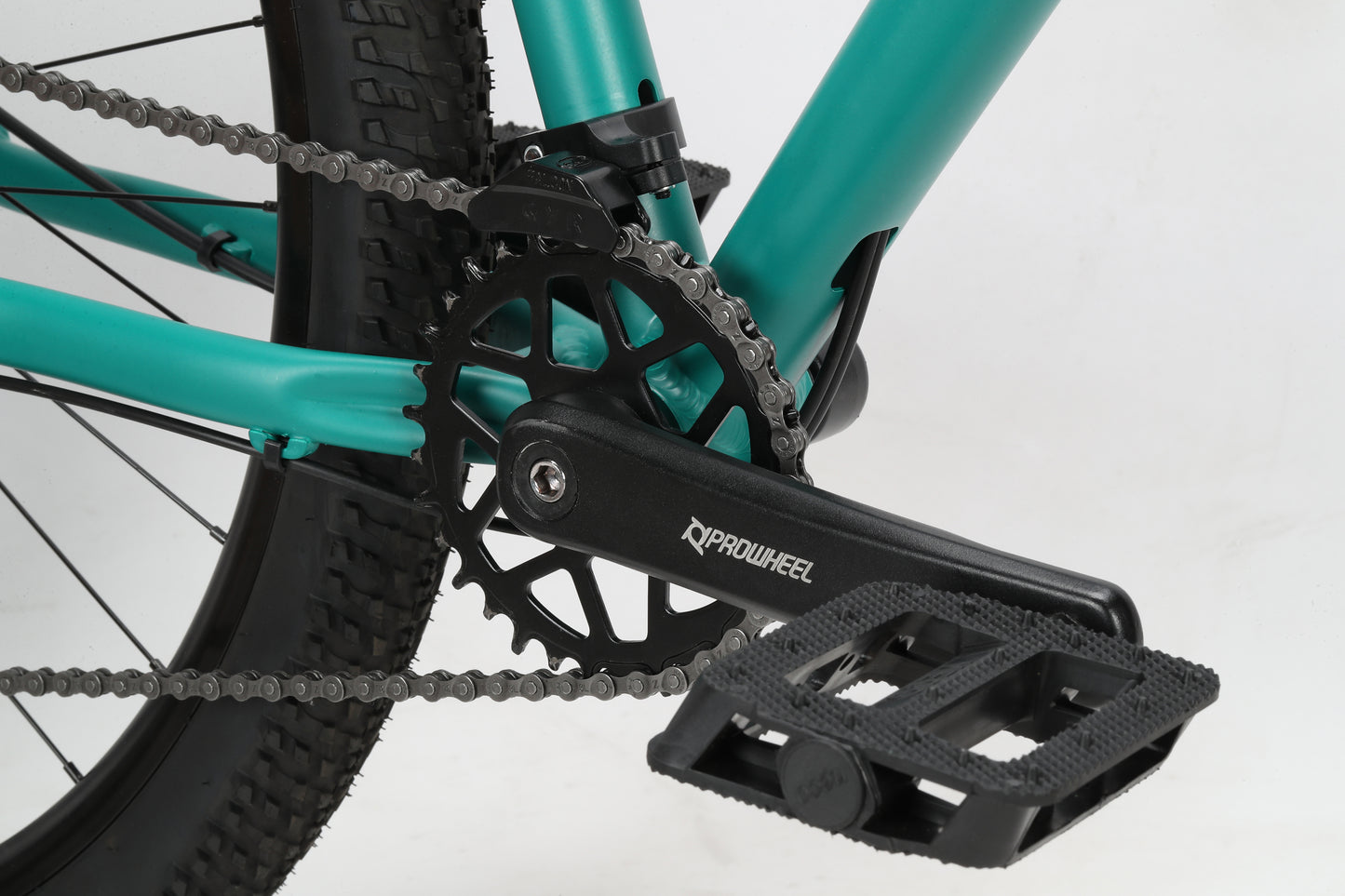

CranksProwheel 3pc, square tapered Alloy crank arm with stamped 32T chainring
PedalsFPD Nylon Platform 9/16"
ChainKMC X8 Chain
Bottom BracketSealed Cartridge 73mm
Front Derailleur
Rear DerailleurShimano Essa 8spd

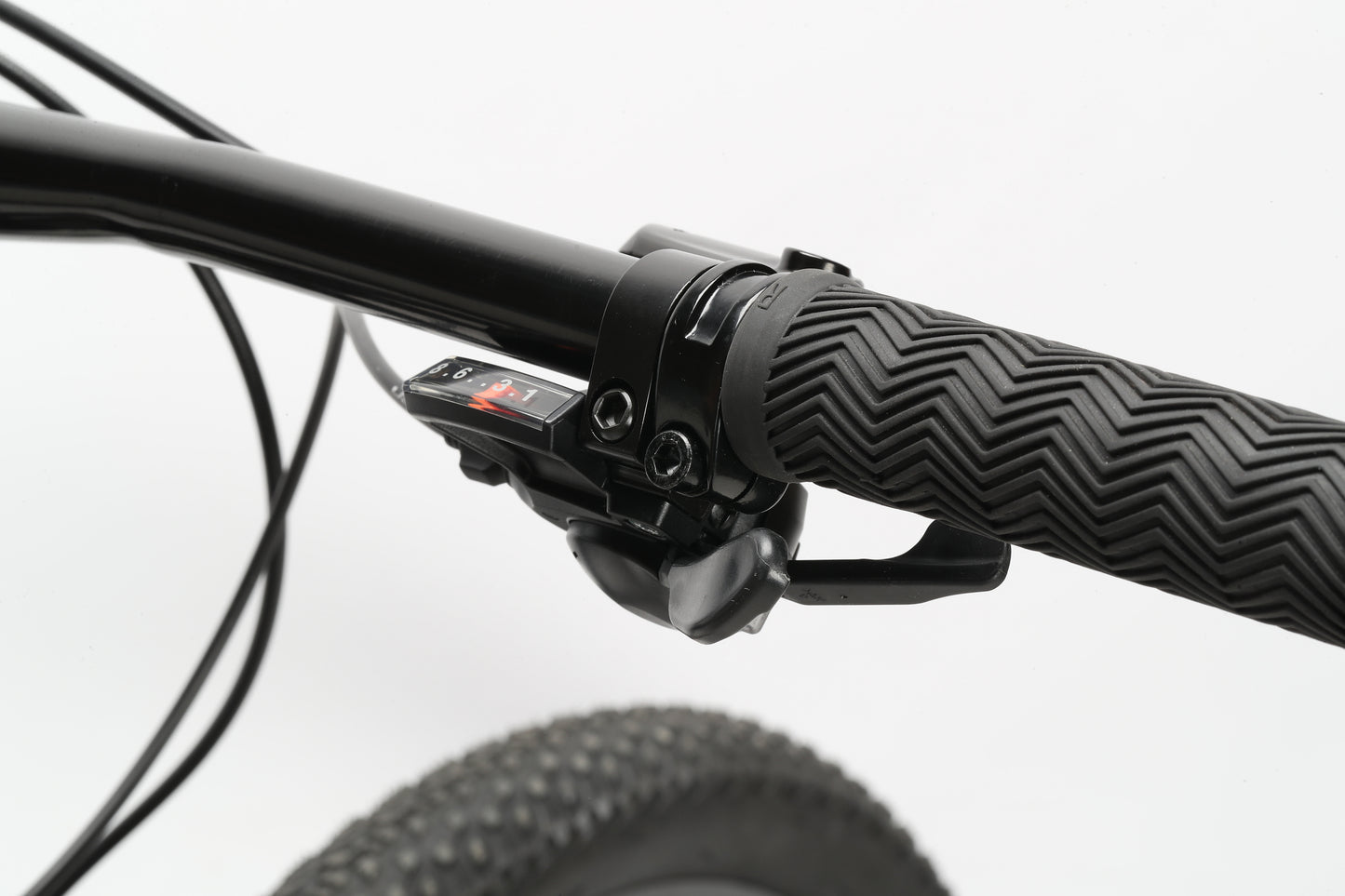

Derailleur ShifterShimano Essa 8spd Rapidfire with optical window
Freewheel/CassetteShimano Essa 8spd 11-40T
WHEELS
TiresExcell E610 29x2.1"
Wheels/RimsDouble Wall I25
HubsAlloy quick release
BRAKING SYSTEM

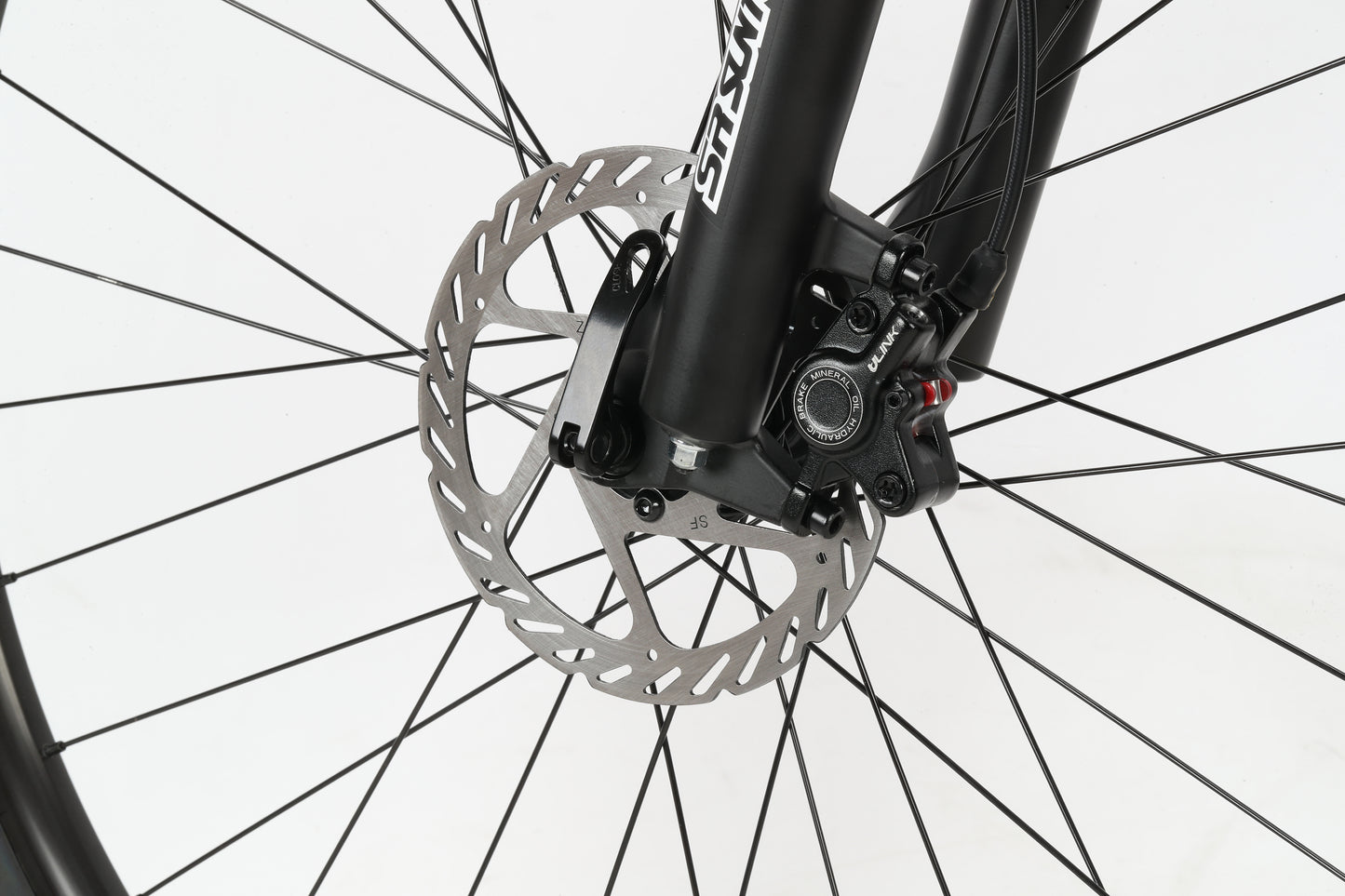

BrakesAoyang Hydraulic Disc with 160mm Rotors
Brake LeversAoyang 2.5 Finger
OTHER COMPONENTS
Grips/TapeDDK TPR 130mm
Handlebar780mm W, 15mm Rise, ø31.8, 9° Back sweep, 5° Upsweep
StemAlloy 3D forged 60mm Reach
HeadsetNeco 1-1/8" Threadless
SaddleDDK MTB
Seat PostAlloy ø31.6 Micro adjust
Seat ClampAlloy ø31.6 Quick Release

GEOMETRY

Geometry & Sizing
SIZESMLXL
Seat Tube (C-T)406mm457mm508mm559mm
Top Tube (Effective)595mm610mm635mm645mm
Head Tube Angle69°69°69°69°
Seat Tube Angle72.5°72.5°72.5°72.5°
Chainstay Length450mm450mm450mm450mm
BB Drop64mm64mm64mm64mm
Wheelbase1105.98mm1136mm1146.64mm1157.3mm
Head Tube Length100mm100mm110mm120mm
Standover721mm740mm773.7mm799mm
Stack Height
Reach394mm425mm435mm
Axle to Crown515mm515mm515mm515mm
Fork Offset44mm44mm44mm44mm
Stem Length
Bar Width
Crank Length
Wheel Size

SIZING GUIDE

Size Table
SizeInchesCM
S5'4" - 5'8"162.5 - 172.5
M5'7" - 6'170 - 182.5
L5'11" - 6'2"180 - 187.5
XL6'1" - 6'5"185 - 195
