Flightline 2 29

Flightline 2 29

$699.99
$699.99 $699.99
Sale Sold out

SKU: 15218

Our new Flightline 2 has a fully revamped alloy frame featuring all internal cable routing and a tapered steerer tube. Upgraded to a 1x8 Shimano Altus drivetrain for simple one-handed shifting and mechanical disc brakes with 160mm rotors for stopping power. With durable double-wall alloy 29-inch rims and knobby multi-surface 29x2.1 tires, it can take on groomed bike paths or rocky dirt trails. Plus, it's compatible with a dropper post with internal cable routing, so it can be easily upgraded as your riding style progresses.

Sizing Guide

SizeInchesCM
S5'4" - 5'8"162.5 - 172.5
M5'7" - 6'170 - 182.5
L5'11" - 6'2"180 - 187.5
XL6'1" - 6'5"185 - 195

Color
Size

View full details

FEATURES

  • New Haro Flightline 6061-T6 Aluminum frame, with internal cable routing and tapered steerer tube. Frame can be upgraded with aftermarket dropper post (with internal routing)
  • Zoom 80mm Suspension fork

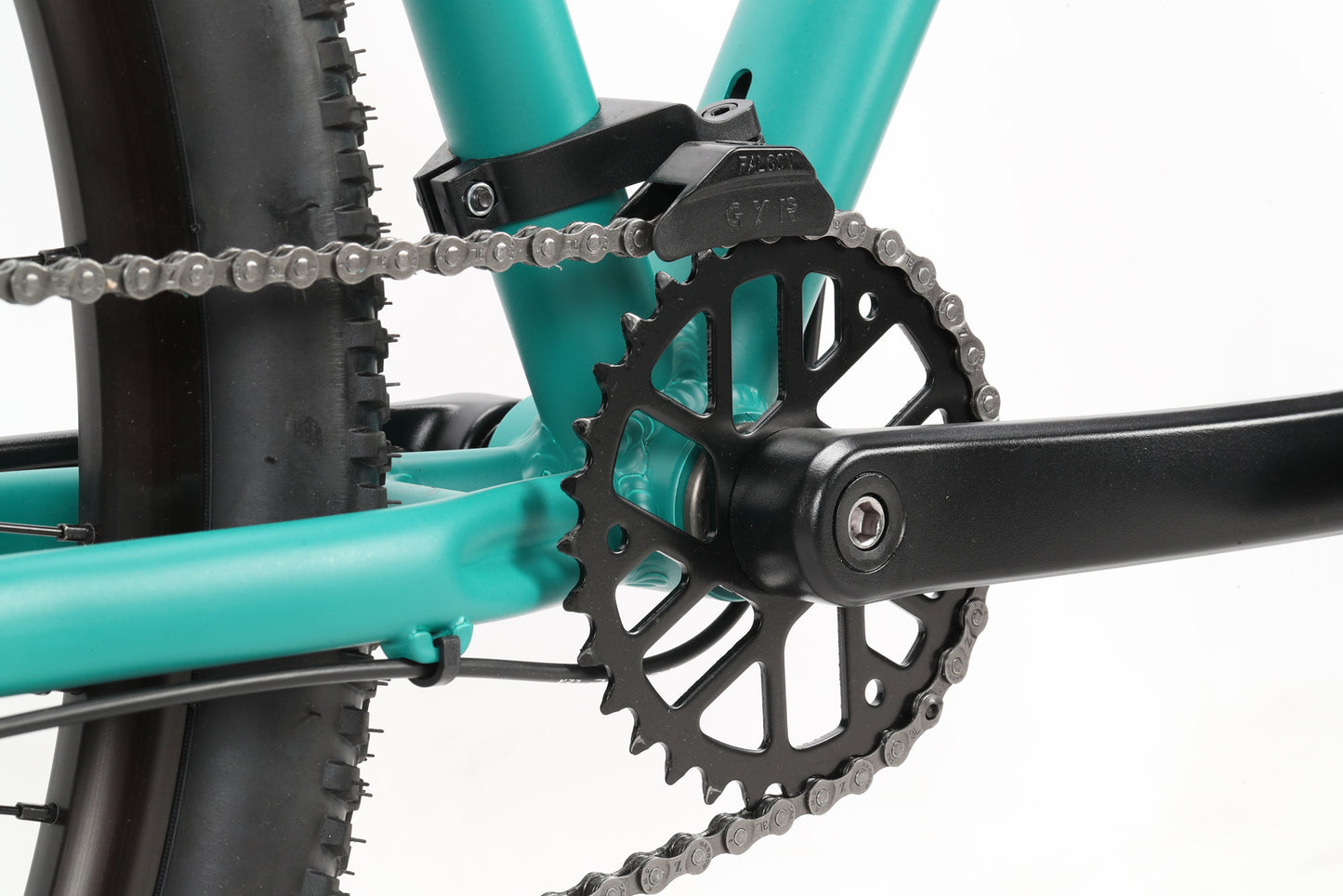

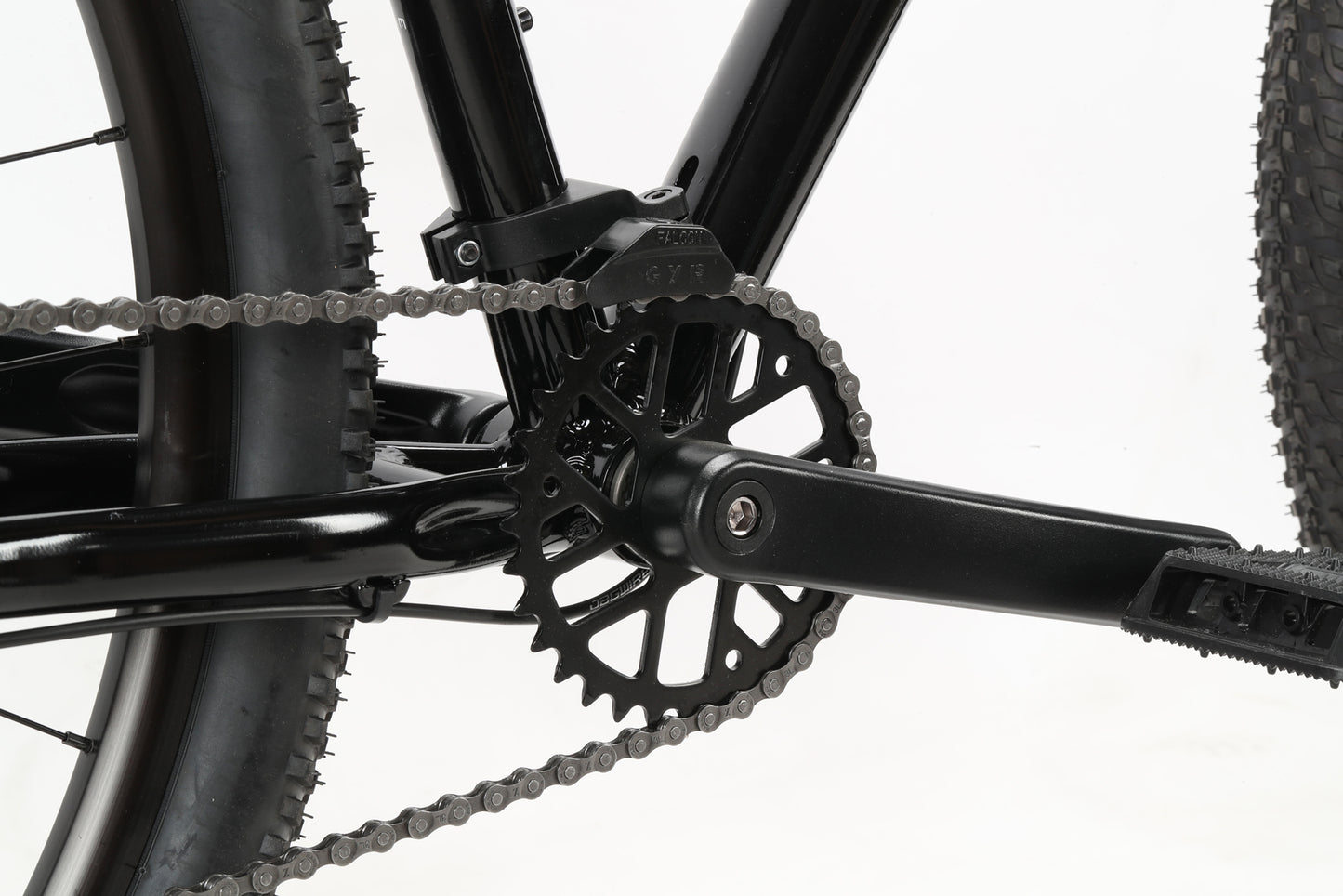

  • Prowheel 3-piece, square tapered alloy crank arms. Stamped 32T chainring

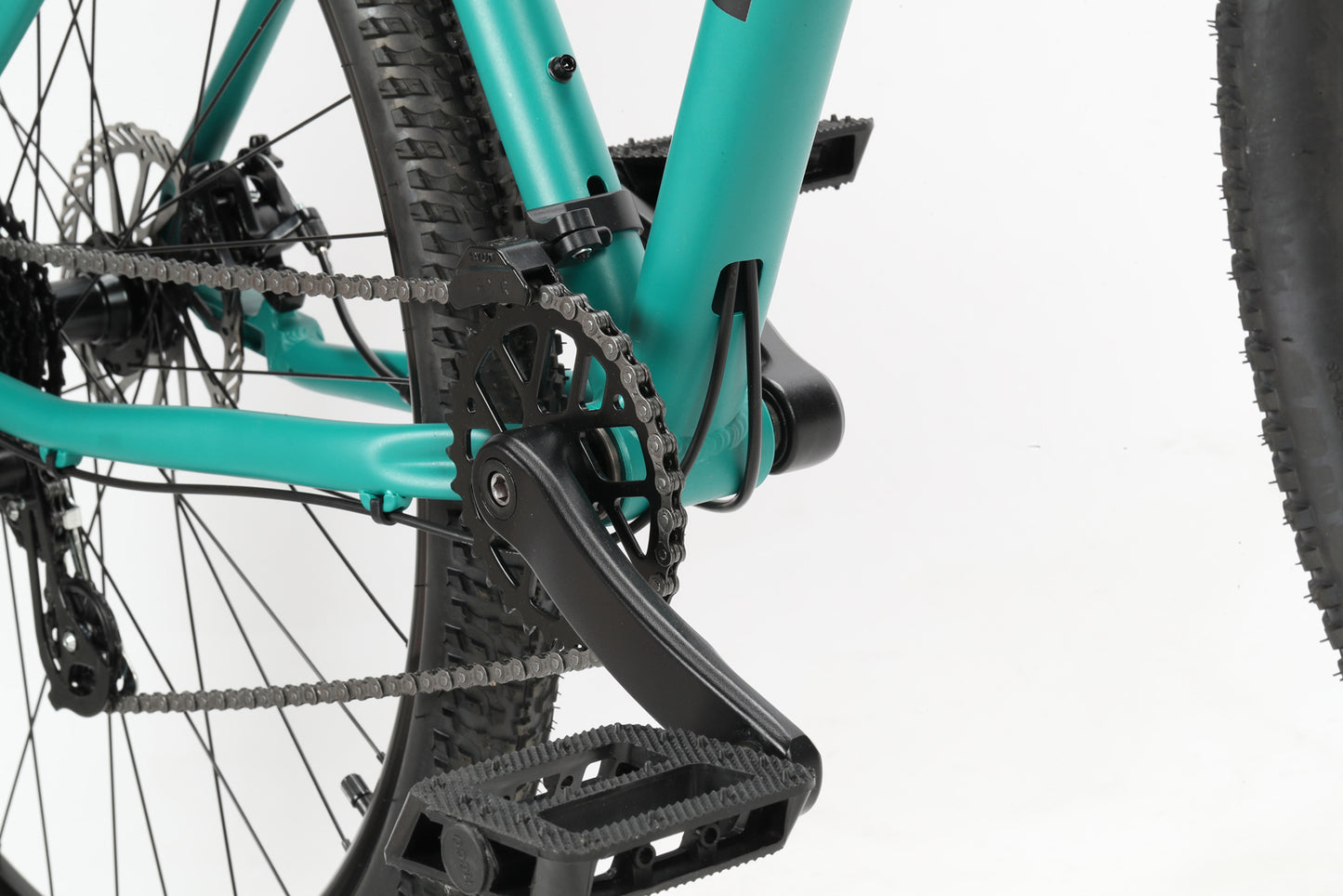

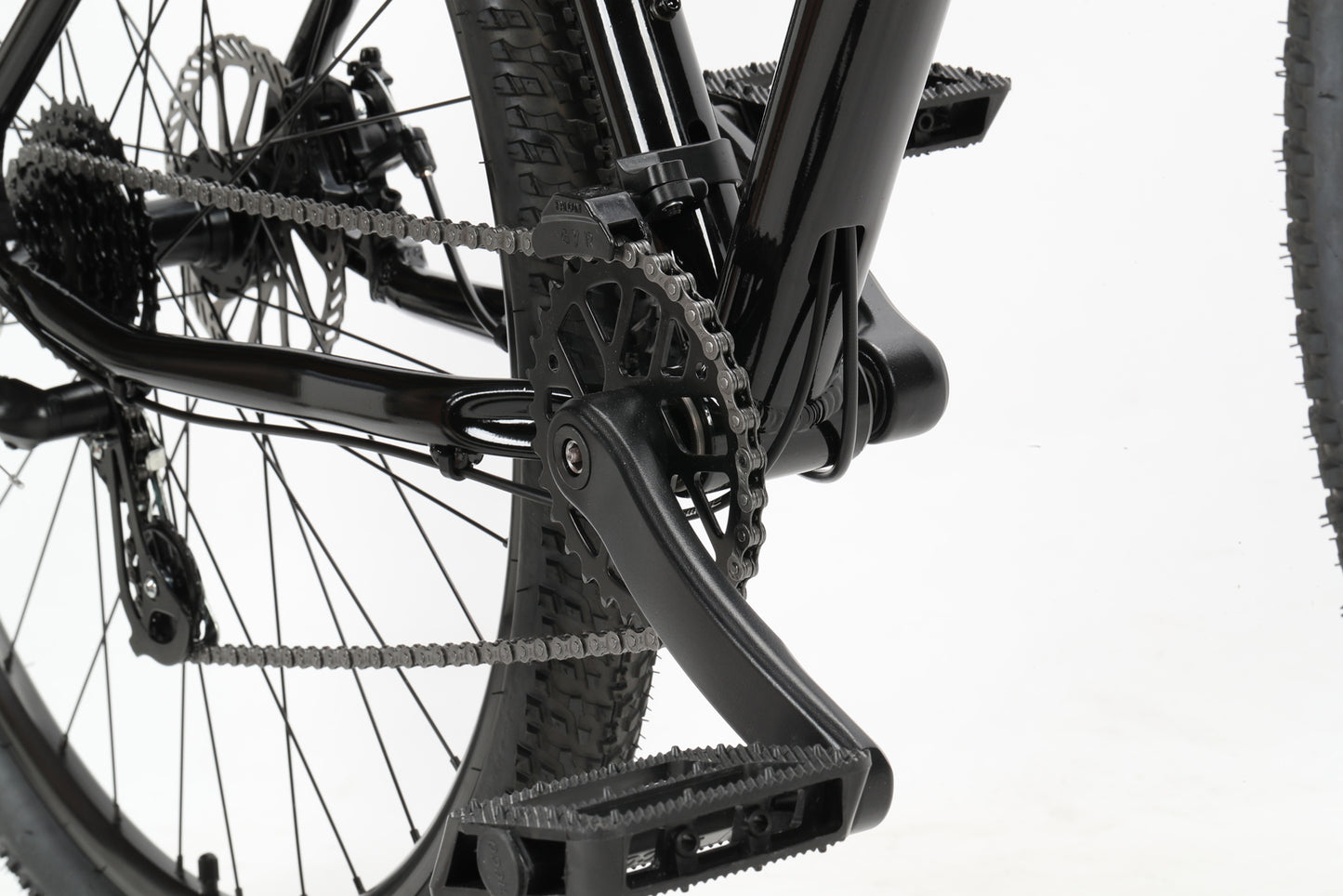

  • Shimano Altus 1 X 8-speed, 12-32T cassette.
  • Double Wall I25 alloy rims with quick-release axles.

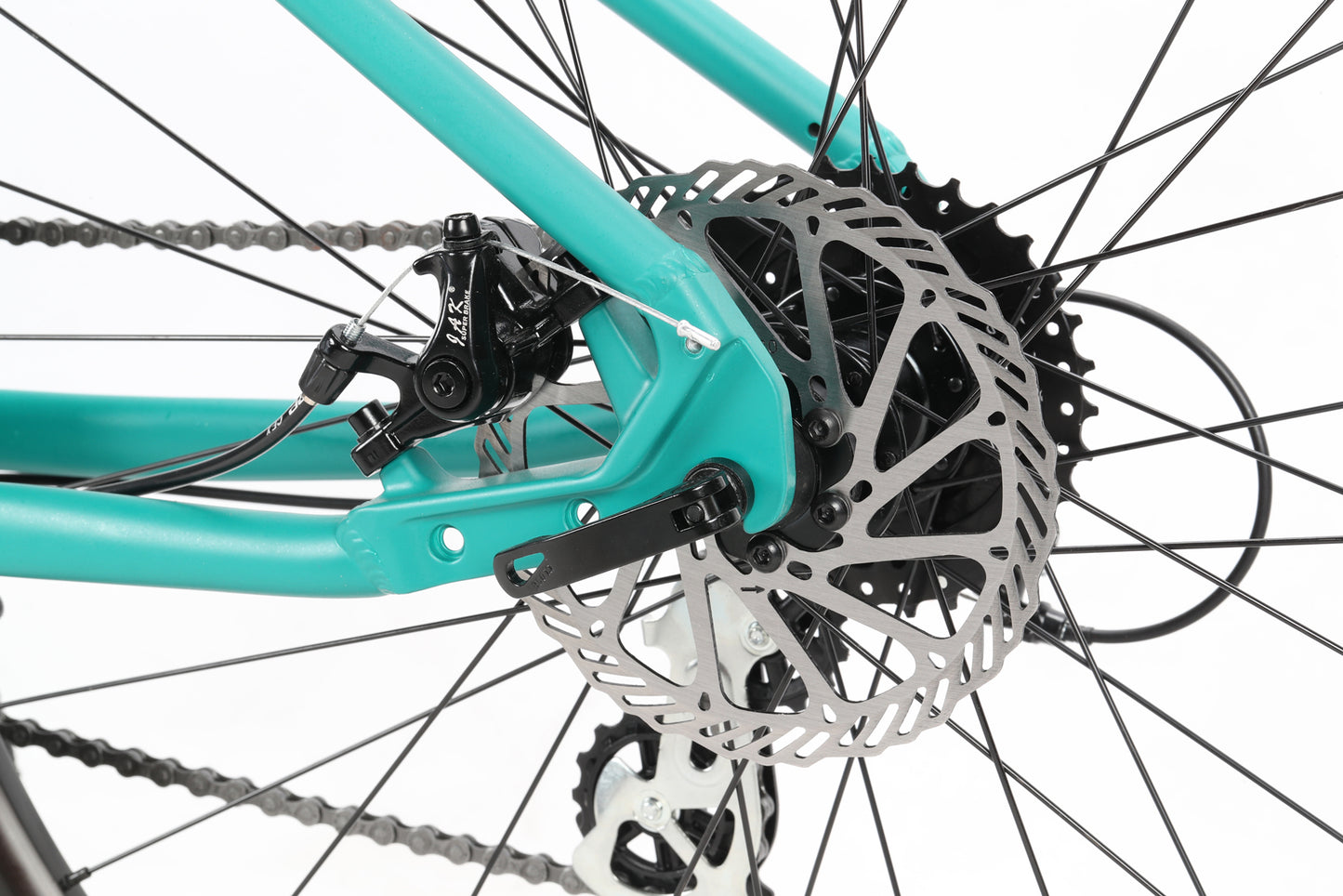

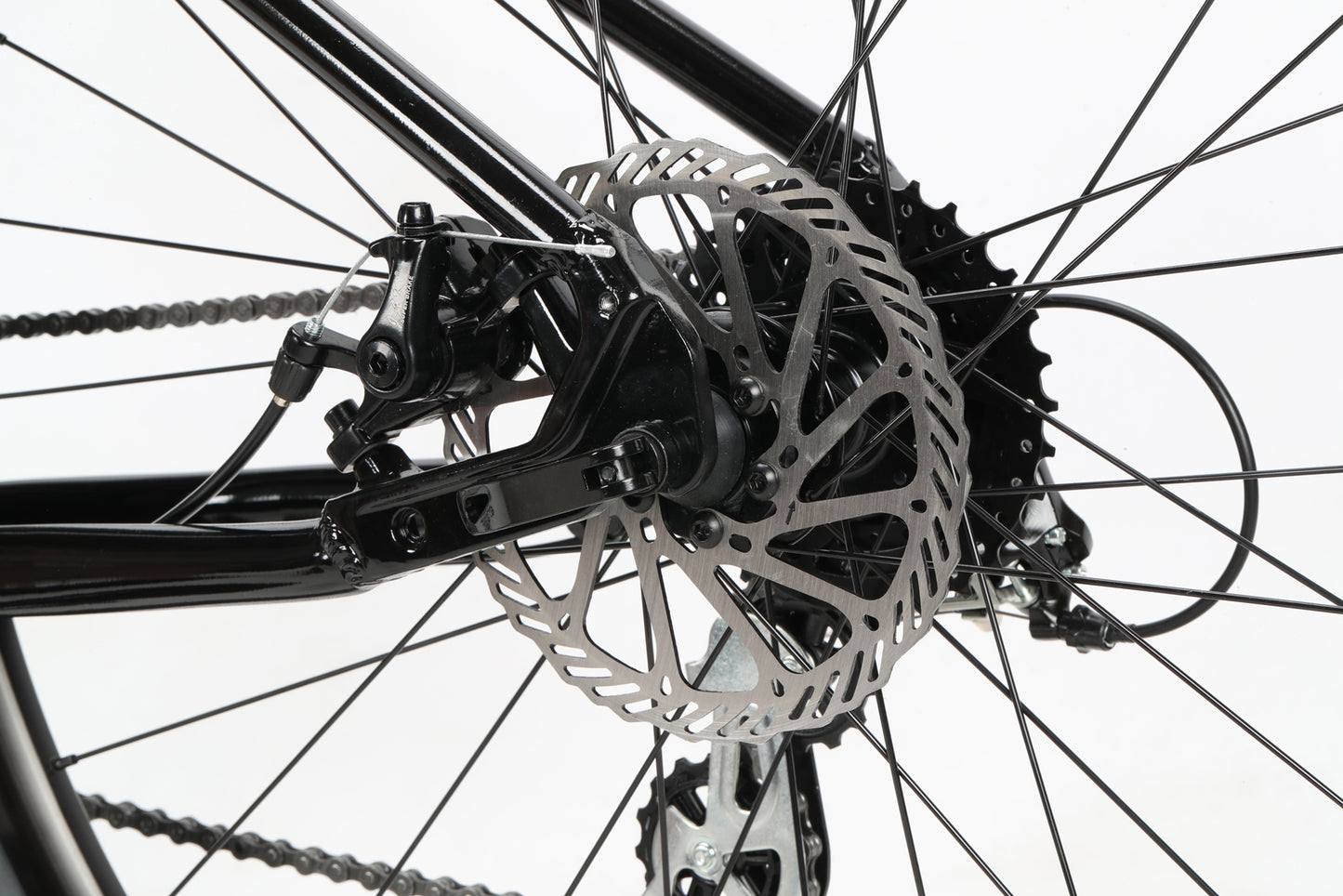

  • Mechanical Disc Brakes with 160mm rotors

SPECIFICATIONS

FRAMESET
FrameNew Haro Flightline 6061-T6 aluminum, with internal cable routing and tapered steerer tube
ForkZoom 80mm suspension fork
ColorsGloss Black, Matte Green
DRIVETRAIN
CranksProwheel 3pc, square tapered alloy crank arm with stamped 32T chainring
PedalsFPD nylon platform 9/16"
ChainKMC X8 chain
Bottom BracketSealed cartridge 73mm
Front Derailleur
Rear DerailleurShimano Altus 8-speed
Derailleur ShifterShimano Altus 8-speed Rapidfire with optical window
Freewheel/CassetteShimano Altus 8-speed 12-32T
WHEELS
TiresExcel E610 29x2.1"
Wheels/RimsAlloy double wall I25
HubsAlloy quick release front & rear
BRAKING SYSTEM
BrakesJAK-7 mechanical disc with 160mm rotors
Brake Levers2.5 finger alloy lever
OTHER COMPONENTS
Grips/TapeDDK TPR 130mm
Handlebar780mm W, 15mm rise, ø31.8, 9° back sweep, 5° up sweep
StemAlloy 3D forged 60mm reach
HeadsetNeco 1-1/8" threadless
SaddleDDK MTB
Seat PostAlloy ø31.6 micro adjust
Seat ClampAlloy ø31.6 quick-release

GEOMETRY

SIZESMLXL
A. Seat Tube (C-T)406mm457mm508mm559mm
B. Top Tube (Effective)595mm610mm635mm645mm
C. Head Tube Angle69°69°69°69°
D. Seat Tube Angle72.5°72.5°72.5°72.5°
E. Chainstay Length450mm450mm450mm450mm
F. BB Drop64mm64mm64mm64mm
G. Wheelbase1105.98mm1136mm1146.64mm1157.3mm
H. Head Tube Length100mm100mm110mm120mm
I. Standover721mm740mm773.7mm799mm
J. Stack Height
K. Reach394mm425mm435mm
L. Axle to Crown515mm515mm515mm515mm
M. Fork Offset44mm44mm44mm44mm
N. Stem Length
O. Bar Width
P. Crank Length
