Flightline 24

Flightline 24

Regular price $499.99
Regular price $499.99 Sale price $499.99
Sale Sold out

SKU: SKU:14047

Thanks to its lower stand-over height frame and 24" wheelset, the Flightline 24 is perfect for adventurous kids who love to ride but aren't quite ready for the larger sizes yet. The FL 24 features Haro's FL3G low profile X6 alloy frame with a ton of stand-over clearance. Bumps don't stand a chance thanks to its suspension fork with 40mm of travel. The FL 24 features a new 1x7-speed drive-train with a single chainring to make it easier to switch gears.

Sizing Guide

Size Table
SizeInchesCM
244' - 4'8"122 - 142

Color

View full details

FEATURES

  • Flightline X6 Series aluminum frame
  • HL 410E 1-1/8" threadless suspension fork w/ 40mm travel
  • Aluminum 3-pc 28T crankset w/ double chainguard
  • Shimano Tourney 7spd Rear Derailleur
  • Promax TX-121 V-Brakes W Short reach levers
  • Alloy riser, 620mmW, 9° back sweep, 25mm rise, ø31.8

SPECIFICATIONS

Specifications
FRAMESET
FrameFlightline X6 Series aluminum frame
ForkHL 410E 1-1/8" threadless suspension fork w/ 40mm travel
ColorsInk blue, Matte Green, Gloss Black
DRIVETRAIN
CranksAluminum 3-pc 32T crankset w/ double chainguard
PedalsMTB nylon body 9/16"
ChainKMC Z7 GYBR, 1/2″x3/32″x90L, 7-Spd
Bottom BracketCartridge Bearing 68mmX119mm
Front DerailleurN/A
Rear DerailleurShimano RD-TY200, Tourney 7spd

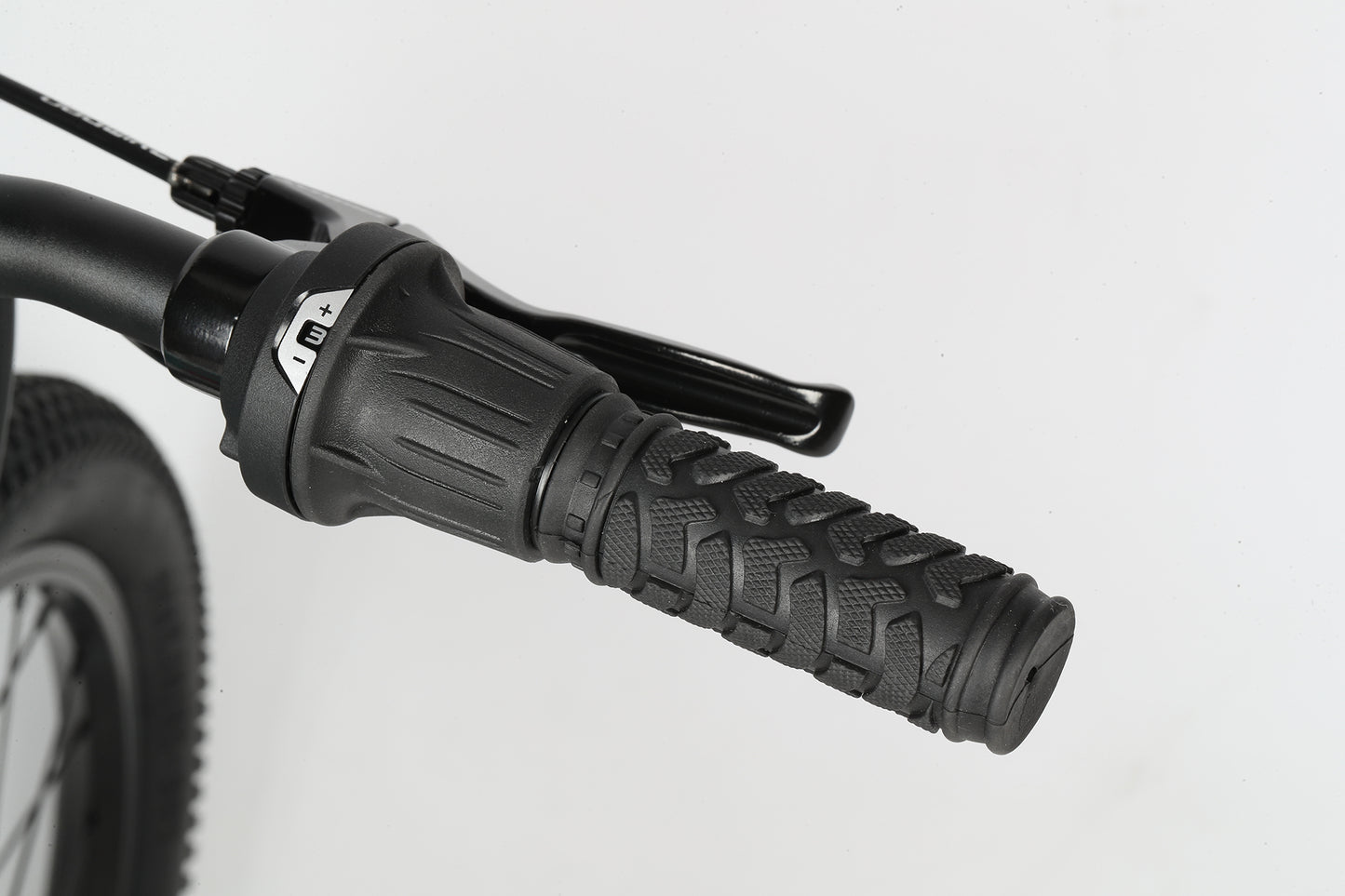

Derailleur ShifterShimano SL-RV200 7-SPD Revo Shifter W window
Freewheel/CassetteShimano freewheel 14-34T
WHEELS
TiresChao Yang H-5129 24"x2.10"
Wheels/RimsAluminum single wall 20" rims
Front HubSteel 32H 3/8"
Rear HubSteel 32H 3/8"
BRAKING SYSTEM
BrakesPromax TX-121 V-Brakes
Brake LeversPromax BL-81G | Short reach
OTHER COMPONENTS
Grips/TapeKrayton rubber MTB
HandlebarAlloy riser, 620mmW, 9° back sweep, 25mm rise, ø31.8
Stem1-1/8" threadless 3D Forged Alloy 45mmL, 7° rise
Headset1-1/8" Threadless
SaddleHaro Flightline Jr
Seat PostAlloy micro adjust ø 27.2
Seat ClampAlloy ø 31.8 quick release

GEOMETRY

Geometry frame chart
Geometry & Sizing
SIZE24
A. Seat Tube (C-T)271mm (10.7")
B. Top Tube (Effective)515mm (20.3")
C. Head Tube Angle69°
D. Seat Tube Angle73°
E. Chainstay Length405mm (15.9")
F. BB Drop30mm (1.2")
G. Wheelbase984mm (38.7")
H. Head Tube Length100mm (3.9")
I. Standover584mm (23")
J. Stack Height504mm (19.8")
K. Reach361mm (14.2")
L. Axle to Crown410mm (16.1")
M. Fork Offset35mm (1.4")
N. Stem Length45mm
O. Bar Width620mm
P. Crank Length152mm
