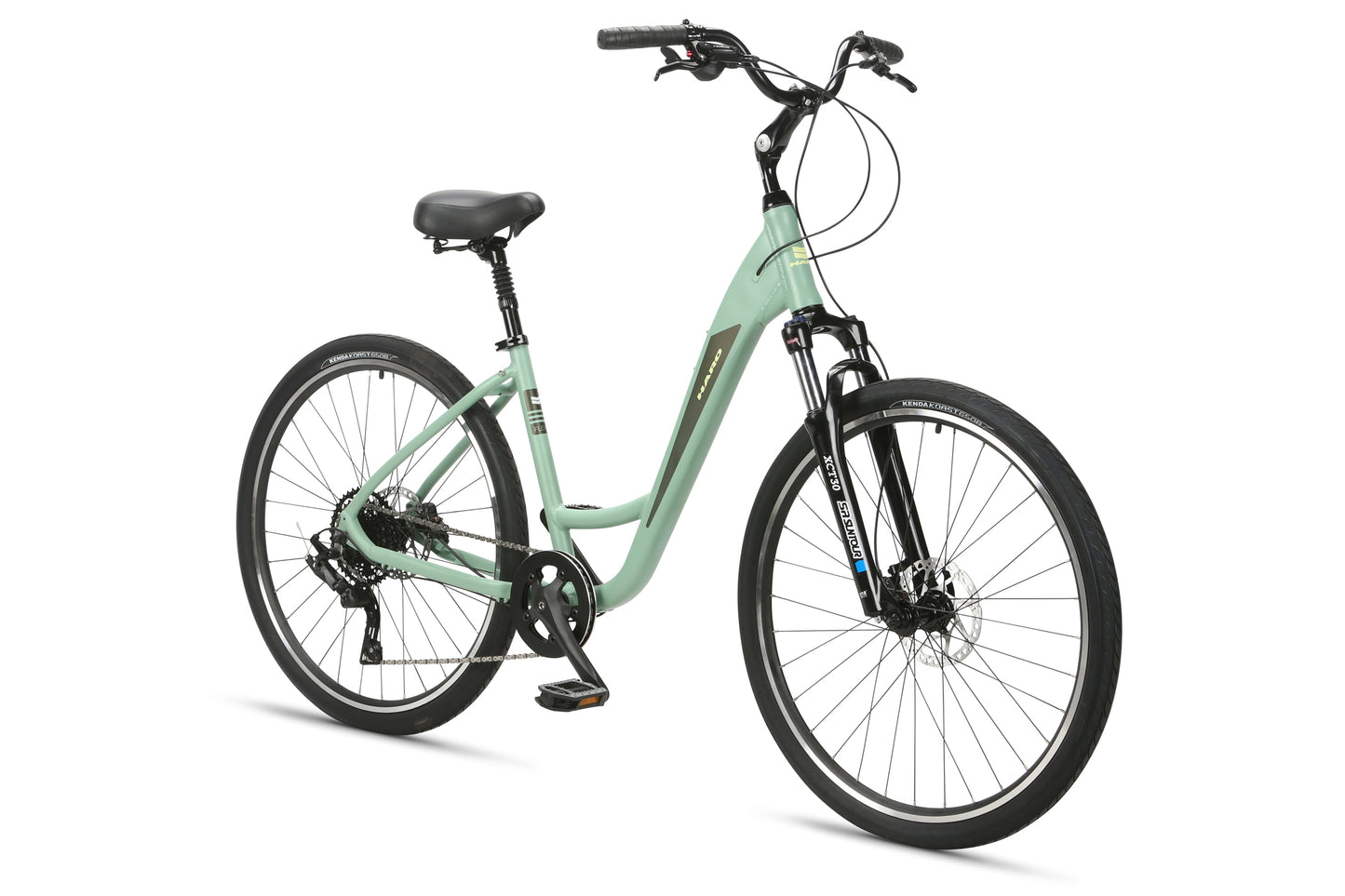

Flow 3 Step Thru

Flow 3 Step Thru

Regular price $789.99
Regular price $789.99 Sale price $789.99
Sale Sold out

SKU: SKU:34233

Everything about the Flow 3 bike speaks to maximum comfort: the softest suspension fork (that you can lock out too if you want to ride quickly on smooth surfaces), a wide range of easy gears, excellent very predictable and strong brakes, and the best seat and seatpost of the lineup. It really is the king of comfort, and with such an easy riding position, it makes going on a bike ride an absolutely enjoyable experience, as it should be.
Color
Size

View full details

FEATURES

  • Ultimate comfort design: adjustable stem, high-rise handlebars, quality suspension seatpost, fork, and comfy saddle
  • Upright posture provides excellent visibility and easy-to-handle ride characteristic
  • Generous standover and relaxed geometry make on/off bike transitions seamless
  • Quality 1x9 wide-range drivetrain and excellent hydraulic disc brakes make for exceptional durability and minimal maintenance
  • Relaxed headtube angle provides more predictable and steady steering with nothing sneaking up on you
  • Relaxed seat tube angle brings the rider position less over the bars and more evenly positioned, with better posture
  • Dual-chain guard design prevents chain from dropping and protects clothing

PRODUCT INFORMATION

SPECIFICATIONS

Specifications
FRAMESET
FrameFlow | Heat-treated 6061 aluminum | Newly Refined Design | Tig-welded construction | Easygoing geometry (pedal forward positioning) | Size-Specific Wheel Design | 68mm threaded BSA bottom bracket shell | 135mm quick-release spacing
ForkSR Suntour | SF20 NEX HLO-DS | 63mm travel | Lightweight alloy crown and monocoque lowers | Weather-sealed stanchion protection | Plush coil spring with adjustable preload | Hydraulic Lockout | Post-mount disc brake | 100mm quick-release spacing
ColorsBali Blue, Matte Sage
DRIVETRAIN
Cranks3-piece | Forged alloy | Steel 38T chainring with dual-guide design | 170mm length
PedalsCauseway flattopers | Shock-absorbing Kraton inserts
ChainKMC X9 | 9-speed
Bottom Bracket68mm threaded BSA shell | JIS square taper | Sealed cartridge
Front DerailleurN/A
Rear DerailleurMicroshift Advent | 9s | Medium Cage | W Clutch | RD-6195M | Shimano Compatible
Derailleur ShifterMicroshift Xpress Trigger | RS 9s | No Indicater | SL-M819-R | Shimano Compatible
Freewheel/CassetteMicroshift | 9s | 11-42T
WHEELS
TiresKenda Kwick Journey S: 26 x 1.75" M: 27.5 x 1.75"
Wheels/RimsAlloy | Width (internal): 19mm Double-wall | 32h
Front HubAlloy | 100mm quick release | I.S. 6-bolt disc | 32h
Rear HubAlloy | 135mm quick release | I.S. 6-bolt disc | HG freehub | 32h
BRAKING SYSTEM
BrakesTEKTRO Hydraliuc | Dual Piston | Open System | Post Mount | 160mm | DS-100H
Brake LeversTEKTRO 2.5 Finger Ergo | Reach Adjustment
OTHER COMPONENTS
Grips/TapeErgo Comfort | Dual Density
HandlebarAlloy Riser Bar | Ø25.4 bar bore | 80mm rise | 15-degree wrist-saver sweep | 635mm width
StemQuill | Alloy | Adjustable 0-25° rise | Ø25.4 bar bore | S/14": 85MM; M/17" - L/20": 105MM
Headset1-1/8" Integrated | Threaded
SaddleHARO | Shock-absorbing
Seat PostAlloy | Suspension | Easy-adjust head | 27.2 x 300mm
Seat ClampAlloy | Quick release | Ø 31.8mm
ExtrasRack & Fender Mounts

GEOMETRY

Geometry & Sizing
SIZES / 15 STM / 17 ST
A. Top Tube (Effective)575mm (22.6")590mm (23.2")
B. Seat Tube (C-T)381mm (15")432mm (17")
C. Standover Height435mm (17.1")444mm (17.5")
D. Head Tube Length155mm (6.1")155mm (6.1")
E. Head Angle68°68°
F. Seat Angle71°71°
G. Wheelbase1078mm (42.4")1097mm (43.2")
H. Chainstay440mm (17.3")450mm (17.7")
I. BB Drop40mm (1.6")55mm (2.2")
J. Stem Length
K. Bar Width635mm635mm
L. Crank Length170mm170mm
M. Wheel Size2627.5

SIZING GUIDE

Size Table
SizeInchesCM
S / 15 ST
M / 17 ST
