Greer Alloy LTD 2

Greer Alloy LTD 2

Regular price $4,599.99
Regular price $4,599.99 Sale price $4,599.99
Sale Sold out

SKU: SKU:15437

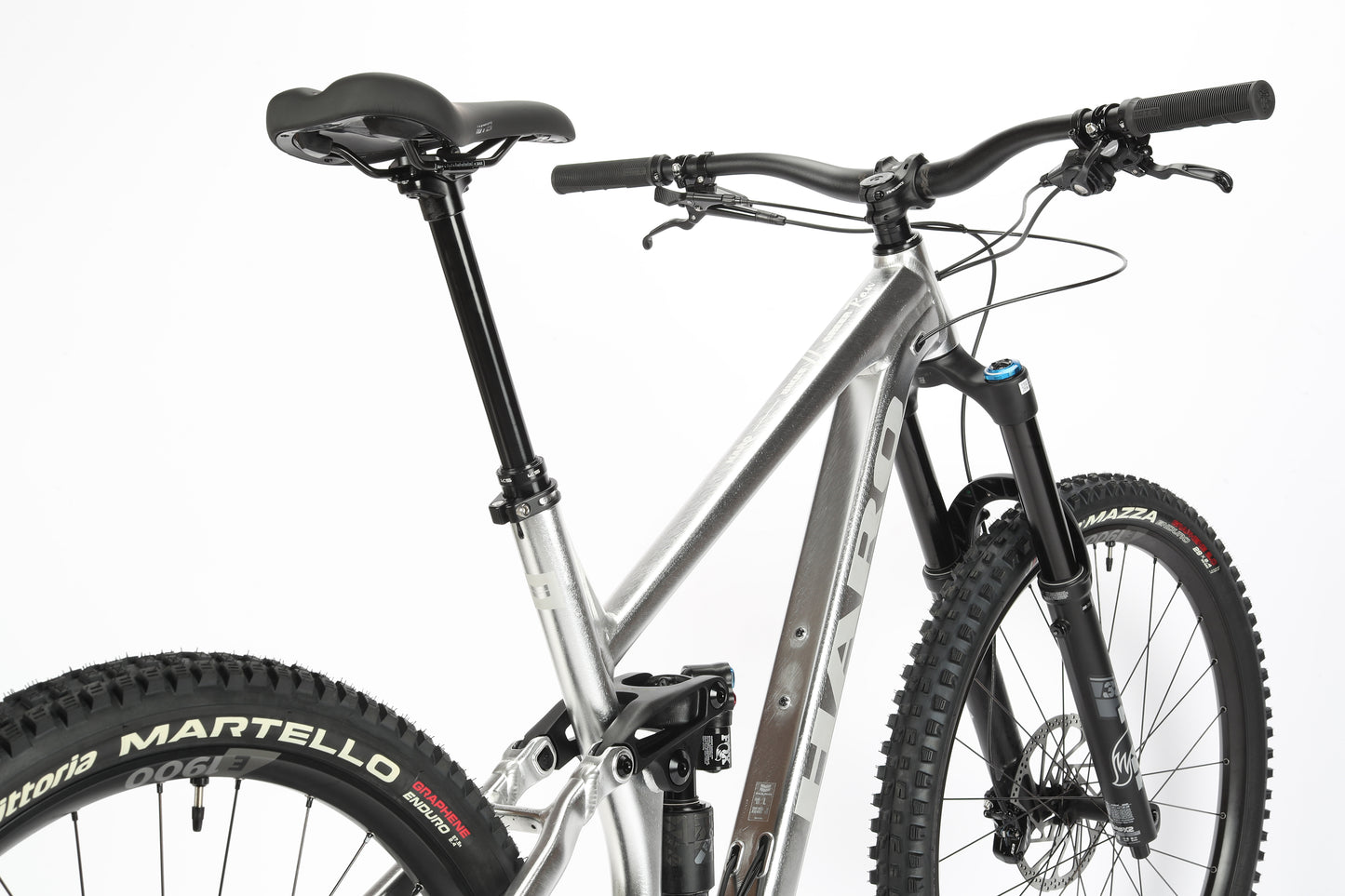

Refined, raw and ready! The Haro Greer LTD takes our Greer Alloy 1 to the next level with a limited edition raw, anodized finish. With an aggressive setup for the steep and deep with 170/160mm travel, built on our performance alloy Greer frame, with custom tuned, progressive suspension for each spec level. The 29/27.5 "mullet" wheel configuration means business in the front and party in the back, but make no mistake, this whole bike is ready to throw down. Designed by riders for riders to plow through the chunk and hit the biggest hits. Drop the seat and drop in.
Color
Size

View full details

FEATURES

  • Haro Greer alloy full-suspension frame with raw anodized finish, 1-1/8" - 1-1/5" Tapered Head Tube, 148mm Boost OLD, UDH Derailleur Hanger
  • Fox Float X2 Performance Elite shock, 160mm travel
  • Fox Float 38 Performance Elite with Grip X, 170mm travel
  • Shimano XT drivetrain
  • DT Swiss M 1900 wheel set
  • Vittoria Mazza 2.4", enduro G2.0 front & Vittoria Martello 2.4" enduro G2.0 rear tires
  • TRP Trail EVO 4-piston hydraulic disc with 203mm rotors, front & rear
  • Race Face Turbine bars & Aeffect R stem
  • Kind Shock Rage-I dropper post, size specific

PRODUCT INFORMATION

SPECIFICATIONS

Specifications
FRAMESET
FrameHaro Daley Carbon full-suspension frame with raw anodized finish, 1-1/8" - 1-1/5" tapered head tube, 148mm Boost OLD, UDH derailleur hanger
ForkFox Float 36 Performance Elite with Grip X, 150mm travel
Frame ShockFox Float X Performance Elite, 140mm travel
ColorsRaw
Weight38.9 lbs 17.49 kg, (L)
DRIVETRAIN
CranksShimano XT, FC-M8120-1, 165mm, 32T chainring, 55:CL
PedalsN/A
ChainShimano CN-M8100 HG 12-speed
Bottom BracketShimano BB-MT501 BSA 68/73mm
Front DerailleurN/A
Rear DerailleurShimano XT 12-speed, Shadow Plus, RD-M8100
Derailleur ShifterShimano XT 12-speed, SL-M8100R
Freewheel/CassetteShimano XT 12-speed CS-M8100, Hyper Glide Plus, 10-51T
WHEELS
TiresFront: Vittoria Mazza 2.4", enduro G2.0 120TPI / Rear: Vittoria Martello 2.4" enduro G2.0 120TPI
Wheels/RimsDT Swiss M 1900 wheel set
BRAKING SYSTEM
BrakesTRP Trail EVO 4-piston hydraulic disc with 2.3mm thick, 203mm rotors, front & rear
Brake LeversTRP Trail EVO
OTHER COMPONENTS
Grips/TapeWTB Wavelength 130mm lock-on
HandlebarRace Face MY25 Turbine, 35mm OD, 40mm rise, 800mm wide
StemRace Face Aeffect R, 35mm ID, 40mm reach
HeadsetFSA ORBIT 1.5E ZS/ NO.57E tapered, 44/56mm head tube
SaddleWTB Volt Medium PU leather, flex-tuned, chromoly rails, with ABR corners
Seat PostKind Shock Rage-I dropper, 34.9OD, sizes: Small 150mm, Medium 170mm, Large 190mm, X-Large 190MM
Seat Clamp3D Forged 6061 aluminum 38.9mm ID
ExtrasIncludes tubeless valves and sealant

GEOMETRY

Geometry & Sizing
SIZESMLXL
Seat Tube (C-T)361mm410mm448mm473mm
Top Tube (Effective)561mm593mm620mm646mm
Head Tube Angle63.8°63.8°63.8°63.8°
Seat Tube Angle78°78°78°78°
Chainstay Length435mm435mm435mm435mm
BB Drop30mm30mm30mm30mm
Wheelbase1210mm1244mm1273mm1303mm
Head Tube Length90mm100mm110mm120mm
Standover697mm701mm714mm714mm
Stack Height615mm624mm633mm642mm
Reach430mm460mm485mm510mm
Axle to Crown584mm584mm584mm584mm
Fork Offset44mm44mm44mm44mm
Stem Length
Bar Width
Crank Length
Wheel Size29F / 27.5R29F / 27.5R29F / 27.5R29F / 27.5R

SIZING GUIDE

Size Table
SizeInchesCM
S5" - 5' 6"153 - 166
M5'4" - 5' 11"162 - 180
L5' 9"- 6' 2"175 - 187
XL6' - 6' 5"180 - 196

MANUALS, GUIDES & DOWNLOADS

Downloadable PDFs can be found in Manuals & Guides
