Greer Carbon Frameset

Greer Carbon Frameset

Regular price $3,099.99
Regular price Sale price $3,099.99
Sale Coming Soon

SKU: 95047

With the Greer Carbon, HARO is launching its successful enduro concept as a pure carbon MTB frameset for the first time. The progressive geometry, 160 millimeters of rear suspension travel, and consistent design for modern enduro components make the frame the ideal platform for individual high-performance builds. The bike is delivered with the FOX FLOAT X2 Factory rear shock (Trunnion mount, 2-position adjustment, Kashima coating), ensuring maximum control, sensitivity, and downhill performance at the highest level.

Visually, the Greer Carbon makes a clear statement: the street art-inspired graphics give the frame a distinctive, striking look and underline the progressive character of the bike – modern, urban, and unmistakable.

The carbon frame combines high stiffness, low weight, and maximum durability. Well-thought-out details, modern standards, and clean lines ensure a tidy setup – whether for ambitious racers or demanding enduro enthusiasts.

Size

View full details

ENDURO MEETS ART

High-performance carbon meets expressive street art graphics – for riders who demand performance and character.

DESIGN MEETS UNCOMPROMISING FRAME PROTECTION

With the Greer Carbon, function always comes first – design follows the line of use. Solid impact protection in the bottom bracket area reliably protects the carbon frame from hard impacts in extreme terrain. This is exactly where enduro bikes have to take the most punishment in races or on demanding trails. In addition, a robust down tube bumper protects the frame during lift rides, shuttle rides, or pick-up rides. The protective solutions are deliberately integrated into the street art-inspired design and make it clear: this bike is built for tough use.

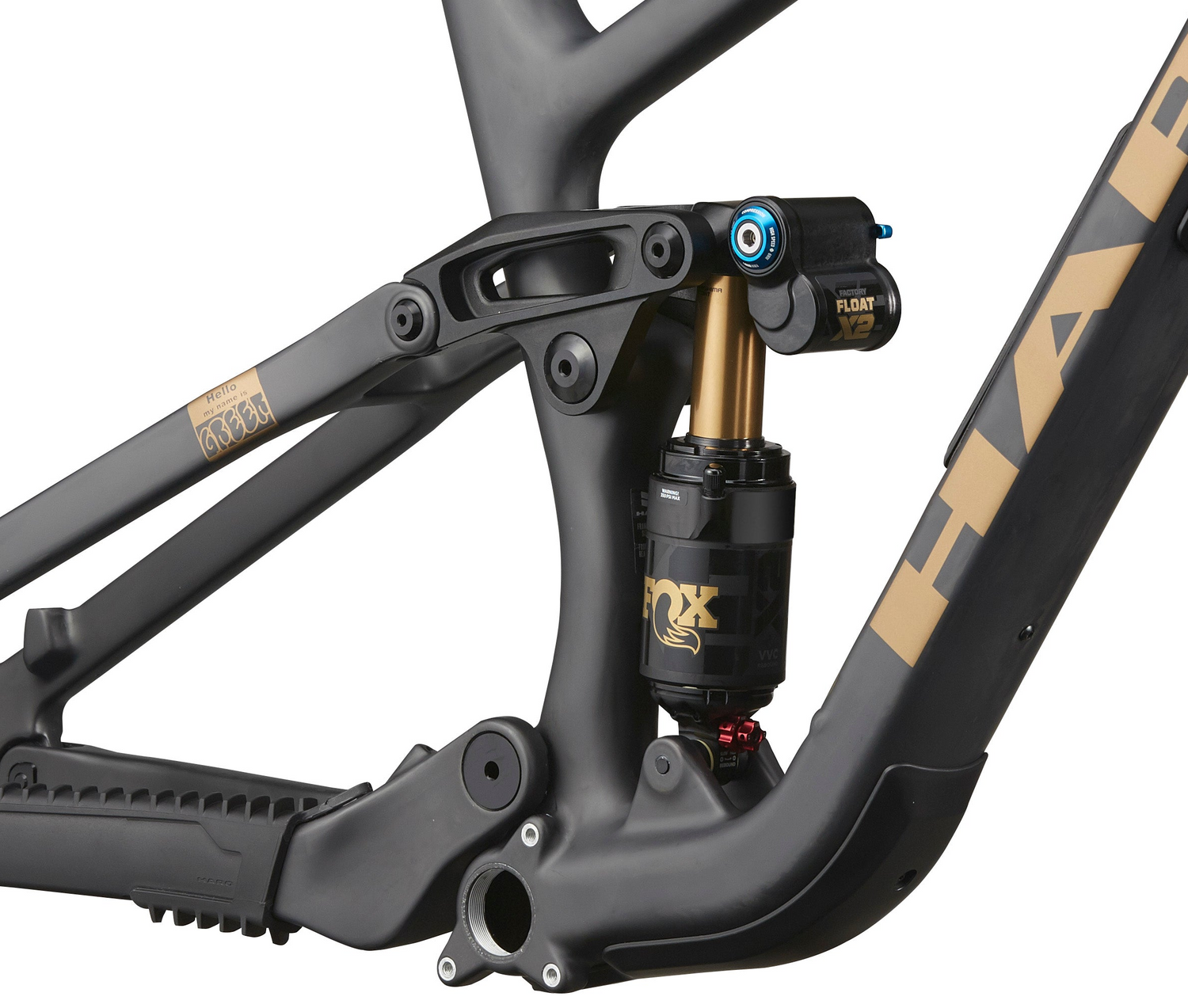

FULL CONTROL

The rear suspension of the Greer Carbon delivers 160 millimeters of travel, tuned for aggressive trails and high speeds. Sensitive responsiveness ensures maximum traction on technical terrain, while the progressive characteristic curve remains confidently controlled even on hard hits and big drops. The kinematics offer a clear balance of stability, support, and control—perfect for enduro races, bike park days, and long descents at maximum speed.

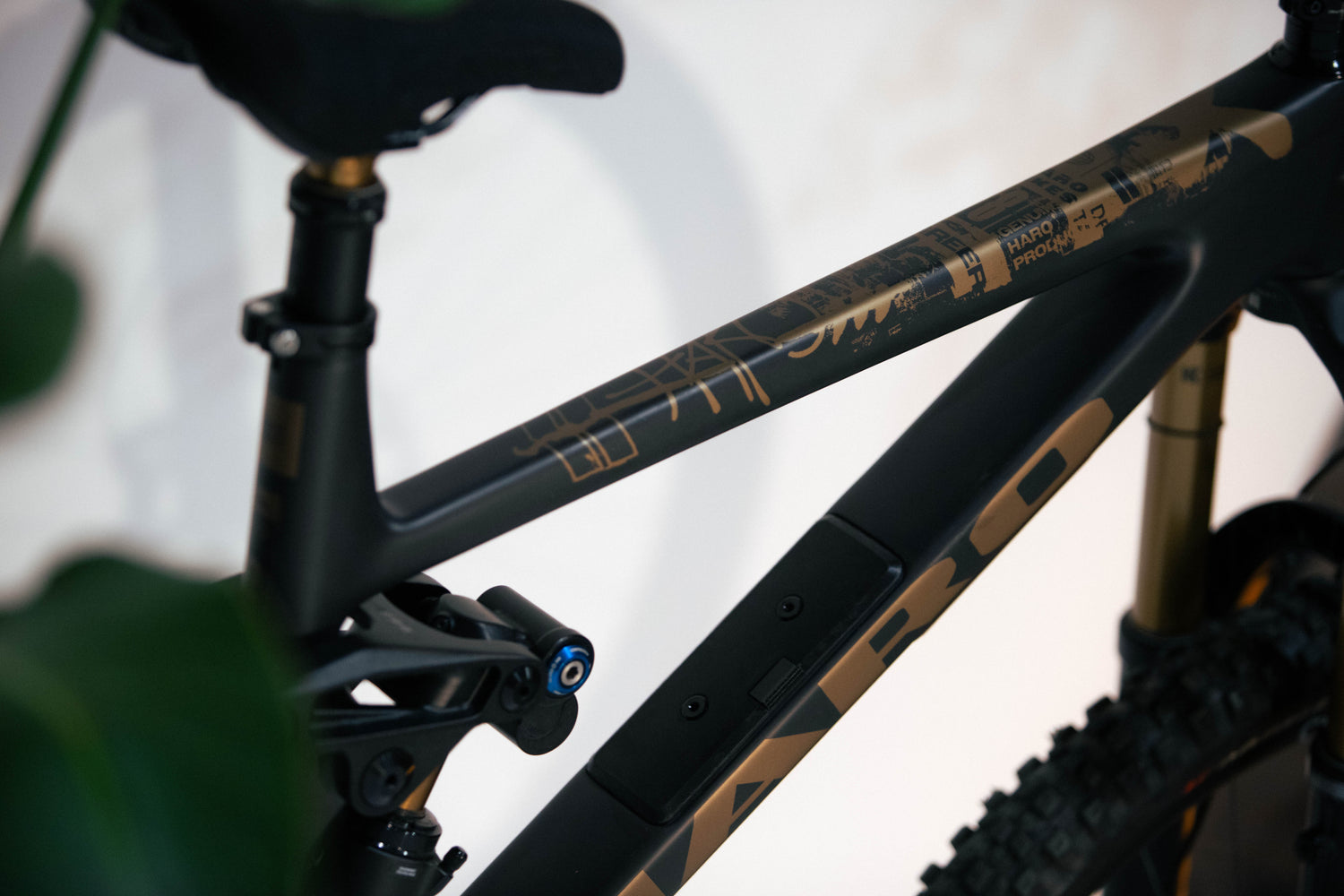

Close-up of Haro Bikes’ Greer Carbon Top Shelf frame, Fox 38-Float-Factory fork, chain, gears & Pirelli tire on a carbon MTB.

PRACTICAL STORAGE SPACE INTEGRATED

The Greer Carbon also features an integrated storage compartment in the down tube for added freedom on the trail. Tools, inner tubes, or spare parts are safely stowed away and accessible at all times—ideal for long enduro stages or extended backcountry rides.

The cover sits securely, rattle-free, and is seamlessly integrated into the frame. Practical functionality without compromising the clean look or robustness of the enduro frame.

PRODUCT INFORMATION

SPECIFICATIONS

Specifications
FRAMESET
Frame Greer Carbon Full Suspension frame with donwtube protector, 1-1/8" - 1-1/5" Tapered Head Tube, 148mm Boost OLD, UDH Derailleur Hanger
Rear/front suspension travel 160 mm / 170 mm
Rear Shock FOX FLOAT X2 Factory, Trunnion, 2-position adjust, Kashima coating
Bottom Bracket 68/73 BSA
brake mount 203 mm Postmount
seat tube diameter 34,9 mm / 38,9 mm clamp
Maximum tire width & Size 2.6” (66 mm) / 29"/27.5" Mullet
Recommended fork size 170 mm Travel / Rake 44 mm
Suspension mount dimensions Trunnion Mount, 205×65 mm

GEOMETRY

Geometry & Sizing
SIZESMLXL
Seat Tube (C-T)361mm410mm448mm473mm
Top Tube (Effective)561mm593mm620mm646mm
Head Tube Angle63.8°63.8°63.8°63.8°
Seat Tube Angle78°78°78°78°
Chainstay Length435mm435mm435mm435mm
BB Drop30mm30mm30mm30mm
Wheelbase1210mm1244mm1273mm1303mm
Head Tube Length90mm100mm110mm120mm
Standover697mm701mm714mm714mm
Stack Height615mm624mm633mm642mm
Reach430mm460mm485mm510mm
Axle to Crown584mm584mm584mm584mm
Fork Offset44mm44mm44mm44mm
Stem Length
Bar Width
Crank Length
Wheel Size29F / 27.5R29F / 27.5R29F / 27.5R29F / 27.5R

SIZING GUIDE

Size Table
SizeInchesCM
S5" - 5' 6"153 - 166
M5'4" - 5' 11"162 - 180
L5' 9"- 6' 2"175 - 187
XL6' - 6' 5"180 - 196
