Lineage Sport Bashguard 26 2023

Lineage Sport Bashguard 26 2023

Regular price $1,649.99
Regular price $1,649.99 Sale price $1,649.99
Sale Sold out

SKU: SKU:23657

Welcome to the big and tall bash guard department. The Lineage Sport Bashguard 26" is the bike your teenaged self couldn't have imagined. Ready to monster-truck over anything in it's path, with a 90's inspired all chromoly frame, fitted with a replaceable nylon bash guard and chromoly forks with peg bosses for the included smooth alloy pegs. Satin finish double-wall alloy rims, sealed high flange hubs and Kenda Kranium tires to put the power to the ground. Add to that Haro Kneesaver bars, mated with our Lineage and Fusion parts and you get an upsized BMX bike that rides the line between your past and future self.
Color

View full details

FEATURES

  • 100% chromoly Lineage Sport 26" frame with platform and bash guard, Mid BB shell, integrated head tube and invest-cast drop outs with integrated chain tensioners. 22.5" top tube length.
  • 100% chromoly 26" fork with internal threaded steer tube, tapered legs, 1989 style peg bosses, 990 brake mounts with internal brake cable routing routing

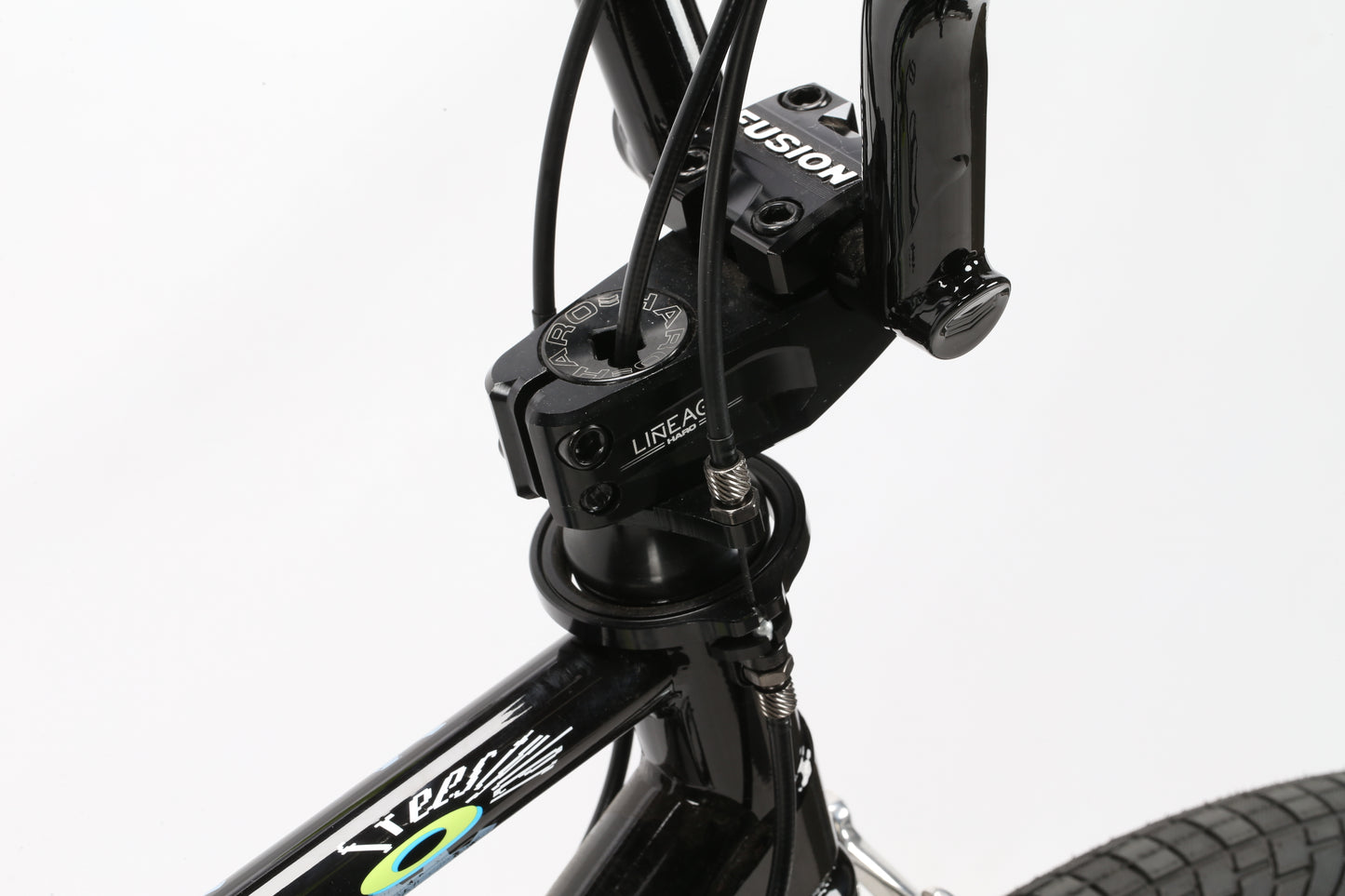

  • 100% heat-treated and butted chromoly Lineage Kneesaver bars 8.5" with Haro Lineage CNC alloy top load stem
  • Lineage Fusion alloy 175mm cranks with 22mm chromoly spindle. Lineage Fusion Disc 41T CNC alloy bolt drive sprocket and sealed Mid BB
  • 41/17 gearing
  • Fully sealed wheels with Lineage high flange hubs and double-wall alloy rims
  • Kenda Kranium tires 26 x 2.1" front and rear
  • Haro Lineage padded Pivotal stealth Fusion seat with alloy Lineage Pivotal fluted post
  • Haro Fusion alloy pedals
  • CNC alloy pegs
  • CNC alloy gyro with Teflon bearing
  • Haro Team grips
  • KMC K710SL super light chain
  • Dia-Compe Hombre FS996 (front) and AD996 (rear) brakes with Tech 77 levers
  • Haro Lineage two-bolt alloy seat post clamp

PRODUCT INFORMATION

SPECIFICATIONS

Specifications
FRAMESET
FrameLineage Sport Bashguard 26" frame - 22.5" full crmo; internal h/t crmo - with removable rotor tab mounting holes; removable brake mounts.
ForkHaro Fork with 990 mounts and internal cable routing; 28mm offset; 3/8" axle; cr-mo steerer; tapered fluted legs
ColorsBlack
DRIVETRAIN
CranksHaro Lineage heat treated 3-piece alloy 175mm cranks (bolt drive interface) rsd and lsd; 22mm spindle
Bottom BracketSealed MID 22mm BB
SprocketFusion disc sprocket; cnc bolt drive sprocket; 5mm alloy ring; 1/2" x 1/8" x 41t ; solid ring w/ machined teeth, included sprocket adapter
Gearing25/9
PedalsHaro Fusion; alloy pedal body; crmo axle
ChainKMC K1Sl; 1/2 x 1/8; Narrow Silver Super Lite
WHEELS
TiresKinda Kranium tire; 26x2.25; 60 max psi
Front Hub48h alloy hub body; 3/8"x100wx155l; crmo 155mm straight axle; 2 sealed bearings
Rear HubHaro Lineage sealed bearings; 17t Freewheel; 17mm steel flange axle nuts; all hardware in cp finish including cone nuts, axle nuts
RimsHaro Lineage 26x1.75"; 48h; (w200) (double wall welded joint)
BRAKING SYSTEM
BrakeDia-Compe fs996 "hombre" u-brake; cold forged aluminum arms; dual spring tension adjustment w/anchor bolt parts
Brake LeverDia-Compe "tech-77" lever without stopper; right and left side; diecast aluminum bracket with hinged clamp; cold forged aluminum lever
RotorTeflon bearing gyro - full cnc 6061 t6 included a-plate
OTHER COMPONENTS
GripsHaro team grip; 145mm length x 29mm diameter; 50mm od flange (low); kraton a15 material (super soft).
HandlebarLineage kneesaver bar 8.5"; 100% heat treated; multi-butted
StemHaro Lineage fusion top load stem; T6 alloy; cold forged with cnc; 52mm
HeadsetSealed Integrated, 1 1/8"
SeatHaro Fusion slim stealth pivotal seat
Seat PostHaro Fusion stealth pivotal seat post; 25.4 x 300mm
Seat Post ClampHaro Fusion twintorc clamp; alloy 6061
Pegs6061 alloy pegs; 34mm od; 110mm length; include 4 total pegs

GEOMETRY

Geometry & Sizing
SizeHead AngleSeat AngleTop TubeSeat TubeChainstayBB HeightStand Over
22.573°69°22.5" (571.5mm)10.2" (368mm)13.7" (461mm)11.5" (293mm)21.5" (546mm)
