Rivette Carbon LTD

$9,999.99

~~$9,999.99~~ $9,999.99

Sale Sold out

SKU: SKU:45551

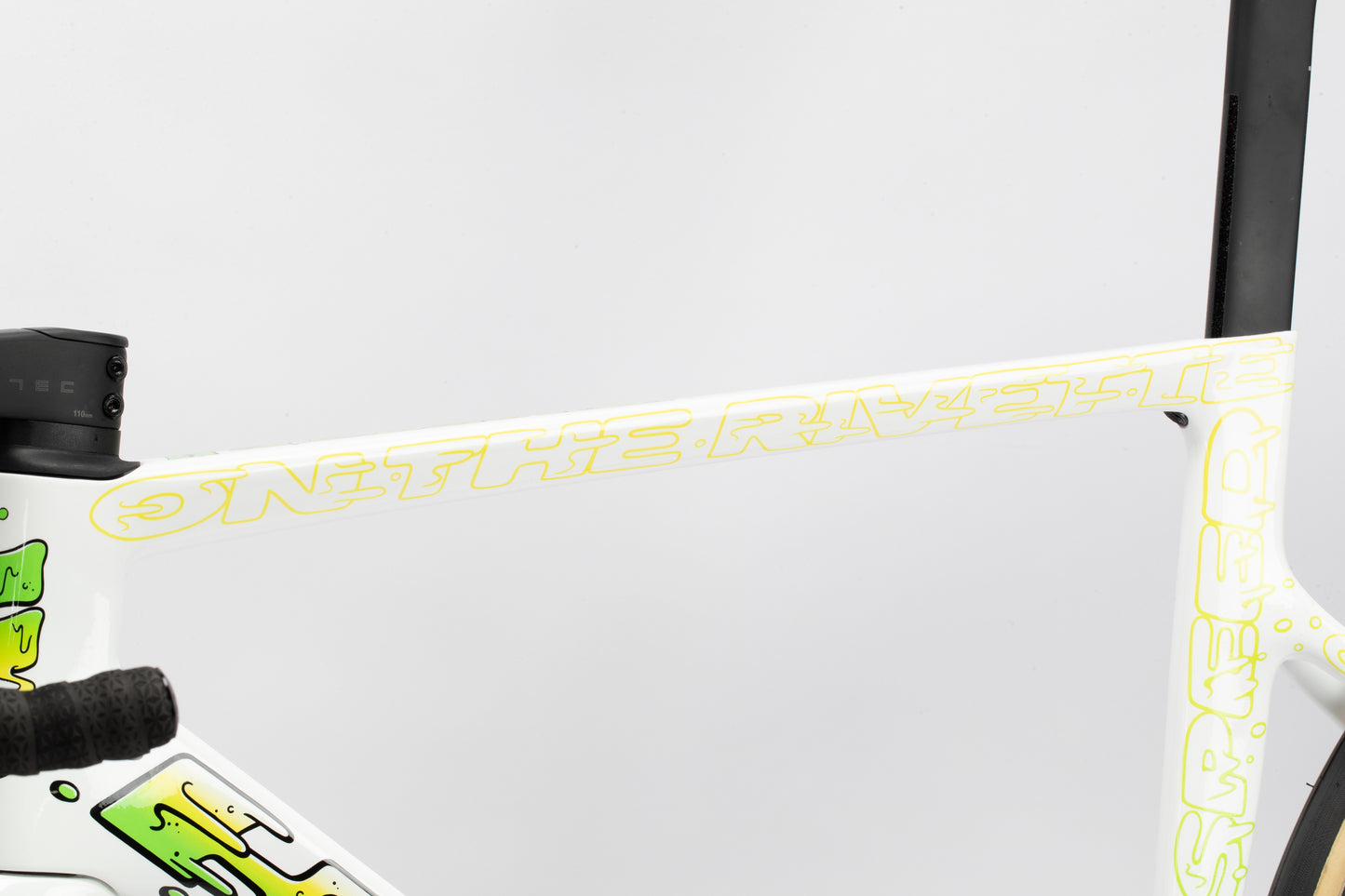

We've partnered with UK-based illustrator and animator Mark Ward on this Limited Edition Rivette, the first in our artist series. Fascinated by California culture and raised on a healthy diet of BMX and Saturday morning cartoons, Mark's vibrant work engages the viewer with his playful humor and surreal sun-kissed visuals. The Rivette's carbon fiber frame and fork is the perfect canvas to showcase Mark's art and this bike is built out to the fullest with SRAM Red AXS components, an integrated BLKTEC R8 bar/stem combo (with computer mount) and a ZIPP 404 Firecrest Carbon wheel set. These bikes are literal works of art and super limited--don't sleep or they'll be gone.

Read the Velo review

Color: White / Green

Size 48cm 51cm 54cm 56cm 58cm 61cm

View full details

FEATURES

UCI-certified carbon frame and fork with tapered steerer tube in custom size-specific carbon layups. Designed to work exclusively with electronic groupsets.
SRAM Red AXS Power Meter crank set; 12spd (scaled per frame size).
SRAM Paceline hydraulic disc brakes with 160mm rotors.
ZIPP 404 Firecrest Carbon tubless ready wheel set.
Vittoria Corsa Pro 30-622 fold TLR G2.0 700x30c
Headset for internal cable routing, and size-specific one-piece combined bar and stem.
BLKTEC R8 Carbon Bar Stem Combo with computer mount
Designed around a Universal Derailleur Hanger (UDH)

PRODUCT INFORMATION

SPECIFICATIONS

Specifications
FRAMESET
Frame	Haro Rivette Carbon Frame
Fork	Haro Rivette Carbon Fork with internal routing and Carbon Tapered steerer
Colors	Gloss White / Electric Green Yellow
Weight	16.05 lbs 7.28 kg
DRIVETRAIN
Cranks	SRAM Red AXS Power Meter crank set; 12spd; 48/35T; 45CL; DUB BB; 48cm, 165mm; 51cm, 170mm; 54cm, 172.5mm; 58cm, 175mm; 61cm, 175mm
Pedals
Chain	SRAM Red
Bottom Bracket	SRAM Dub Ceramic T47 77-A road wide
Front Derailleur	SRAM Red AXS
Rear Derailleur	SRAM Red AXS
Derailleur Shifter	SRAM Red AXS
Freewheel/Cassette	SRAM Red AXS, 10-33T
WHEELS
Tires	Vittoria Corsa Pro 30-622 fold TLR G2.0 700x30c
Wheels/Rims	ZIPP 404 Firecrest Carbon Tubeless
BRAKING SYSTEM
Brakes	SRAM Paceline hydraulic disc with 160mm Center Lock rotors, front and rear
Brake Levers	SRAM Red
OTHER COMPONENTS
Grips/Tape	Ciclovation Advanced, Leather touch, 3mm thick
Handlebar	BLKTEC R8 Carbon Bar Stem Combo, 48cm, 90mm/38cm; 51cm, 100mm/38cm; 54cm, 100mm/40cm; 56cm, 110mm/40cm; 58cm, 110mm/42cm, ; 61cm, 120mm/42cm
Stem	Integral with handlebar
Headset	Token A-Box Headset with internal cable routing
Saddle	Selle San Marco Shortfit 2.0 Open-Fit Carbon FX
Seat Post	Haro Rivette Carbon Aero; 275mm for 48/51/54 / 375mm for 56/58/61
Seat Clamp	Internal
Extras	Computer mount. Tubeless valves, tape and sealant included

GEOMETRY

Geometry & Sizing
SIZE	48	51	54	56	58	61
Top Tube (Effective)	518mm	533mm	549mm	565mm	581mm	605mm
Seat Tube (C-T)	430mm	470mm	510mm	536mm	558mm	590mm
Stack Height	513mm	533mm	553mm	574mm	594mm	624mm
Reach	374mm	383mm	387mm	393mm	398mm	406mm
Standover	721mm	753mm	786mm	809mm	832mm	862mm
Head Tube Length	110mm	130mm	153mm	164mm	188mm	220mm
Head Angle	70.9°	71.2°	71.2°	73°	73°	73°
Seat Angle	74.6°	74.3°	74.3°	73.3°	72.9°	72.3°
Wheel Base	983mm	997mm	1009mm	995mm	1008mm	1025mm
Chainstay	408mm	408mm	408mm	408mm	408mm	408mm
BB Drop	74mm	74mm	72mm	72mm	69mm	69mm
Axle to Crown	376mm	376mm	376mm	376mm	376mm	376mm
Fork Offset	53mm	53mm	53mm	45mm	45mm	45mm
Stem Length	90mm	100mm	100mm	110mm	110mm	120mm
Bar Width	380mm	380mm	400mm	400mm	420mm	420mm
Crank Length	165mm	170mm	172.5mm	172.5mm	175mm	175mm
Trail	62.7mm	60.4mm	60.7mm	57.8mm	57.8mm	57.8mm
Wheel Size	700c	700c	700c	700c	700c	700c

SIZING GUIDE

Size Table
Size	Inches	CM
48	5'1" - 5'4"	153 - 163
51	5'4" - 5'7"	163 - 170
54	5'7" - 5'9"	170 - 175
56	5'9" - 5'11"	175 - 180
58	5'11" - 6'2"	180 - 188
61	6'2" - 6'5"	188 - 196
