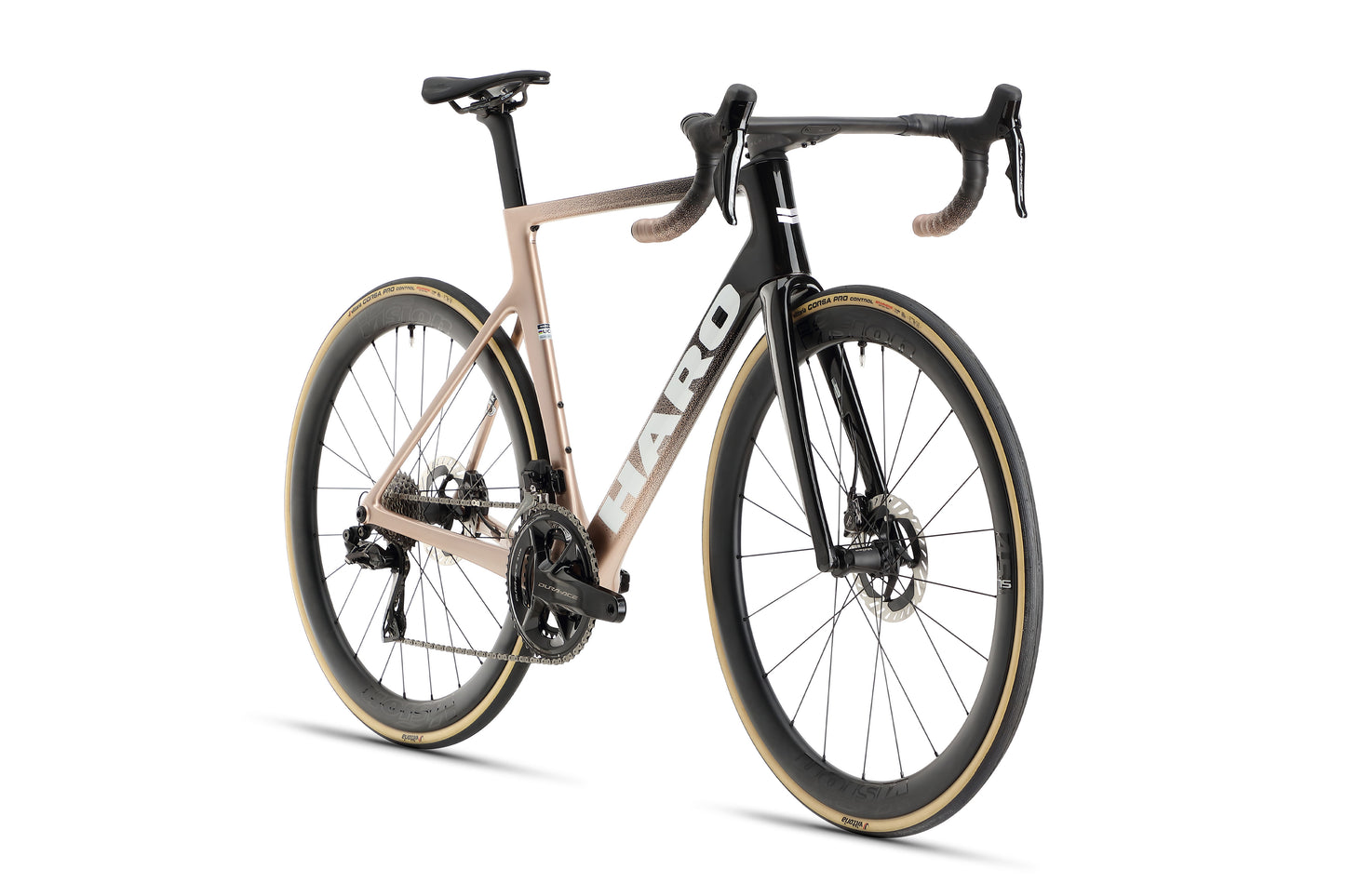

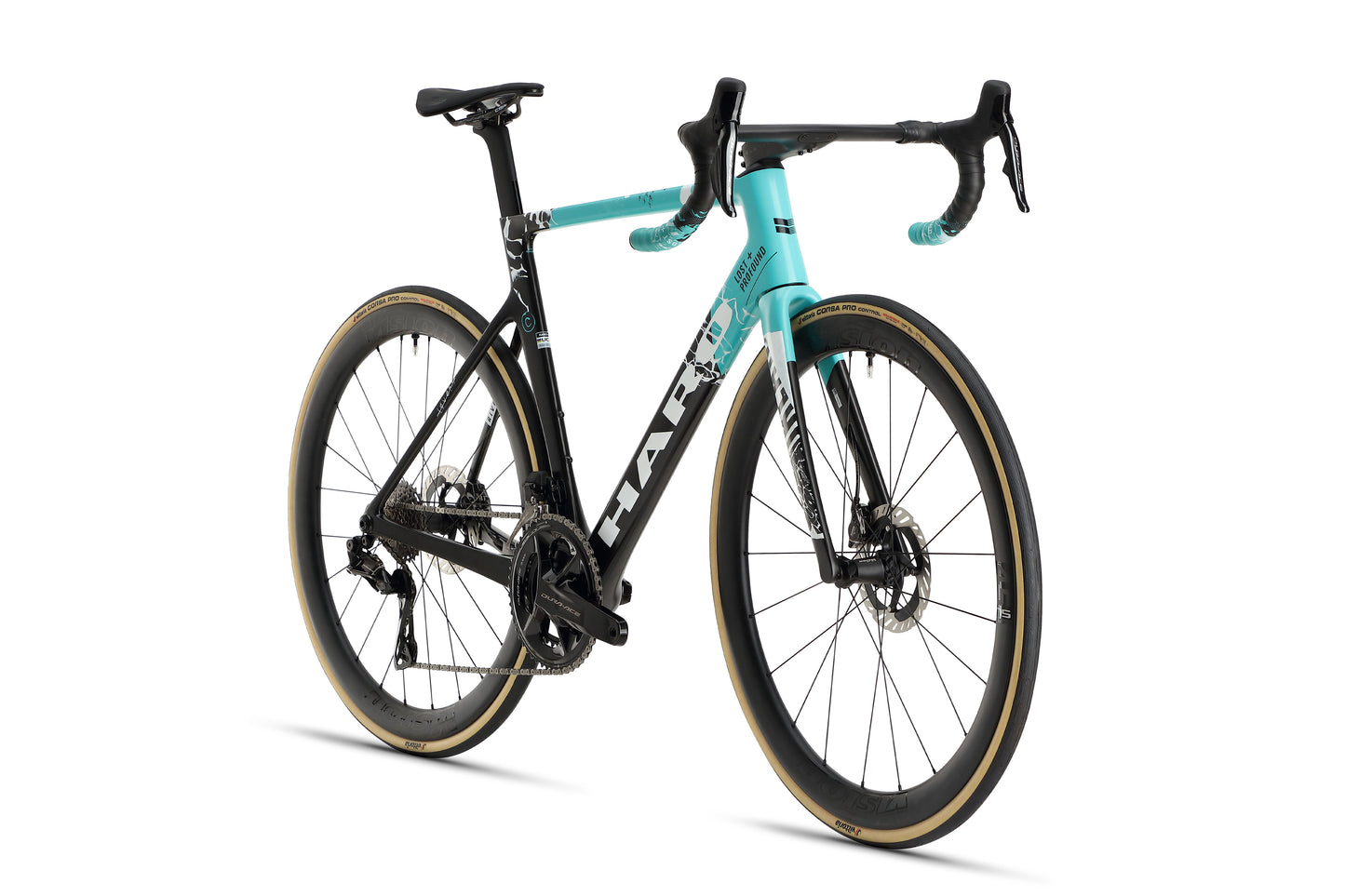

Rivette Carbon Top Shelf
Rivette Carbon Top Shelf
SKU: 45347
Couldn't load pickup availability
Share
































Shipping & Returns
Shipping
Orders normally ship via Fedex within 48 hours when placed Monday-Friday. Please refer to the checkout page for cost of shipping. We apologize in advance, but Haro does not currently ship products internationally.
Returns & Exchanges
In-Store Pickup: Please contact the Haro Dealer that you are purchasing from to find out about their Return and Exchange Policy. After the order has been submitted, the "In-Store Pickup" dealer is your primary point of contact for initiating returns or exchanges.
Direct from Haro items We offer a 30 day Money Back Guarantee on all Haro accessory and apparel product we offer unless specified under the product description or title. Items must be unused and in original packaging with any tags attached. Please contact customer service here in advance to obtain an RMA number (Return Merchandise Authorization) within 30 days of purchase date. Customer will be responsible for all shipping costs upon returning any product unless product is defective; then customer will be reimbursed for shipping a defective return. For your own protection, we recommend you use a shipping method that can be tracked and insured. Haro is not responsible for any lost items in transit. Any items returned without an RMA number clearly printed on the outside of the package will be returned to sender

FEATURES
- UCI-certified carbon frame and fork with tapered steerer tube in custom size-specific carbon layups. Designed to work exclusively with electronic groupsets.
- Shimano Dura-Ace Di2 with size-specific crank lengths.
- Shimano Dura-Ace hydraulic disc brakes with 160mm rotors.
- Vision Carbon Metron 45 SL tubeless clincher wheelset. Valves, tape and sealant included.
- Vittoria Corsa Pro tubeless-ready tires, 700x30c with tan sidewalls. *Max tire width 700x36c.
- Headset for internal cable routing.
- Custom bar tape to match frame graphics.
- Designed around a Universal Derailleur Hanger (UDH).
- Size-specific BLKTEC R8 one-piece combined bar and stem with computer mount.
PRODUCT INFORMATION
SPECIFICATIONS
FRAMESET | |
---|---|

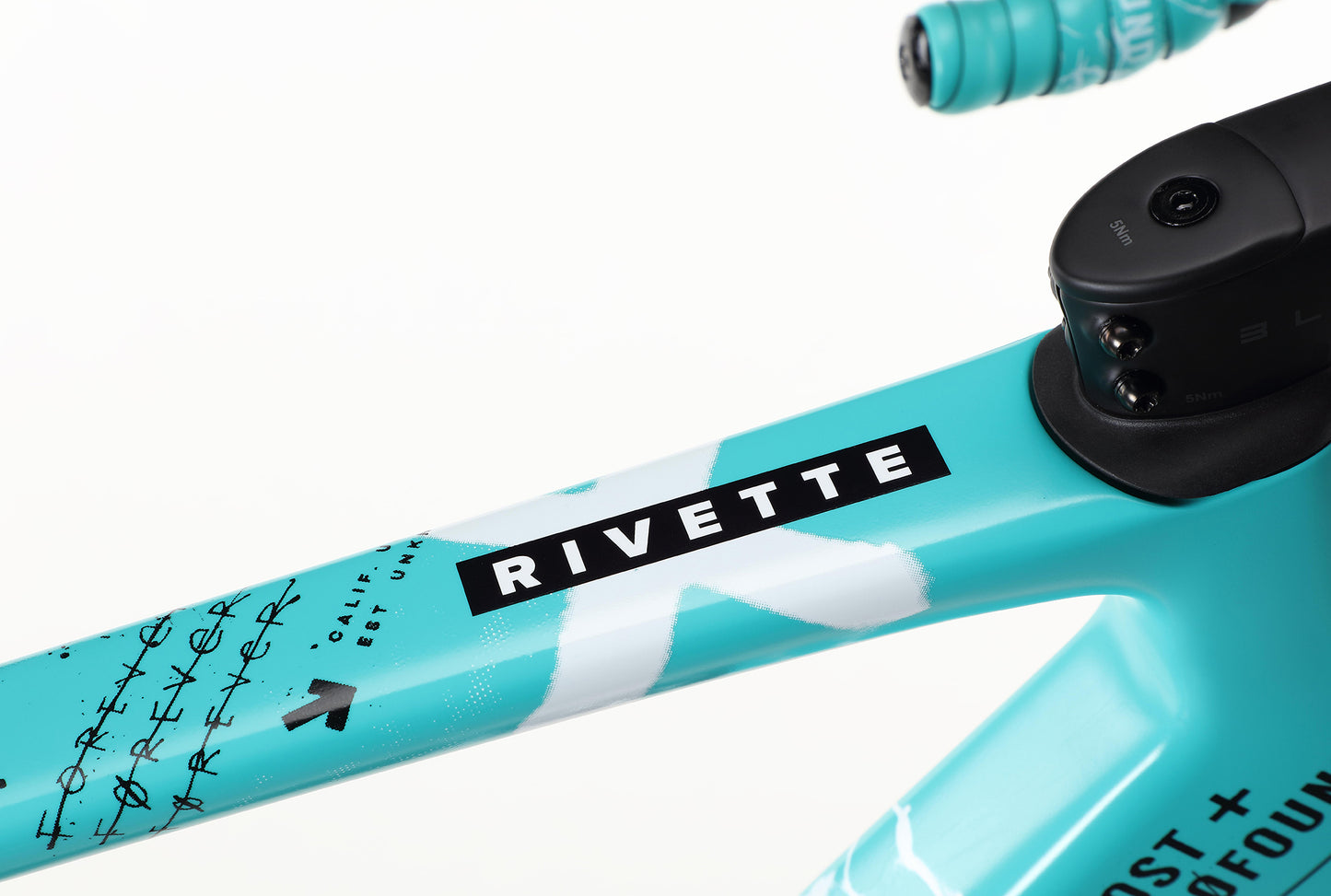

Frame | Haro Rivette Carbon Frame |
Fork | Haro Rivette Carbon Fork with internal routing and Carbon Tapered steerer |
Colors | Matte Black / Teal, Gloss Rose / Gold |
Weight | 16.18 lbs 7.34 kg, (56cm) |
DRIVETRAIN | |

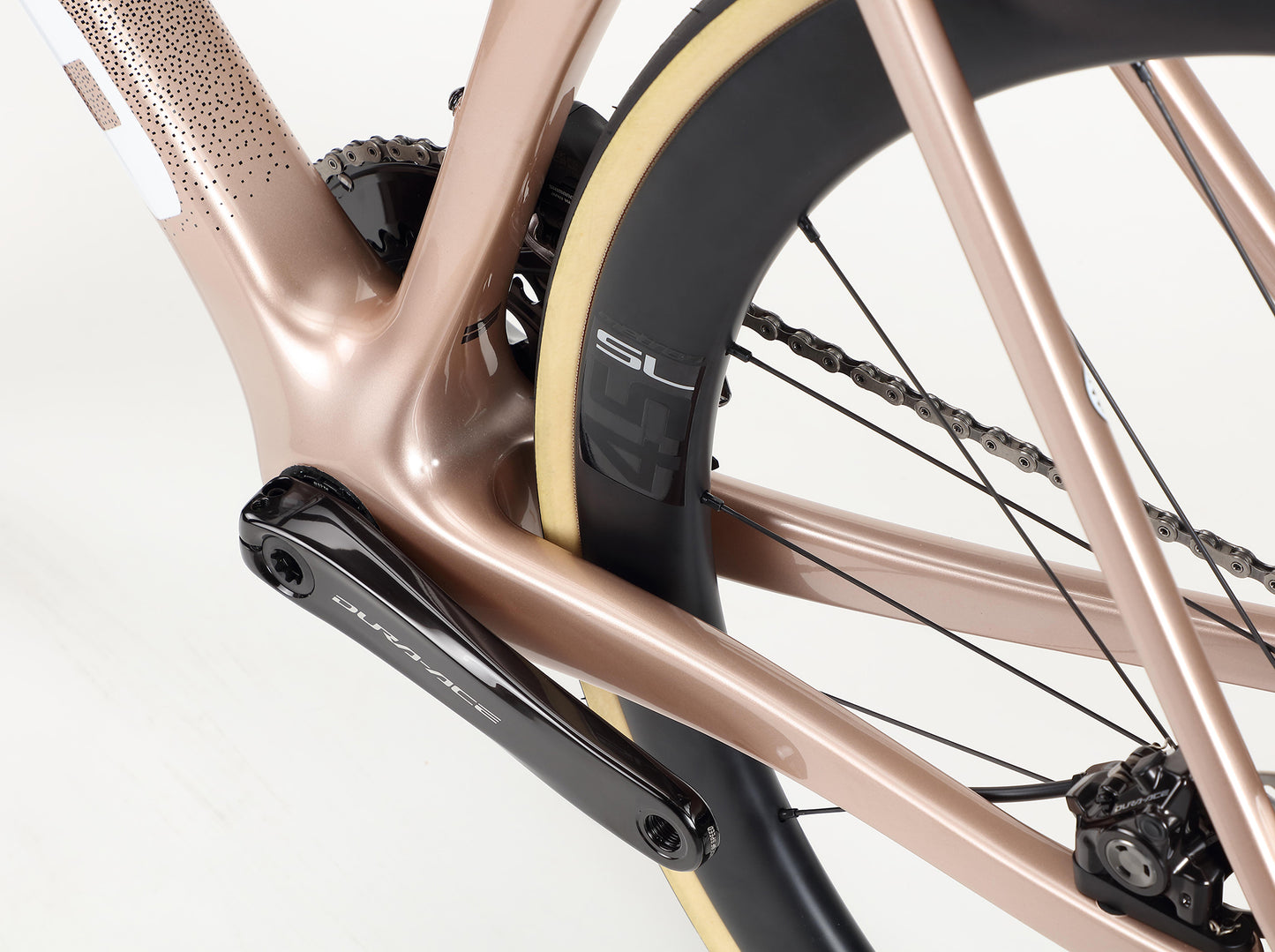

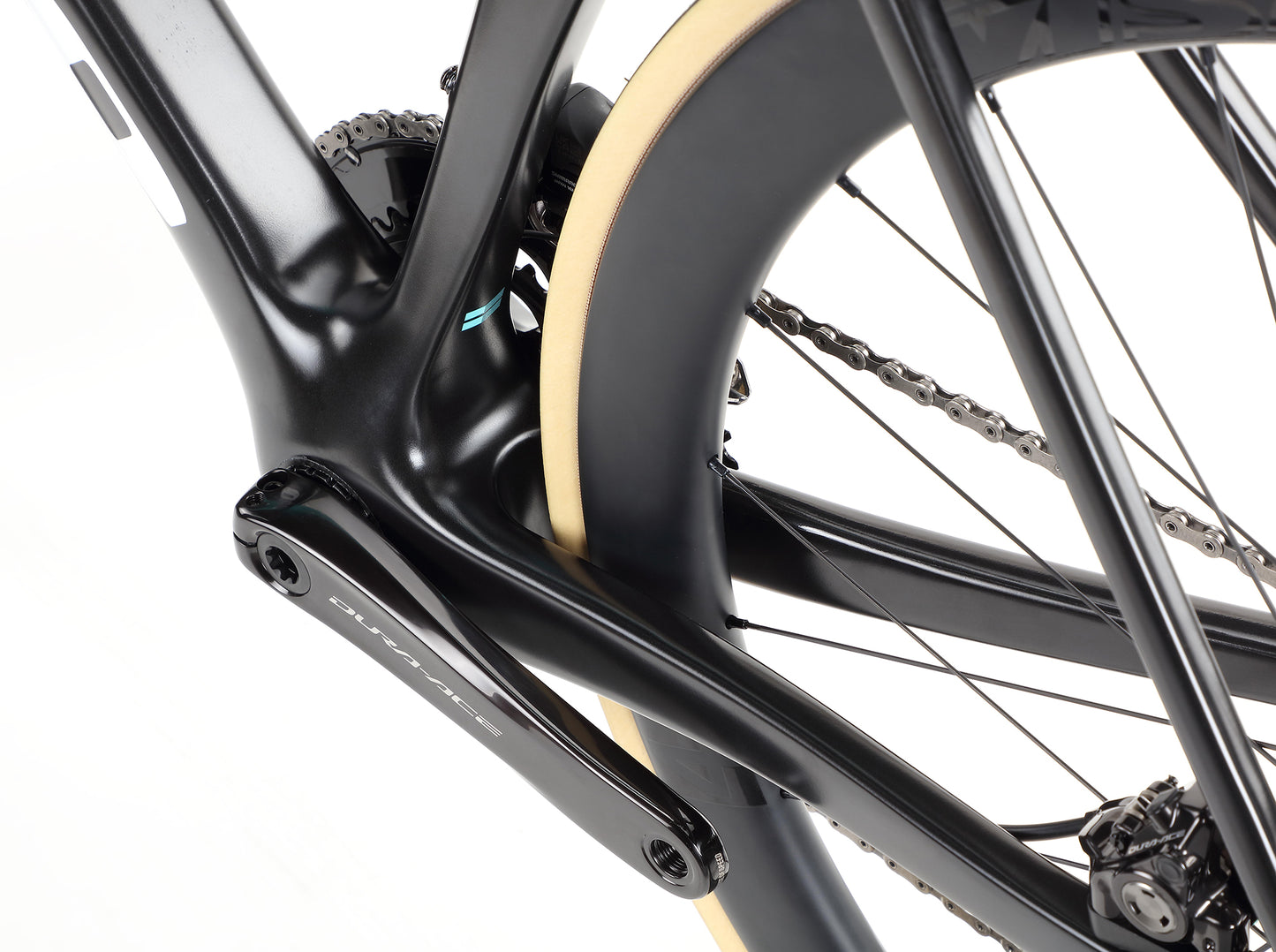

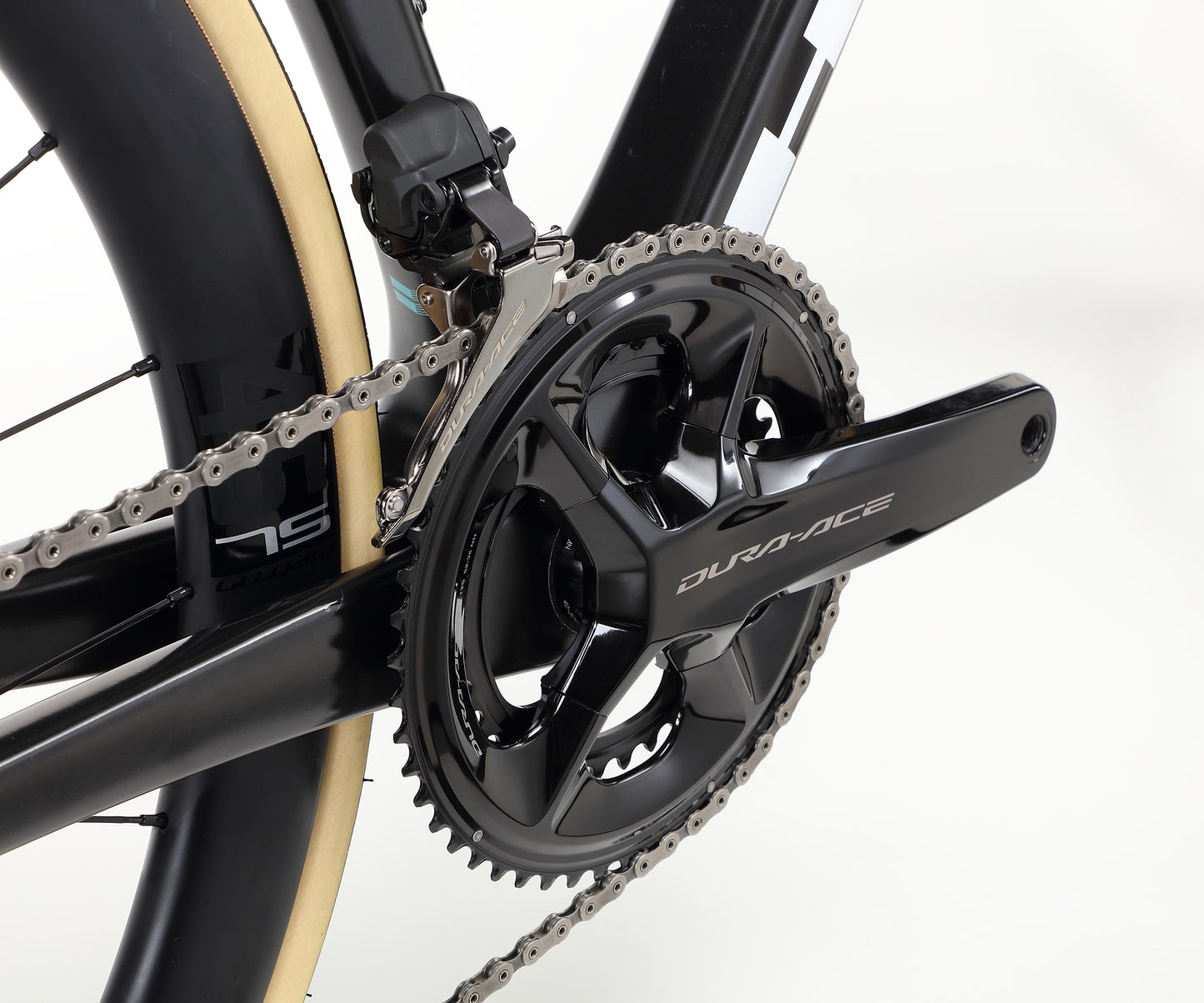

Cranks | Shimano Dura-Ace 52-36T; 48cm, 165mm; 51cm, 170mm; 54cm, 172.5mm; 56cm, 172.5mm; 58cm, 175mm; 61cm, 175mm |
Pedals | |
Chain | Shimano HG 12spd, CN-M9100 |
Bottom Bracket | T47, 76.75mm, ø24 |
Front Derailleur | Shimano Dura-Ace Di2, FD-R9250 |

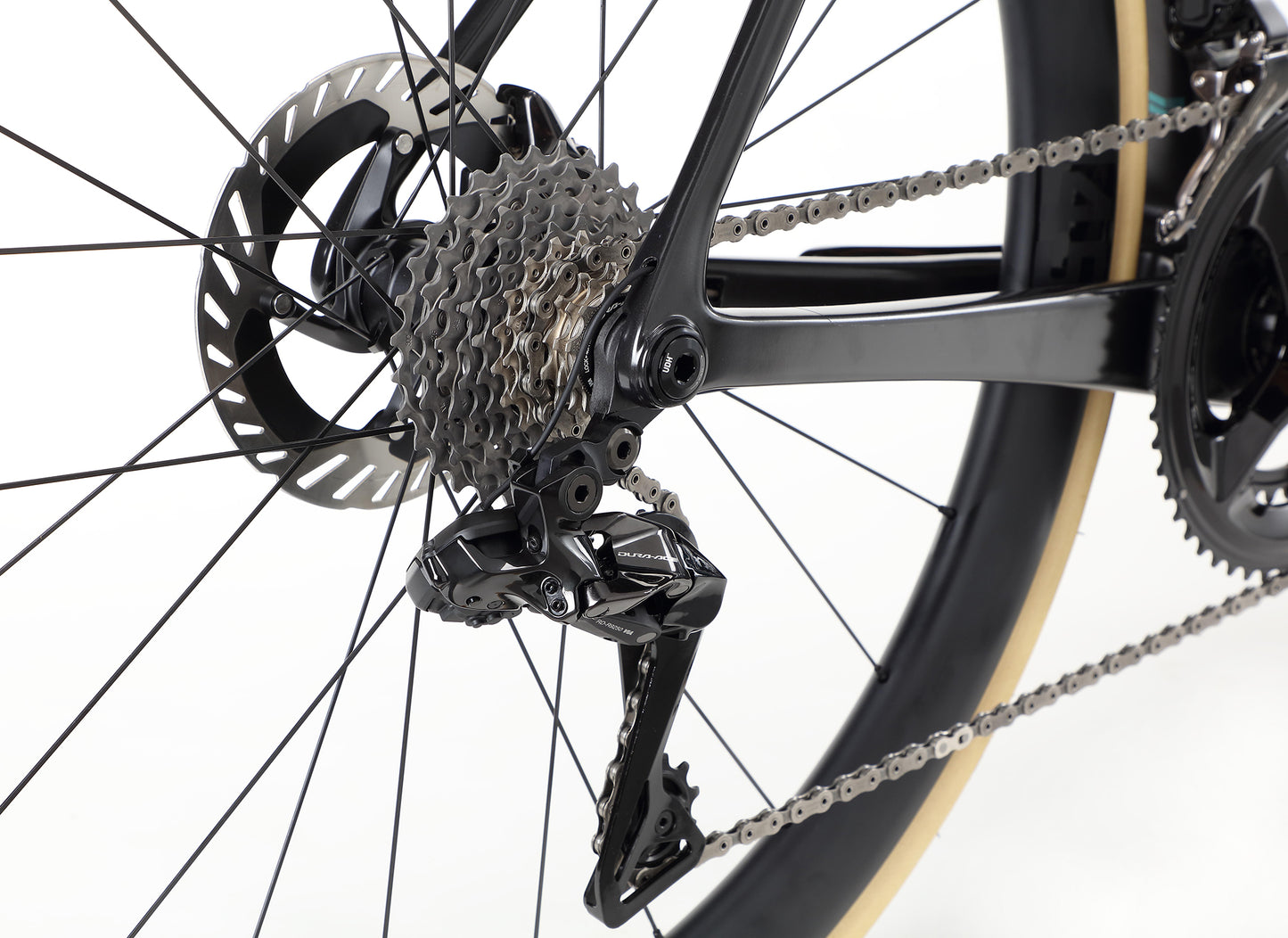

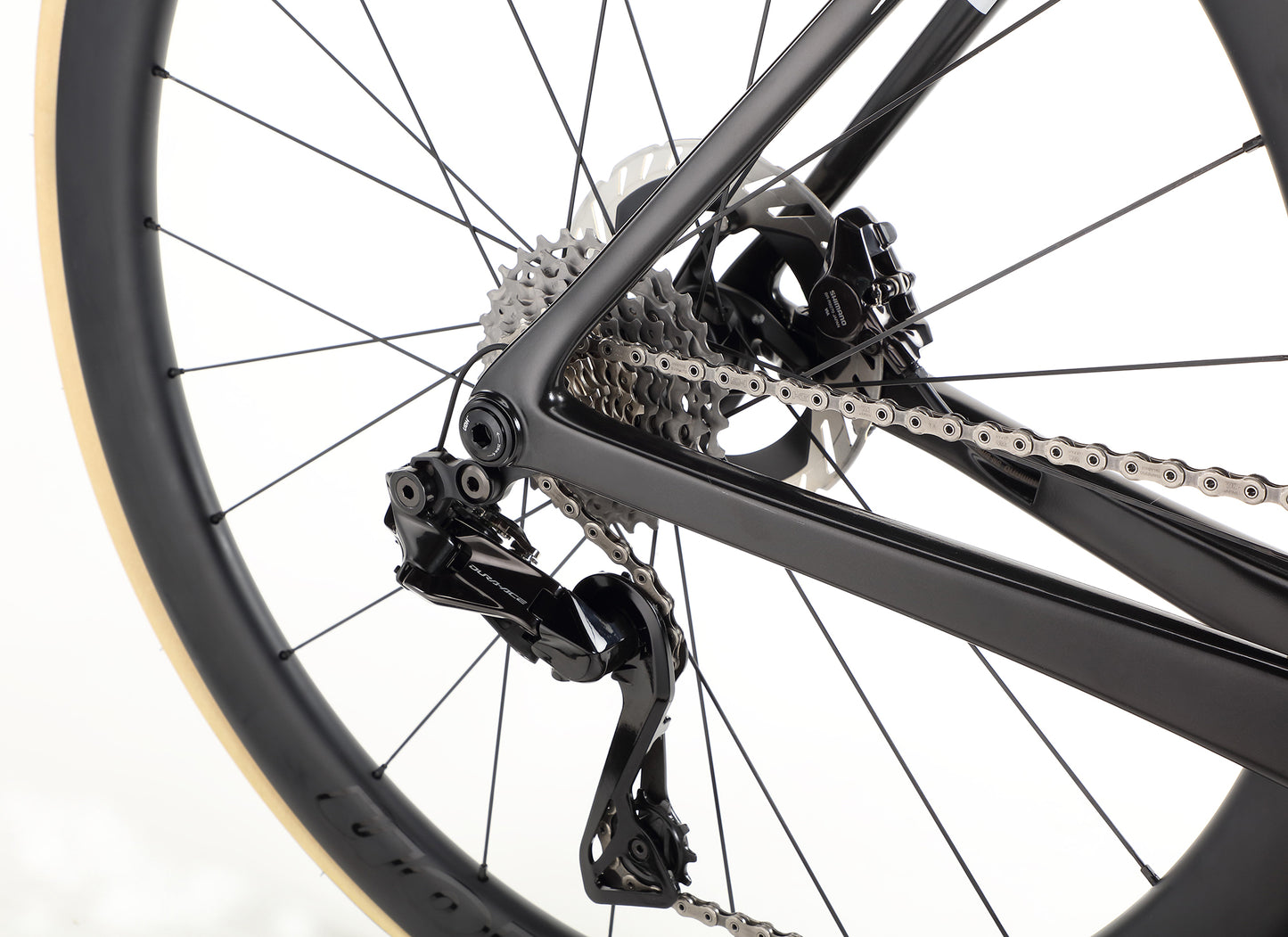

Rear Derailleur | Shimano Dura-Ace Di2, RD-R9250 |
Derailleur Shifter | Shimano Dura-Ace Di2, ST-R9270 |
Freewheel/Cassette | Shimano Dura-Ace, 11-30T CS-R9200 |
WHEELS | |

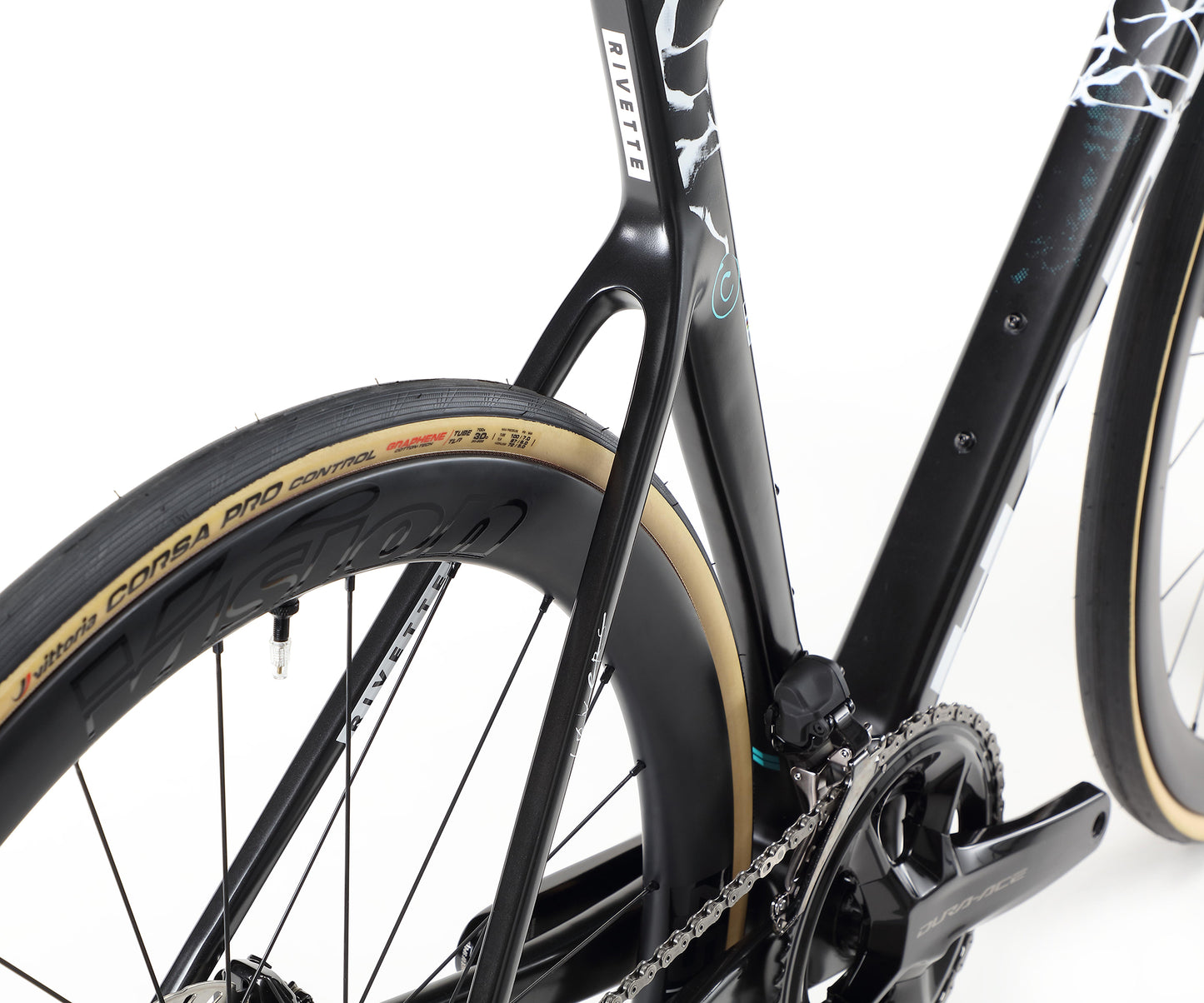

Tires | Vittoria Corsa Pro 30-622 fold TLR (tubeless ready) G2.0 700x30c. |
Wheels/Rims | Vision Carbon 45 SL tubeless clincher wheelset. Valves, tape and sealant included. |
BRAKING SYSTEM | |

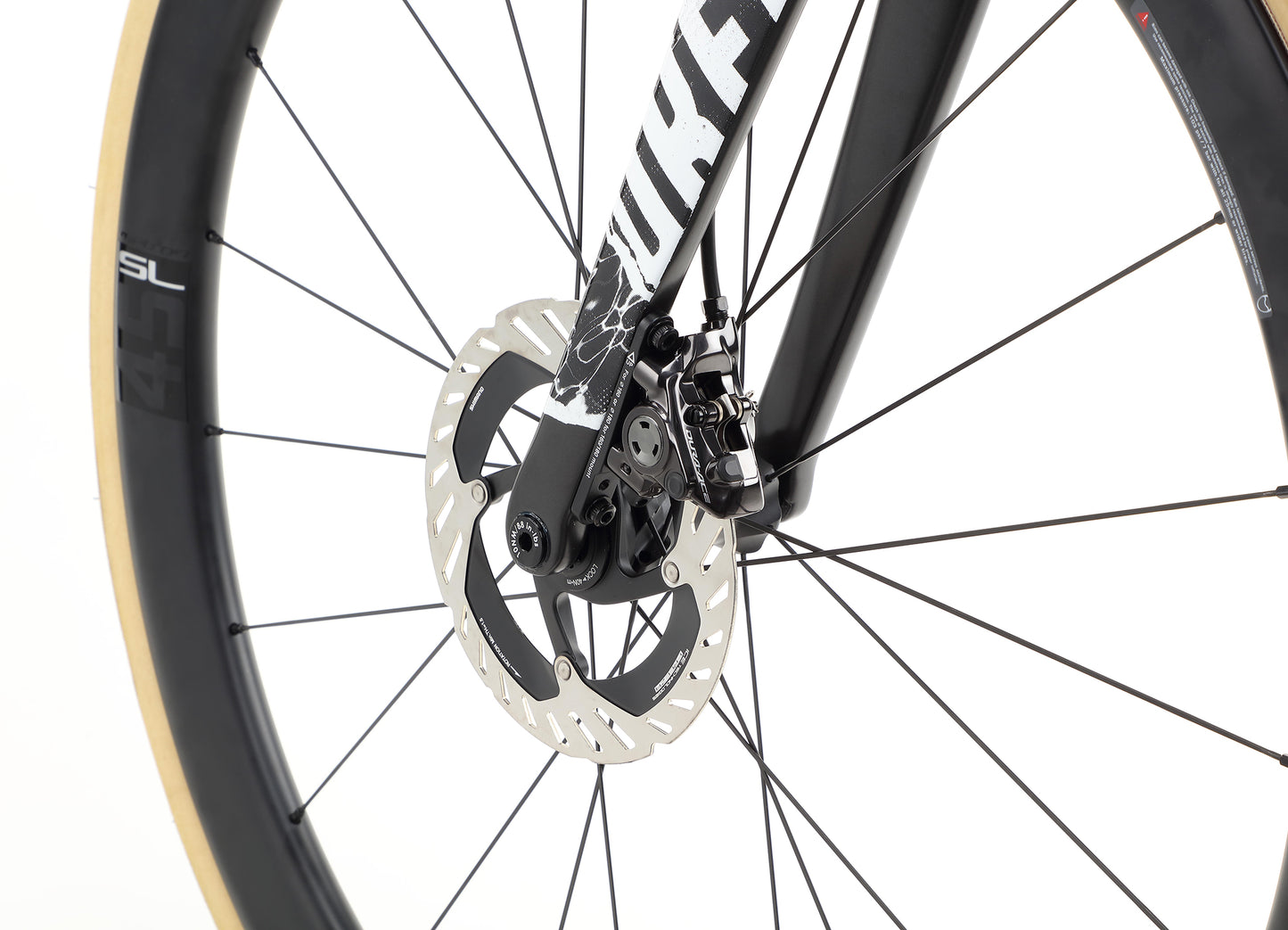

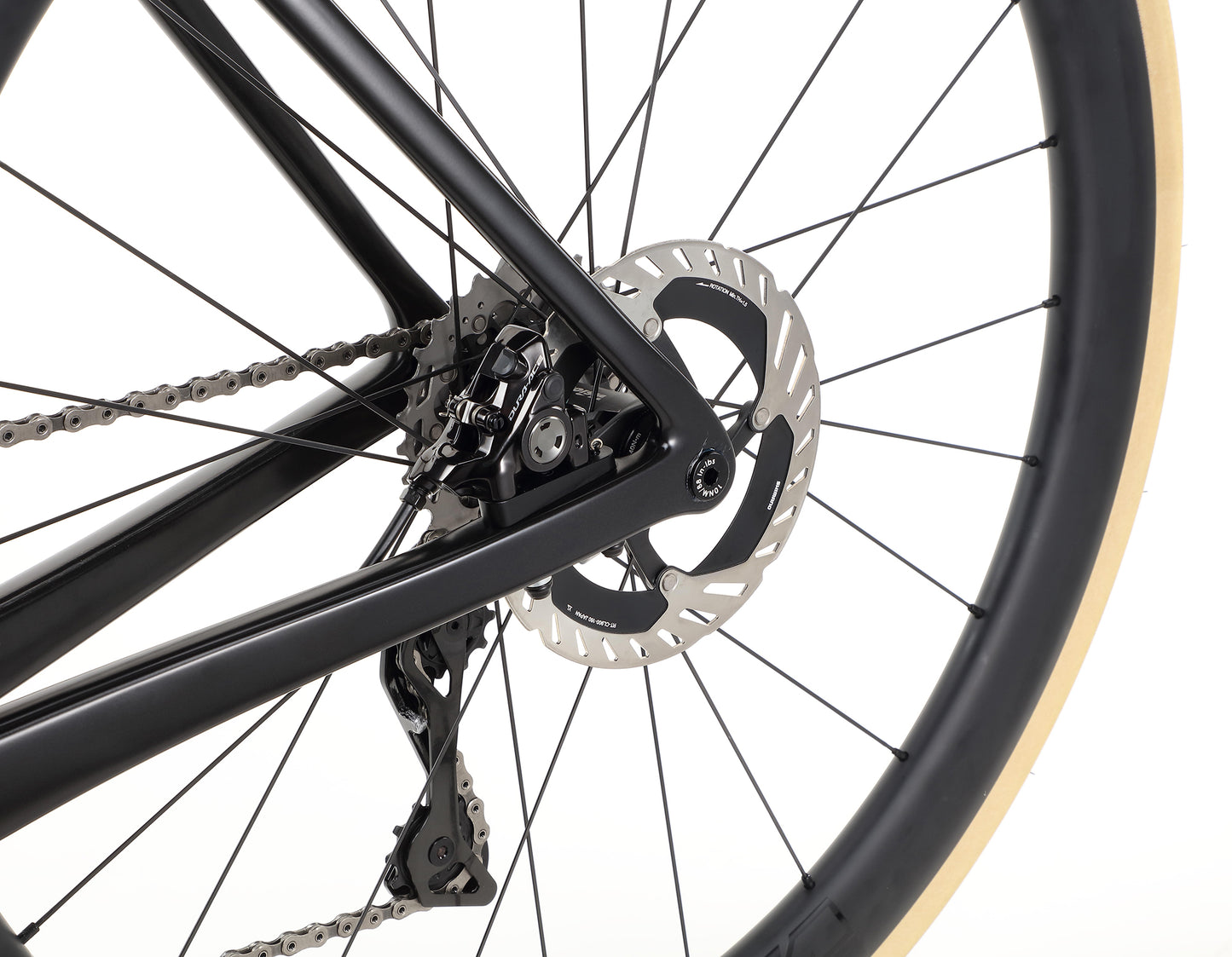

Brakes | Shimano DURA-ACE Hydraulic Disc Brakes with 160mm Center Lock Rotors |

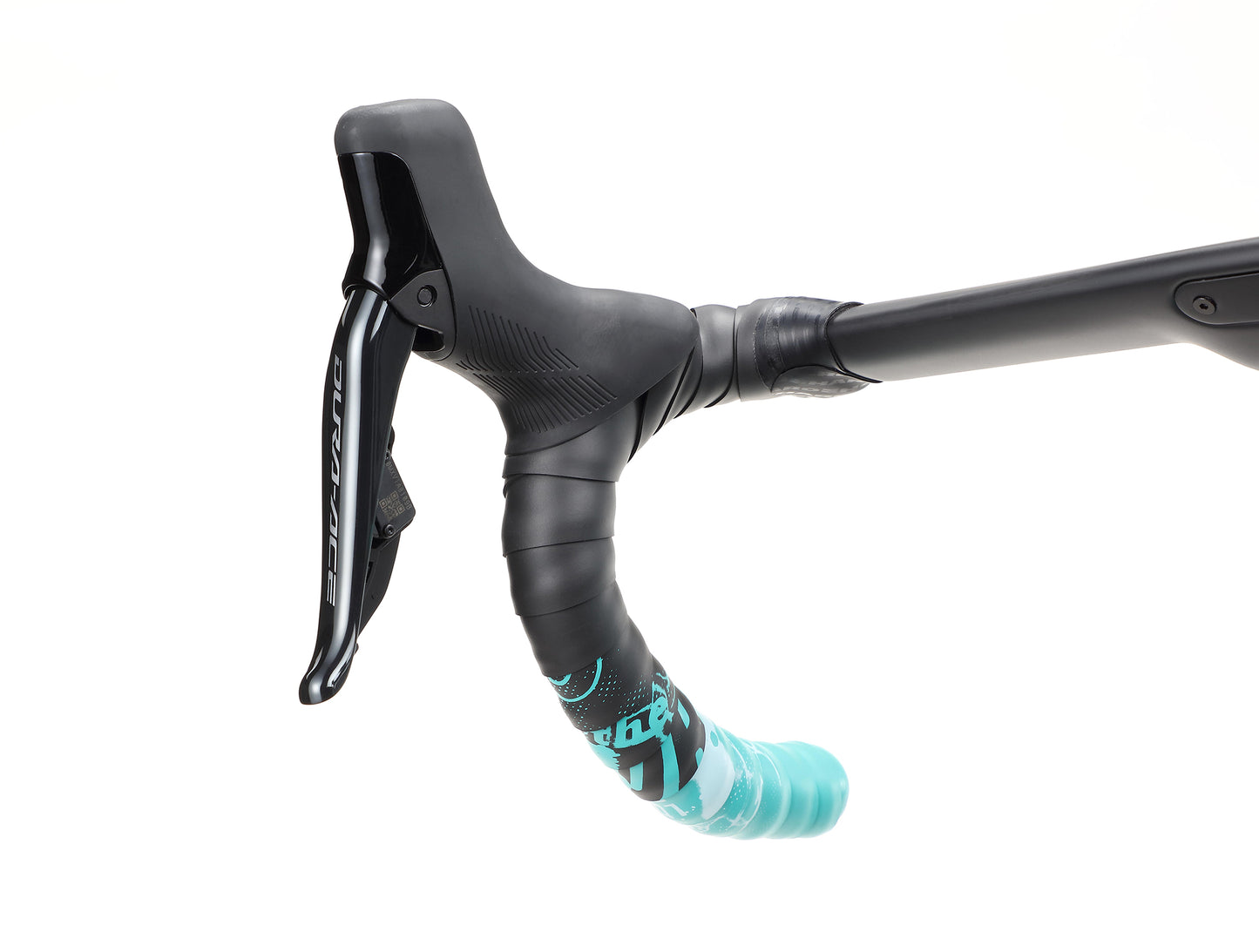

Brake Levers | Shimano DURA-ACE Di2 |
OTHER COMPONENTS | |
Grips/Tape | Ciclovation Advanced, Leather touch, 3mm Thick |

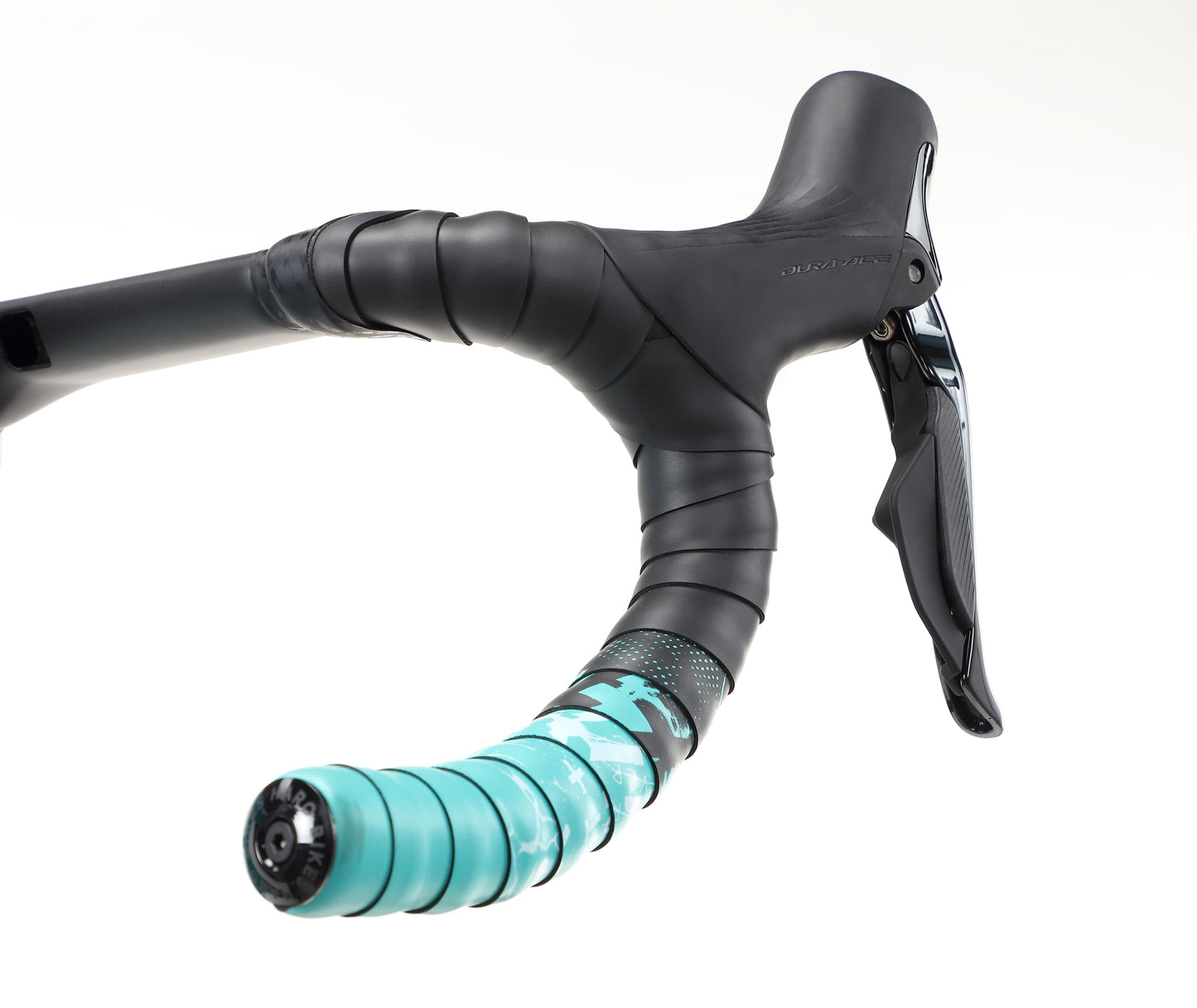

Handlebar | BLKTEC R8 Carbon Bar Stem Combo, 48cm, 90mm/38cm; 51cm, 100mm/38cm; 54cm, 100mm/40cm; 56cm, 110mm/40cm; 58cm, 110mm/42cm; 61cm, 120mm/42cm |
Stem | Integrated w/handlebar |
Headset | Token A-Box Headset with internal cable routing |

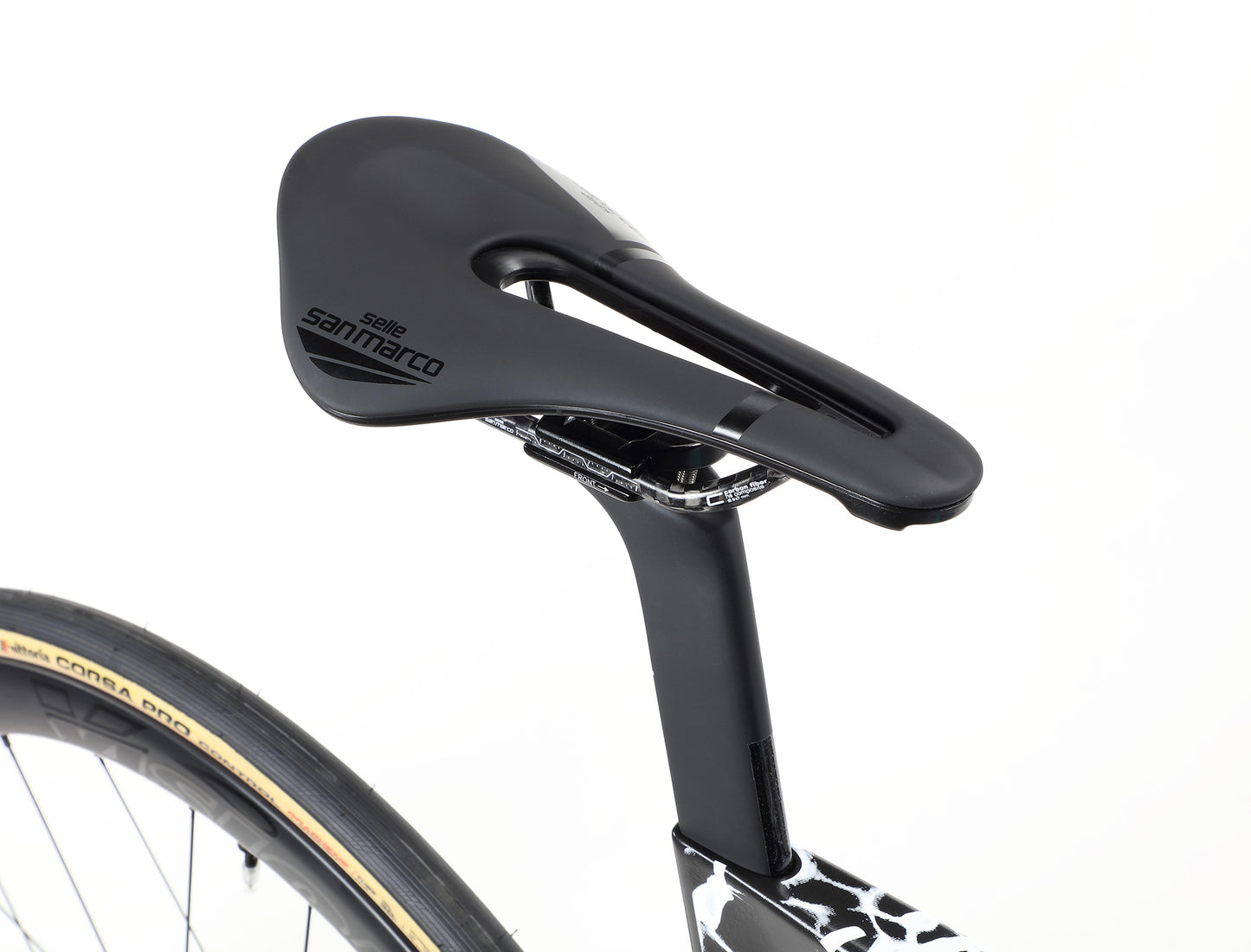

Saddle | Selle San Marco Shortfit 2.0 Open-Fit Carbon FX |

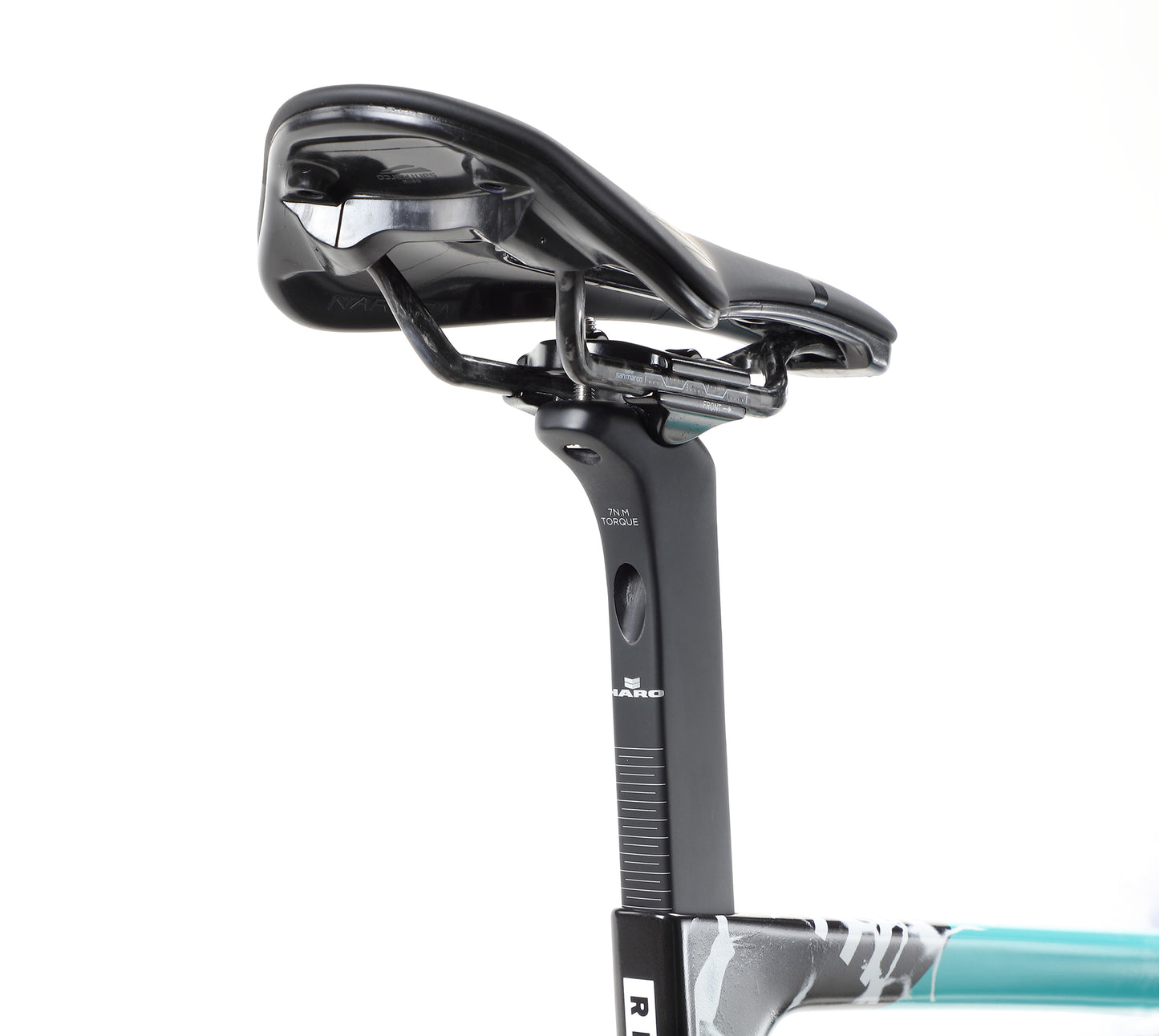

Seat Post | Haro Rivette Carbon Aero; 275mm for 48/51/54 / 375mm for 56/58/61 |
Seat Clamp | Internal |
Extras | Computer mount. Tubeless valves, tapes and sealant included. |
GEOMETRY
SIZE | 48 | 51 | 54 | 56 | 58 | 61 |
---|---|---|---|---|---|---|
Top Tube (Effective) | 518mm | 533mm | 549mm | 565mm | 581mm | 605mm |
Seat Tube (C-T) | 430mm | 470mm | 510mm | 536mm | 558mm | 590mm |
Stack Height | 513mm | 533mm | 553mm | 574mm | 594mm | 624mm |
Reach | 374mm | 383mm | 387mm | 393mm | 398mm | 406mm |
Standover | 721mm | 753mm | 786mm | 809mm | 832mm | 862mm |
Head Tube Length | 110mm | 130mm | 153mm | 164mm | 188mm | 220mm |
Head Angle | 70.9° | 71.2° | 71.2° | 73° | 73° | 73° |
Seat Angle | 74.6° | 74.3° | 74.3° | 73.3° | 72.9° | 72.3° |
Wheel Base | 983mm | 997mm | 1009mm | 995mm | 1008mm | 1025mm |
Chainstay | 408mm | 408mm | 408mm | 408mm | 408mm | 408mm |
BB Drop | 74mm | 74mm | 72mm | 72mm | 69mm | 69mm |
Axle to Crown | 376mm | 376mm | 376mm | 376mm | 376mm | 376mm |
Fork Offset | 53mm | 53mm | 53mm | 45mm | 45mm | 45mm |
Stem Length | 90mm | 100mm | 100mm | 110mm | 110mm | 120mm |
Bar Width | 380mm | 380mm | 400mm | 400mm | 420mm | 420mm |
Crank Length | 165mm | 170mm | 172.5mm | 172.5mm | 175mm | 175mm |
Trail | 62.7mm | 60.4mm | 60.7mm | 57.8mm | 57.8mm | 57.8mm |
Wheel Size | 700c | 700c | 700c | 700c | 700c | 700c |
SIZING GUIDE
Size | Inches | CM |
---|---|---|
48 | 5'1" - 5'4" | 153 - 163 |
51 | 5'4" - 5'7" | 163 - 170 |
54 | 5'7" - 5'9" | 170 - 175 |
56 | 5'9" - 5'11" | 175 - 180 |
58 | 5'11" - 6'2" | 180 - 188 |
61 | 6'2" - 6'5" | 188 - 196 |
MANUALS, GUIDES & DOWNLOADS
Downloadable PDFs can be found in Manuals & Guides
*Specifications are subject to change without notice
