Saguaro 2

Saguaro 2

Regular price $1,799.99
Regular price $2,399.99 Sale price $1,799.99
Sale Sold out

SKU: SKU:14442

Simple, slack and full-on fun. The Saguaro 29-inch hardtail is purpose built to be the most versatile bike in your quiver. Make no mistake, this hardcore hardtail is no XC bike. With an aggressive geometry and slack head angle that is more inclined to hauling down hills than pedaling up them, the Saguaro is stretched out in the front and shortened up in the back for a stable ride at speed. As one of our testers put it: "It makes mellow trails more fun". Hit the jumps, hammer the single track and rip the turns. The Saguaro is everything you need, and nothing you don't. All three models of the Saguaro bike collection feature our heat-treated 6061 aluminum Saguaro frame with three spec levels to fit your needs (and budget). Meet in the middle on the Saguaro level 2. Built on the same bulletproof alloy frame as the rest of the family, the Saguaro 2 has a Marzocchi Bomber Z2 fork, SRAM NX Eagle 12-speed drivetrain, tubeless tires and a TranzX dropper post in frame size-specific lengths. The perfect blend of value and high-performance fun.
Color: Metallic Green
Size

View full details

FEATURES

  • Hydroformed, heat-treated 6061-T6 aluminum hardtail frame. Double-butted top and down tubes. Internal cable routing. Tapered head tube.
  • Modern geometry: 64.5 degree head tube angle with a longer front triangle and shorter rear end.
  • Marzocchi Bomber Z2 fork. 140mm travel. 44mm rake.
  • WTB KOM Tough rims, 32 hole with CNC-ed, sealed 15mm thru-axle front and six-sealed bearing, 12mm Boost thru-axle (rear) hubs.
  • NX Eagle 12-speed transmission.
  • Tires: Tubeless Kenda Pinner 29 X 2.4" ATC (front)/Kenda Nevegal 2, 29 X 2.4"ATC (rear). Sealant included.
  • TranzX JD-YSP39J dropper post, size-specific per frame size.

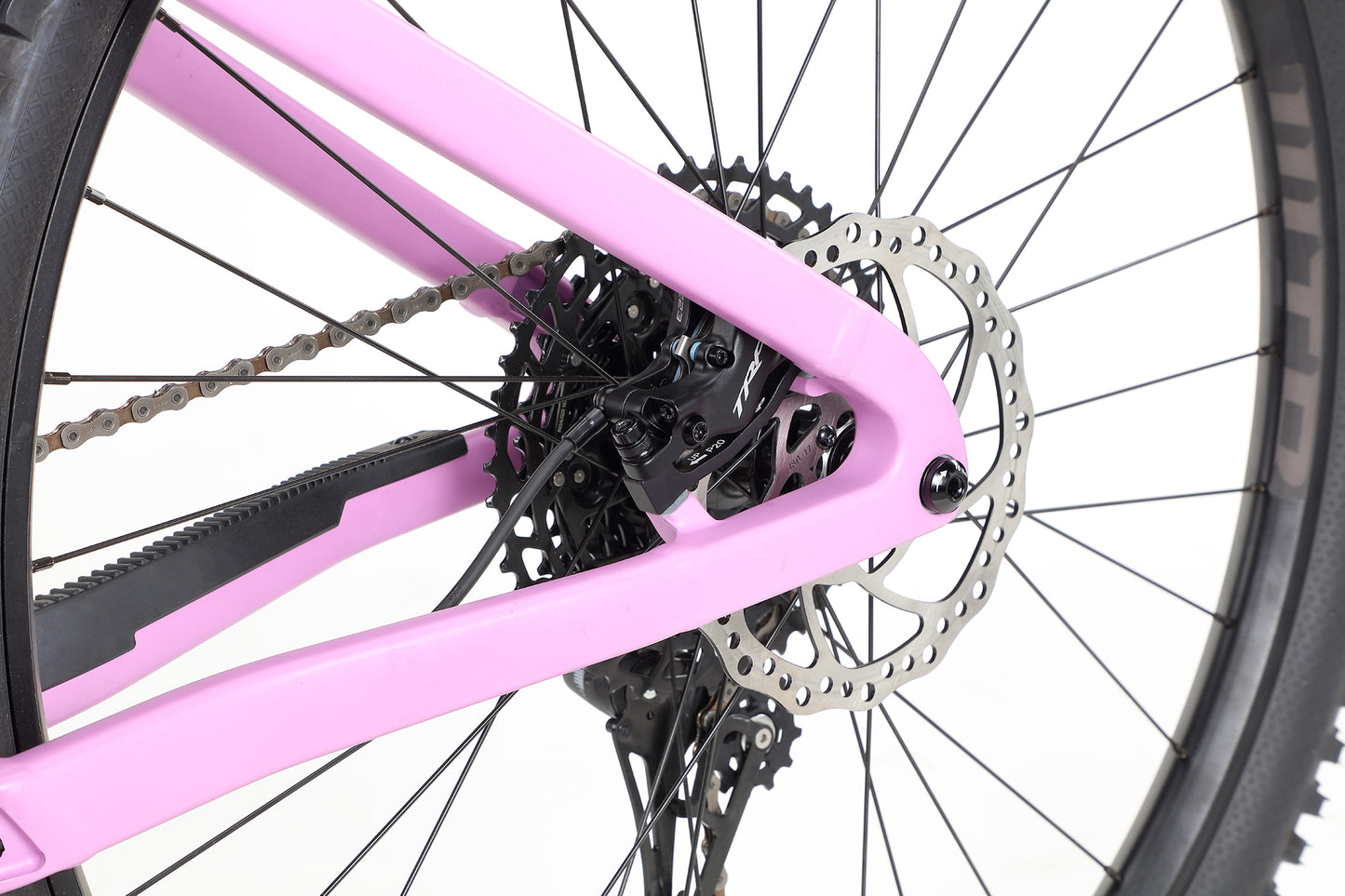

  • TRP Slate Evo 4-piston hydraulic brakes, 203mm rotor front, 180mm rotor rear.
  • Full 29er. Small size features "mullet" wheel configuration with 29" front, 27.5" rear

PRODUCT INFORMATION

SPECIFICATIONS

Specifications
FRAMESET
FrameHydroformed, heat-treated 6061-T6 aluminum hardtail frame. Double-butted top and down tubes. Internal cable routing. UDH derailleur hanger. Tapered head tube. Frame will accommodate up to 2.6" tires.
ForkMarzocchi Bomber Z2; 140mm travel. 44mm rake.
ColorsMetallic Green, Matte Mauve
DRIVETRAIN
CranksSRAM NX Eagle 32T, 170mm
Pedals
Rear DerailleurSRAM NX Eagle 12-speed
Derailleur ShifterSRAM NX Eagle 12-speed
Freewheel/CassetteSRAM Eagle 11-50T
WHEELS
TiresTubeless Kenda Pinner 29 X 2.4" ATC (front)/Kenda Nevegal 2, 29 X 2.4" ATC (rear). Sealant included. Small size features 27.5 X 2.4" rear "mullet" configuration.
Wheels/RimsWTB, KOM Tough, 30MM, TCS 2.0, sleeved. 32H
Front HubFully sealed, CNC-machined alloy. 110x15mm boost thru-axle, 6-bolt disc.
Rear HubFully sealed, CNC-machined alloy. 148x12mm boost thru-axle, 6-bolt disc.
BRAKING SYSTEM
BrakesTRP Slate Evo 4-piston hydraulic. 203mm rotor (front)/180mm rotor (rear).
OTHER COMPONENTS
Grips/TapeWTB Wavelength lock-on
HandlebarHaro Alloy 800mm wide, 20mm Rise, 6° back sweep, 4° up sweep
StemSatori Ursa 35mm reach, 0° rise
HeadsetFSA Orbit Tapered 1-1/8" - 1-1/5", 1.5E ZS/ NO.57E
SaddleWTB Volt Medium chromoly rails. PU Leather. Flex-tuned.
Seat PostTranzX JD-YSP39J dropper. Small 150mm, Medium 170mm, Large/X-Large 200mm
ExtrasTubeless tire sealant included.

GEOMETRY

Geometry & Sizing
SIZESMLXL
Seat Tube (C-T)350mm405mm430mm480mm
Top Tube (Effective)574.2mm601.2mm633.4mm650.7mm
Head Tube Angle64.5°64.5°64.5°64.5°
Seat Tube Angle76°76.5°76.5°76.5°
Chainstay Length418mm430mm435mm435mm
BB Drop50mm70mm70mm70mm
Wheelbase1156.6mm1195.1mm1234.4mm1253.7mm
Head Tube Length100mm110mm120mm130mm
Standover694mm706mm709mm709mm
Stack Height642.3mm650.8mm659.9mm668.9mm
Reach420mm445mm475mm490mm
Axle to Crown
Fork Offset44mm44mm44mm44mm
Stem Length
Bar Width
Crank Length
Wheel Size29" Front / 27.5" Re29"29"29"

SIZING GUIDE

Size Table
SizeInchesCM
S5" - 5' 6"153 - 166
M5' 4" - 5' 11"162 - 180
L5' 9"- 6' 2"175 - 187
XL6' - 6' 5"180 - 196
