Shredder 14
Shredder 14
Regular price
$259.99
Regular price
$259.99
Sale price
$259.99
Unit price
/
per
SKU: SKU:23061

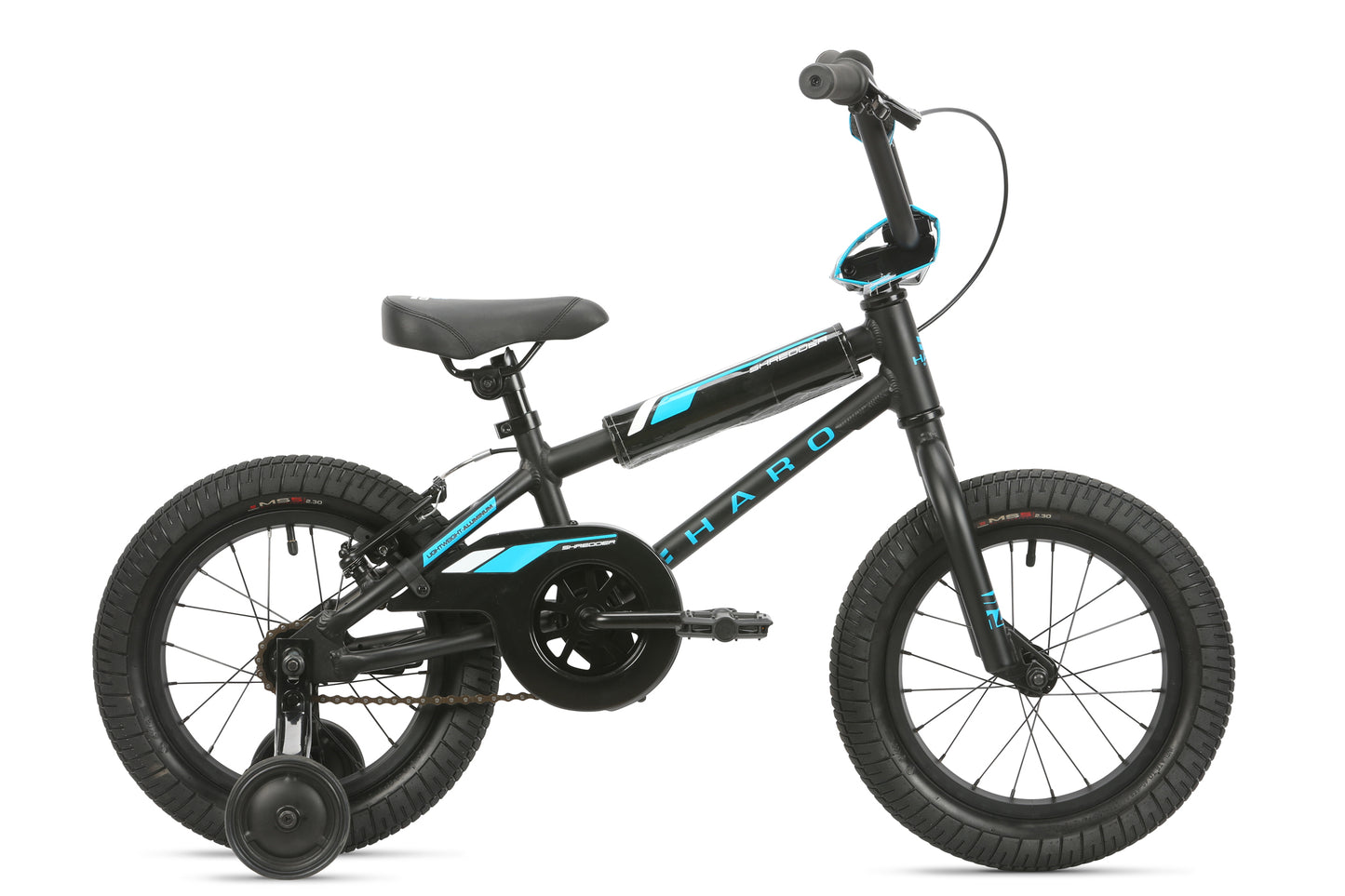

The Shredder 14 is designed around a low profile alloy frame which is both light weight and durable. Rider friendly geometry coupled with quality features
Share
FEATURES
- 6061 alloy Shredder lo-profile frame
- 1-1/8 threadless headset
- 28-spoke wheels with 14" alloy rims
- Sure stop coaster brake and linear pull v-brake with adjustable lever
- Padded Jr. seat and Jr. plastic pedals
- Heavy duty training wheels and full pad set
- Also available in a step thru model for girls
PRODUCT INFORMATION
SPECIFICATIONS
FRAMESET | |
---|---|
Frame | Low Profile 6061 Series Alloy Frame, 15.5" Standover Height |
Fork | Hi-Ten 1 1/8" Threadless |
Colors | Black, Metallic Red |
DRIVETRAIN | |
Cranks | Steel 1-pc, 114mm |
Bottom Bracket | Loose Ball American BB |
Sprocket | 36T Steel |
Gearing | 36/16 |
Pedals | Nylon, 1/2" |
Chain | Haro Baseline Standard Link Chain |
Cassette | 16t |
WHEELS | |
Tires | Haro MS5 14 x 2.3" |
Front Hub | Steel Shell 28h, Loose Ball |
Rear Hub | Steel Shell Coaster Brake, 28h, Loose Ball |
Axle | 3/8" |
Rims | 14" Alloy 28h, Single Wall |
BRAKING SYSTEM | |
Brake | Promax Alloy V-Brake & Coaster Foot Brake |
Brake Lever | Promax XL-378 Alloy Lever |
OTHER COMPONENTS | |
Grips | Haro Jr. Krayton |
Handlebar | Hi-Ten, 6.5" Rise |
Stem | Forged Alloy Top-Load, 38mm Ext. |
Headset | Threadless Loose Ball, 1 1/8" |
Seat | Jr. Haro Padded Adjustable |
Seat Post | Steel, 22.2mm |
Seat Post Clamp | Alloy, 25.4mm |
Extras | Training Wheels & Haro Padset & P type chainguard |
GEOMETRY
Size | Head Angle | Seat Angle | Top Tube | Seat Tube | Chainstay | BB Height | Stand Over |
---|---|---|---|---|---|---|---|
14 | 72° | 70° | 14.48" (368mm) | 7.38" (187.5mm) | 10.5" (267mm) | 9.45" (240mm) | 14.9" (378mm) |
SIZING GUIDE
Size | Inches | CM |
---|---|---|
14 | 3'3" - 3'7" |
MANUALS, GUIDES & DOWNLOADS
Downloadable PDFs can be found in Manuals & Guides
*Specifications are subject to change without notice
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
