Skwad 2

Skwad 2

$1,999.99
$1,999.99 $1,999.99
Sale Sold out

SKU: 35800

All fun, all the time. Built off our tried & true Skwad E-bike platform, the Skwad 2 features the same great aluminum frame, 48V battery, 6-spoke mag wheels and 7-speed drive train, but with a 500W motor and a lighter single-crown suspension fork. Five levels of pedal assist to keep your cadence on-point. Easy to handle on the road, easy to store/transport and easier on the wallet, too.

OWNERS MANUAL

SKWAD Owners Manual

Color

View full details

COMPATIBLE RACKS & ACCESSORIES

  • Rack Configuration 1

    Pictured: Skwad Hybrid UNI Front Carrier

    Shop Racks

  • Rack & Accessory Configuration 2

    Pictured: Skwad Hybrid UNI Front Carrier with ZAP EASY Top Bag

    Shop Crates & Bags

  • Rack & Accessory Configuration 3

    Pictured: Skwad Hybrid UNI Front Carrier with Bakery Crate

    Shop Baskets

FEATURES

  • 6061 T6 Aluminum frame. Tapered head tube, internal downtube battery and built-in grid mounting plate
  • Bafang 500W drive unit
  • 48v, 13.2AH internal downtube battery, UL certified
  • 40+ mile range
  • Dual-piston hydraulic disc brakes with 180mm rotors, front & rear
  • LED front headlight and rear brake alert light
  • Left-side thumb throttle, five levels of pedal assist
  • Alloy 6-spoke mag wheels with 20 x 4" Kenda tires
  • Single-crown suspension fork, 100mm travel
  • E-bike classification: Class 2, 500W/20MPH

SPECIFICATIONS

FRAMESET
Frame6061 T6 Aluminium; tapered head tube and internal battery. Built-in grid mounting plate
Fork100mm travel I Single crown I 32mm Aluminum stanchions
ColorsMatte Black
DRIVETRAIN
CranksForged aluminum | 170MM
Pedals9/16" chromoly axle, alloy body
ChainKMC Z7 | 7SPD
Bottom BracketSquare Taper | 73mm | 148mm Spindle I Cadence Sensor
Front Derailleur

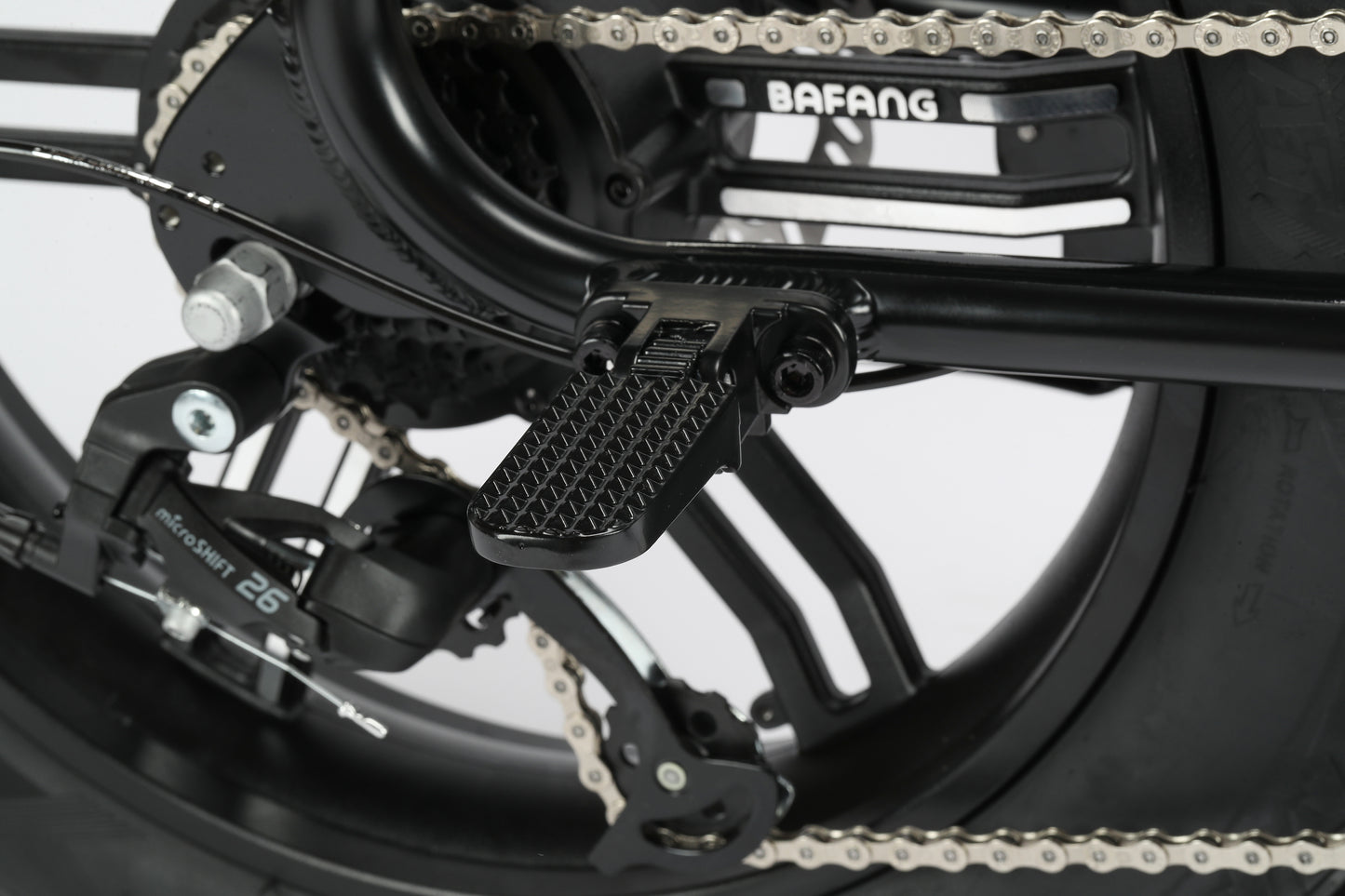

Rear DerailleurMicroshift RD-M26L
Derailleur ShifterMicroshift TS39-7
Freewheel/CassetteShimano mf-TZ500-7SPD 14-28T
Drive UnitBafang 500W. Class 2, 500W/20MPH, five levels of pedal assist
BatteryBafang 48V 13.2Hh 576WH, 13S4P, EVE 2900 cells, UL certified
WHEELS
TiresKenda Krusade 20"X4"
Wheels/RimsBafang Alloy 6 Spoke Mag Wheel
BRAKING SYSTEM
BrakesRush Dual Piston | Open System | 180mm Rotors | STD Mount
Brake LeversRadius 2.5 Finger | Sensor Control Cut Off | Reach Adjustment
OTHER COMPONENTS
Grips/TapeDual locking 135mm Velo Grips
HandlebarHaro Baseline 2-piece 9.5"
StemHaro Baseline 48mm reach
Headset1-1/8" - 1-1/5" tapered internal headset
SaddleHaro Cafe
Seat Post
ExtrasRear brake light. LED headlight. Left thumb throttle

GEOMETRY

SIZE20
A. Top Tube (Effective)668mm (26.30")
B. Seat Tube (C-T)460mm (18.1")
C. Standover Heightmm (")
D. Head Tube Lengthmm (")
E. Head Angle71°
F. Seat Angle°
G. Wheelbase
H. Chainstay466mm (18.3")
I. BB Drop
J. Stem Length
K. Bar Width
L. Crank Length
M. Wheel Size

*Specifications are subject to change without notice

*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
