Johnny 5

Johnny 5

Regular price $1,499.99
Regular price $1,899.99 Sale price $1,499.99
Sale Sold out

SKU: SKU:22880

100% BMX inspired, the Johnny 5 Electric has all the big bike creature comforts with all the power to take you there. Twin top-tube aluminum frame, chromoly fork, 500W rear hub matched to a 672WH Samsung battery. 28 mile range. Hit the throttle and let the good times roll!
Color

View full details

FEATURES

  • Full 6061 Aluminum frame with twin top tube, tapered 1-1/8" - 1-1/5" headtube, 25.4" top tube, 17.25" chain stay, 61.9° seat tube, and 67° head tube.
  • Full chromoly 1-1/8" - 1-1/5" tapered, internally threaded steerer tube fork, M25 Alloy compression cap, 3/8" dropouts, and 28mm offset.
  • Bafang 48V, 500W 36H, rear hub
  • 672WH (48v, 14AH), 50 cell, Samsung internal down tube battery
  • 28 Mile Range +/- (tested on level 2 on rolling roads)
  • Five power levels, left side display
  • Right side thumb throttle
  • Full pedal assist

PRODUCT INFORMATION

SPECIFICATIONS

Specifications
FRAMESET
Frame6061-T6 Heat treated aluminium twin top tube frame.
ForkFull chromoly 1-1/8" - 1-1/5" tapered fork with 3/8" dropouts
ColorsBlack
DRIVETRAIN
Cranks3-pc Hollow forged aluminium with tapered square spindle - 170mm
Bottom BracketEuro square tapered pedal assist
Sprocket36t Alloy Chainring with aluminium chain guard
Gearing34/15
PedalsFPD PC 9/16"
ChainKMC 410 Z chain
Cassette16t Cassette
WHEELS
TiresKenda "Kwick Seven" 27.5" x 2.4"
Front HubSealed bearing, High flange, 36H female axle front hub
Rims27.5" Alloy 36h, Double Wall
BRAKING SYSTEM
BrakePromax Mechanical Disc Brake, 160mm Rotor
Brake LeverPromax 2.5 finger
Drive UnitBafang 500w
BatteryInternal 50 cell, 48V, 672WH
OTHER COMPONENTS
GripsBaseline Flangeless
HandlebarHaro 5" Legends 2-piece bar

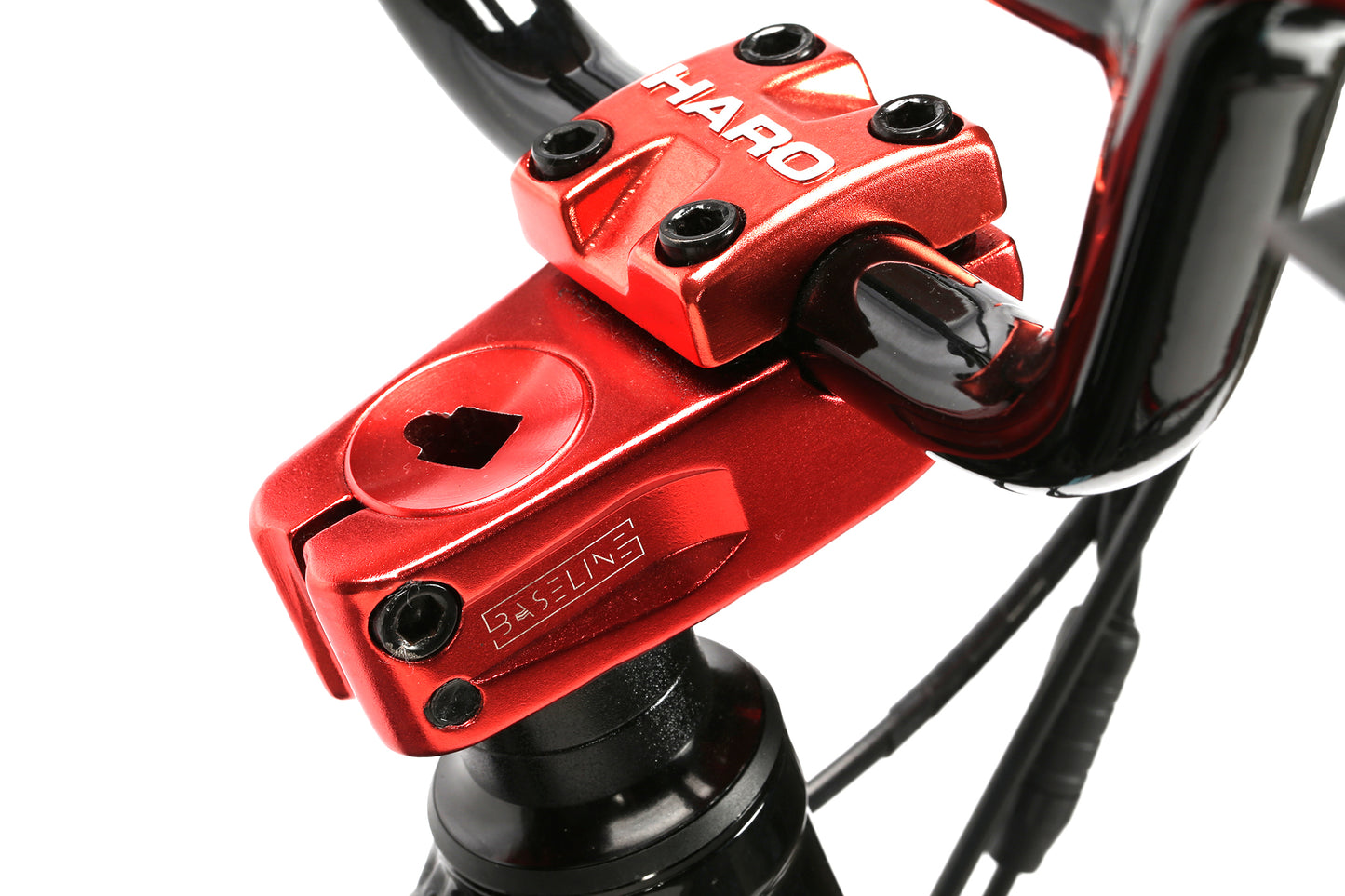

StemBaseline forged 48mm reach
HeadsetFSA 1 1/8" X 1.5" Sealed Bearing
SeatHaro Johnny 5 saddle
Seat PostAlloy, 30.9 x 350mm
Seat Post ClampQR Alloy, 31.8mm
ExtrasBafang LCD Display, 5 power settings; Thumb Throttle

GEOMETRY

Geometry & Sizing
SizeHead AngleSeat AngleTop TubeSeat TubeChainstayBB HeightStand Over
27.567°73°25.3" (645mm)17.9" (457mm)17.25" (440mm)11.3"28.75" (730mm)

SIZING GUIDE

Size Table
SizeInchesCM
27.5

MANUALS, GUIDES & DOWNLOADS

Downloadable PDFs can be found in Manuals & Guides
