Leucadia DLX

Leucadia DLX

$419.99
$419.99 $419.99
Sale Sold out

SKU: 22265

The classic freestyle BMX formula: Front and rear brakes, a Gyro detangler and four pegs. The Leucadia DLX has it all. Whether you're getting serious about BMX or getting back into it after some time away, this is bike checks the boxes. A 20.5" top tube has room to move, with 3-piece chromoly cranks and a sealed bottom bracket, 20 X 2.4" La Mesa tires for max traction and Haro Team grips and a top load stem in the control center, you get everything you need to nail the tricks and make the feels real.
Color
Size

View full details

FEATURES

  • Hi-ten frame with 18.5" or 20.5" top tube
  • Full hi-ten fork with tapered legs
  • Hi-ten bars 8.5" with Haro 1978 alloy top load stem
  • Haro 1978 3-piece chromoly 8-spline 165mm (on 18.5") or 170mm (on 20.3") cranks with loose ball USA BB
  • 25/9 gearing with sealed bearing 9T driver
  • Haro Baseline 48mm Forged stem
  • Haro MS5 20X2.35 Tire
  • Haro Team grips
  • Four pegs, front 990 brakes and Gyro

PRODUCT INFORMATION

SPECIFICATIONS

FRAMESET
FrameSteel Frame w/ 1-1/8" Headtube, 990 Brake Mounts & 14mm Axle Drop-outs
ForkSteel 1-1/8" Thredless w/ 990 Brake Mounts & Tapered Legs
ColorsMatte Black, Honey Mustard, Black/Red
DRIVETRAIN
CranksHaro Baseline 3-pc Cr-Mo 8 Spline 165mm / 170mm - 25t Steel Chainring
Bottom BracketAmerican
SprocketSteel Chainring
Gearing25/9
PedalsPoly Platform, Cr-Mo 9/16" Axle
ChainBaseine Chain
Cassette9t Driver
WHEELS
TiresHARO MS5 20 x 2.3"
Front Hub36h Steel Front
Rear HubAlloy 9t Semi-Sealed Cassette Rear
Rims20" Alloy 36h, Single Wall
BRAKING SYSTEM
BrakeRadius Alloy 990 U-Brake Front & Rear w/ GYRO
Brake LeverHaro Baseline Two Finger
OTHER COMPONENTS
GripsHaro Team Grip
HandlebarHaro Steel Bar, 8.5" Rise
StemHaro Baseline 48mm Reach
Headset1-1/8" Threadless

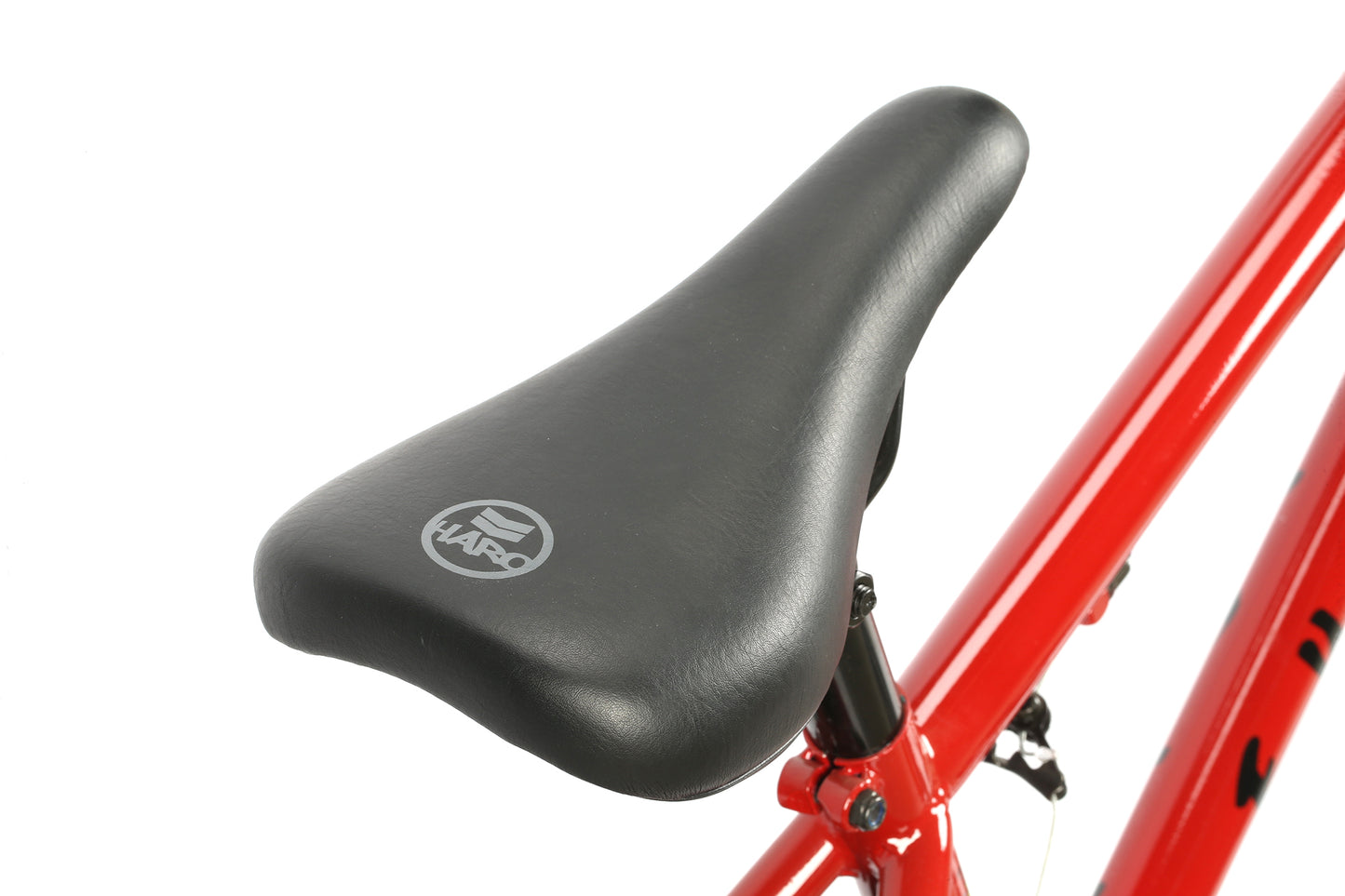

SeatHaro Padded Adjustable
Seat PostSteel 25.4mm
Seat Post ClampIntegrated
Pegs4-Pegs Steel
Extras4-Pegs Steel

GEOMETRY

SizeHead AngleSeat AngleTop TubeSeat TubeChainstayBB HeightStand Over
18.574.5°70°18.5" (470mm)10.2" (260mm)13.7" (349mm)11.5" (293mm)21.5" (546mm)
20.574.5°70°20.5" (520mm)10.2" (260mm)13.7" (349mm)11.5" (293mm)21.5" (546mm)
