Lineage Ground Master 26 2023

Lineage Ground Master 26 2023

Regular price $1,649.99
Regular price $1,649.99 Sale price $1,649.99
Sale Sold out

SKU: SKU:23653

The Ground Master 26" is the big brother to the 20" version with a few changes to keep it tight and right on a larger scale. You get the 1992-inspired all chromoly twin top tube frame and heat treated chromoly fork, Kneesaver bars and Fusion parts throughout. Down below, we're rolling steady on double-wall alloy rims, laced to sealed high flange hubs, mounted with Kenda Kranium 26 X 2.25" tires. Smooth, larger diameter pegs are easy on your feet. Chainstay mounted rear brakes and internally routed front brakes keep the bike in control, even when you aren't. "Tricks are for kids" does not apply to the Ground Master 26".
Color

View full details

FEATURES

  • 100% chromoly Lineage Ground Master frame with twin top tubes, hour glass Mid BB shell, integrated head tube and Lineage dropouts. 22.5" top tube length
  • 100% heat-treated chromoly Lineage fork with CNC 1-piece internal threaded steer tube, integrated bearing race, tapered legs, 15mm offset dropouts and 990 brake mounts with internal brake cable routing

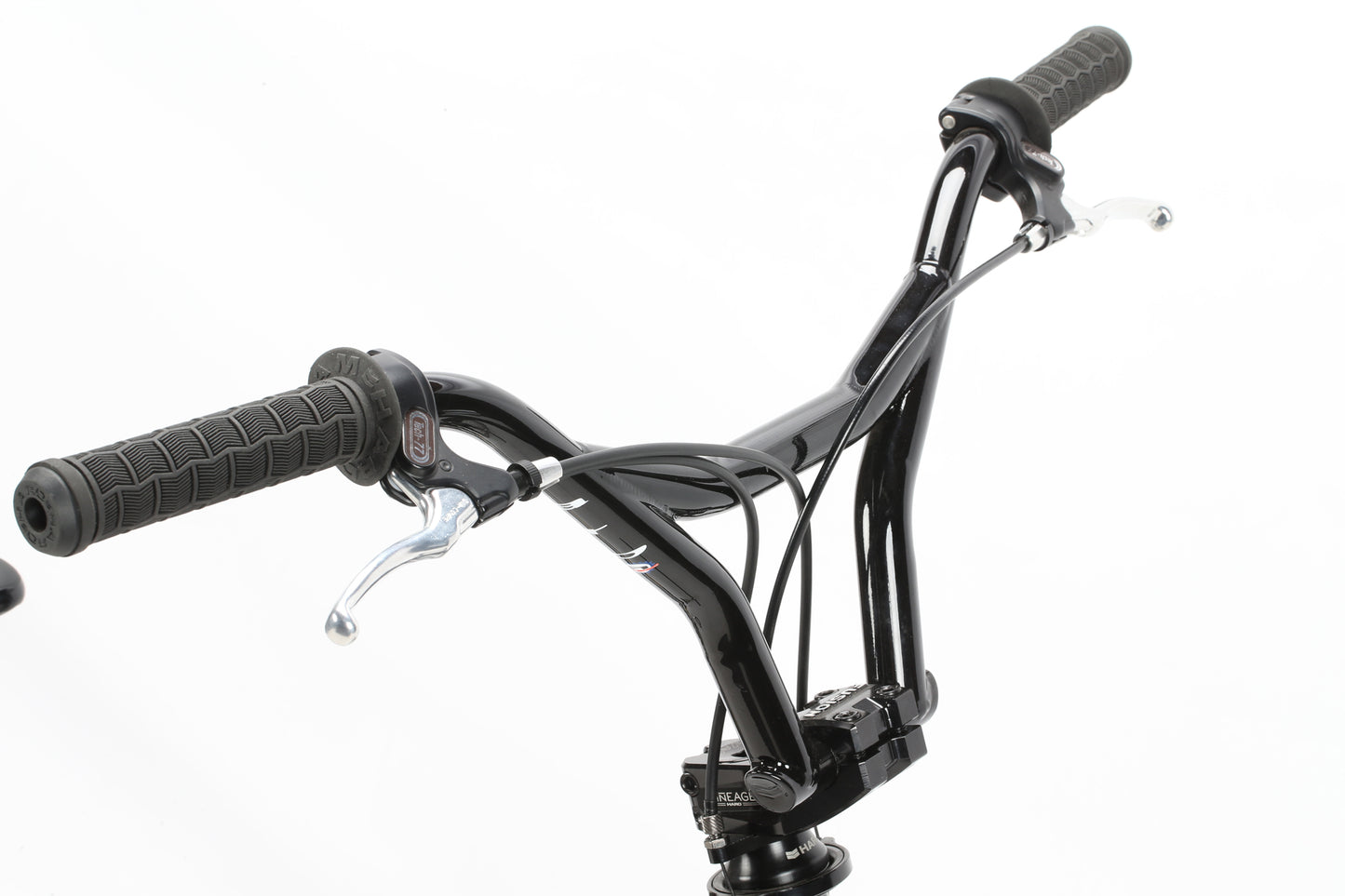

  • 100% heat-treated and butted chromoly Lineage Kneesaver 8.5" bars with Fusion Lineage CNC alloy top load stem
  • Lineage Fusion alloy 175mm cranks with 22mm chromoly spindle. Haro Lineage Fusion Disc CNC alloy 41T sprocket. Sealed Mid BB
  • 41/17 gearing
  • Fully sealed wheels with Lineage high flange hubs with freecoaster rear. Double-wall 36H alloy rims.
  • Kenda Kranium tires 26 x 2.1" front and rear
  • Haro Lineage padded Pivotal stealth seat with alloy Lineage Pivotal post
  • Haro Fusion pedals
  • CNC alloy pegs
  • CNC alloy gyro with Teflon bearing
  • Dia-Compe Hombre FS996 (front) and AD996 (rear) brakes with Tech 77 levers.
  • Haro Lineage alloy two-bolt seat post clamp

PRODUCT INFORMATION

SPECIFICATIONS

Specifications
FRAMESET
FrameLineage Master Bashguard 26" frame - 22.5" full crmo; internal h/t crmo - with removable rotor tab mounting holes; removable brake mounts.
ForkHaro Fork with 990 mounts and internal cable routing; 28mm offset; 3/8" axle; cr-mo steerer; tapered fluted legs
ColorsBlack
DRIVETRAIN
CranksHaro Lineage heat treated 3-piece alloy 175mm cranks (bolt drive interface) rsd and lsd; 22mm spindle
Bottom BracketSealed MID BB
SprocketFusion disc sprocket; cnc bolt drive sprocket; 5mm alloy ring; 1/2" x 1/8" x 41t ; solid ring w/ machined teeth, included sprocket adapter
Gearing41/17
PedalsHaro Fusion; alloy pedal body; crmo axle
ChainKMC K1Sl; 1/2 x 1/8; Narrow Silver Super Lite
WHEELS
TiresKinda Kranium tire; 26x2.25; 60 max psi
Front Hub48h alloy hub body; 3/8"x100wx155l; crmo 155mm straight axle; 2 sealed bearings
Rear HubHaro Lineage sealed bearings; 17t Freewheel; 17mm steel flange axle nuts; all hardware in cp finish including cone nuts, axle nuts
RimsHaro Lineage 26x1.75"; 48h; (w200) (double wall welded joint)
BRAKING SYSTEM
BrakeDia-Compe fs996 "hombre" u-brake; cold forged aluminum arms; dual spring tension adjustment w/anchor bolt parts
Brake LeverDia-Compe "tech-77" lever without stopper; right and left side; diecast aluminum bracket with hinged clamp; cold forged aluminum lever
RotorTeflon bearing gyro - full cnc 6061 t6 included a-plate
OTHER COMPONENTS
GripsHaro team grip; 145mm length x 29mm diameter; 50mm od flange (low); kraton a15 material (super soft).
HandlebarLineage kneesaver bar 8.5"; 100% heat treated; multi-butted
StemHaro Lineage fusion top load stem; T6 alloy; cold forged with cnc; 52mm
HeadsetSealed Integrated, 1 1/8"
SeatHaro Fusion slim stealth pivotal seat
Seat PostHaro Fusion stealth pivotal seat post; 25.4 x 300mm
Seat Post ClampHaro Fusion twintorc clamp; alloy 6061
Pegs6061 alloy pegs; 34mm od; 110mm length; include 4 total pegs

GEOMETRY

Geometry & Sizing
SizeHead AngleSeat AngleTop TubeSeat TubeChainstayBB HeightStand Over
22.573°69°22.5" (571.5mm)10.2" (368mm)13.7" (461mm)11.5" (293mm)21.5" (546mm)
